Actor G2 Ceiling Actor G2 Ceiling DP White DALI CLO

Selectable colour temperature via DIP-Switch ColourTemp
Replaceable LED and driver
Complete luminaire for surface-mounted ceiling and wall installation
Opal, microprismatic, double parabolic or asymmetric glare shield
Dimmable luminaire with adjustable output via DIP switch Power
Control: Dimmable, DALI
Easily link up to 15 luminaires Accessories: Extension arm, wall bracket, ceiling grid mount, suspension kit Supplied with cable entry – plain end cap without entry available on request

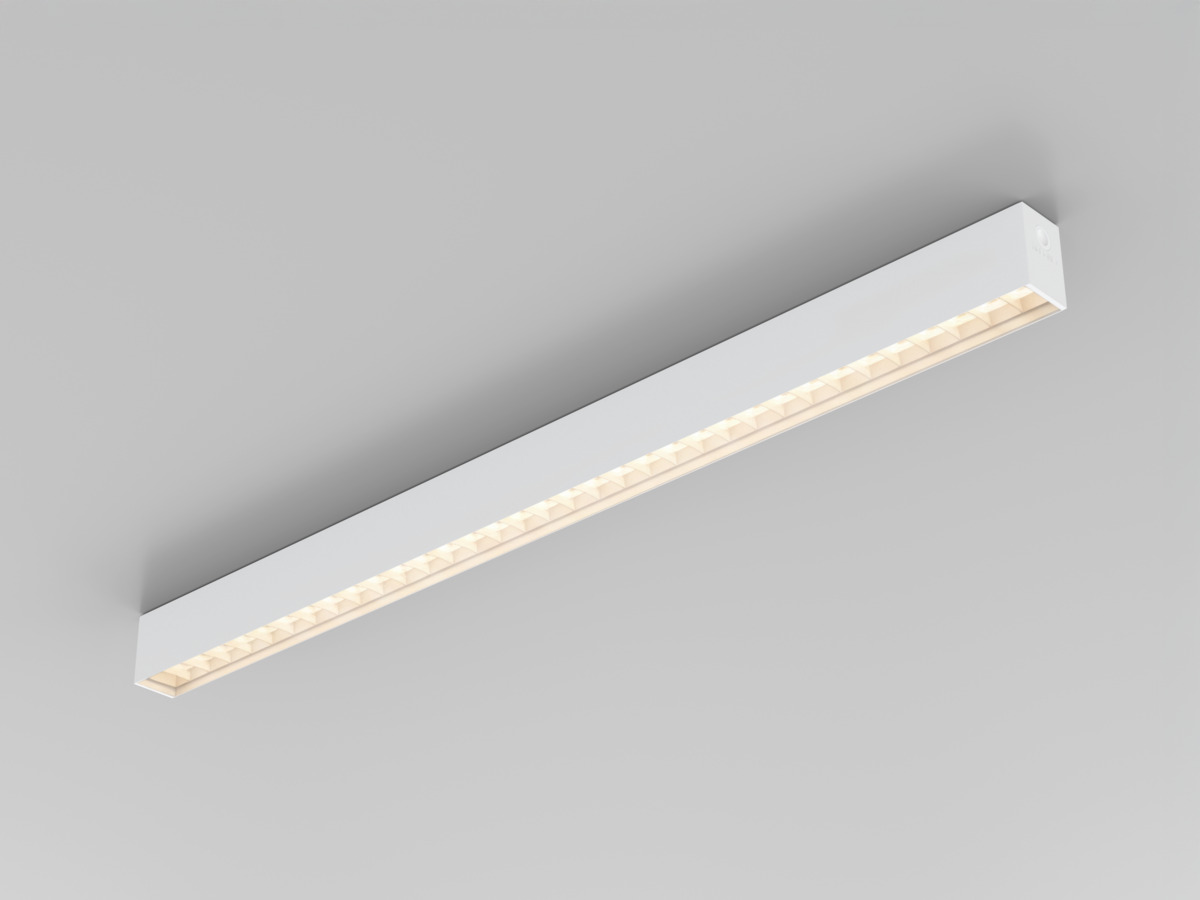

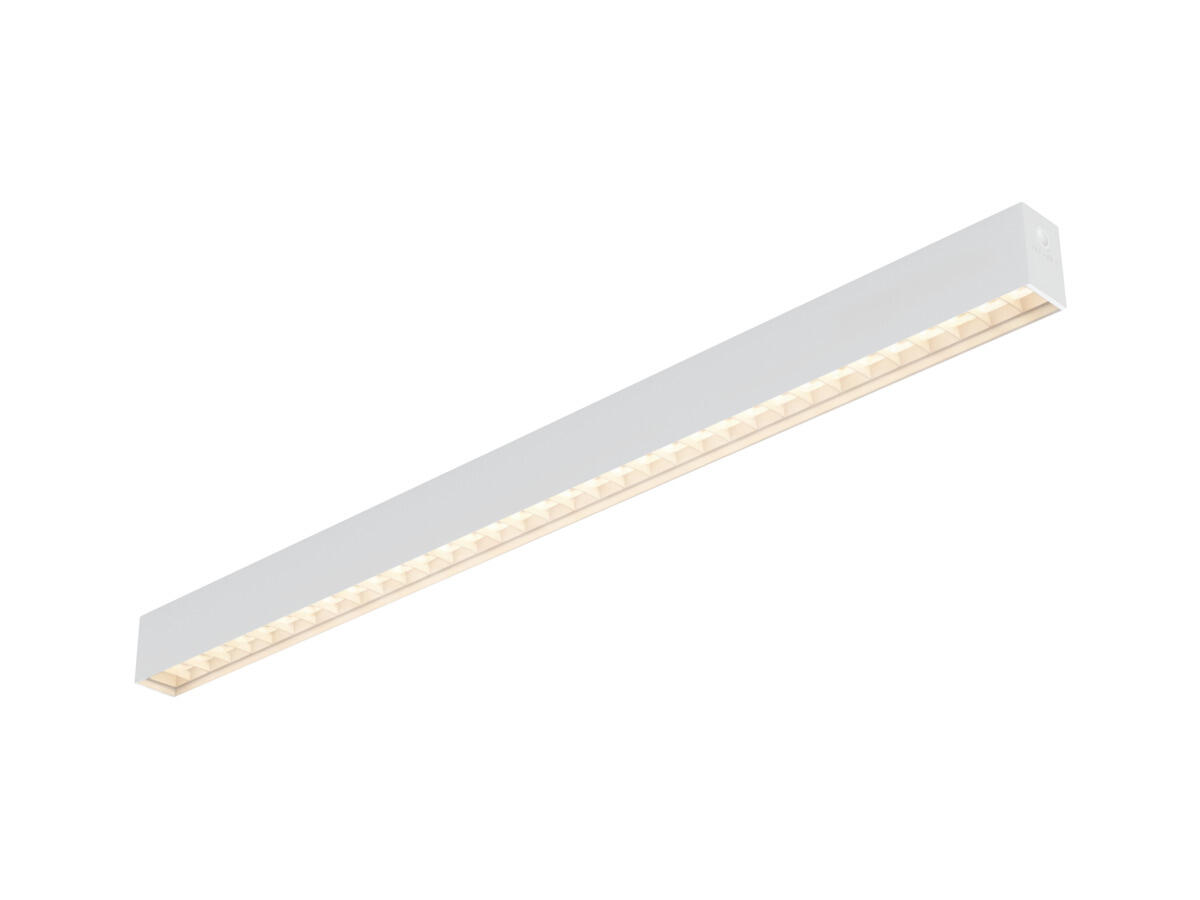

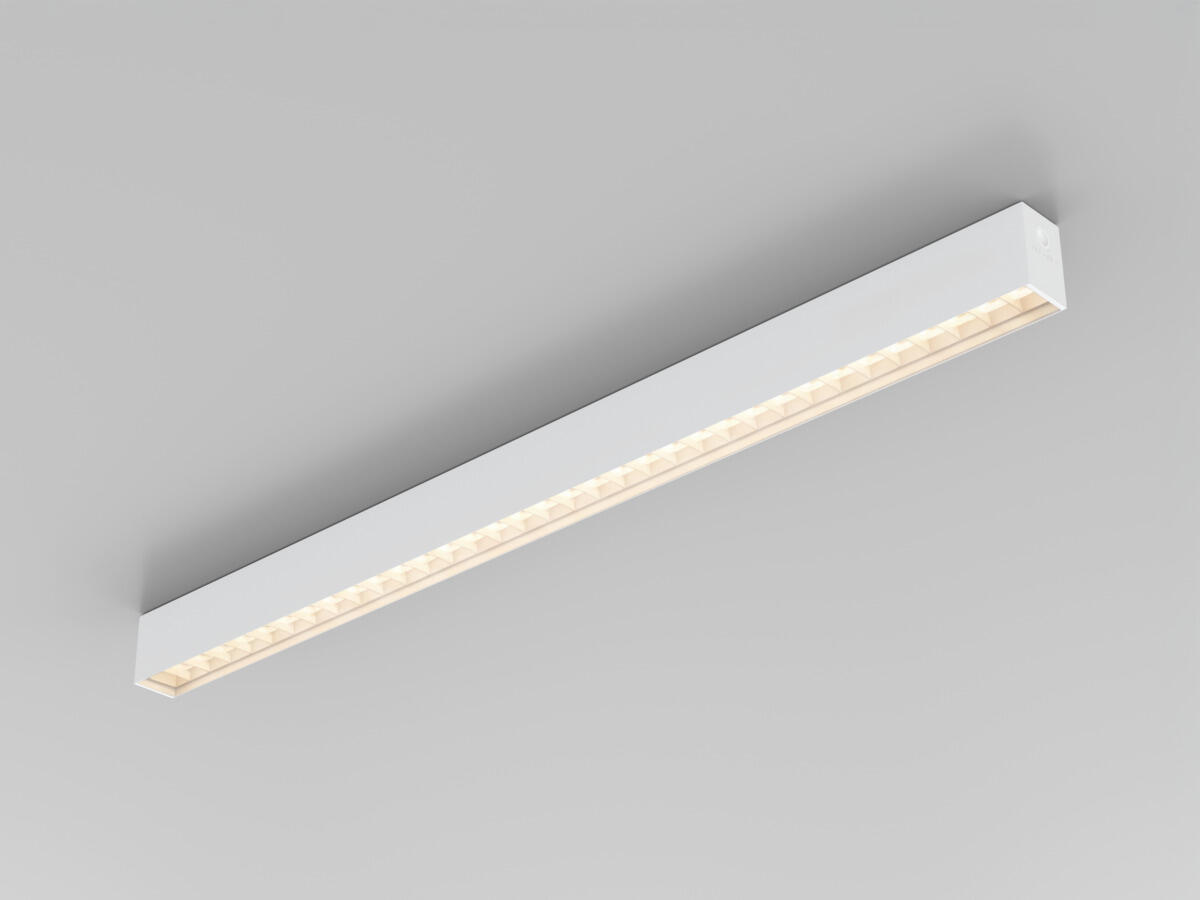

Actor G2 Ceiling is a dimmable luminaire via traditional rotary or push dimmer for surface mounting in fixed ceilings. Its clean, edge-aligned design blends seamlessly into the ceiling for a discreet look—ideal for spaces where the light should be visible but not dominant. The built-in DIP switch allows you to adjust the colour temperature directly on site. No need to plan everything in advance; the light can be fine-tuned after installation. The modular construction means you only replace the necessary part. Actor G2 Ceiling is perfect for corridors, entrances, and for wall or picture lighting. It can be installed individually, linked into continuous light lines, or arranged in patterns that follow the room’s shape. Each luminaire acts as both leader and follower. For suspended mounting, a separate suspension kit is available, providing downlight only. Choose from a range of glare shields to adapt the light to the setting: opal, microprismatic, double parabolic or asymmetric or highlighting walls and artwork.

We can customize the product See the possibilities of customization

GTIN	Item Name	Color	Max. Luminaire Lumen (lm)	Type of Dimming	Beam Angle (°)
7392971155074	Actor G2 Ceiling DP White DALI CLO	White	2460	DALI 2, Push 230V	75
7392971155067	Actor G2 Ceiling DP White DIM	White	2790	Trailing Edge	75
7392971155081	Actor G2 Ceiling DP Black DIM	Black	2670	Trailing Edge	75
7392971155098	Actor G2 Ceiling DP Black DALI CLO	Black	2300	DALI 2, Push 230V	75
7392971155104	Actor G2 Ceiling MP White DIM	White	3490	Trailing Edge	80
7392971155111	Actor G2 Ceiling MP White DALI CLO	White	3020	DALI 2, Push 230V	80
7392971155128	Actor G2 Ceiling MP Black DIM	Black	3060	Trailing Edge	80
7392971155135	Actor G2 Ceiling MP Black DALI CLO	Black	2480	DALI 2, Push 230V	80
7392971155142	Actor G2 Ceiling OP White DIM	White	3580	Trailing Edge	70
7392971155159	Actor G2 Ceiling OP White DALI CLO	White	3090	DALI 2, Push 230V	70
7392971155166	Actor G2 Ceiling OP Black DIM	Black	3260	Trailing Edge	70
7392971155173	Actor G2 Ceiling OP Black DALI CLO	Black	2660	DALI 2, Push 230V	70
7392971155180	Actor G2 Ceiling Asym White DIM	White	2080	Trailing Edge	50
7392971155197	Actor G2 Ceiling Asym White DALI CLO	White	2080	DALI 2, Push 230V	50
7392971155029	Actor G2 Ceiling Asym Black DIM	White	1910	Trailing Edge	50
7392971155036	Actor G2 Ceiling Asym Black DALI CLO	White	1920	DALI 2, Push 230V	50

Show more articles

Description: GTIN 7392971155074

Item Name Actor G2 Ceiling DP White DALI CLO

Warranty 5 years
Light Technical Data: Min. Armaturlumen (lm) 2300

Max. Luminaire Lumen (lm) 2460

Light Source LED

Light Source Included Yes

Replaceability Replaceable LED by professional

LED Colour White

Colour Temperature (K) 3000, 4000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 1605

Beam Angle (°) 75

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 192

Life Time h Ta °C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L100

Lumen maintenance 75 000h L100

Lumen maintenance 100 000h L100

LLMF @ 50 000h 1

LLMF @ 100 000h 1

Life Time Driver 100 000h/10%

Flicker (PstLM) 0,0297

Stroboscopic effect (SVM) 0,0023
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240V

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Max. Power Luminaire (W) 26

Max. System Power (W) 26

Max. Efficiency Luminaire (lm/W) 95

Max. Efficiency System (lm/W) 95

Containing light source energy efficiency class (EU) 2019/2015 C
Operation and Connection: Dimmable Yes

Type of Dimming DALI 2, Push 230V

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Driver Manufacturer TCI

Connection (type) Quick Terminal

Connection (mm2) 5x0,75-2,5

Through Wiring No

Strain Relief No

Power Factor ʎ 0,9

Efficiency (%) 89

Power loss (W) 0,5

Leakage current (mA) (at 230 V, 50 Hz, full load) 10

THD (%) 10

Standby Power 0,5

Constant Current (mA) 400, 450, 500, 550

Min. Ta (°C) 0

Max. Ta (°C) 35

Max. Tc (°C) 80

Dimming secondary side AM

Frequency PWM dimming (Hz) >300

Memory Function Power Failure No

Protection Against Short Circuit, Overload

Inrush current (max/time) 5A 50µs

Mains surge protection DM (kV) 1

Mains surge protection CM (kV) 2

Fuse B10 (pcs) 31

Fuse B16 (pcs) 50

Fuse C10 (pcs) 52

Fuse C16 (pcs) 85
Color and material: Material Aluminium

Color White

Halogen free No

Environmental Assessment EPD
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class I

Installation Built-in, Surface mounted, Wall, Ceiling, System ceiling

Approval Marks CE

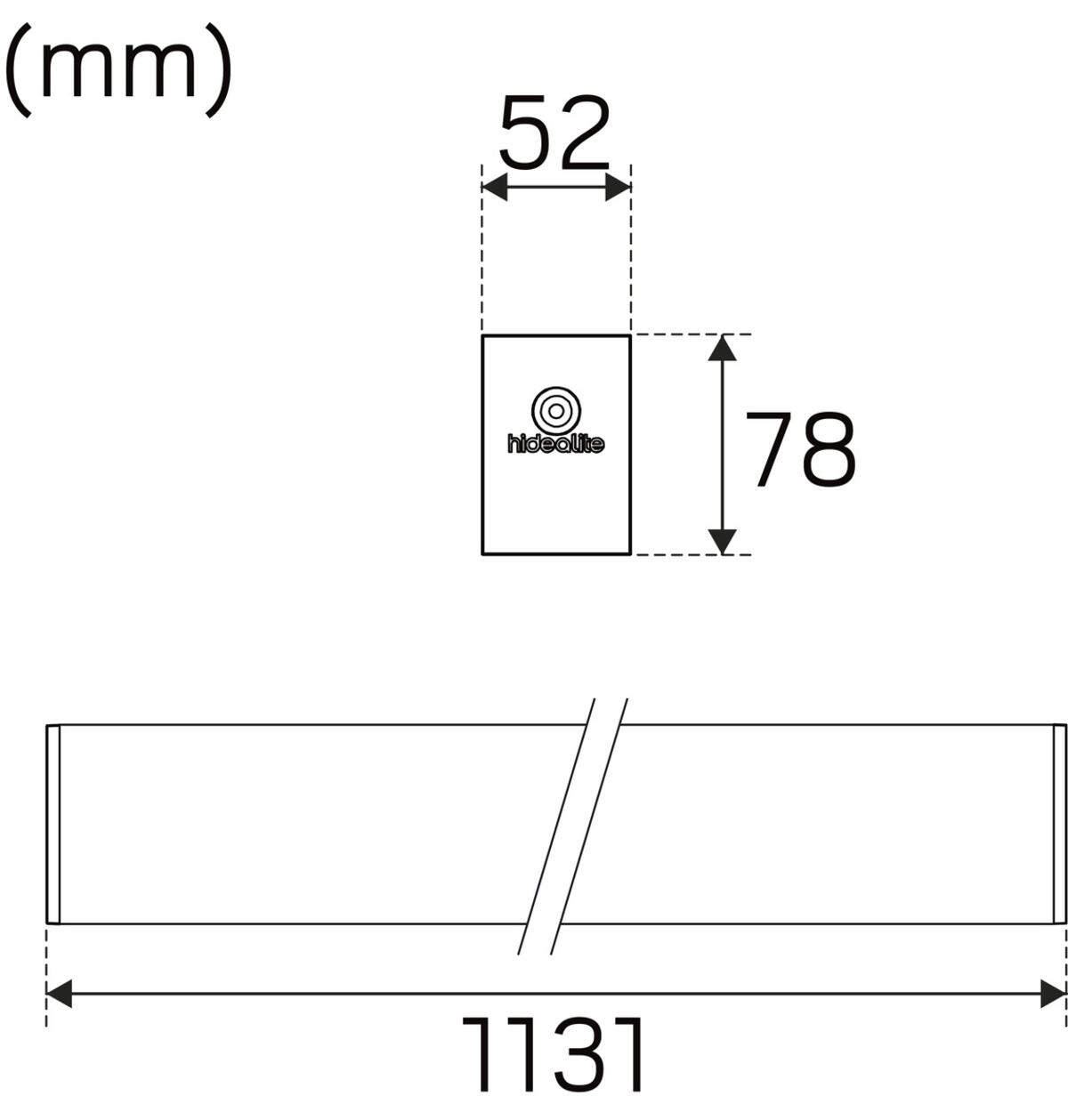

Length (mm) 1131

Width (mm) 52

Height (mm) 78

Weight (kg) 2,14

DIP-table

mA	Effect	3000K	4000k
450mA	22W	2300lm	2460lm

Show table

Show DIP-table

Actor G2 Ceiling DP White DALI CLO

mA	Effect	3000K	4000k
450mA	22W	2300lm	2460lm

Factory setting: 450 mA, 3000K

Actor Ceiling

Luminaire for surface mounting in fixed ceiling or for recessed, without accessories, in ceiling with visible support profile. The LED light source is integrated with the anti-glare shield which is lowered and creates plenty of space for installation. Adapted for recessed installation without accessories in a ceiling with visible support profile. Provides a discrete and elegant impression in the ceiling. Meets screen and UGR requirements in standard conditions. Set the light level for different scenes via DALI/Push or control the lighting On/Off via an external switch.

Actor G2 Track

Actor G2 Track is a dimmable luminaire via traditional rotary or push dimmer that combines linear light with full flexibility in a 3 phase track. Install individually or position units end-to-end to create long light lines. Compatible with standard 3-phase tracks and can easily be combined with spotlights for added variation. The built-in DIP switch allows you to set the colour temperature on site. No advance configuration required; the light can be tuned once installed. Its modular design means only the necessary part needs replacement. Choose from various glare shields to match the environment: opal, microprismatic or double parabolic. Combine with track-mounted spotlights to achieve dynamic lighting that enhances both the space and its details.

Ray

Dimmable 230V luminaire with opal cover. For an even, homogenous light in public environments where striking lines of light are desired. Selectable colour temperature via DIP-Switch ColourTemp. Designed for easy installation in false ceilings with visible support profile. 40cm cable with 230V quick connection at each end to make it easy to illuminate from every other board without accessories. Integrated phase dimmable driver. Comes with 2m cord set and unearthed plug plus hole template. 3m extension cable available as accessory.

Ray Corner

Dimmable 230V luminaire shaped as a 90° corner with opal cover. For an even, homogenous, lighting in public environments. Selectable colour temperature via DIP-Switch ColourTemp. Designed for easy installation in false ceilings with visible support profile. 40cm cable with 230V quick connection at each end to make it easy to illuminate from every other board without accessories. Integrated phase dimmable driver. Comes with 2m cord set and unearthed plug plus hole template. 3m extension cable available as accessory.

Actor G2 Pendant

Actor G2 Pendant is a suspended interior luminaire designed for easy installation and high visual comfort. Available in white or black powder-coated aluminium, it suits any modern environment. The suspension kit allows you to adjust the height effortlessly, and the built-in DIP switch lets you set both light distribution and colour temperature directly on site—quickly, precisely and without tools. No need to decide everything in advance; the light can be adjusted once the installation is complete. The design is modular, meaning you only replace the needed part—not the entire luminaire. It can be installed as a single unit or linked into long light lines. Choose between up/down light distribution of 30/70 or 50/50, depending on whether you want more work light downwards or ambient light upwards. Manual dimming via one or two pull cords. Select between opal, microprismatic or double parabolic glare shields. The double parabolic version meets screen and UGR requirements (UGR < 19 for offices) under standard conditions. Delivered complete with ceiling mounting accessories, earthed cable set or 5-pole ALI cable with open ends.

Sky Panel

Efficient LED panel available with opal or microprismatic diffuser. Ideal for installation in ceilings with visible T-bars, making it perfect for office environments, schools, and areas where uniform and glare-free lighting is crucial. A surface-mount frame with pre-punched holes for cable routing is available as an accessory. Selectable colour temperature via DIP-switch ColourTemp: 3000K or 4000K. Sky MP meets screen and UGR requirements (UGR<19) in accordance with EN 12464-1 under standard conditions. Dimmable panels come with a 2 m pre-mounted cable set, Linect, or linkable Q-box. DALI-2 with Linect or Q-box and DALI CLO with Q-box—delivered with plug and driver. DIM 600x600 is also available in a 5-pack for efficient installation in larger projects.

Actor G2 Ceiling

Actor G2 Ceiling DP White DALI CLO

Accessories

Actor G2 Bracket System Ceiling White 2p

Actor G2 Extension arm White

Actor G2 Wall bracket White

Actor G2 Suspension kit White

Actor G2 Extension arm Black

Actor G2 Wall bracket Black

Actor G2 Suspension Kit Black
