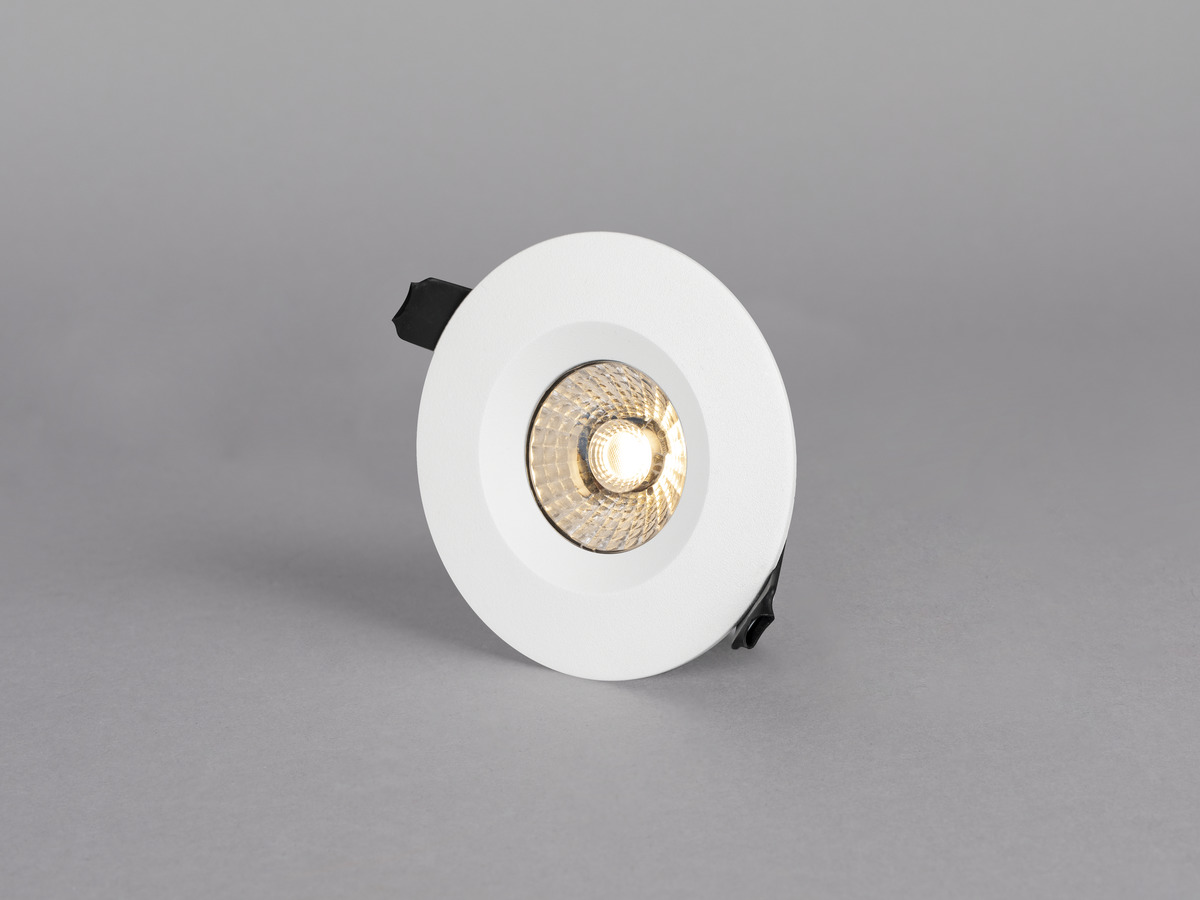

Comfort G3

Can be installed both indoors and outdoors

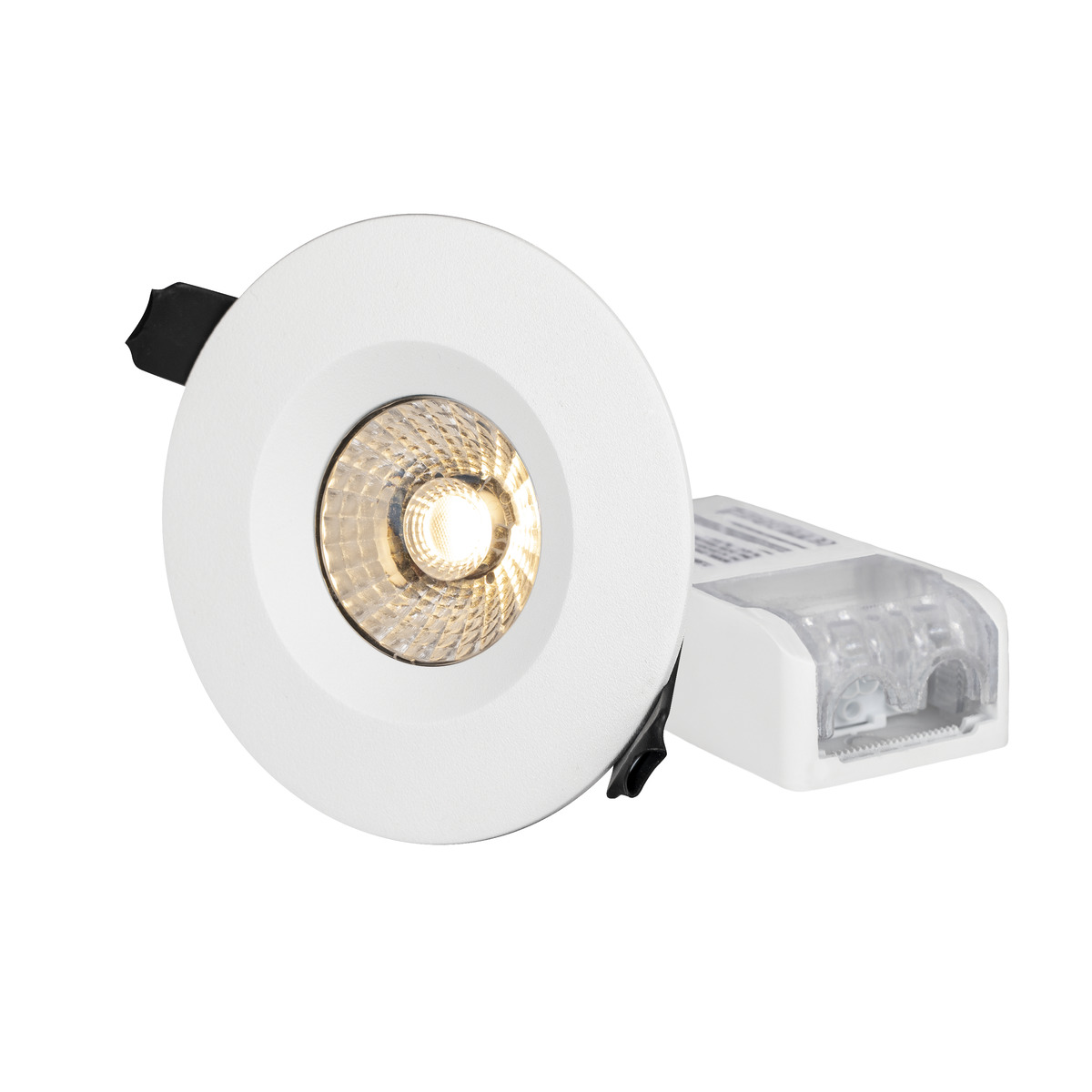

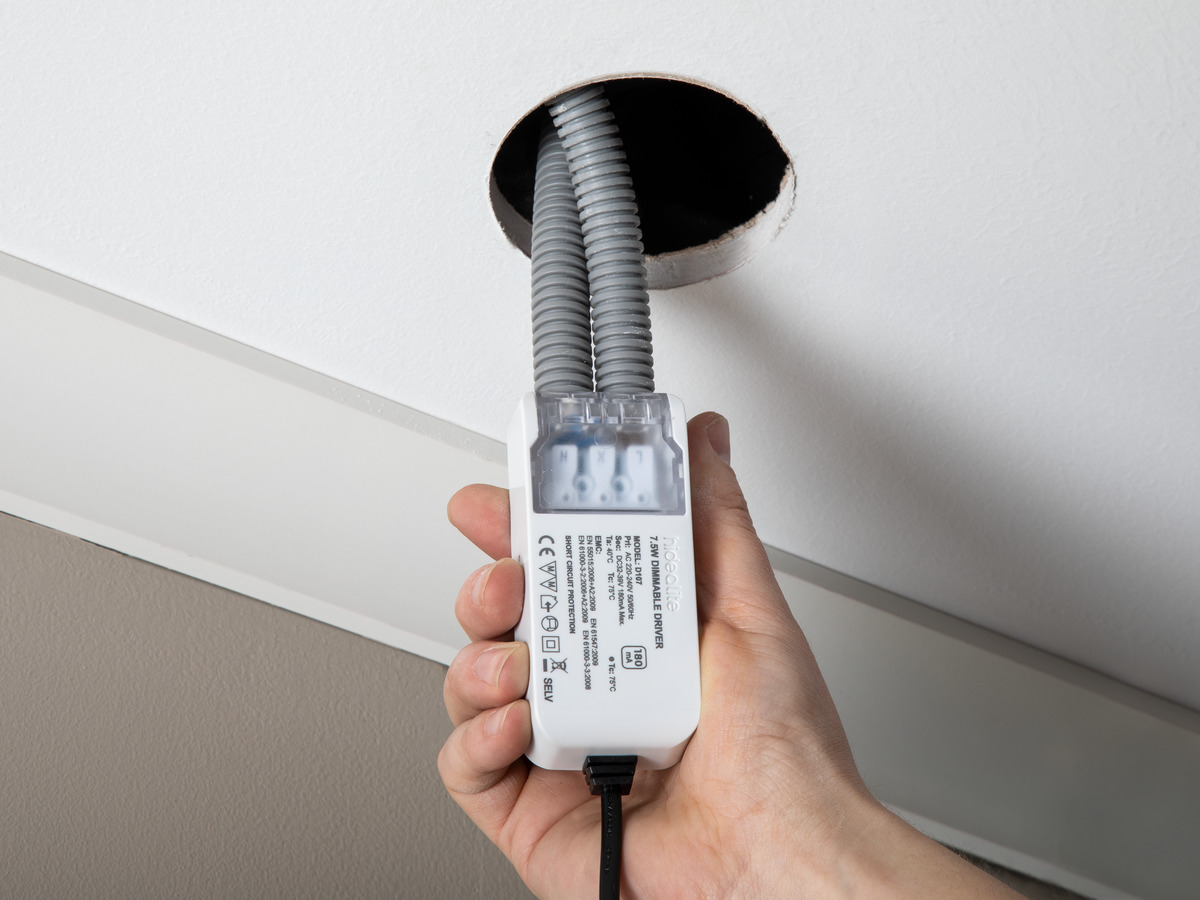

Comes complete with mains dimmable driver for cable or flex hose 16mm
Push-in, loop-in, loop-out terminal block and screwless strain relief

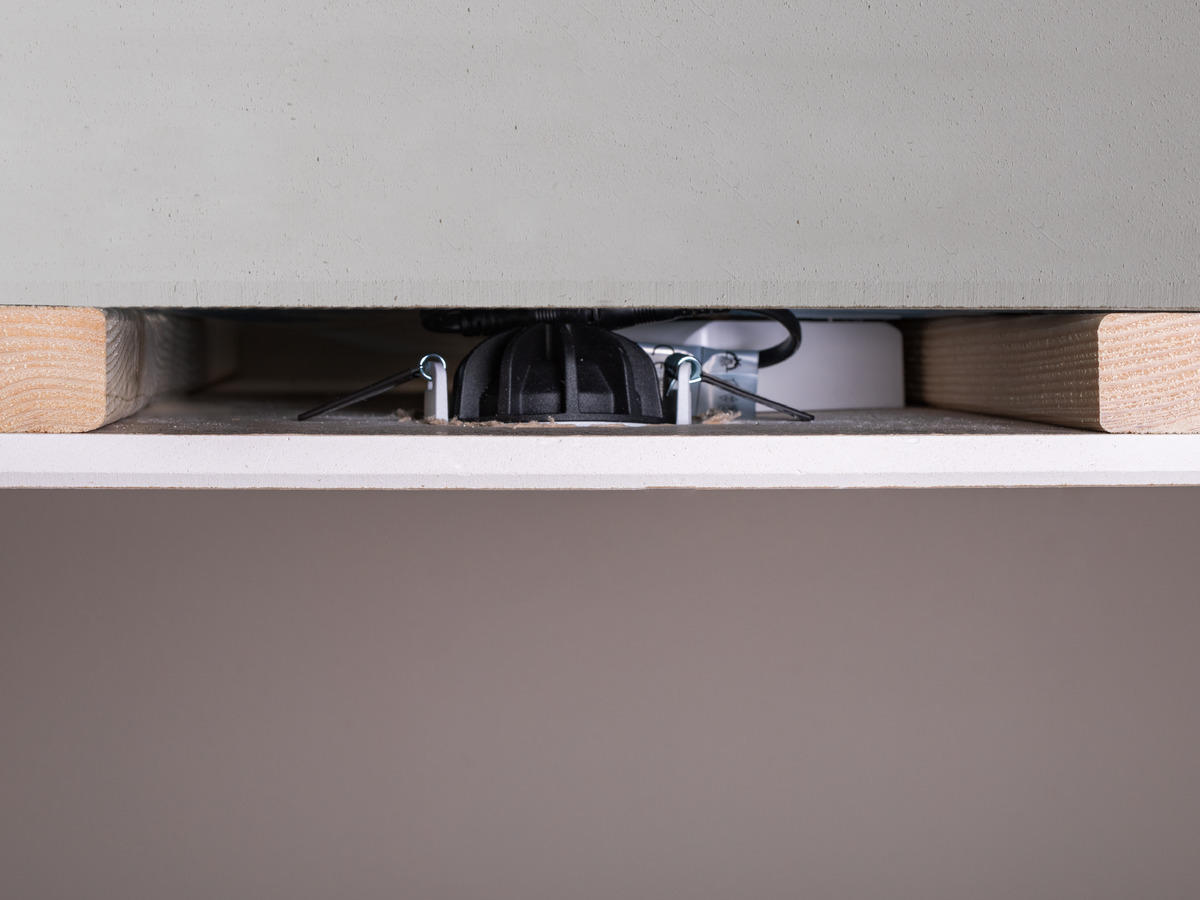

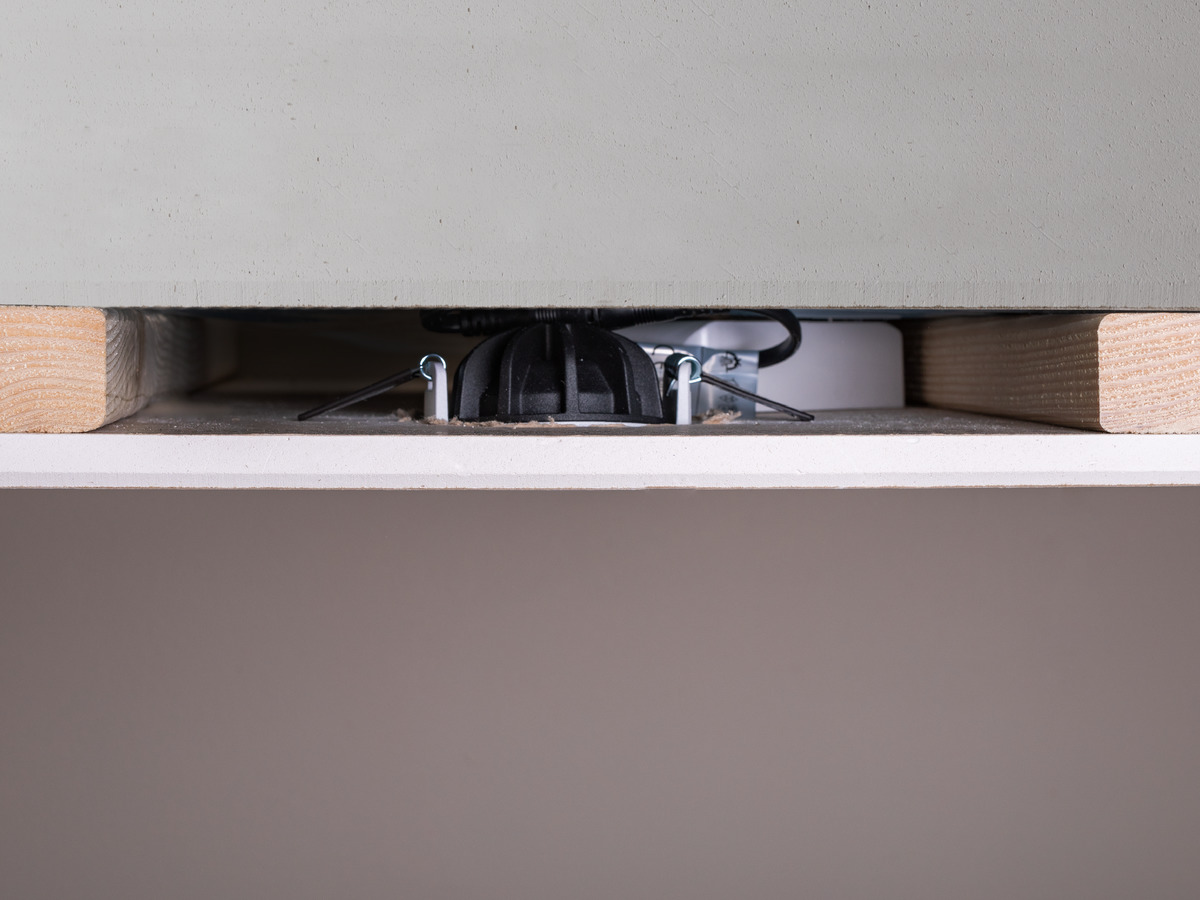

With its high lumen output, fantastic colour rendering and high efficiency, Comfort G3 is in a class of its own. High performance IP44 downlight, just as good for general lighting at home as in public spaces. Luminaire with Ø73-84mm cut-out. Can be installed in 28mm secondary spaced boarding with 13mm gypsum and Ø90mm cut-out. Complete with mains dimmable driver, 3-pole push-in terminal for through wiring and strain relief for cable or flex hose 16 mm. Dimmable with the most commonly available dimmers on the market. Can be delivered with Converter DALI.

Variants	GTIN	Item Name	Colour Temperature (K)	Luminaire Lumen (lm)
	7392971135922	Comfort G3 White Tune	2700	520
	7392971135946	Comfort G3 White 3000K	3000	690

Description: GTIN 7392971135922

Item Name Comfort G3 White Tune

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 520

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour Tune

Colour Temperature (K) 2700

Range Colour Temperature (K) Tune 2000-2700

Colour Rendering Index (Ra) >95

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 1170

Beam Angle (°) 36

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L80 100 000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L90

Lumen maintenance 75 000h L86

Lumen maintenance 100 000h L82

LLMF @ 50 000h 0,9

LLMF @ 100 000h 0,82

Life Time Driver 50 000h/10%

Flicker (PstLM) 0,02

Stroboscopic effect (SVM) 0,028
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 6,5

Power Luminaire (W) 7,5

System Power (W) 7,5

Efficiency Luminaire (lm/W) 69

Efficiency System (lm/W) 69

Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge, Leading Edge

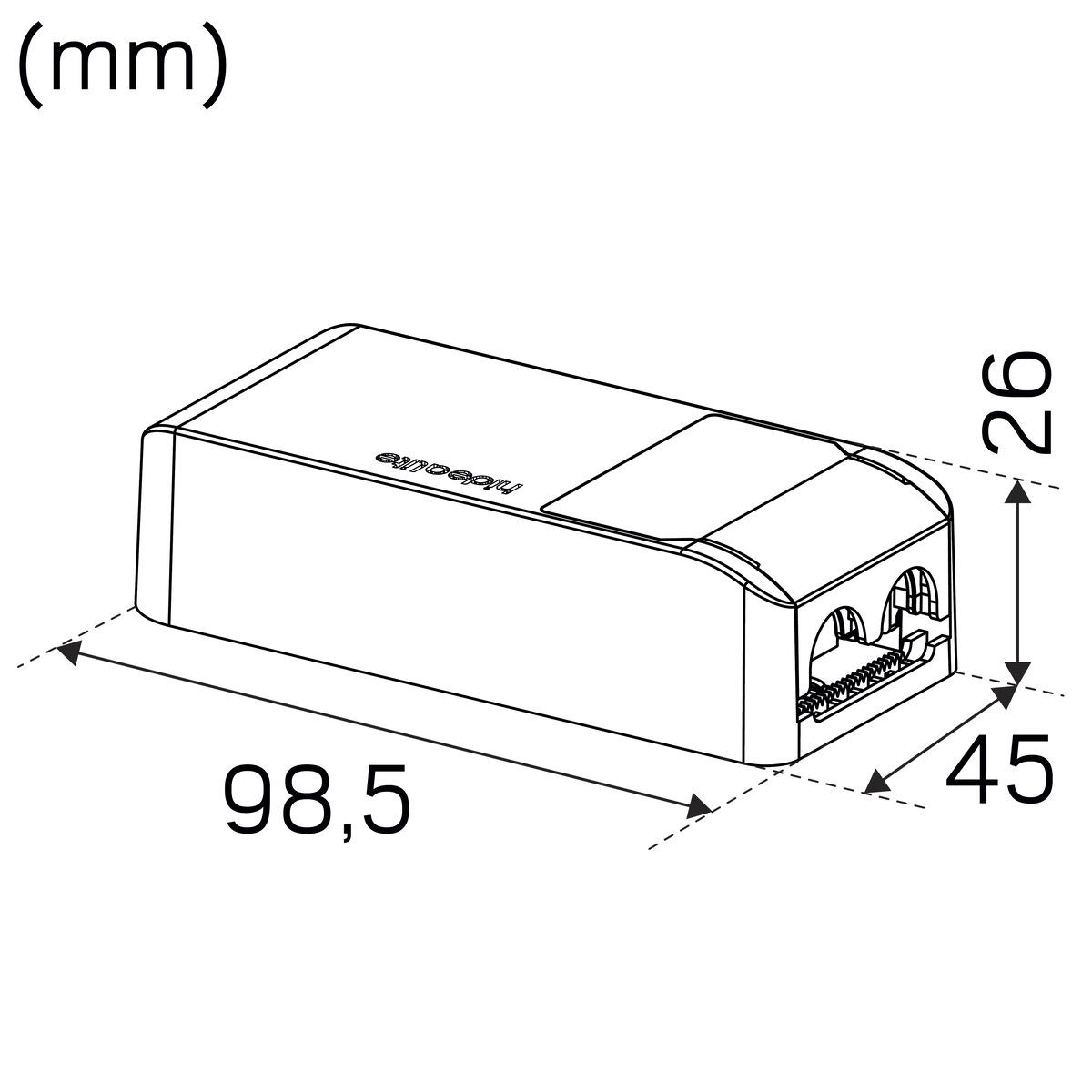

Driver Included Yes

Driver Model Constant Current

Driver Type Stand Alone

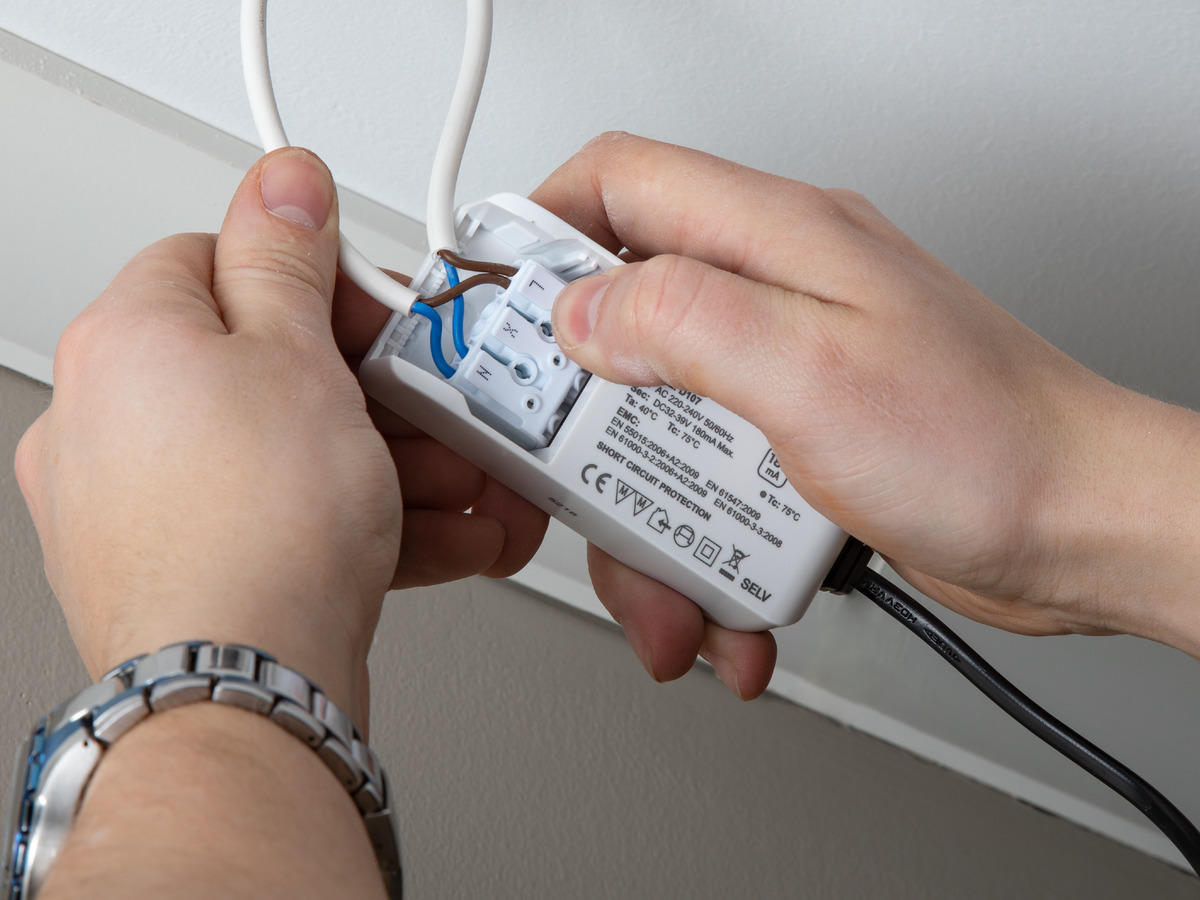

Connection (type) Quick Terminal

Connection (mm2) 3x0,5-2,5

Through Wiring Yes

Strain Relief Yes

Constant Current (mA) 180

Operating Temperature -20…+40

Max. Tc (°C) 85

Dimming secondary side AM

Memory Function Power Failure No

Fuse B10 (pcs) 55

Fuse B16 (pcs) 87

Fuse C10 (pcs) 91

Fuse C16 (pcs) 146
Color and material: Material Diecasted, Aluminium

Color White

Environmental Assessment Byggvarubedömningen

Available in special color Yes
Measurement and installation: Operating Environment Indoor / bathroom (ceiling area 1), Outdoor

IP Degree of Protection 44

Protection Class II

Installation Built-in

Mounting Installation Mounting Spring

Ceiling Thickness Interval (mm) 3-26

Fire Safety Marks Not in insulation without protection cover

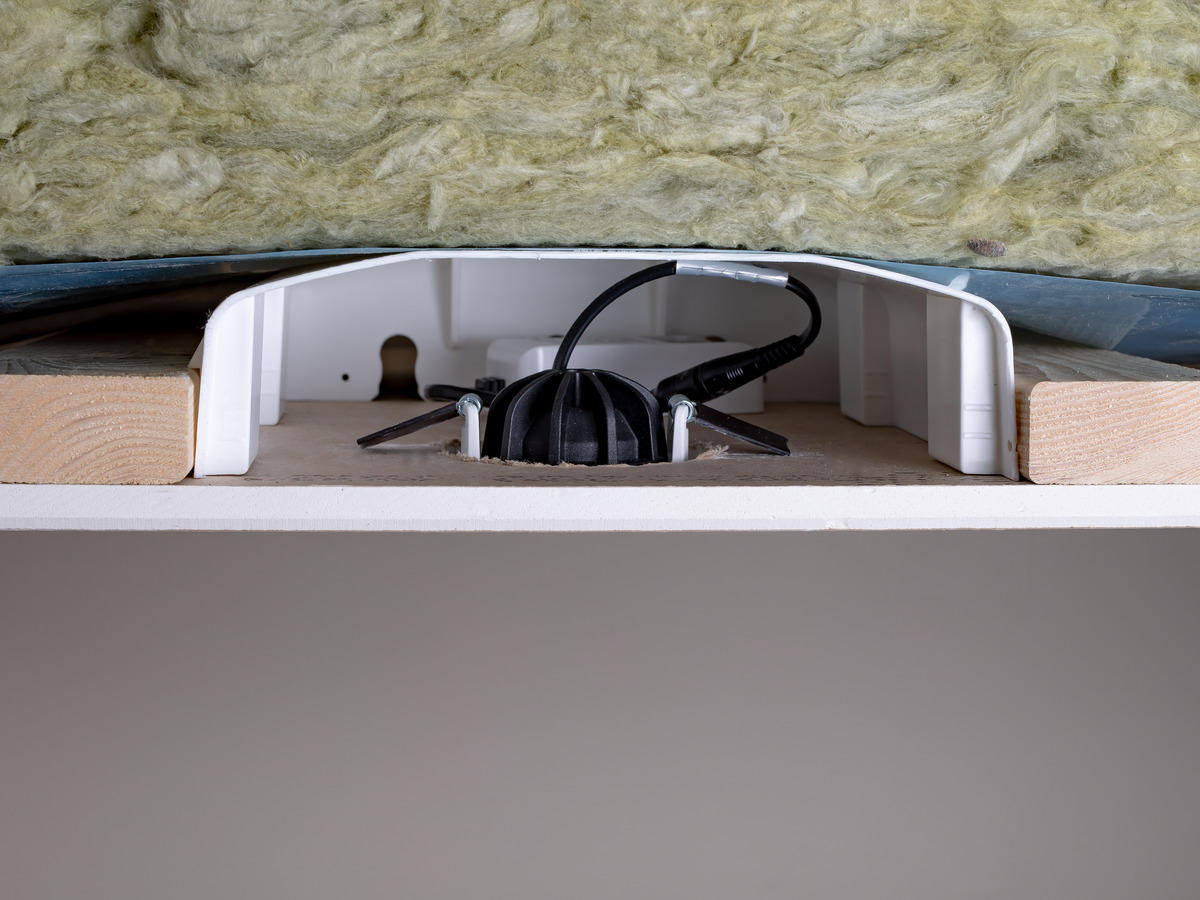

Protection Cover 7466700, 7466701, 7466702

Approval Marks CE, SELV

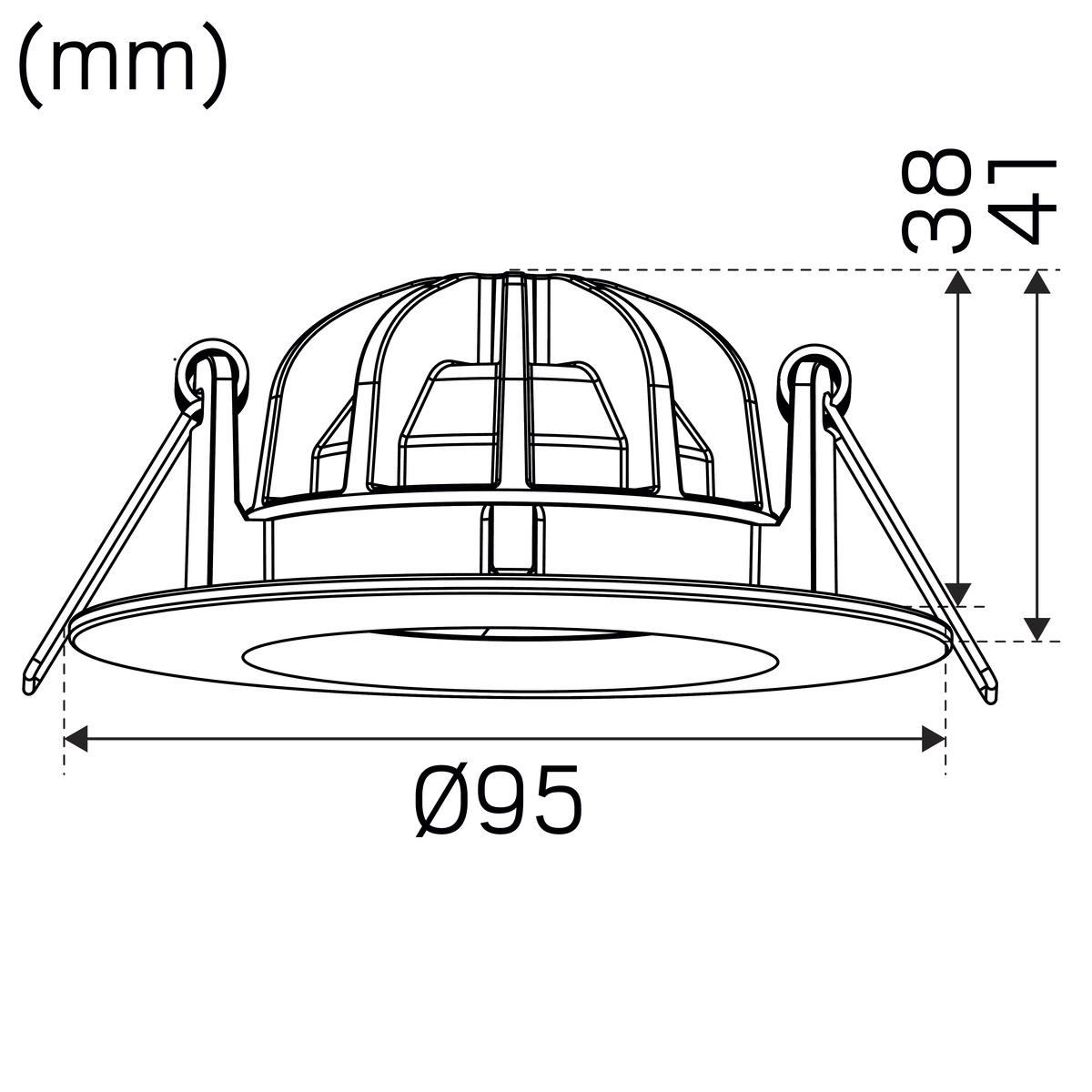

Height (mm) 41

Diameter (mm) 95

Weight (kg) 0,295

Min. Built-in (mm) 400x230x28

Height Recessed Part (mm) 38

Height Exterior Part (mm) 3

Built-in Ø (mm) 73-84
