Comfort Twist Quick ISO Comfort Twist Quick ISO Brushed Steel

Low-build, perfect for secondary spaced boarding 28mm with 13mm plaster
Approved for installation directly against insulation
Selectable colour temperature via DIP-Switch ColourTemp

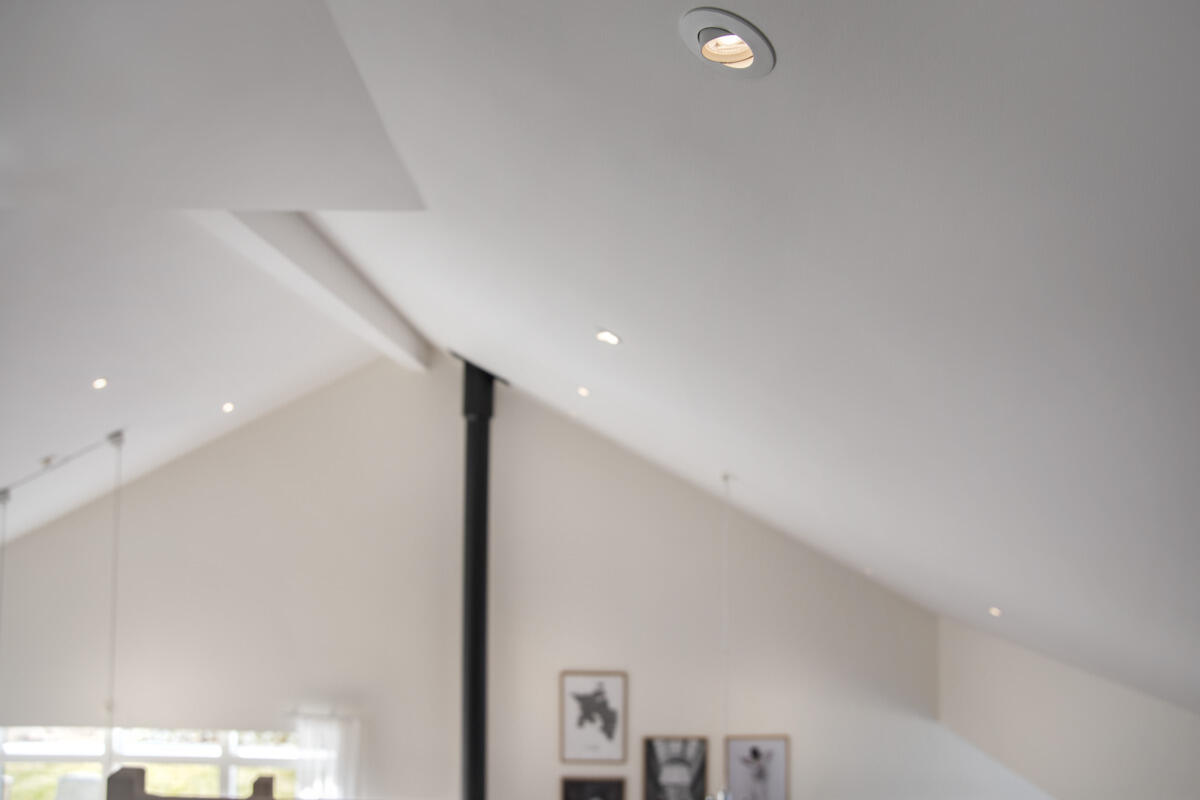

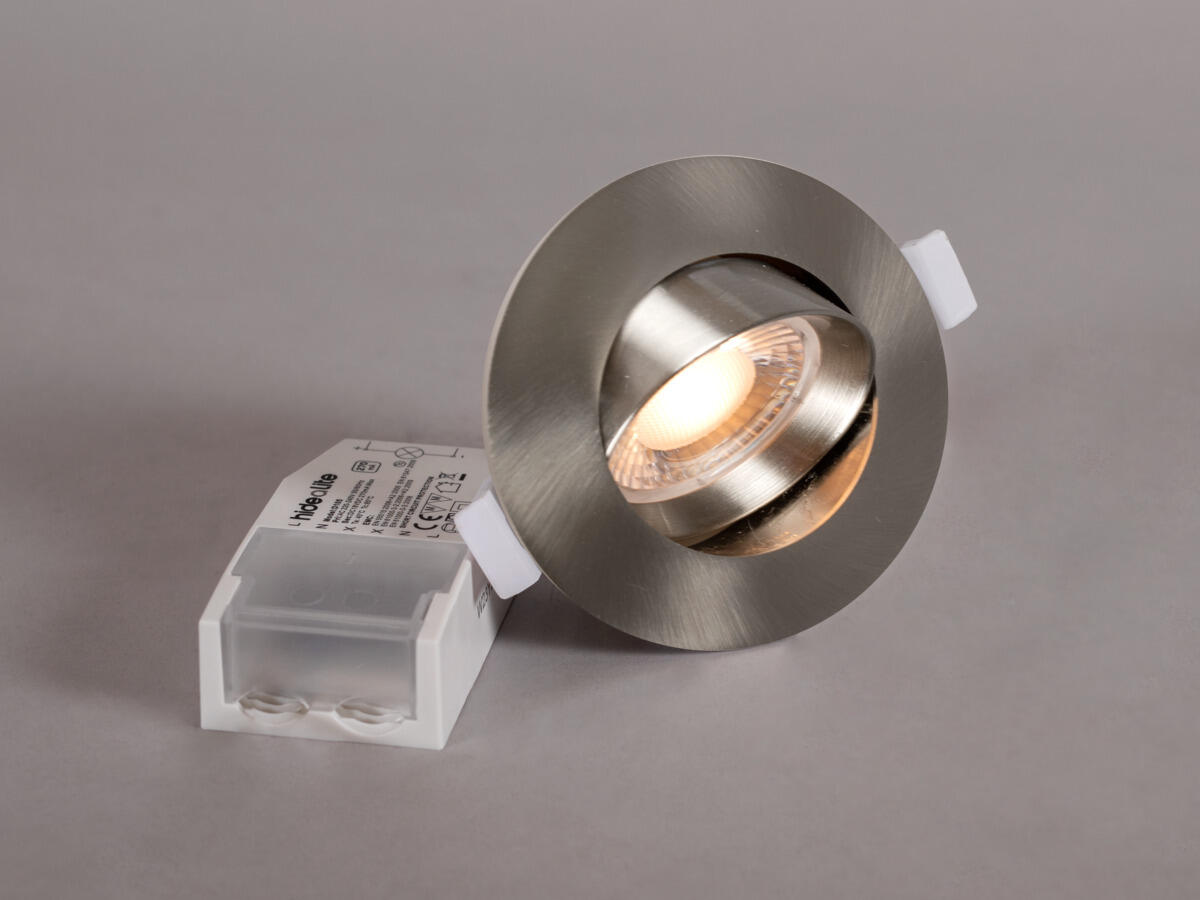

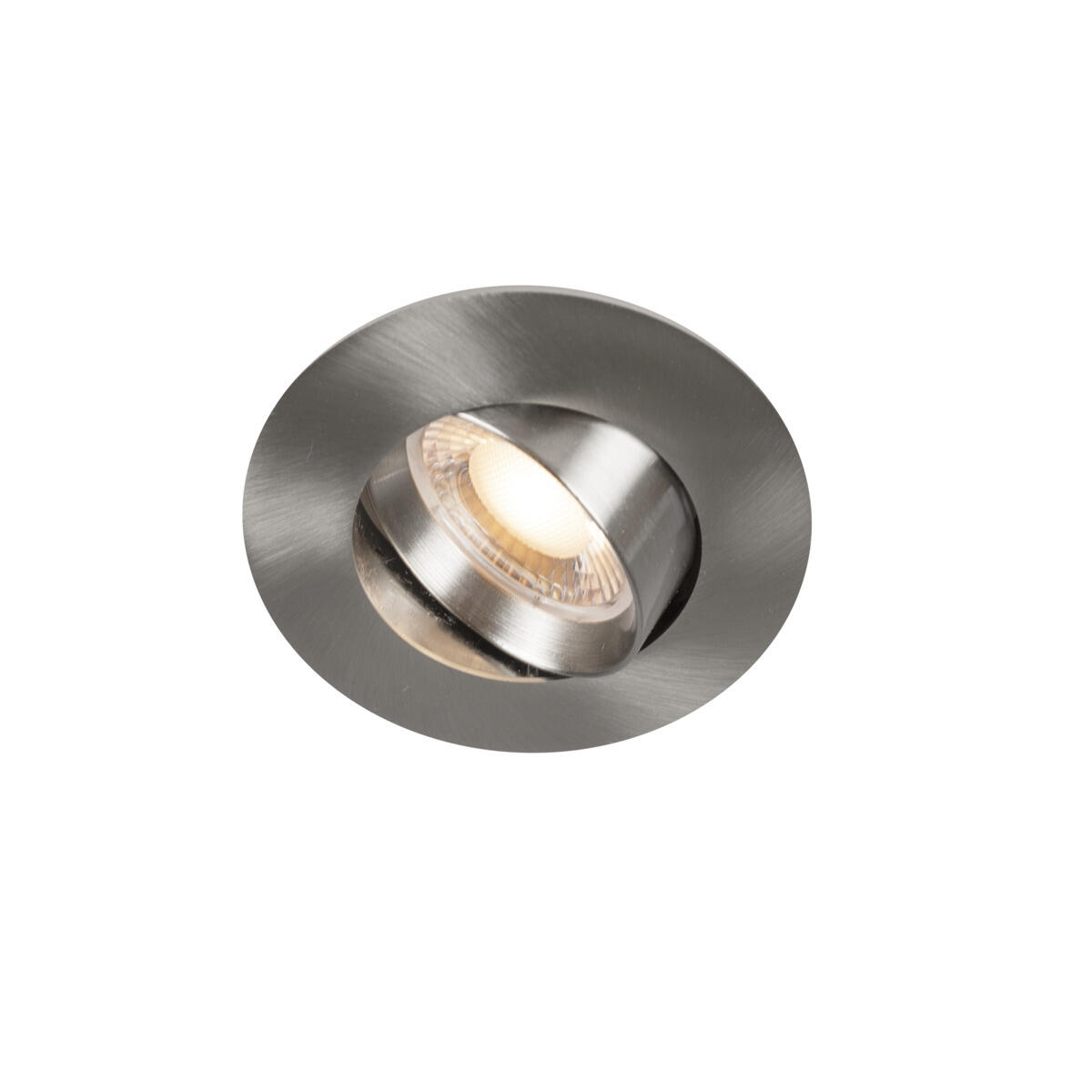

Dimmable multifunctional all-round downlight for 230V with Comfort Lens. Twist function makes it possible to twist the luminaire 2x150° and tilt 30°– perfect if you want to direct the light or fit in a sloping ceiling for example. Selectable colour temperature via DIP-Switch ColourTemp directly in the luminaire. IP44 luminaire for use indoors and outdoors. Can be installed directly against insulation in 28mm secondary spaced boarding with 13mm plaster. Complete with dimmable driver, 3-pole push-in terminal for through wiring and strain relief for cable or flex hose 16 mm. Dimmable with most common dimmers on the market.

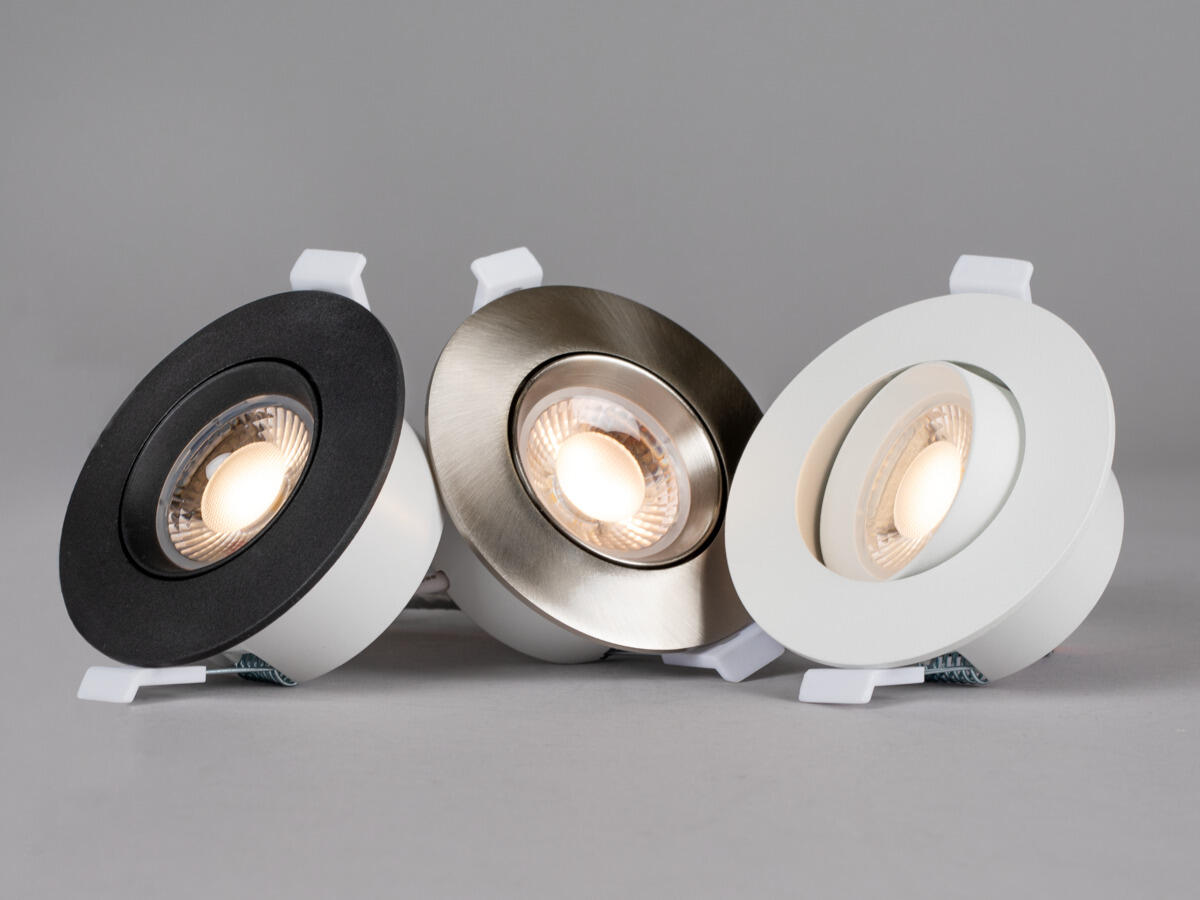

GTIN	Item Name	Color
7392971144658	Comfort Twist Quick ISO Brushed Steel	Brushed Steel
7392971144634	Comfort Twist Quick ISO White	White
7392971144641	Comfort Twist Quick ISO Black	Black

Show more articles

Description: GTIN 7392971144658

Item Name Comfort Twist Quick ISO Brushed Steel

Warranty 5 years
Light Technical Data: Max. Luminaire Lumen (lm) 470

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 2700, 3000, 4000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 750

Beam Angle (°) 36

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L80 100000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L90

Lumen maintenance 75 000h L86

Lumen maintenance 100 000h L81

LLMF @ 50 000h 0.9

LLMF @ 100 000h 0.81

Life Time Driver 50 000h/10%

Flicker (PstLM) 0,02

Stroboscopic effect (SVM) 0,315
Technical data: Adjustable Yes

Tiltable (°) 30

Rotatable (°) 300

Voltage (type) AC

Voltage Interval (V) 220...240V

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Power LED (W) 4,8

Max. Power Luminaire (W) 6,5

Max. System Power (W) 6,5

Max. Efficiency Luminaire (lm/W) 78

Max. Efficiency System (lm/W) 78

Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge

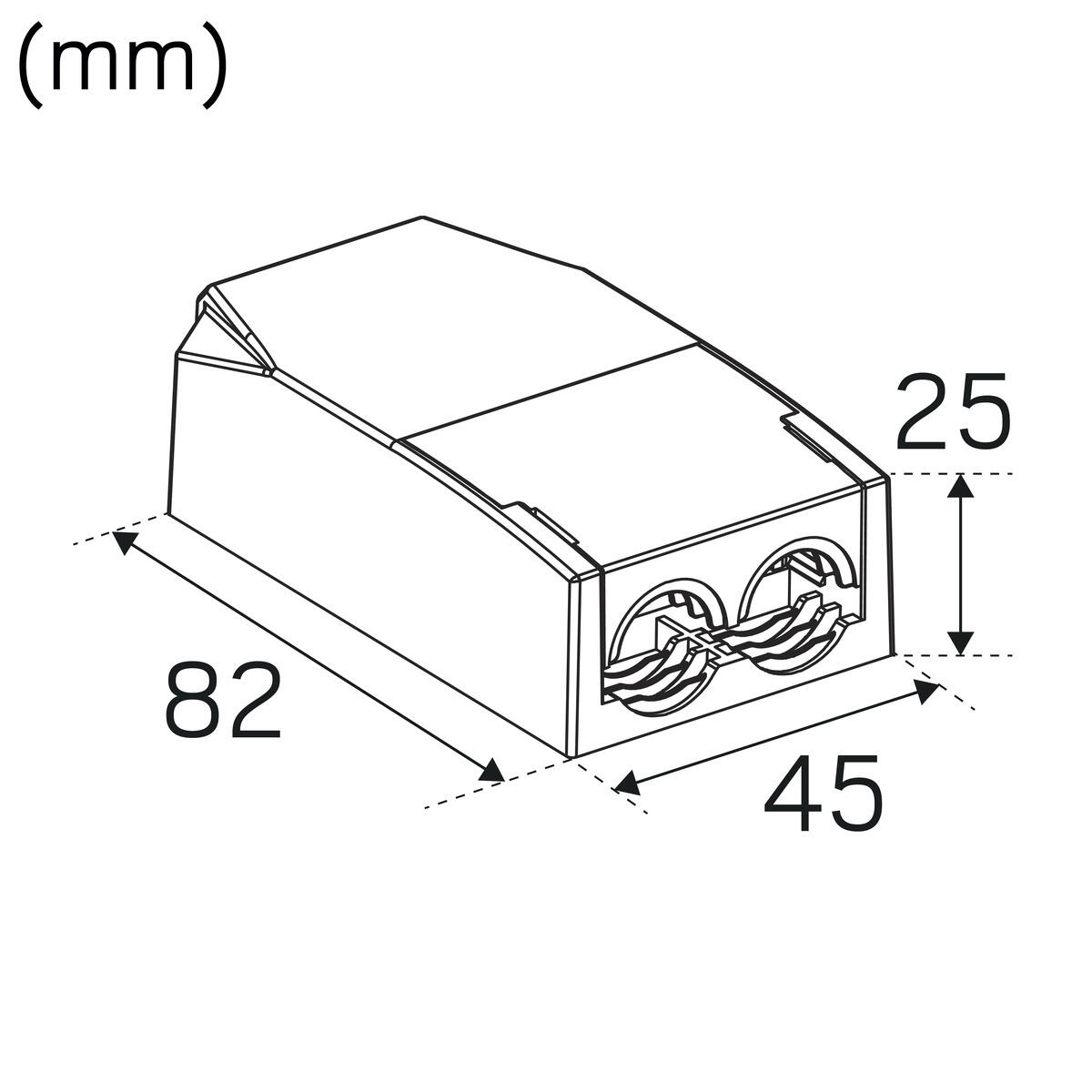

Driver Included Yes

Driver Model Constant Current

Driver Type Stand Alone

Driver Manufacturer Hide-a-lite

Connection (type) Quick Terminal

Connection (mm2) 3x0,5-1,5

Through Wiring Yes

Strain Relief Yes

Power Factor ʎ 0,9

Efficiency (%) 76

Power loss (W) 1,5

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,5

THD (%) 34

Min. Ta (°C) -20

Max. Ta (°C) 40

Max. Tc (°C) 85

Dimming secondary side AM

Memory Function Power Failure No

Protection Against Short Circuit, Overheating 130°C, Overload

Inrush current (max/time) 2A 100μs

Mains surge protection DM (kV) 500

Fuse B10 (pcs) 75

Fuse B16 (pcs) 100

Fuse C10 (pcs) 100

Fuse C16 (pcs) 125
Color and material: Material Aluminium

Color Brushed Steel

Halogen free No

Environmental Assessment Byggvarubedömningen

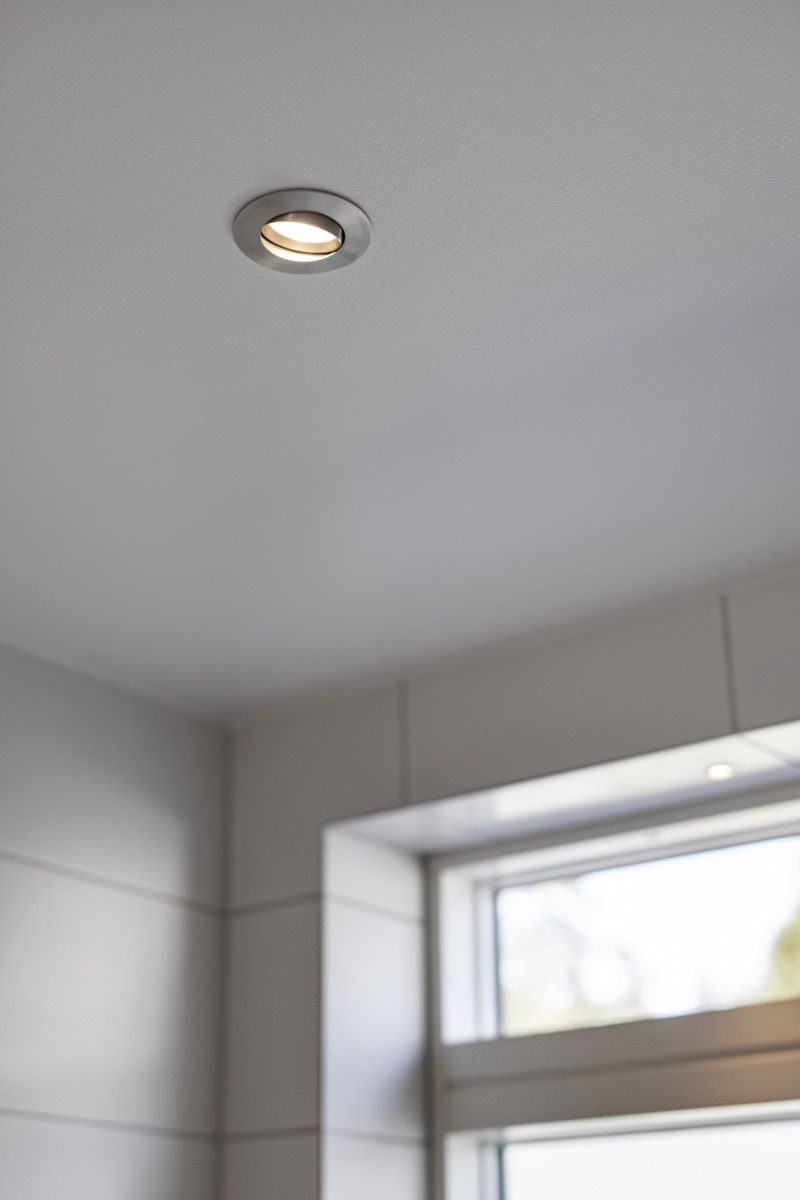

Measurement and installation: Operating Environment Indoor / bathroom (ceiling area 1), Outdoor

IP Degree of Protection 44

Protection Class II

Installation Ceiling, Built-in

Mounting Installation Mounting Spring

Ceiling Thickness Interval (mm) 3-26mm

Fire Safety Marks Approved for installation against insulation

Protection Cover 7466700, 7466701, 7466702

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

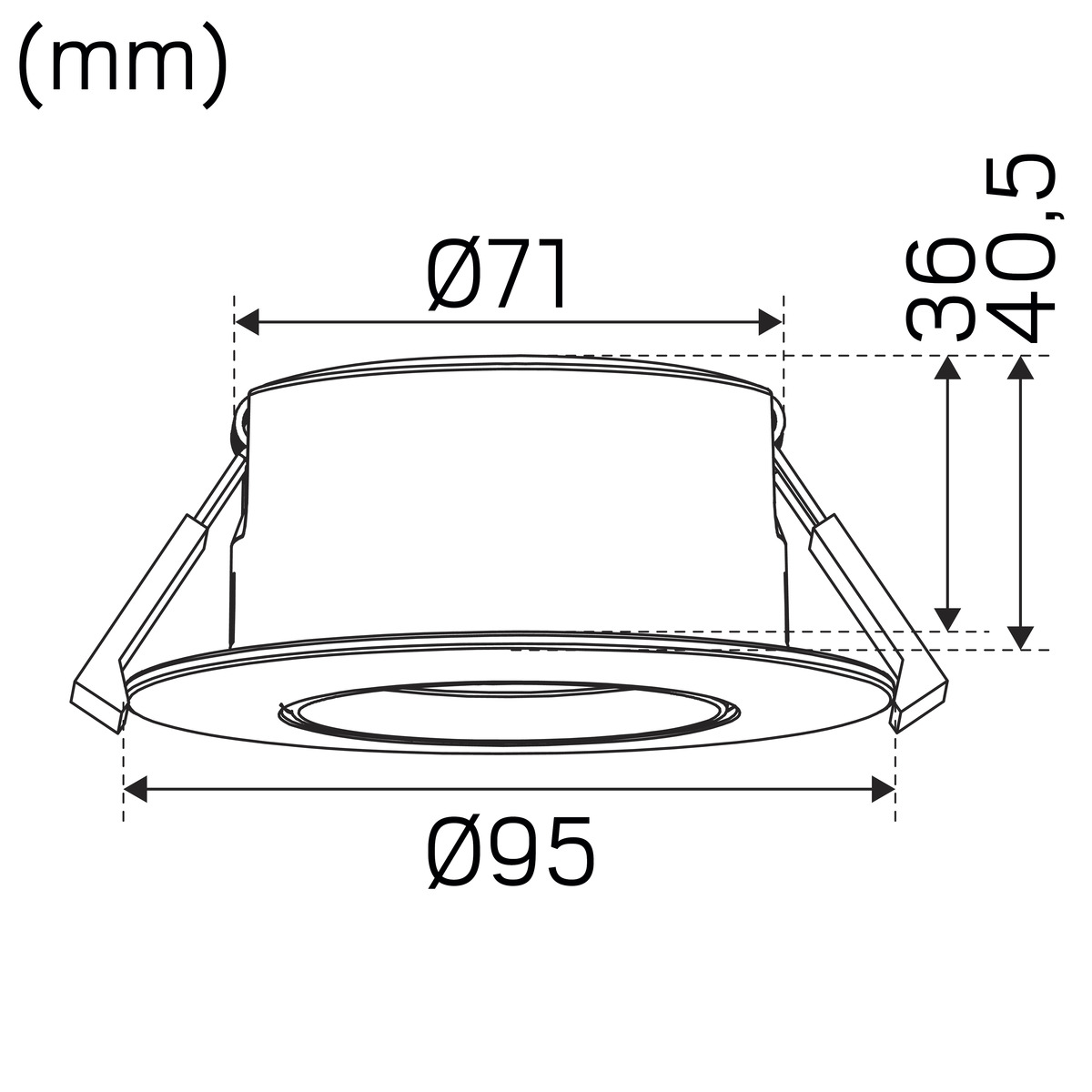

Height (mm) 40

Diameter (mm) 95

Weight (kg) 0,245

Min. Built-in (mm) 170x120x38

Height Recessed Part (mm) 36

Height Exterior Part (mm) 4

Built-in Ø (mm) 73-85mm
