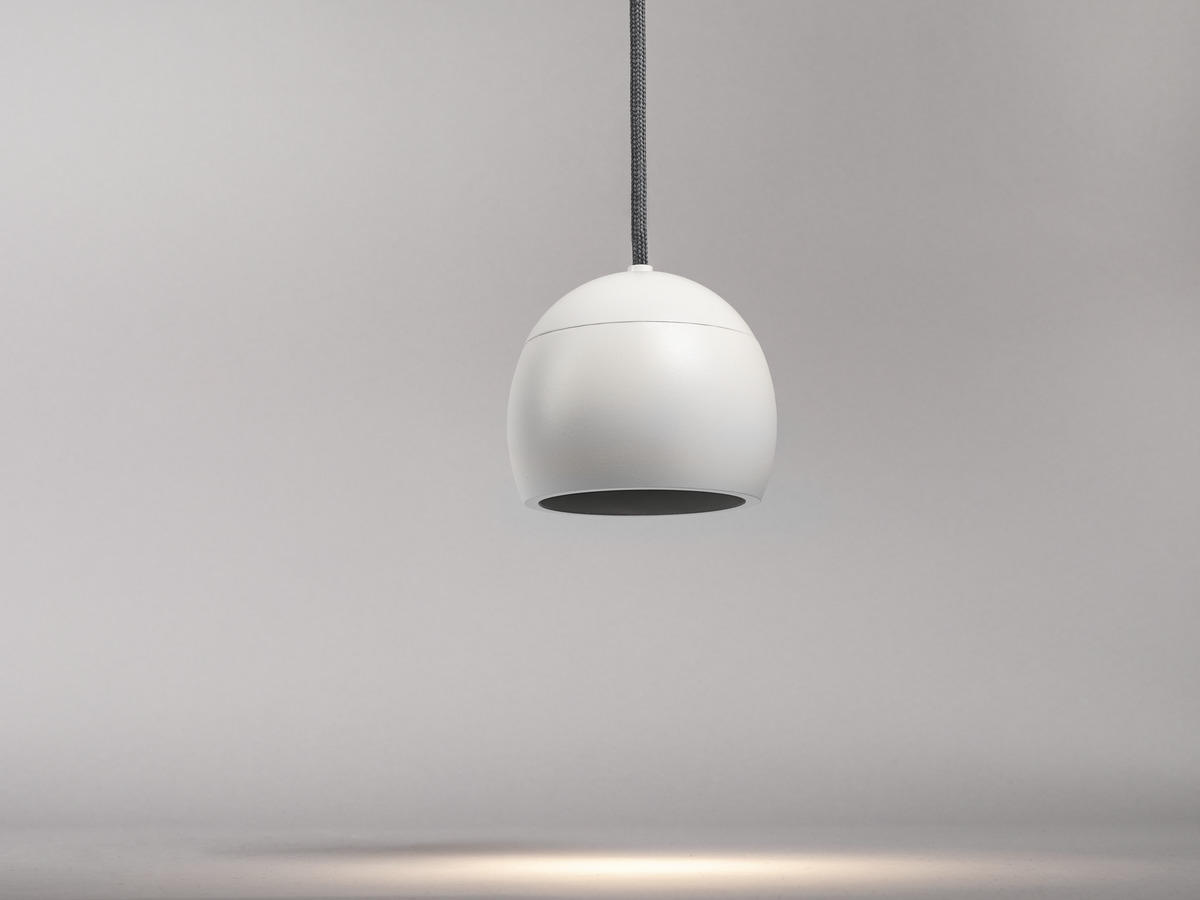

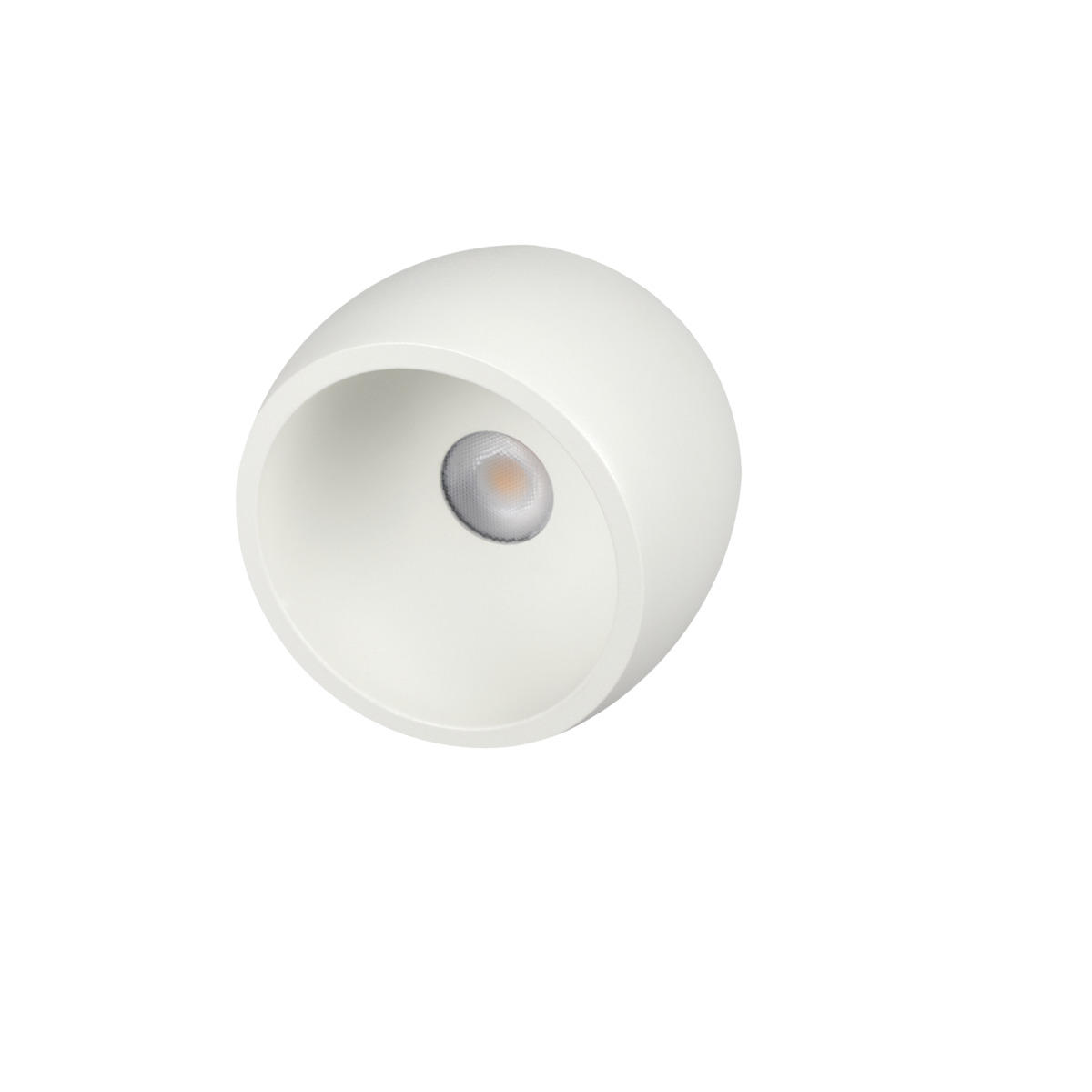

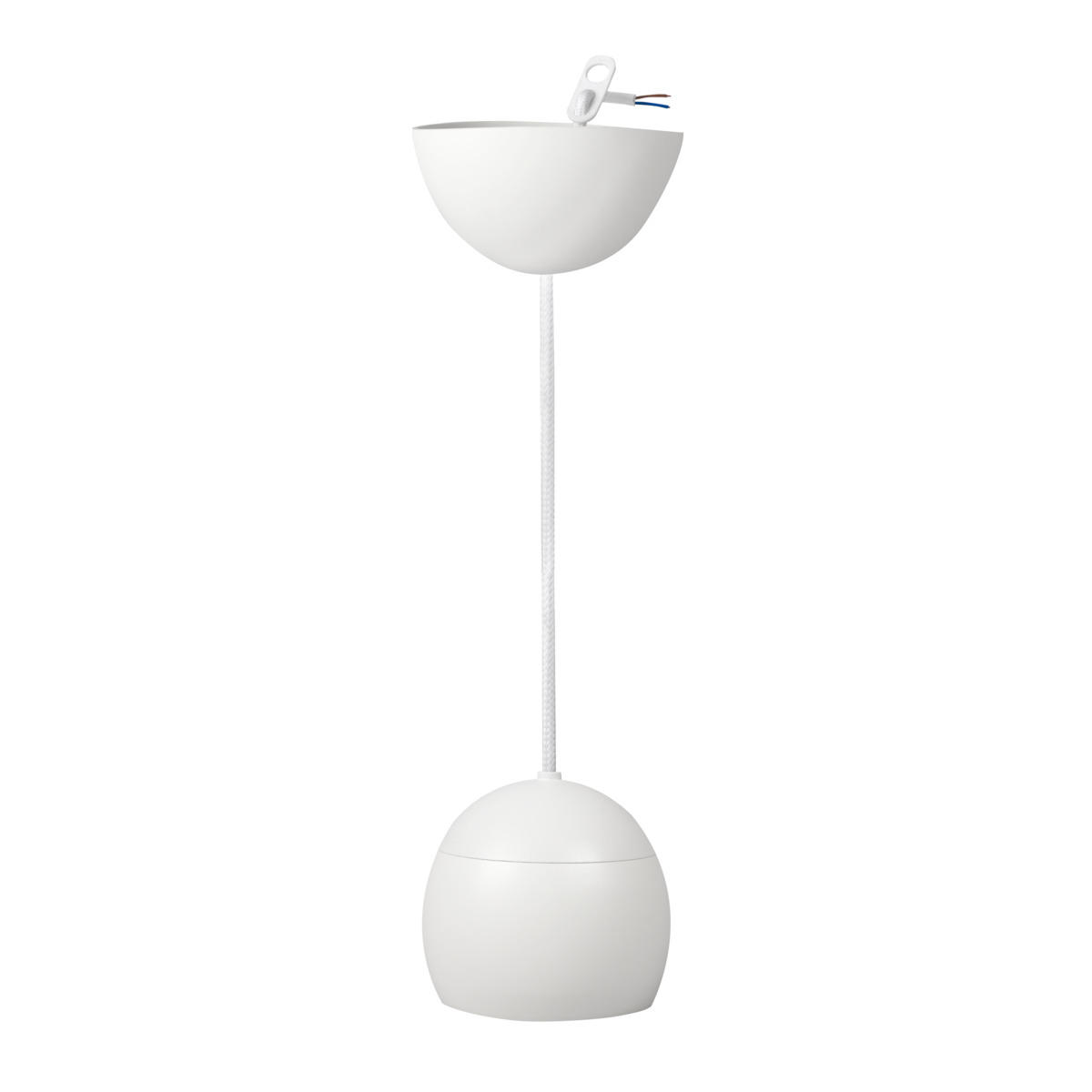

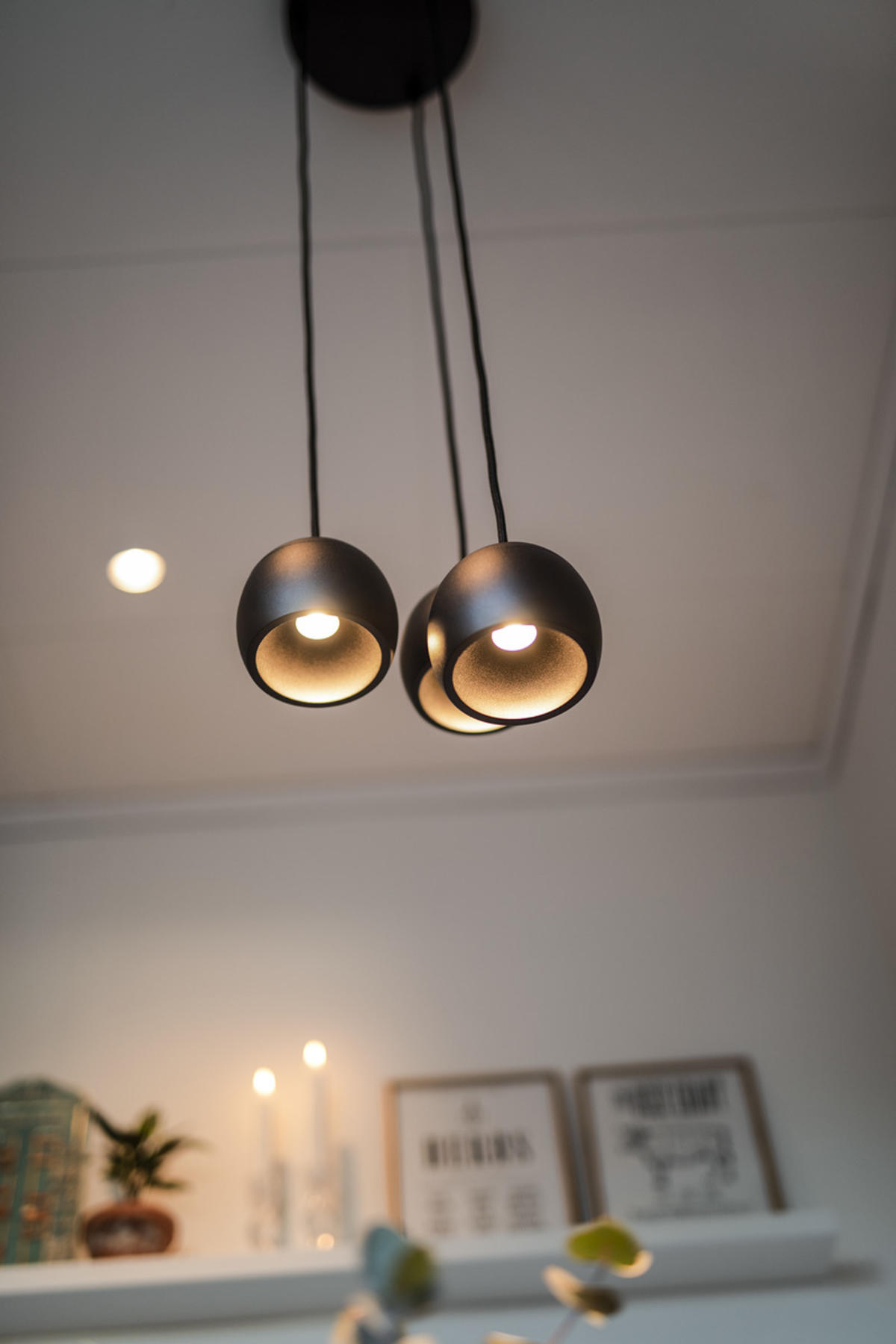

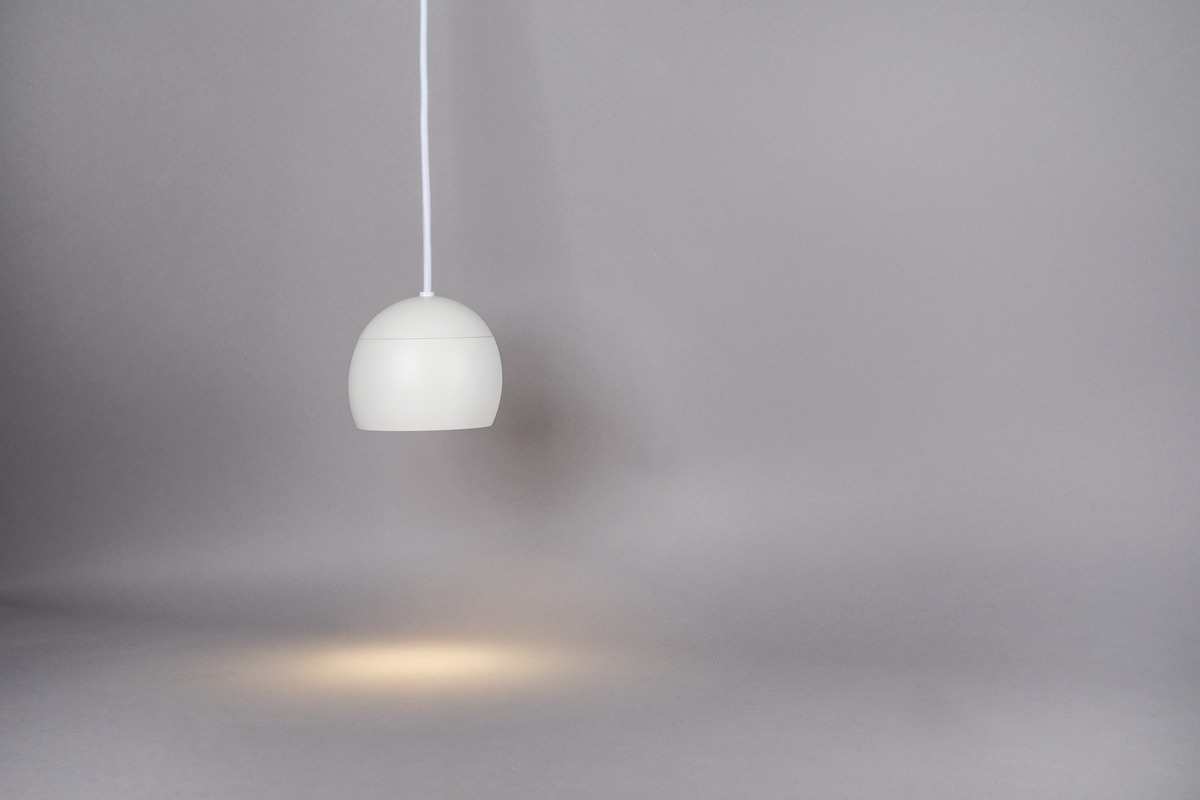

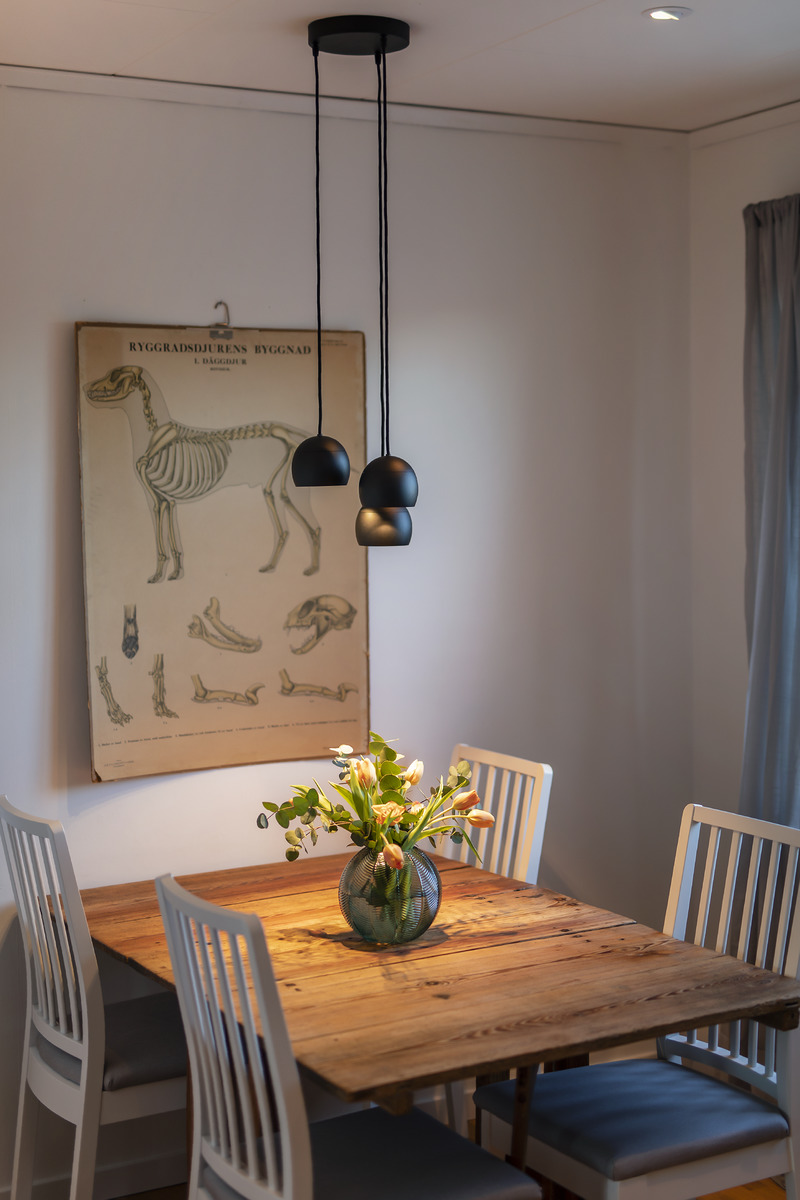

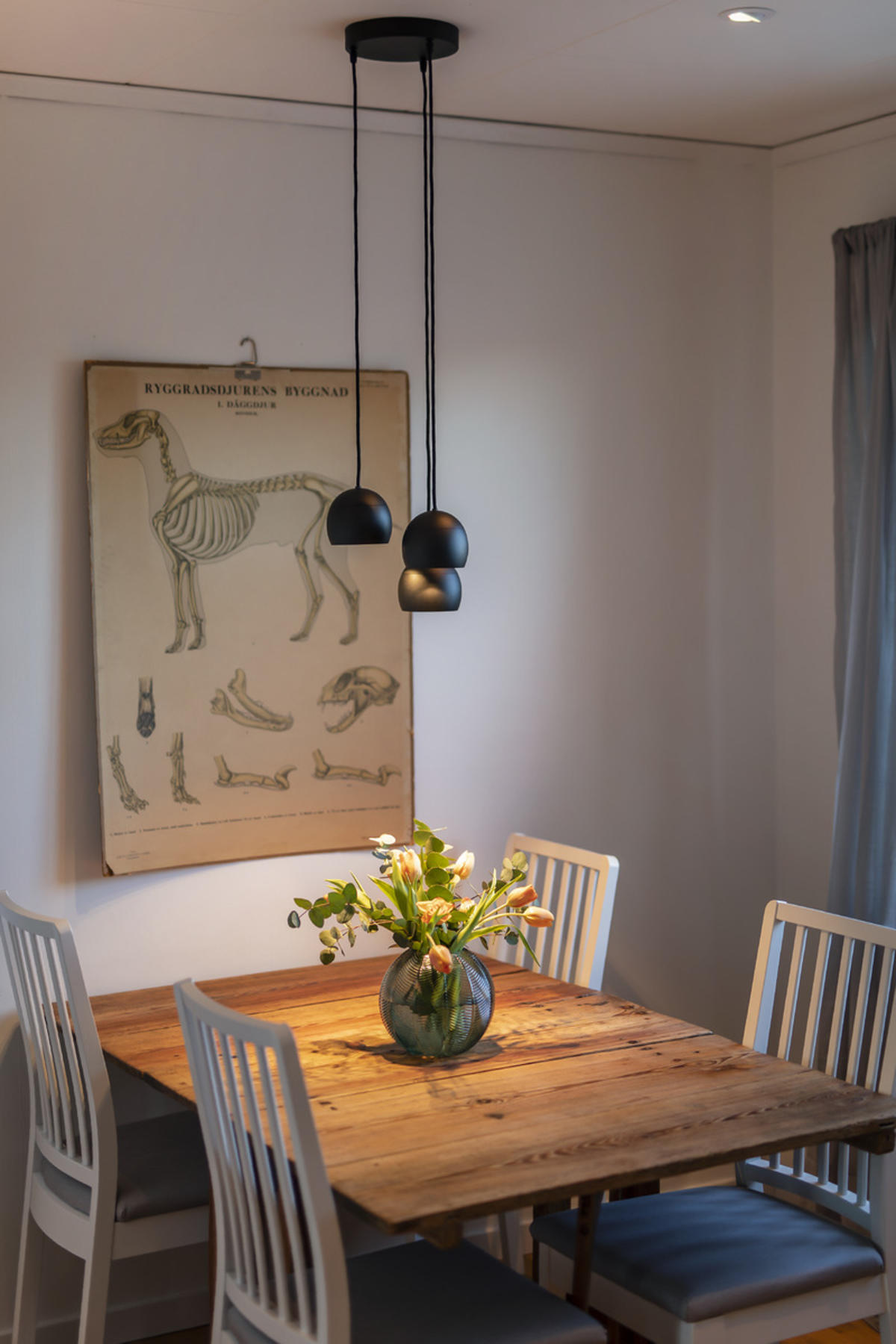

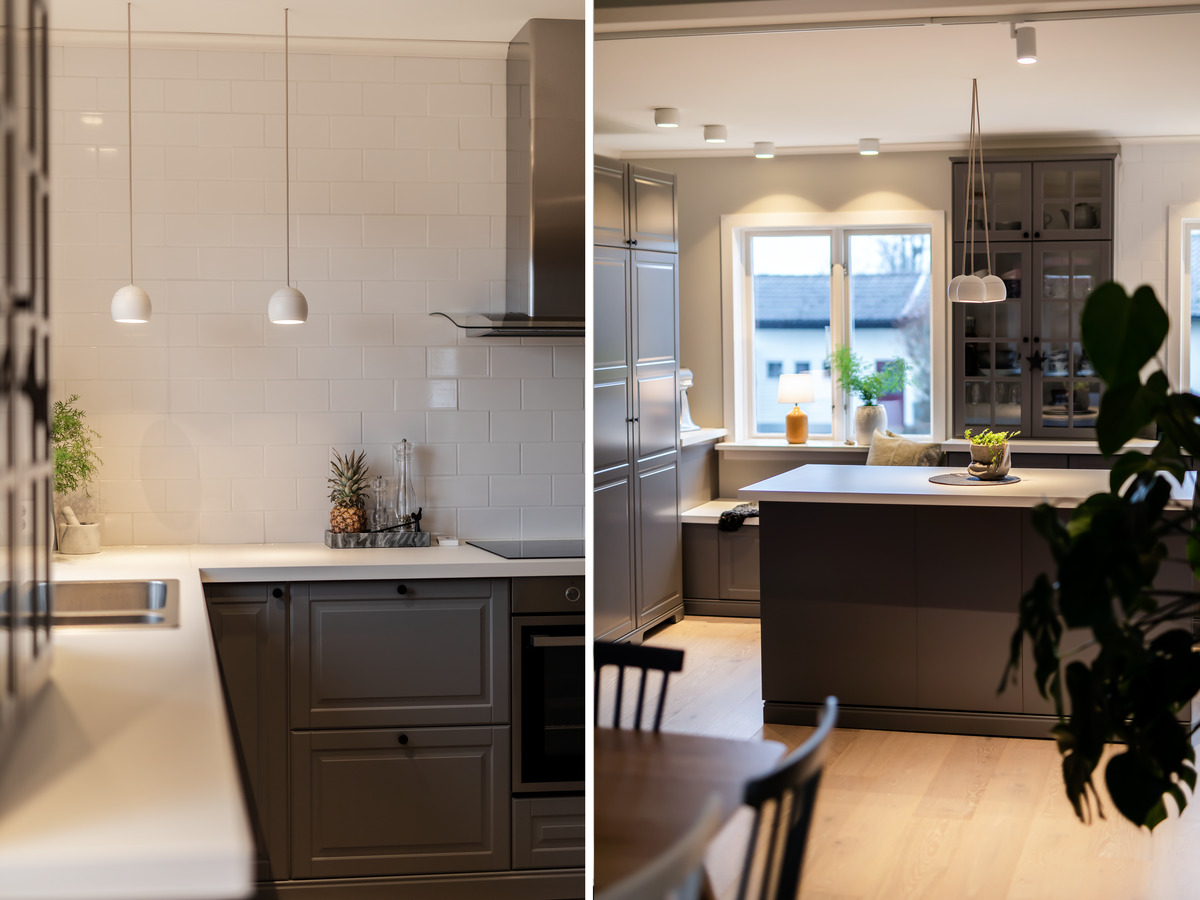

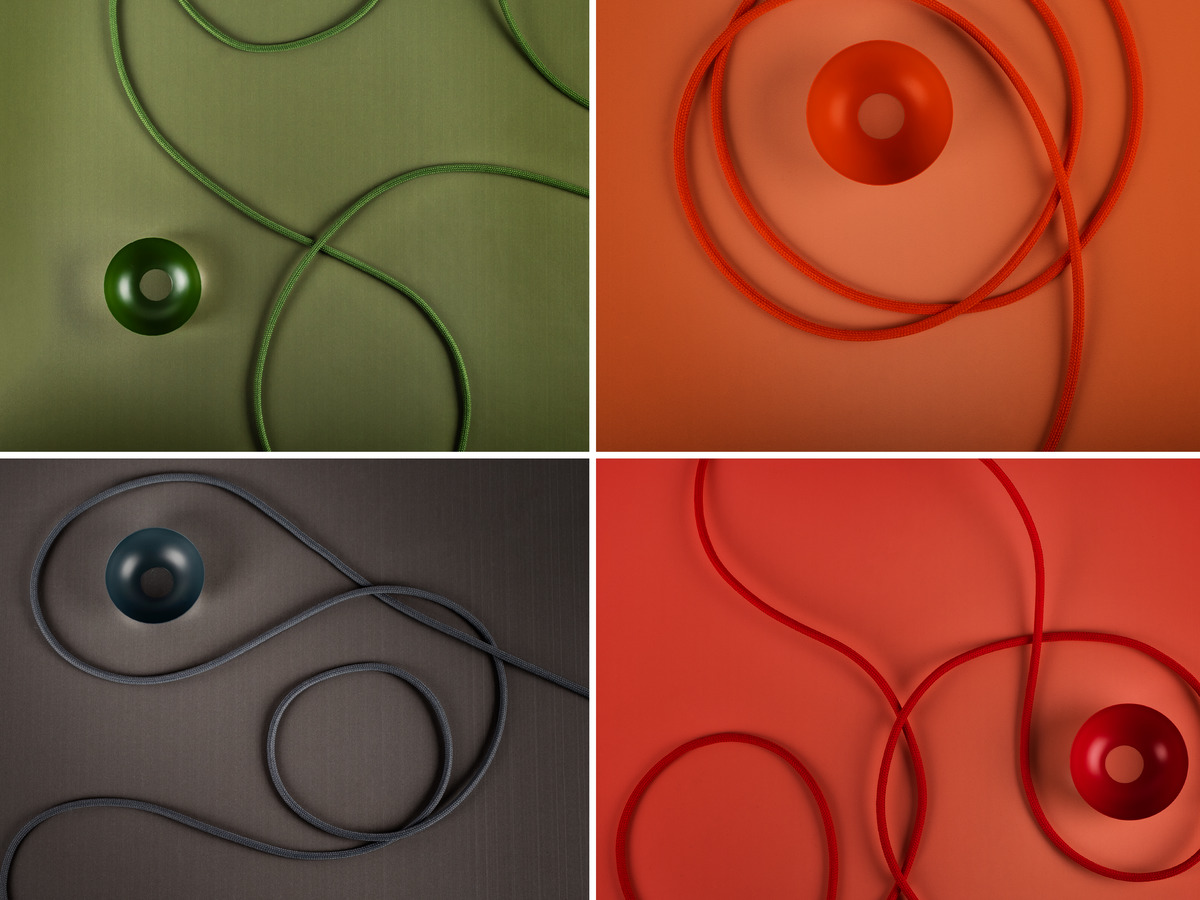

Exclusive pendant luminaire in modern design with cupped reflector. Deeply placed light source gives a glare-free light. The appearance of the luminaire can be reinforced with reflectors in various colours to match choices of materials and interior. Globe G2 is the natural choice for homes as well as hotels and restaurants. Create room in the room. Complete with 2m fabric cable, hanger and silicon ceiling cup. Including integrated mains dimmable driver. Dimmable with the most commonly available dimmers on the market.
Exists in several colors
  • Vit
  • Svart

Variants

GTIN Item Name Color Colour Temperature (K) Luminaire Lumen (lm)
Globe G2 Pendant White Tune 7392971136233 Globe G2 Pendant White Tune White 2700 440
Globe G2 Pendant White 2700K 7392971136240 Globe G2 Pendant White 2700K White 2700 640
Globe G2 Pendant White 3000K 7392971136257 Globe G2 Pendant White 3000K White 3000 680
Globe G2 Pendant Black Tune 7392971136264 Globe G2 Pendant Black Tune Black 2700 400
Globe G2 Pendant Black 2700K 7392971136271 Globe G2 Pendant Black 2700K Black 2700 620
Globe G2 Pendant Black 3000K 7392971136288 Globe G2 Pendant Black 3000K Black 3000 660

Globe G2 Pendant White Tune

Description
GTIN 7392971136233
Item Name Globe G2 Pendant White Tune
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
Replaceability Non-replaceaable LED, Replaceable Control gear by professional
LED Colour Tune
Colour Temperature (K) 2700
Range Colour Temperature (K) Tune 2000-2700
Colour Rendering Index (Ra) >95
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 850
Luminaire Lumen (lm) 440
Beam Angle (°) 36
Light sharing
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L70 80 000h Ta 25°C
Nominel Life Time (h) 80000
Life Time Driver 50 000h/3%
Technical data
Adjustable No
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50
Power LED (W) 6,5
Power Luminaire (W) 7,5
System Power (W) 7,5
Efficiency Luminaire (lm/W) 59
Efficiency System (lm/W) 59
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Connection (type) Quick Terminal
Length Connection (cm) 200
Connection (mm2) 2x0,75-1,5
Through Wiring No
Strain Relief Yes
Constant Current (mA) 180
Operating Temperature -20…+40
Max. Tc (°C) 85
Dimmable Yes
Type of Dimming Trailing Edge, Leading Edge
Memory Function Power Failure No
Protection Against Short Circuit, Overheating 110°C, Overload
Fuse B10 (pcs) 60
Fuse B16 (pcs) 90
Fuse C10 (pcs) 73
Fuse C16 (pcs) 110
Color and material
Material Aluminium
Color White
Environmental Assessment SundaHus
Measurement and installation
Operating Environment Indoor / dry locations
IP Degree of Protection 20
Protection Class II
Installation Pendant
Approval Marks CE, SELV
Filament Test IEC 695-2-1(°C) 650

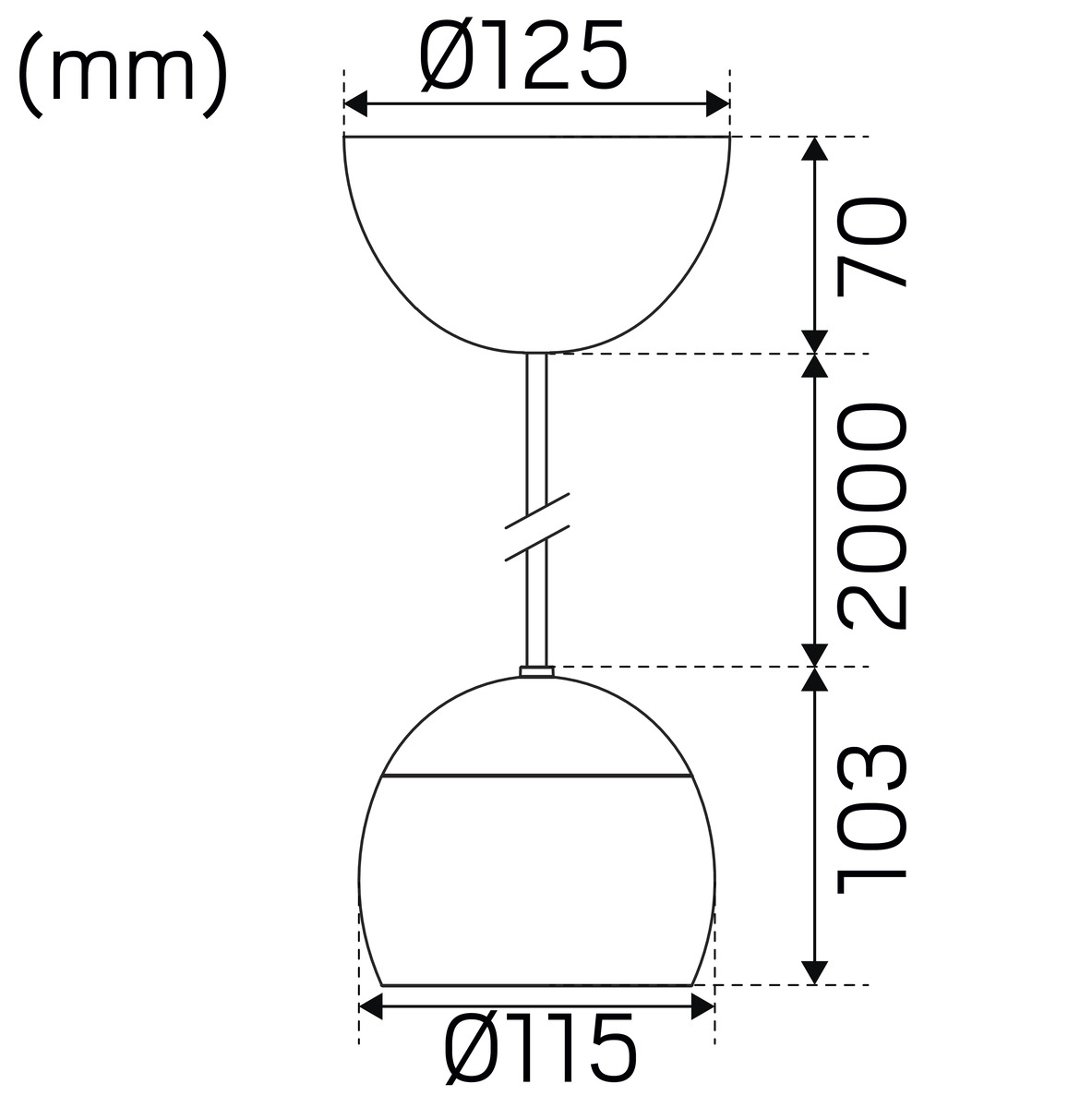

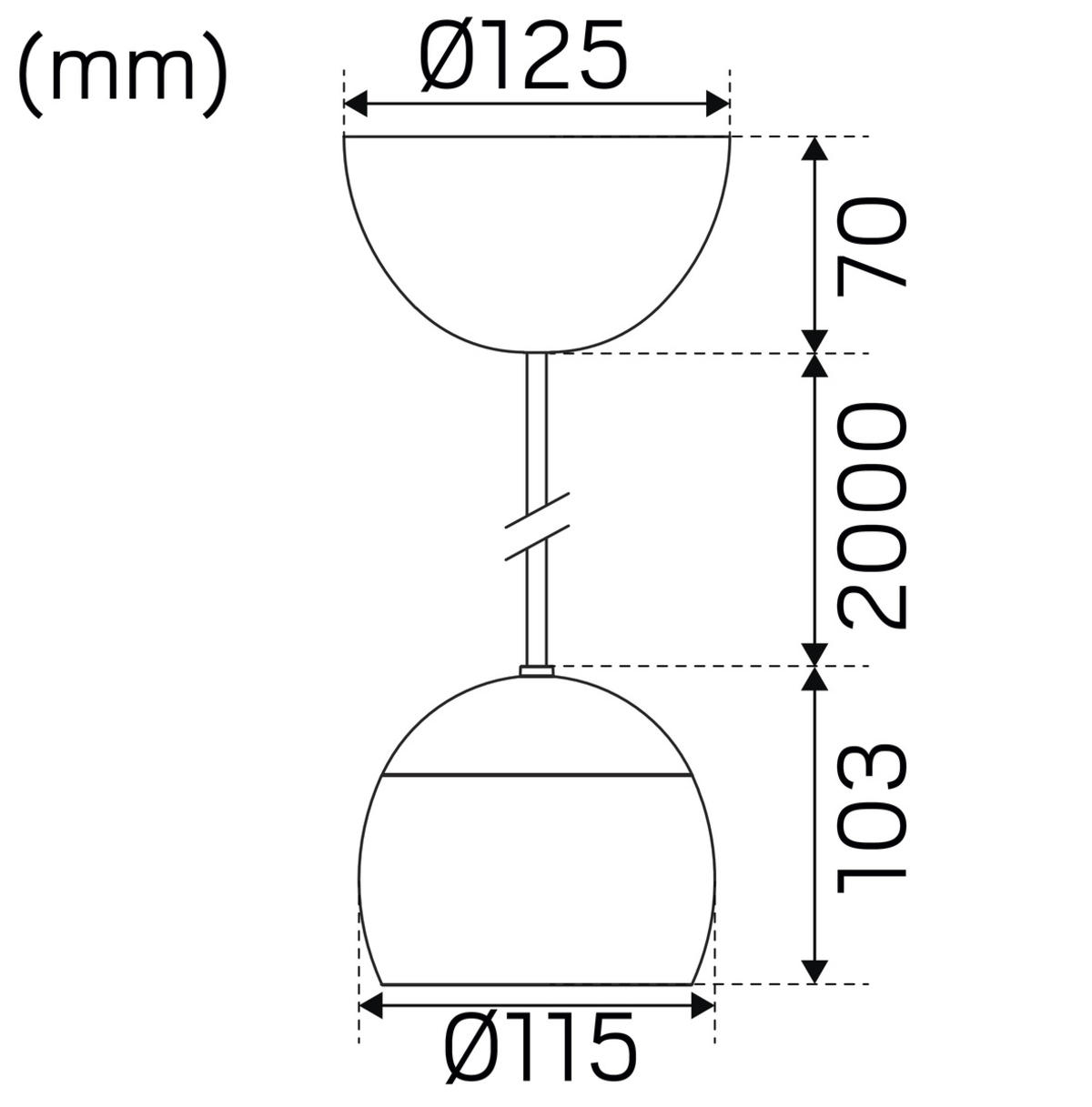

Height (mm) 103
Diameter (mm) 115
Weight (kg) 0,96
