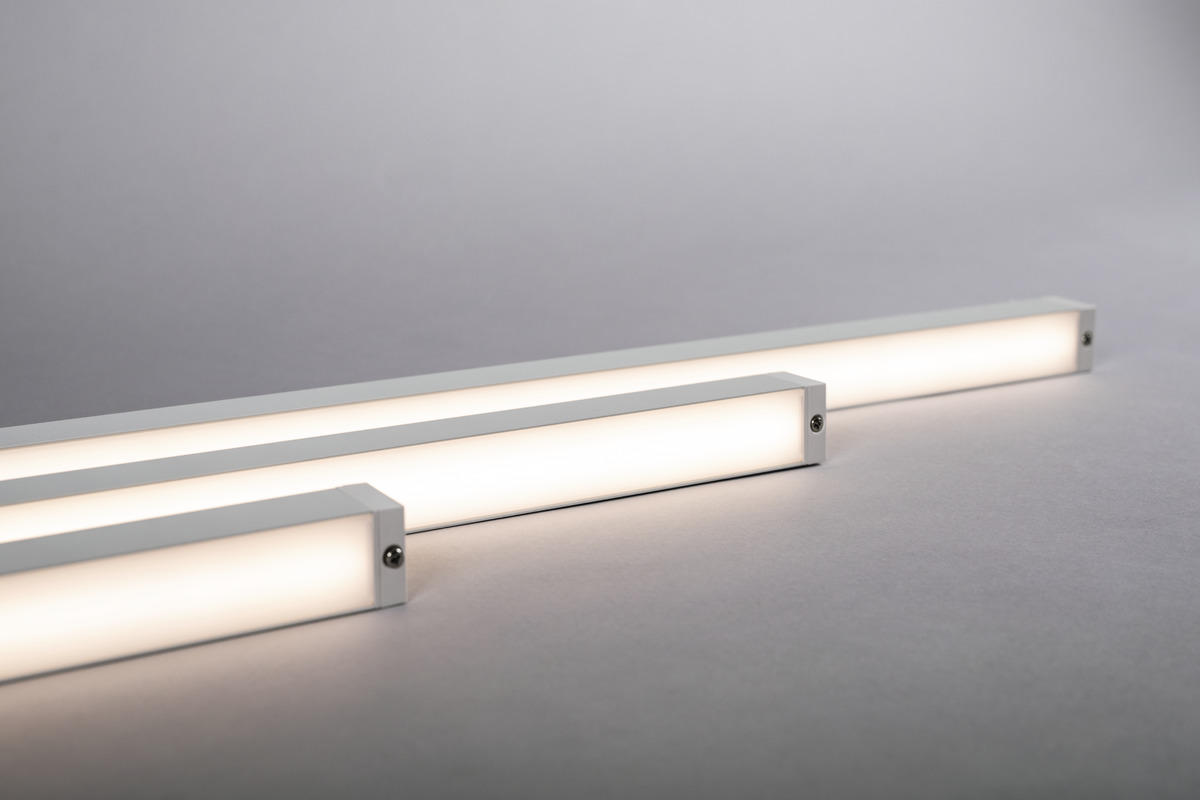

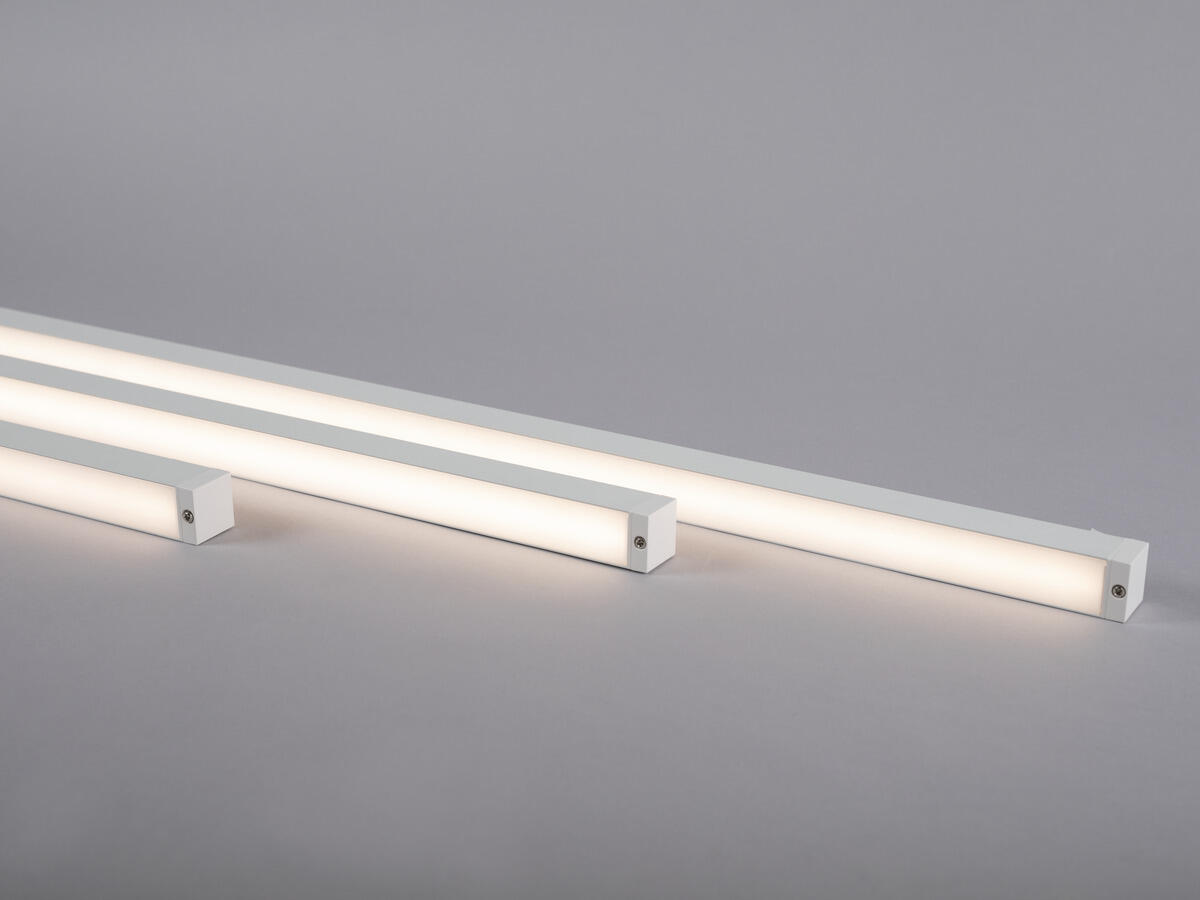

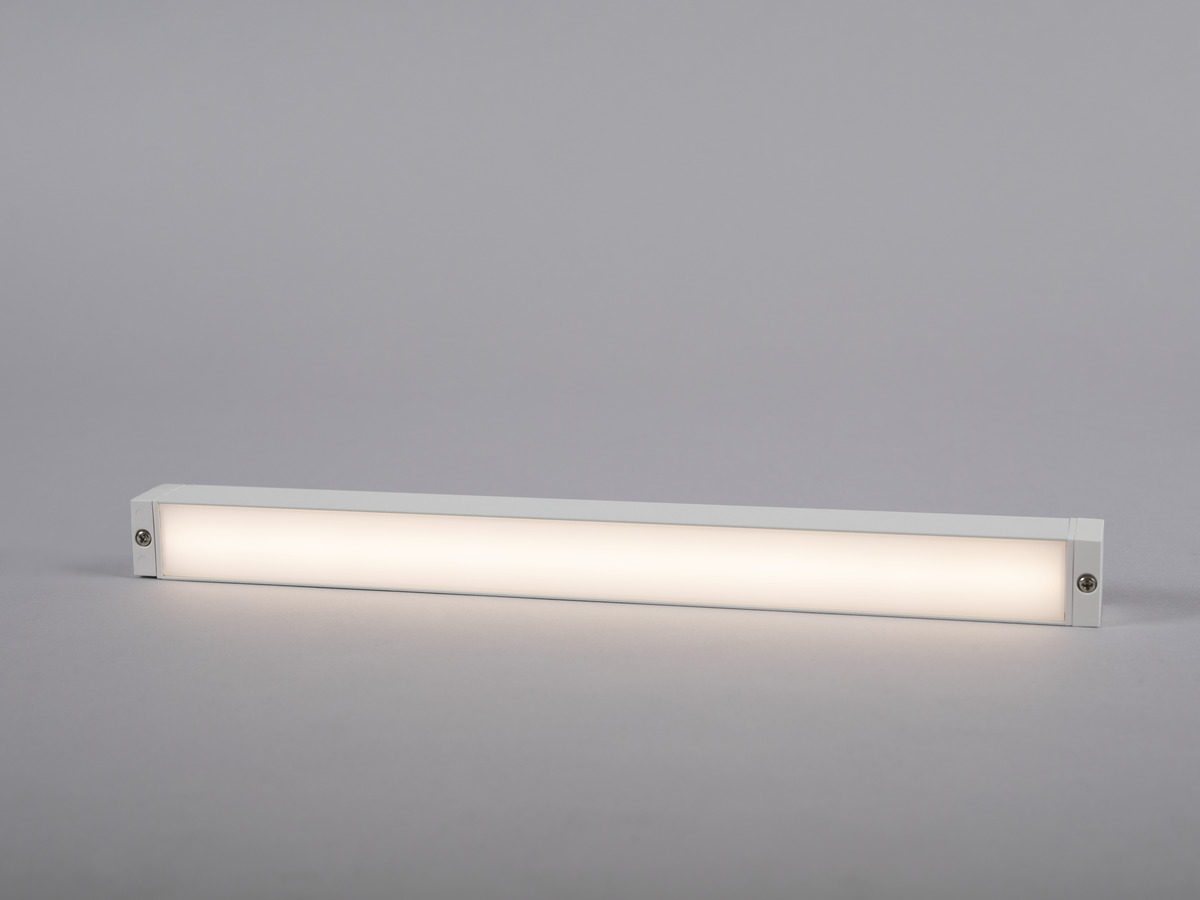

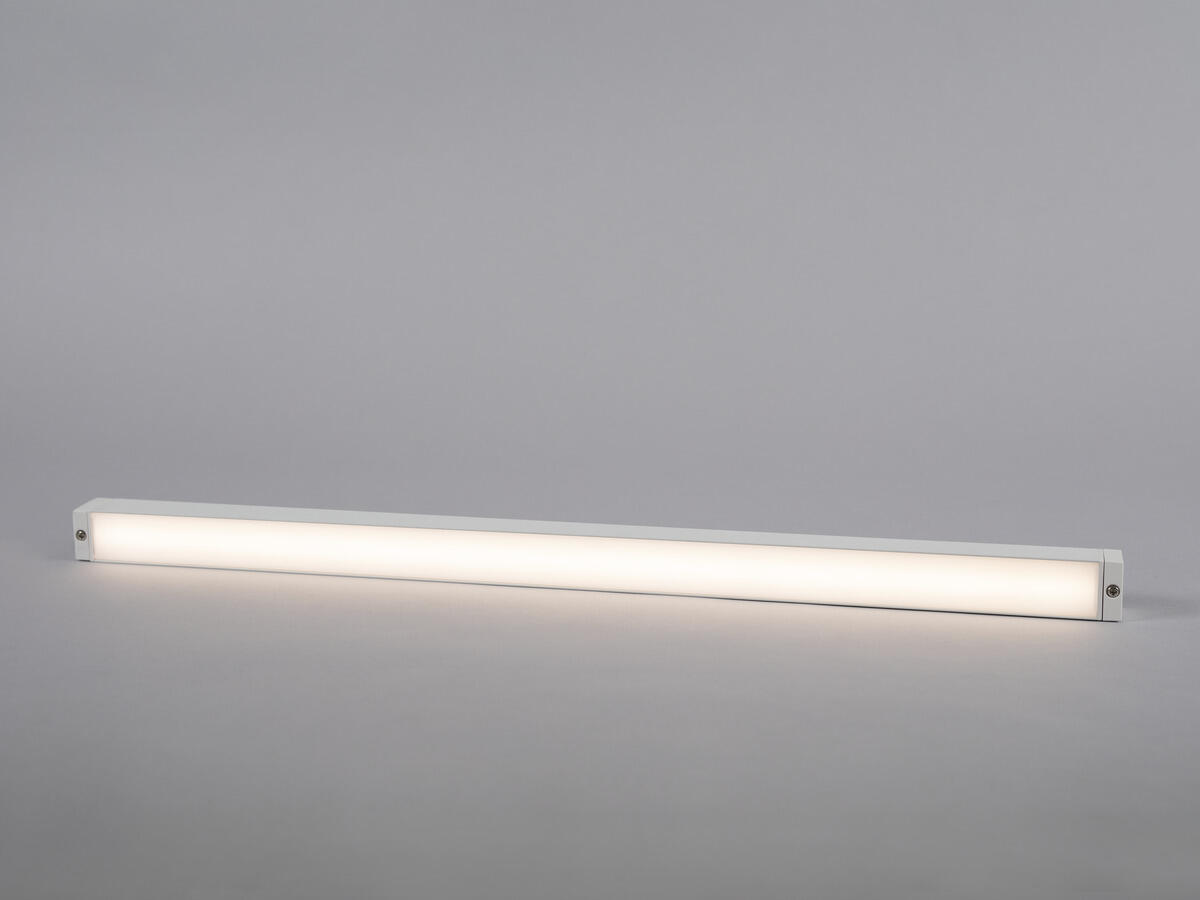

Shelf Line 230V

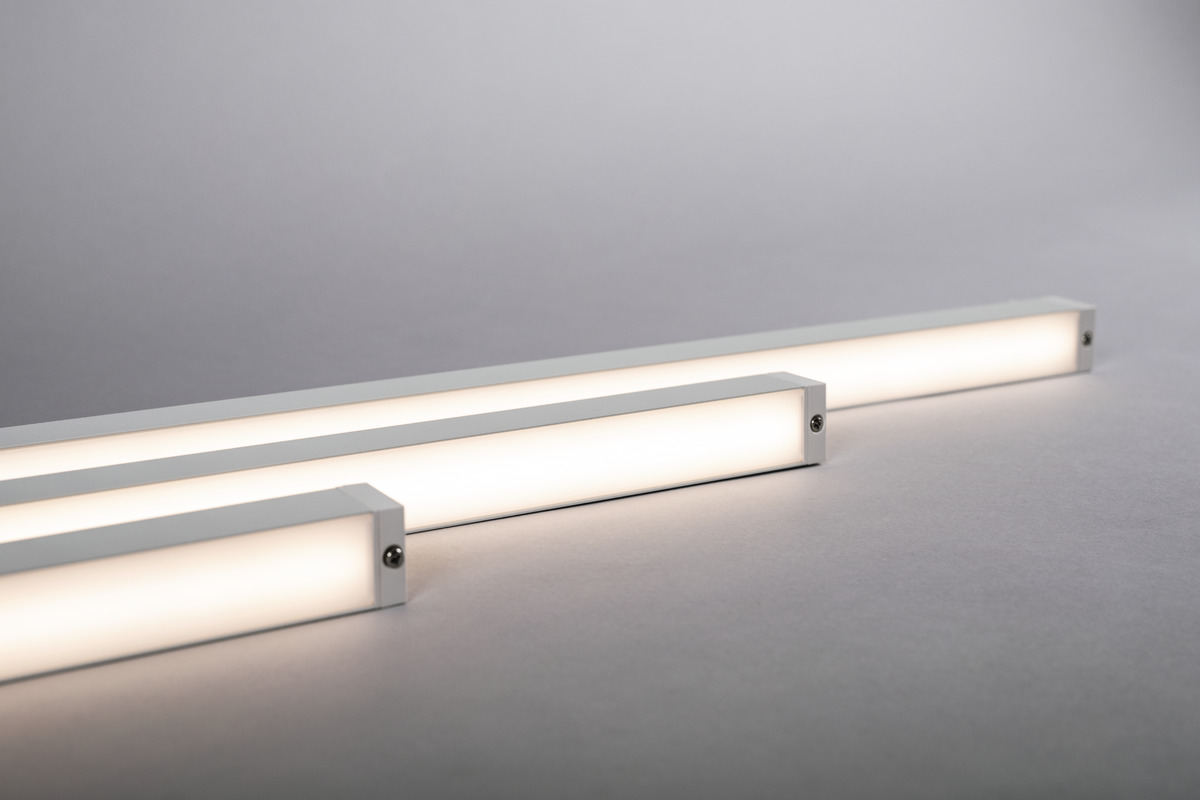

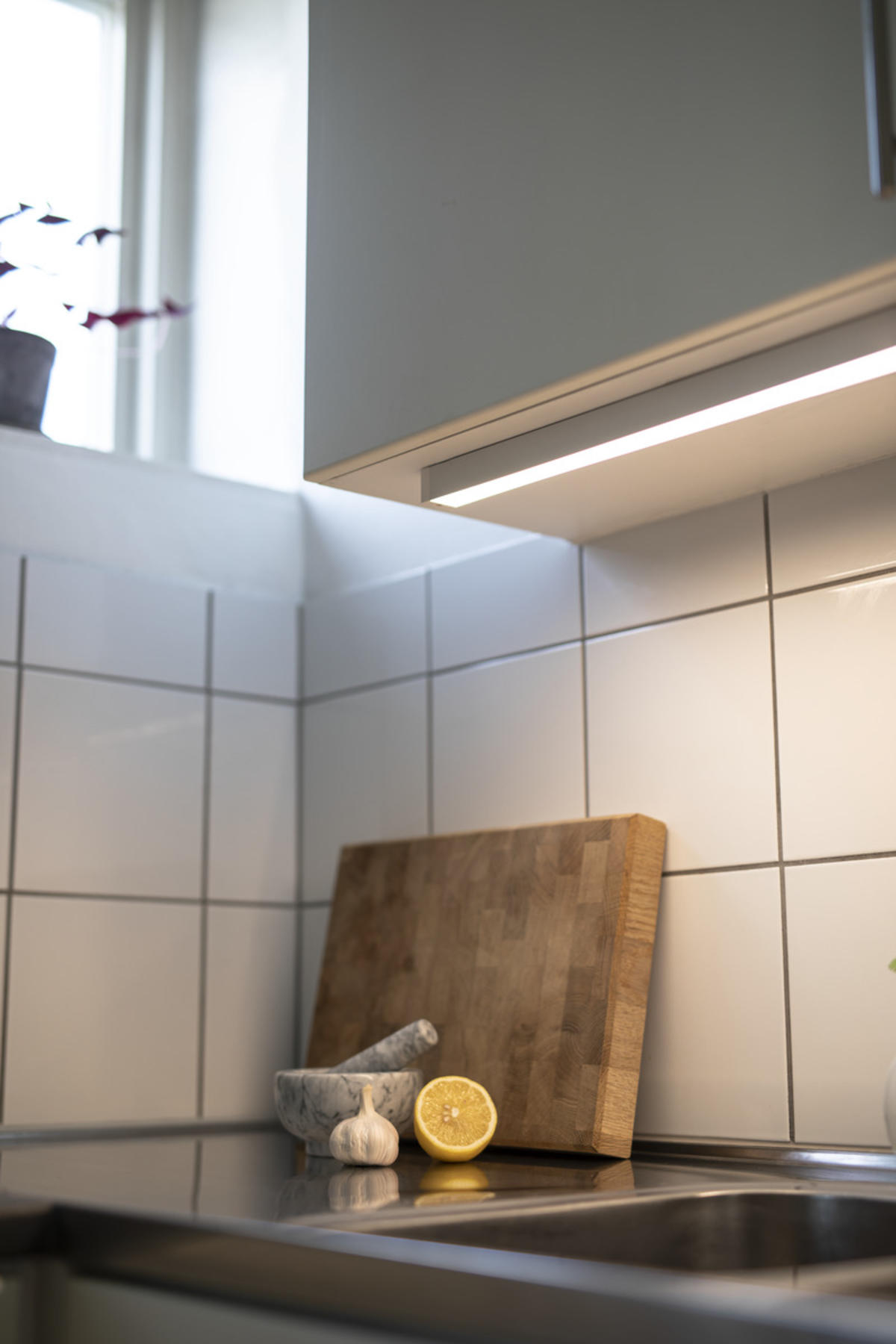

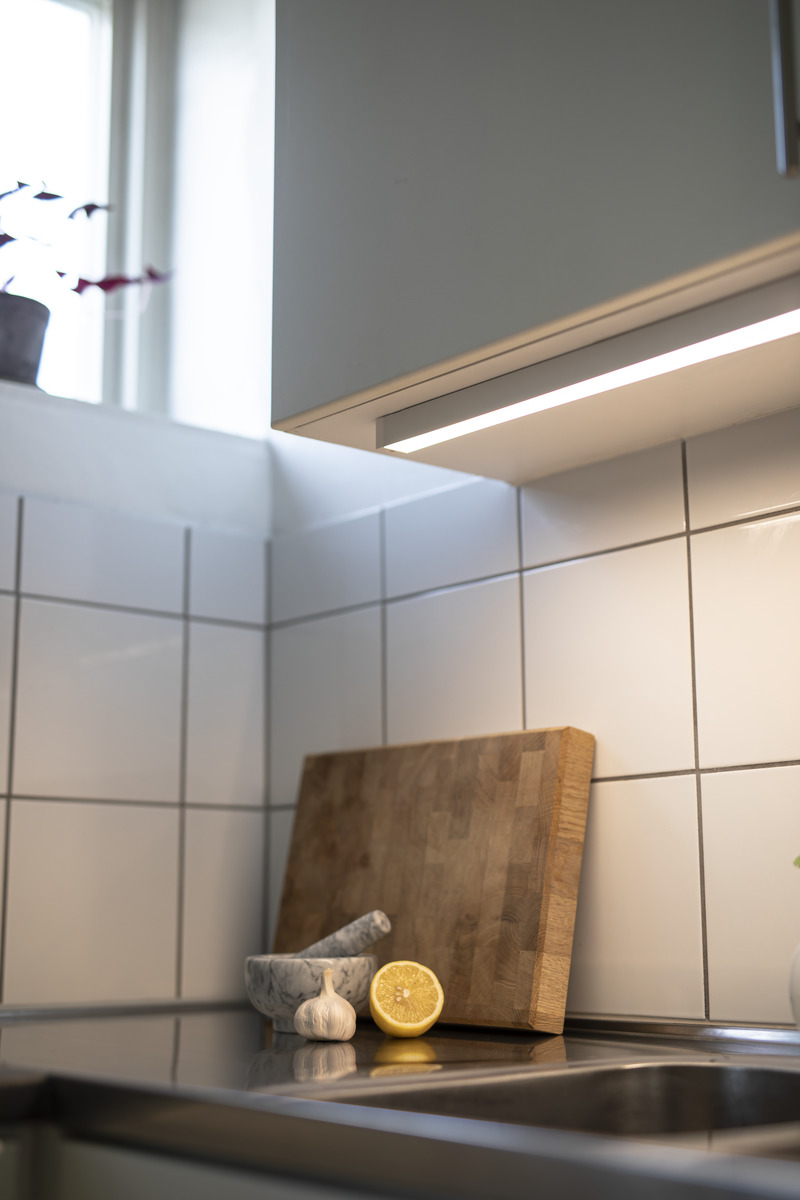

Dimmable complete LED ramp for 230V connection in white enamelled aluminium. Three colour temperatures with good colour rendering and opal cover for an even lighting. Integrated driver that functions a perfect solution for cabinet lighting, or integrated in shelving systems and niches. Available in three lengths, create an LED system with the accessories, connections and joints that can be ordered separately. Dimmable via an external dimmer. Connectable up to 10m in a single length. Comes with self-adhesive tape and is mounted using screws.
Variants
| GTIN | Item Name | Colour Temperature (K) | Luminaire Lumen (lm) | |
|---|---|---|---|---|
|
7392971143330 | Shelf Line 230V White 2700K 300 DIM | 2700 | 470 |
|
7392971143347 | Shelf Line 230V White 3000K 300 DIM | 3000 | 480 |
|
7392971143354 | Shelf Line 230V White 4000K 300 DIM | 4000 | 530 |
|
7392971143361 | Shelf Line 230V White 2700K 500 DIM | 2700 | 780 |
|
7392971143378 | Shelf Line 230V White 3000K 500 DIM | 3000 | 820 |
|
7392971143385 | Shelf Line 230V White 4000K 500 DIM | 4000 | 890 |
|
7392971143392 | Shelf Line 230V White 2700K 700 DIM | 2700 | 1050 |
|
7392971143408 | Shelf Line 230V White 3000K 700 DIM | 3000 | 1100 |
|
7392971143415 | Shelf Line 230V White 4000K 700 DIM | 4000 | 1210 |

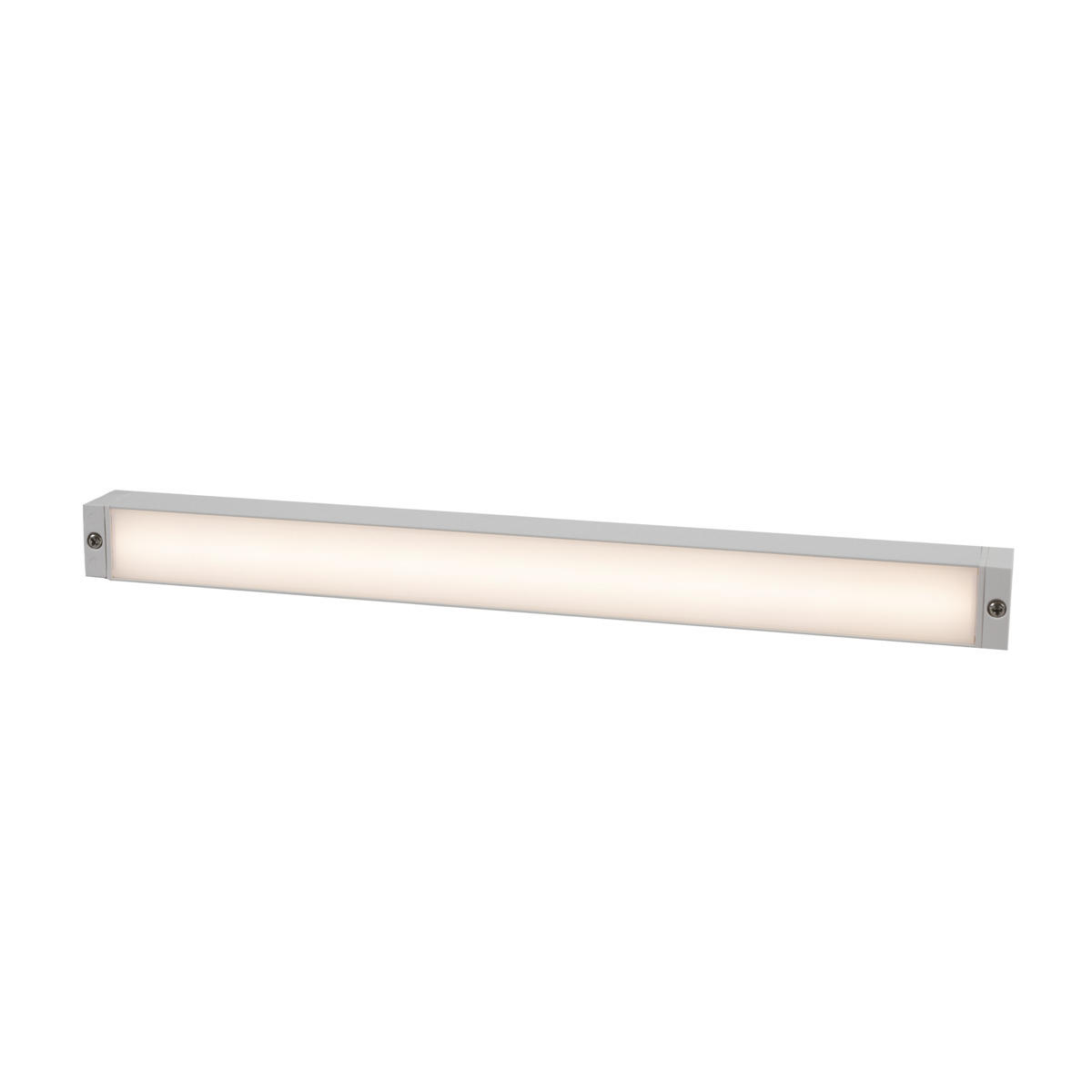

Shelf Line 230V White 2700K 300 DIM
- Description
-
GTIN 7392971143330
Item Name Shelf Line 230V White 2700K 300 DIM
Warranty 5 years
- Light Technical Data
-
Light Source LED
Light Source Included Yes
LED Colour Warm White
Colour Temperature (K) 2700
Colour Rendering Index (Ra) >90
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 170
Luminaire Lumen (lm) 470
Beam Angle (°) 110
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 81
Life Time L80 50 000h Ta 25°C
Nominel Life Time (h) 50000
Lumen maintenance 50 000h L87
Lumen maintenance 75 000h L81
Lumen maintenance 100 000h L76
LLMF @ 50 000h 0,87
LLMF @ 100 000h 0,76
Life Time Driver 50 000h/10%
- Technical data
-
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50
Power LED (W) 4,7
Power Luminaire (W) 6
System Power (W) 6
Efficiency Luminaire (lm/W) 78
Efficiency System (lm/W) 78
- Operation and Connection
-
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Driver Manufacturer Hide-a-lite
Connection (type) Plug-in
Power Factor ʎ 0,9
Efficiency (%) 78
Power loss (W) 1,3
Leakage current (mA) (at 230 V, 50 Hz, full load) 0,5
THD (%) 40
Operating Temperature -20…+40
Max. Tc (°C) 80
Dimmable Yes
Type of Dimming Trailing Edge
Dimming secondary side AM
Protection Against Overheating 130°C, Overload
Inrush current (max/time) 1,5A 68µs
Mains surge protection DM (kV) 0,5
Fuse B10 (pcs) 100
Fuse B16 (pcs) 150
Fuse C10 (pcs) 100
Fuse C16 (pcs) 150
- Color and material
-
Material Aluminium
Color White
- Measurement and installation
-
Operating Environment Indoor / dry locations
IP Degree of Protection 20
Protection Class II
Installation Surface mounted

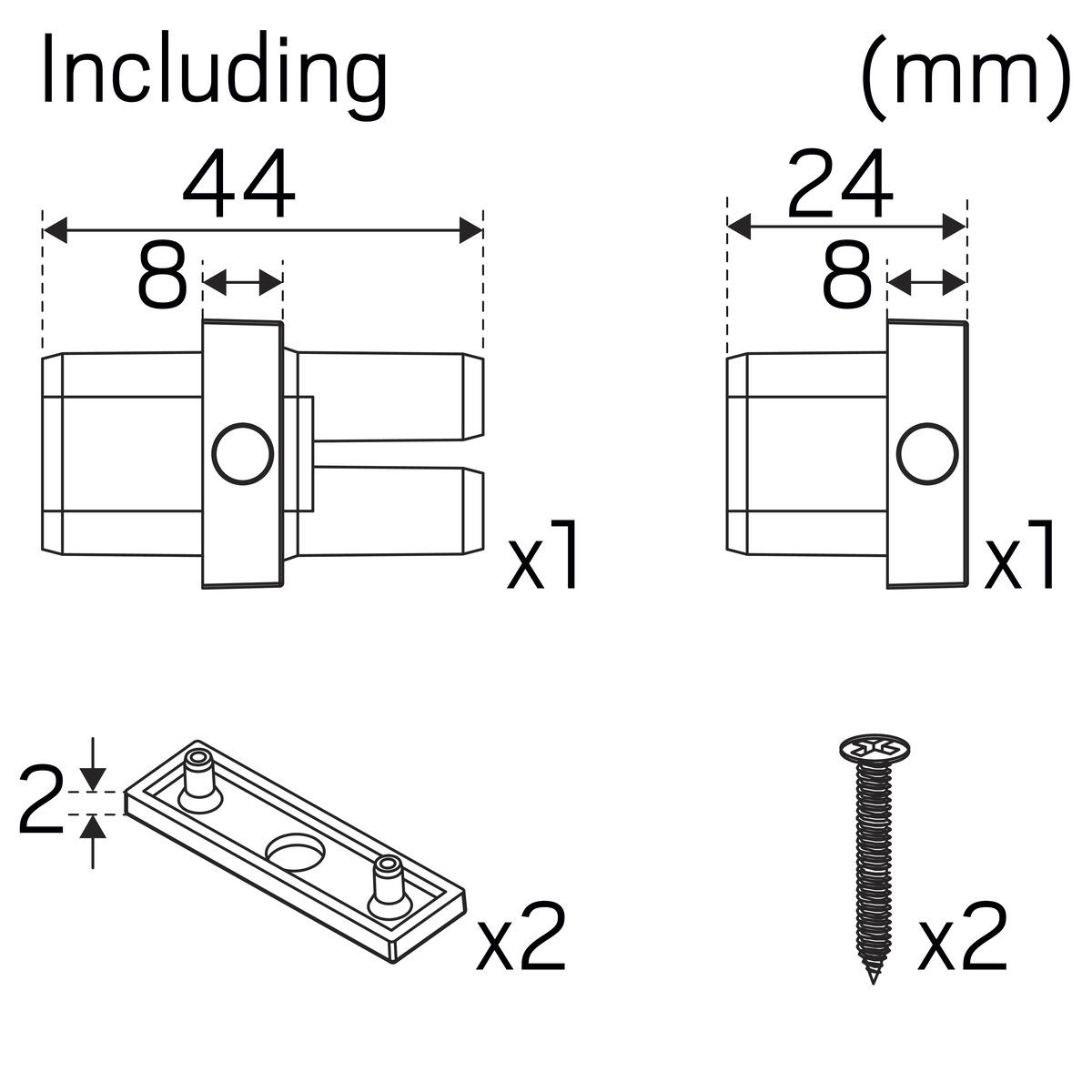

Mounting Installation Screw Mounting, Self Adhesive Tape
Fire Safety Marks MM-mark
Approval Marks CE
Filament Test IEC 695-2-1(°C) 650

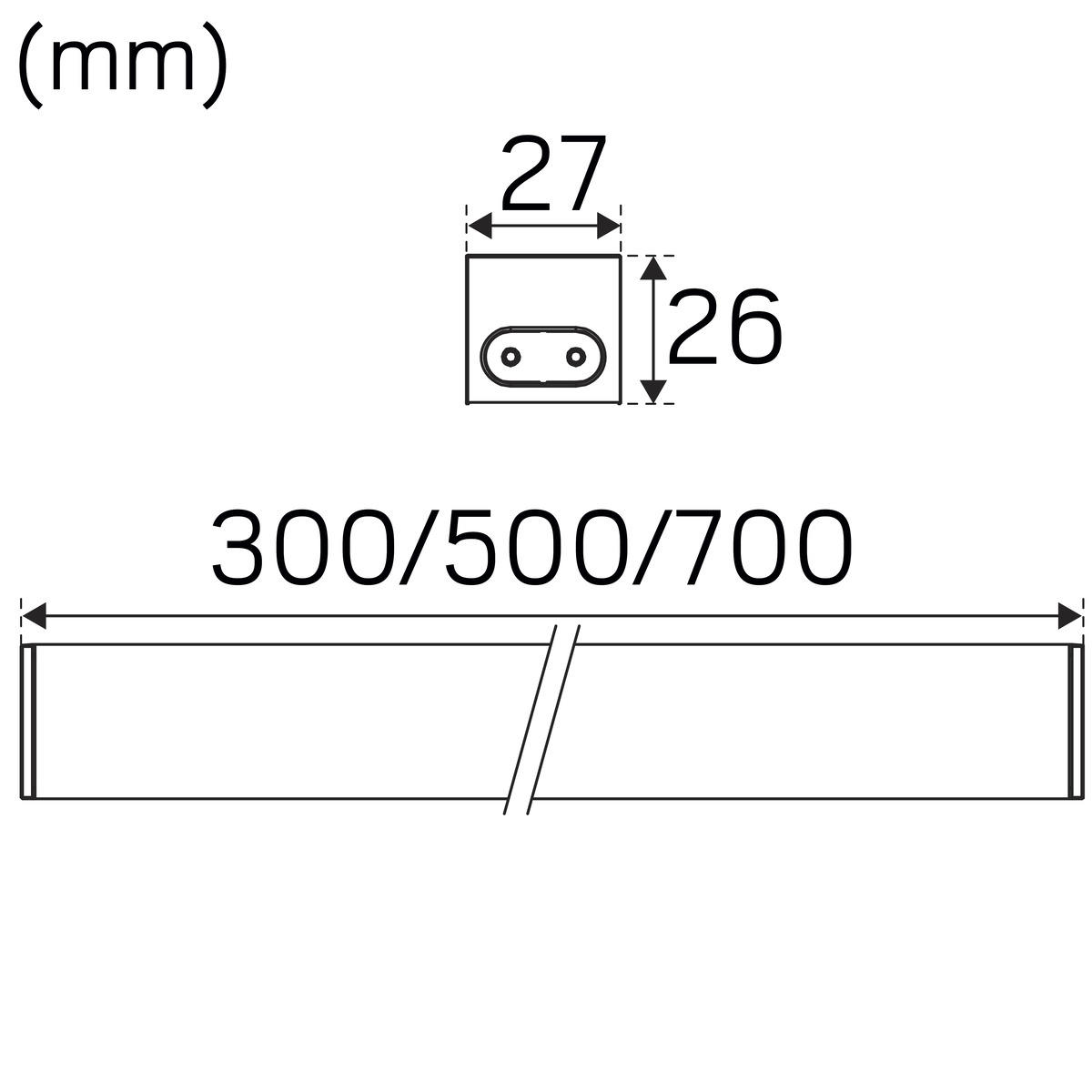

Length (mm) 300
Width (mm) 27
Height (mm) 26
Weight (kg) 0,142
Images and downloads
-
PDF
Manual -
IES
Shelf Line 230V White 2700K 300 DIM.IES -
IES
Shelf Line 230V White 3000K 300 DIM.IES -
IES
Shelf Line 230V White 4000K 300 DIM.IES -
IES
Shelf Line 230V White 2700K 500 DIM.IES -
IES
Shelf Line 230V White 3000K 500 DIM.IES -
IES
Shelf Line 230V White 4000K 500 DIM.IES -
IES
Shelf Line 230V White 2700K 700 DIM.IES -
IES
Shelf Line 230V White 3000K 700 DIM.IES -
IES
Shelf Line 230V White 4000K 700 DIM.IES -
PDF
Disassembly instruction
