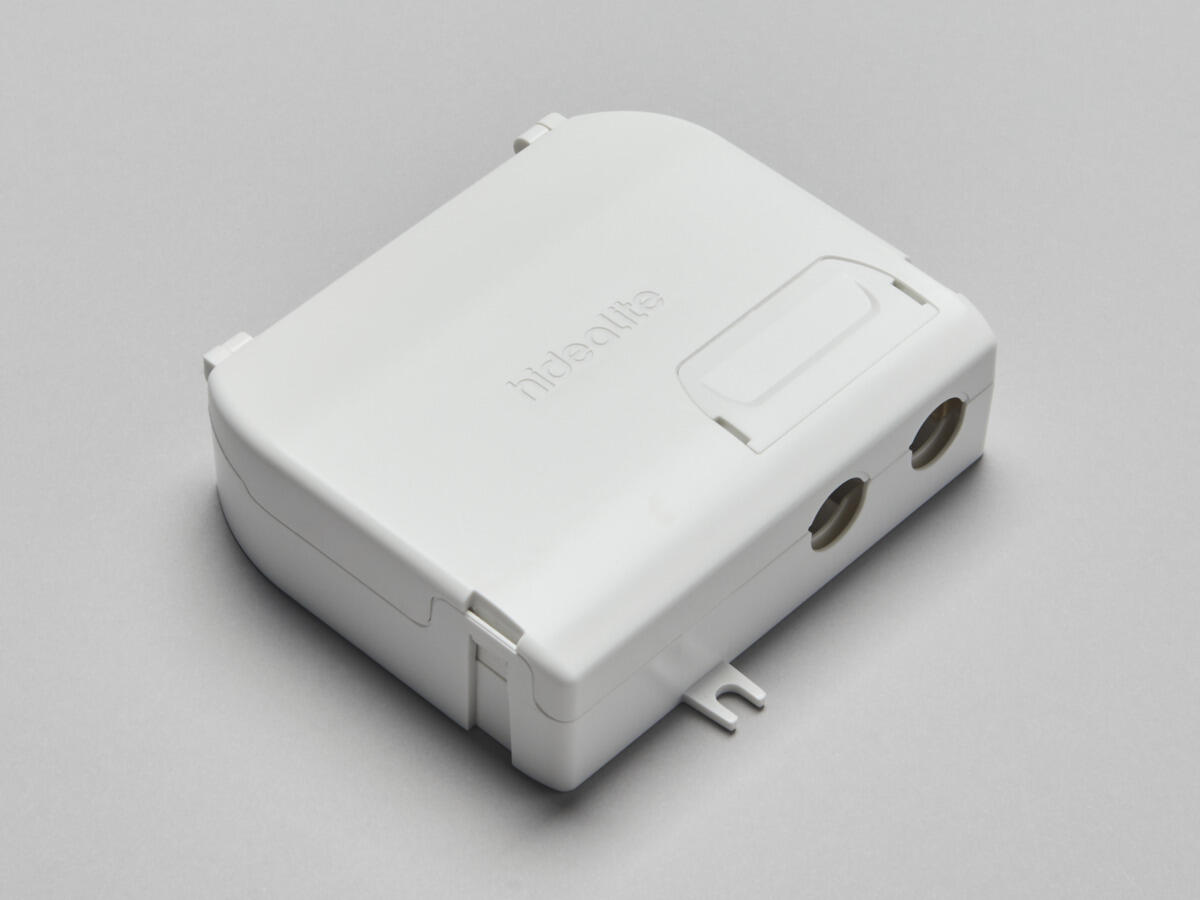

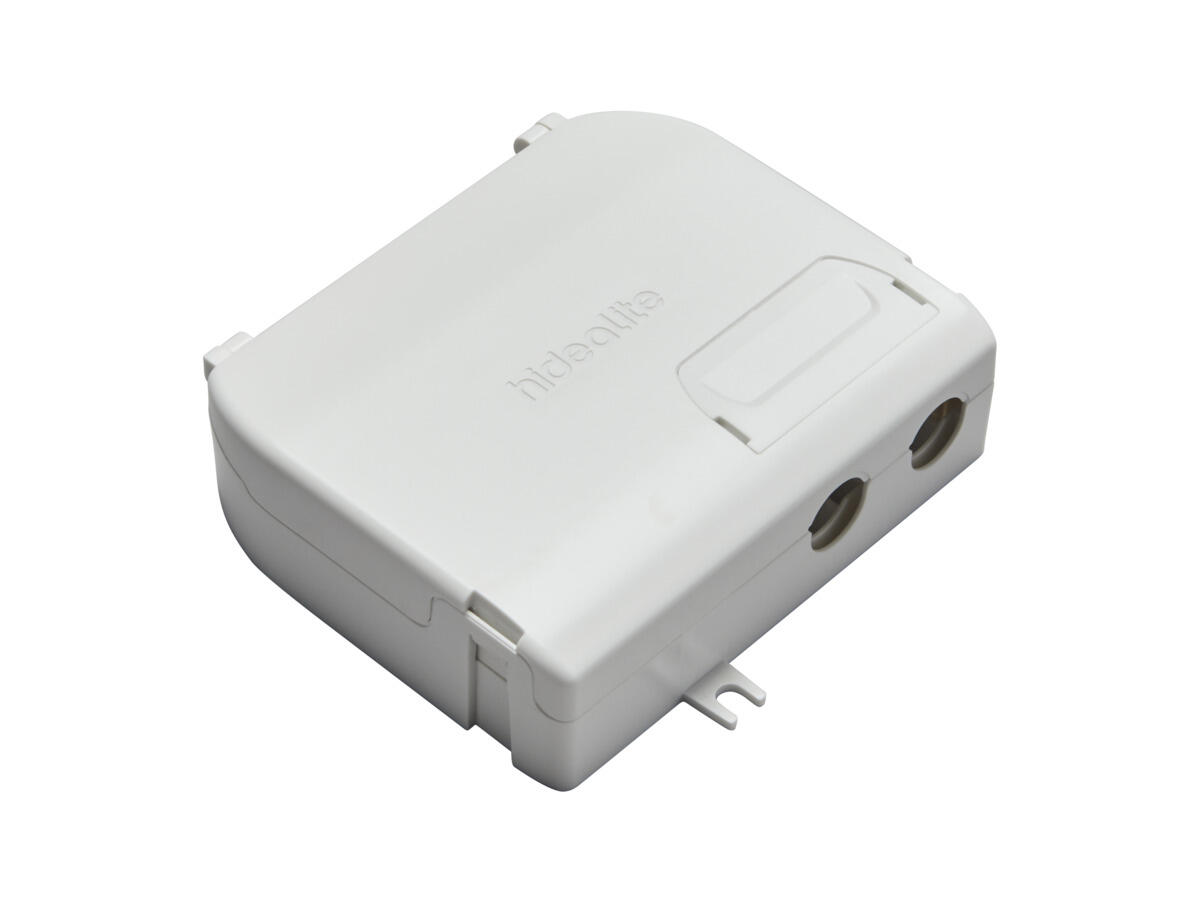

Q-Box Multi Q-Box Multi

Easy-to-install Q-box for smart Casambi devices
Control your luminaires wirelessly via Casambi with a simple app
Loops incoming power
Casambi devices for controlling dimmable or DALI luminaires and LED strips

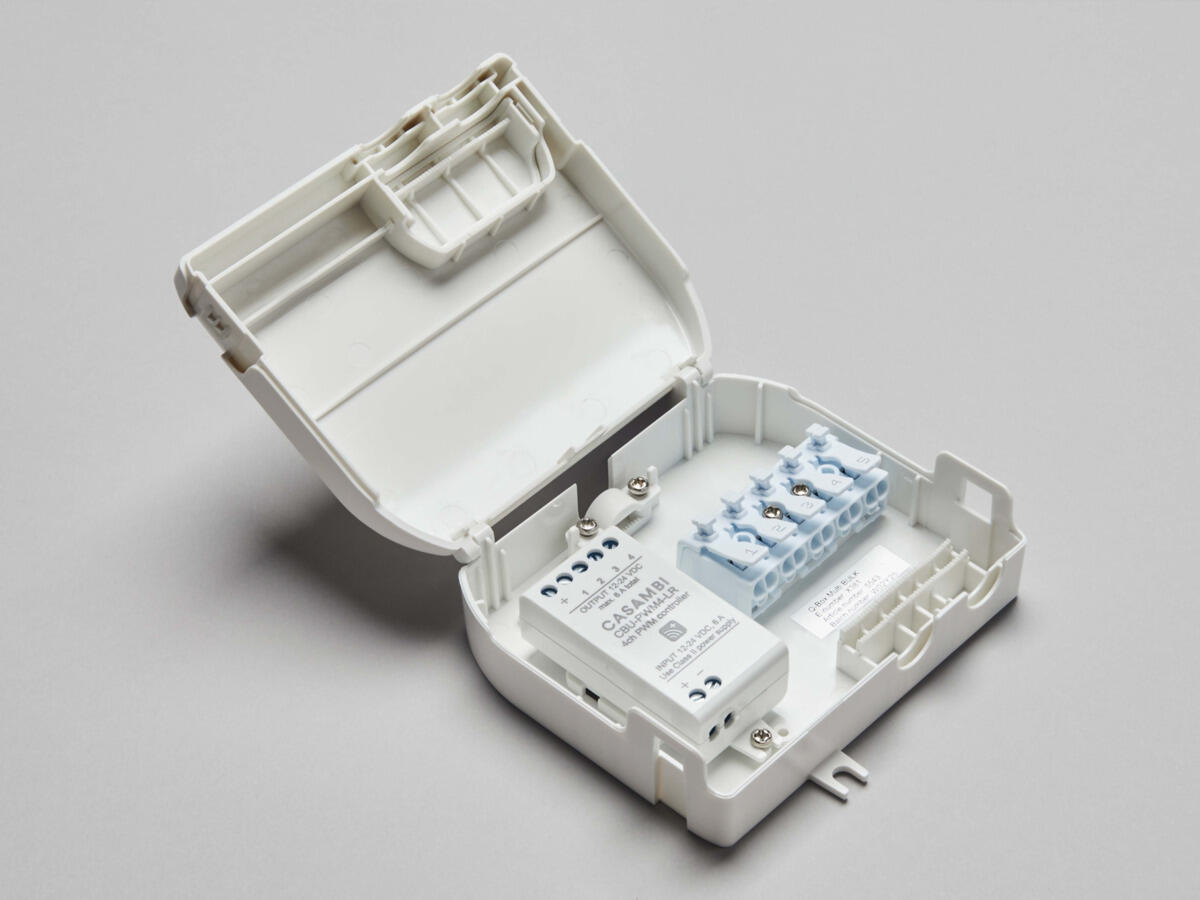

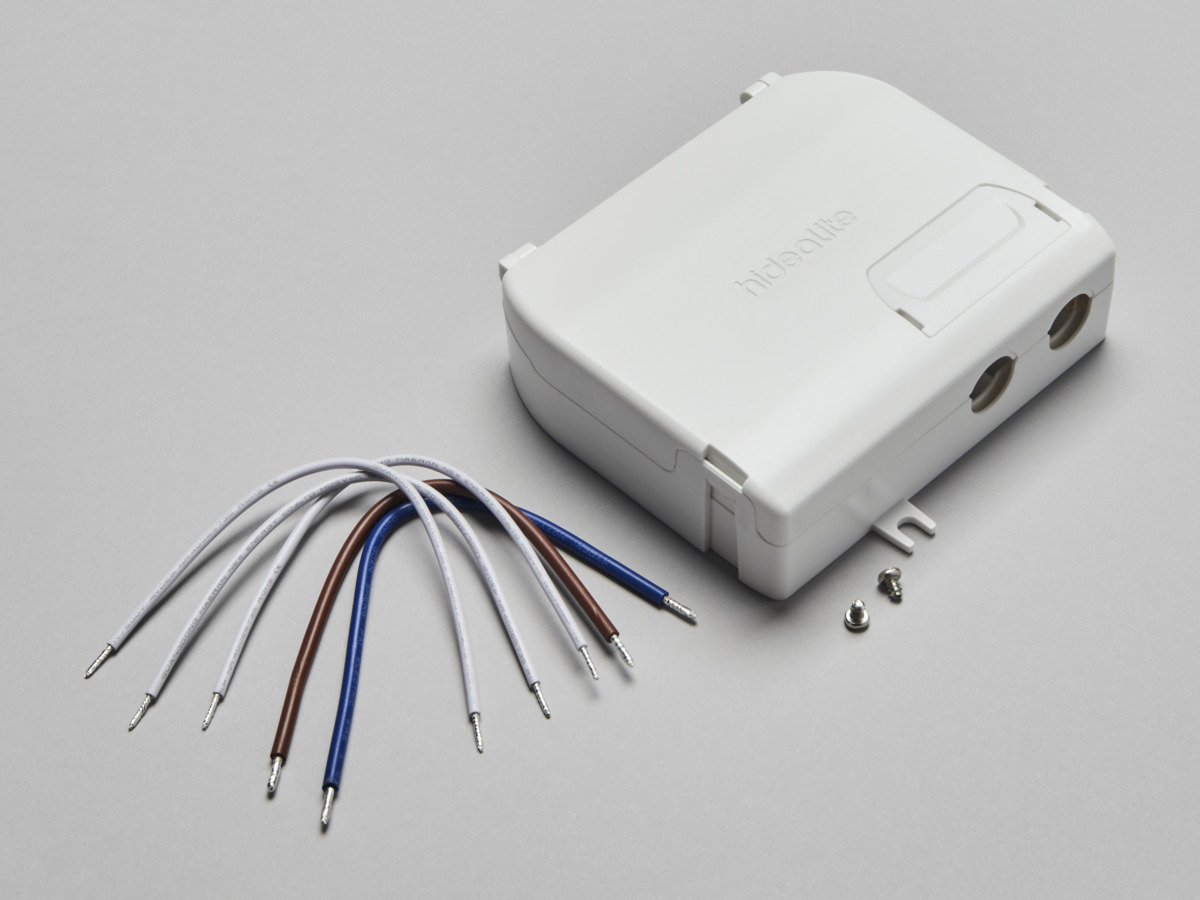

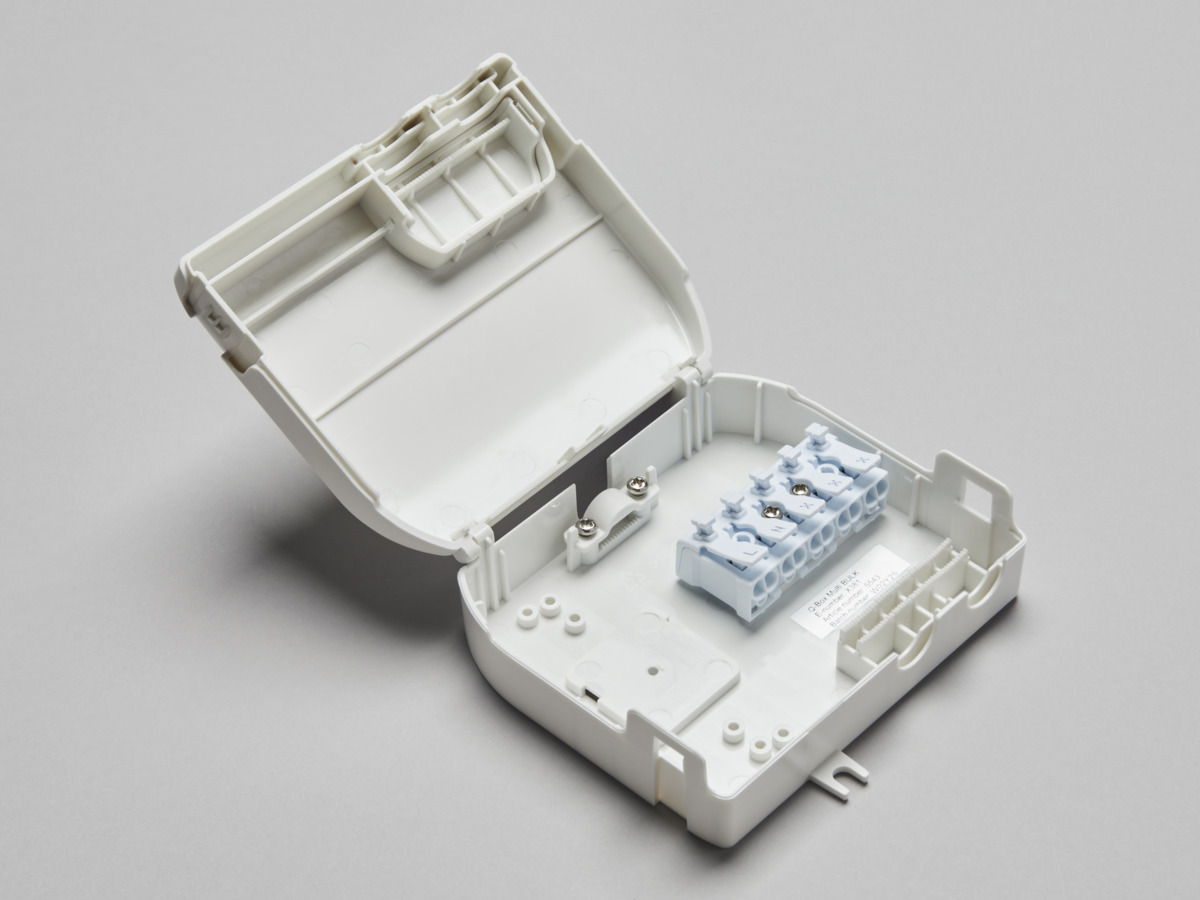

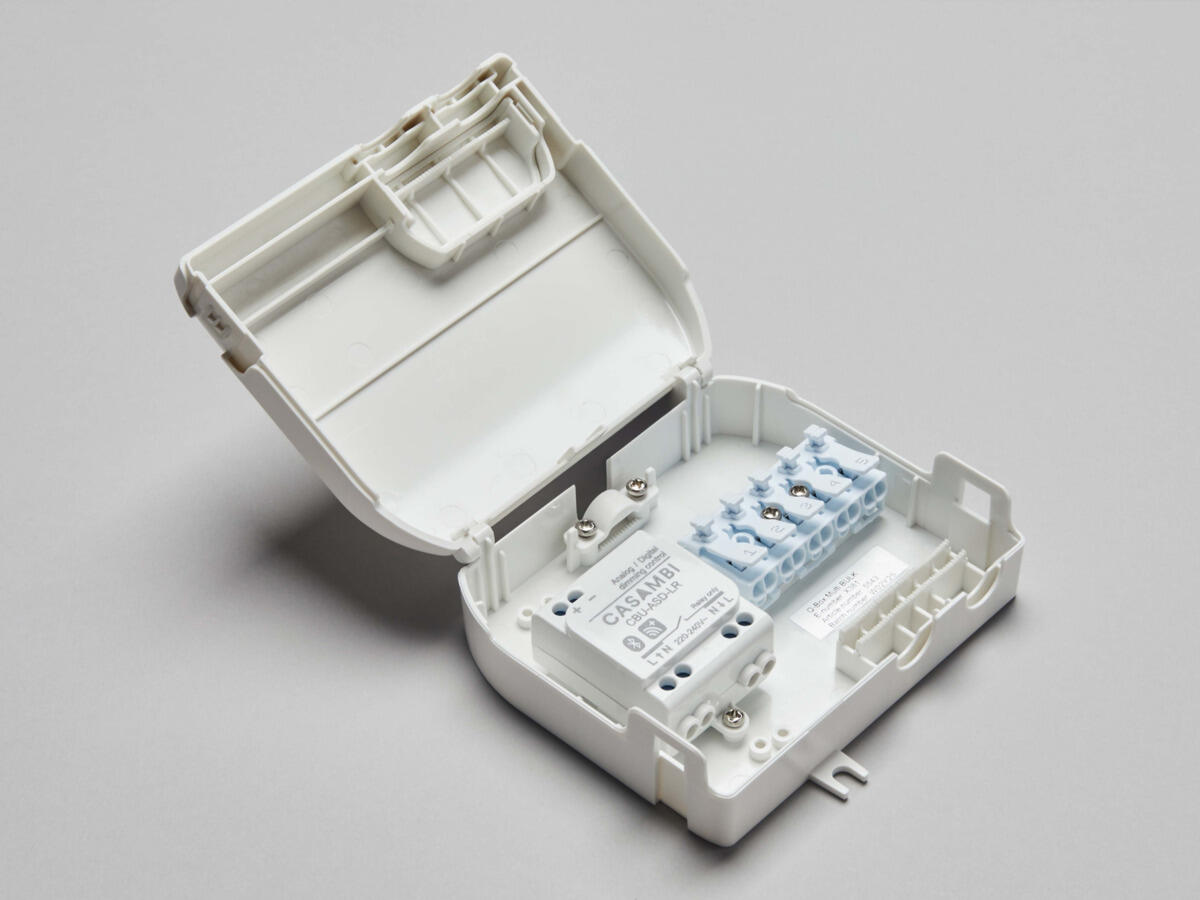

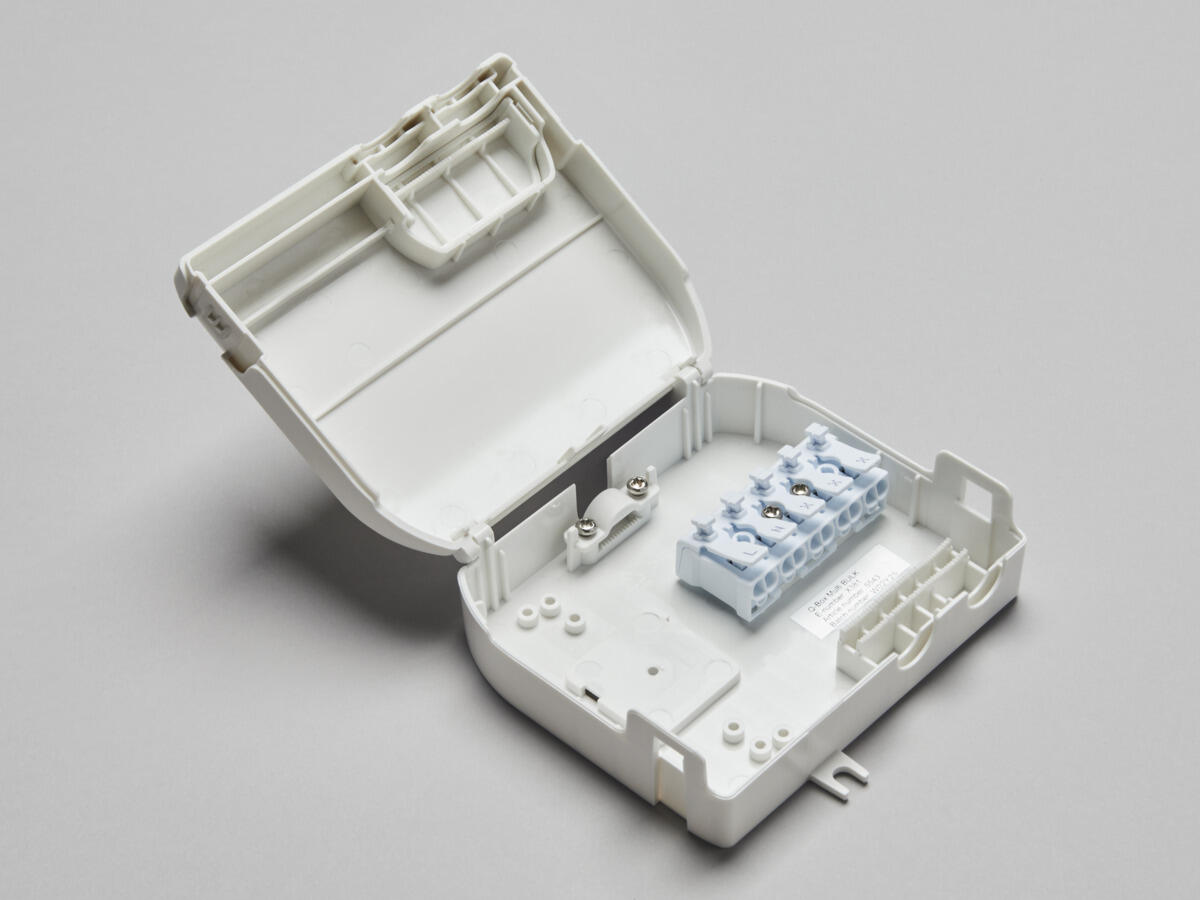

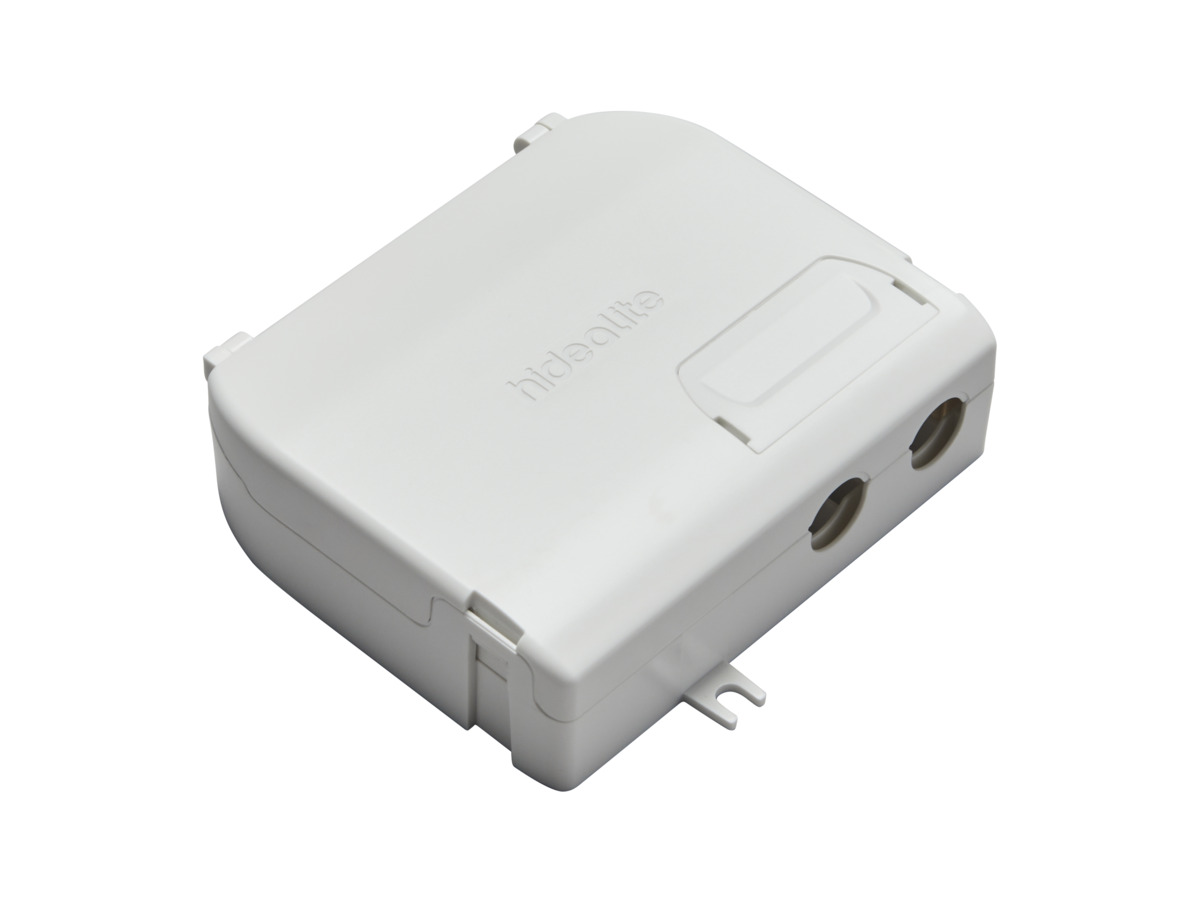

Q-box Multi is our connection box for quickly connecting and controlling lighting via Casambi, which gives you full, direct control of the light via a simple app. The box is IP20 rated and intended for placement in suspended ceilings or surface-mounted indoor installations. The box can be attached with screws to any surface. Supplied with screws for mounting Casambi smart pucks and cabling for smooth connection between terminal block and puck. Strain relief for both cabling and hose, loop-in loop-out.

Variants	GTIN	Item Name
	7392971152691	Q-Box Multi

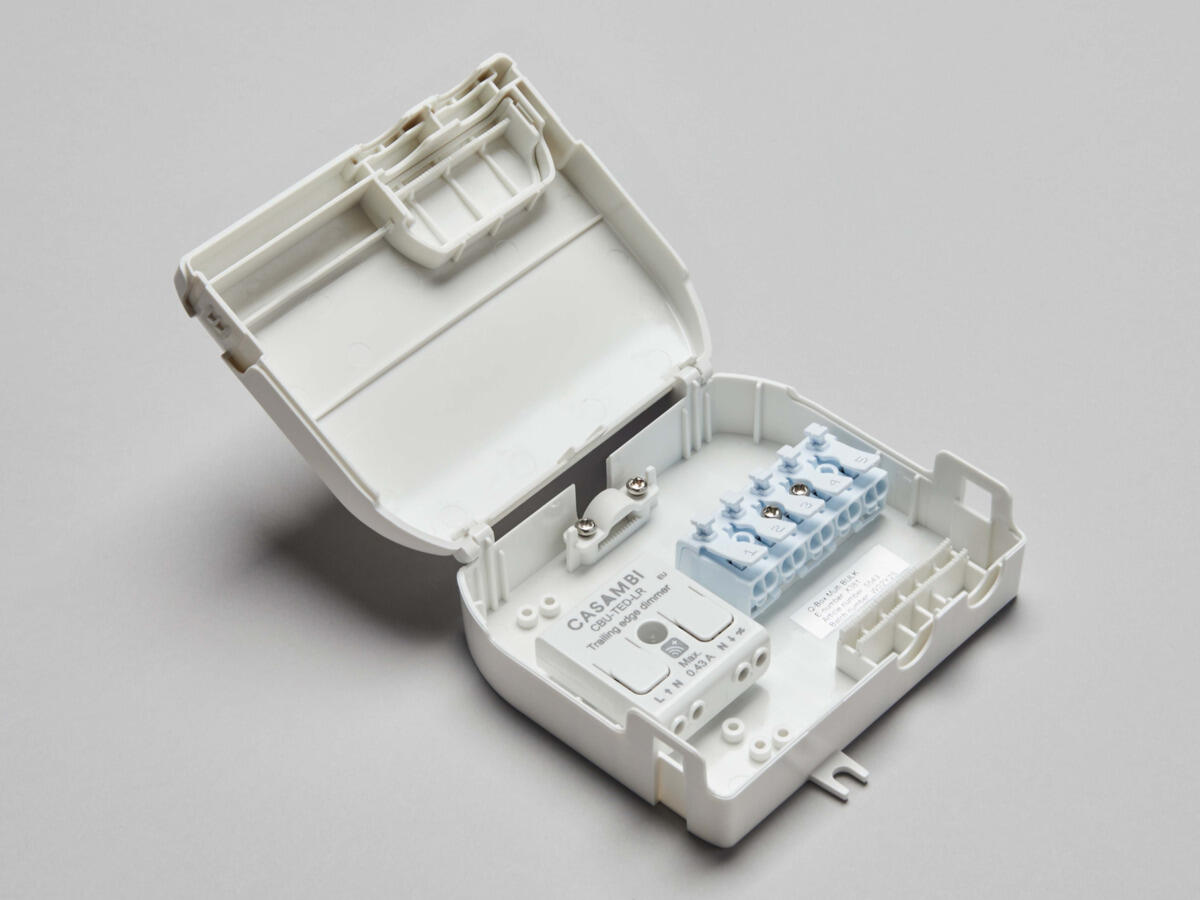

	7392971152707	Q-Box Multi Casambi TED
	7392971152714	Q-Box Multi Casambi PWM4
	7392971152721	Q-Box Multi Casambi ASD

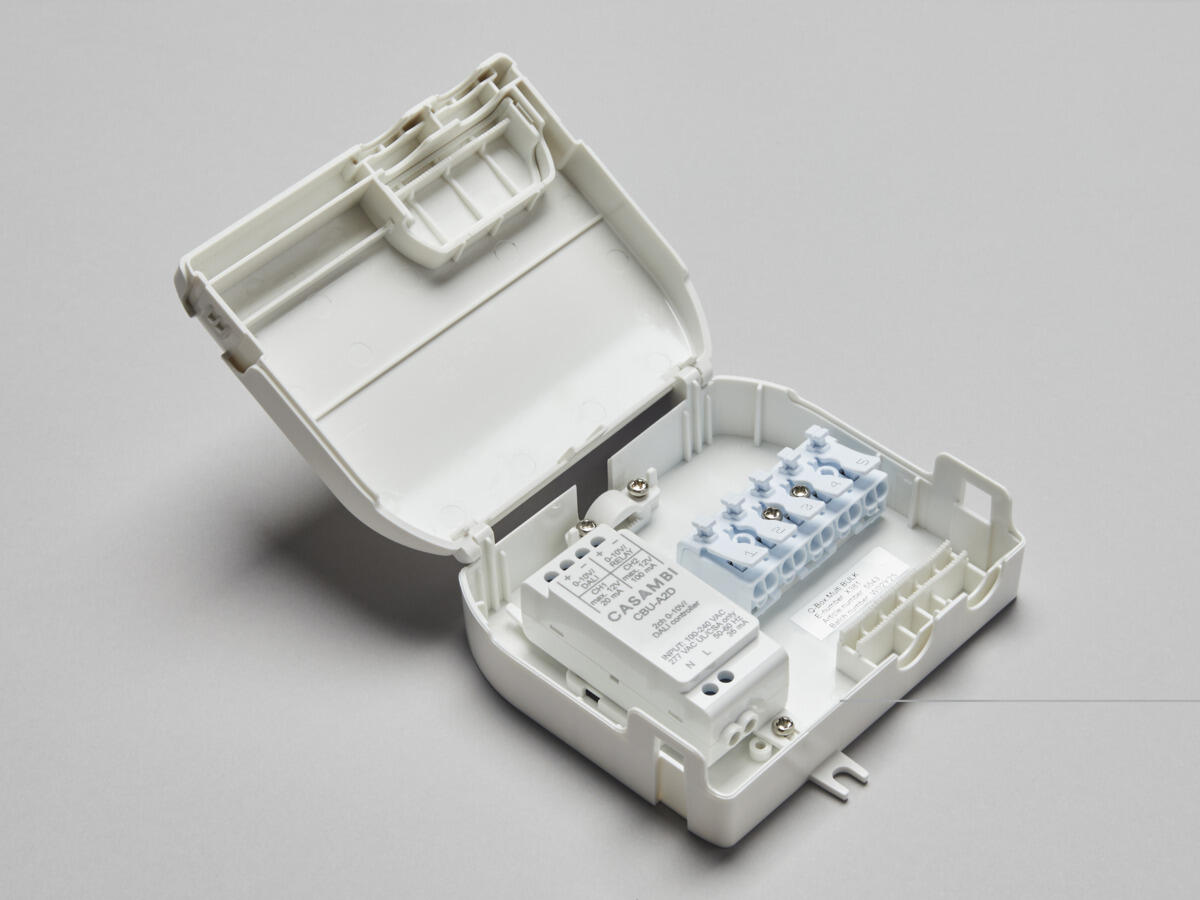

	7392971152769	Q-Box Multi Casambi A2D

Show more articles

Description: GTIN 7392971152691

Item Name Q-Box Multi

Warranty 5 years
Technical data: Adjustable No
Operation and Connection: Connection (type) Quick Terminal

Connection (mm2) 5x0,5-2,5

Through Wiring Yes

Strain Relief Yes

Connection Secondary (type) Quick Terminal, Cable

Length Connection Secondary (cm) 15

Min. Ta (°C) -20

Max. Ta (°C) 40

Memory Function Power Failure No
Color and material: Material Plastic

Color White

Halogen free Yes
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Installation Built-in, Surface mounted

Mounting Installation Screw Mounting

Fire Safety Marks Approved for installation against insulation

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

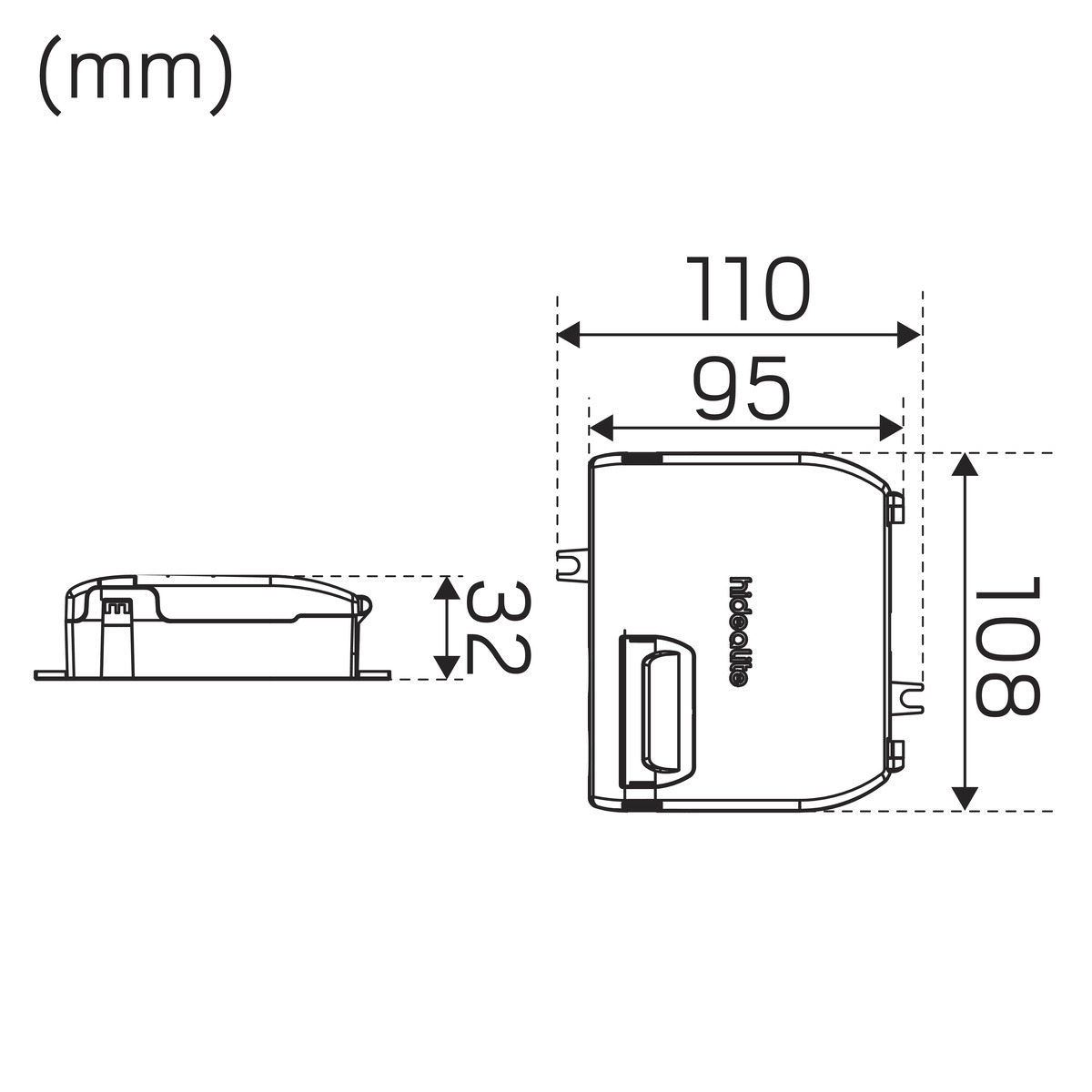

Length (mm) 108

Width (mm) 110

Height (mm) 32

Weight (kg) 0,085

Built-in Ø (mm) 104mm

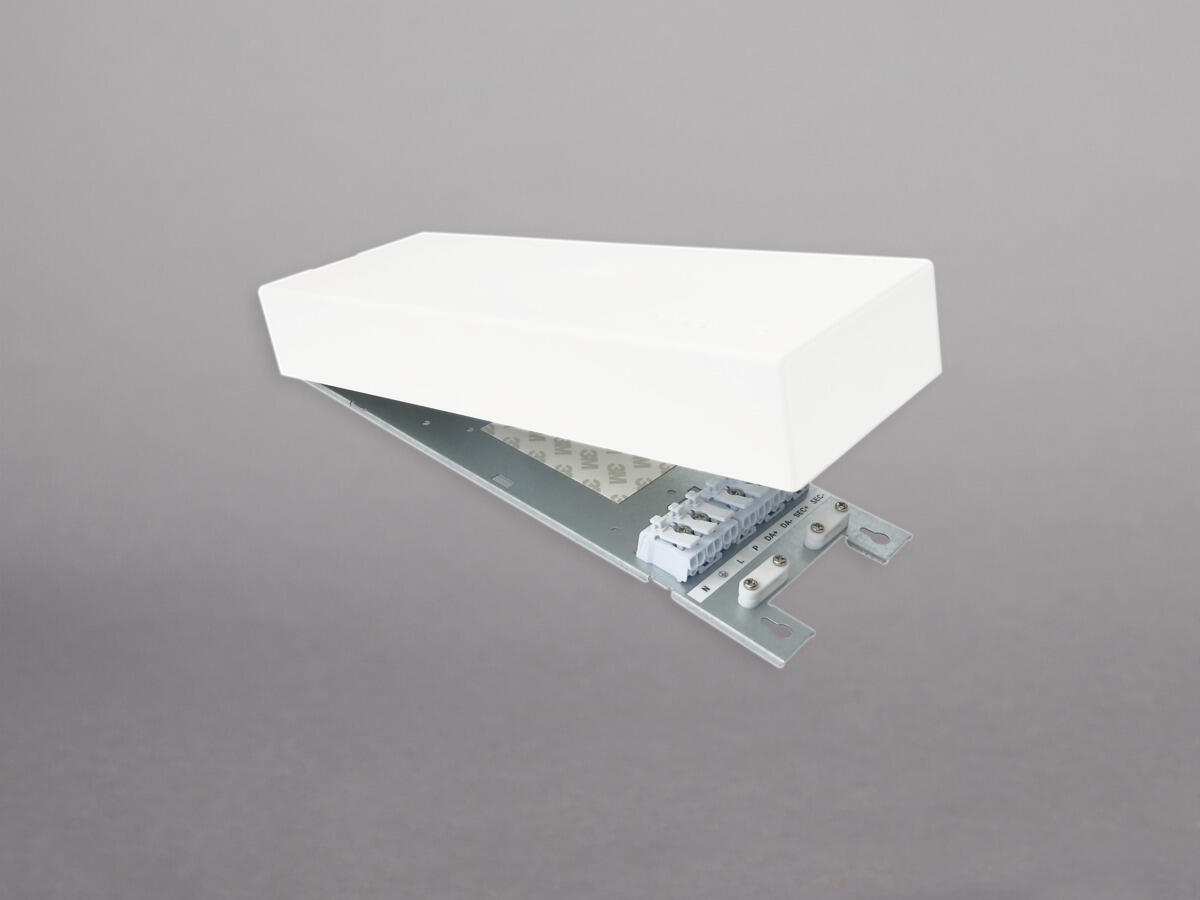

S-Box

Convenient and discreet box for external drivers that cannot be built in or hidden away. Service-friendly with easy access to your drivers. Fits most of our drivers for indoor use, which are easily installed in the box. S-box contains quick connection terminal blocks (8x0.5-2.5mm 2) for connection of drivers and strain relief for both in- and outgoing cables. Knockouts for surface-mounted cable on the ends. Best installed over ceiling and junction boxes for concealed connection.

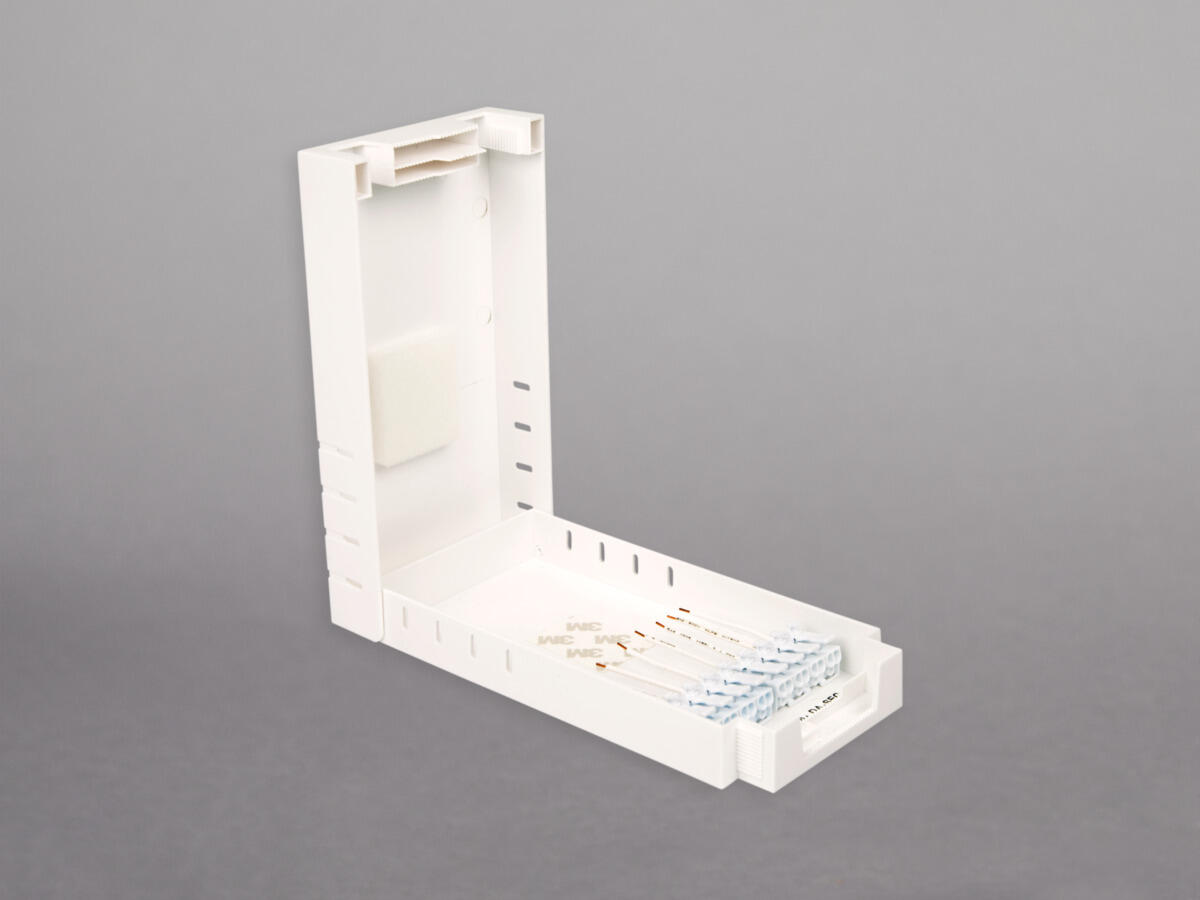

Q-Box

Stand-alone driver casing in white halogen-free plastic for indoor use. With push-in terminal blocks 8 x 0.5-2.5 mm² for connecting driver. Suitable for through wiring between drivers or luminaires, possible through wiring for both incoming power and lighting control. Can be used to conceal drivers or as a connection point. Q-box is most suited for use with our Jolly drivers and requires no tools. Screwless strain relief and through wiring for a service-friendly installation.

Q-Box Micro

Small connection box in white halogen-free plastic for indoor use. With push-in terminal blocks 0.5-2.5 mm2 for connection of driver, fitting is tool free. Screwless strain relief and simple through wiring of cables and 16mm flex hose for a service-friendly installation. Q-box Micro comes in 3-pole and 5-pole versions.

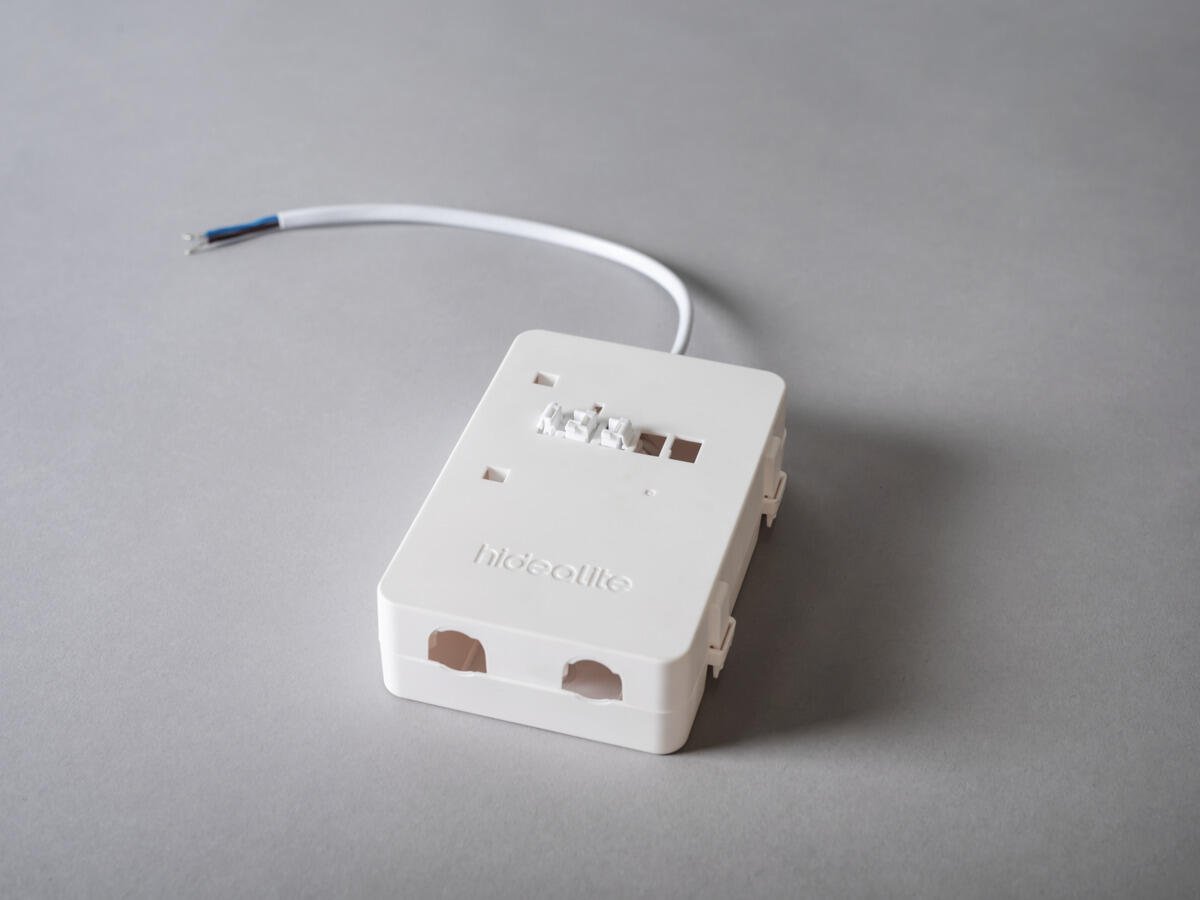

Q-Box Mini

Q-Box Mini is a connection box with a 2-in-1 function in plastic, for traditional through wiring to a terminal block or the Linect quick-connection system. The connection box gives a quick and tool-free installation, with 3 of 5 pole push-in terminals for through wiring and screwless strain relief for cable or flex hose 16mm. Prepared for the universal quick connection system Linect 3 and 5 pole systems and is compatible with systems on the market such as Wieland, Ensto, Wago/Winsta.

Q-Box Multi

Q-Box Multi

Accessories

Accessory to

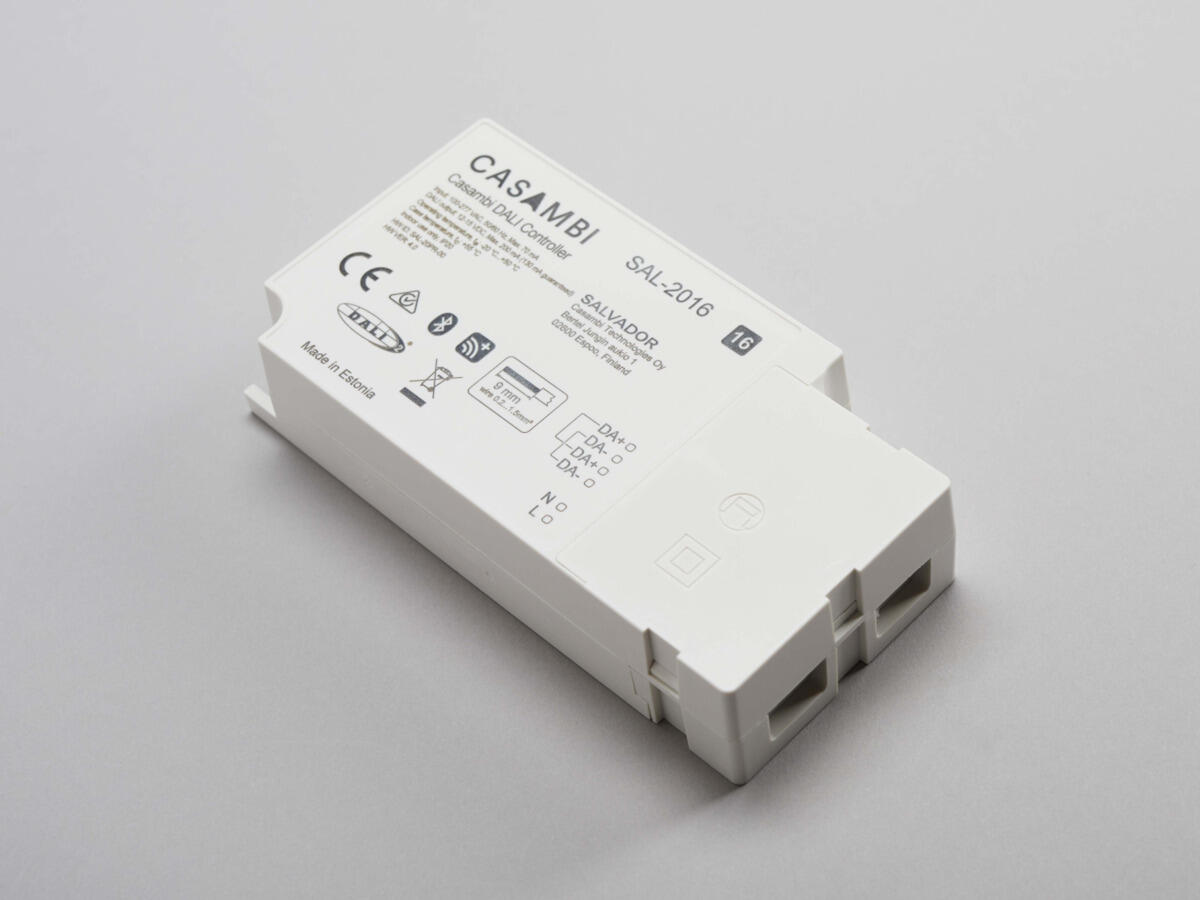

Casambi Control Modules
