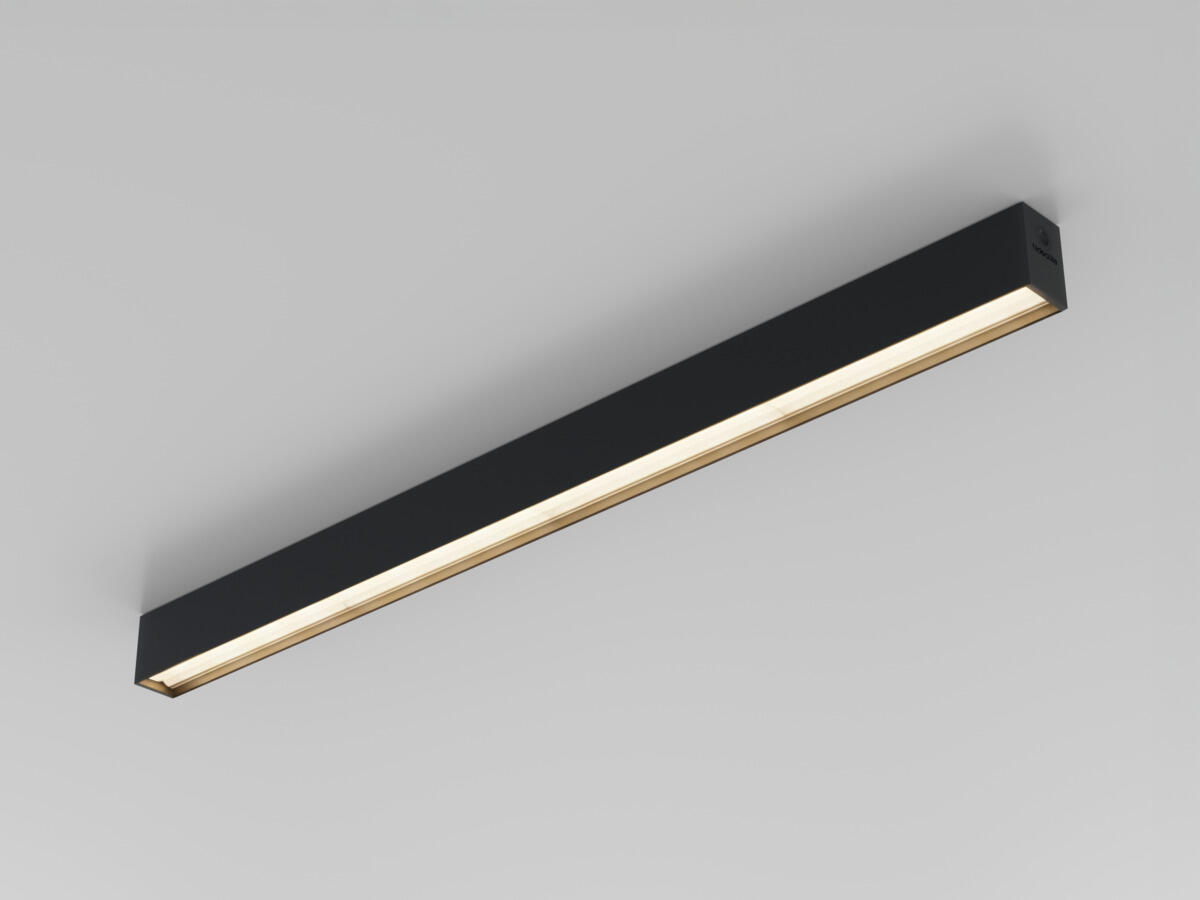

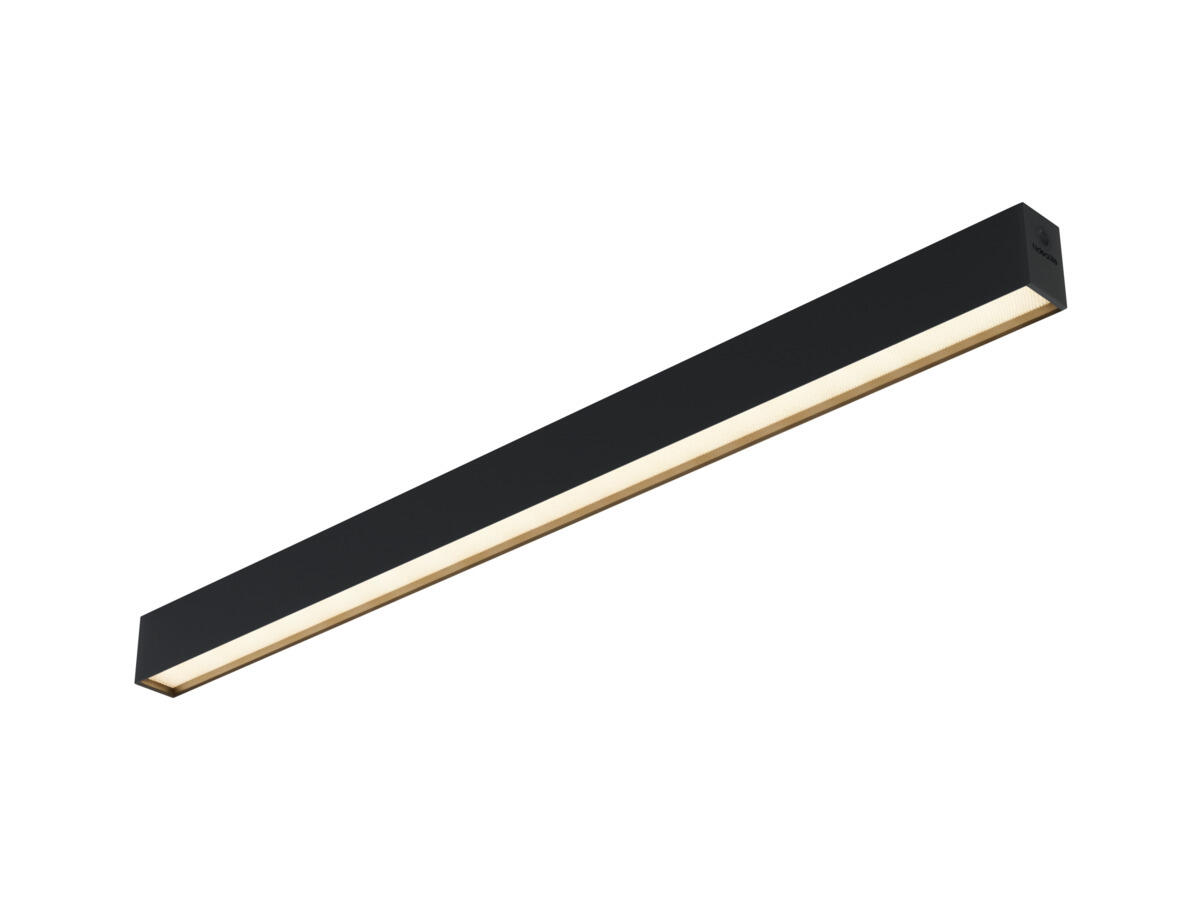

Actor G2 Ceiling Actor G2 Ceiling Asym Black DIM

Selectable colour temperature via DIP-Switch ColourTemp
Replaceable LED and driver
Complete luminaire for surface-mounted ceiling and wall installation
Opal, microprismatic, double parabolic or asymmetric glare shield
Dimmable luminaire with adjustable output via DIP switch Power
Control: Dimmable, DALI
Easily link up to 15 luminaires Accessories: Extension arm, wall bracket, ceiling grid mount, suspension kit Supplied with cable entry – plain end cap without entry available on request

Actor G2 Ceiling is a dimmable luminaire via traditional rotary or push dimmer for surface mounting in fixed ceilings. Its clean, edge-aligned design blends seamlessly into the ceiling for a discreet look—ideal for spaces where the light should be visible but not dominant. The built-in DIP switch allows you to adjust the colour temperature directly on site. No need to plan everything in advance; the light can be fine-tuned after installation. The modular construction means you only replace the necessary part. Actor G2 Ceiling is perfect for corridors, entrances, and for wall or picture lighting. It can be installed individually, linked into continuous light lines, or arranged in patterns that follow the room’s shape. Each luminaire acts as both leader and follower. For suspended mounting, a separate suspension kit is available, providing downlight only. Choose from a range of glare shields to adapt the light to the setting: opal, microprismatic, double parabolic or asymmetric or highlighting walls and artwork.

We can customize the product See the possibilities of customization

GTIN	Item Name	Color	Max. Luminaire Lumen (lm)	Type of Dimming	Beam Angle (°)
7392971155029	Actor G2 Ceiling Asym Black DIM	White	1910	Trailing Edge	50
7392971155067	Actor G2 Ceiling DP White DIM	White	2790	Trailing Edge	75
7392971155074	Actor G2 Ceiling DP White DALI CLO	White	2460	DALI 2, Push 230V	75
7392971155081	Actor G2 Ceiling DP Black DIM	Black	2670	Trailing Edge	75
7392971155098	Actor G2 Ceiling DP Black DALI CLO	Black	2300	DALI 2, Push 230V	75
7392971155104	Actor G2 Ceiling MP White DIM	White	3490	Trailing Edge	80
7392971155111	Actor G2 Ceiling MP White DALI CLO	White	3020	DALI 2, Push 230V	80
7392971155128	Actor G2 Ceiling MP Black DIM	Black	3060	Trailing Edge	80
7392971155135	Actor G2 Ceiling MP Black DALI CLO	Black	2480	DALI 2, Push 230V	80
7392971155142	Actor G2 Ceiling OP White DIM	White	3580	Trailing Edge	70
7392971155159	Actor G2 Ceiling OP White DALI CLO	White	3090	DALI 2, Push 230V	70
7392971155166	Actor G2 Ceiling OP Black DIM	Black	3260	Trailing Edge	70
7392971155173	Actor G2 Ceiling OP Black DALI CLO	Black	2660	DALI 2, Push 230V	70
7392971155180	Actor G2 Ceiling Asym White DIM	White	2080	Trailing Edge	50
7392971155197	Actor G2 Ceiling Asym White DALI CLO	White	2080	DALI 2, Push 230V	50
7392971155036	Actor G2 Ceiling Asym Black DALI CLO	White	1920	DALI 2, Push 230V	50

Show more articles

Description: GTIN 7392971155029

Item Name Actor G2 Ceiling Asym Black DIM

Warranty 5 years
Light Technical Data: Min. Armaturlumen (lm) 1700

Max. Luminaire Lumen (lm) 1910

Light Source LED

Light Source Included Yes

Replaceability Replaceable LED by professional

LED Colour White

Colour Temperature (K) 3000, 4000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Beam Angle (°) 50

Light sharing Asymmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Life Time h Ta °C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L90

Lumen maintenance 75 000h L85

Lumen maintenance 100 000h L80

LLMF @ 50 000h 0.9

LLMF @ 100 000h 0.8

Life Time Driver 100 000h/10%

Flicker (PstLM) 0,0271

Stroboscopic effect (SVM) 0,0445
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240V

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Max. Power Luminaire (W) 16

Max. System Power (W) 16

Max. Efficiency Luminaire (lm/W) 119

Max. Efficiency System (lm/W) 119

Containing light source energy efficiency class (EU) 2019/2015 C
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Driver Manufacturer Hide-a-lite

Connection (type) Quick Terminal

Connection (mm2) 3x0,75-2,5

Through Wiring No

Strain Relief No

Power Factor ʎ 0,9

Efficiency (%) 89

Power loss (W) 0,5

Leakage current (mA) (at 230 V, 50 Hz, full load) 10

THD (%) 10

Standby Power 0,5

Constant Current (mA) 400, 450, 500, 550

Min. Ta (°C) 0

Max. Ta (°C) 35

Max. Tc (°C) 80

Memory Function Power Failure No

Protection Against Short Circuit, Overload

Inrush current (max/time) 12A 100µs

Mains surge protection DM (kV) 1

Mains surge protection CM (kV) 2

Fuse B10 (pcs) 50

Fuse B16 (pcs) 80

Fuse C10 (pcs) 50

Fuse C16 (pcs) 80
Color and material: Material Aluminium

Color White

Halogen free No

Environmental Assessment EPD
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class I

Installation Built-in, Surface mounted, Wall, Ceiling, System ceiling

Approval Marks CE

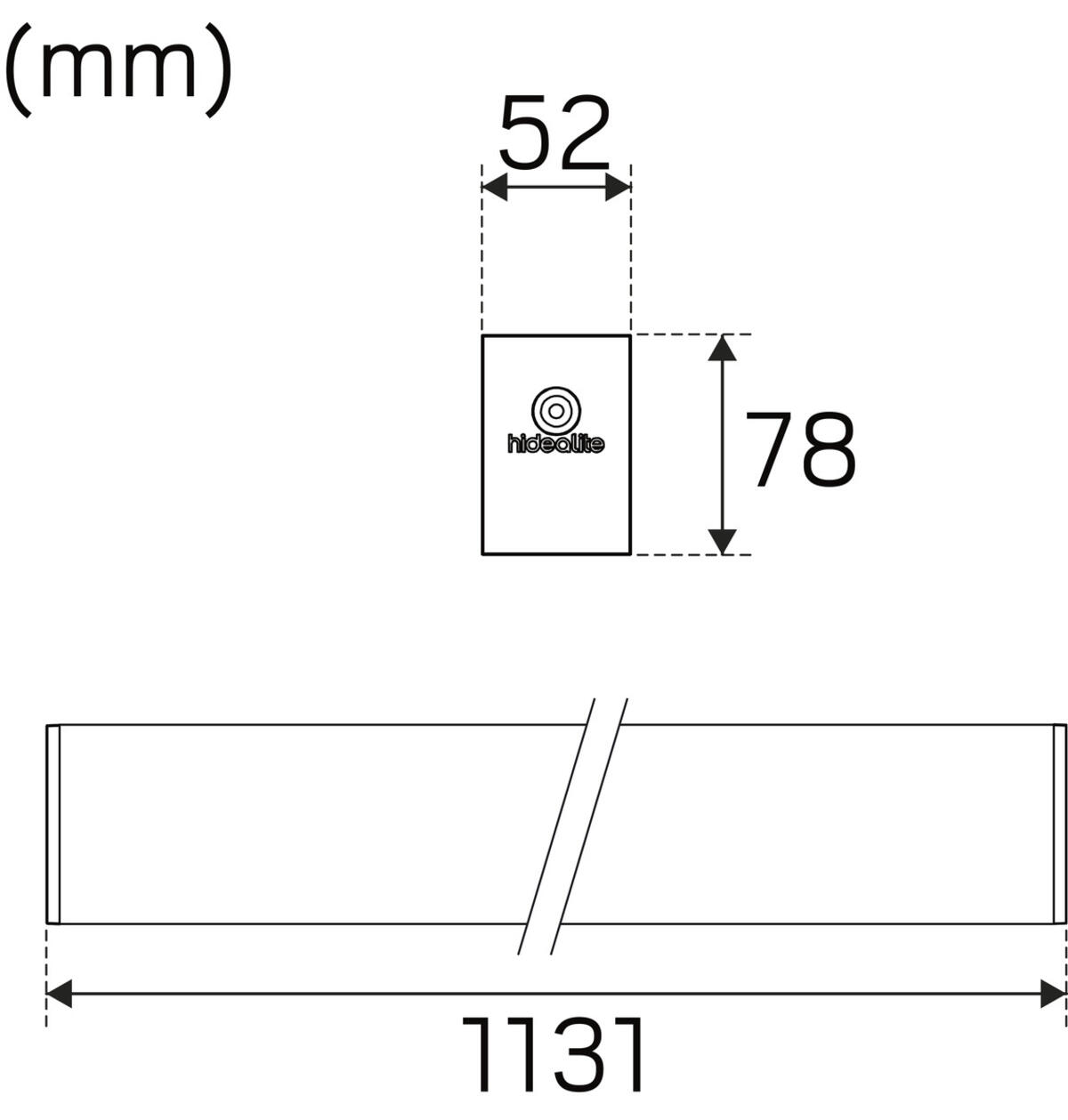

Length (mm) 1131

Width (mm) 52

Height (mm) 78

Weight (kg) 2,14

DIP-table

mA	Effect	3000K	4000k
400mA	14W	1700lm	1710lm
450mA	16W	1890lm	1910lm

Show table

Show DIP-table

Actor G2 Ceiling Asym Black DIM

mA	Effect	3000K	4000k
400mA	14W	1700lm	1710lm
450mA	16W	1890lm	1910lm

Factory setting: 450 mA, 3000K
