Actor G2 Track Actor G2 Track DP Black DALI CLO

Selectable colour temperature via DIP-Switch ColourTemp
Replaceable LED and driver
Adjustable lumen output via DIP-Switch Power, see manual for levels
Built-in dimmable driver
Complete luminaire for 3-phase track
Opal, microprismatic or double parabolic glare shield
Control: Dimmable, DALI
Combine luminaires or install them individually

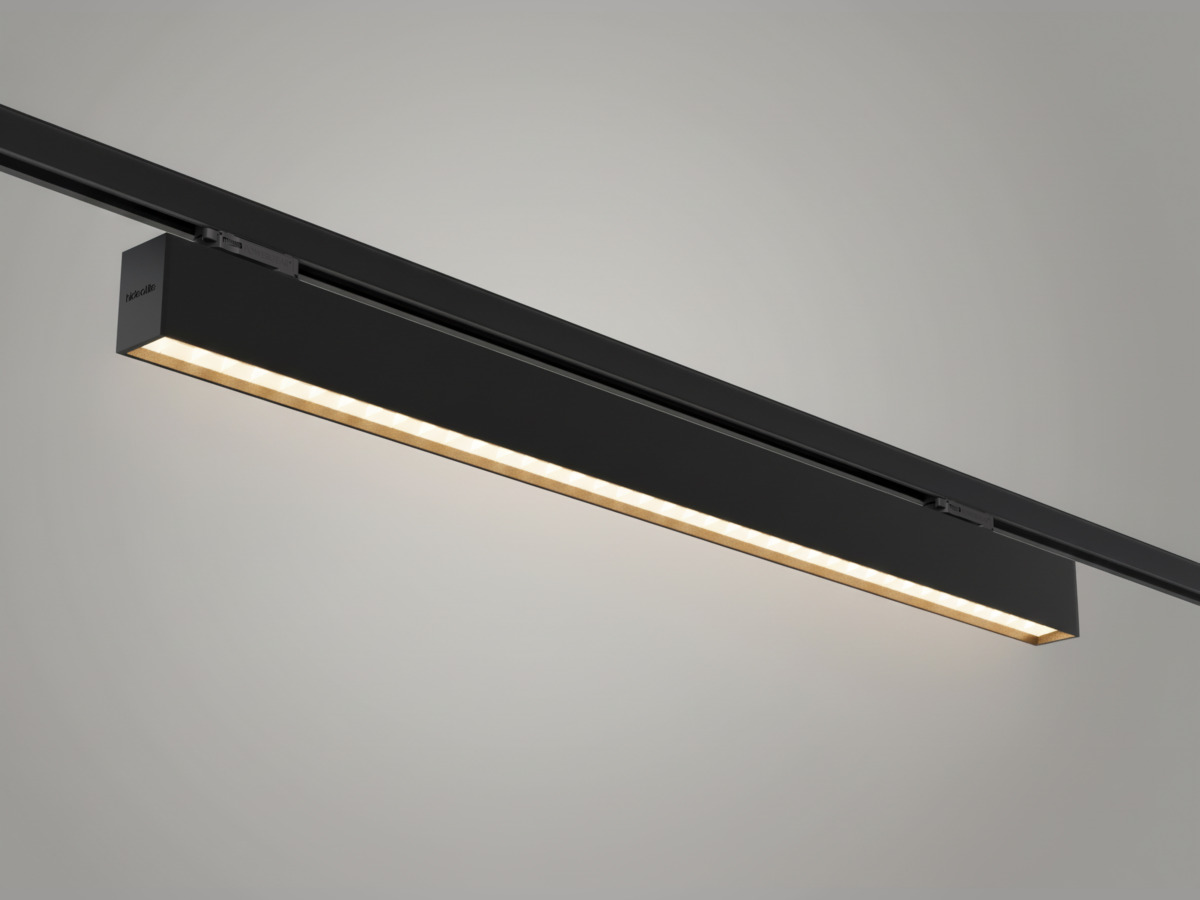

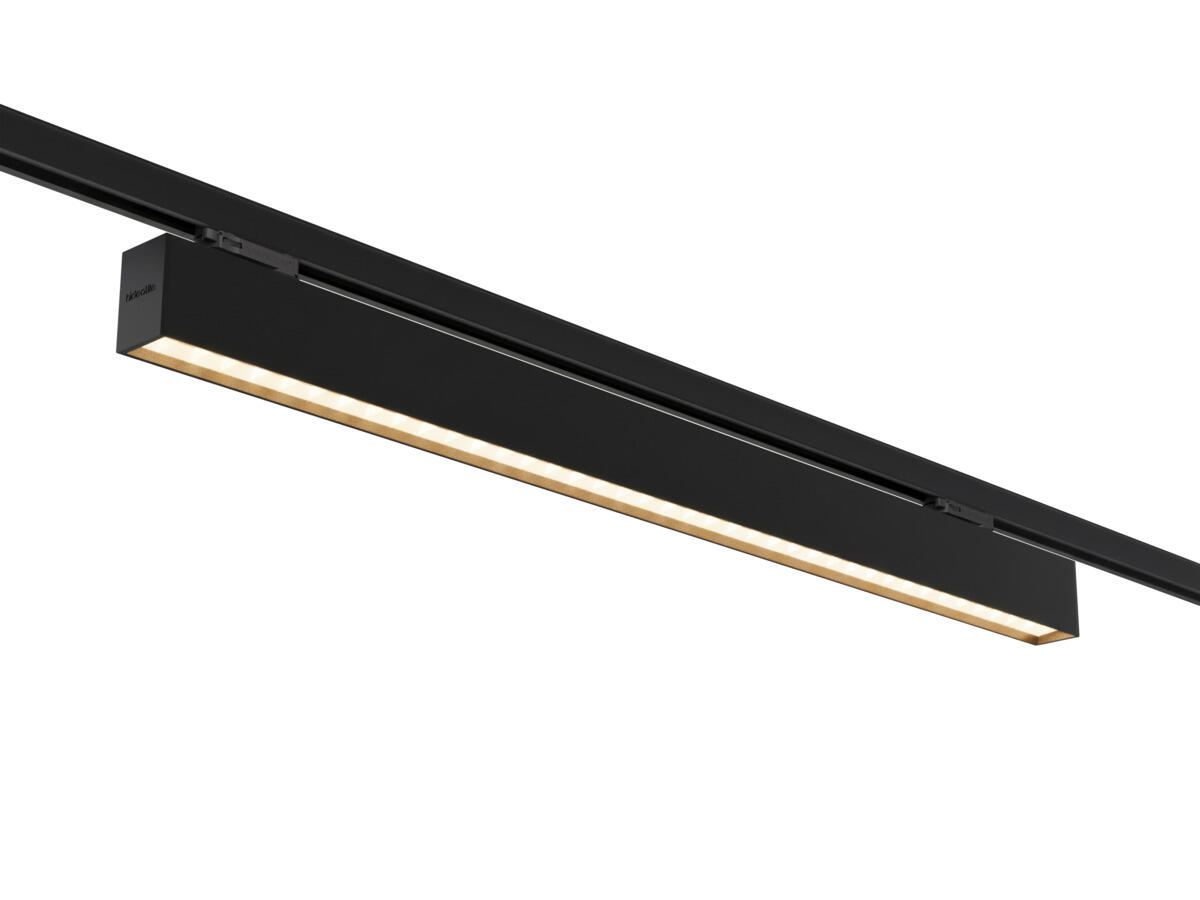

Actor G2 Track is a dimmable luminaire via traditional rotary/push dimmer or DALI that combines linear light with full flexibility in a 3 phase track. Install individually or position units end-to-end to create long light lines. Compatible with standard 3-phase tracks and can easily be combined with spotlights for added variation. The built-in DIP switch allows you to set the colour temperature on site. No advance configuration required; the light can be tuned once installed. Its modular design means only the necessary part needs replacement. Choose from various glare shields to match the environment: opal, microprismatic or double parabolic. Combine with track-mounted spotlights to achieve dynamic lighting that enhances both the space and its details.

We can customize the product See the possibilities of customization

GTIN	Item Name	Color	Max. Luminaire Lumen (lm)	Type of Dimming	Beam Angle (°)
7392971155265	Actor G2 Track DP Black DALI CLO	Black	2300	DALI 2	75
7392971155234	Actor G2 Track DP White DIM	White	2790	Trailing Edge	75
7392971155241	Actor G2 Track DP White DALI CLO	White	2460	DALI 2	75
7392971155258	Actor G2 Track DP Black DIM	Black	2670	Trailing Edge	75
7392971155272	Actor G2 Track MP White DIM	White	3490	Trailing Edge	80
7392971155289	Actor G2 Track MP White DALI CLO	White	3020	DALI 2	80
7392971155296	Actor G2 Track MP Black DIM	Black	3060	Trailing Edge	80
7392971155302	Actor G2 Track MP Black DALI CLO	Black	2480	DALI 2	80
7392971155319	Actor G2 Track OP White DIM	White	3580	Trailing Edge	70
7392971155326	Actor G2 Track OP White DALI CLO	White	3090	DALI 2	70
7392971155333	Actor G2 Track OP Black DIM	Black	3260	Trailing Edge	70
7392971155340	Actor G2 Track OP Black DALI CLO	Black	2660	DALI 2	70

Show more articles

Description: GTIN 7392971155265

Item Name Actor G2 Track DP Black DALI CLO

Warranty 5 years
Light Technical Data: Min. Armaturlumen (lm) 2230

Max. Luminaire Lumen (lm) 2300

Light Source LED

Light Source Included Yes

Replaceability Replaceable LED by professional

LED Colour White

Colour Temperature (K) 3000, 4000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 1575

Beam Angle (°) 75

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 192

Life Time L100 100000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L100

Lumen maintenance 75 000h L100

Lumen maintenance 100 000h L100

LLMF @ 50 000h 1

LLMF @ 100 000h 1

Life Time Driver 100 000h/10%

Flicker (PstLM) 0,0297

Stroboscopic effect (SVM) 0,0023
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240V

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Max. Power Luminaire (W) 26

Max. System Power (W) 26

Max. Efficiency Luminaire (lm/W) 88

Max. Efficiency System (lm/W) 88

Containing light source energy efficiency class (EU) 2019/2015 C
Operation and Connection: Dimmable Yes

Type of Dimming DALI 2

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Driver Manufacturer TCI

Connection (type) 3-phase DALI adapter

Connection (mm2) 5x0,75-2,5

Through Wiring Yes

Strain Relief No

Power Factor ʎ 0,9

Efficiency (%) 89

Power loss (W) 0,5

Leakage current (mA) (at 230 V, 50 Hz, full load) 10

THD (%) 10

Standby Power 0,5

Constant Current (mA) 400, 450, 500, 550

Min. Ta (°C) 0

Max. Ta (°C) 35

Max. Tc (°C) 80

Dimming secondary side AM

Frequency PWM dimming (Hz) >300

Memory Function Power Failure No

Protection Against Short Circuit, Overload

Inrush current (max/time) 5A 50μs

Mains surge protection DM (kV) 1

Mains surge protection CM (kV) 2

Fuse B10 (pcs) 22

Fuse B16 (pcs) 30

Fuse C10 (pcs) 32

Fuse C16 (pcs) 40
Color and material: Material Aluminium

Color Black

Halogen free Yes

Environmental Assessment EPD
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class I

Installation Light-track mounting

Approval Marks CE

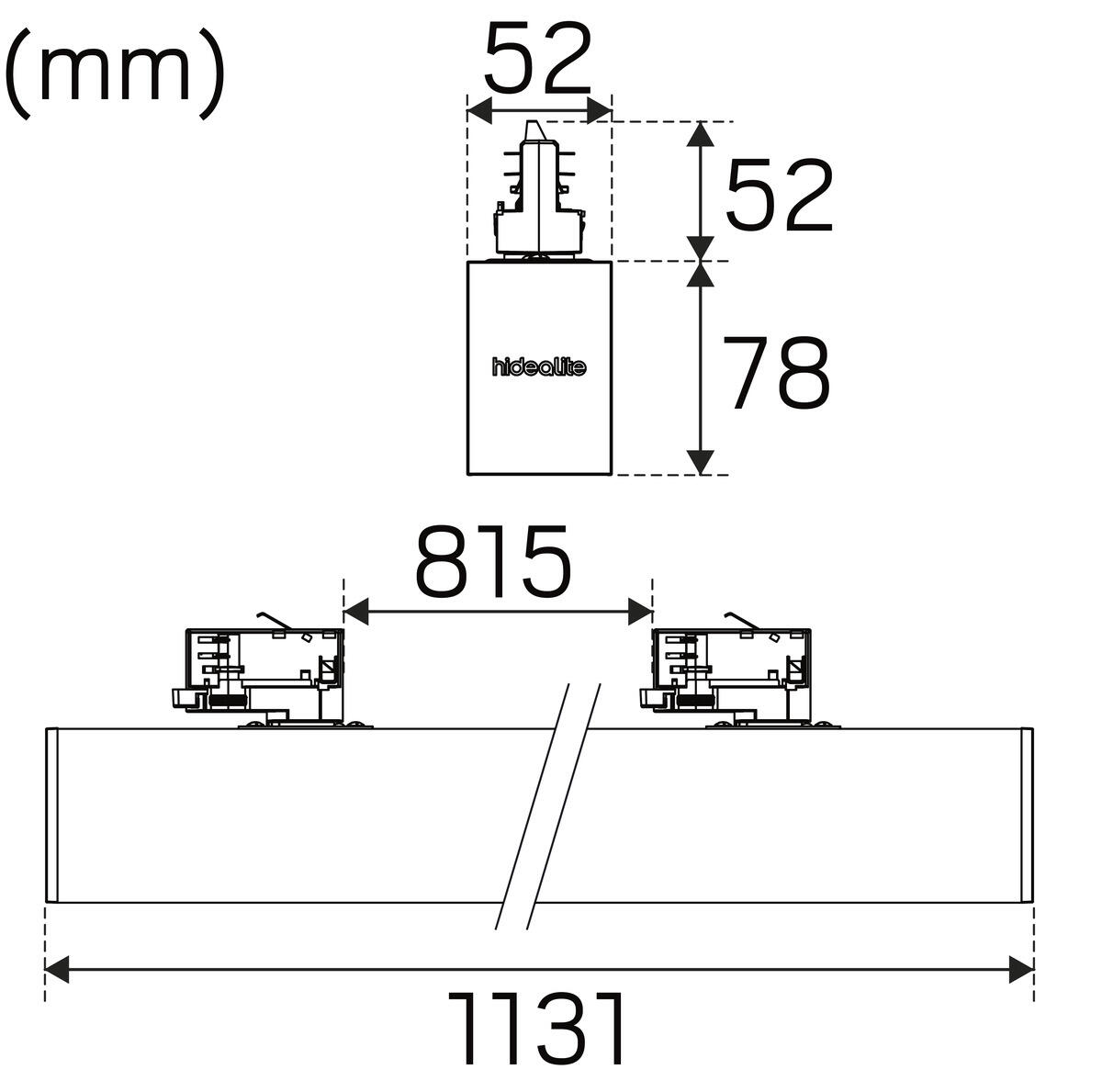

Length (mm) 1131

Width (mm) 52

Height (mm) 78

Weight (kg) 2,92

DIP-table Luminous flux

mA	Effect	3000K	4000k
450mA	22W	2230lm	2300lm

Show table

Show DIP-table

Actor G2 Track DP Black DALI CLO

mA	Effect	3000K	4000k
450mA	22W	2230lm	2300lm

Factory setting: 450 mA, 3000K

Spare parts

If you need spare parts, contact our customer support

LED-Module Actor G2 Glare shields DP Black X517
Driver Actor G2 DALI CLO Ceiling/Pendant X540

Optic Track 3-Phase
