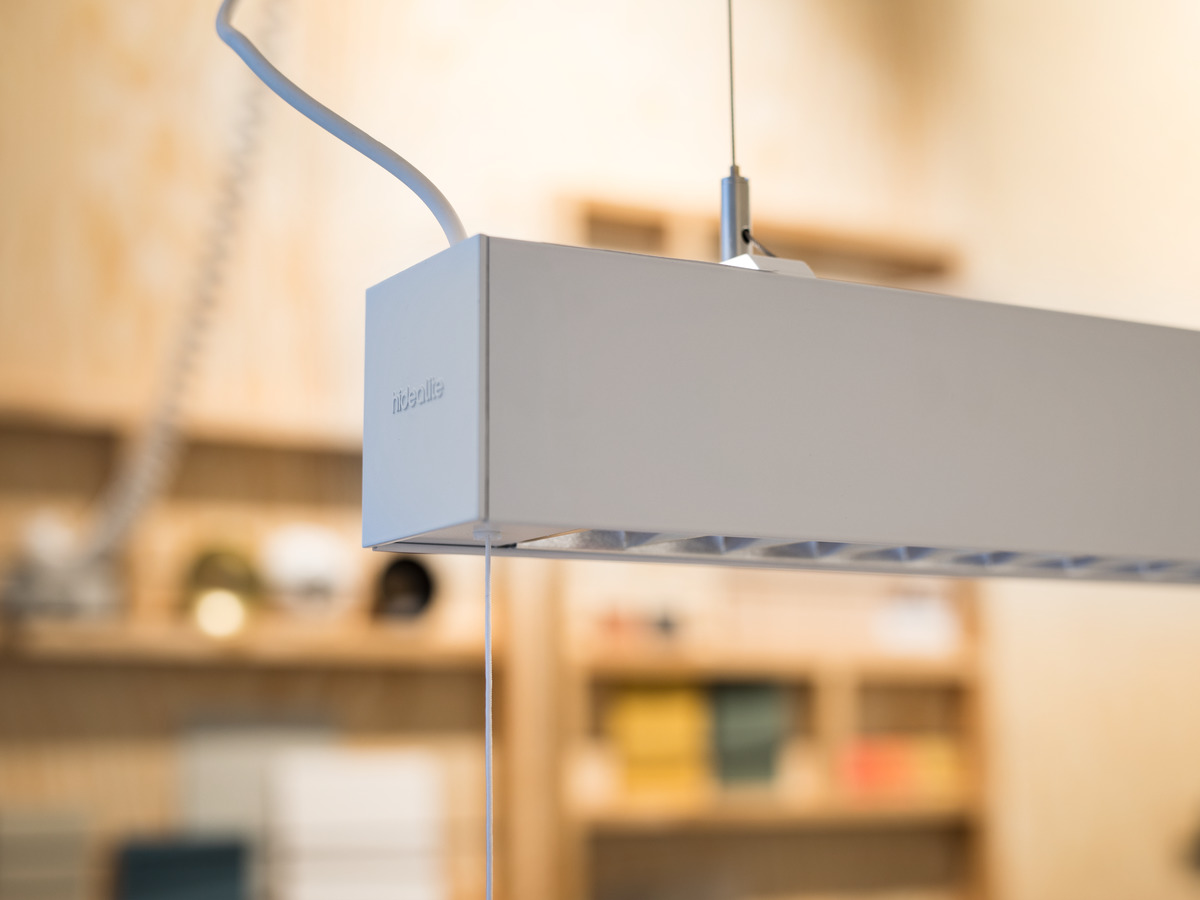

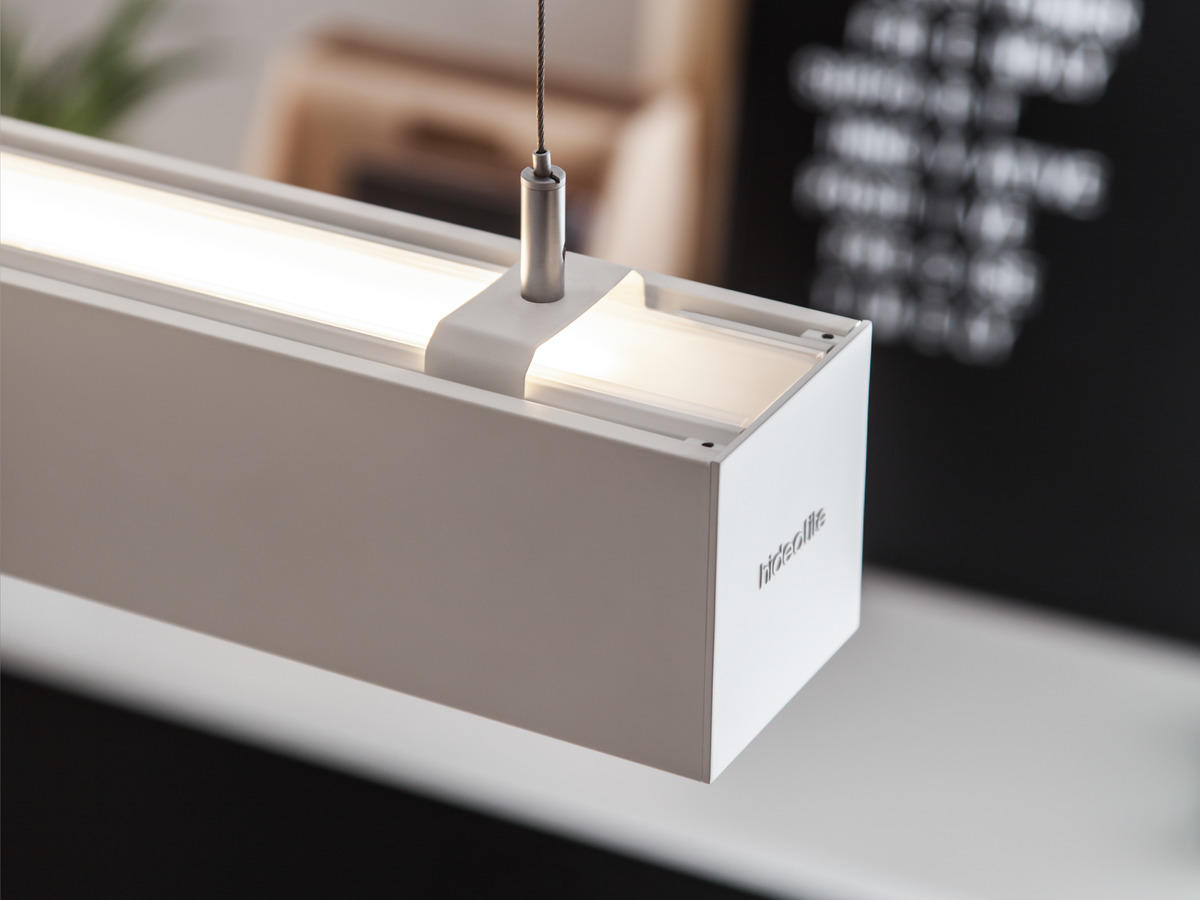

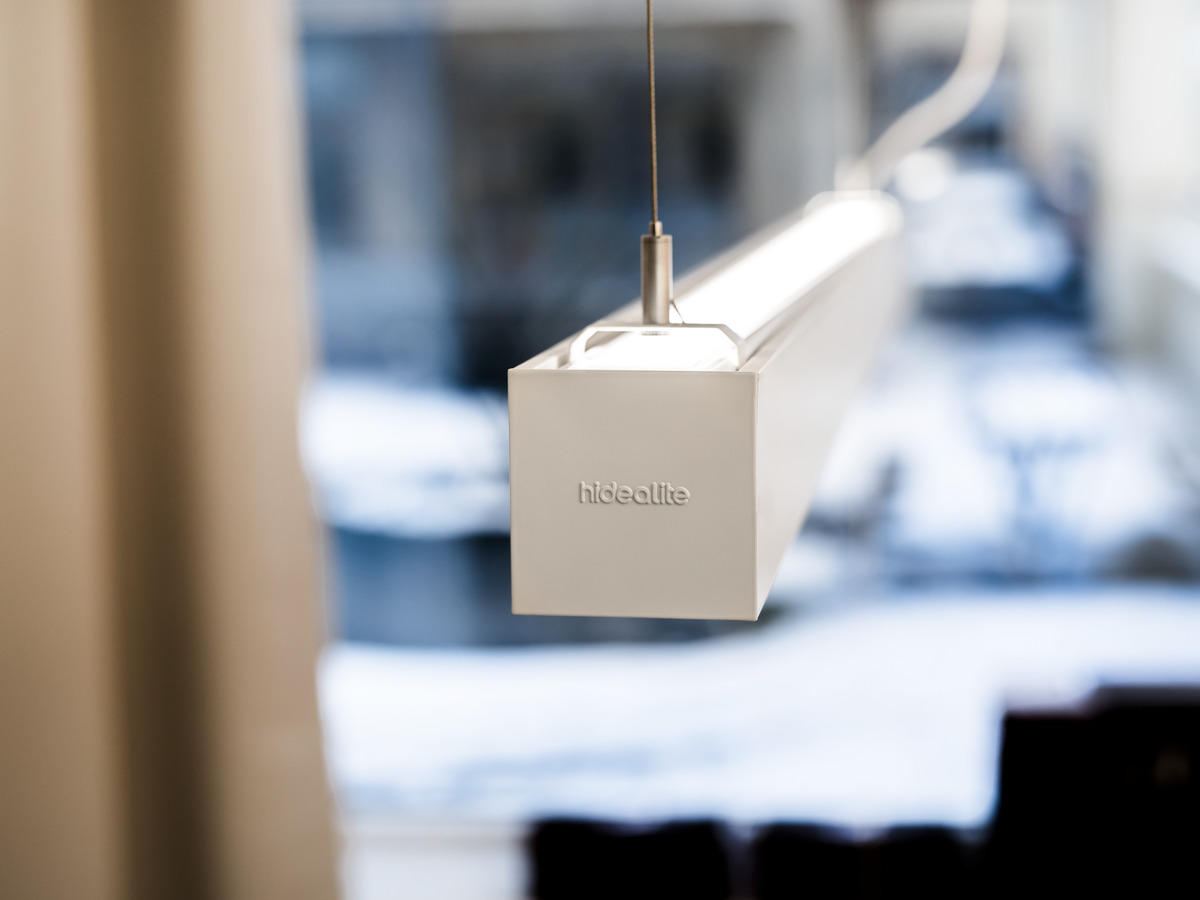

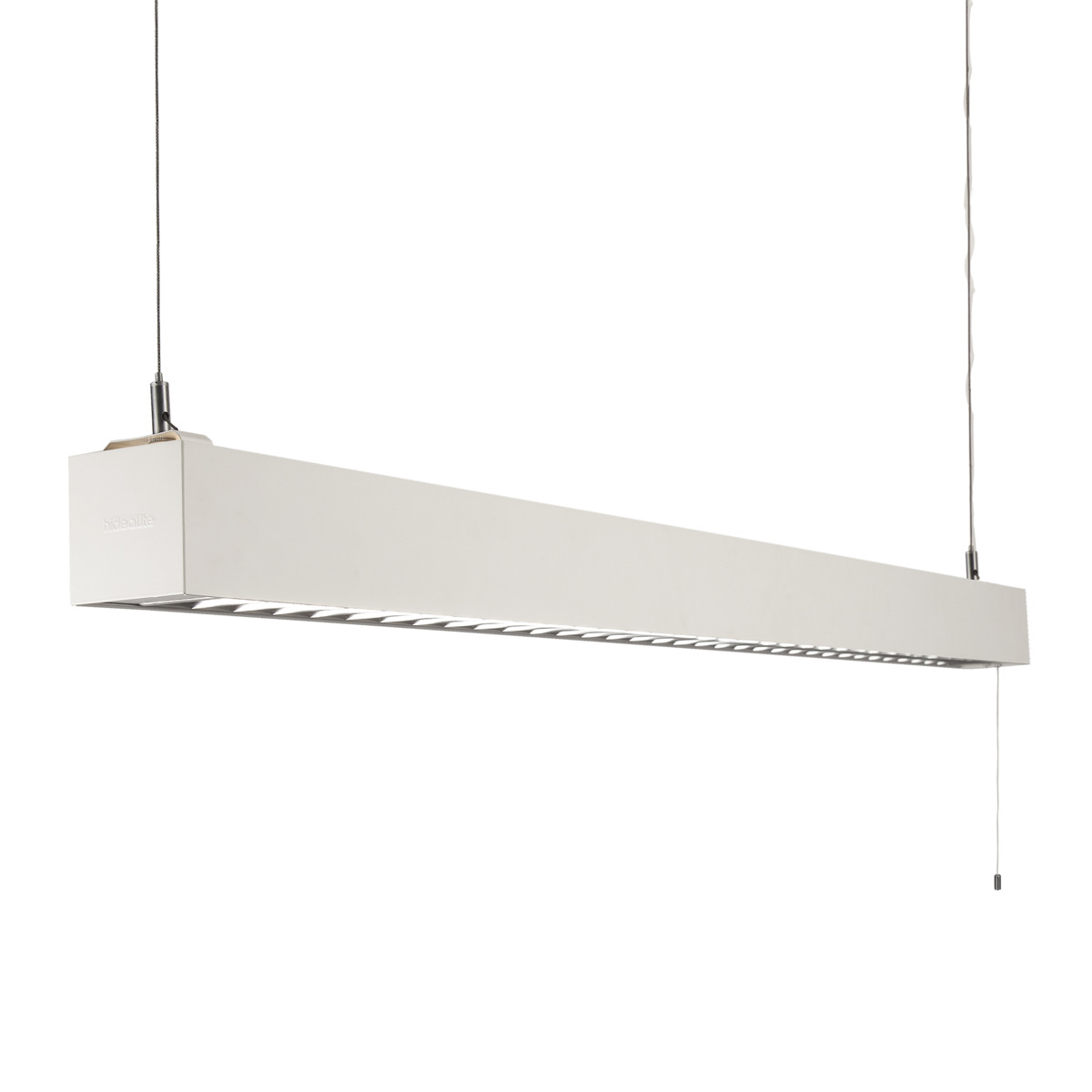

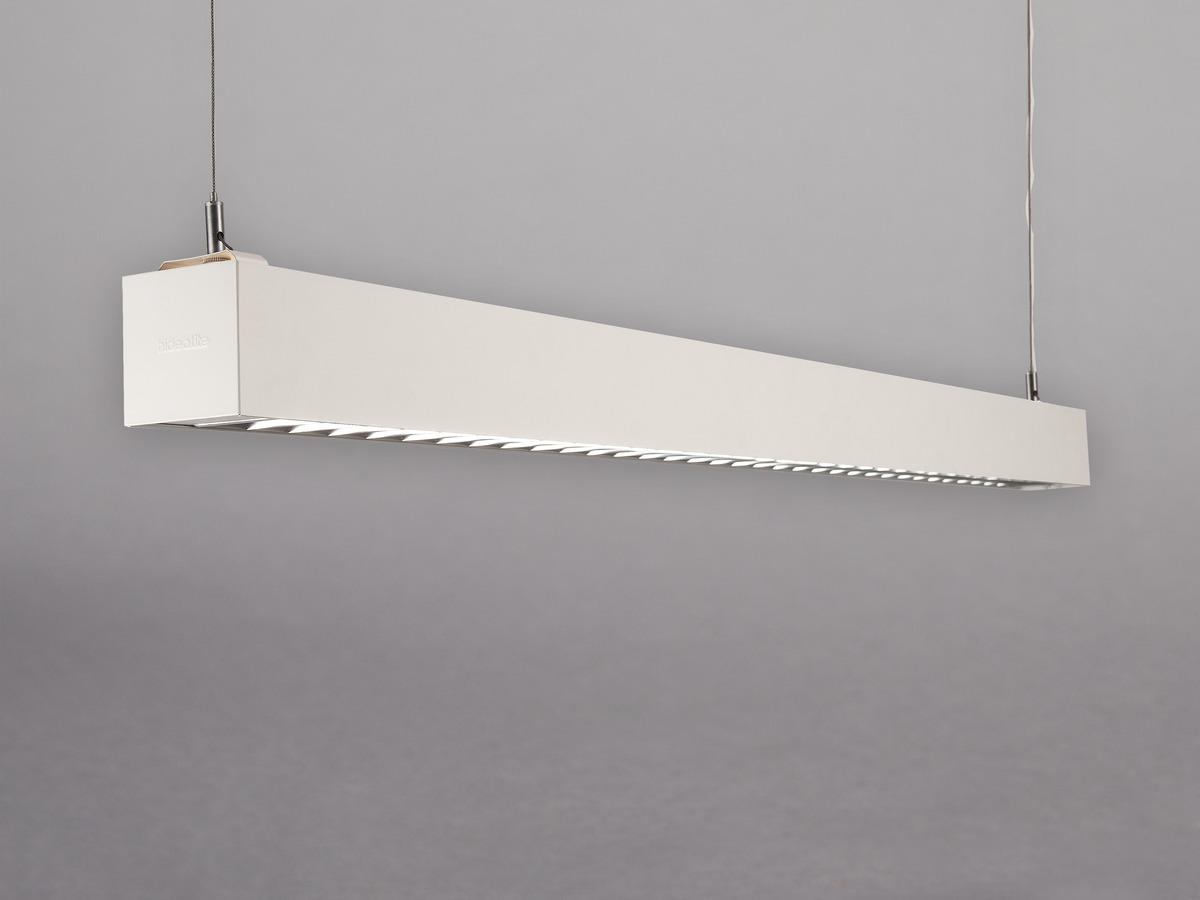

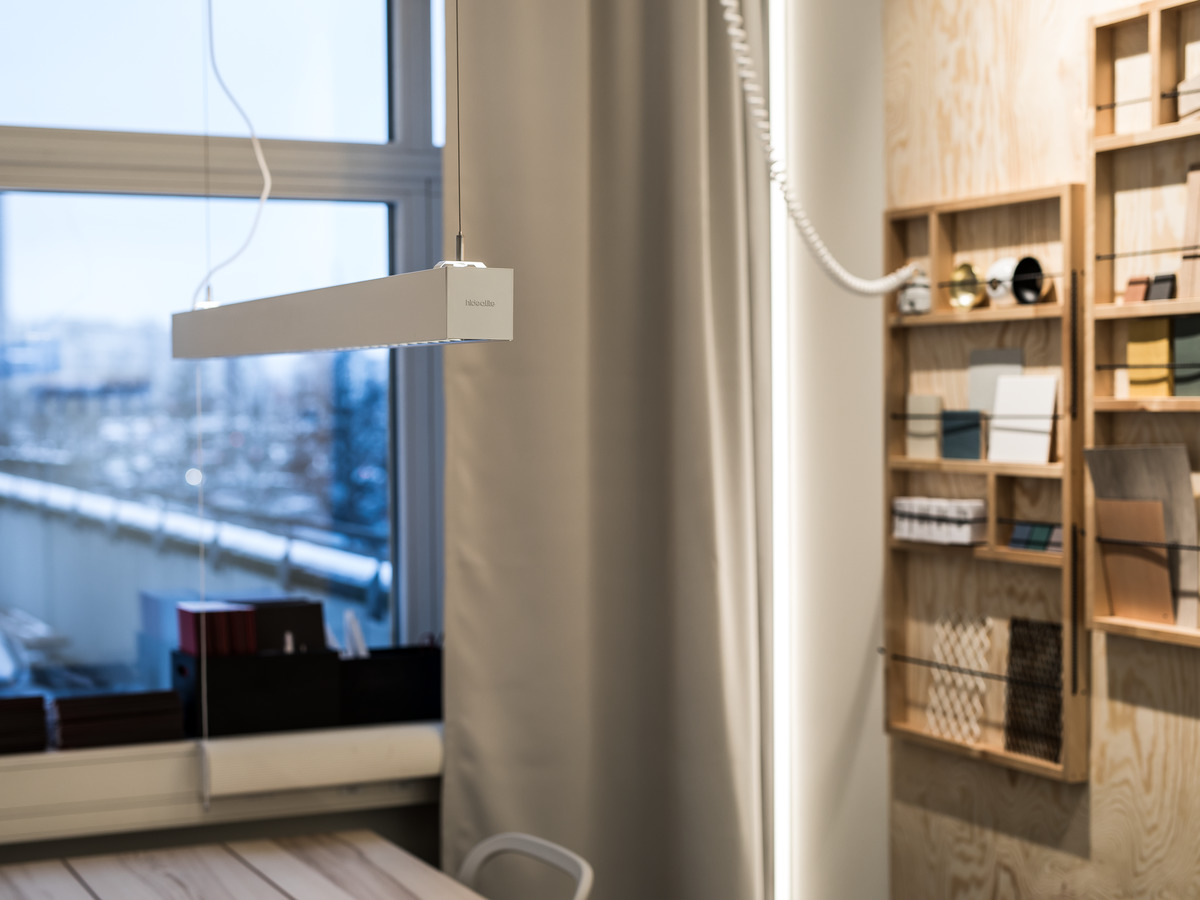

Actor Pendant

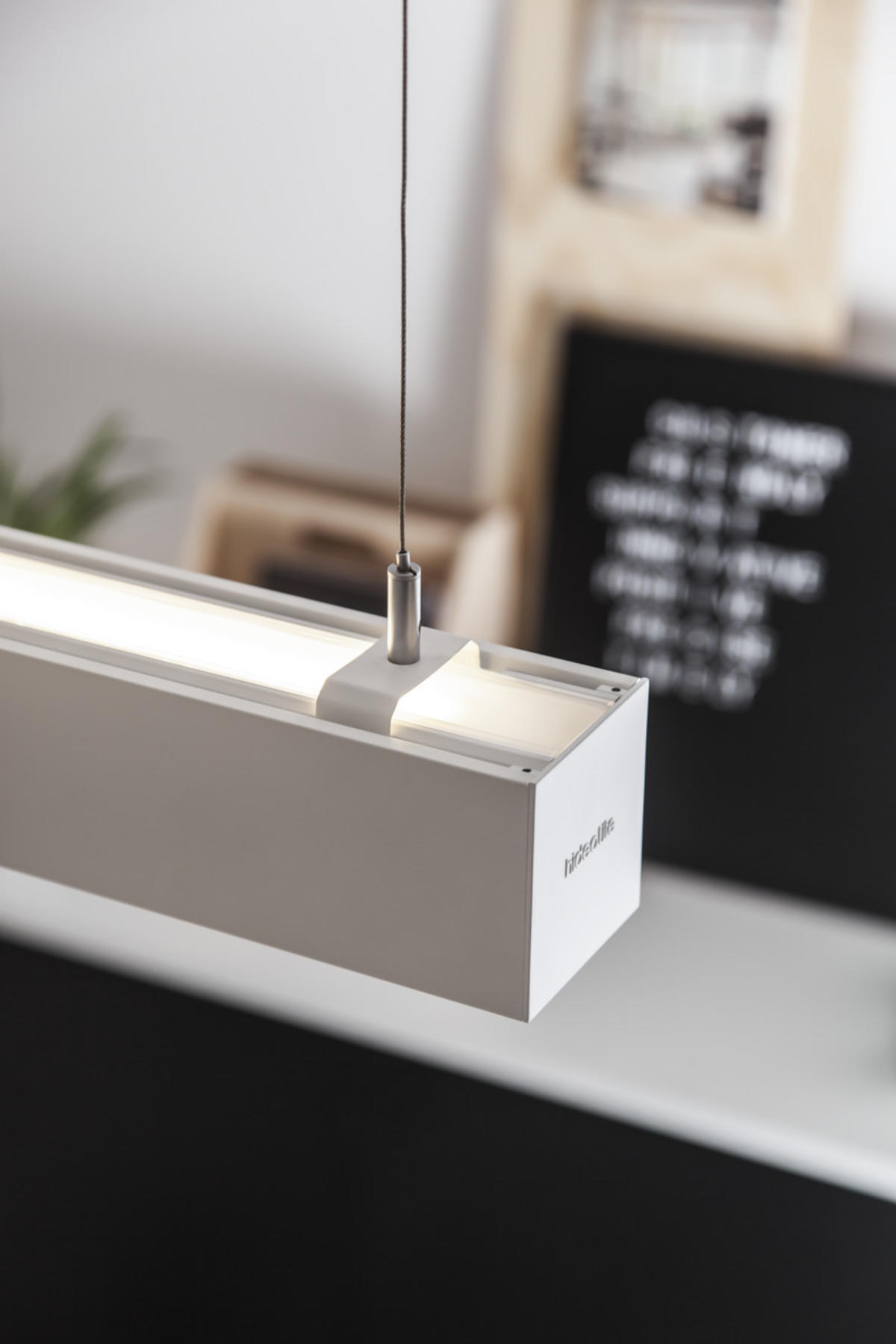

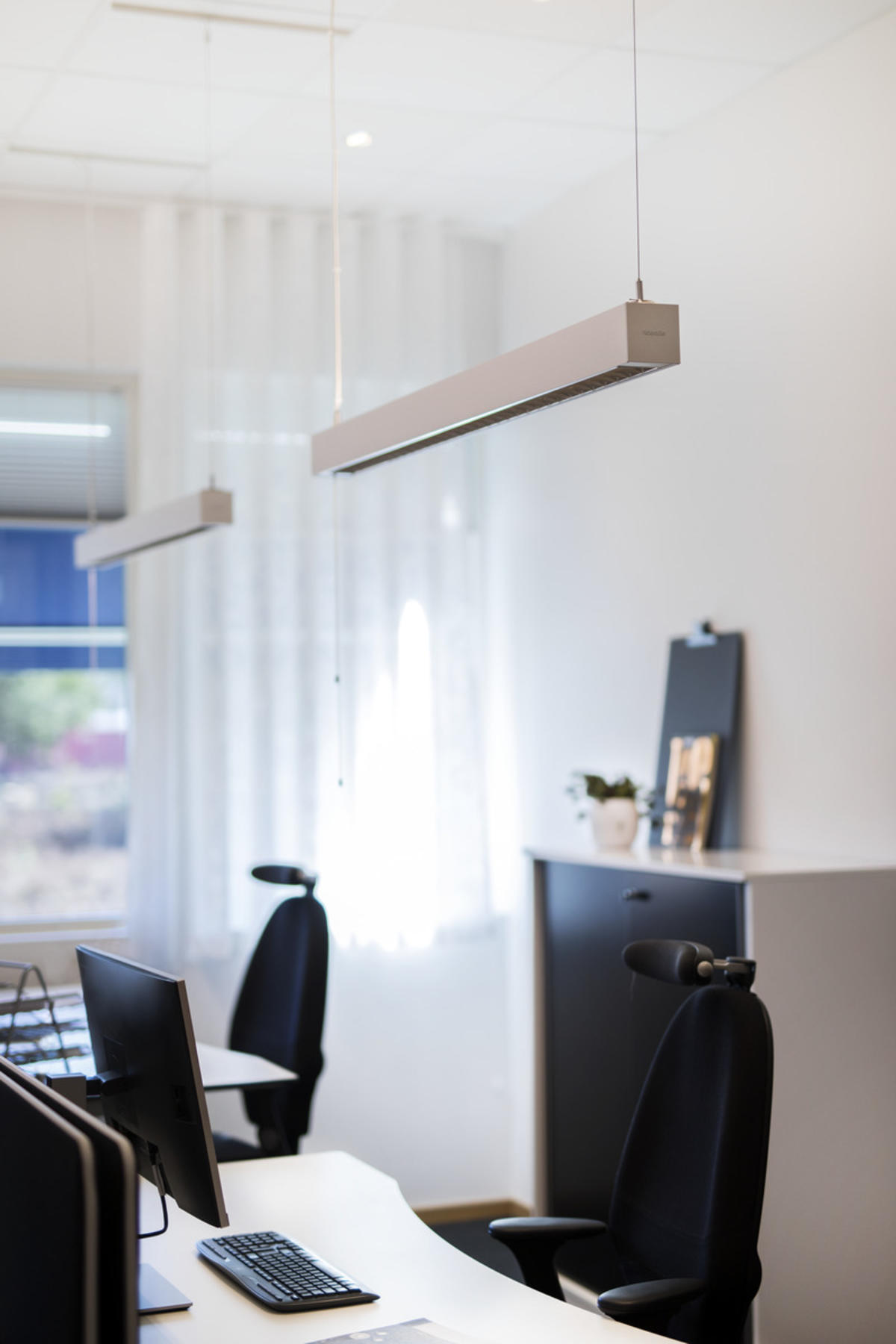

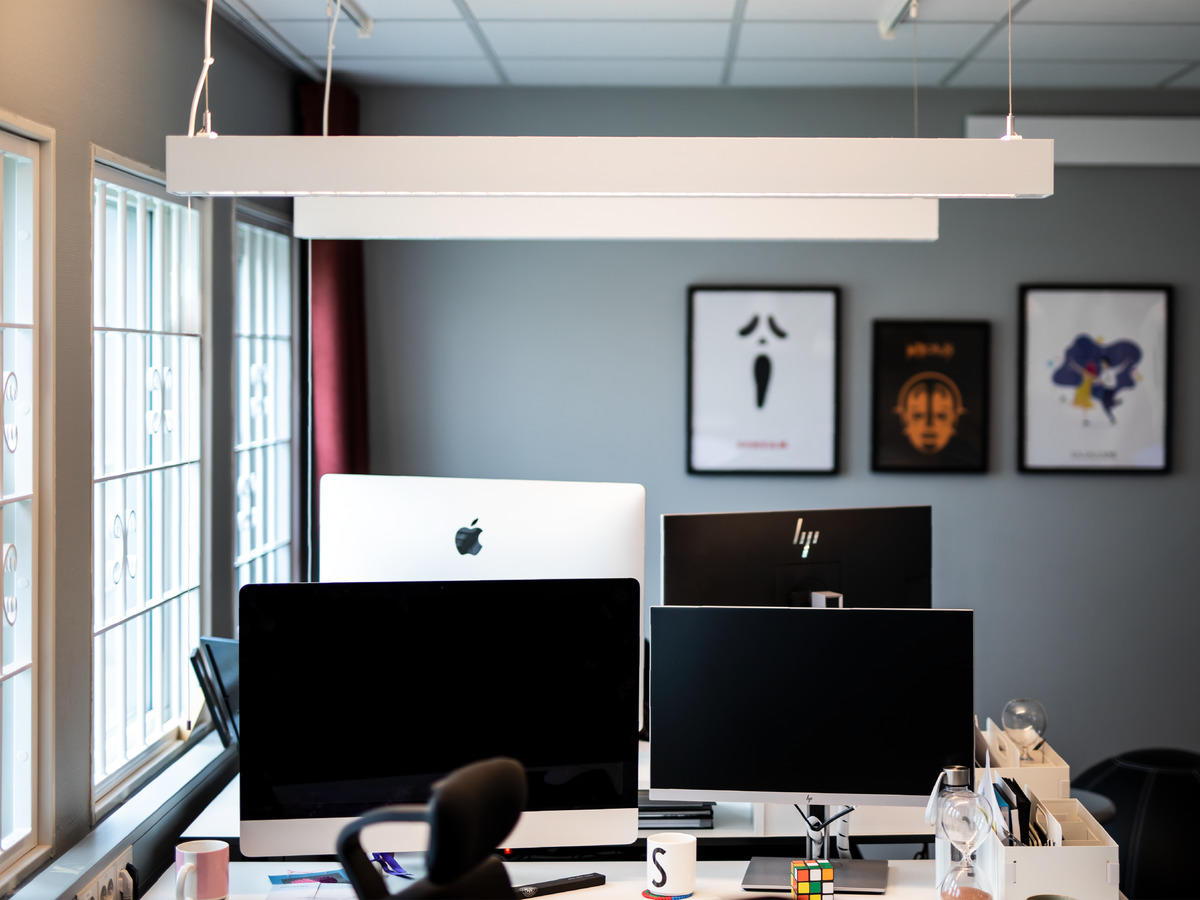

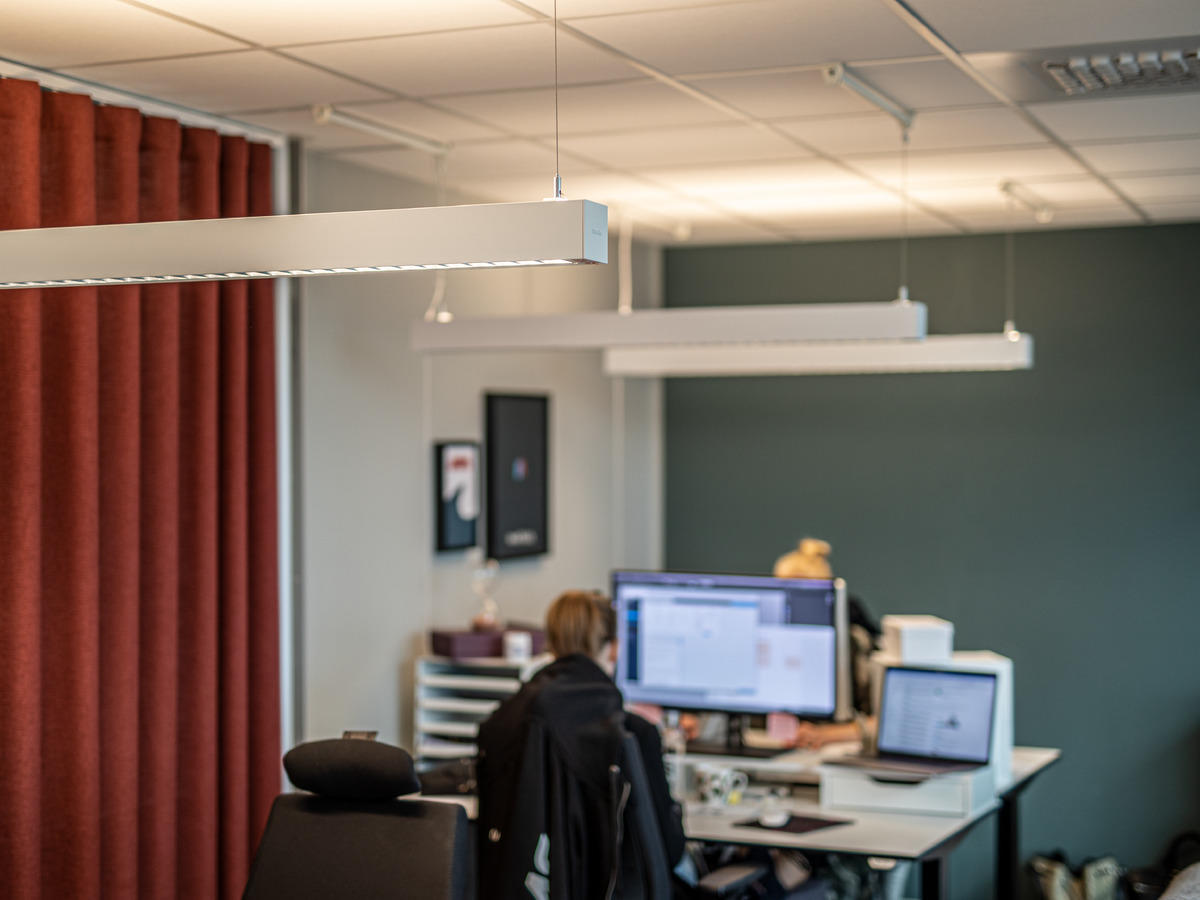

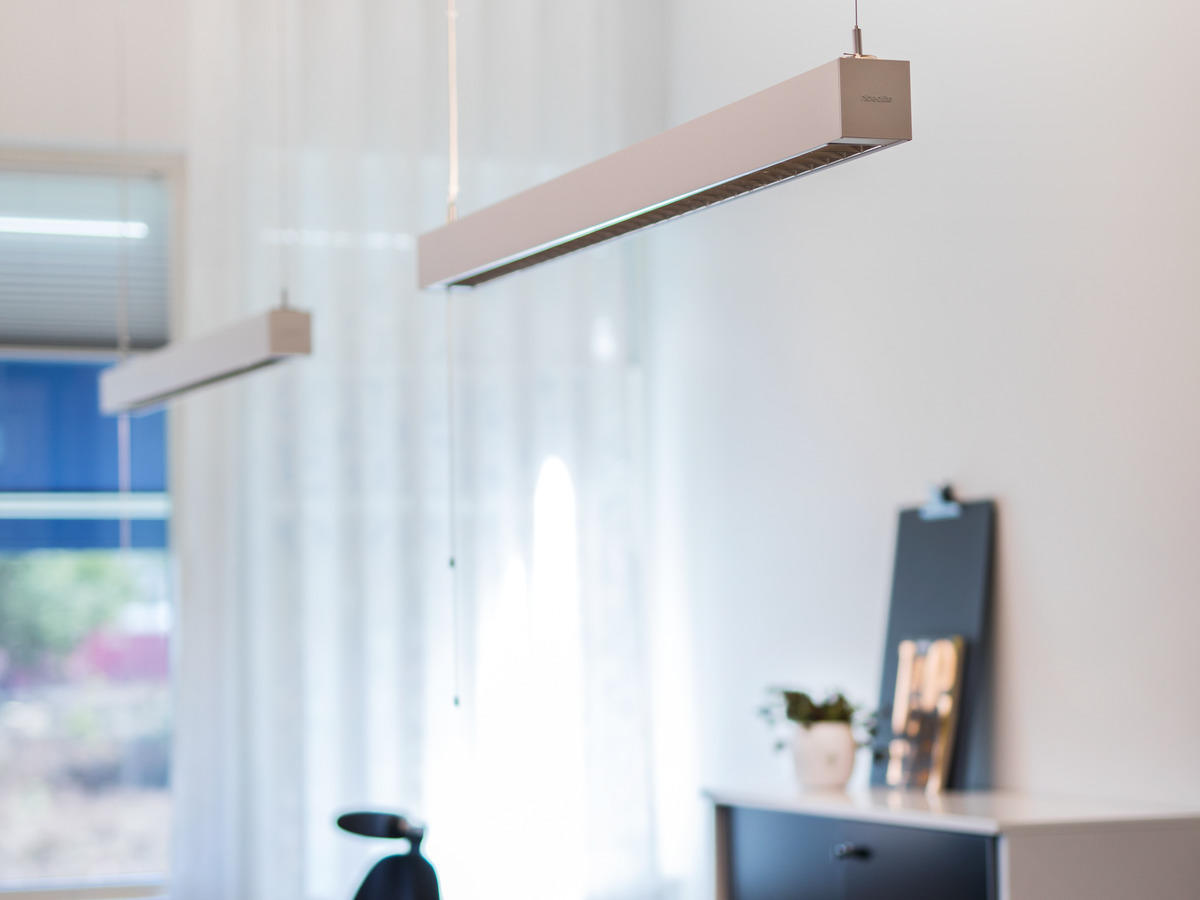

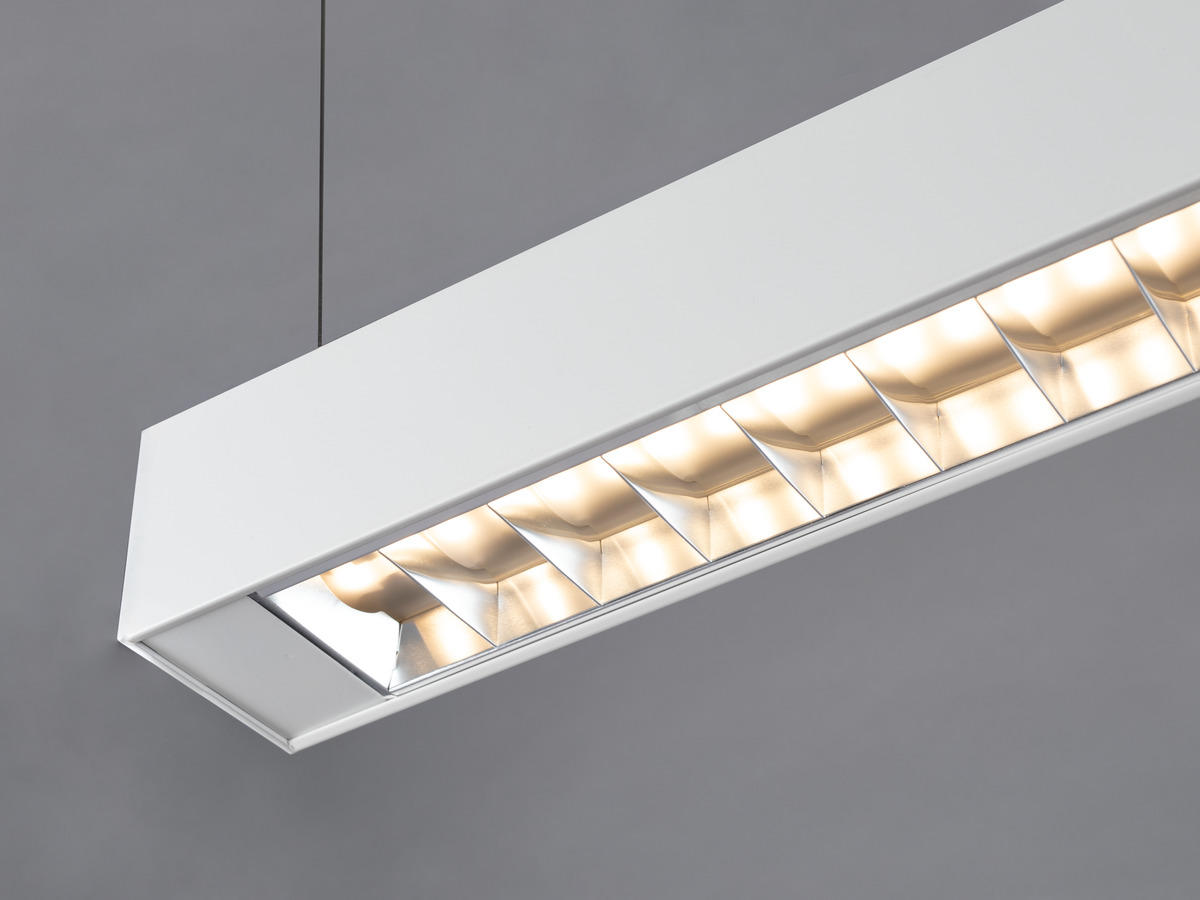

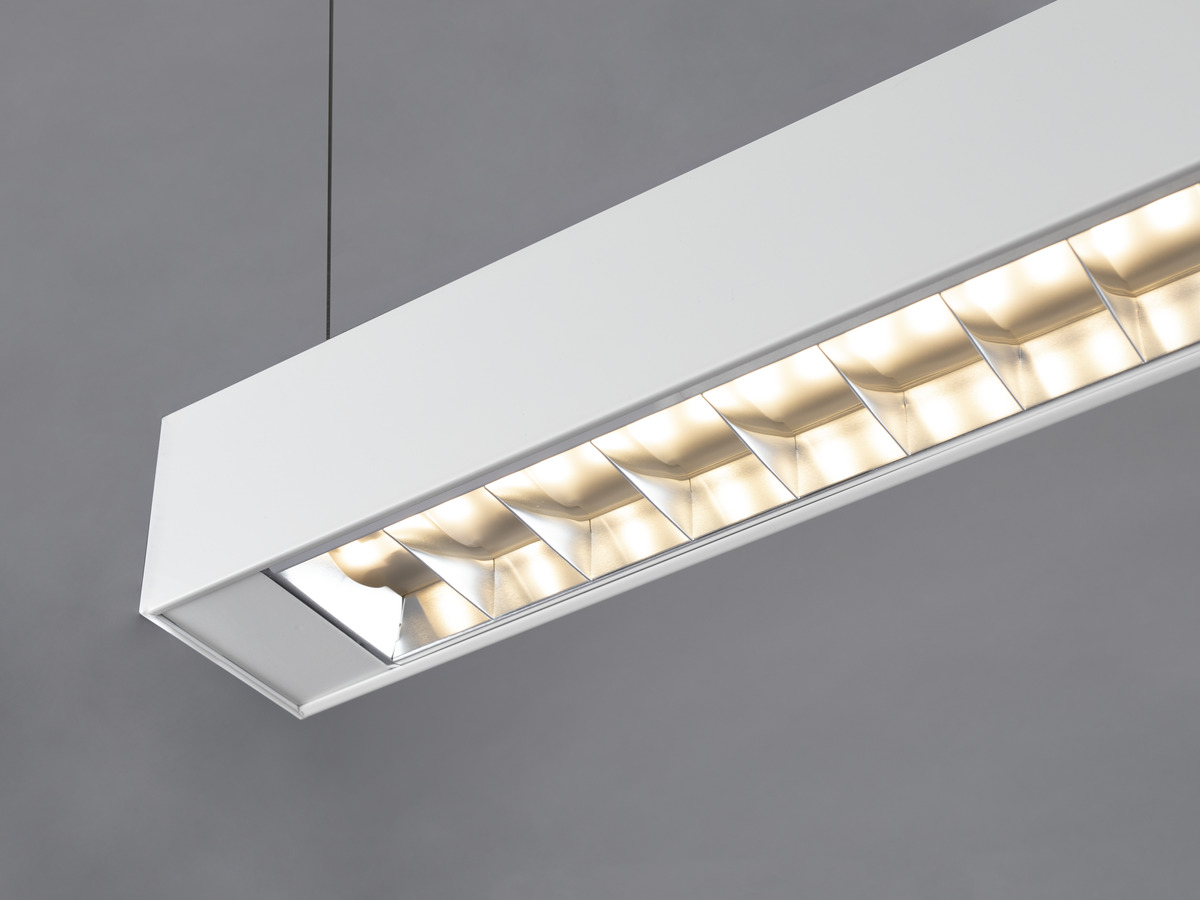

Pendant interior fixture for offices, classrooms, etc. White or black enamelled alu frame. Black or transparent cable on request. Double parabolic anti-glare shield creates a glare-free light distribution. Meets display screen and UGR requirements (UGR<19 office) under standard conditions. Light outlet 30/70 and 50/50. Controls for: On/Off, Pull dimmer, DALI/Push, PIR-sensor etc. Complete with installation accessories. Comes with a white earthed cord set and DALI with 5-pole cable and free ends.

GTIN	Item Name	Color	Colour Temperature (K)	Luminaire Lumen (lm)	Type of Dimming
7392971131832	Actor Pendant DP 830 30/70	White	3000	6000	OnOff
7392971131849	Actor Pendant DP 840 30/70	White	4000	6200	OnOff
7392971131856	Actor Pendant DP 830 30/70 Dim	White	3000	6200	Pull Dimmer
7392971131863	Actor Pendant DP 840 30/70 Dim	White	4000	6250	Pull Dimmer
7392971131870	Actor Pendant DP 830 30/70 S	White	3000	6000	PIR Sensor, Pull Dimmer
7392971131887	Actor Pendant DP 840 30/70 S	White	4000	6200	PIR Sensor, Pull Dimmer
7392971135694	Actor Pendant DP 830 30/70 DALI	White	3000	6200	Push 230V, DALI 2
7392971135700	Actor Pendant DP 840 30/70 DALI	White	4000	6250	Push 230V, DALI 2
7392971137148	Actor Pendant DP 830 50/50	White	3000	5750	OnOff
7392971137155	Actor Pendant DP 840 50/50	White	4000	5950	OnOff
7392971137162	Actor Pendant DP 830 50/50 DALI	White	3000	5750	Push 230V, DALI 2
7392971137179	Actor Pendant DP 840 50/50 DALI	White	4000	5950	Push 230V, DALI 2
7392971141497	Actor Pendant DP Black 830 30/70 Dim	Black	3000	5450	Pull Dimmer
7392971141503	Actor Pendant DP Black 840 30/70 Dim	Black	4000	5550	Pull Dimmer

Description: GTIN 7392971131832

Item Name Actor Pendant DP 830 30/70

Warranty 5 years

Type .
Light Technical Data: Luminaire Lumen (lm) 6000

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 1420

Beam Angle (°) 105

Light sharing Symmetric

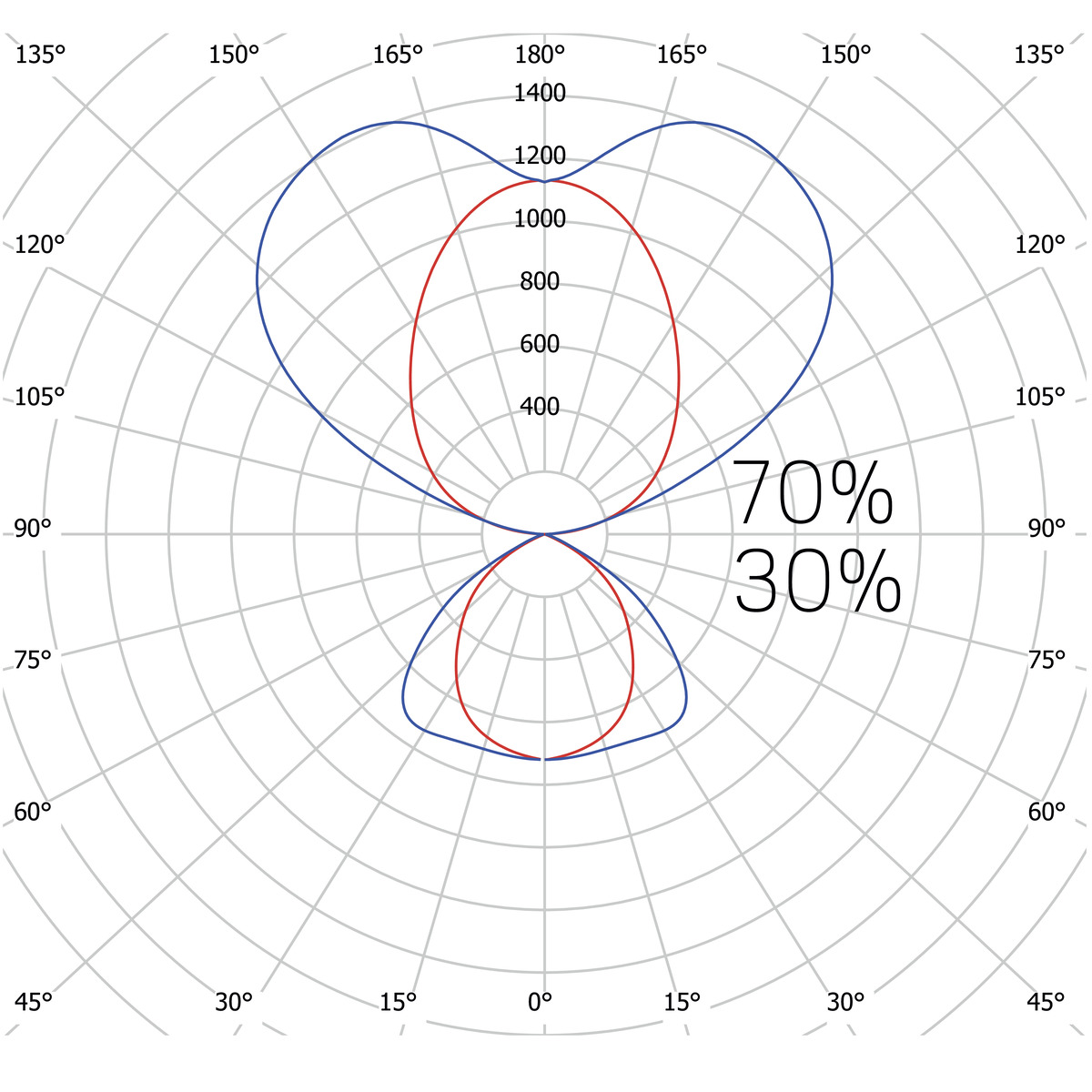

Light Outlet 30/70

Number of Lamps (pcs) 2

Number of LED (pcs) 192

Life Time L70 100 000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L88

Lumen maintenance 100 000h L78

LLMF @ 50 000h 0,88

LLMF @ 100 000h 0,78

Life Time Driver 50 000h/10%

Flicker (PstLM) 0,1

Stroboscopic effect (SVM) 0,1
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 46

Power Luminaire (W) 48

System Power (W) 48

Efficiency Luminaire (lm/W) 125

Efficiency System (lm/W) 125

Containing light source energy efficiency class (EU) 2019/2015 C
Operation and Connection: Dimmable No

Type of Dimming OnOff

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Driver Manufacturer Osram

Connection (type) Cord Set

Length Connection (cm) 250

Connection (mm2) 3x0,75

Through Wiring No

Strain Relief Yes

Power Factor ʎ 0,95

Operating Temperature -15...+40

Max. Tc (°C) 50

Fuse B10 (pcs) 8

Fuse B16 (pcs) 15

Fuse C10 (pcs) 15

Fuse C16 (pcs) 29
Color and material: Material Diecasted, Extruded, Aluminium, Plastic

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class I

Installation Pendant

Approval Marks CE

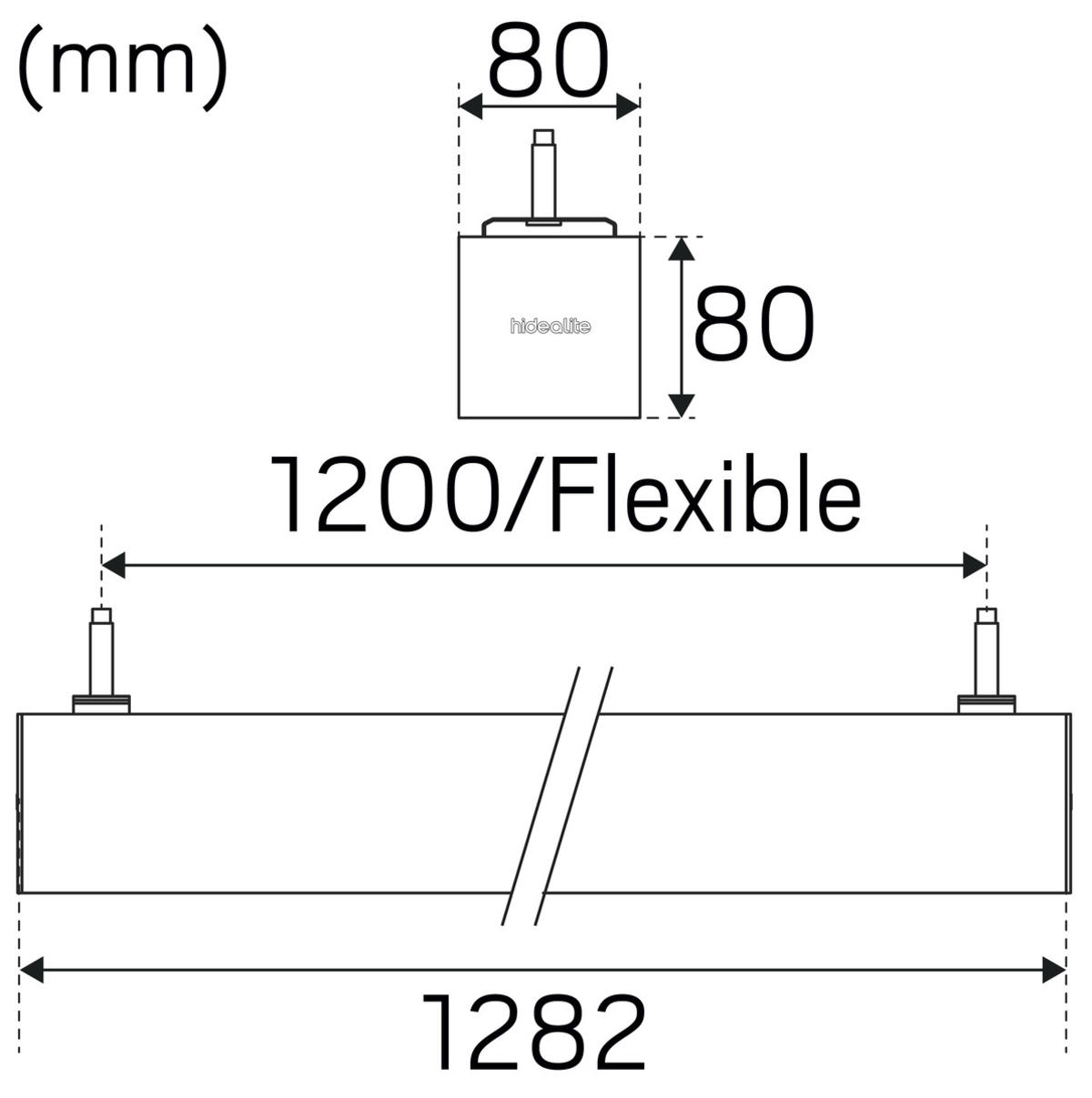

Length (mm) 1282

Width (mm) 80

Height (mm) 80

Weight (kg) 3,9

Actor Basic Pendant

Dimmable basic luminaire with 50/50 light outlet, for offices and smaller premises. Body and end caps of white enamelled aluminium. Microprismatic louvre creates a highly glare-free downward light distribution and the uplight creates an indirect and shadow-free ambient light. A pull dim switch for common dimming of up and downlight with memory function to keep the latest setting after power cut. Complete with mounting accessories for several types of ceiling and a 2.5m cord set with earthed plug.

Actor Ceiling

Luminaire for surface mounting in fixed ceiling or for recessed, without accessories, in ceiling with visible support profile. The LED light source is integrated with the anti-glare shield which is lowered and creates plenty of space for installation. Adapted for recessed installation without accessories in a ceiling with visible support profile. Provides a discrete and elegant impression in the ceiling. Meets screen and UGR requirements in standard conditions. Set the light level for different scenes via DALI/Push or control the lighting On/Off via an external switch.

Sky Panel

Effective LED panel available with opal diffuser or microprismatic louvre. Perfectly adapted for installation in ceilings with visible support profile, which makes it ideal for open-plan offices, schools and other areas where glare-free lighting is important. For those who want surface-mounted installation, a spacer frame with pre-perforated holes for surface-mounted cables is available as an accessory. Selectable colour temperature via DIP-Switch ColourTemp. 3000K or 4000K. Sky MP meets screen and UGR requirements (UGR<19) in compliance with EN 12464-1 in standard conditions. Each panel is supplied complete with cords and power plugs and driver; choose between dimmable and DALI-2, with or without through-wiring Q box or Linect. The DIM version 600x600 comes with 2m pre-installed cord set and is available in a 5-pack for quick installation for larger projects.

Actor Pendant

Actor Pendant DP 830 30/70

Accessories

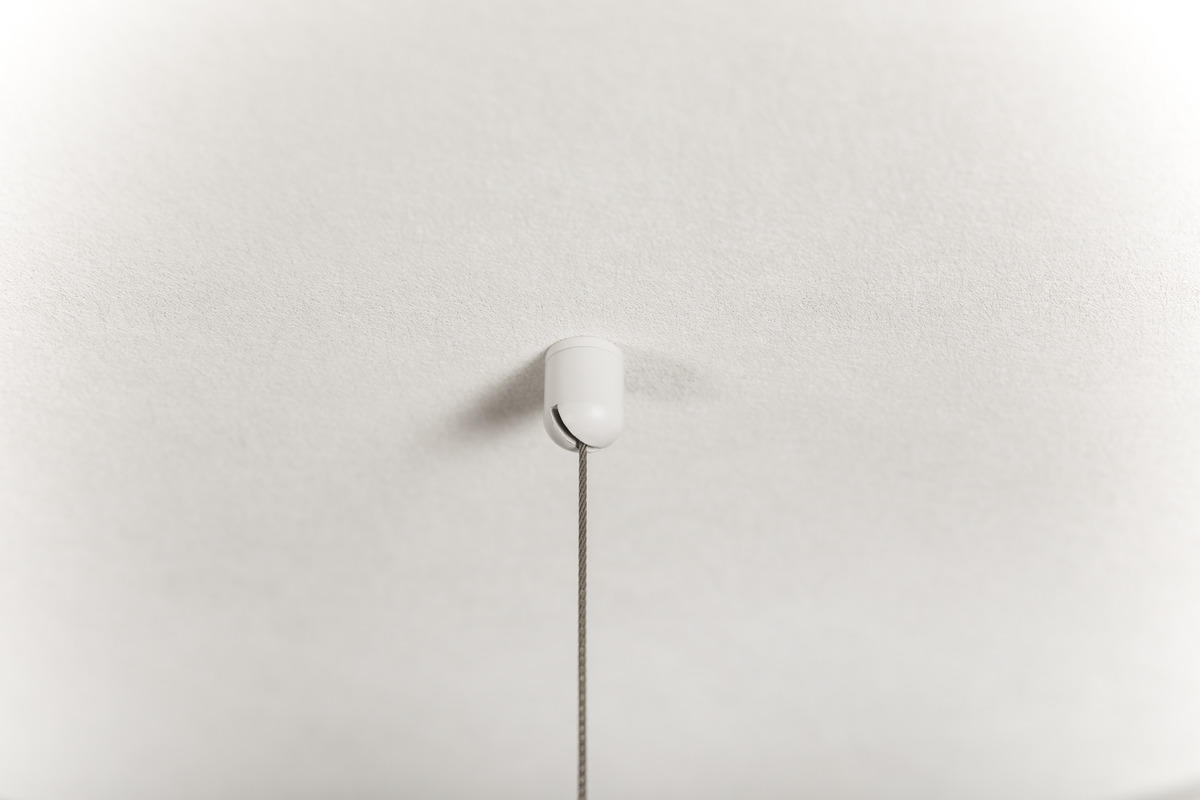

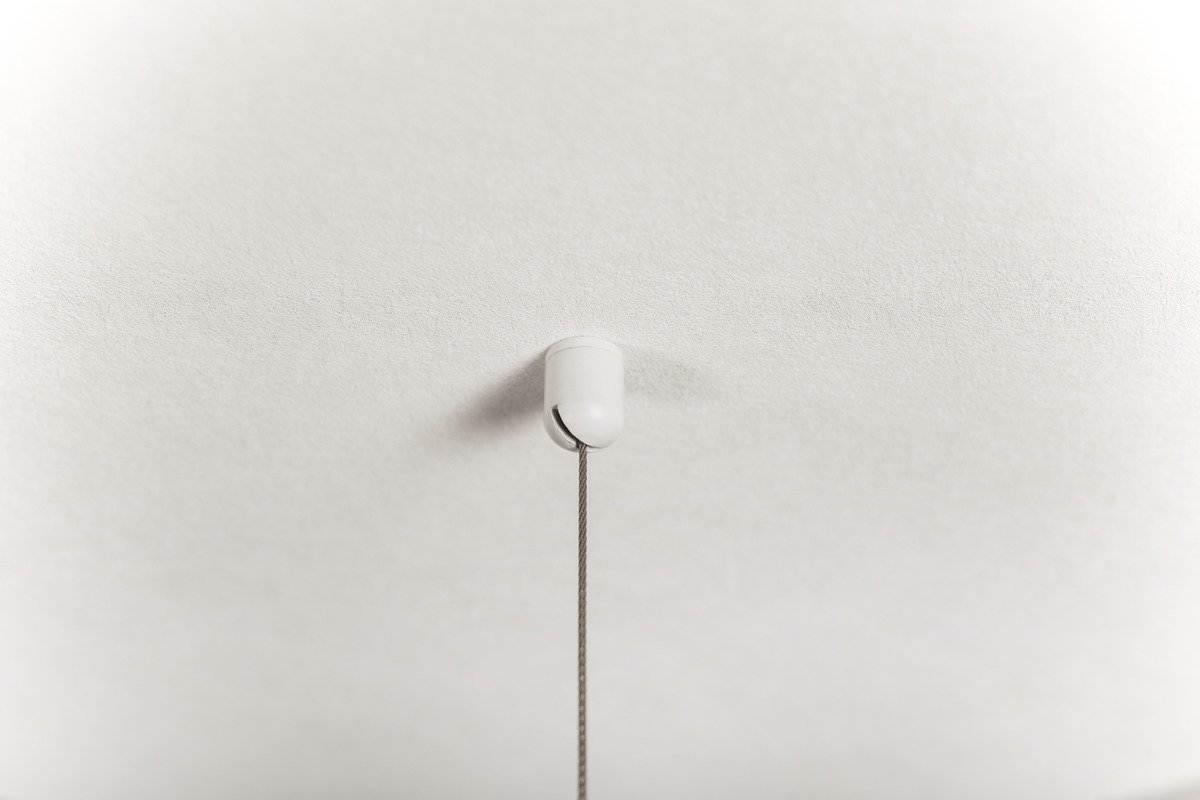

Ceiling cup for box/surface mounting White
