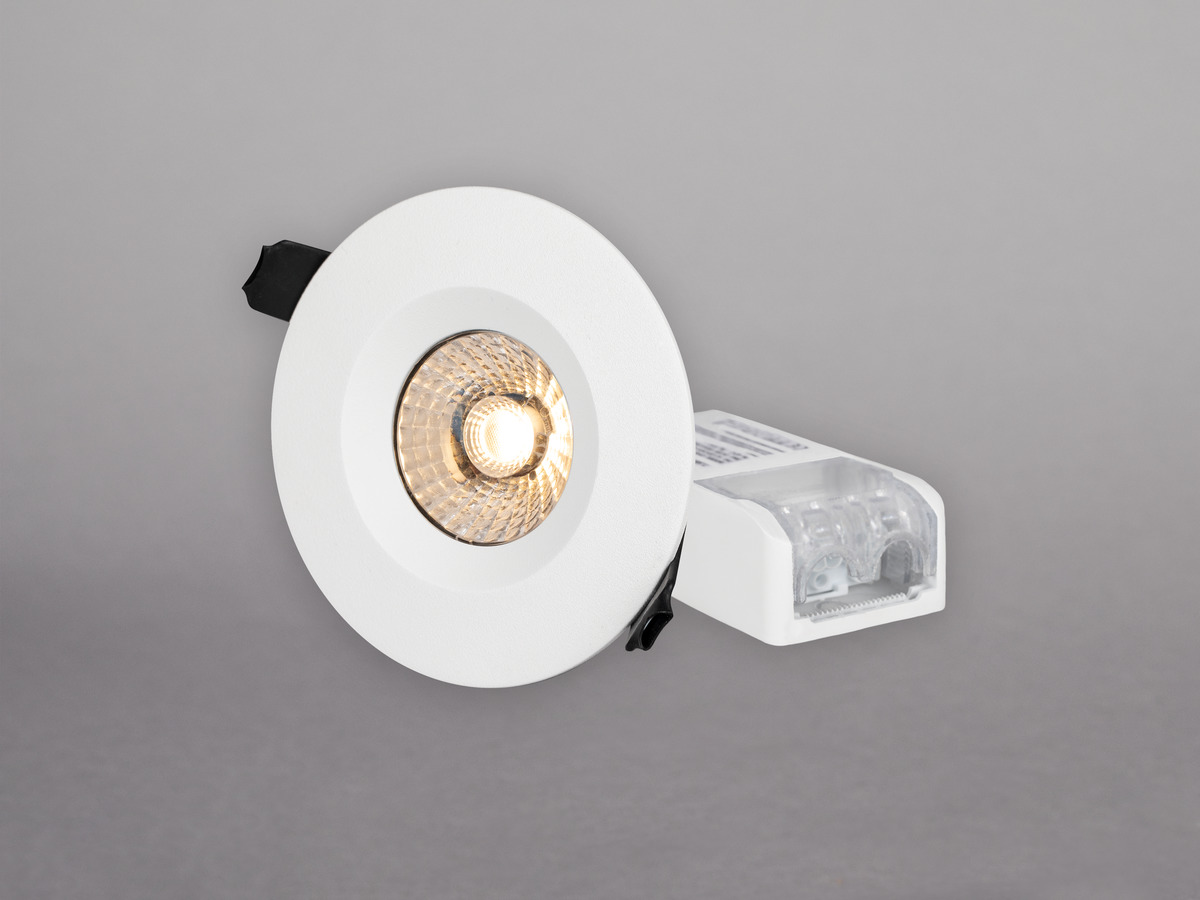

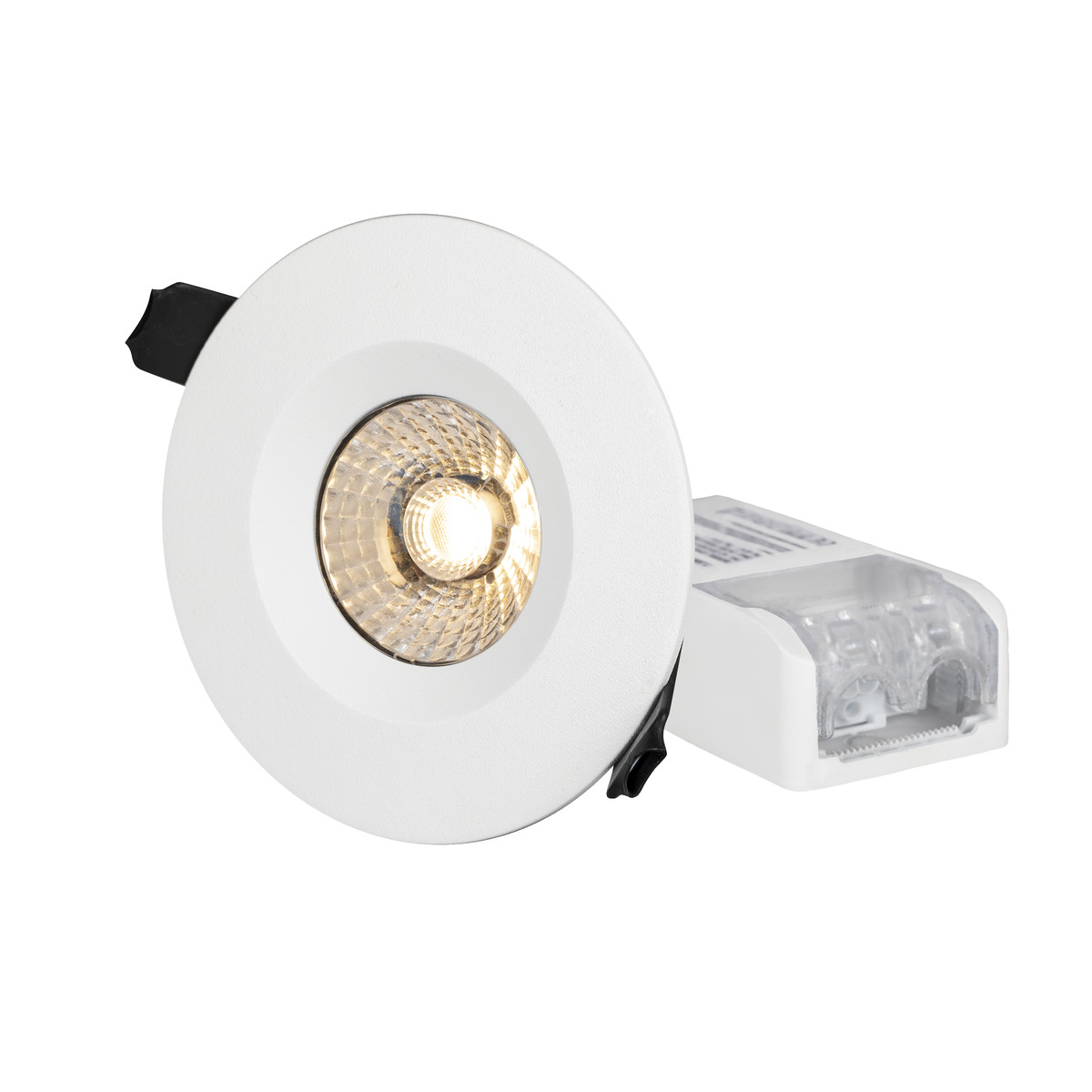

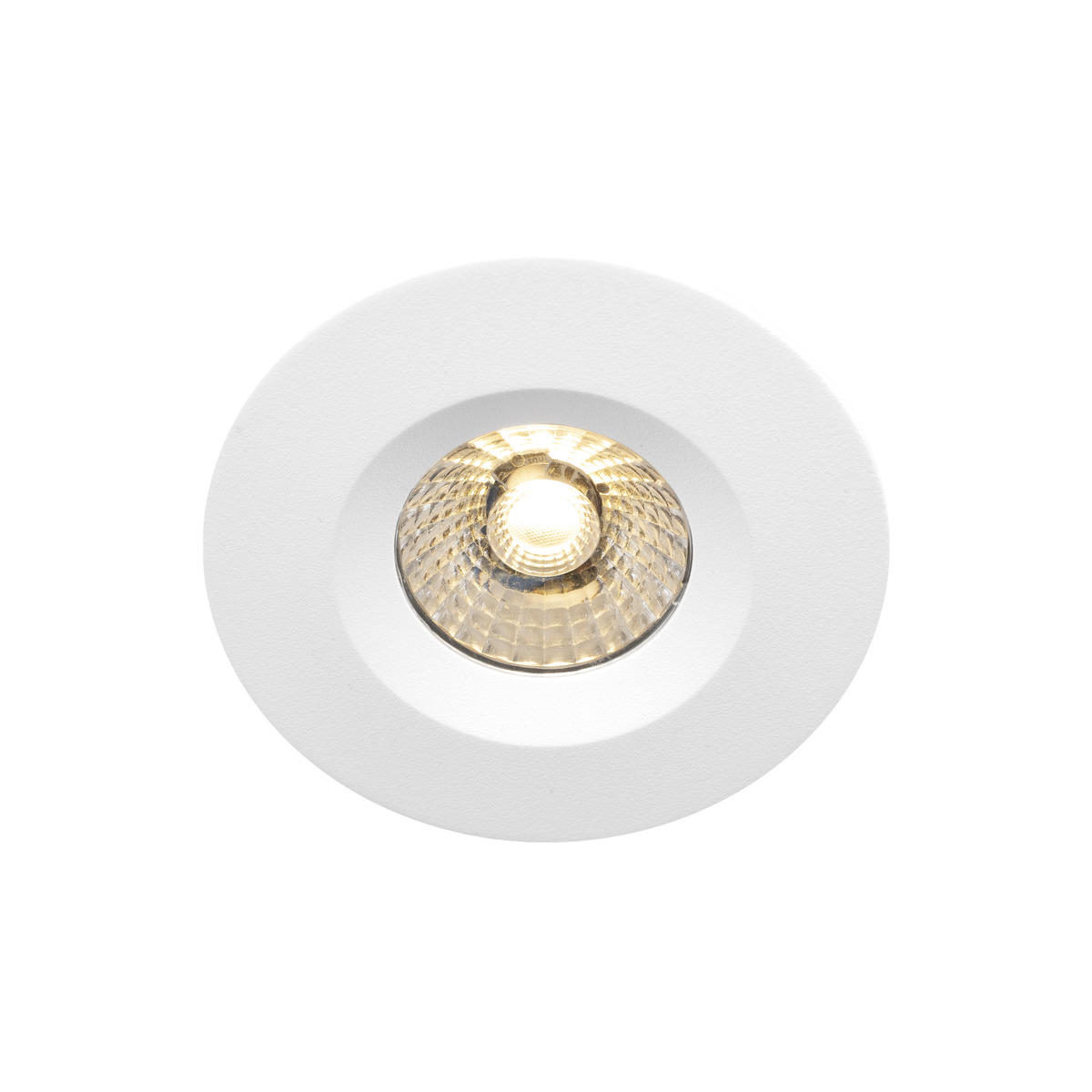

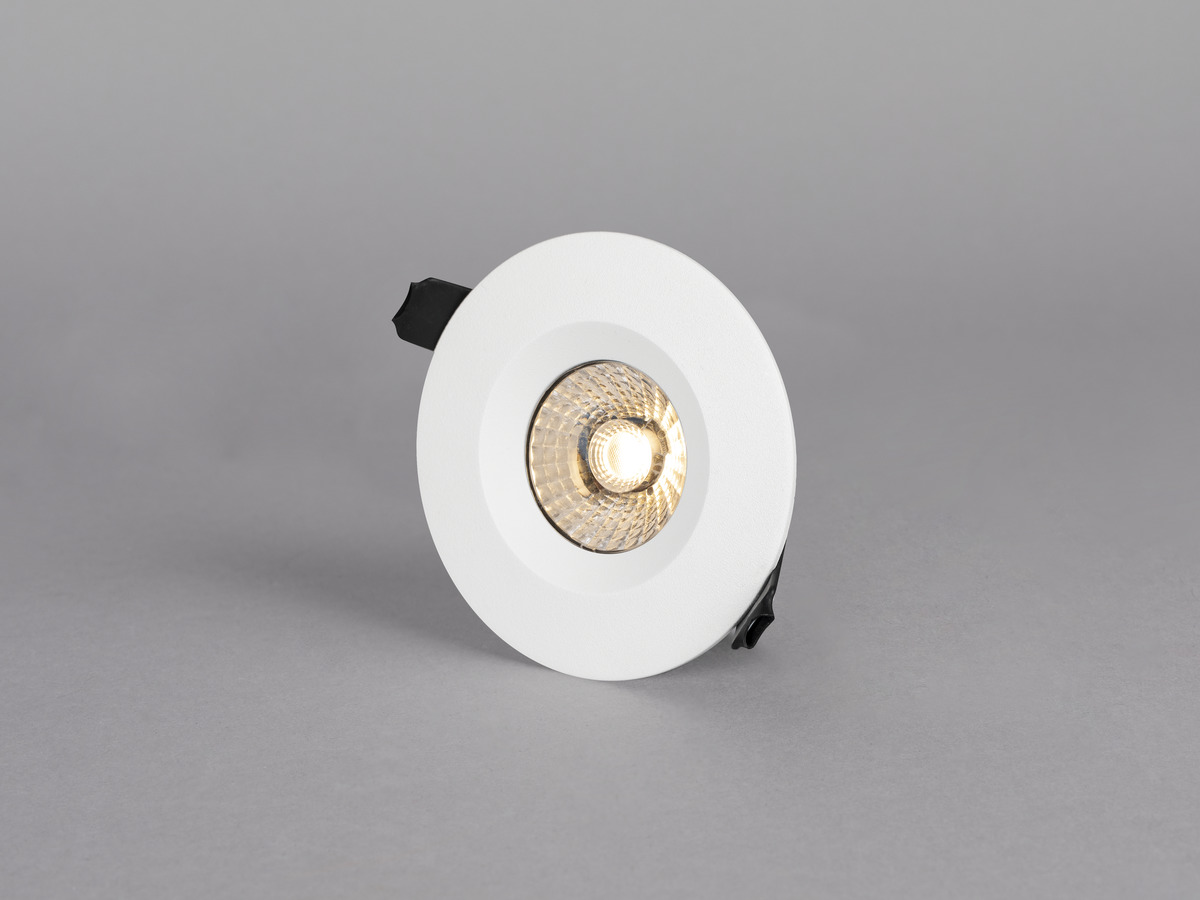

Comfort G3
- Can be installed both indoors and outdoors
- Comes complete with mains dimmable driver for cable or flex hose 16mm

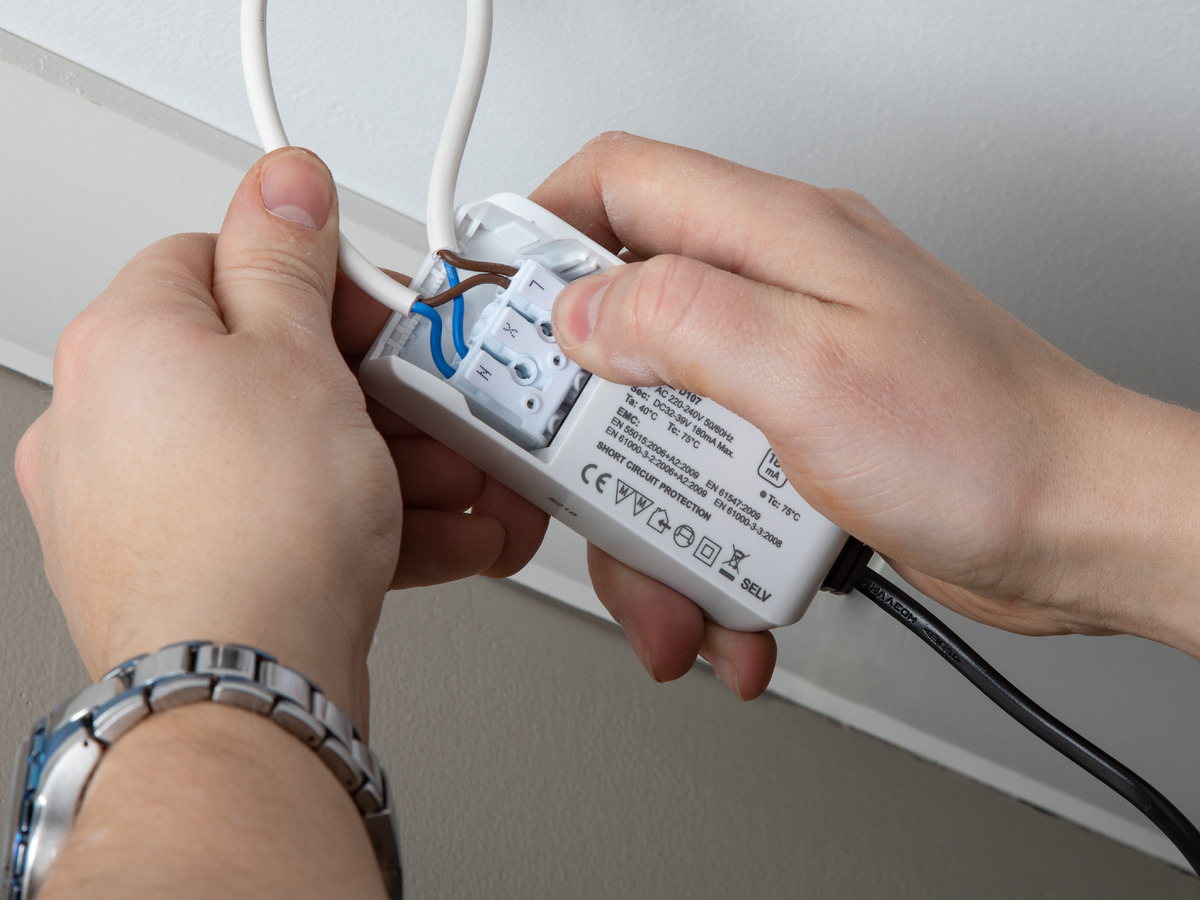

- Push-in, loop-in, loop-out terminal block and screwless strain relief

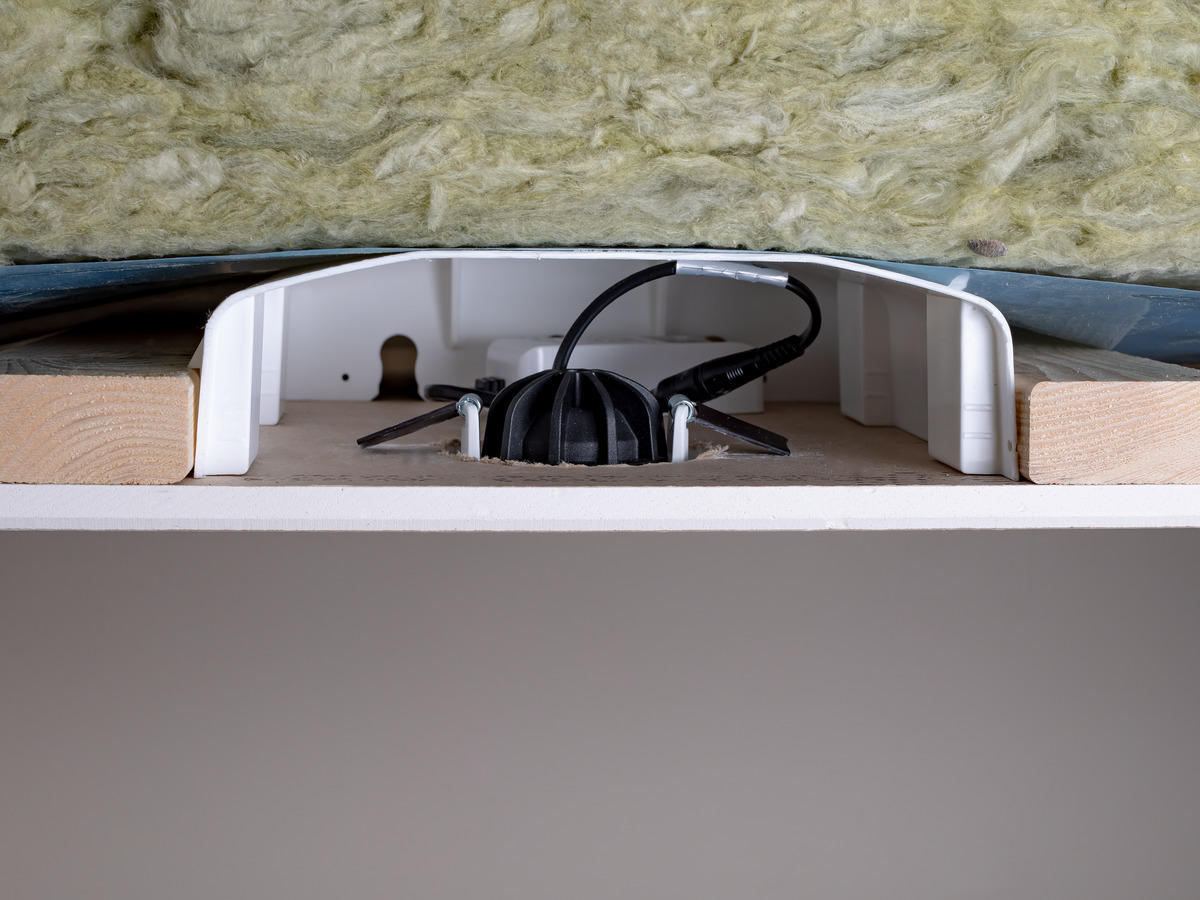

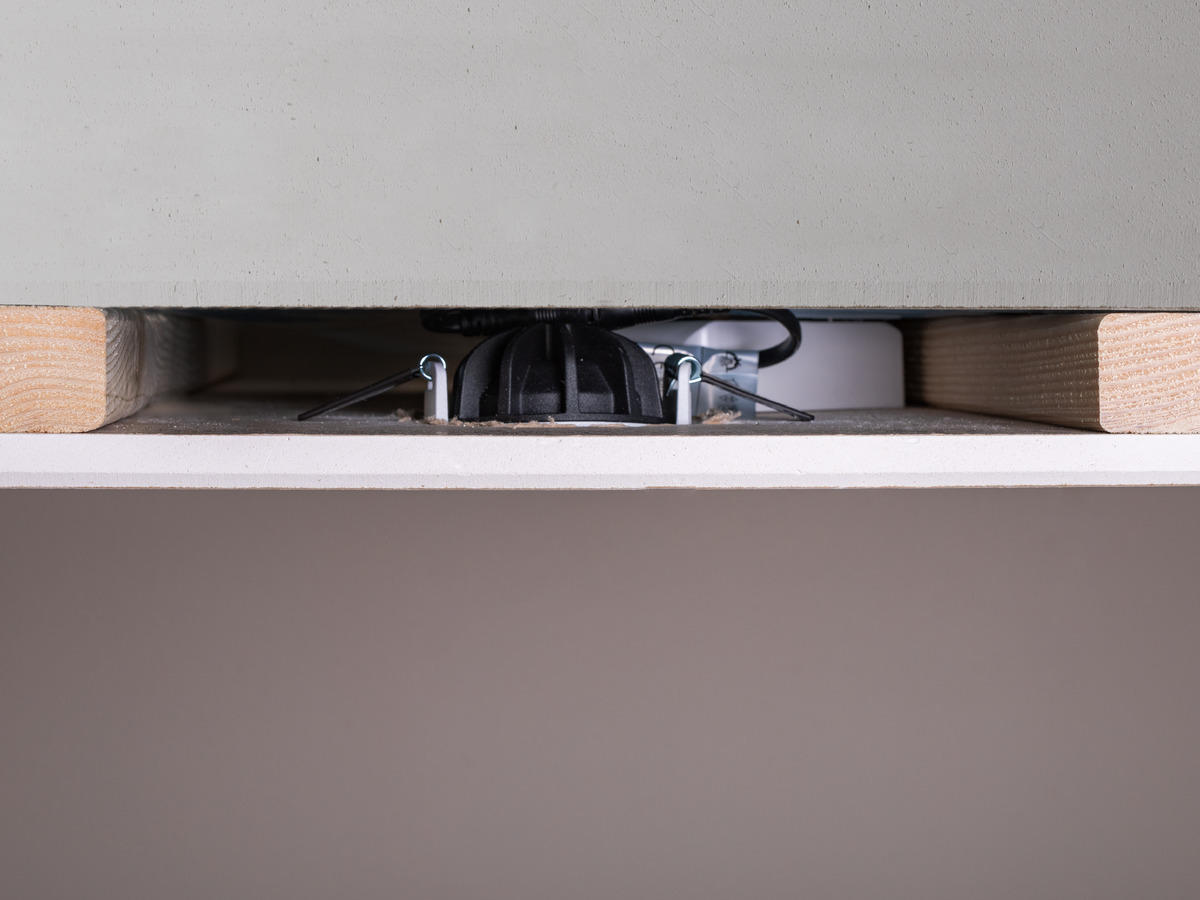

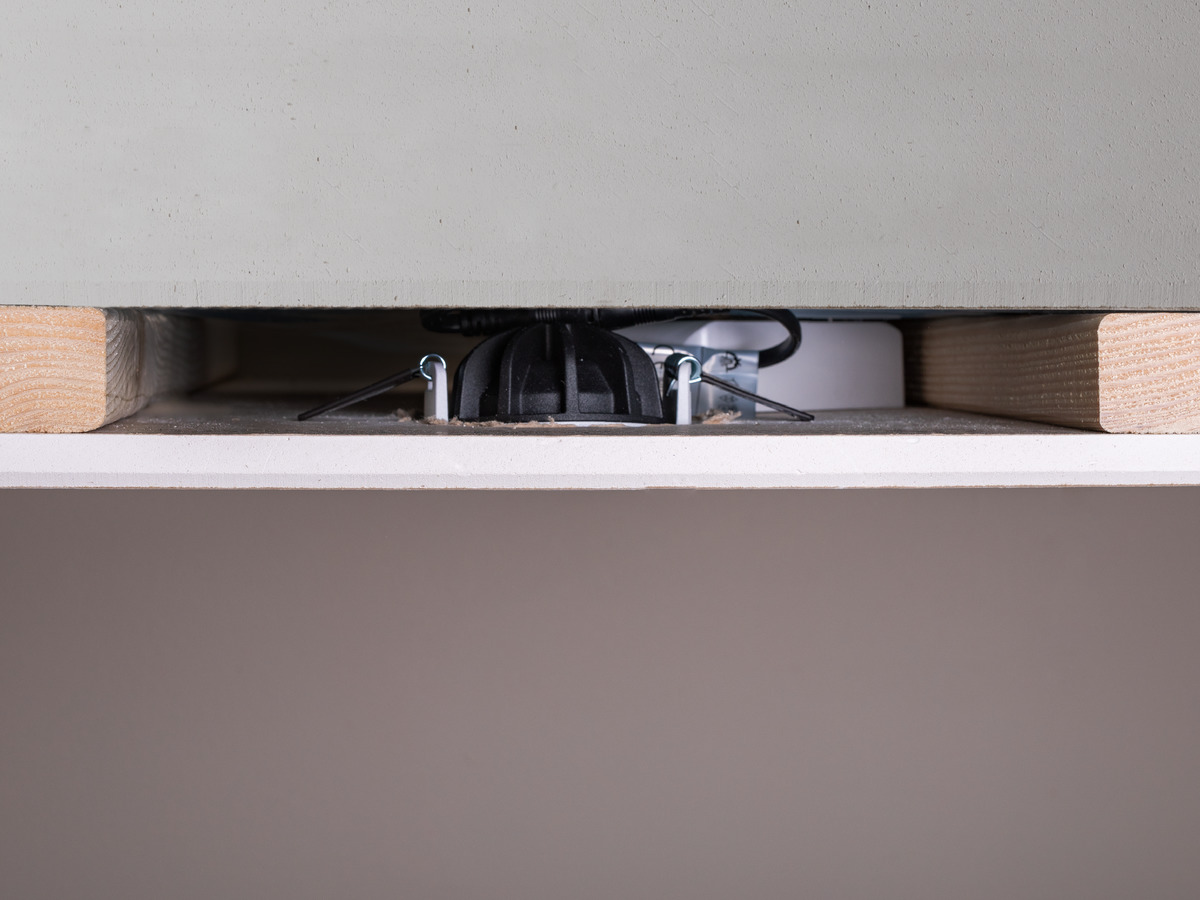

With its high lumen output, fantastic colour rendering and high efficiency, Comfort G3 is in a class of its own. High performance IP44 downlight, just as good for general lighting at home as in public spaces. Luminaire with Ø73-84mm cut-out. Can be installed in 28mm secondary spaced boarding with 13mm gypsum and Ø90mm cut-out. Complete with mains dimmable driver, 3-pole push-in terminal for through wiring and strain relief for cable or flex hose 16 mm. Dimmable with the most commonly available dimmers on the market. Can be delivered with Converter DALI.
| Variants | GTIN | Item Name | Colour Temperature (K) | Luminaire Lumen (lm) |
|---|---|---|---|---|
|
7392971135946 | Comfort G3 White 3000K | 3000 | 690 |
|
7392971135922 | Comfort G3 White Tune | 2700 | 520 |
Comfort G3 White 3000K
-
GTIN 7392971135946Item Name Comfort G3 White 3000KWarranty 5 years
- Light Technical Data
-
Luminaire Lumen (lm) 690Light Source LEDLight Source Included YesReplaceability Non-replaceaable LED, Replaceable Control gear by professionalLED Colour Warm WhiteColour Temperature (K) 3000Colour Rendering Index (Ra) >97Colour Consistency (SDCM) 3Luminous Intensity (cd) 1540Beam Angle (°) 36Light sharing SymmetricLight Outlet DirectNumber of Lamps (pcs) 1Number of LED (pcs) 1Life Time L80 100 000h Ta 25°CNominel Life Time (h) 50000Lumen maintenance 50 000h L90Lumen maintenance 75 000h L86Lumen maintenance 100 000h L82LLMF @ 50 000h 0,9LLMF @ 100 000h 0,82Life Time Driver 50 000h/10%
- Technical data
-
Adjustable NoVoltage (type) ACVoltage Interval (V) 220...240Voltage Nominal (V) 230Line Frequency (Hz) 50, 60Power LED (W) 6,5Power Luminaire (W) 7,5System Power (W) 7,5Efficiency Luminaire (lm/W) 92Efficiency System (lm/W) 92Containing light source energy efficiency class (EU) 2019/2015 E
- Operation and Connection
-
Dimmable YesType of Dimming Trailing Edge, Leading EdgeDriver Included YesDriver Model Constant CurrentDriver Type Stand AloneConnection (type) Quick TerminalConnection (mm2) 3x0,5-2,5Through Wiring YesStrain Relief YesConstant Current (mA) 180Operating TemperatureMax. Tc (°C) 85Dimming secondary side AMMemory Function Power Failure NoFuse B10 (pcs) 55Fuse B16 (pcs) 87Fuse C10 (pcs) 91Fuse C16 (pcs) 146
- Color and material
-
Material Diecasted, AluminiumColor WhiteEnvironmental Assessment SundaHus, ByggvarubedömningenAvailable in special color Yes
- Measurement and installation
-

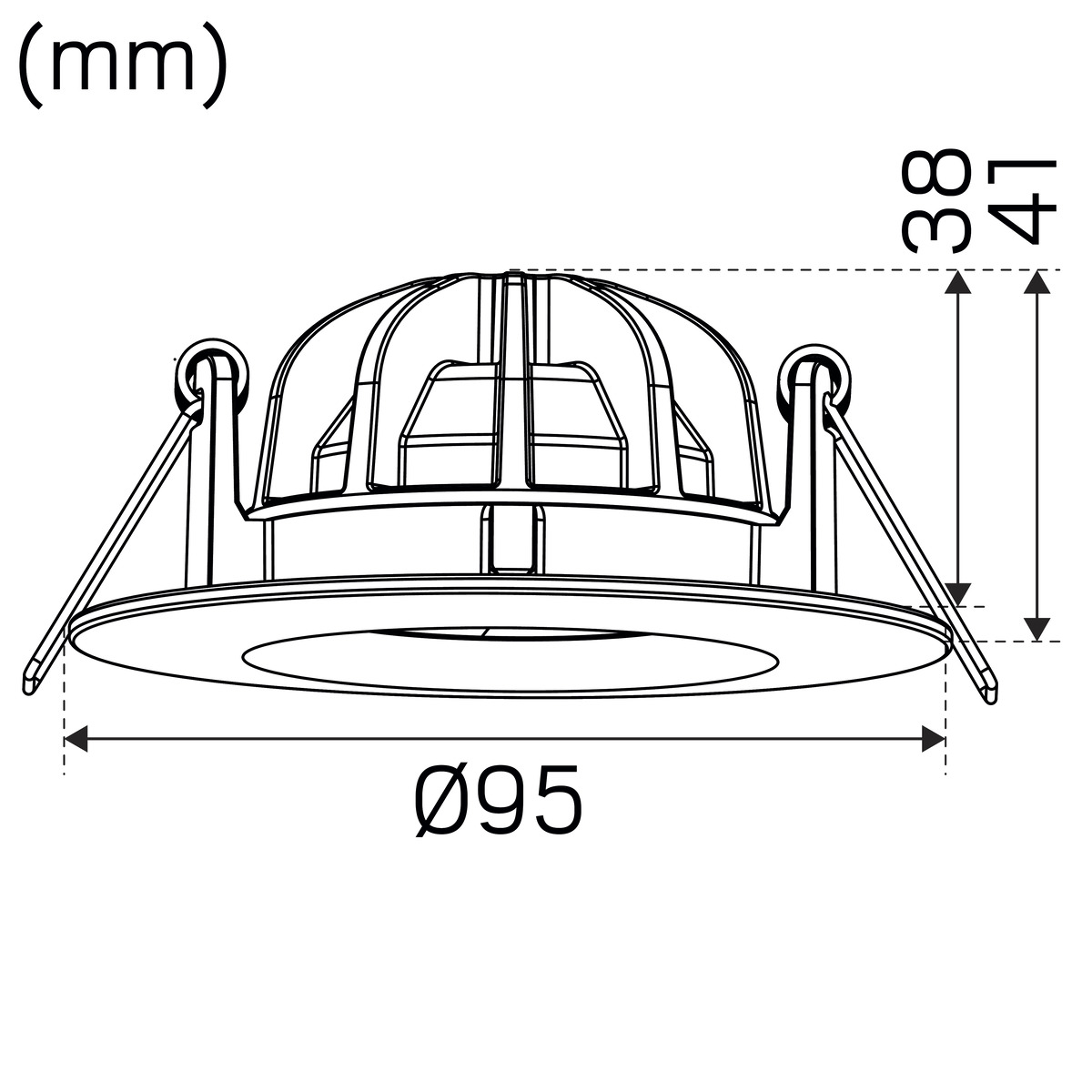

Operating EnvironmentIP Degree of Protection 44Protection Class IIInstallation Built-inMounting Installation Mounting SpringCeiling Thickness Interval (mm) 3-26Fire Safety Marks Not in insulation without protection coverProtection Cover 7466700, 7466701, 7466702Approval Marks CE, SELVHeight (mm) 41Diameter (mm) 95Weight (kg) 0,295Min. Built-in (mm) 400x230x28Height Recessed Part (mm) 38Height Exterior Part (mm) 3Built-in Ø (mm) 73-84
