LEDstrip 24V Line IP20

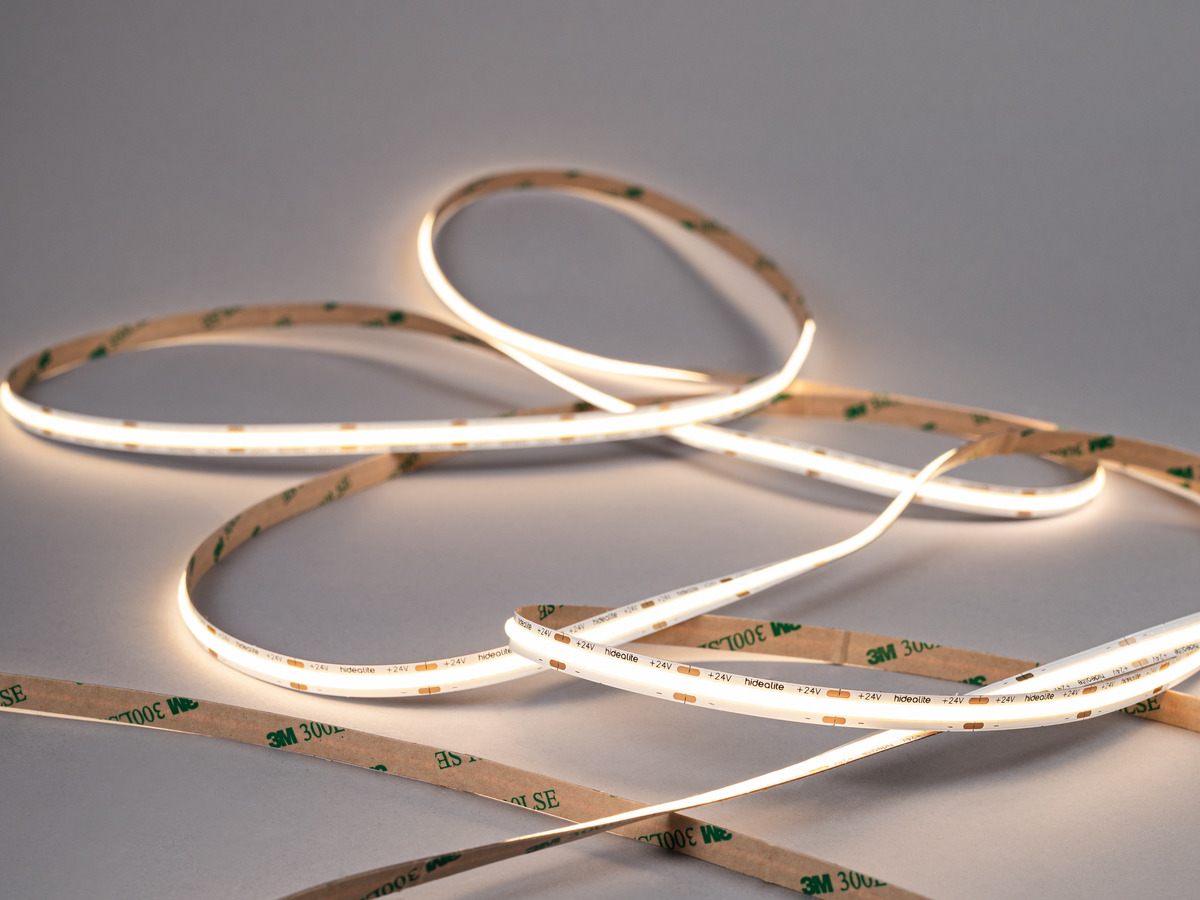

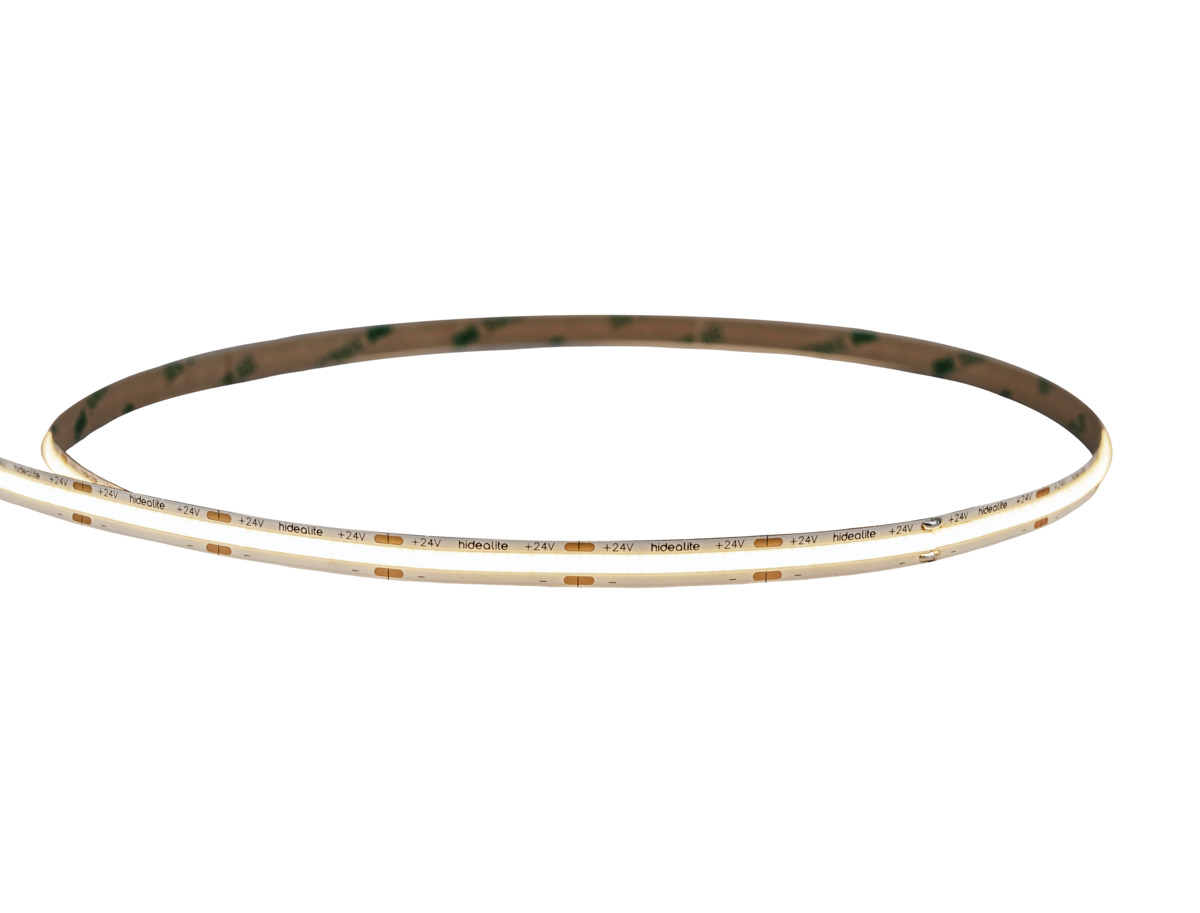

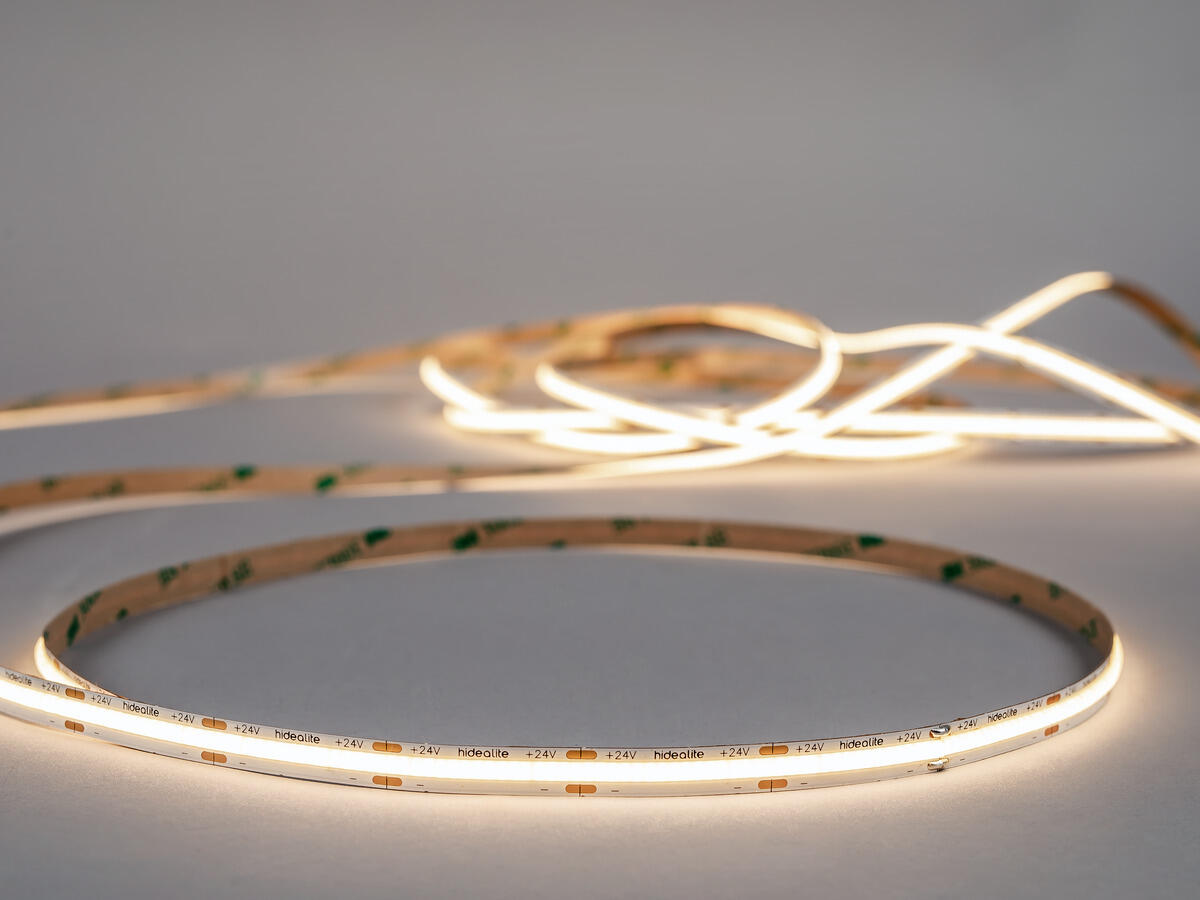

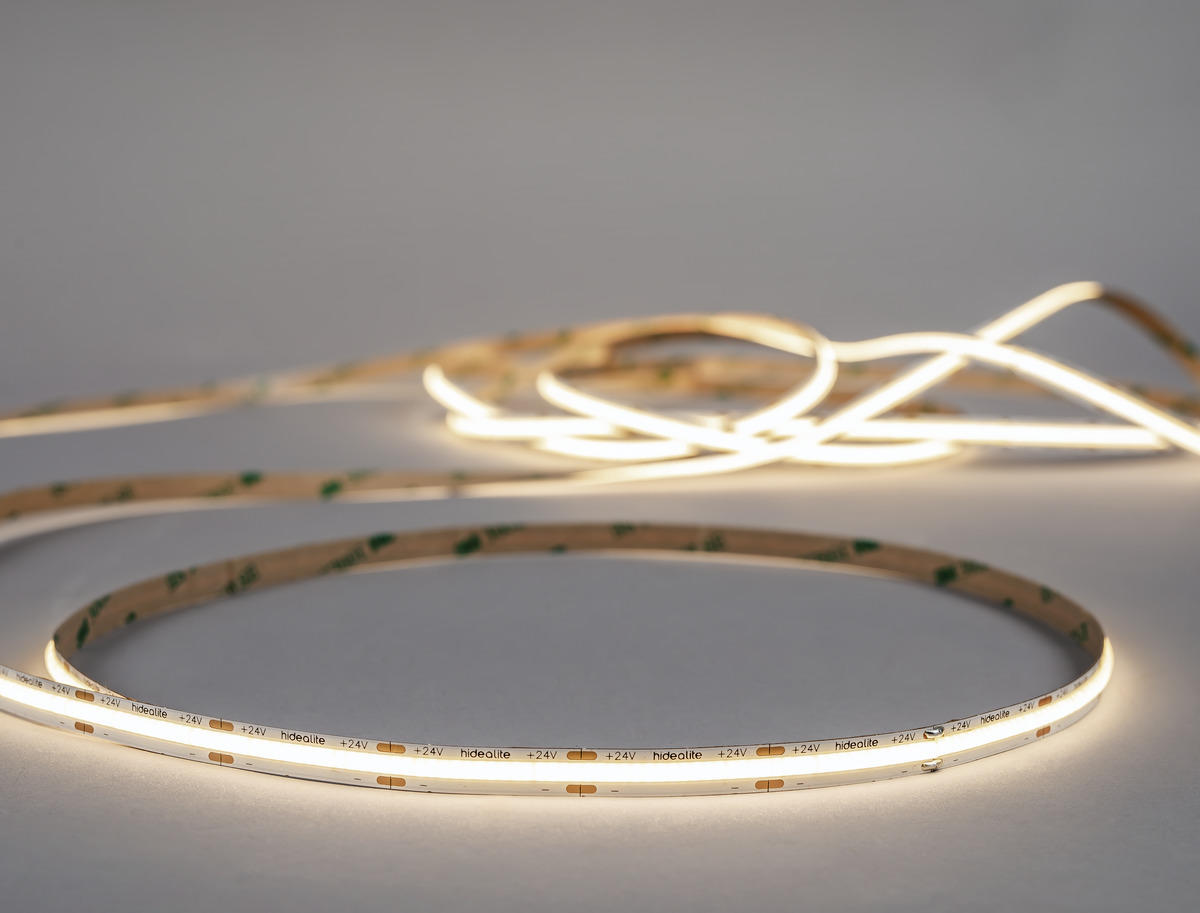

LEDstrip with technology that conceals the LED Chip and electronics under an homogenous phosphorous/silicone layer. Short spacing between the LEDs creates an even illuminated line without profile or cover. COB technology with high lumen output and very good efficiency. Cutting increments of 30mm and seamless joints make it simple to adapt lengths. Comes as standard in 5m rolls with self-adhesive tape and 2m connecting cable. Drivers are ordered separately according to required dimmer technology and location. Maximum length 5m.

Variants

GTIN Item Name Colour Temperature (K) Luminaire Lumen (lm)
LEDstrip 24V Line IP20 MidLum 2700K 5m 7392971139180 LEDstrip 24V Line IP20 MidLum 2700K 5m 2700 4500
LEDstrip 24V Line IP20 MidLum 2700K lpm 7392971139197 LEDstrip 24V Line IP20 MidLum 2700K lpm 2700 900
LEDstrip 24V Line IP20 MidLum 3000K 5m 7392971139203 LEDstrip 24V Line IP20 MidLum 3000K 5m 3000 4750
LEDstrip 24V Line IP20 MidLum 3000K lpm 7392971139210 LEDstrip 24V Line IP20 MidLum 3000K lpm 3000 950
LEDstrip 24V Line IP20 MidLum 4000K 5m 7392971139227 LEDstrip 24V Line IP20 MidLum 4000K 5m 4000 5250
LEDstrip 24V Line IP20 MidLum 4000K lpm 7392971139234 LEDstrip 24V Line IP20 MidLum 4000K lpm 4000 1050

LEDstrip 24V Line IP20 MidLum 2700K 5m A+

Description
GTIN 7392971139180
Item Name LEDstrip 24V Line IP20 MidLum 2700K 5m
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
Light Source Included (type) LED not exchangeable
LED Colour Warm White
Colour Temperature (K) 2700
Colour Rendering Index (Ra) >90
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 240
Luminaire Lumen (lm) 4500
Beam Angle (°) 150
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 512
LED Pitch (mm) 2
Life Time L70 50 000h Ta 25°C
Nominel Life Time (h) 50000
Lumen maintenance 50 000h L70
LLMF @ 50 000h 0,71
Technical data
Voltage (type) DC
Voltage Interval (V) 24...24
Voltage Nominal (V) 24
Voltage Forward (Vf) 3,2
Power Luminaire (W) 50
System Power (W) 55
Efficiency Luminaire (lm/W) 90
Efficiency System (lm/W) 82
Energy Efficiency Class A+
Operation and Connection
Driver Model Constant Voltage
Connection (type) Open Cable End
Length Connection (cm) 200
Connection (mm2) 2x0,75
Operating Temperature -25…+45
Max. Tc (°C) 65
Dimmable Yes
Color and material
Material Copper
Color White
Environmental Assessment Byggvarubedömningen
Measurement and installation
Operating Environment Indoor / dry locations
IP Degree of Protection 20
Protection Class III
Installation Surface mounted
Mounting Installation Self Adhesive Tape
Approval Marks CE
Filament Test IEC 695-2-1(°C) 650
Requires cooling No

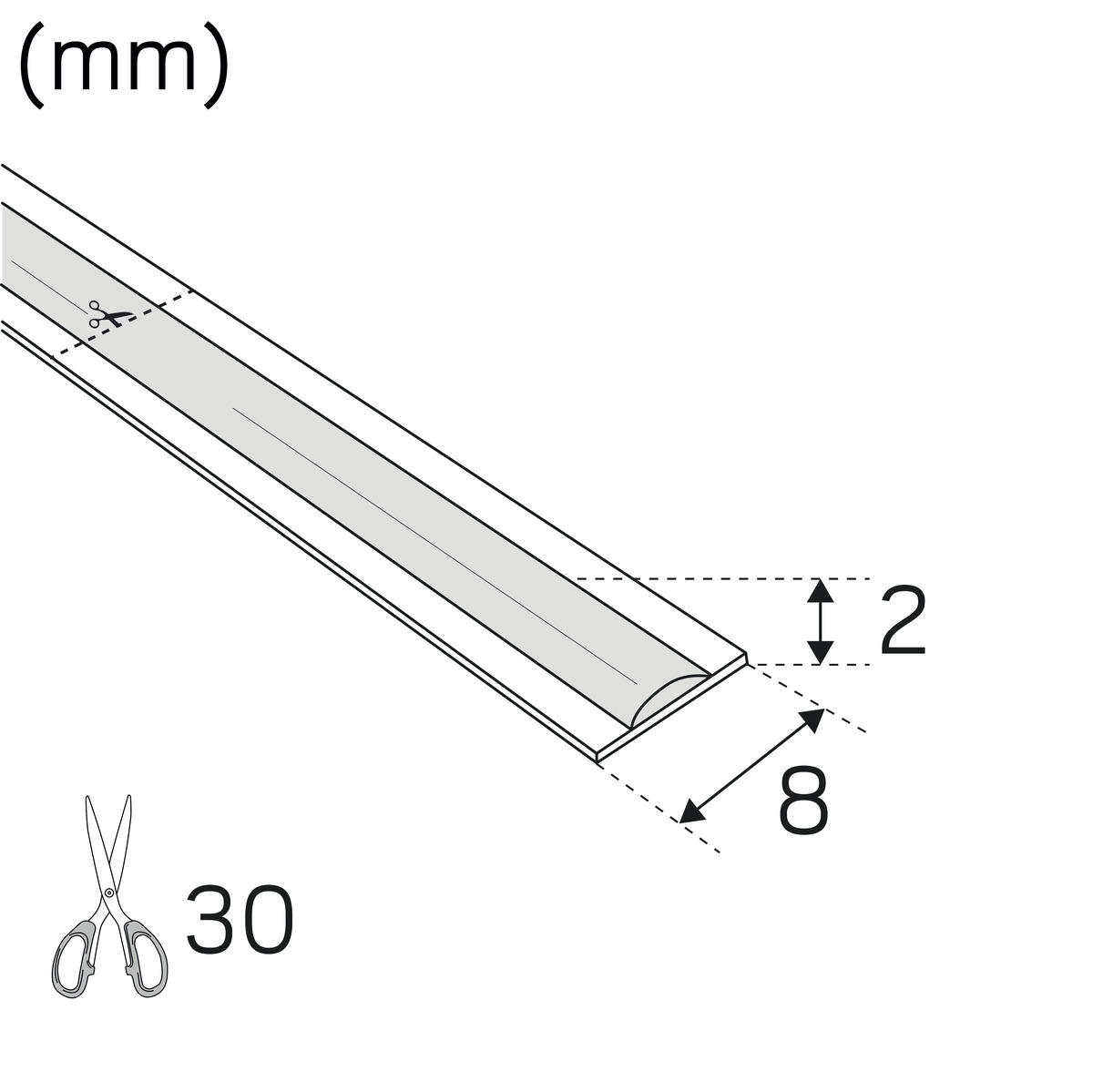

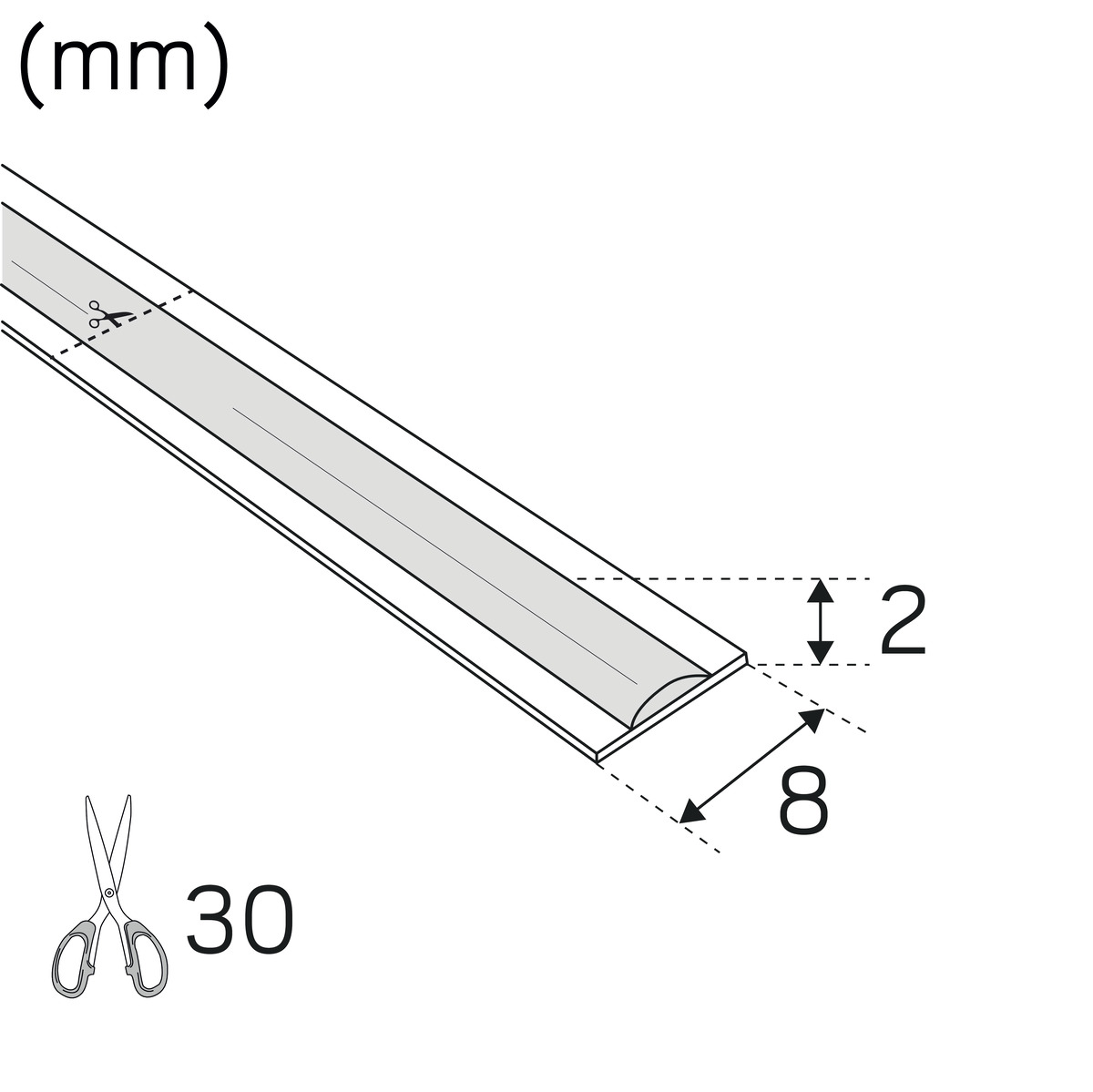

Length (mm) 5000
Width (mm) 8
Height (mm) 2
Weight (kg) 0,16
Fibres and strips
Min. Bend Radius (mm) 10
Min. Length (m) 0,03
Max. Length (m) 5
Cutting Increments (mm) 30
