LEDstrip 24V Neon Side IP67 LEDstrip 24V Neon Side IP67 4000K lpm

Max. length 17 m (RGB 13 m), 120LED/m (RGB 96LED/m). Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables.

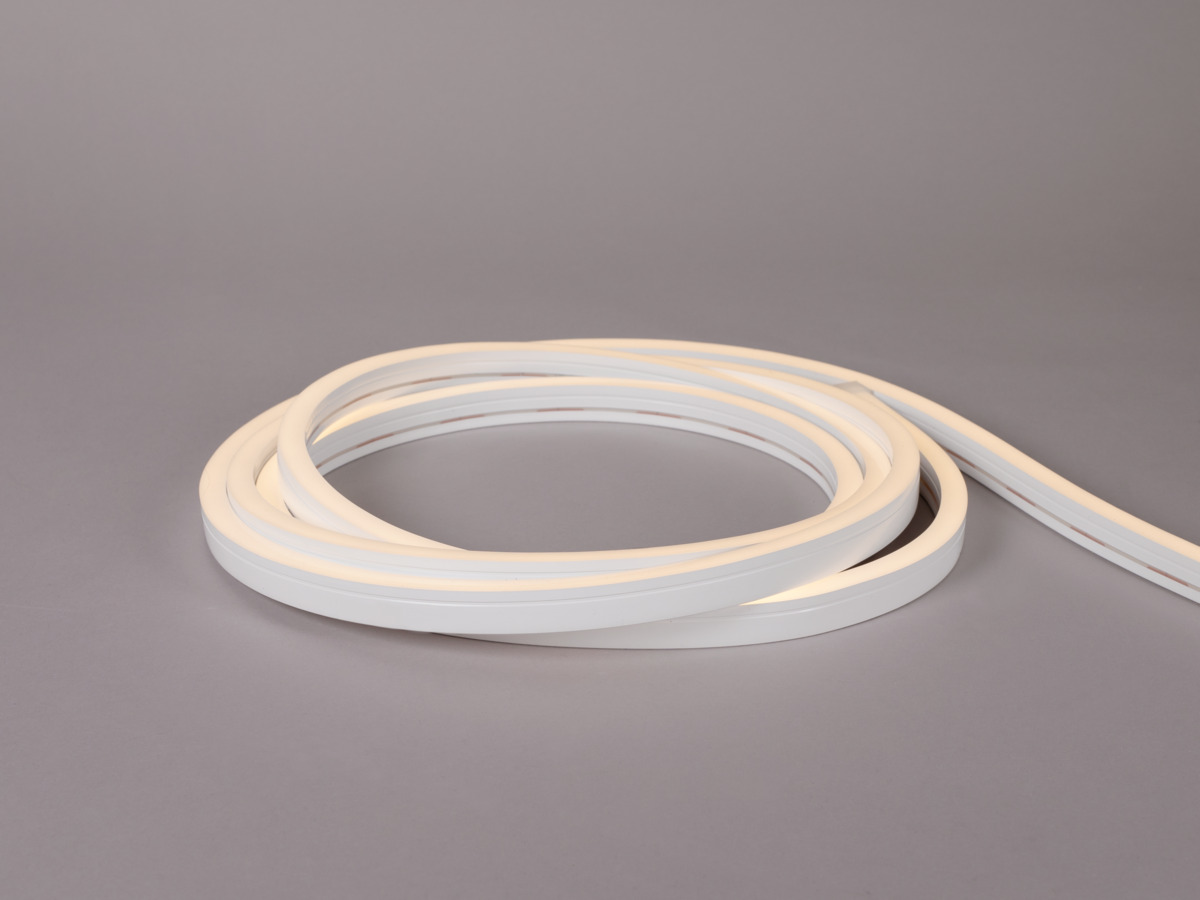

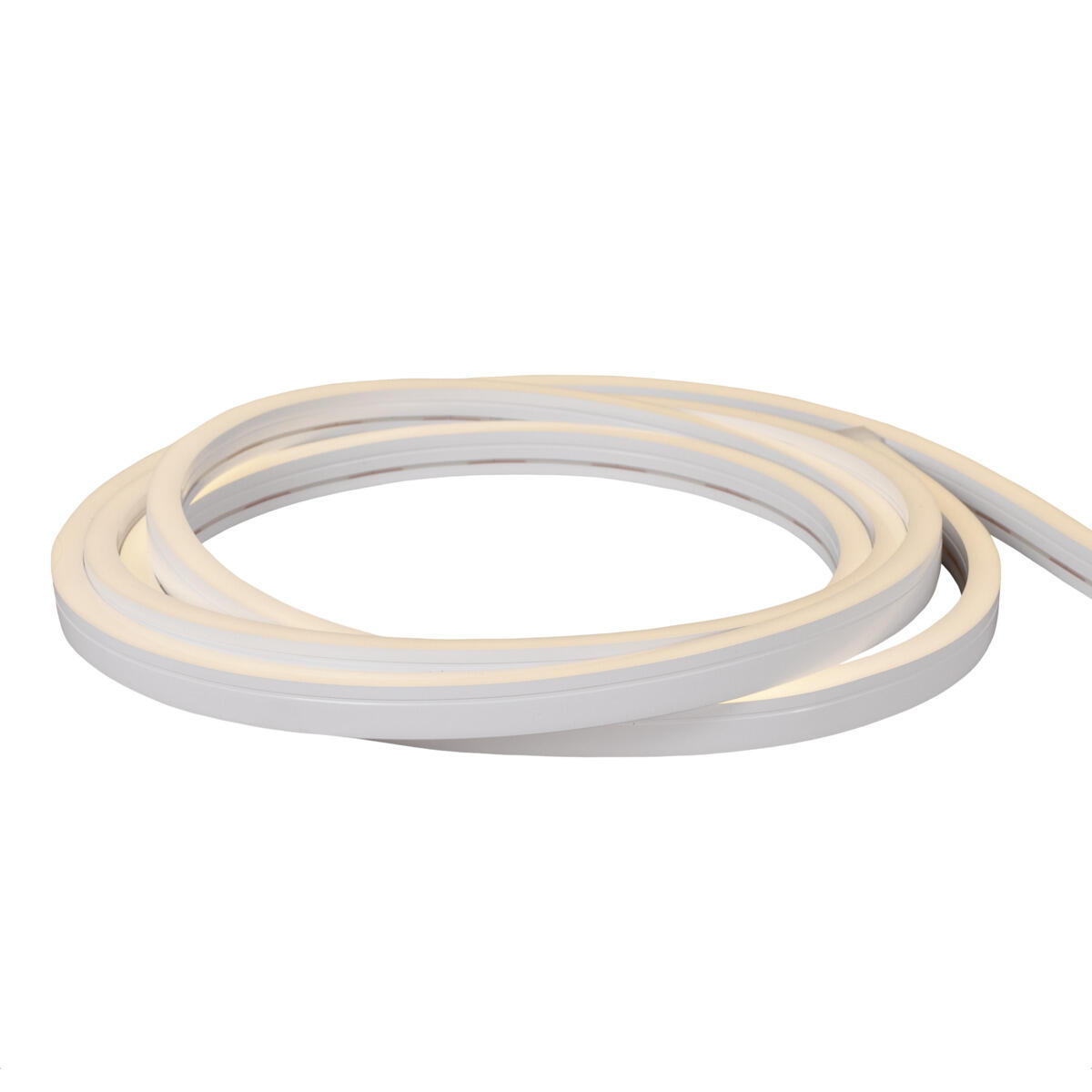

Side bending LEDstrip, IP67-rated, available in longer lengths with accessories that you can easily fit yourself. Flexible, high quality silicon casing that gives strong, durable protection. Homogenous spot-free lighting without accessories. Comes in 5m rolls with 3m connection cable at one end, 15 clips, screws, one end cap and one end cap for cable for quick and easy installation. Also available made to measure in optional lengths up to 17m (RGB 13m). Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Connects to 24VDC, drivers ordered separately.

GTIN	Item Name	Colour Temperature (K)	Max. Luminaire Lumen (lm)
7392971141695	LEDstrip 24V Neon Side IP67 4000K lpm	4000	325
7392971141671	LEDstrip 24V Neon Side IP67 3000K 5m	3000	1625
7392971141688	LEDstrip 24V Neon Side IP67 3000K lpm	3000	325
7392971141701	LEDstrip 24V Neon Side IP67 RGB 5m		725
7392971141718	LEDstrip 24V Neon Side IP67 RGB lpm		145

Show more articles

Description: GTIN 7392971141695

Item Name LEDstrip 24V Neon Side IP67 4000K lpm

Warranty 5 years
Light Technical Data: Max. Luminaire Lumen (lm) 325

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour White

Colour Temperature (K) 4000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 95

Beam Angle (°) 120

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 120

LED Pitch (mm) 8

Life Time h Ta °C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L98

Lumen maintenance 75 000h L97

Lumen maintenance 100 000h L95

LLMF @ 50 000h 0.98

LLMF @ 100 000h 0.95
Technical data: Adjustable No

Voltage (type) DC

Voltage Interval (V) 24...24V

Voltage Nominal (V) 24

Max. Power Luminaire (W) 10

Max. System Power (W) 11

Max. Efficiency Luminaire (lm/W) 33

Max. Efficiency System (lm/W) 30

Energy Efficiency Class (EU) 2019/2015 G
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Voltage

Through Wiring No

Strain Relief No

Min. Ta (°C) -25

Max. Ta (°C) 45

Max. Tc (°C) 85
Color and material: Material Copper, Silicone

Color White

Halogen free No
Measurement and installation: Operating Environment Indoor / bathroom (ceiling area 1), Outdoor

IP Degree of Protection 67

Protection Class III

Installation Surface mounted

Mounting Installation Clips

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

Requires cooling No

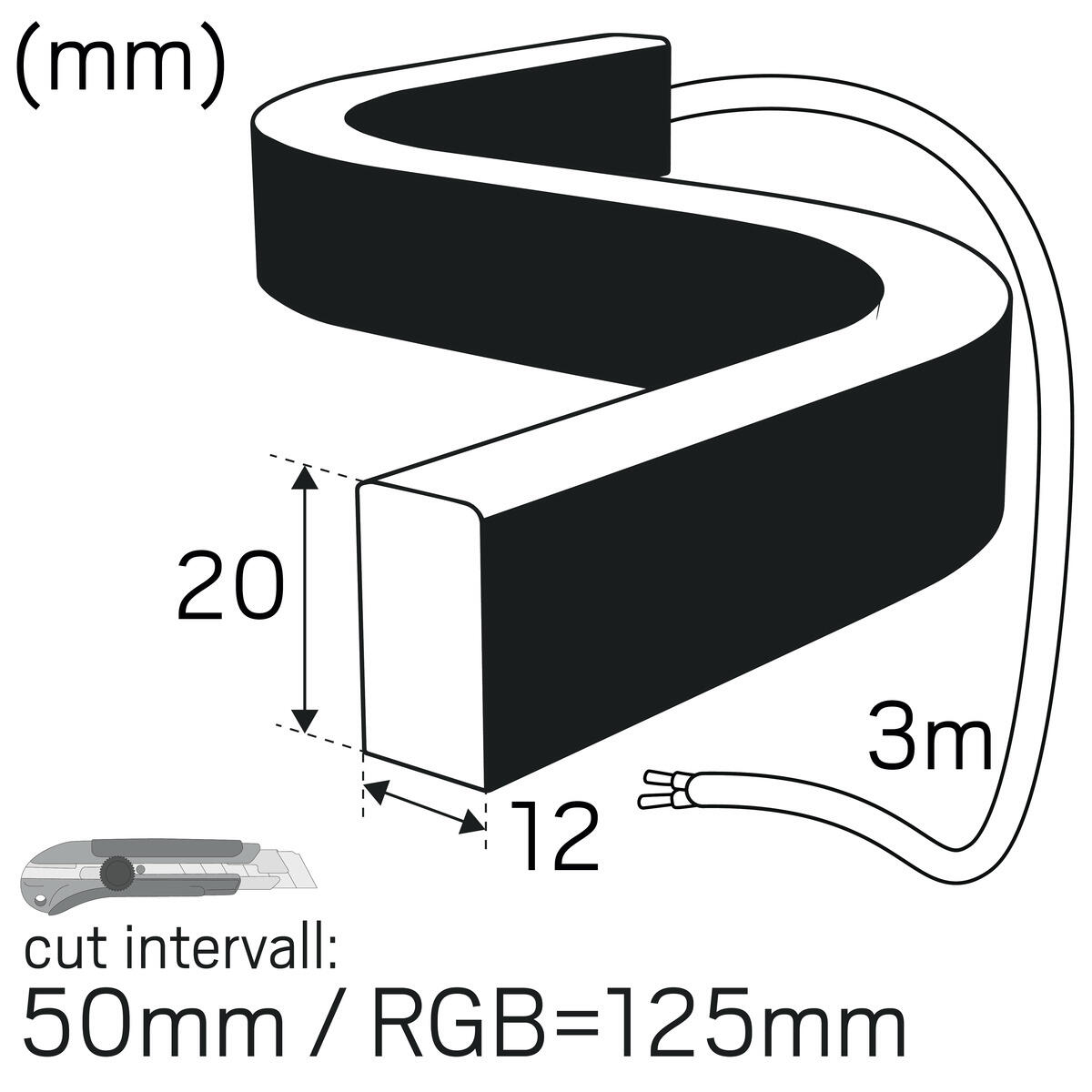

Length (mm) 1000

Width (mm) 12

Height (mm) 20

Weight (kg) 0,31
LEDstrips: Min. Bend Radius (mm) 120

Min. Length (m) 0,057

Max. Length (m) 17

Cutting Increments (mm) 50

LEDstrip 24V Neon Top IP67

Top bending LEDstrip, IP67-rated, available in longer lengths with accessories that you can easily fit yourself. Flexible, high quality silicon casing that gives strong, durable protection. Homogenous spot-free lighting without accessories. Comes in 5m rolls with 3m connection cable at one end, 15 clips, screws, one end cap and one end cap for cable for quick and easy installation. Also available made to measure in optional lengths up to 17m (RGB 13m). Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Connects to 24VDC, drivers ordered separately.

LEDstrip 24V Neon Mini IP67

Top bending LEDstrip, IP67-rated, available in longer lengths with smart accessories that you can easily fit yourself. Flexible, high quality silicon casing that gives strong, durable protection. Homogenous spot-free lighting without accessories Comes in 5m rolls with 3m connection cable at one end, 15 clips, screws, one end cap and one end cap for cable for quick and easy installation. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Also available made to measure in optional lengths up to 5m. Connects to 24VDC, drivers ordered separately.

LEDstrip 24V IP67 TW/RGB/RGBW

Let your imagination flow with LEDstrip 24V, which comes in TW, RGB and RGBW versions, for use indoors or out. LEDstrips can be adapted for any occasion: a party, a cosy night in or work. Create a gentle, relaxing atmosphere with soft pastel colours or light up an outdoor space with lively and energetic nuances. Comes as standard in rolls of five metres with two metre connecting cable at each end, a quick connection and self-adhesive tape for easy installation. Five metre packs contain products to enable you to create three different lengths to suit your needs. LEDstrip is also available made to measure in optional lengths. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology, control and placing.

LEDstrip 24V Line IP67

With LEDstrip 24V Line, you can create ambient lighting, highlight walkways, or accentuate details with a uniform, dot-free light—even without a diffuser cover. It delivers even, shadow-free lighting and fits perfectly into Hide-a-lite’s range of aluminium profiles, whether for light lines in handrails, around mirrors, in furniture, or as edge lighting in kitchens and bathrooms. Available in Lowlum and Midlum, with 2700K or 3000K colour temperature and Ra90 for natural colour rendering. Supplied in 5-metre rolls with 2-metre connection cable at both ends, self-adhesive tape, and accessories for easy installation. Cut-to-length strip is supplied as standard without connection cable. Upon request, it can also be supplied with custom-length connection cable. Maximum length: Low 8m, Mid 6m. Drivers are ordered separately based on desired dimming method and placement. LEDstrip 24V Line is for those who want homogeneous light without shadows—and a result that looks as professional as it is installed.

LEDstrip 24V Neon Side IP67

LEDstrip 24V Neon Side IP67 4000K lpm

Accessories

Profile Neon Side IP67 2m

Clips Neon Side IP67 15pcs

Connection kit LEDstrip Neon Side IP67 Single Colour

Connection kit LEDstrip Neon Side IP67 RGB

LED-dimtrafo RGB DALI 24V 120W

Touchpanel RGBW DALI

Accessory to

Connection kit LEDstrip Neon Side IP67
