Case Wall IP55

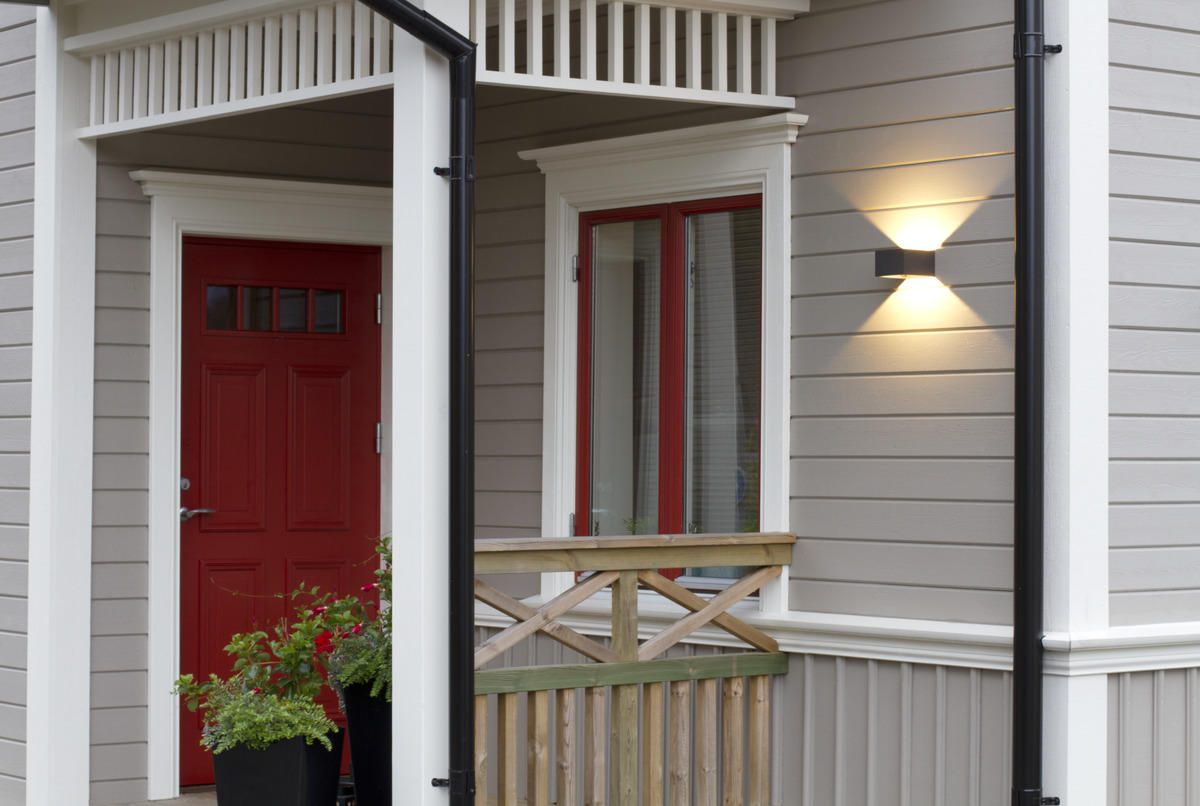

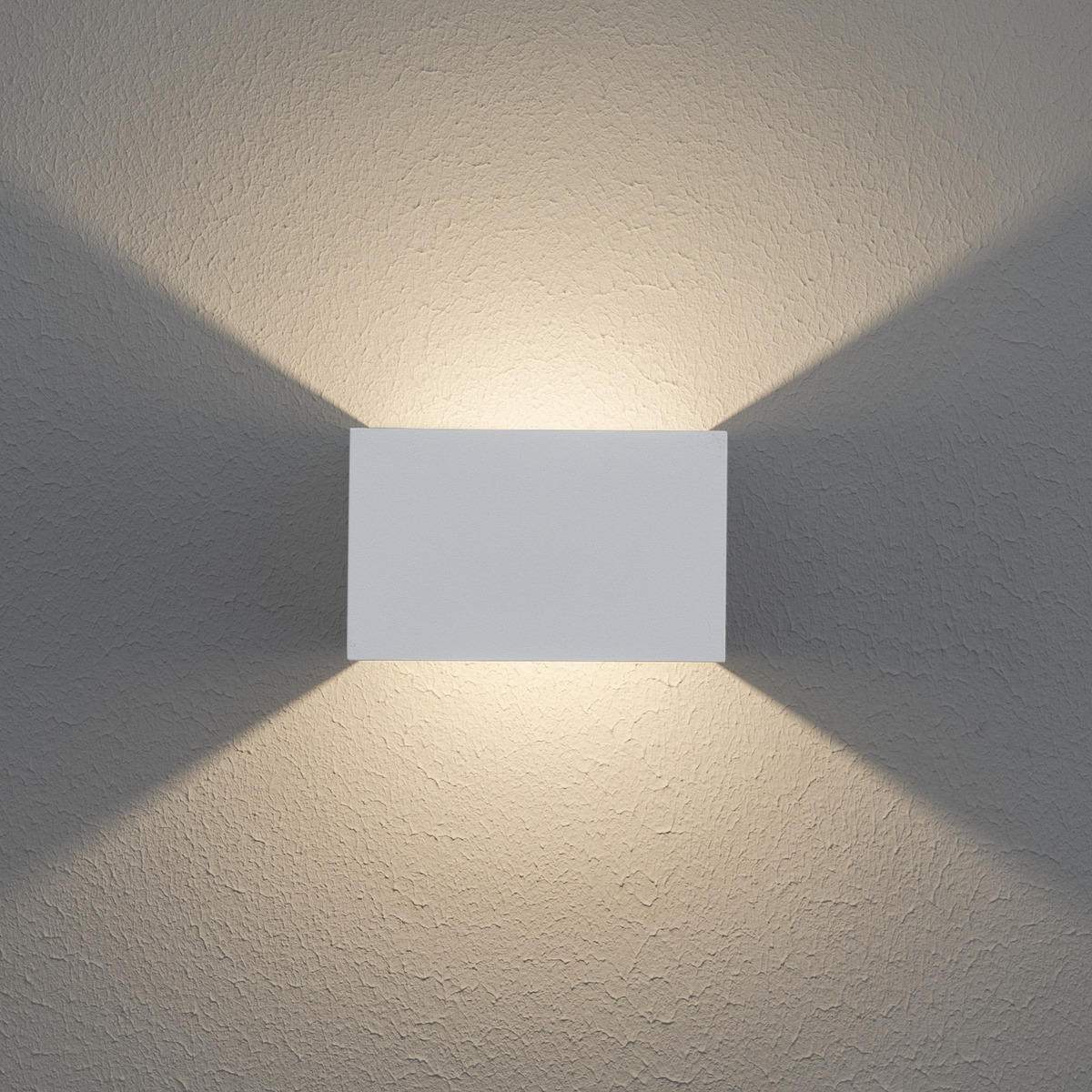

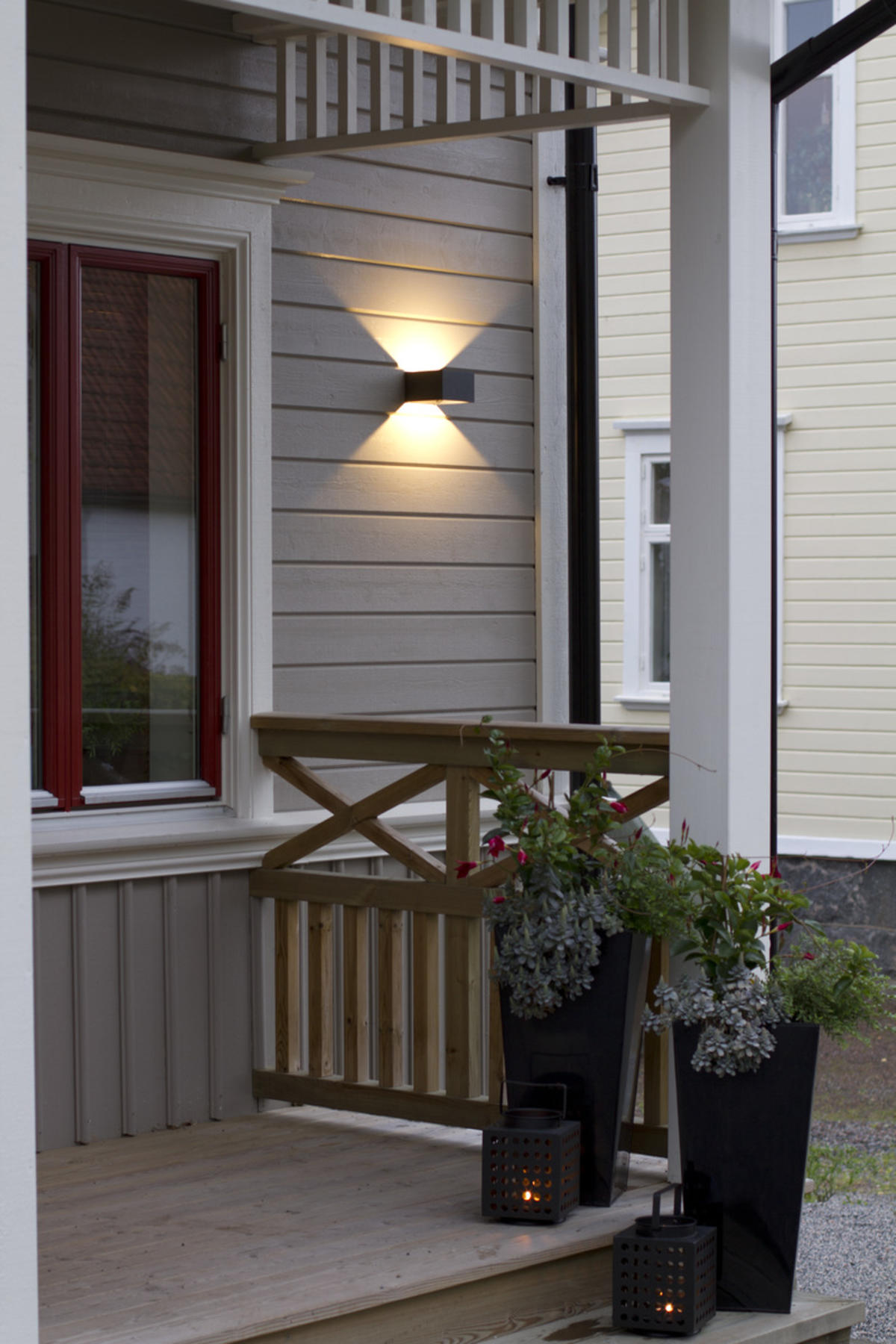

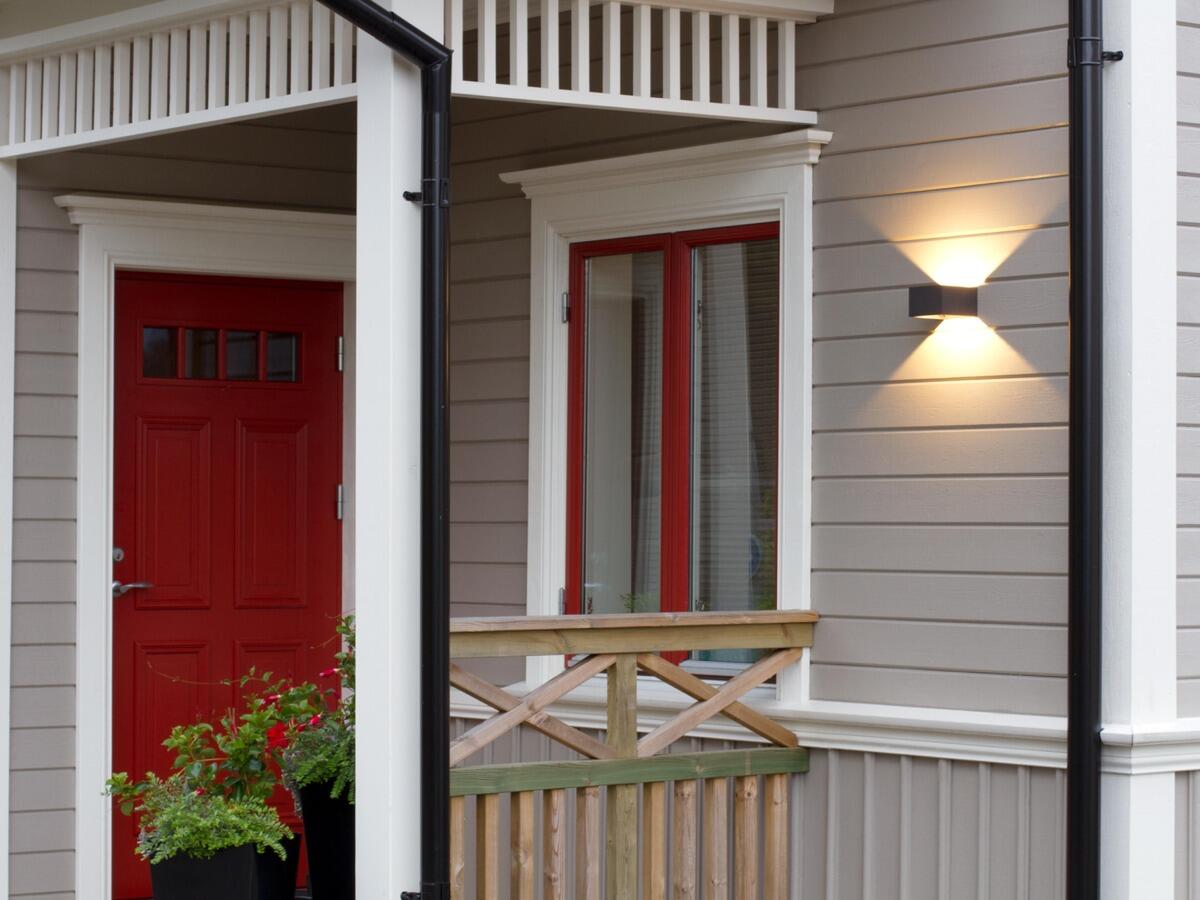

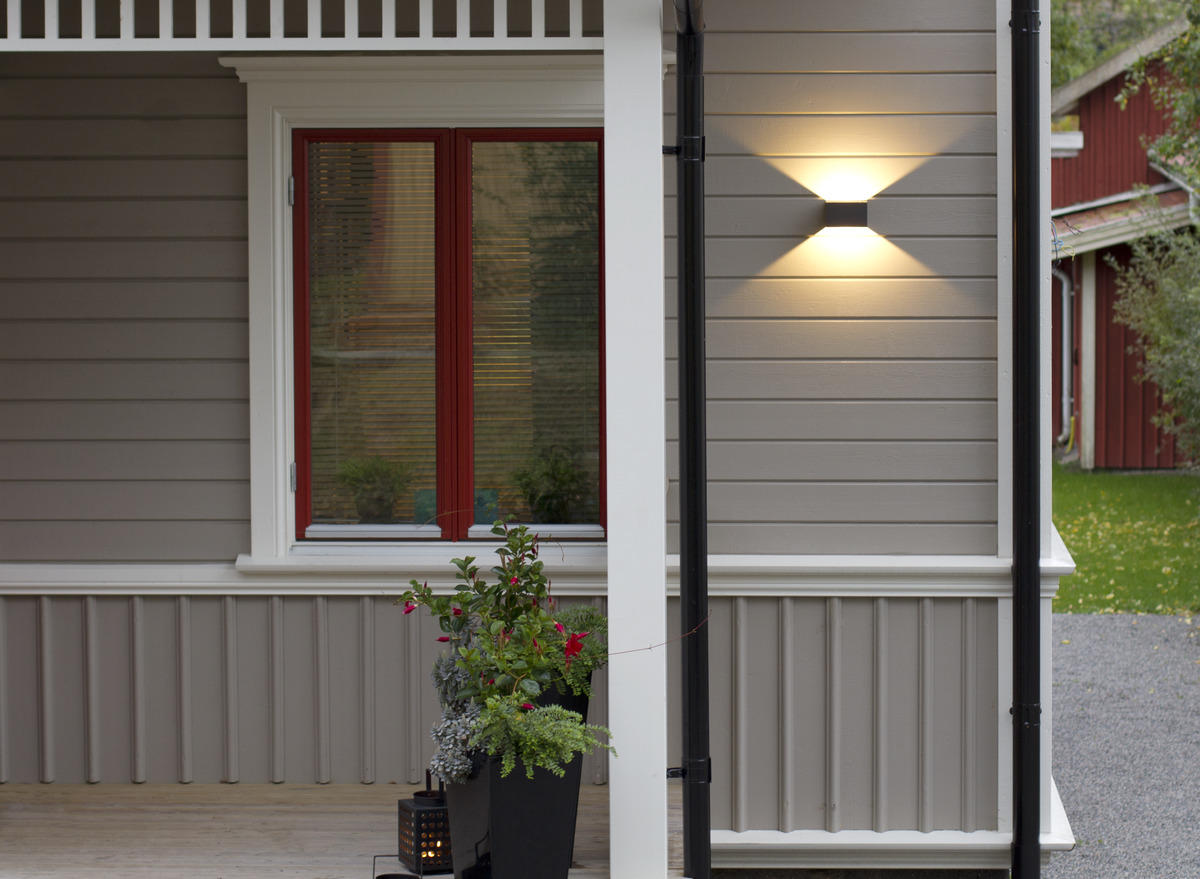

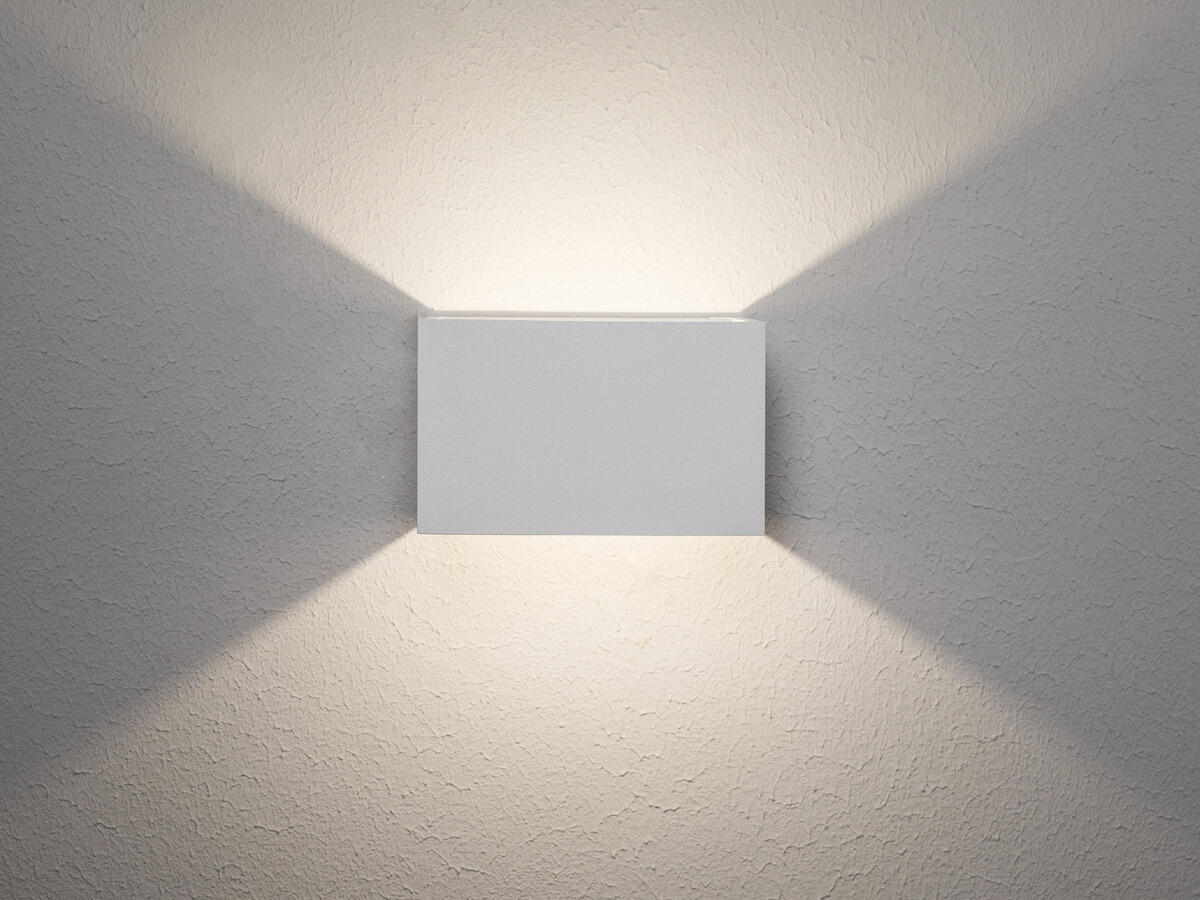

Trendy wall-mounted luminaire for outdoor use with a light pattern that illuminates 145° both up and down. This luminaire comprises an aluminium frame and is fitted with an LED-Multichip of 6W. Perfect for installing on facades, for example entrances or patios in private and public areas. The luminaire is anodised and powder-coated for harsh outdoor climates. Integrated driver. For installation on walls with a concealed connector.

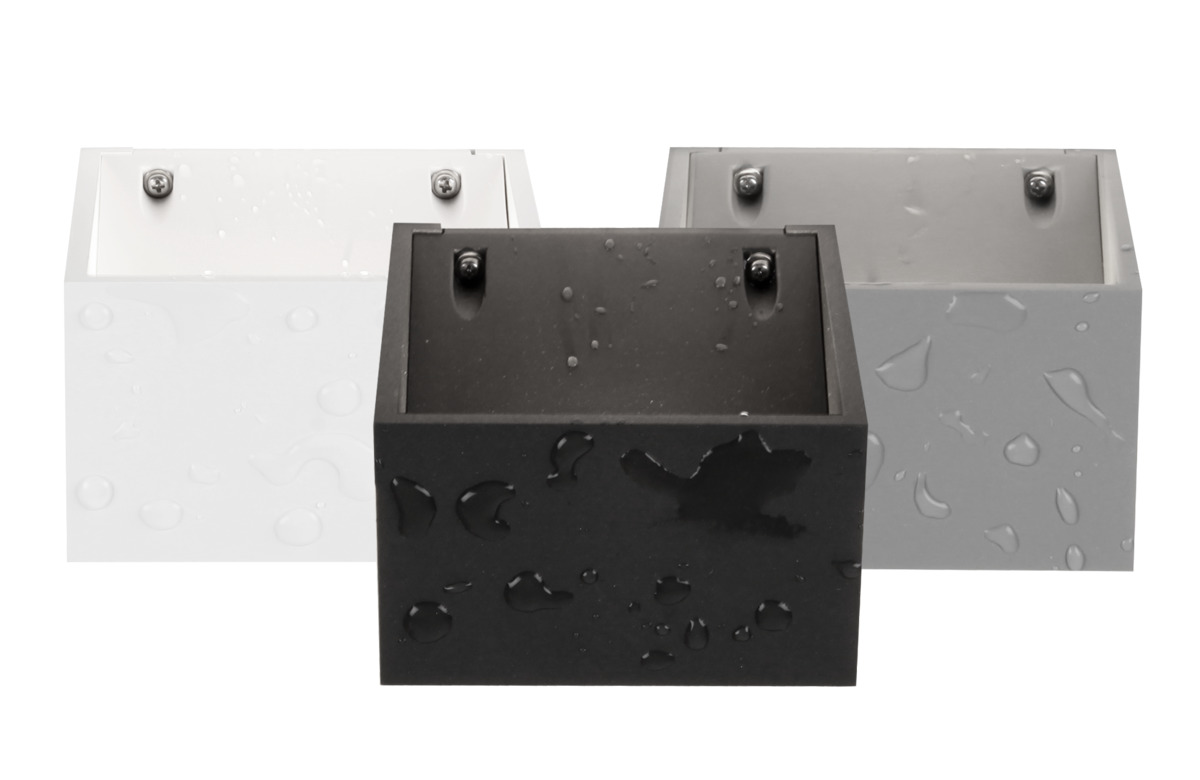

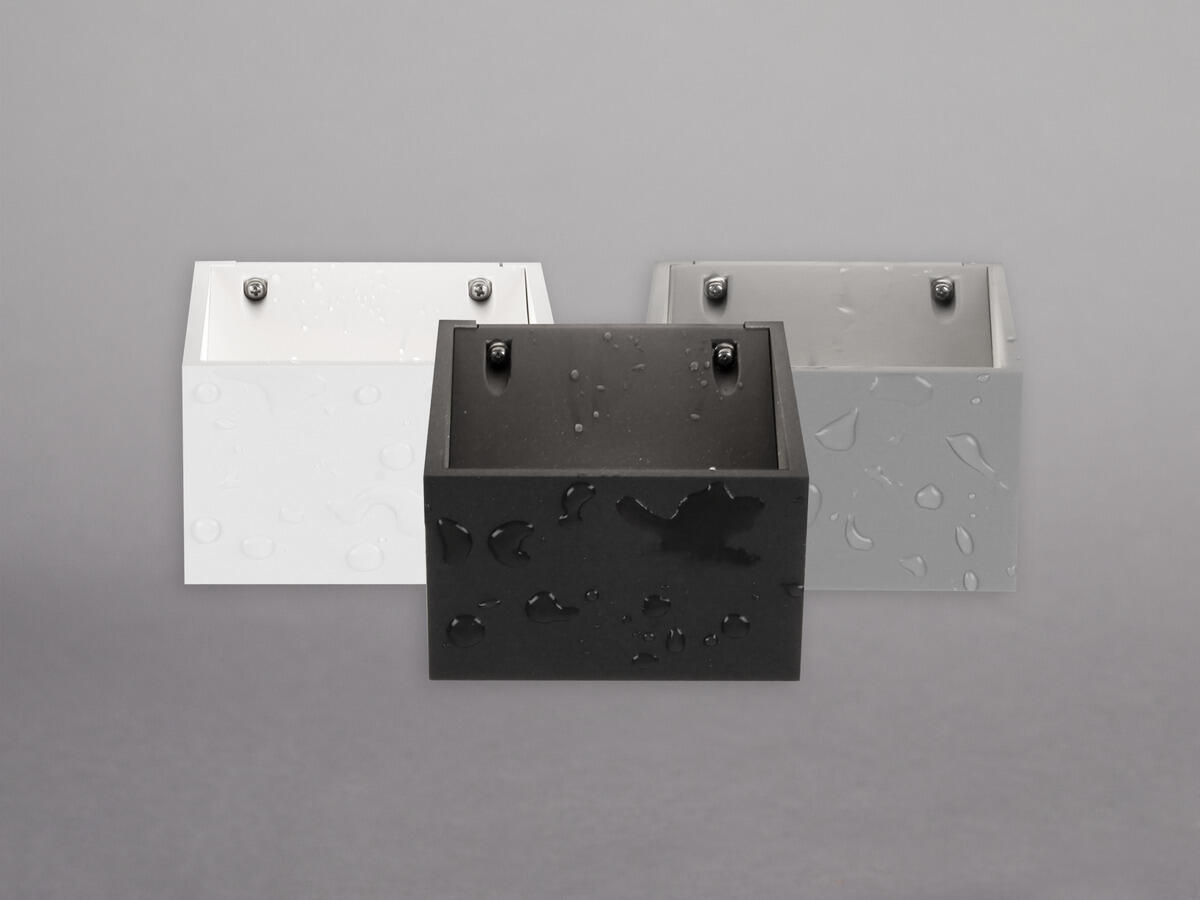

Exists in several colors
  • Vit
  • Grå
  • Antracit


GTIN Item Name Color
Case Wall IP55 White 7392971131658 Case Wall IP55 White White
Case Wall IP55 Grey 7392971131665 Case Wall IP55 Grey Grey
Case Wall IP55 Anthracite 7392971131672 Case Wall IP55 Anthracite Antracit
GTIN 7392971131658
Item Name Case Wall IP55 White
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
Replaceability Non-replaceaable LED, Non-replaceable Control gear
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3
Initial Chromaticity x:0.435, y:0.402
Luminaire Lumen (lm) 500
Beam Angle (°) 145
Light sharing
Light Outlet Indirect
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L70 50 000h Ta 25°C
Nominel Life Time (h) 50000
Life Time Driver 50 000h/16,65%
Technical data
Voltage (type) AC
Voltage Interval (V) 230...230
Voltage Nominal (V) 230
Power Luminaire (W) 9
Efficiency Luminaire (lm/W) 50
Containing light source energy efficiency class (EU) 2019/2015 E
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Connection (type) Screw Terminals
Strain Relief No
Operating Temperature -20…+35
Dimmable No
Type of Dimming OnOff
Fuse B10 (pcs) 46
Fuse B16 (pcs) 74
Fuse C10 (pcs) 93
Fuse C16 (pcs) 149
Color and material

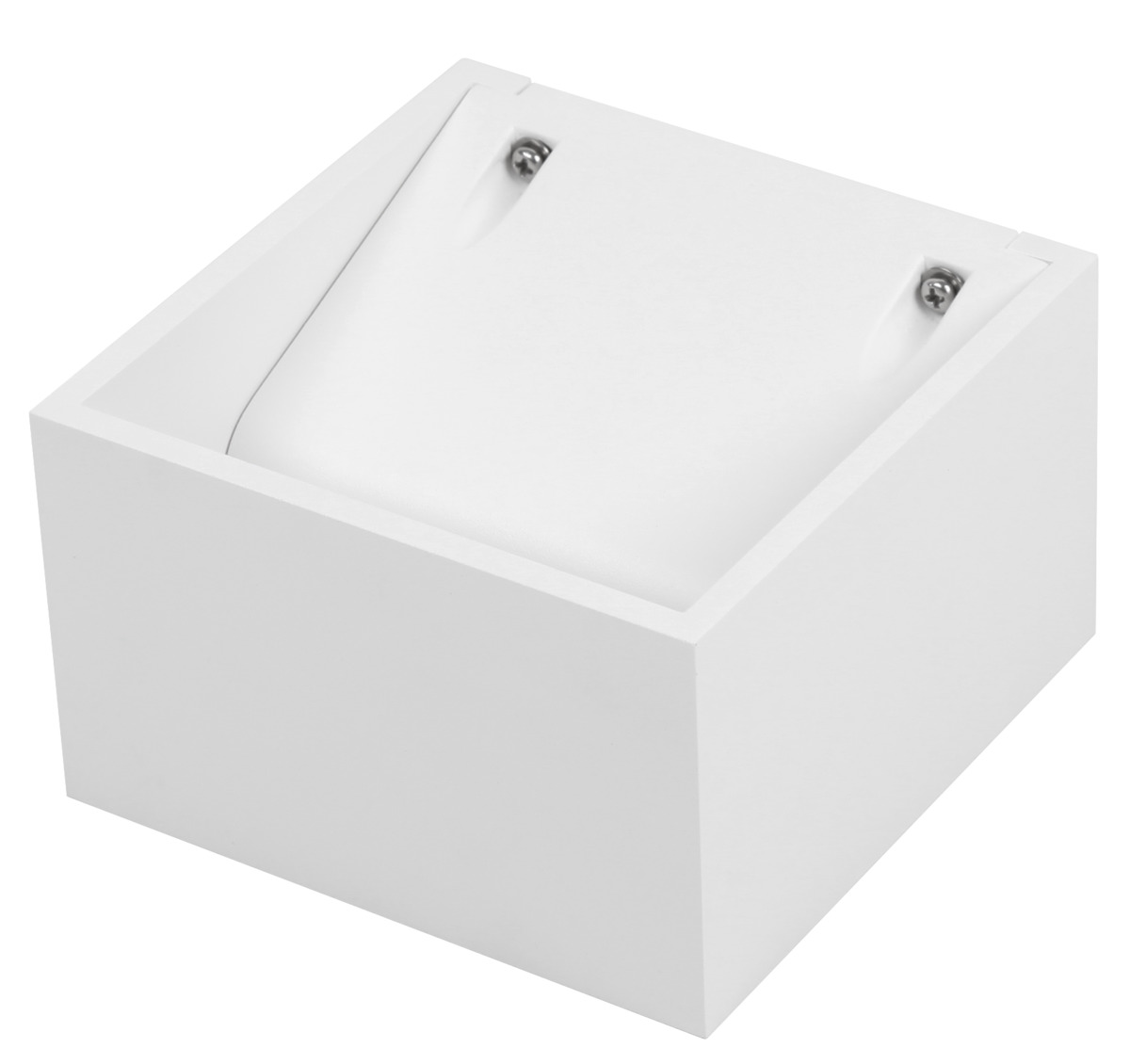

Material Aluminium
Color White
Environmental Assessment Byggvarubedömningen
Measurement and installation
Operating Environment Indoor / wet locations, Outdoor
IP Degree of Protection 55
Protection Class I
Installation Surface mounted
Mounting Installation Screw Mounting
Approval Marks CE
Impact Strength IK04

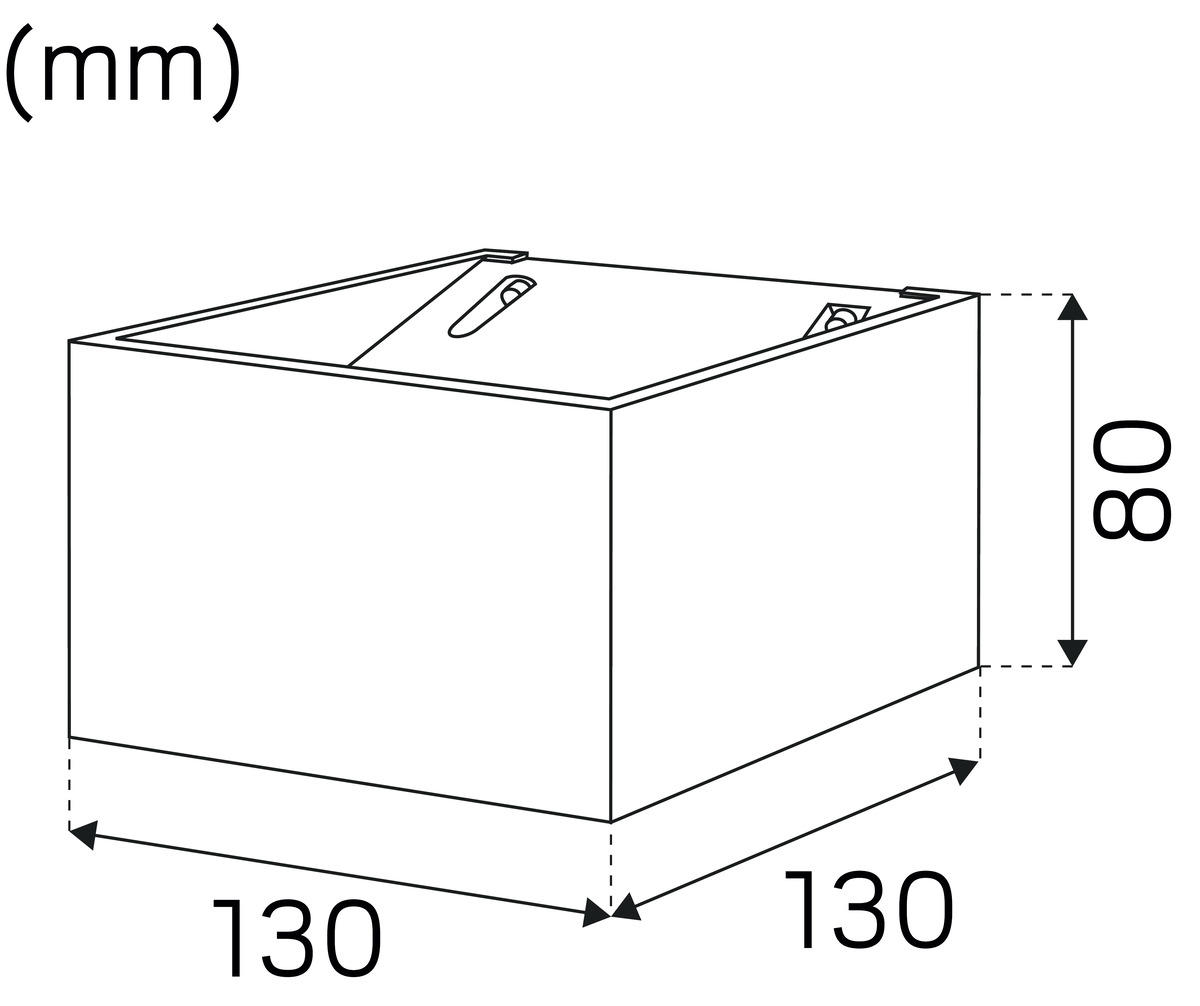

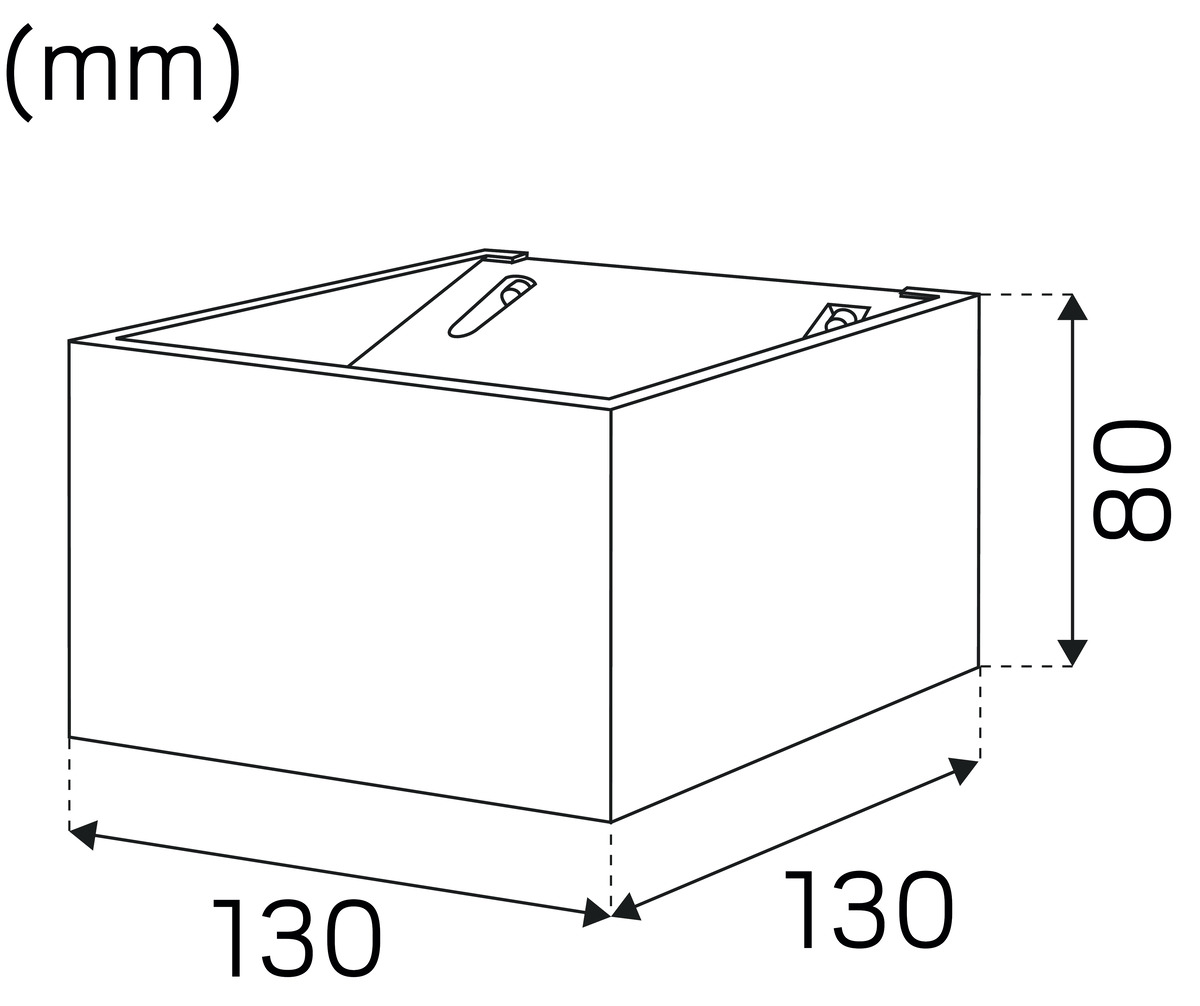

Length (mm) 130
Width (mm) 130
Height (mm) 80
Weight (kg) 1
