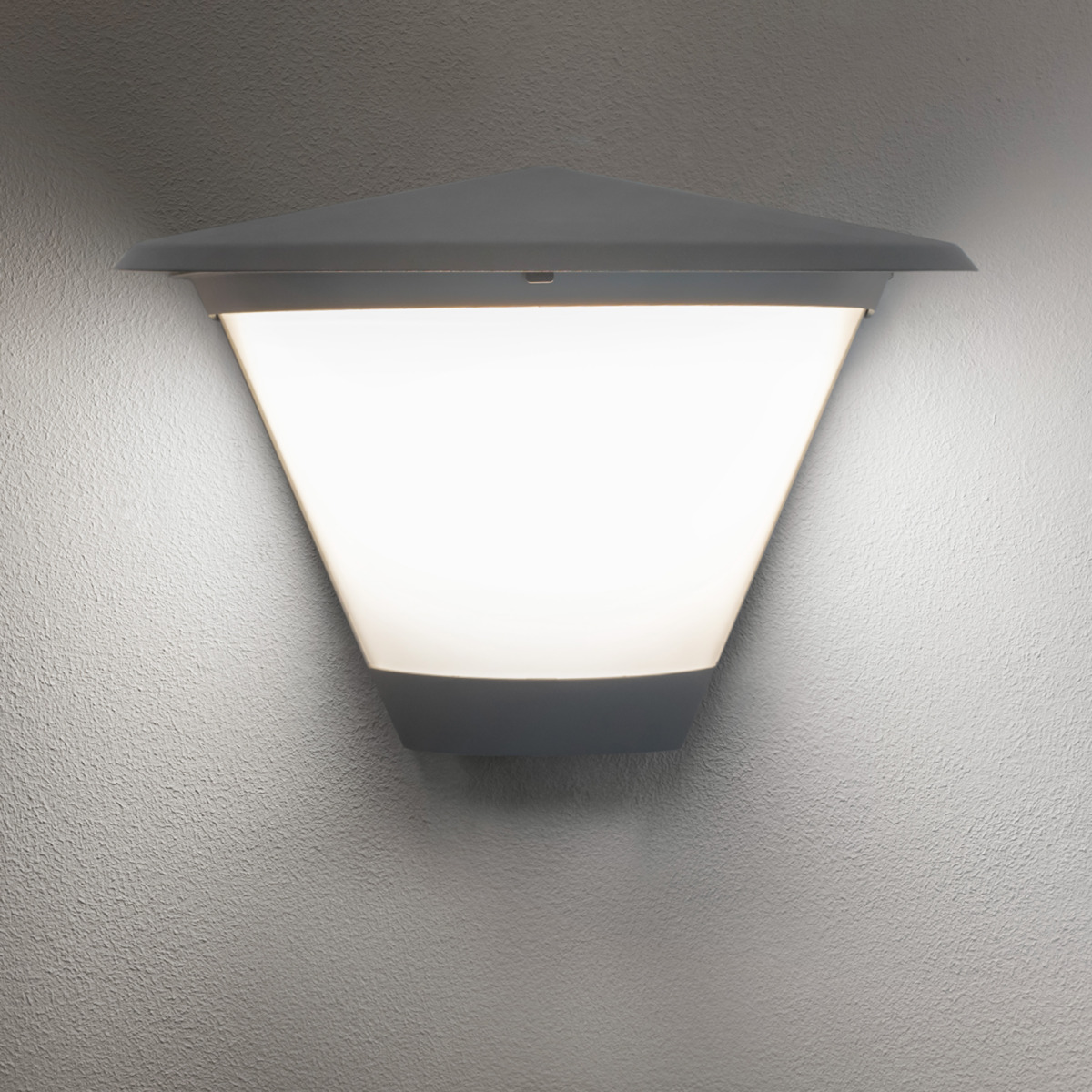

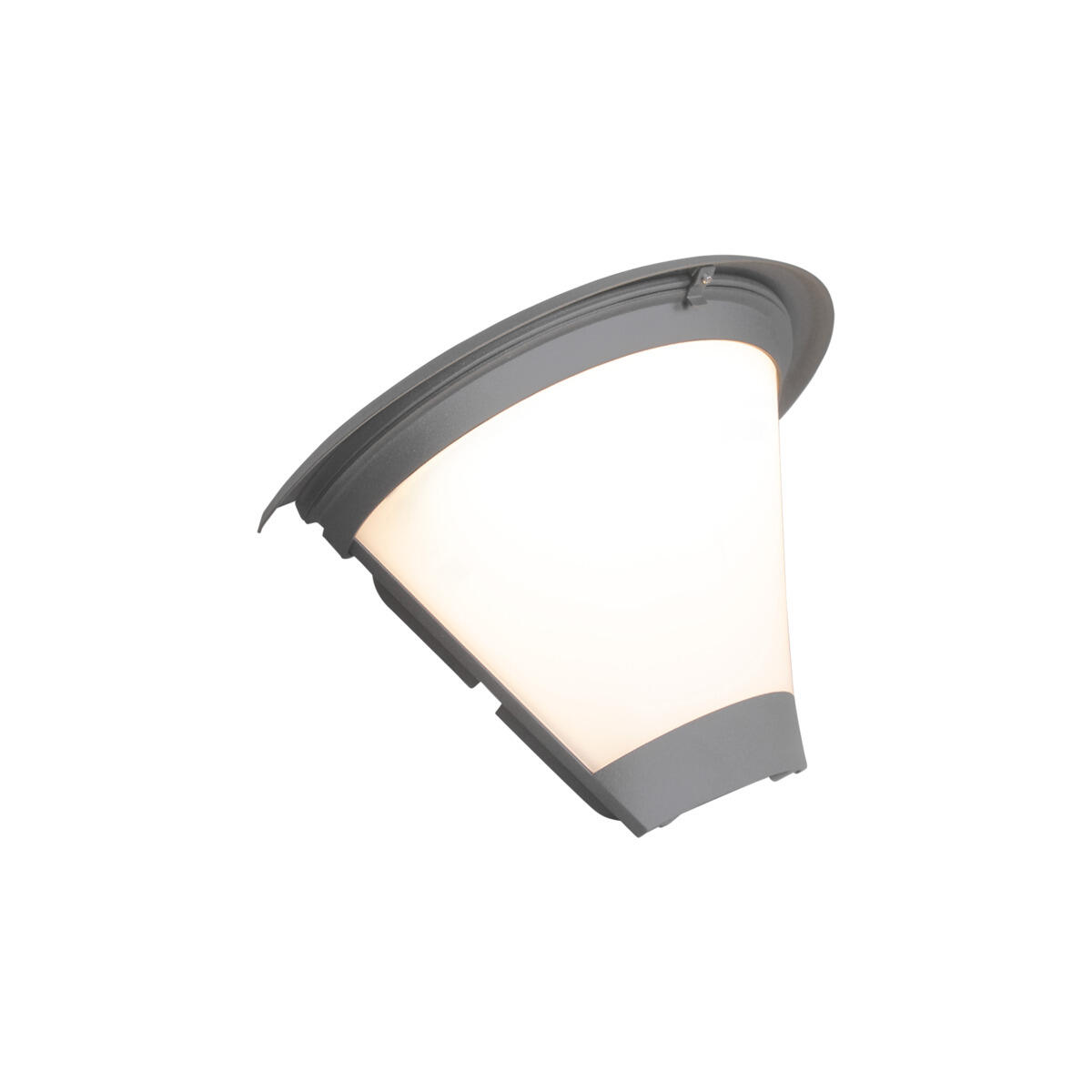

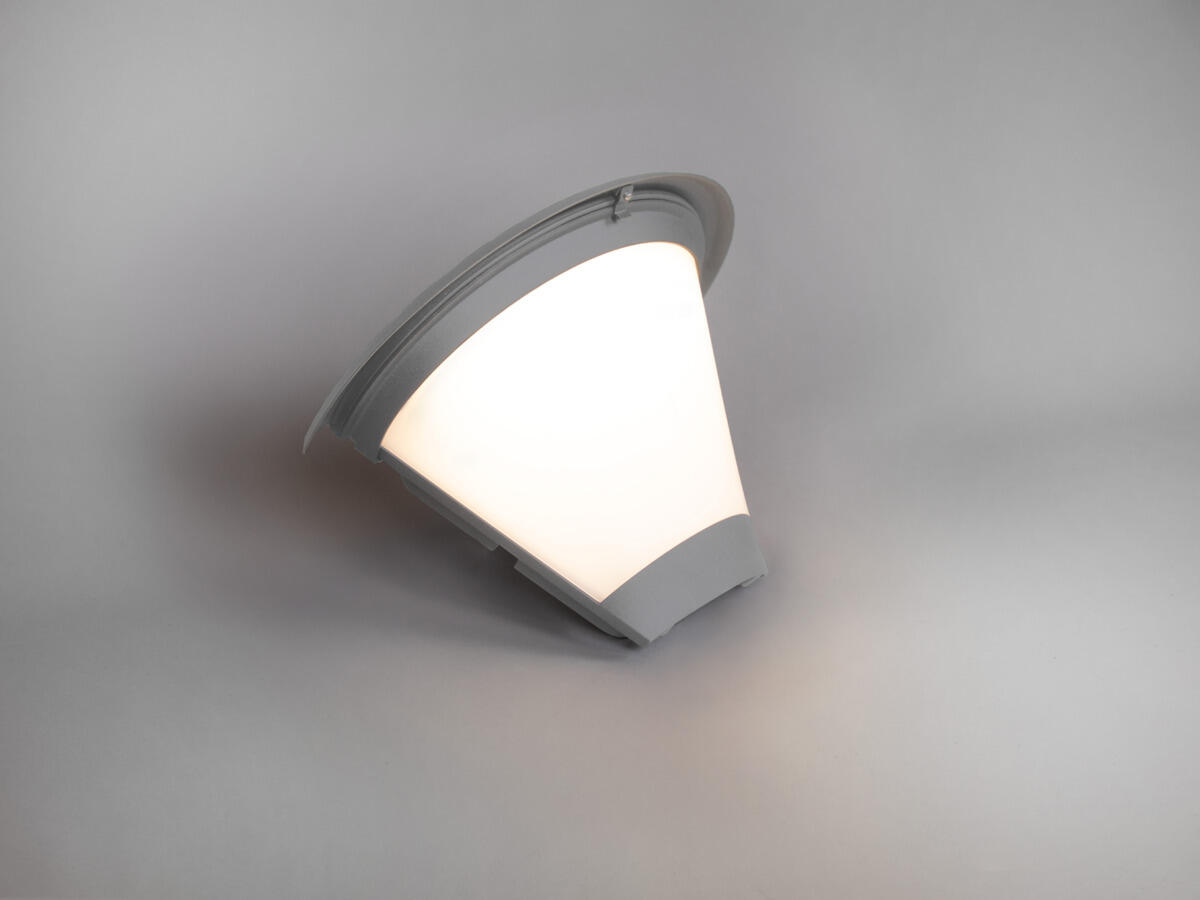

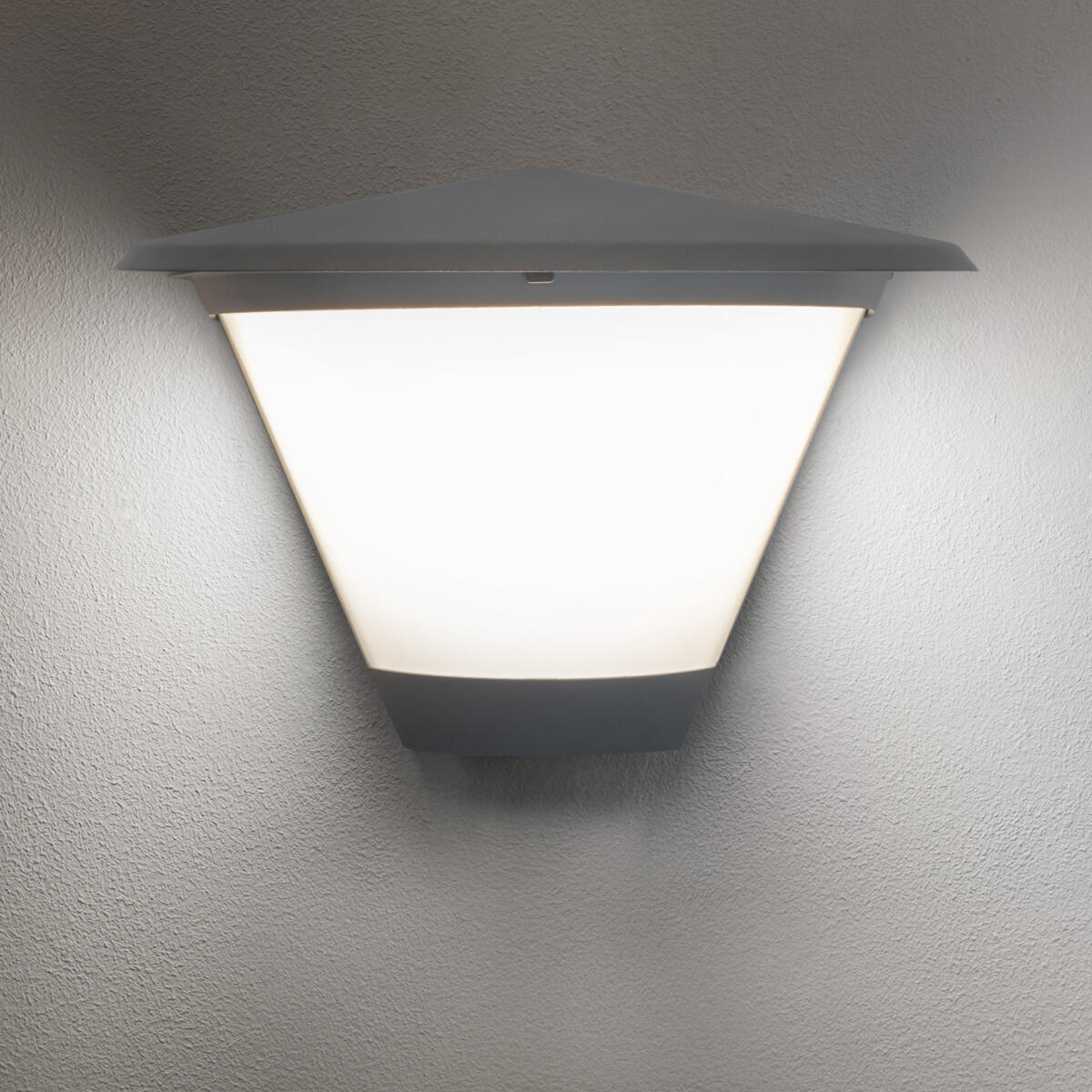

Pave Wall Pave Wall Opal Top Grey

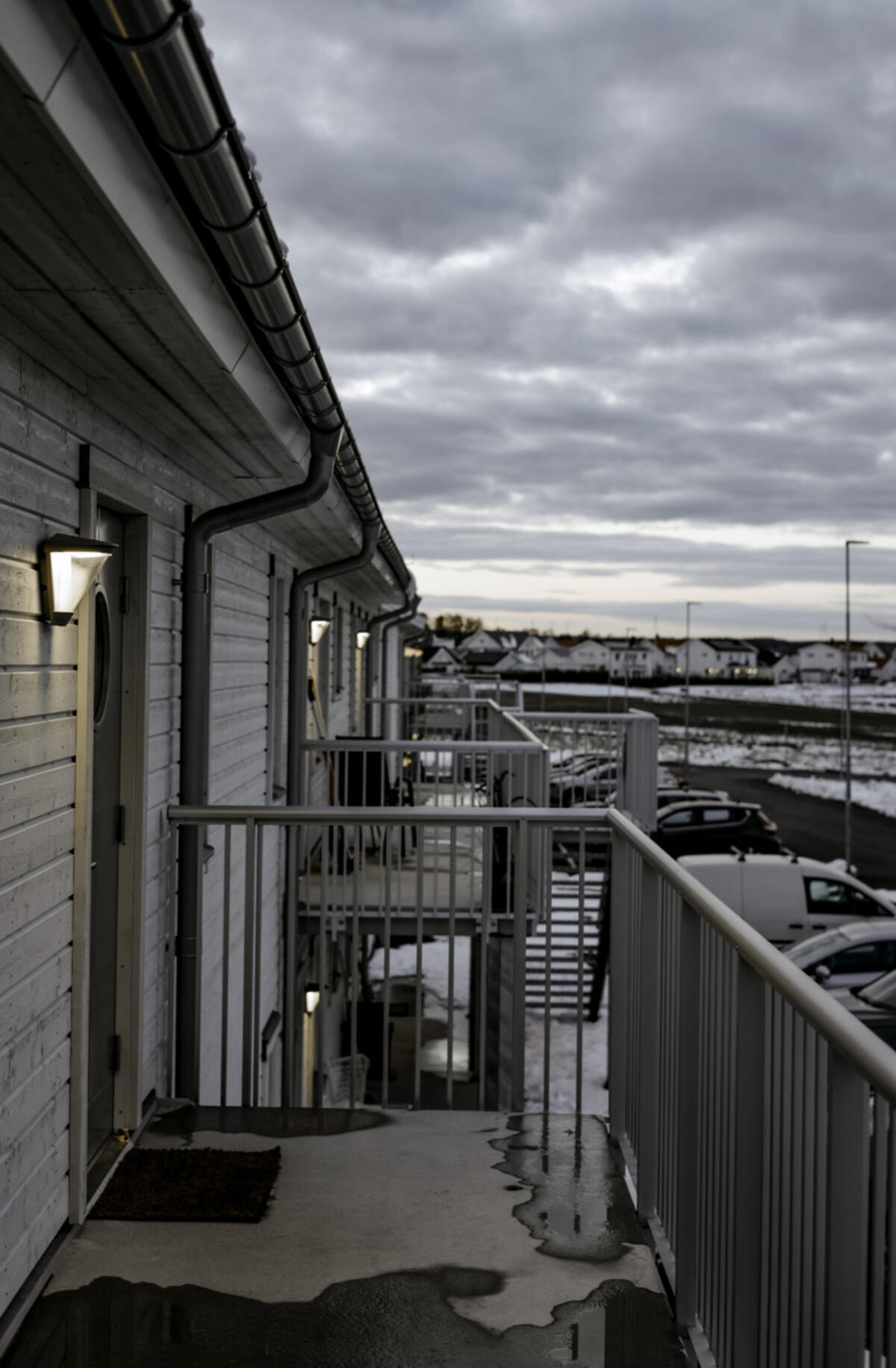

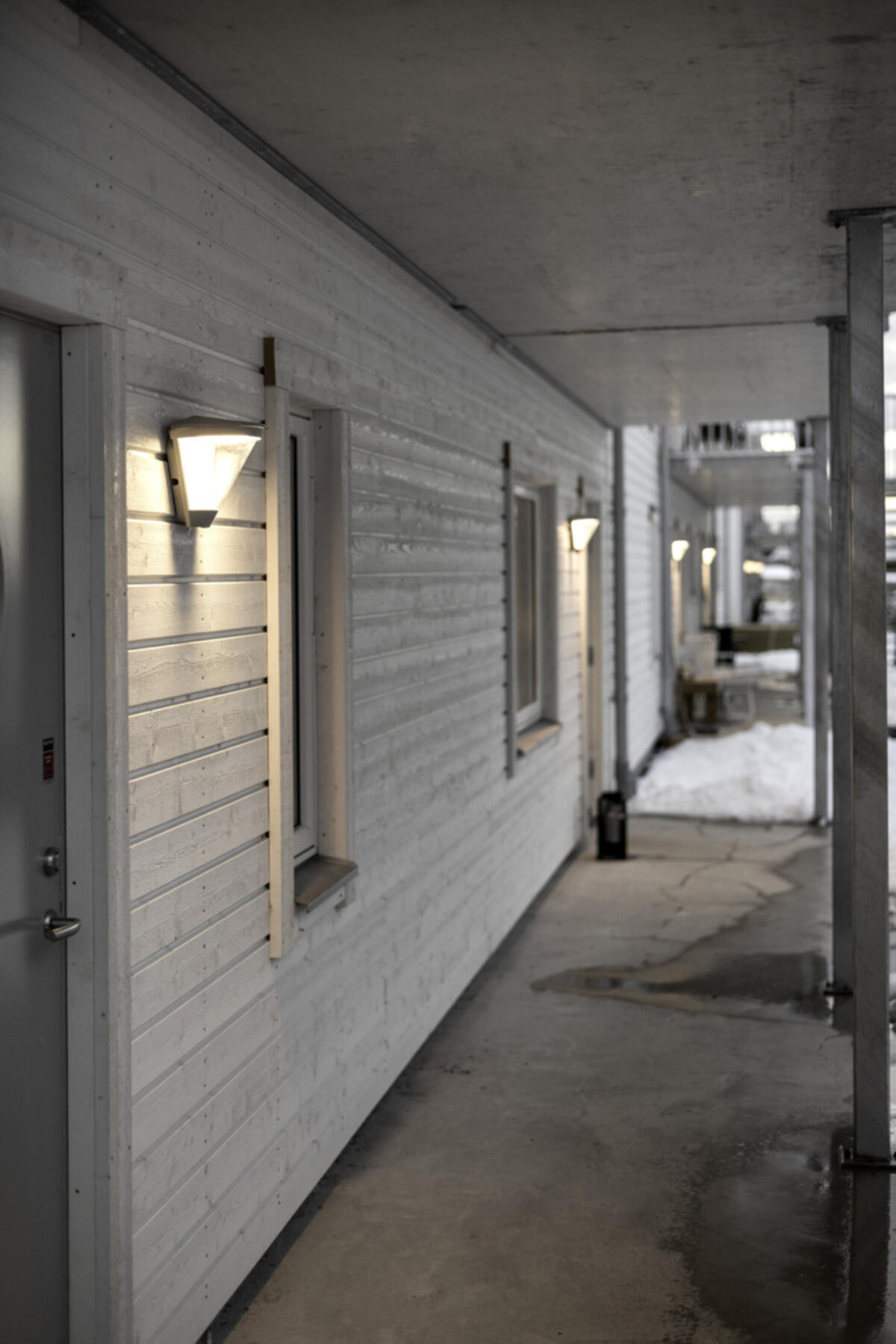

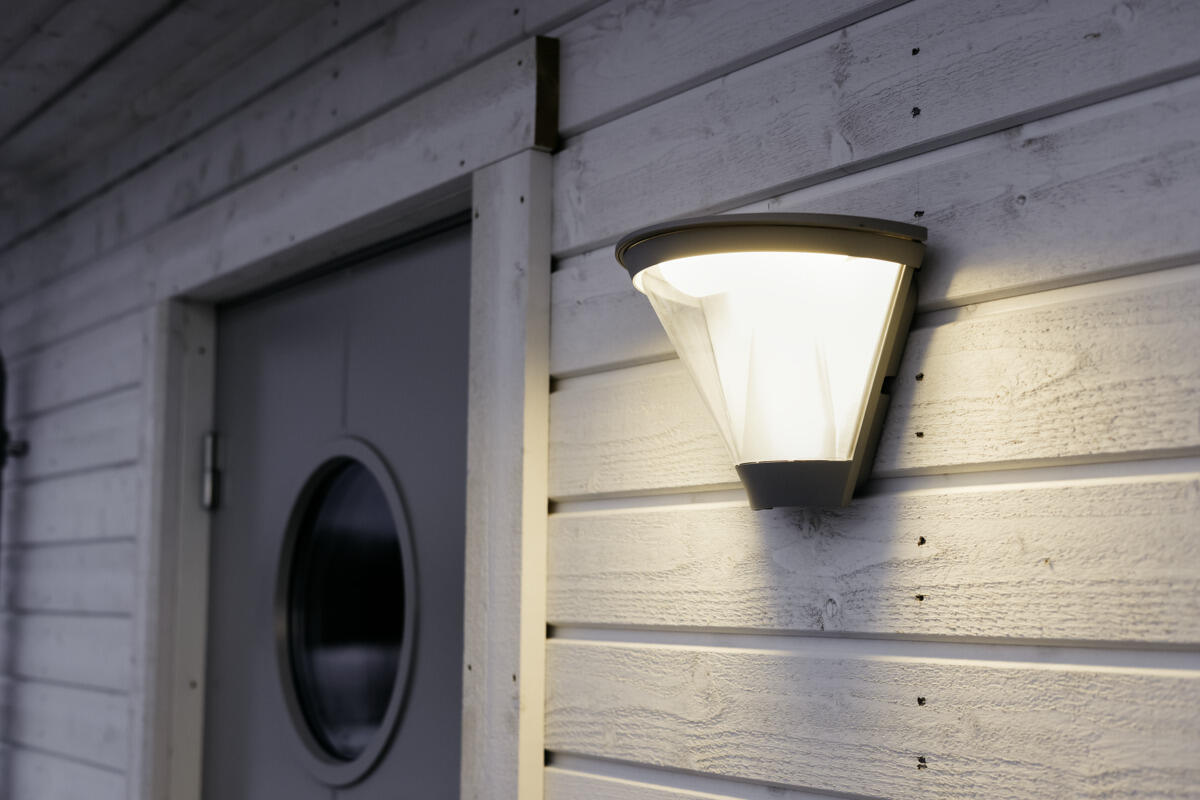

Easily installed wall luminaire in the Pave family with stylish design; available with clear or opal glass. Wide light distribution for attractive facade lighting. Plenty of space for easy installation. Choose the appearance and increase anti-glare for your luminaire in combination with Top, Deco II and Deco IV. Number sign available as an accessory for location at entrances (figures 3x 0-9 and letters 3x A-J). Replaceable LED and driver. Selectable lumen output and adjustable colour temperature via DIP-switch. Rear element has dual cable bushings for easy through wiring.

We can customize the product See the possibilities of customization

GTIN	Item Name	Color	Max. Luminaire Lumen (lm)
7392971148755	Pave Wall Opal Top Grey	Grey	1800
7392971147291	Pave Wall Anthracite	Antracit	1940
7392971147284	Pave Wall Grey	Grey	1940
7392971147314	Pave Wall Opal Anthracite	Antracit	1800
7392971147307	Pave Wall Opal Grey	Grey	1800
7392971147352	Pave Wall Deco II Anthracite	Antracit	1680
7392971147345	Pave Wall Deco II Grey	Grey	1680
7392971147376	Pave Wall Deco IV Anthracite	Antracit	1390
7392971147369	Pave Wall Deco IV Grey	Grey	1390
7392971147383	Pave Wall Top Deco II Grey	Grey	1680
7392971147390	Pave Wall Top Deco II Anthracite	Antracit	1680
7392971147321	Pave Wall Top Grey	Grey	1940
7392971147338	Pave Wall Top Anthracite	Antracit	1940
7392971147413	Pave Wall Top Deco IV Anthracite	Antracit	1390
7392971147406	Pave Wall Top Deco IV Grey	Grey	1390
7392971148762	Pave Wall Opal Top Anthracite	Antracit	1800
7392971148779	Pave Wall Opal Deco II Grey	Grey	1440
7392971148786	Pave Wall Opal Deco II Anthracite	Antracit	1440
7392971148793	Pave Wall Opal Deco IV Grey	Grey	1160
7392971148809	Pave Wall Opal Deco IV Anthracite	Antracit	1160
7392971148816	Pave Wall Opal Top Deco II Grey	Grey	1440
7392971148823	Pave Wall Opal Top Deco II Anthracite	Antracit	1440
7392971148830	Pave Wall Opal Top Deco IV Grey	Grey	1160
7392971148847	Pave Wall Opal Top Deco IV Anthracite	Antracit	1160

Show more articles

Description: GTIN 7392971148755

Item Name Pave Wall Opal Top Grey

Warranty 5 years
Light Technical Data: Max. Luminaire Lumen (lm) 1800

Light Source LED

Light Source Included Yes

Replaceability Replaceable LED by professional, Replaceable Control gear by professional

LED Colour White

Colour Temperature (K) 3000, 4000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

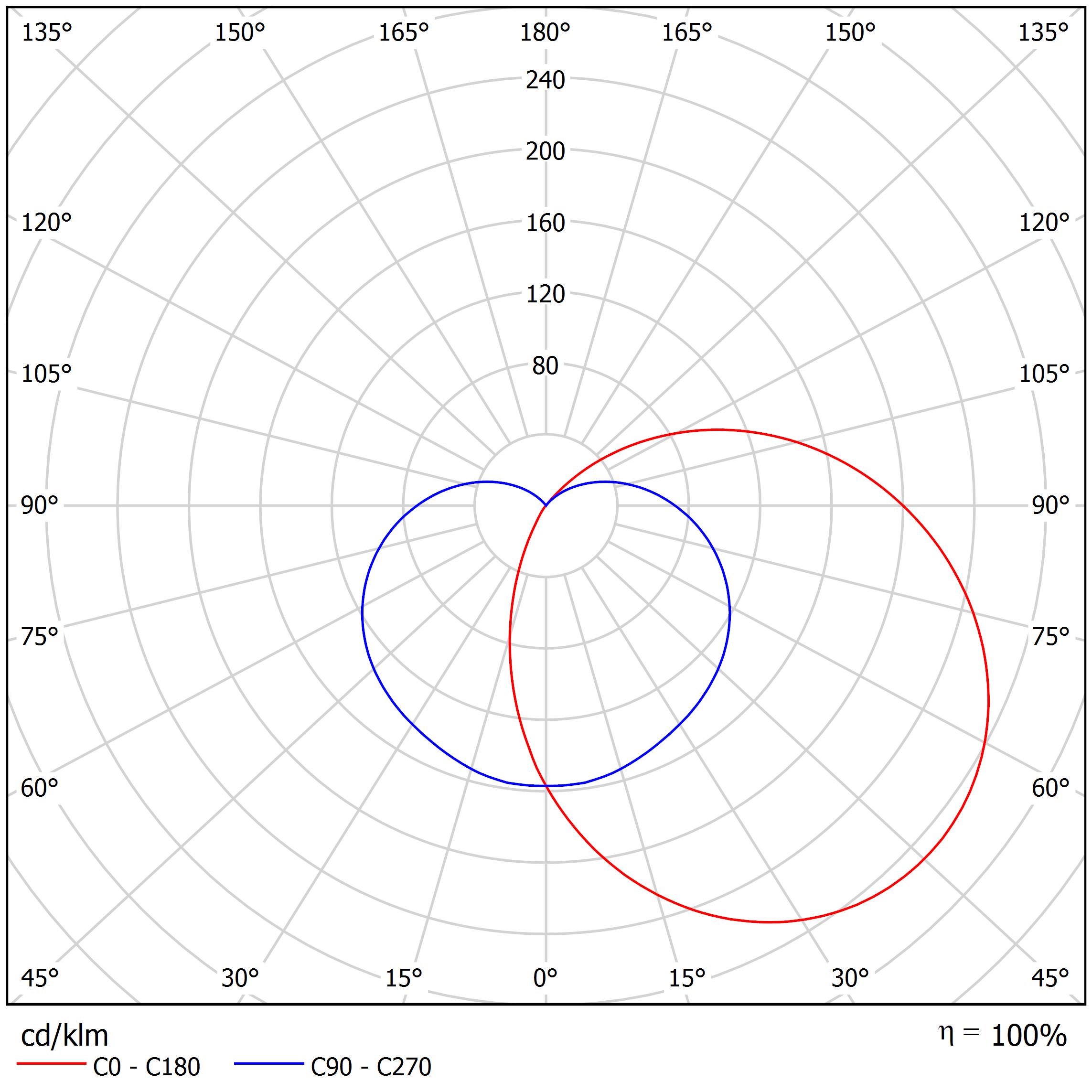

Luminous Intensity (cd) 780

Beam Angle (°) 95

Light sharing Symmetric

Light Outlet Indirect

Number of Lamps (pcs) 1

Number of LED (pcs) 77

Life Time L80 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L90

Lumen maintenance 75 000h L85

Lumen maintenance 100 000h L81

LLMF @ 50 000h 0.9

LLMF @ 100 000h 0.81

Life Time Driver 100 000h/20%

Flicker (PstLM) 0

Stroboscopic effect (SVM) 0
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240V

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 15,5

Max. Power Luminaire (W) 18

Max. System Power (W) 18

Max. Efficiency Luminaire (lm/W) 100

Max. Efficiency System (lm/W) 100

Containing light source energy efficiency class (EU) 2019/2015 C
Operation and Connection: Dimmable No

Type of Dimming DIP-Switch Power

Driver Included Yes - replaceable

Driver Model Constant Current

Driver Manufacturer Hide-a-lite

Connection (type) Quick Terminal

Connection (mm2) 5x0,5-2,5

Through Wiring Yes

Strain Relief No

Power Factor ʎ 0,9

Efficiency (%) 108

Power loss (W) 2,9

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,15

THD (%) 30

Constant Current (mA) 90, 165, 430, 500

Min. Ta (°C) -30

Max. Ta (°C) 40

Max. Tc (°C) 75

Protection Against Short Circuit

Inrush current (max/time) 5A 100µs

Mains surge protection DM (kV) 2

Mains surge protection CM (kV) 2

Fuse B10 (pcs) 46

Fuse B16 (pcs) 74

Fuse C10 (pcs) 46

Fuse C16 (pcs) 74
Color and material: Material Aluminium, Polycarbonate

Color Grey

Halogen free No

Environmental Assessment Byggvarubedömningen

Available in special color Yes
Measurement and installation: Operating Environment Indoor / dry locations, Outdoor

IP Degree of Protection 65

Protection Class I

Installation Wall

Mounting Installation Screw Mounting

Approval Marks CE, a Hide-a-lite Choice

Impact Strength IK10

Filament Test IEC 695-2-1(°C) 650

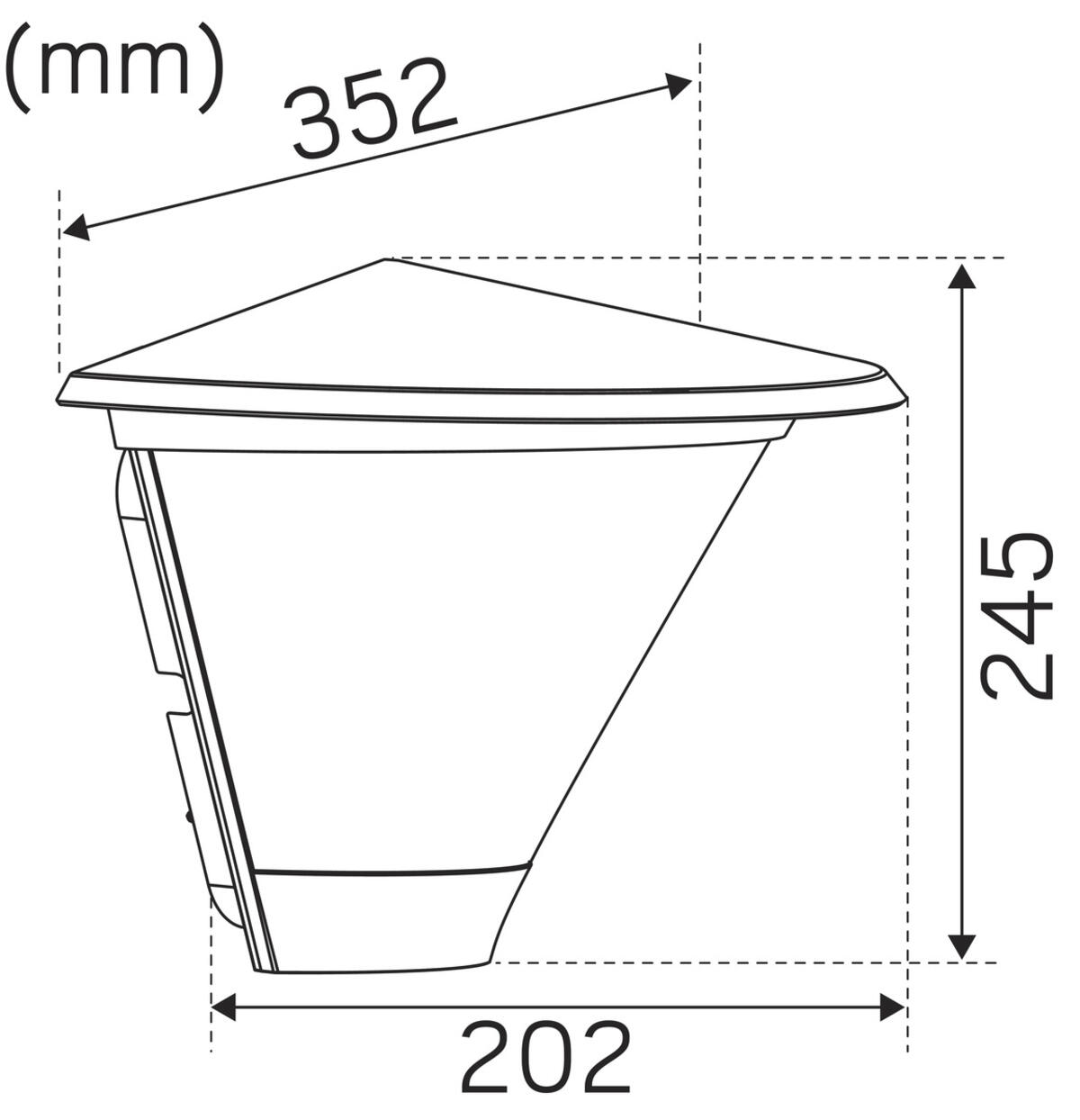

Width (mm) 352

Height (mm) 245

Depth (mm) 202

Weight (kg) 2,75

Spare parts

If you need spare parts, contact our customer support

LED-Module Pave Wall X207
Driver Pave Wall X206
Cover Pave Wall Opal X212
