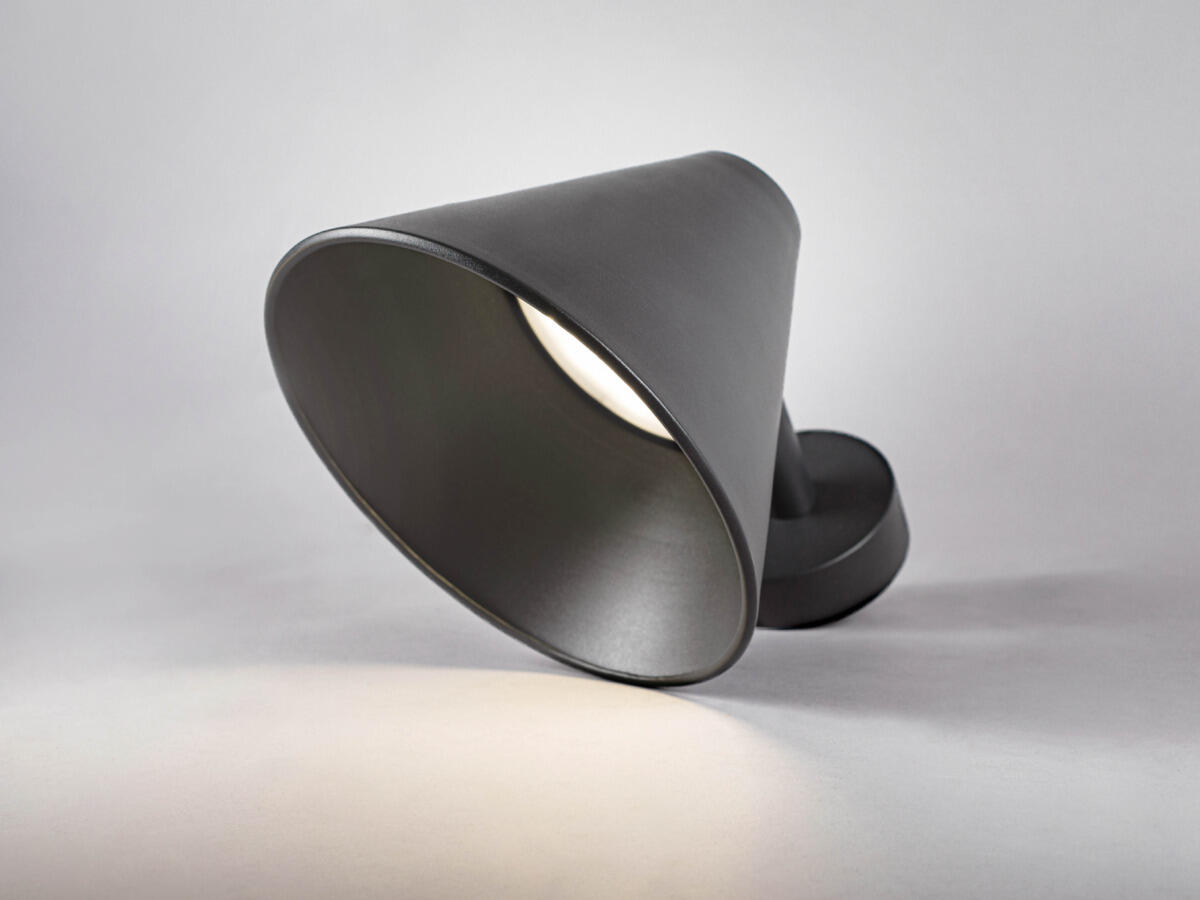

Peak

Selectable colour temperature via DIP-Switch ColourTemp

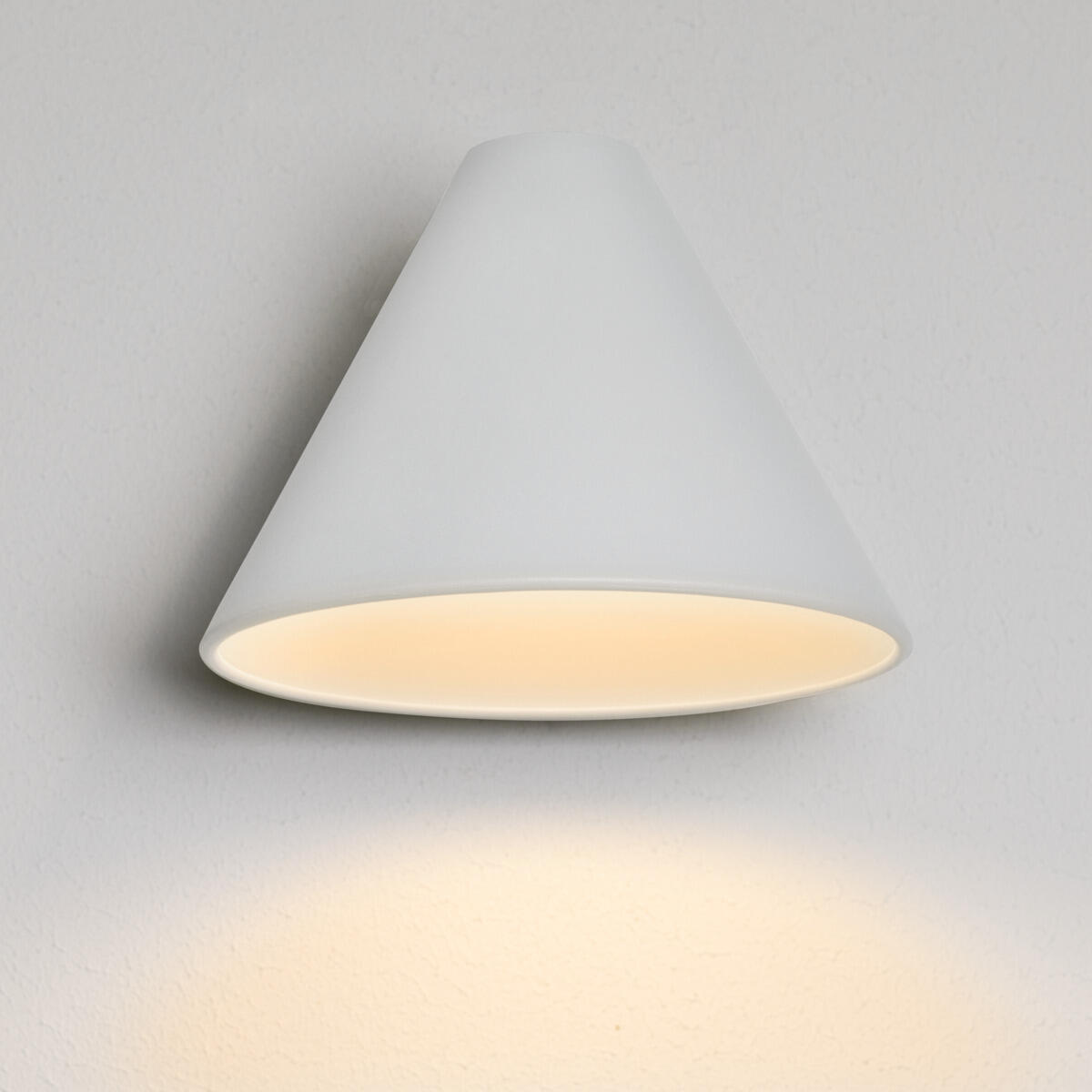

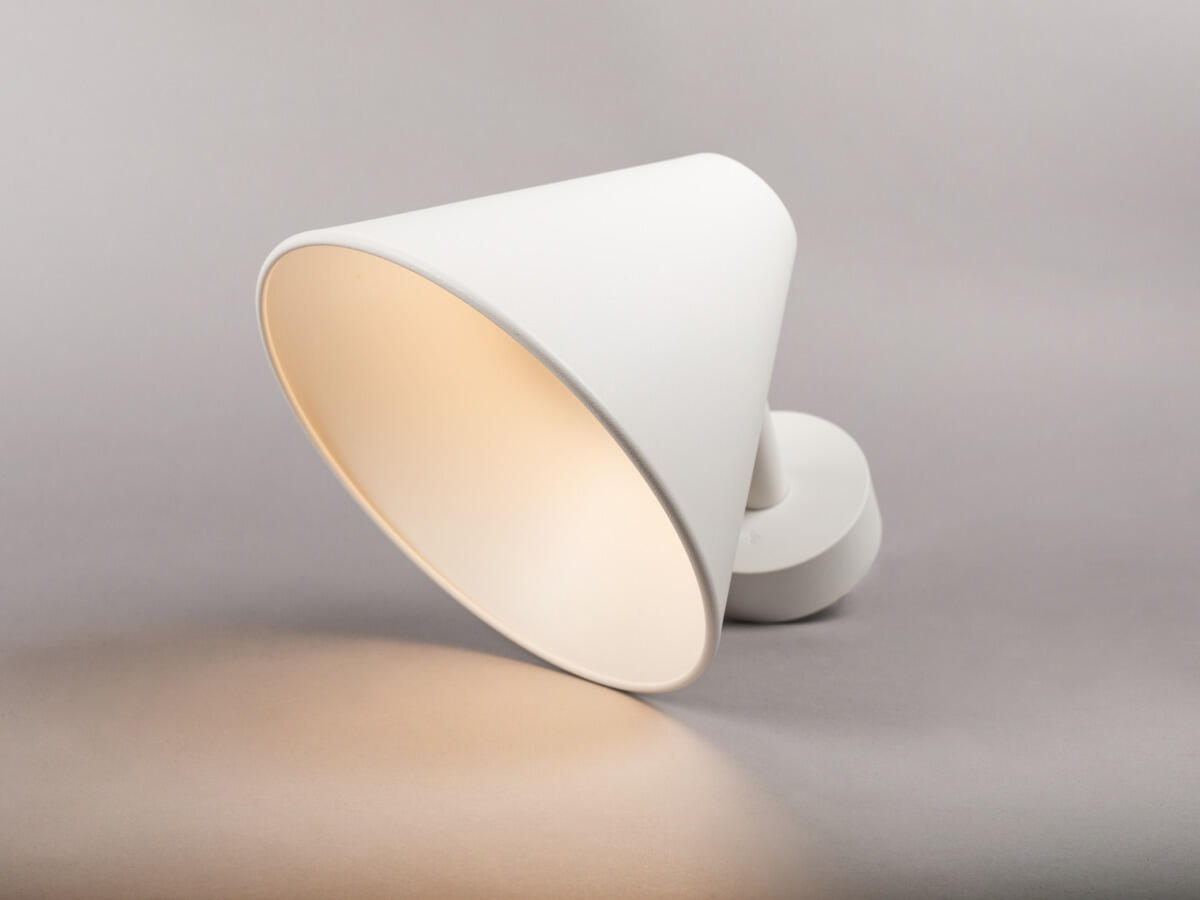

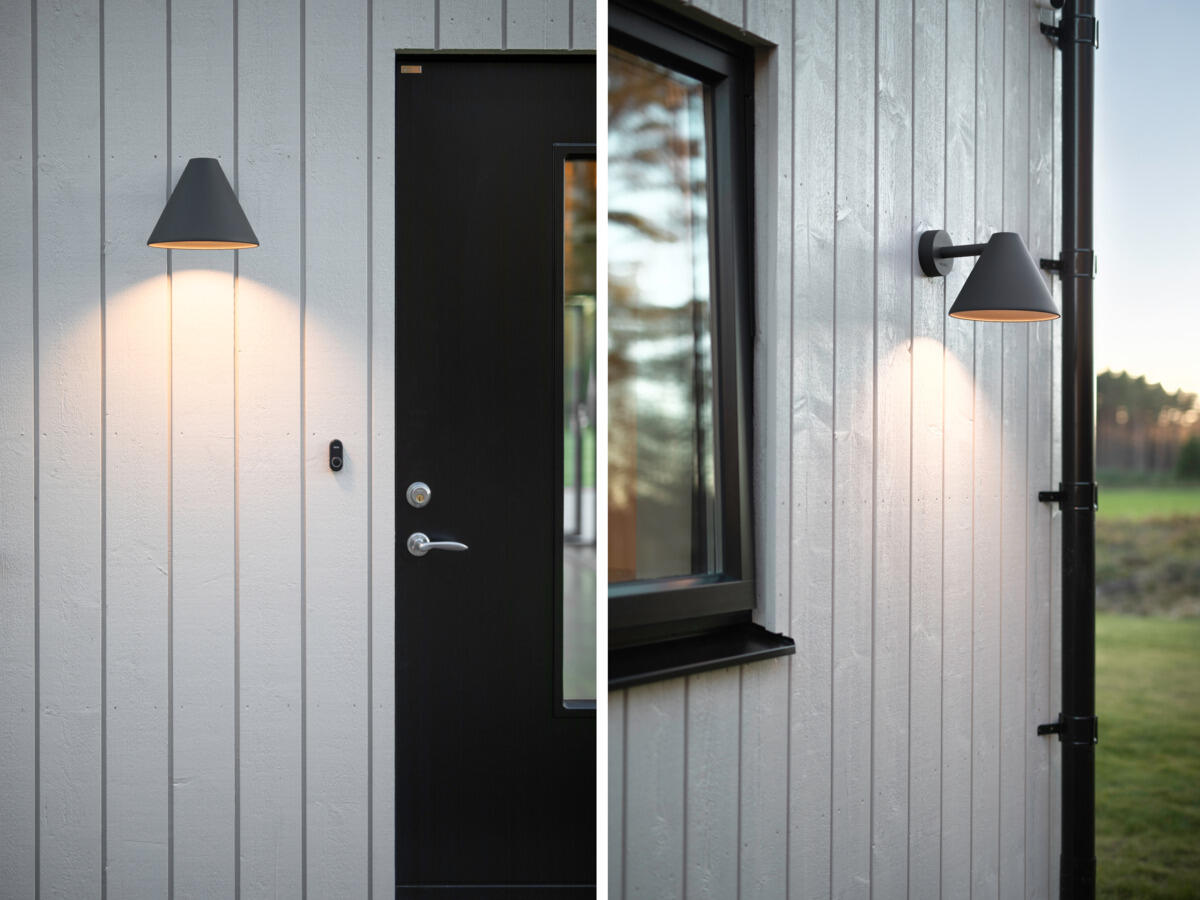

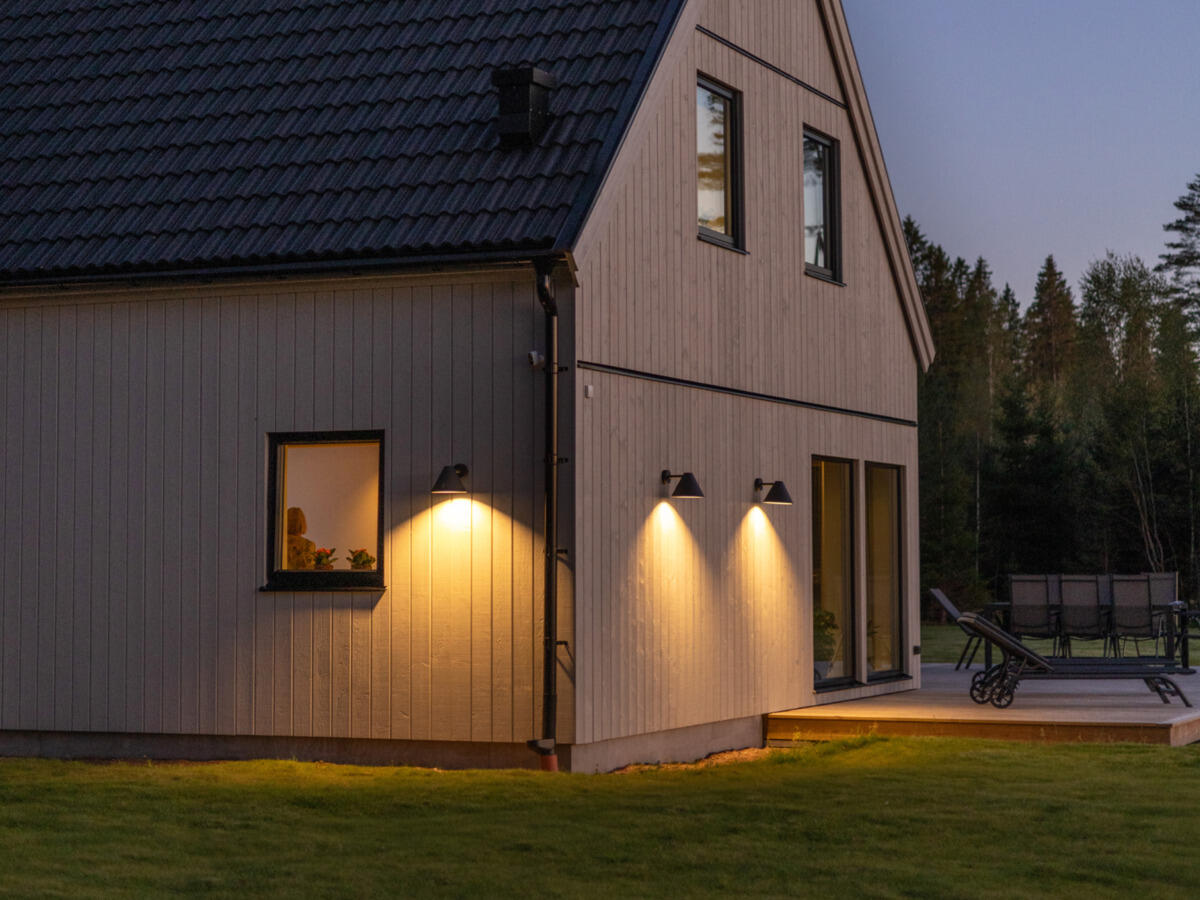

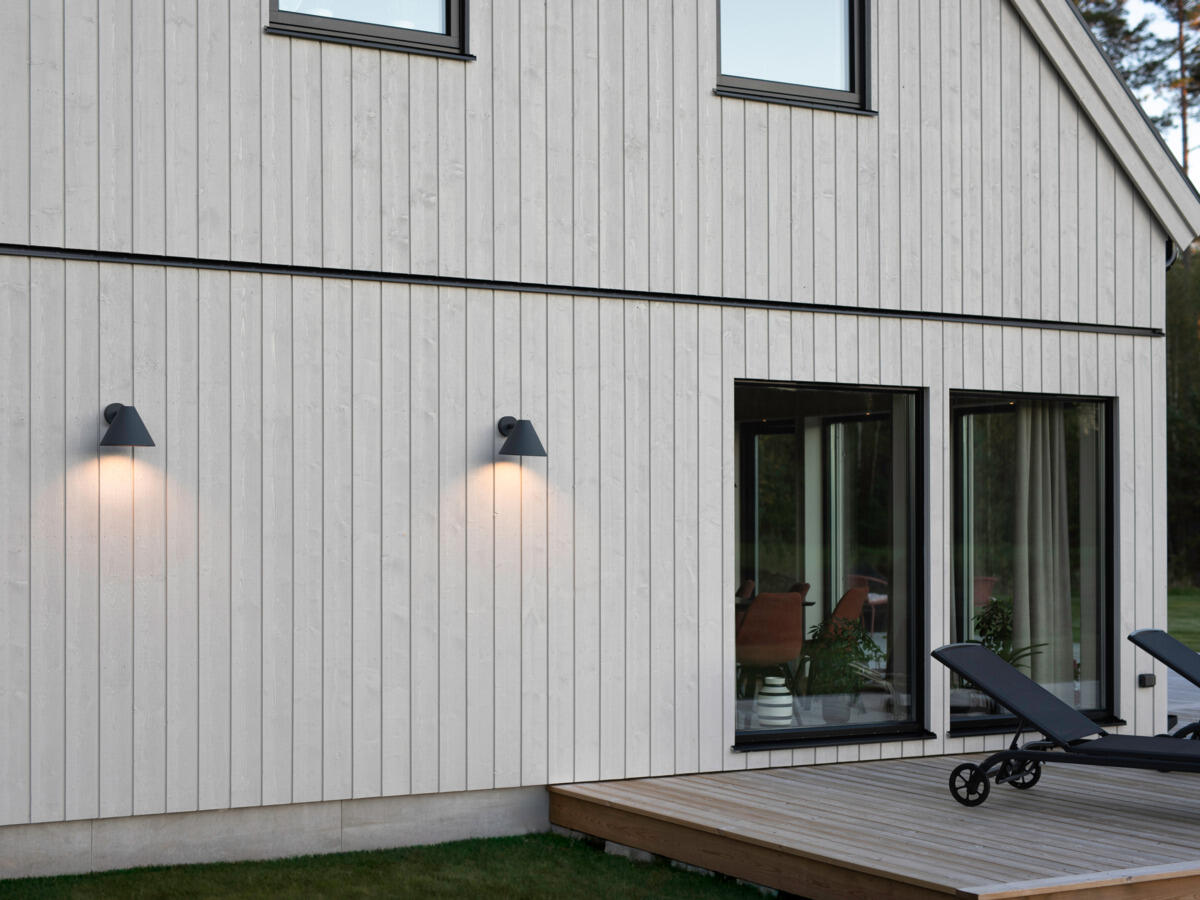

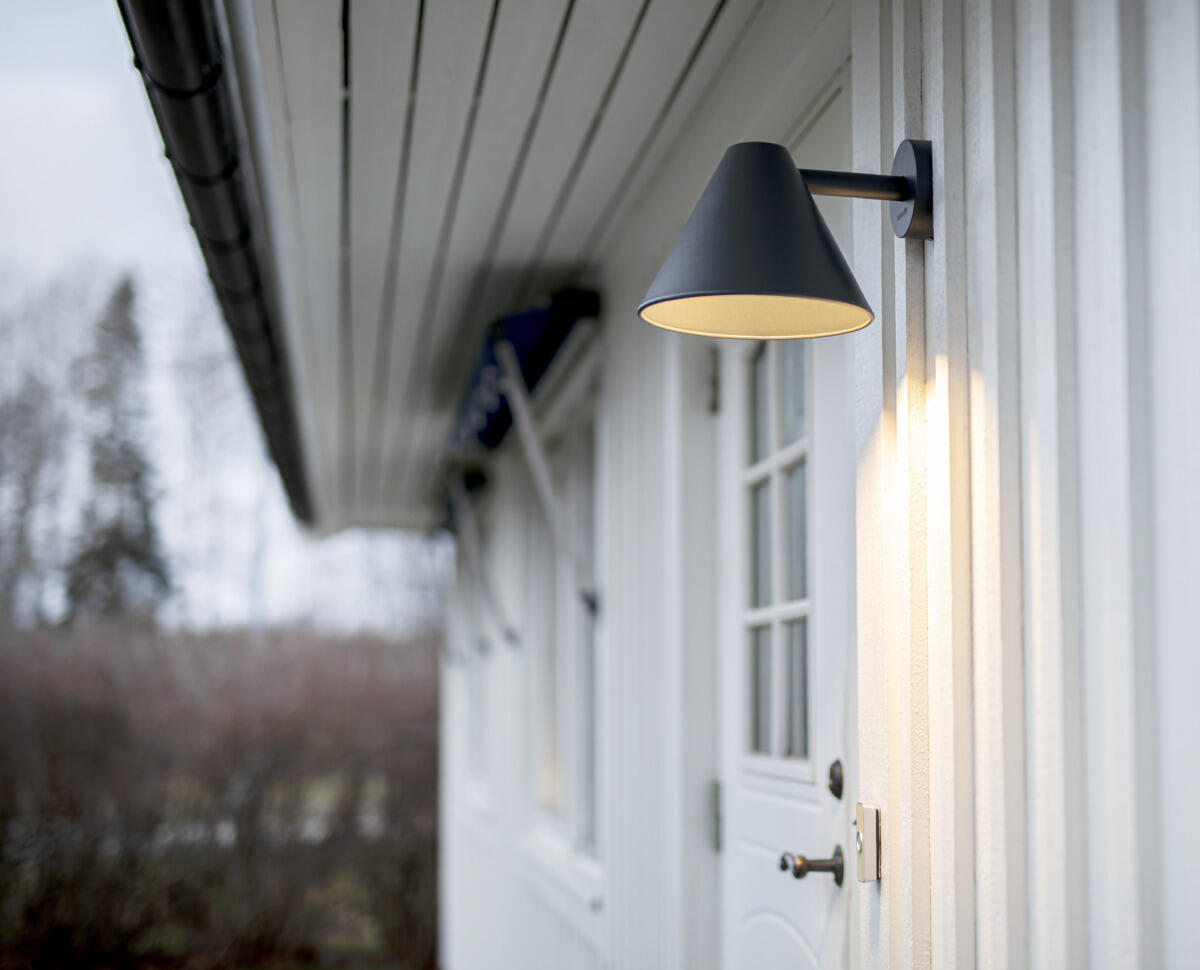

Wall luminaire in classic design for big and small facades. Creates a broad light distribution and illuminates both wall and ground. Peak with LED has integrated, exchangeable, phase dimmable driver and selectable colour temperature via DIP-Switch ColourTemp. IP54 and IK08 classification with durable powder coating to withstand our Nordic climate. Separate rear element and push-in, loop-in, loop-out terminal block for direct connection to 230V. Rear element also with integrated spirit level for easier installation. Comes with spacers for surface-mounted cable routing.

GTIN	Item Name	Color
7392971139111	Peak White	White

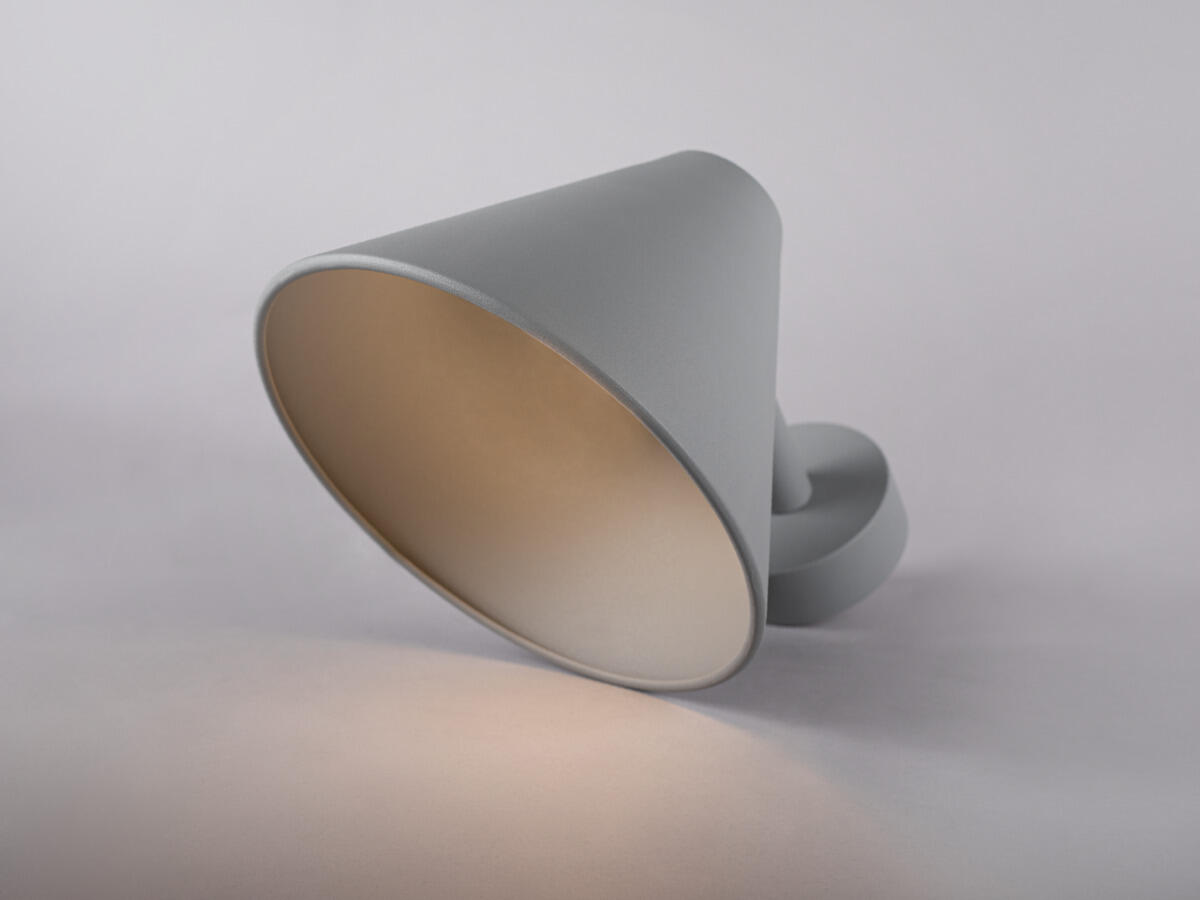

7392971139128	Peak Grey	Grey
7392971139135	Peak Anthracite	Antracit

Show more articles

Description: GTIN 7392971139111

Item Name Peak White

Warranty 5 years
Light Technical Data: Max. Luminaire Lumen (lm) 830

Light Source LED

Light Source Included Yes

Replaceability Replaceable LED by professional, Replaceable Control gear by professional

LED Colour White

Colour Temperature (K) 3000, 4000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 410

Beam Angle (°) 90

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L70 50 000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L77

LLMF @ 50 000h 0.77

Life Time Driver 50 000h/5%

Flicker (PstLM) 0,84

Stroboscopic effect (SVM) 0,02
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240V

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Power LED (W) 8,4

Max. Power Luminaire (W) 10,5

Max. System Power (W) 10,5

Max. Efficiency Luminaire (lm/W) 83

Max. Efficiency System (lm/W) 83

Containing light source energy efficiency class (EU) 2019/2015 E
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Connection (type) Quick Terminal

Connection (mm2) 3x0,5-2,5

Through Wiring Yes

Strain Relief No

Power Factor ʎ 0,9

Efficiency (%) 82

Constant Current (mA) 300

Min. Ta (°C) -20

Max. Ta (°C) 50

Max. Tc (°C) 85

Dimming secondary side AM

Protection Against Short Circuit, Overheating 100°C, Overload

Fuse B10 (pcs) 60

Fuse B16 (pcs) 90

Fuse C10 (pcs) 70

Fuse C16 (pcs) 110
Color and material: Material Metal

Color White

Halogen free Yes

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / wet locations, Outdoor

IP Degree of Protection 54

Protection Class I

Installation Surface mounted

Mounting Installation Screw Mounting

Approval Marks CE, a Hide-a-lite Choice

Impact Strength IK08

Filament Test IEC 695-2-1(°C) 650

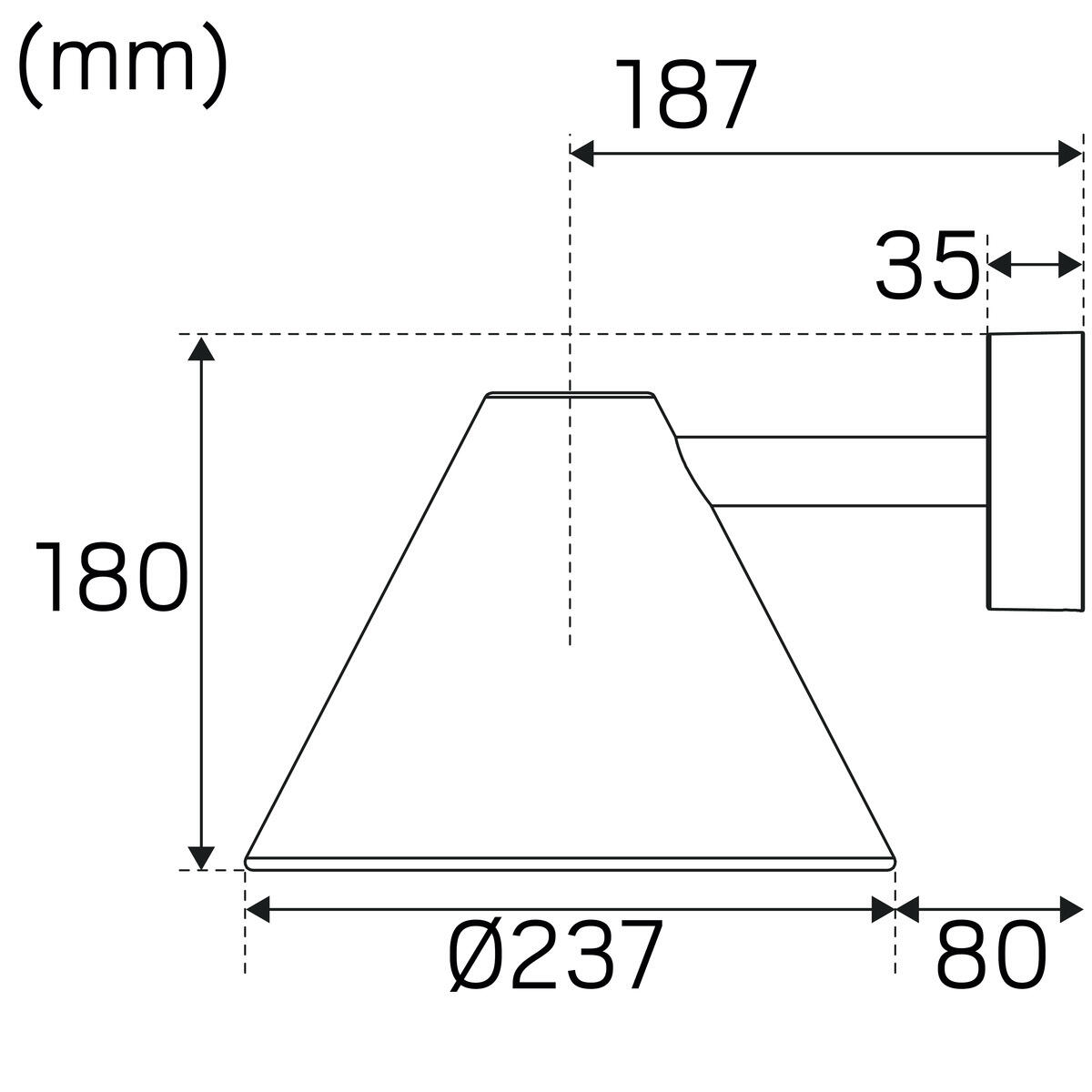

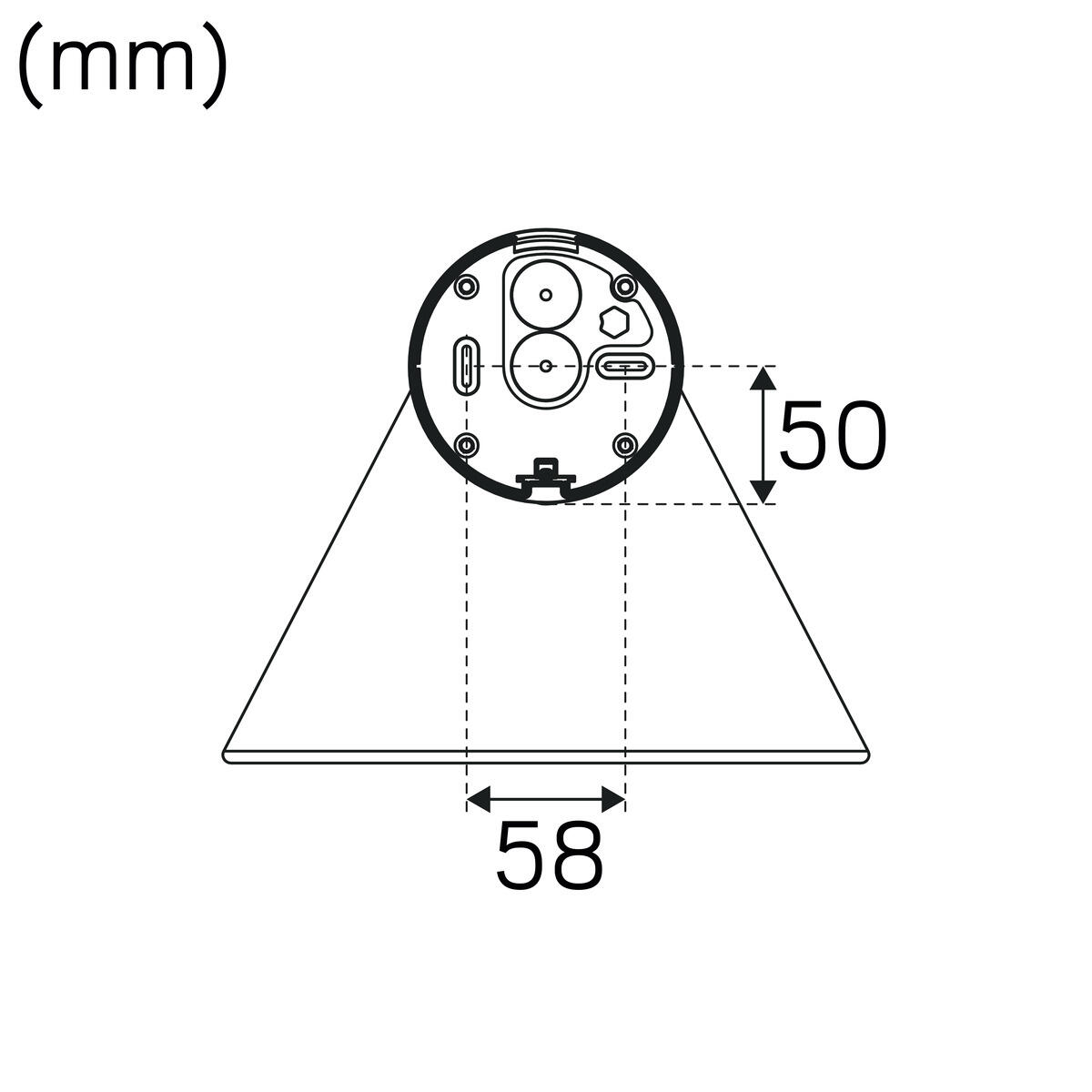

Width (mm) 237

Height (mm) 180

Depth (mm) 317

Diameter (mm) 237

Weight (kg) 1,15
