Connection kit HV IP44

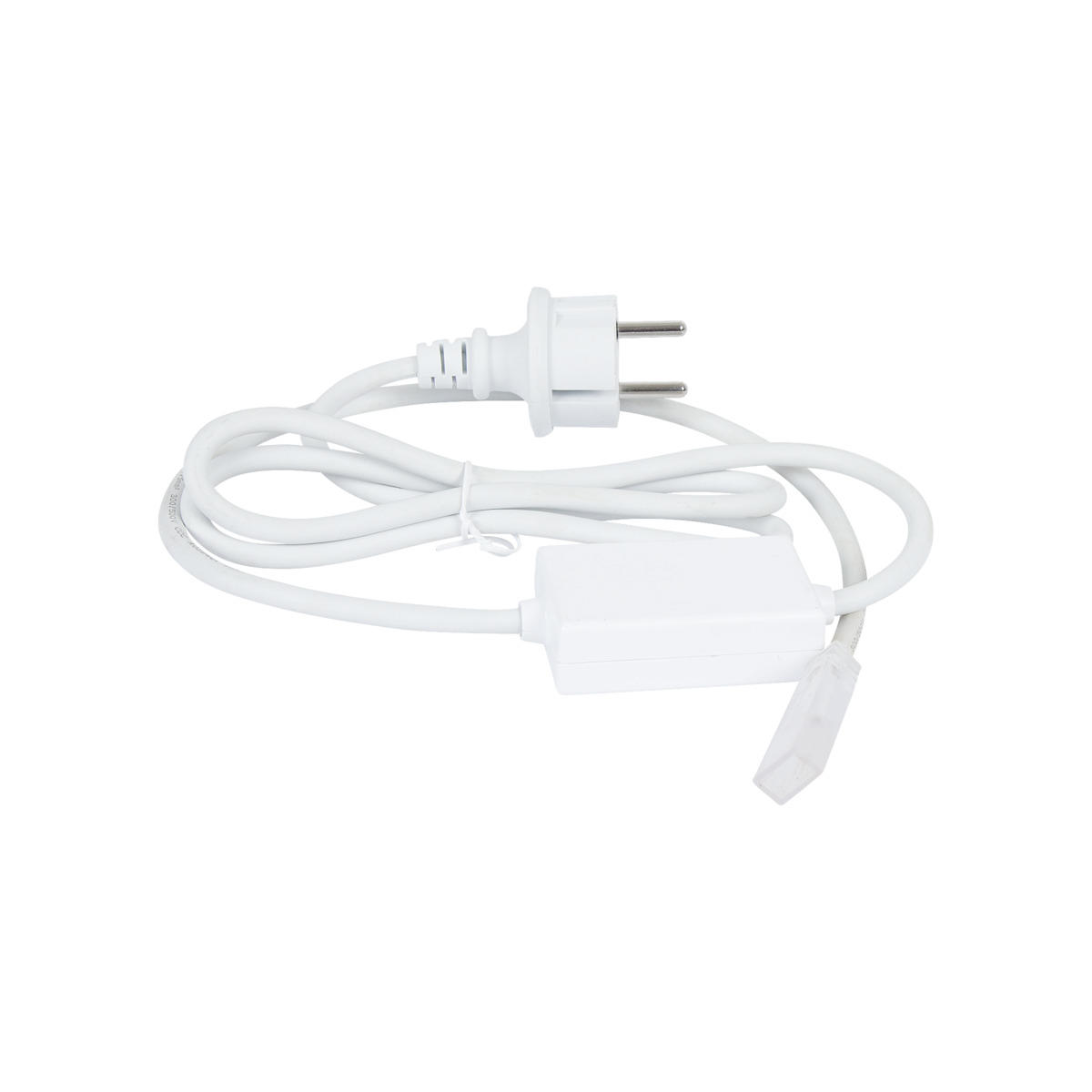

Connection kit for 230V LEDstrip HV FDIM IP44. Contains connecting cable 80cm with earthed plug and mains dimmable DC converter, end cap, two shrink hoses and glue.

Variants

GTIN Item Name
Connection kit HV FDIM IP44 230V 7392971131726 Connection kit HV FDIM IP44 230V
Connection kit HV IP44 230V 7392971127880 Connection kit HV IP44 230V

Connection kit HV FDIM IP44 230V

Description
GTIN 7392971131726
Item Name Connection kit HV FDIM IP44 230V
Technical data
Life Time Driver 50 000h/10%
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Operation and Connection
Driver Included Yes
Driver Model Constant Voltage
Driver Type Stand Alone
Connection (type) Cord Set
Length Connection (cm) 80
Connection (mm2) 2x0,75
Strain Relief Yes
Connection Secondary (type) Cable
Protection Against Short Circuit, Overload
Power Interval for Catalogue (W) 9,6-480
Max. Load Per Output (W) 480
Current (A) 10
Operating Temperature -20…+40
Dimmable Yes
Type of Dimming Trailing Edge, Leading Edge
Standby Power 0,5
Color and material
Material Plastic
Color White
Measurement and installation
Operation Environment Indoor, Outdoor
IP Degree of Protection 44
Installation Surface mounted
Approval Marks CE
Length (mm) 800
Width (mm) 40
Height (mm) 20
Weight (kg) 0,25
