Level Multi Box I

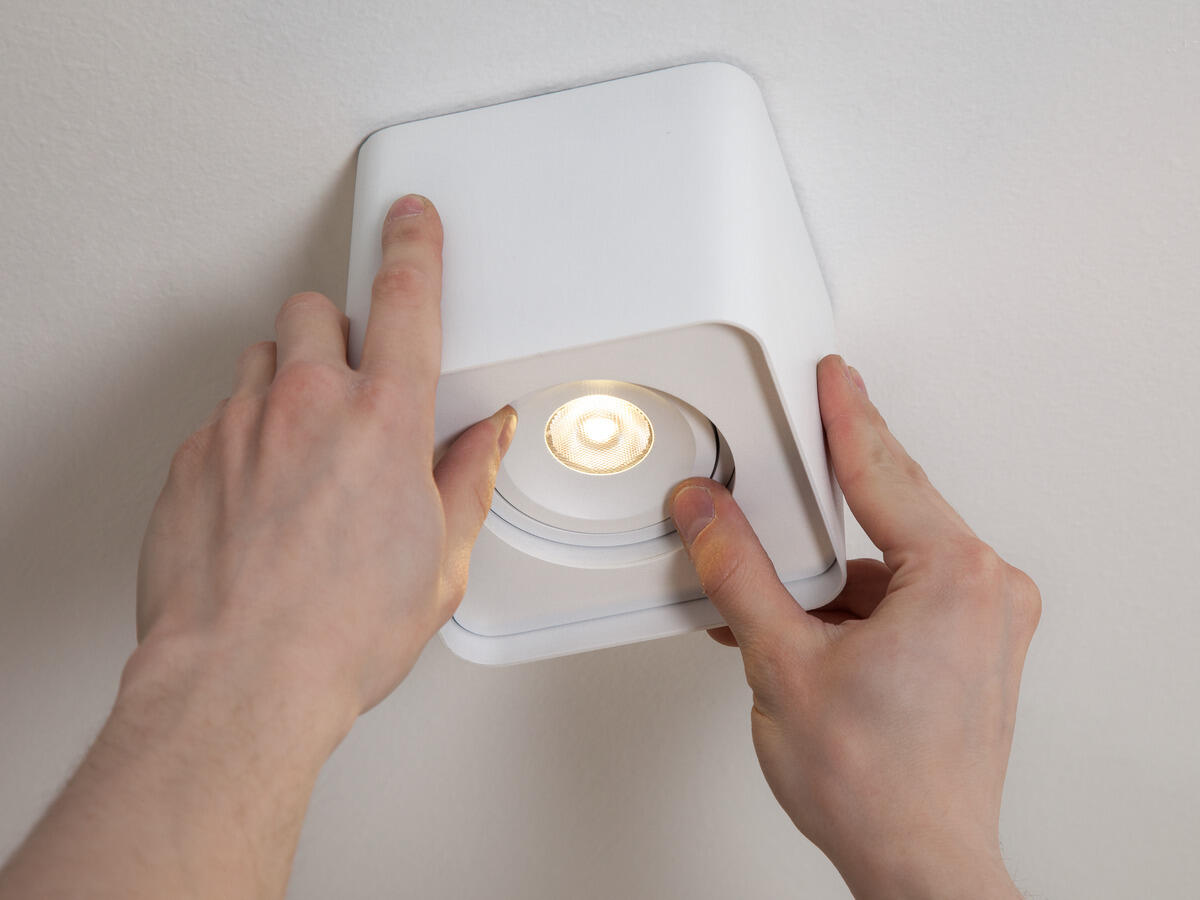

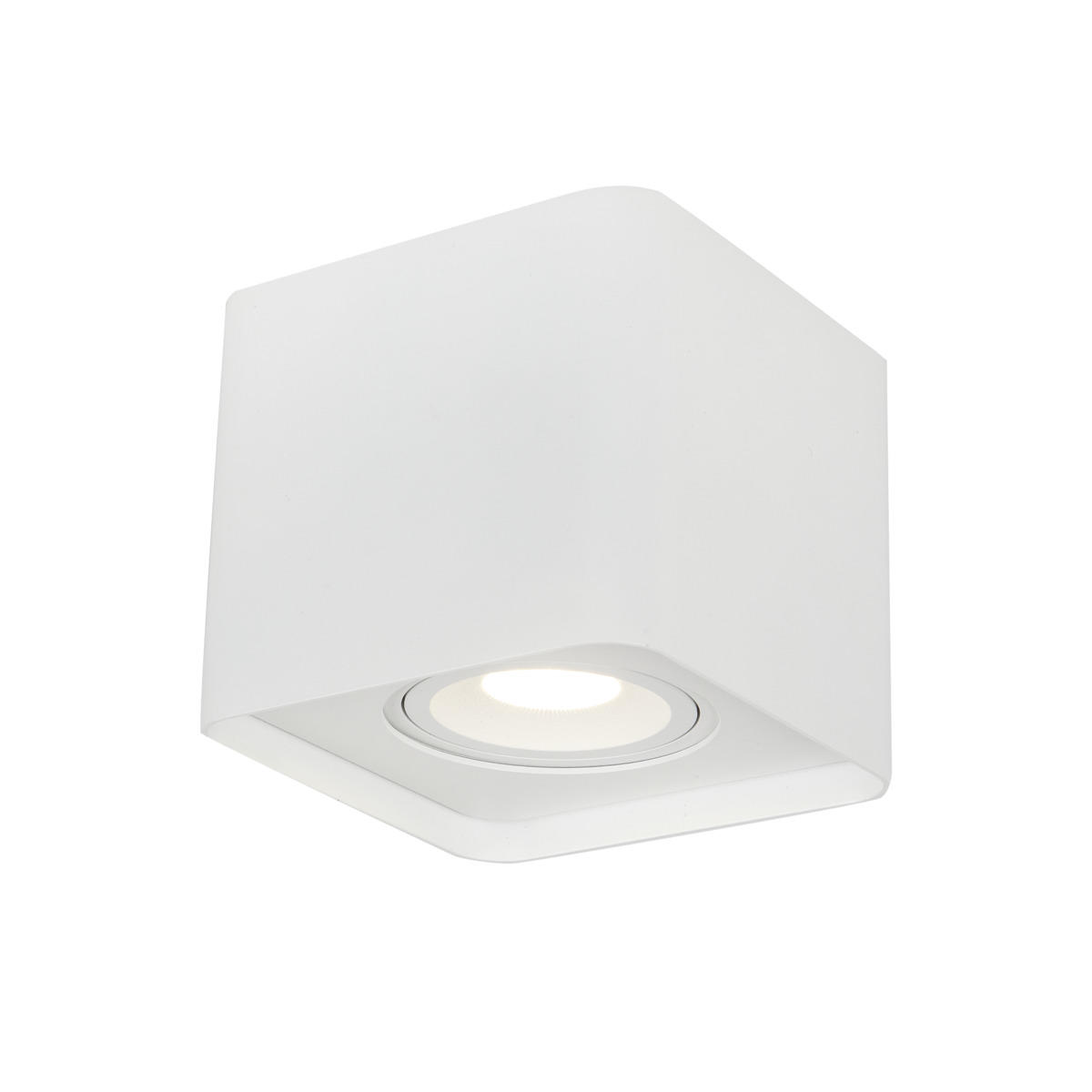

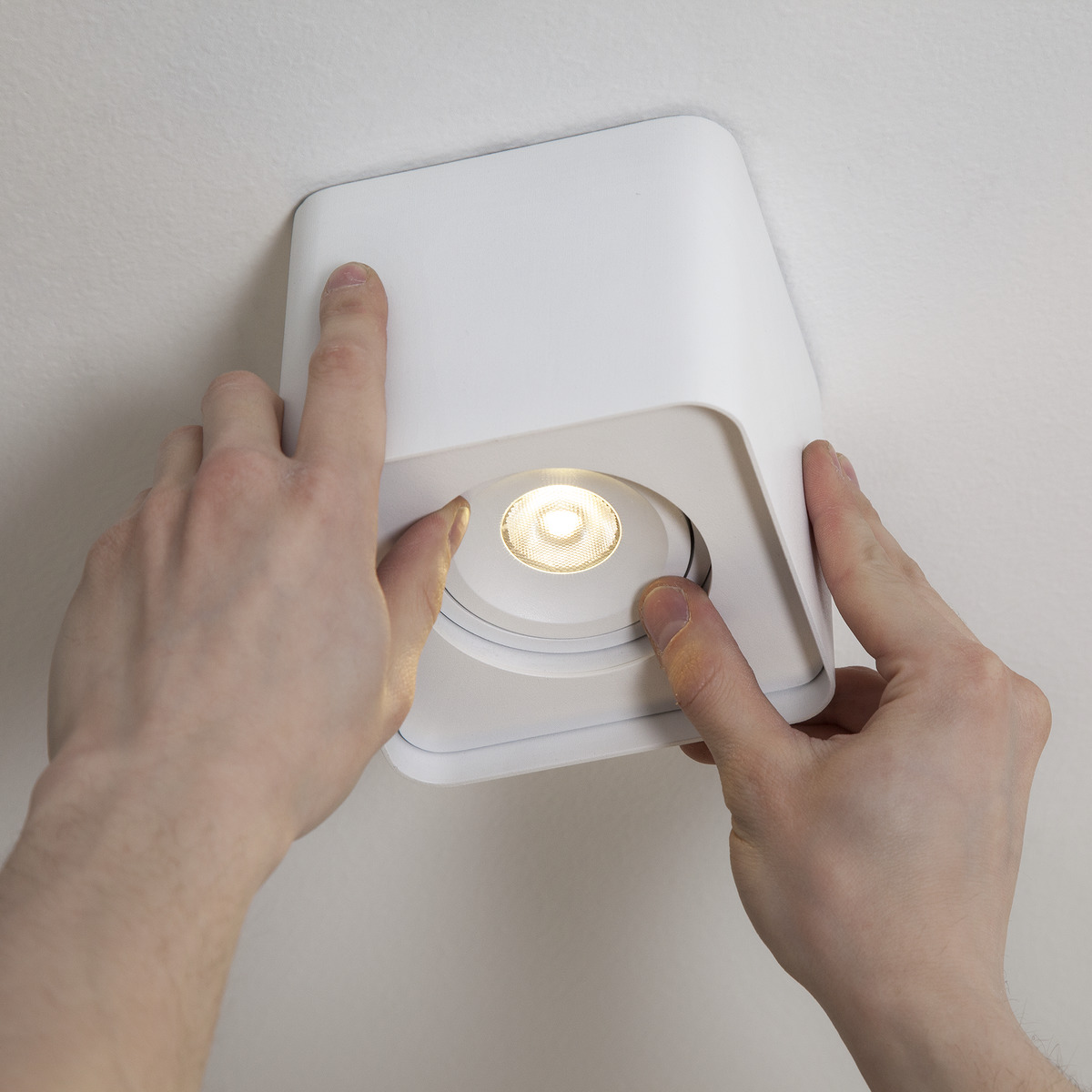

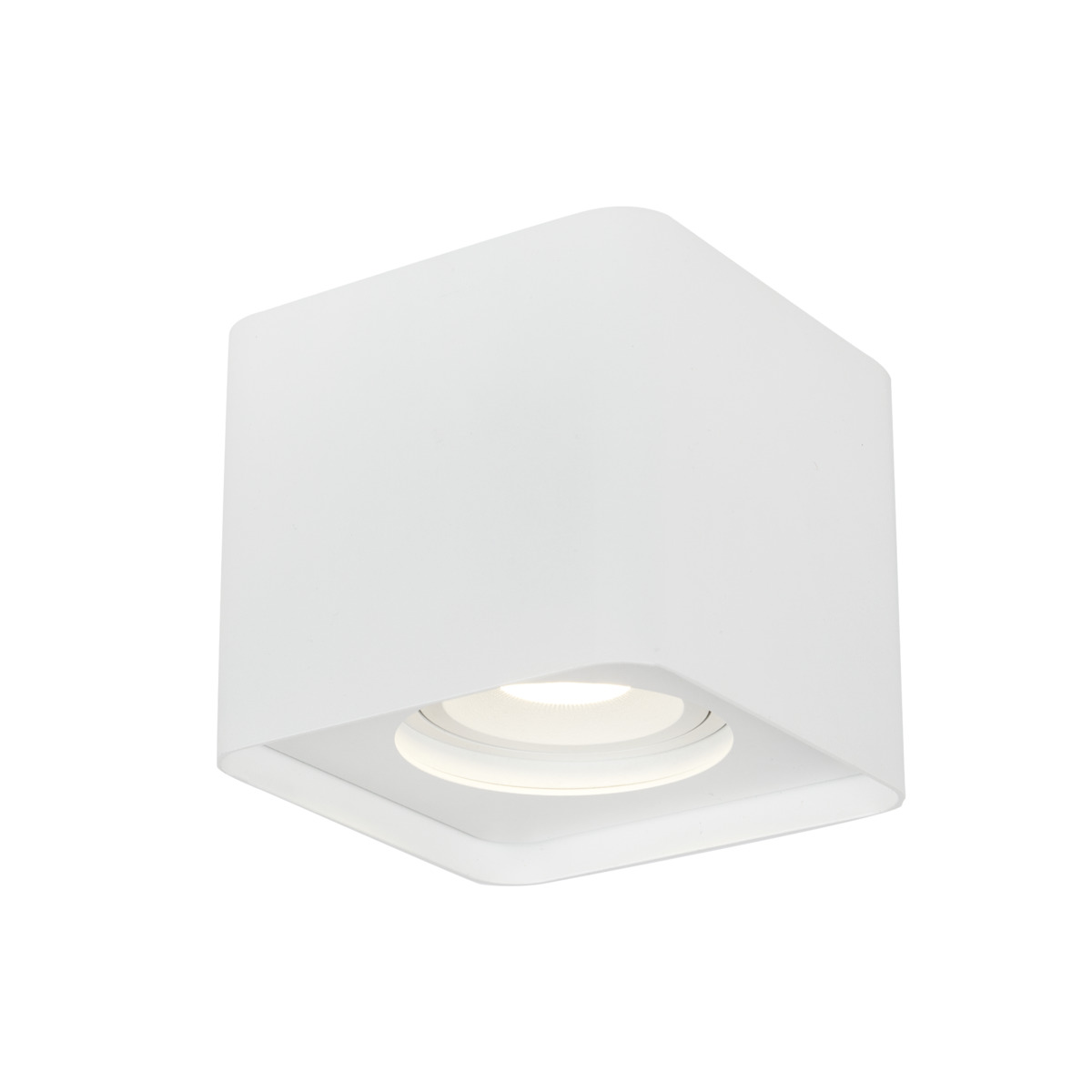

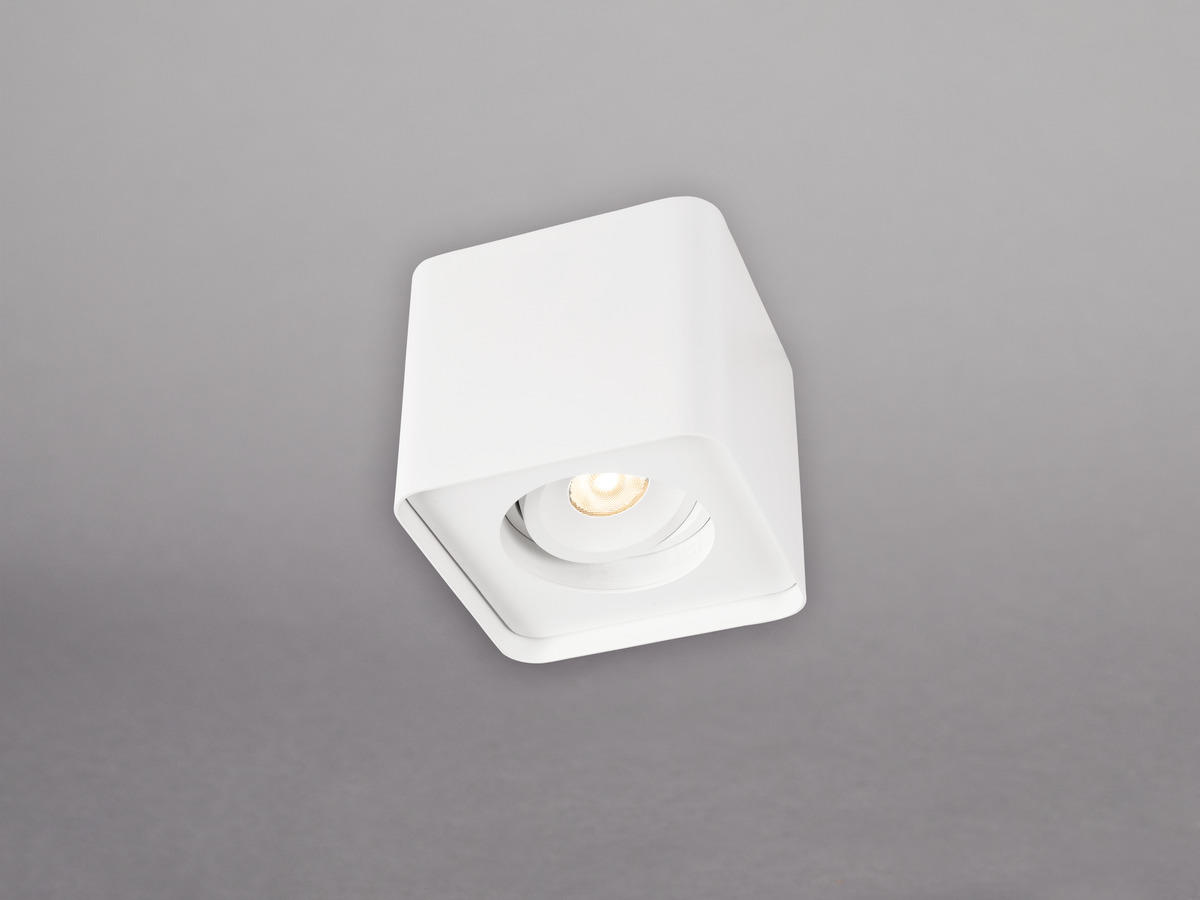

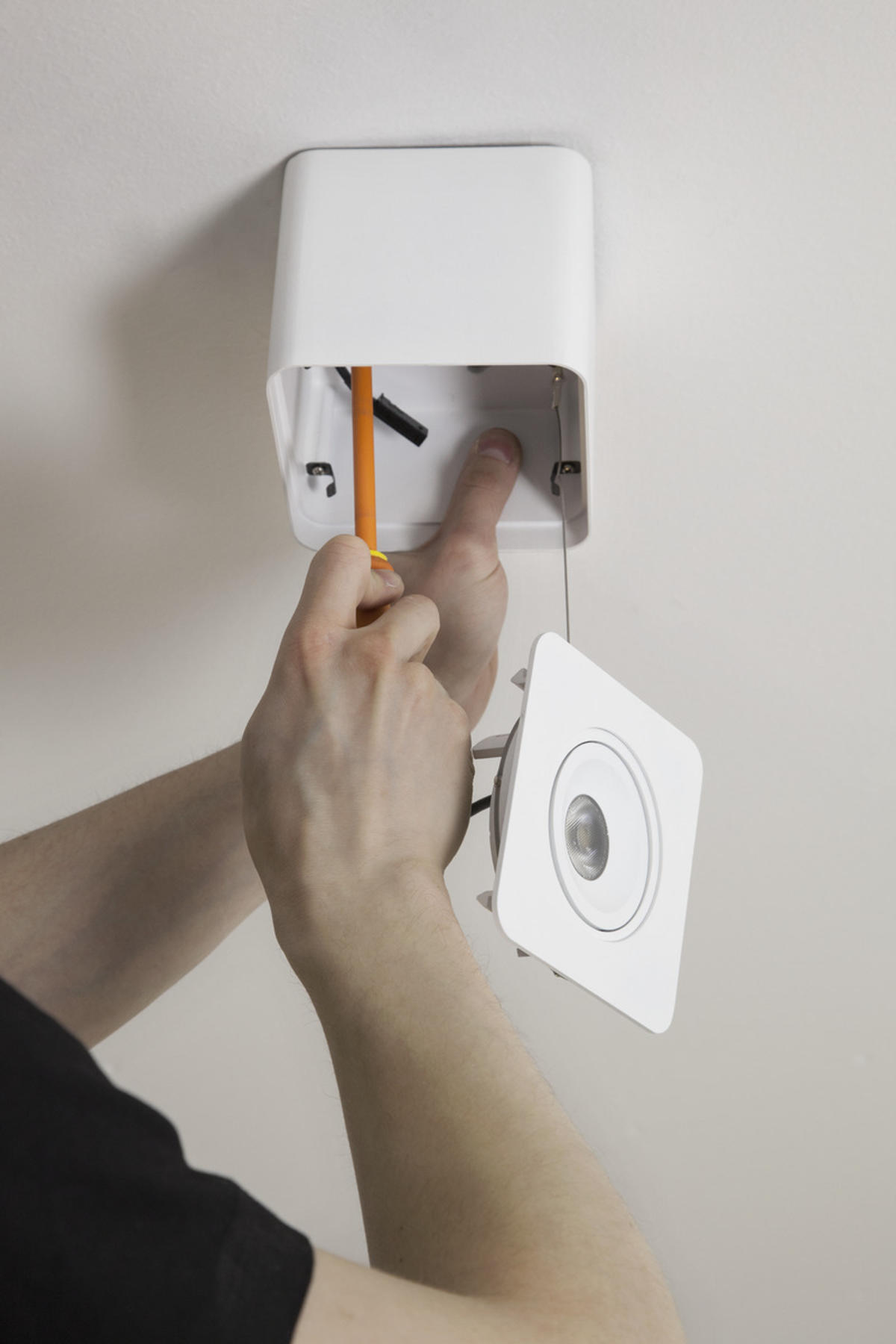

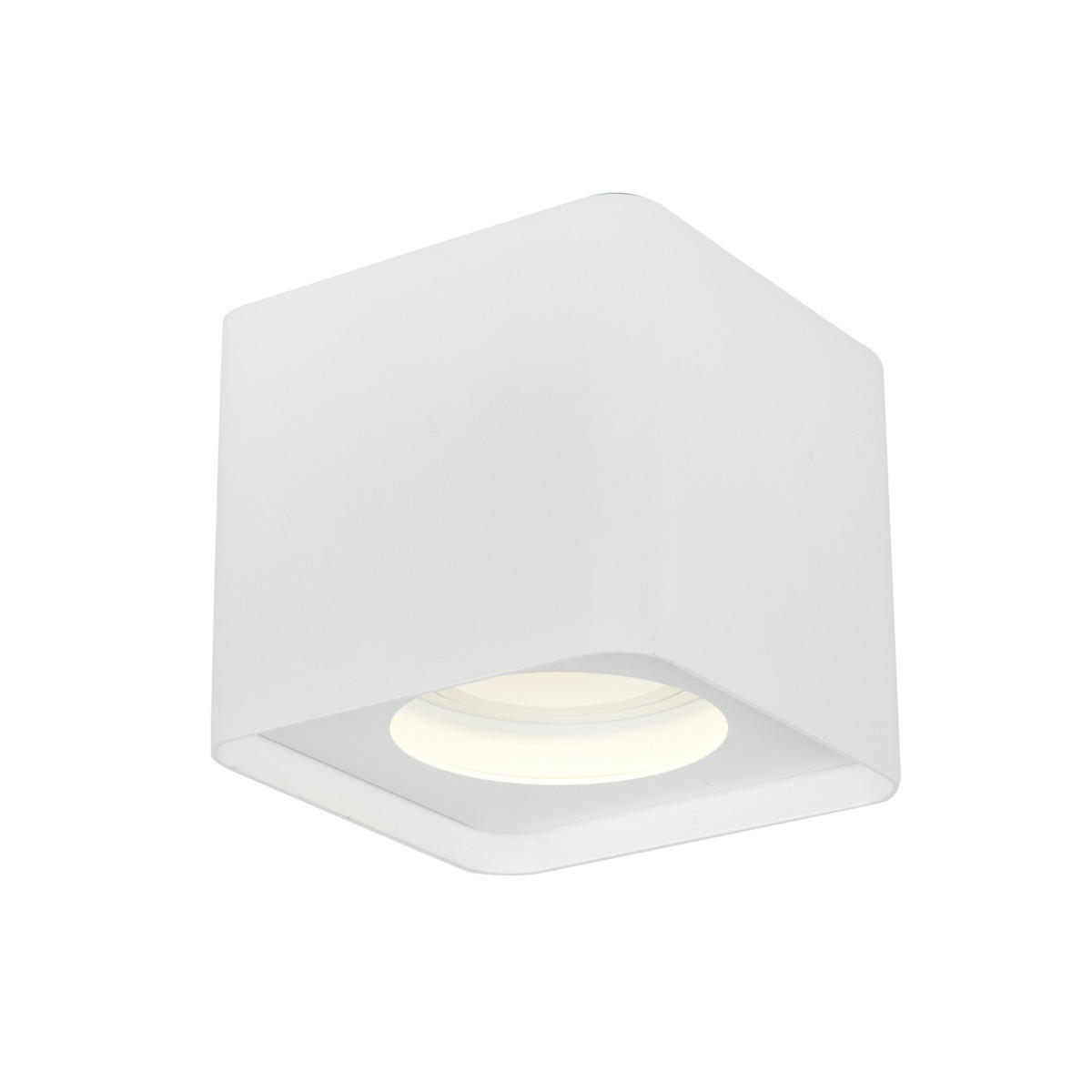

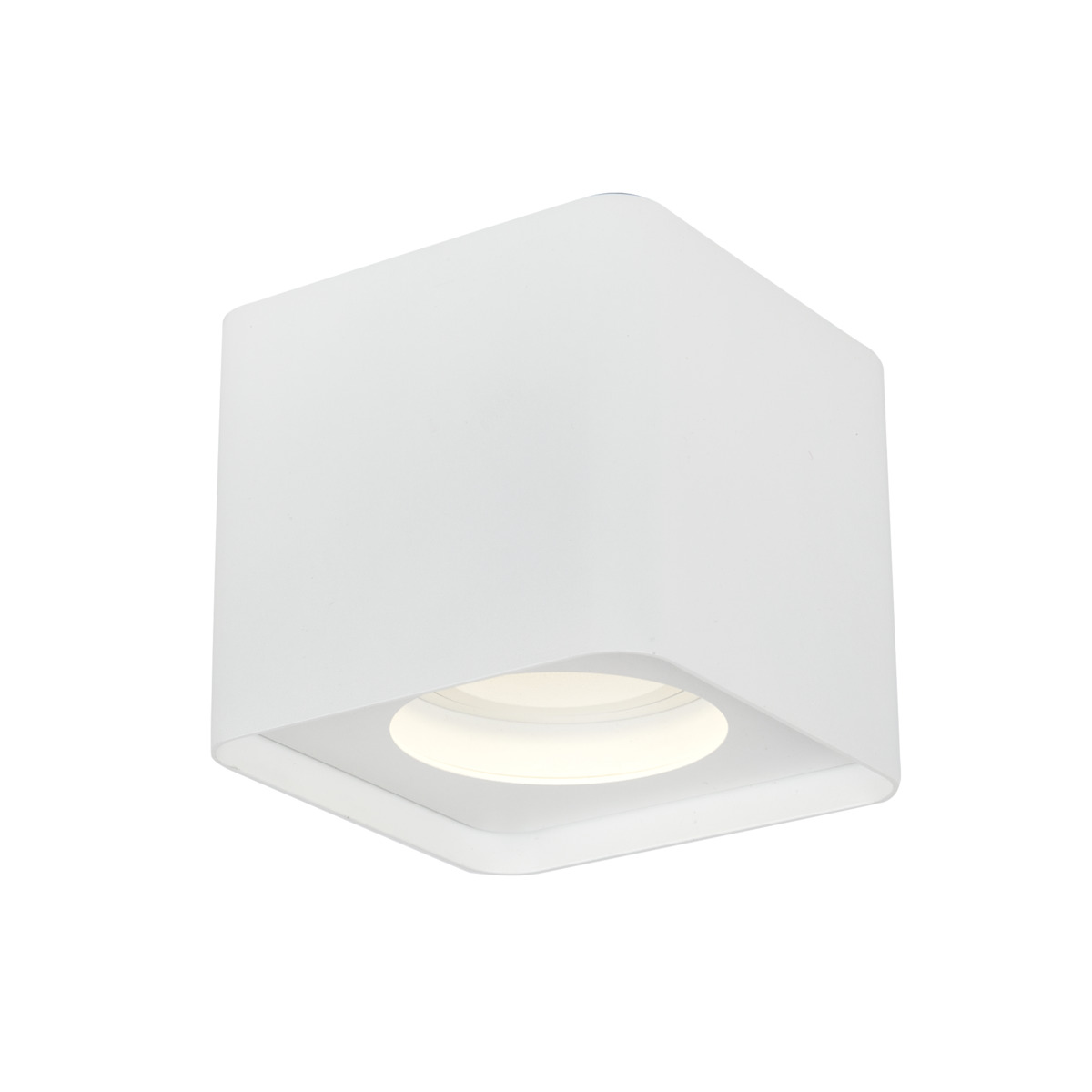

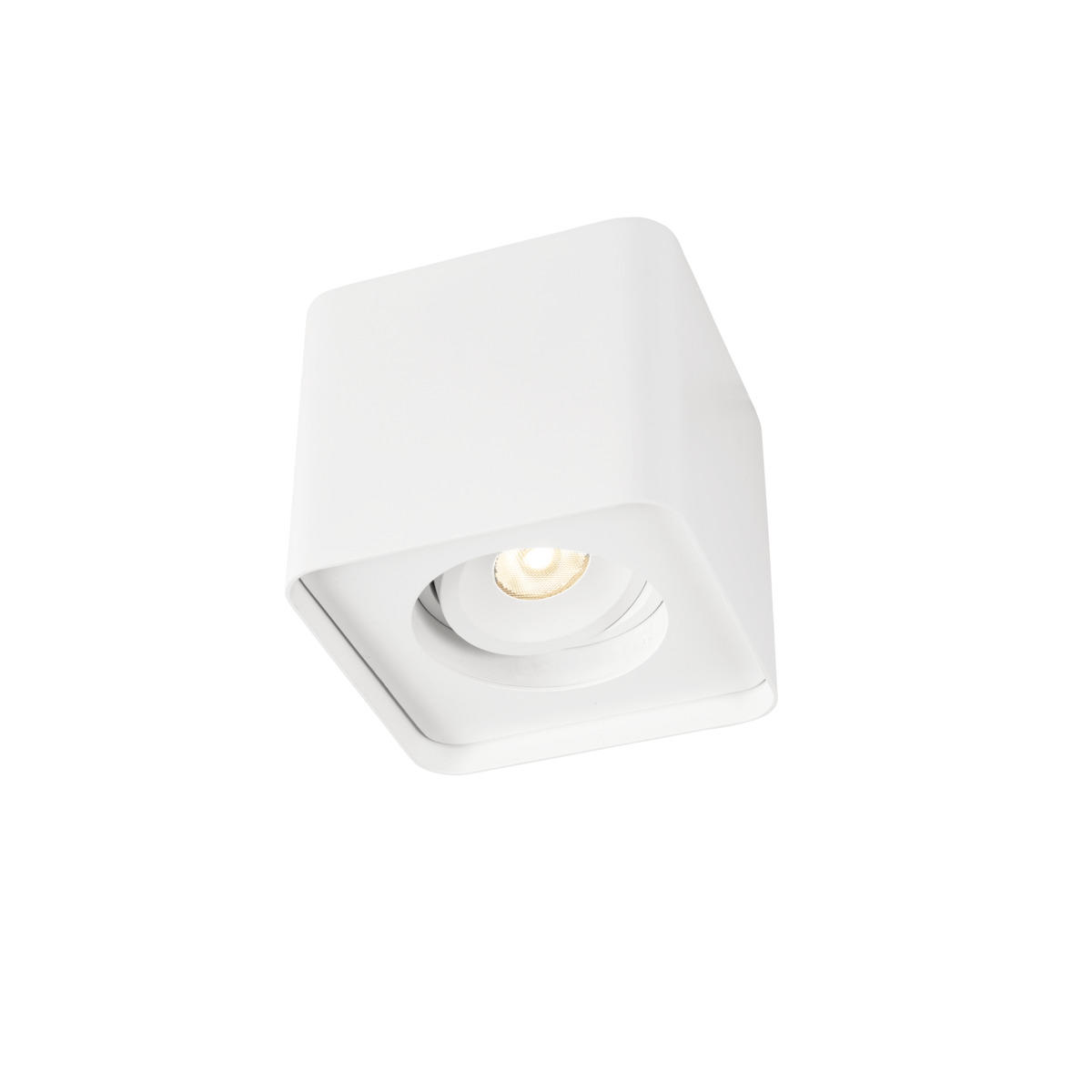

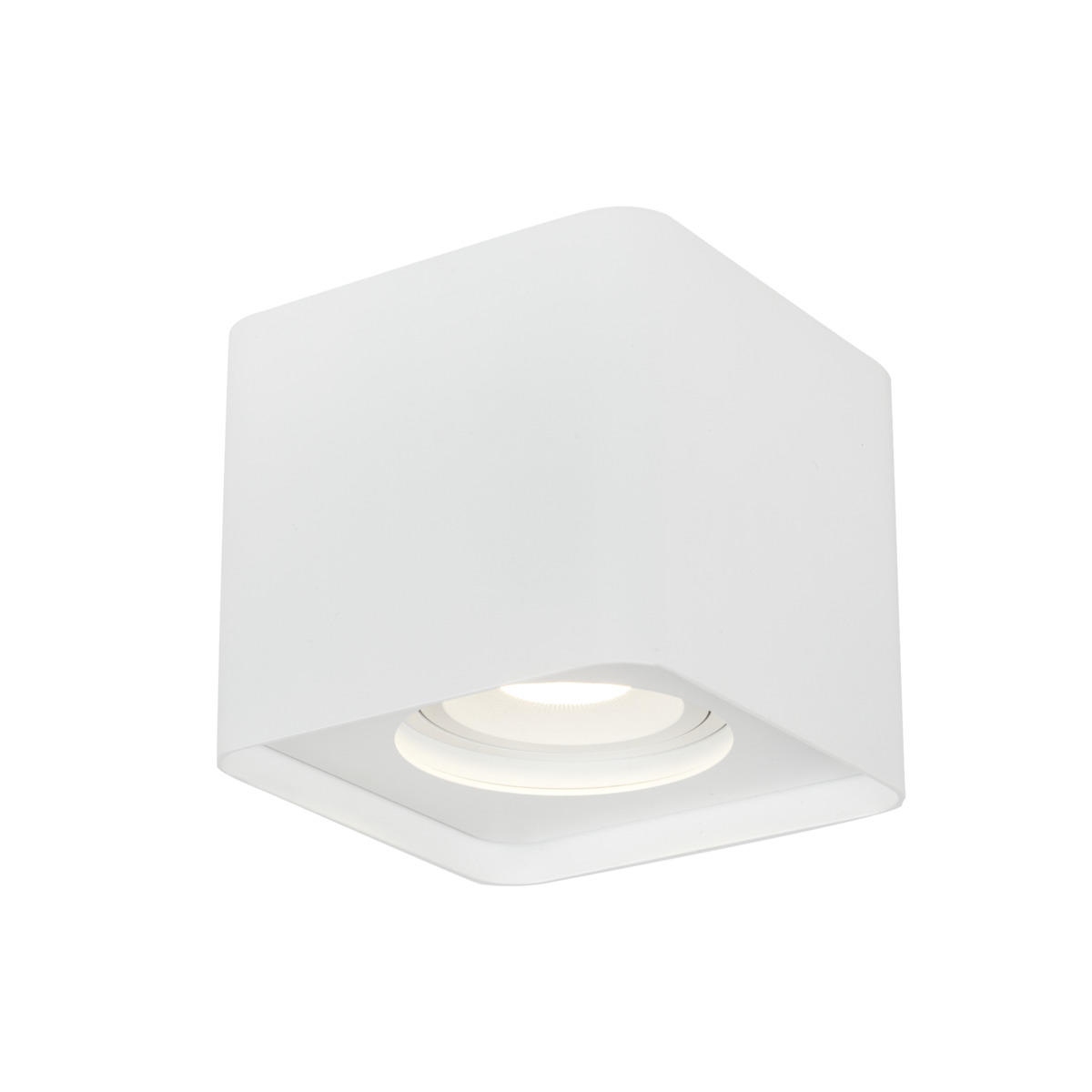

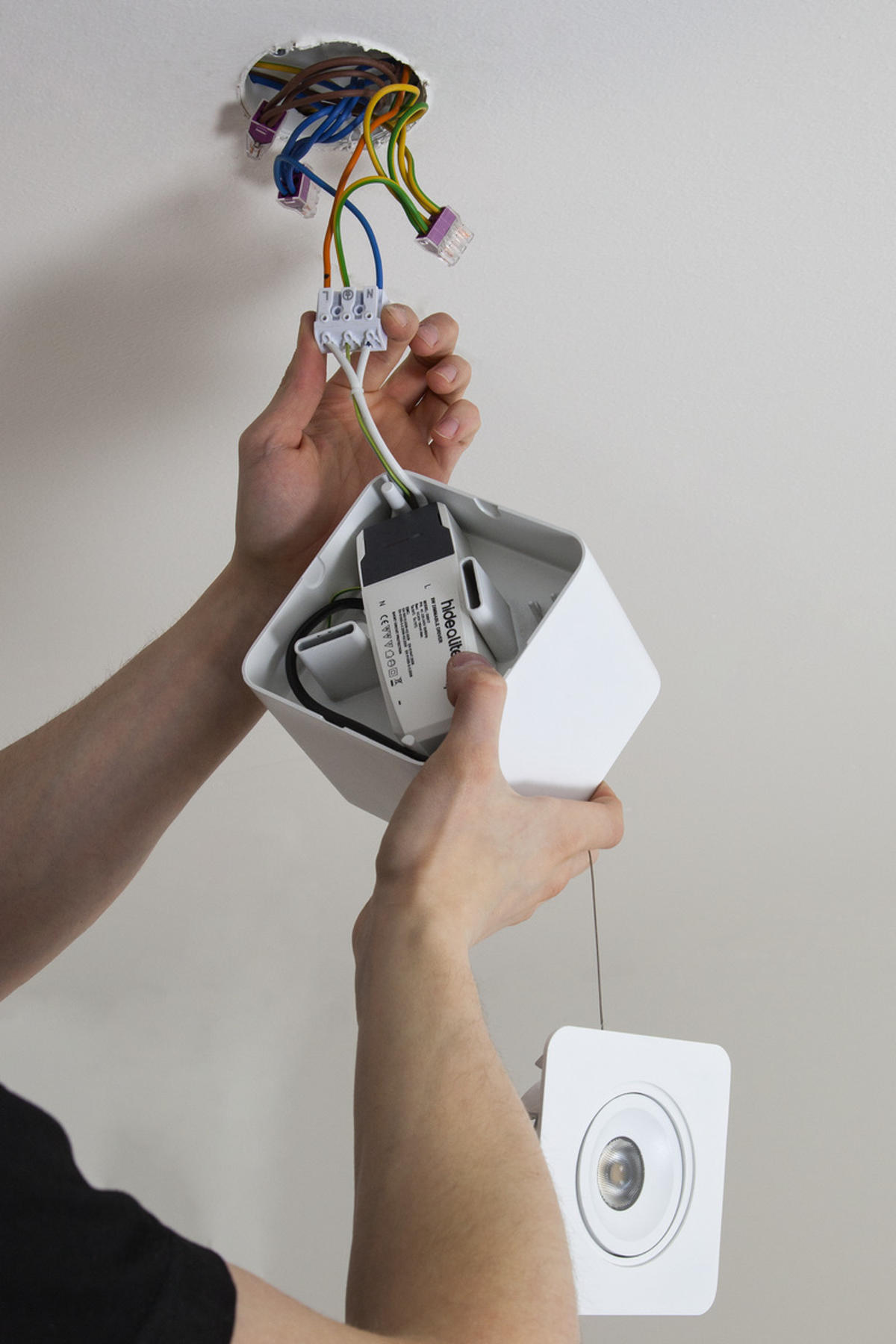

Level Box I, a design luminaire with rounded corners for a neater appearance. Toolless raise and lower function for anti-glare. The point of light in the luminaire can also be tilted and rotated. Surface mounted on ceiling or directly over ceiling box, also adapted to surface mounted cable routing. Works just as well in public and private areas. Simple installation, 230V directly on through wiring push-in terminal block. Comes complete with dimmable driver.
Variants
| GTIN | Item Name | Colour Temperature (K) | Luminaire Lumen (lm) | |
|---|---|---|---|---|
|
7392971126333 | Level Box I White 3000K | 3000 | 610 |
|
|
7392971126340 | Level Box I White 2700K | 2700 | 550 |
Level Box I White 3000K
- Description
-
GTIN 7392971126333
Item Name Level Box I White 3000K
Warranty 5 years
- Light Technical Data
-
Light Source LED
Light Source Included Yes
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 1160
Luminaire Lumen (lm) 610
Beam Angle (°) 36
Life Time L70 50 000h Ta 25°C
Nominel Life Time (h) 50000
- Technical data
-
Adjustable Yes
Tiltable (°) 20
Rotatable (°) 355
Voltage Nominal (V) 230
Power LED (W) 8
Power Luminaire (W) 8
System Power (W) 8
Efficiency Luminaire (lm/W) 76
Efficiency System (lm/W) 76
- Operation and Connection
-
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Connection (type) Quick Terminal
Through Wiring Yes
Strain Relief Yes
Operating Temperature -10...+45
Dimmable Yes
Type of Dimming Trailing Edge, Leading Edge
Fuse B10 (pcs) 125
Fuse B16 (pcs) 200
Fuse C10 (pcs) 125
Fuse C16 (pcs) 200
- Color and material
-
Material Aluminium
Color White
- Measurement and installation
-
Operating Environment Indoor / damp locations
IP Degree of Protection 21
Protection Class I
Installation Surface mounted
Mounting Installation Screw Mounting
Approval Marks CE, SELV

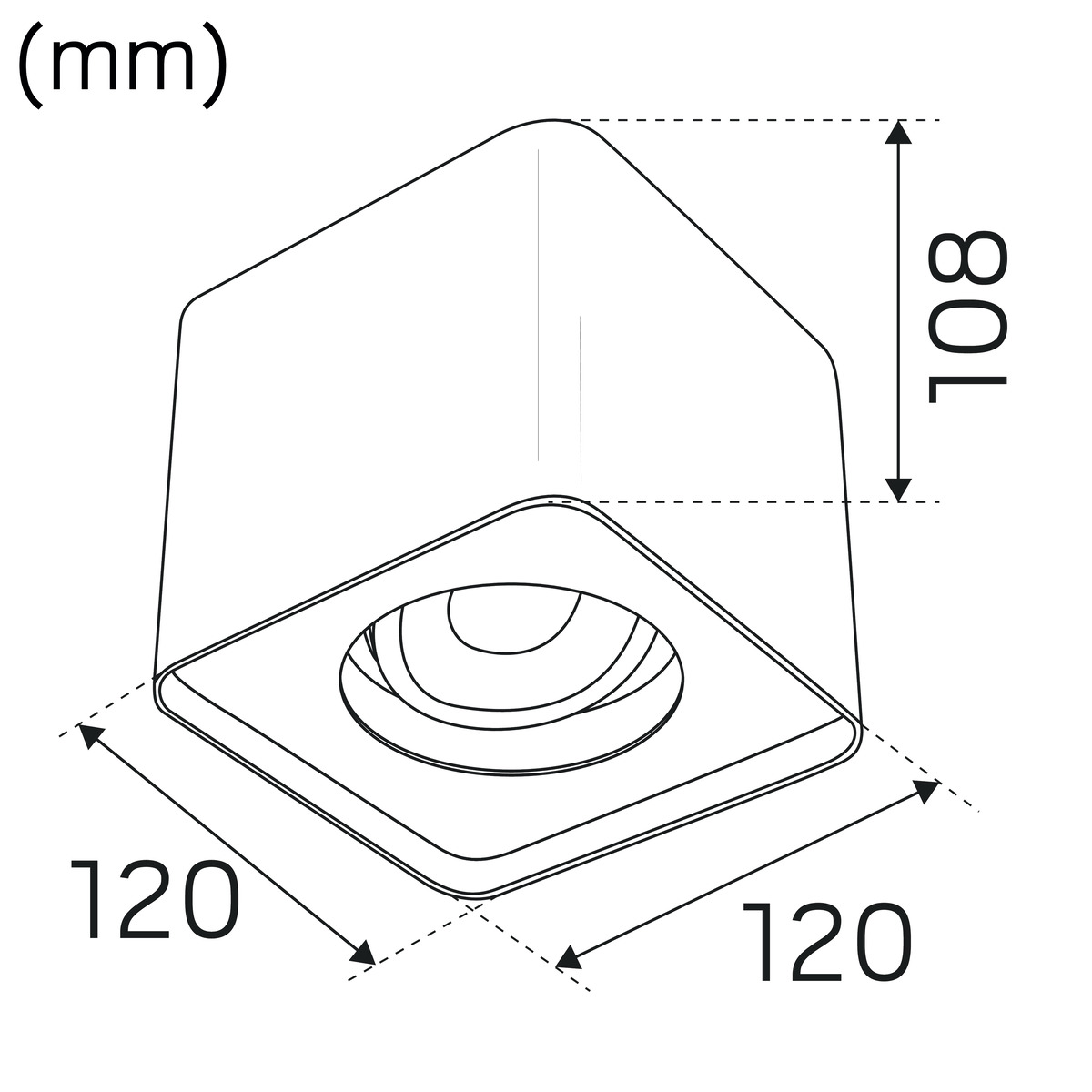

Length (mm) 120
Width (mm) 120
Height (mm) 108
Weight (kg) 1
