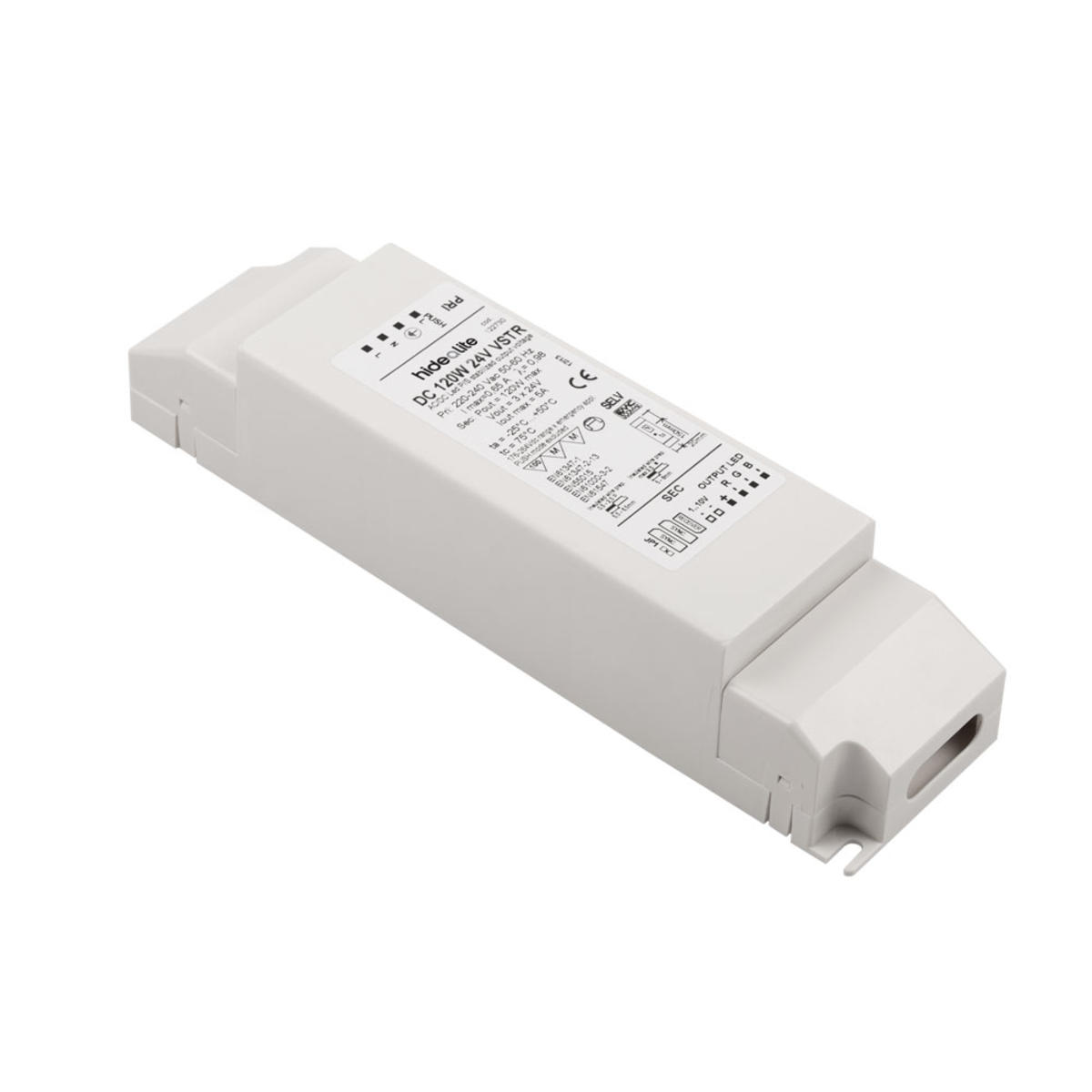

LED-trafo VSTR

Description: GTIN 7392971123639

Item Name LED-driver VSTR 24VDC 120W

Warranty 5 years
Light Technical Data: Flicker (PstLM) 0,101

Stroboscopic effect (SVM) 0,009
Technical data: Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50
Operation and Connection: Dimmable Yes

Type of Dimming Push 230V, 1-10V, DMX

Driver Model Constant Voltage

Driver Type Stand Alone

Connection (type) Quick Terminal

Connection (mm2) 3x0,5-2,5

Strain Relief Yes

Connection Secondary (type) Quick Terminal

Secondary Connection (mm2) 4x0,5-2,5

Secondary Outputs (pair) 3

Power Interval for Catalogue (W) 0-120

Max. Load Per Output (W) 100

Operating Temperature -25…+50

Max. Tc (°C) 75

Memory Function Power Failure Yes

Protection Against Short Circuit, Overload, Overheating 100°C

Fuse B10 (pcs) 5

Fuse B16 (pcs) 8

Fuse C10 (pcs) 8

Fuse C16 (pcs) 13
Color and material: Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class I

Installation Surface mounted

Fire Safety Marks MM-mark

Approval Marks CE

Length (mm) 240

Width (mm) 60

Height (mm) 49

Weight (kg) 0,32

Built-in Ø (mm) 80

LED-dimtrafo MDR

Dimmer trafo for 12 and 24 LED light sources with all-in-one function (integrated dimmer and trafo). Easy and quick installation as there is only one unit that needs installation.Up to ten units can be coupled in parallel and controlled together from one or more spring-loaded pushbuttons (potential free) or via a 470 Kohm potentiometer and 1-10V.
