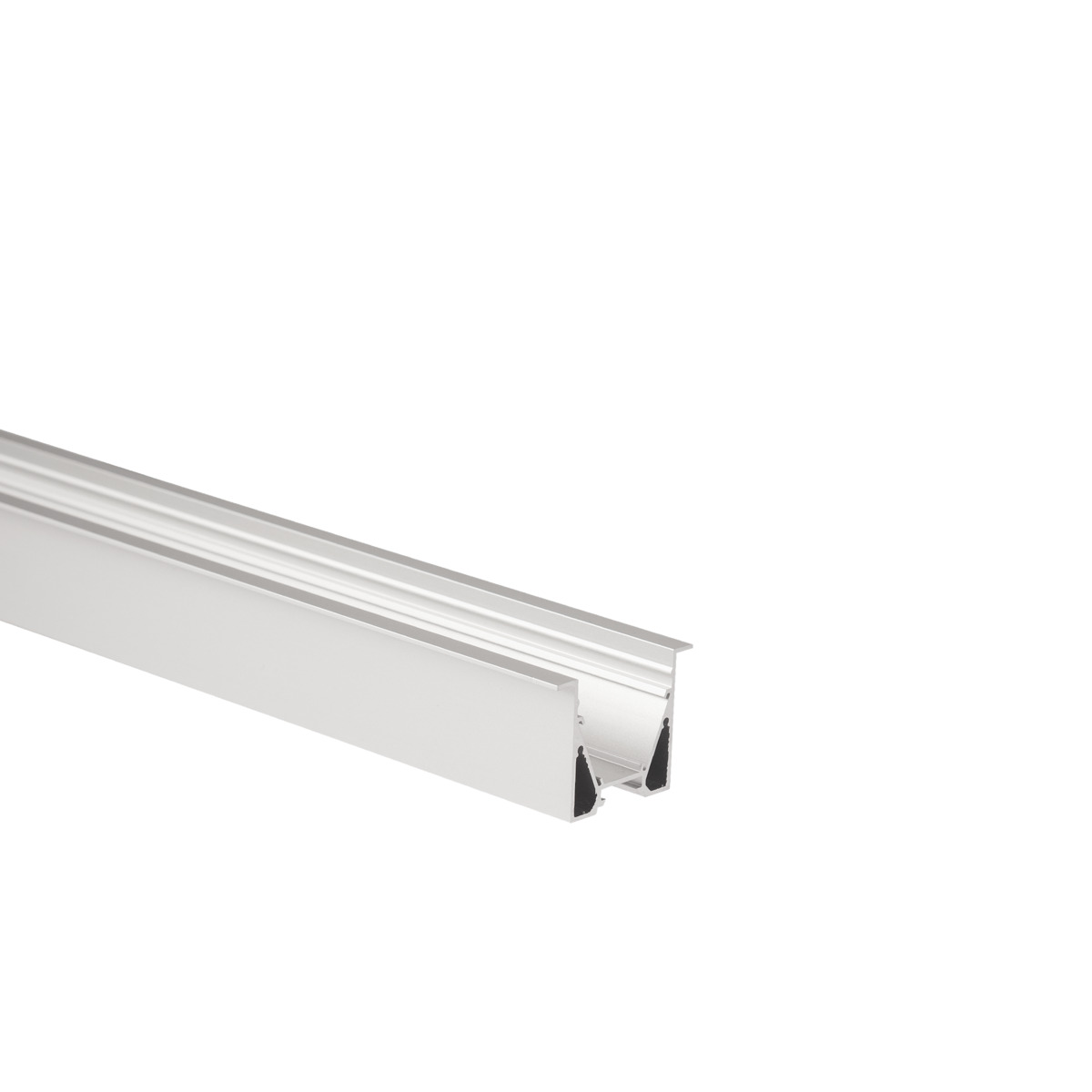

Profil Maxi T

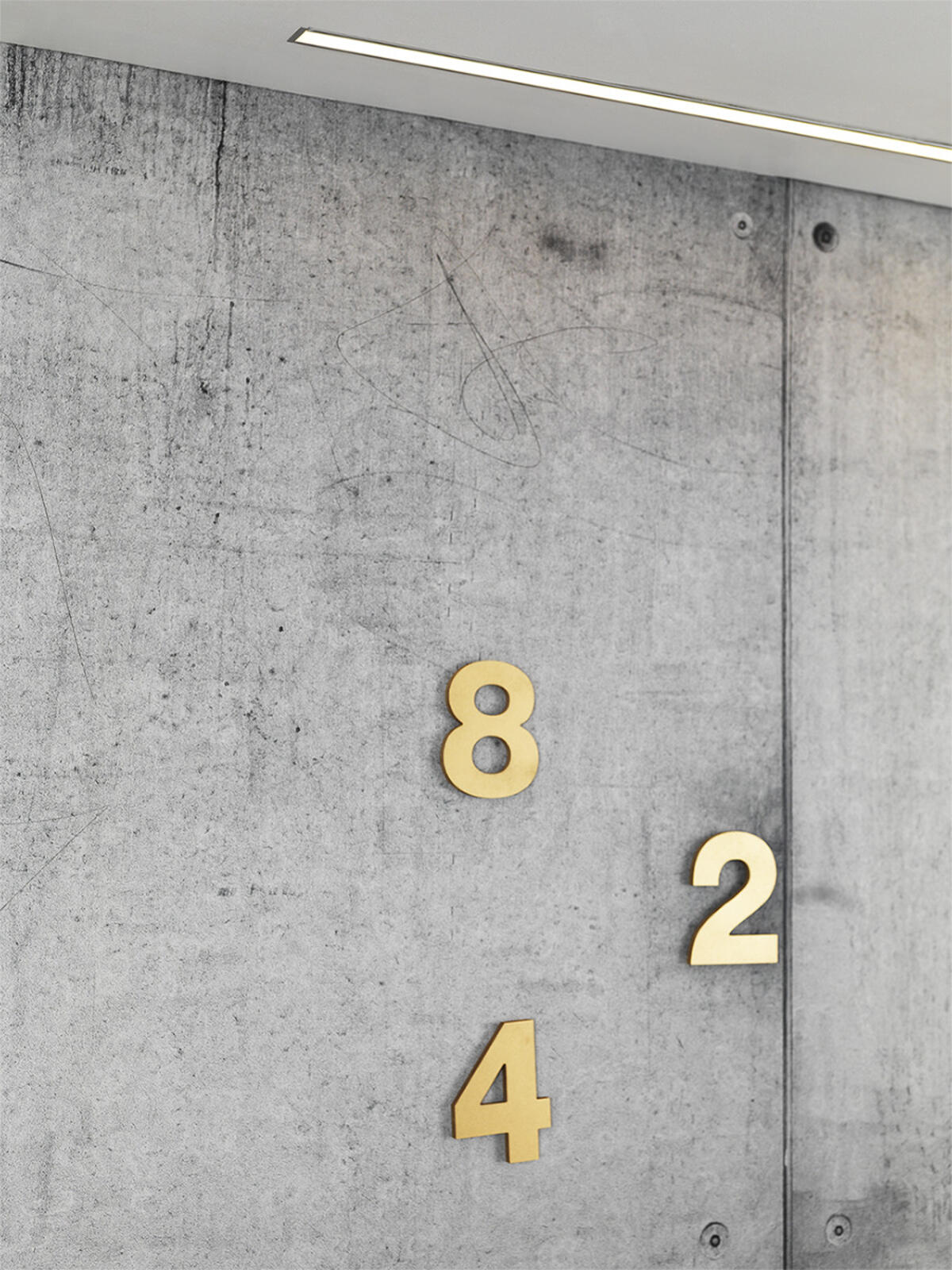

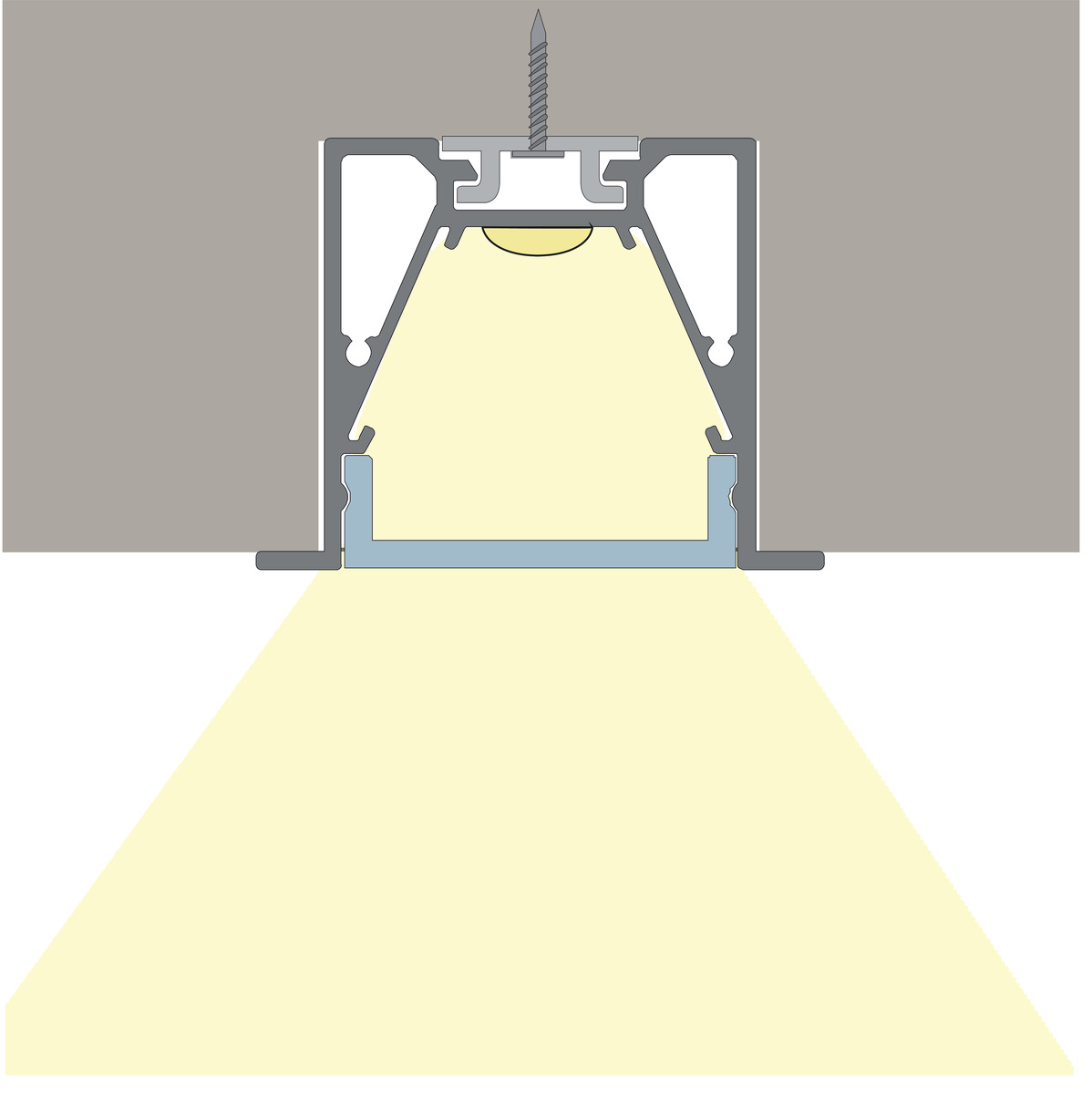

Section for recessed installation in ceilings, wall or floors. Two integrated cable channels and an inner construction that gives a considerably lower light loss than other profiles. With the Reflector tape accessory, the lumen output is increased by up to 20%. With good cooling properties, it works well even with highly intensive LEDstrips. With the Opel cover, an even and spot-free light is created. Maximum light is allowed to permeate this prismatic cover, it has good anti-glare properties and creates a good working and general lighting.

Description: Item Name Profil Maxi T Alu 2m
Technical data: Adjustable No
Operation and Connection: Strain Relief No
Color and material: Material Aluminium

Color Aluminum

Environmental Assessment Byggvarubedömningen

Available in special color Yes
Measurement and installation: Operating Environment Indoor / wet locations, Outdoor

Installation Built-in

Mounting Installation Mounting Spring, Clips

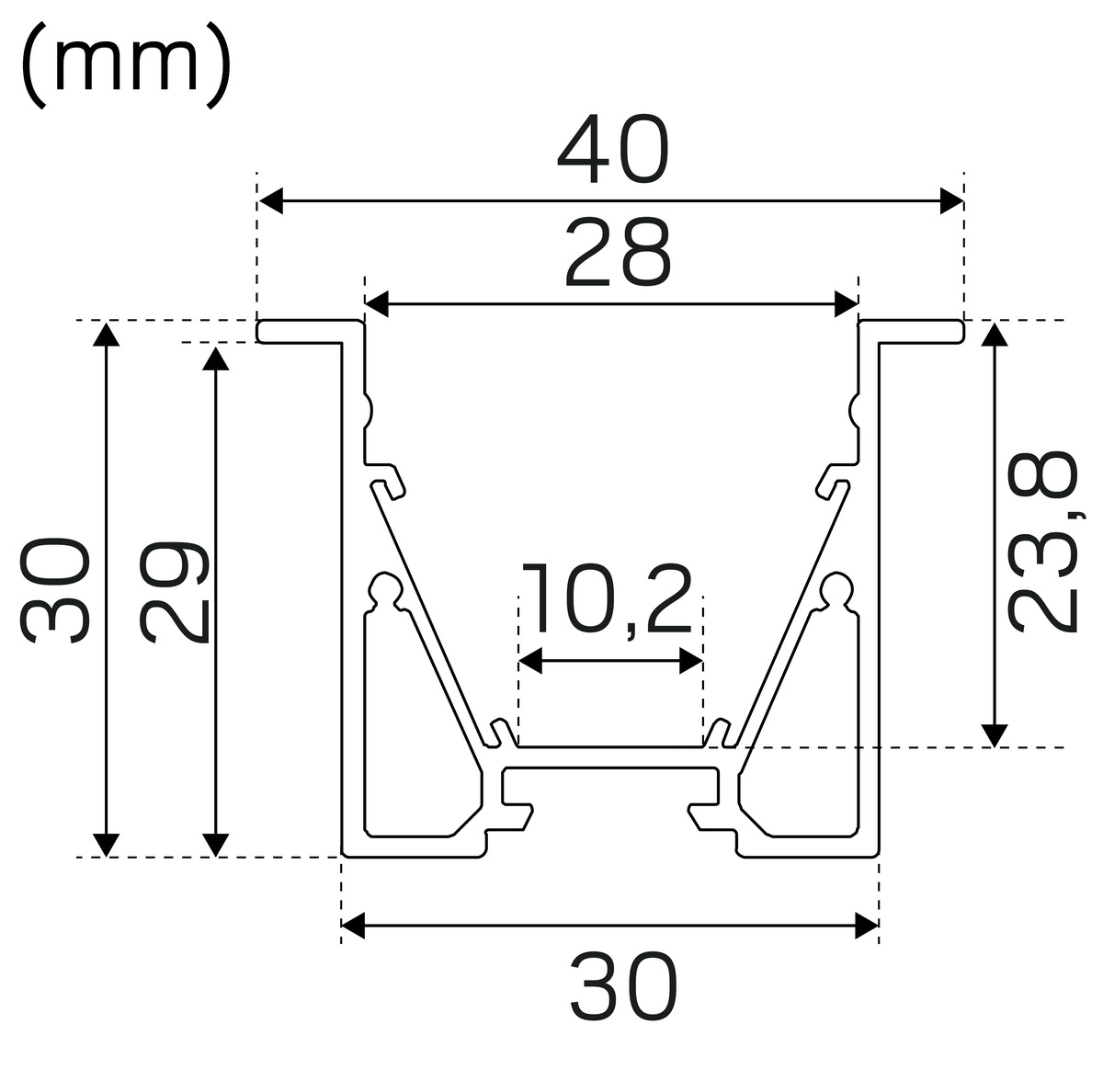

Length (mm) 2010

Width (mm) 40

Height (mm) 30

Weight (kg) 0,85

Profile Maxi U

Stable profile with two integrated cable ducts for surface-mounted or pendant installation. Good cooling properties even with high intense LEDstrips, suitable for constructing your own luminaires. An inner construction that gives a considerably lower light loss than other profiles. With the Reflector accessory, the lumen output is increased by up to 20%. With the Opal cover, an even and spot-free light is created. The prismatic cover lets through maximum light, is very glare-free and gives a good work or general light.

Profil Maxi T

Profil Maxi T Alu 2m

Accessories

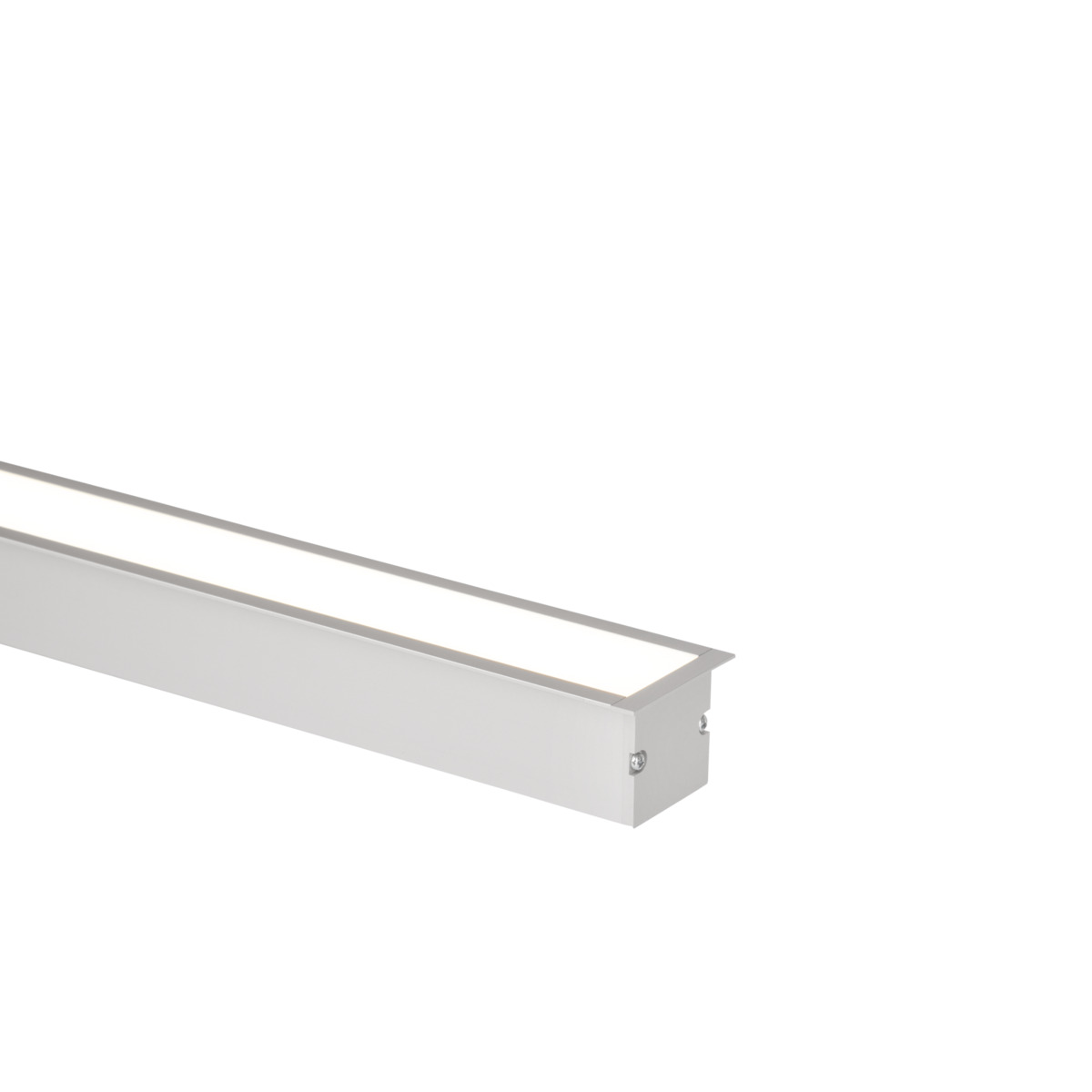

Cover Opal 28mm 2m (Maxi)

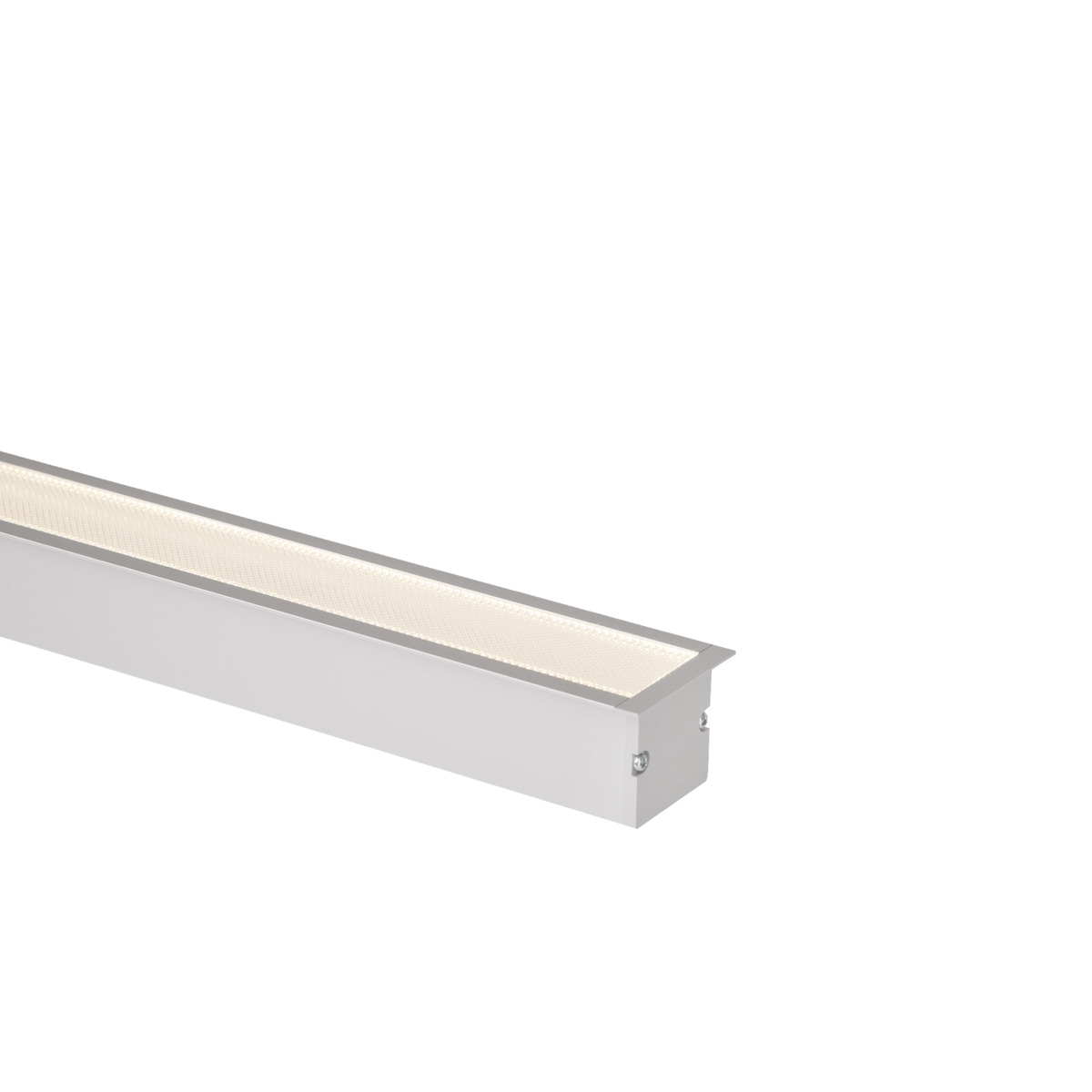

Cover Prism 28mm 2m

End cap 30x30 Recessed Alu 2pcs

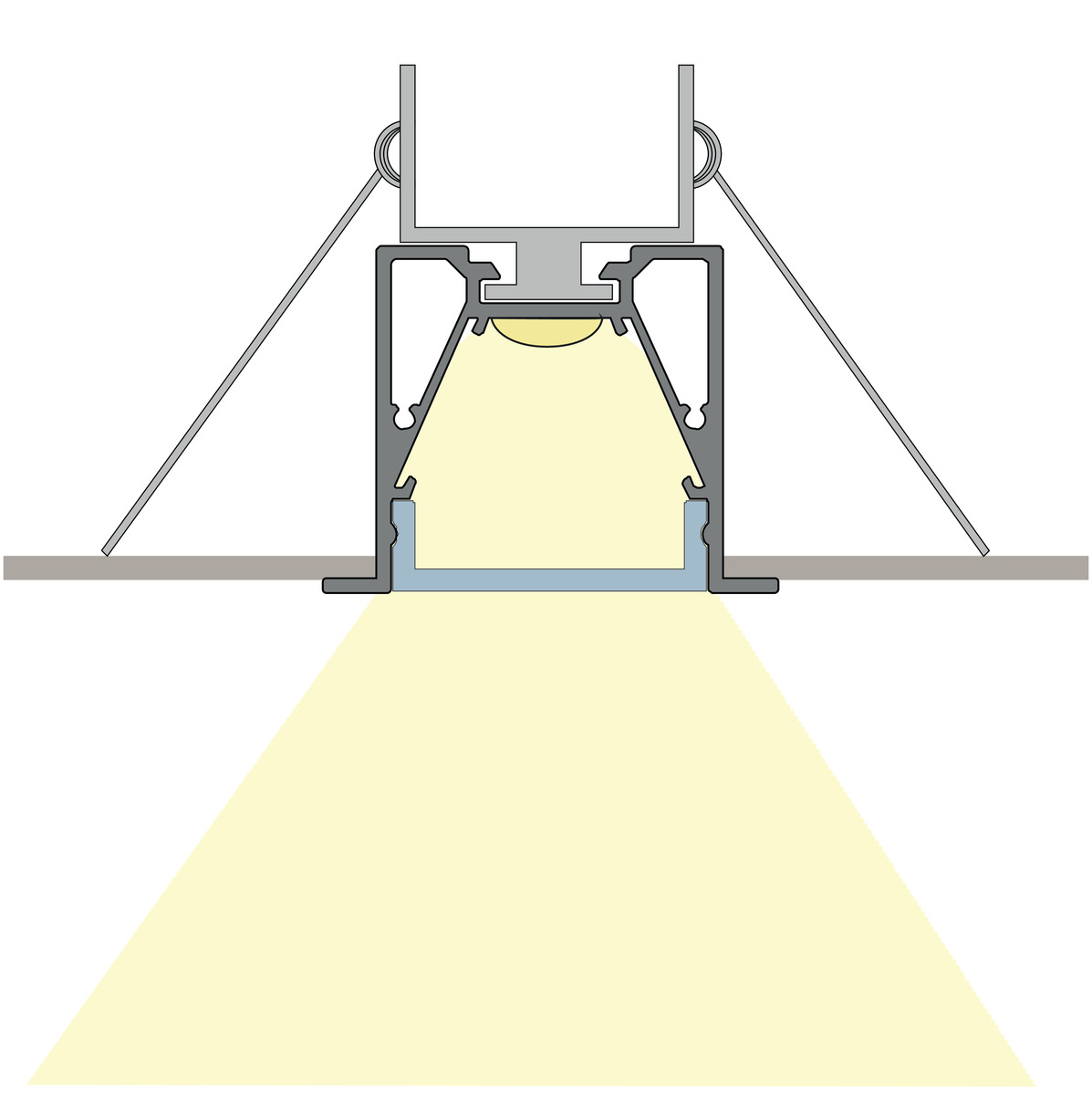

Spring Bracket 30x30 Recessed 1pcs

Bracket Stainless steel 2 pcs

Reflector tape 15mm 4m

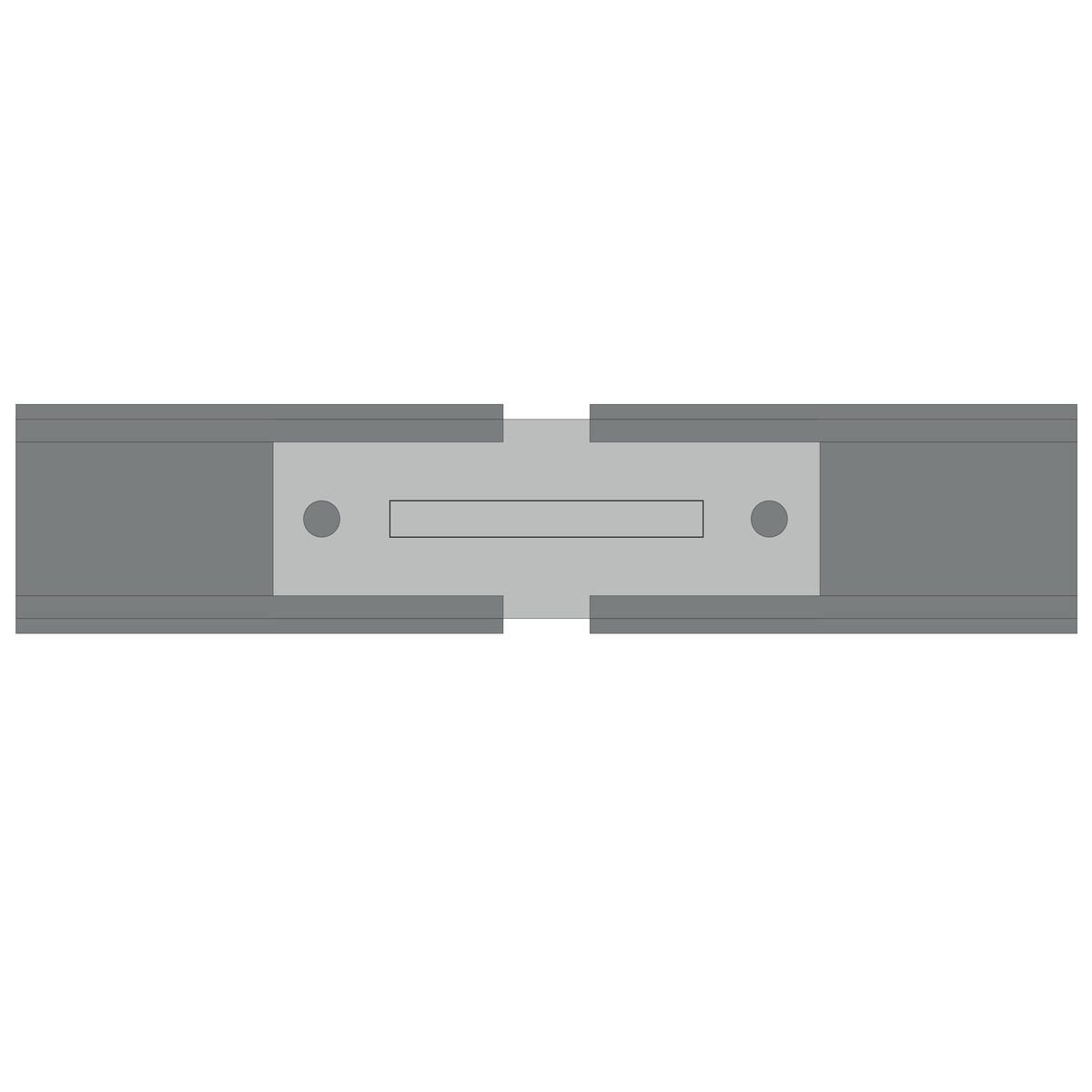

Joint Straight 1pc

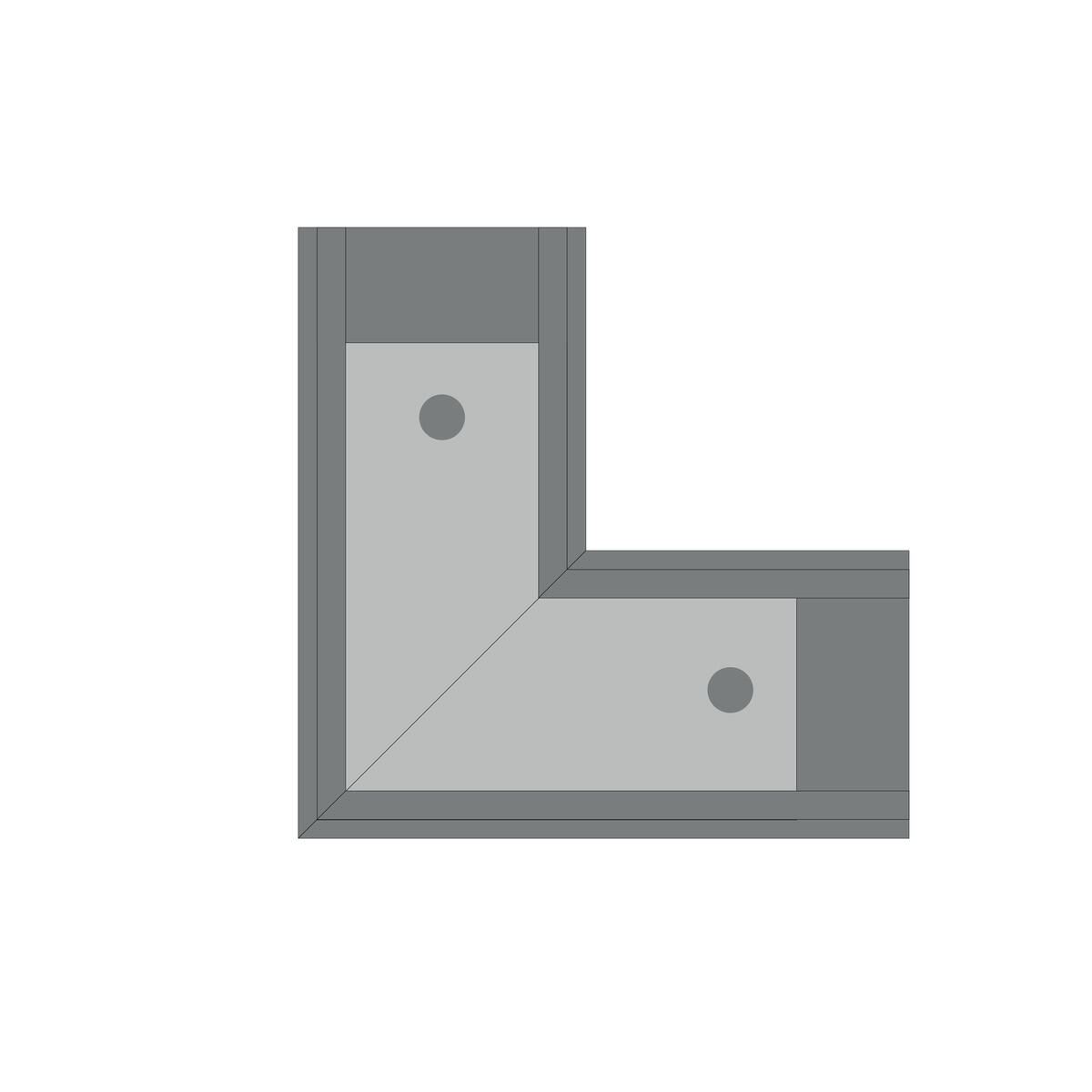

Assemble L Alu 1 pc
