Decklight Super Garden Kit

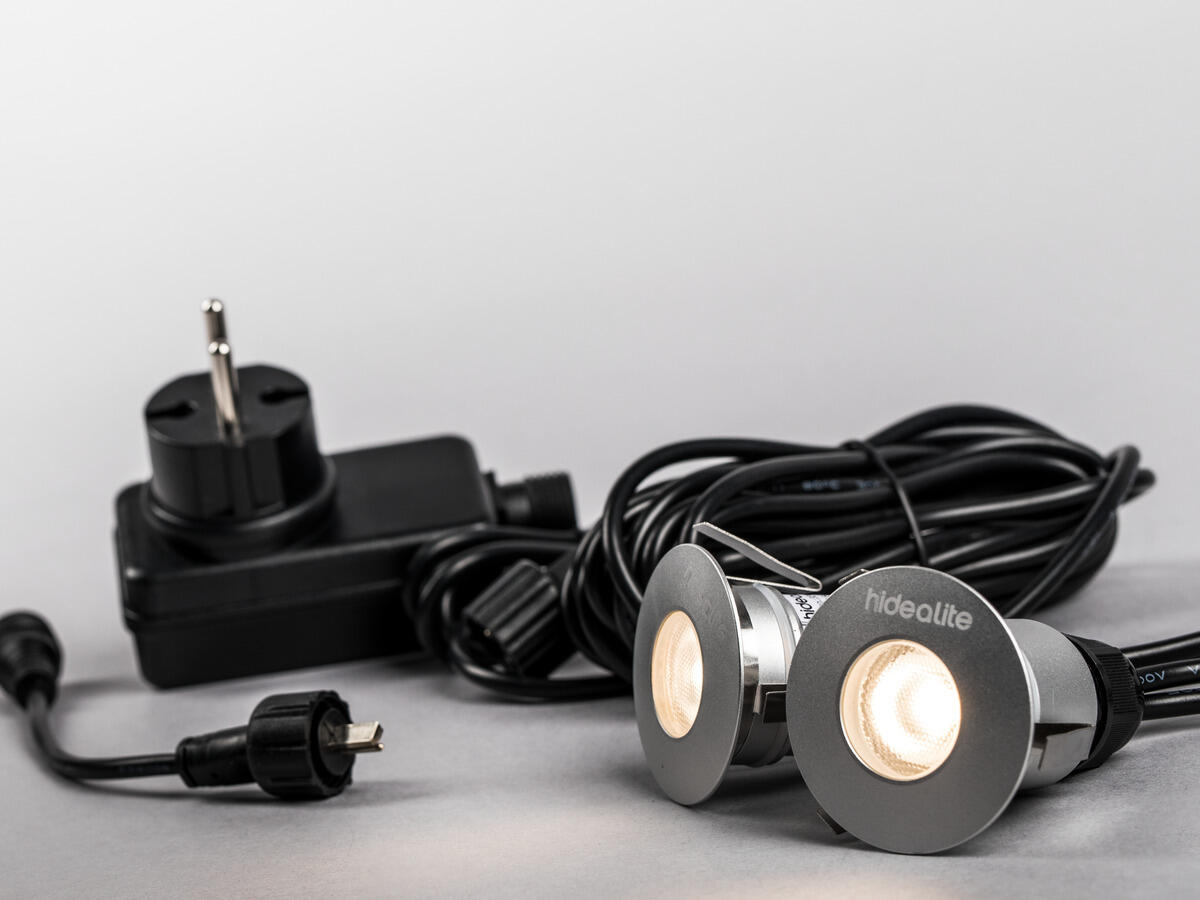

Kit with accent luminaire in IP67 for e.g. wooden decks, stone walls and embedment. Use clips for optimal grip even in living materials, such as wood. Supplied with 2 0.5m rubber cables with screw connections and transformers in IP44 placed above ground. The kit includes 2pcs IP67 luminaires, 1pc 1m extension cable with quick connection and 1 Trafo Garden 12W with 5m cable. Can be combined with all luminaires in the Garden family thanks to the common connection system.

Decklight Super Garden Kit

Description
GTIN 7392971135038
Item Name Decklight Super Garden Kit
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >90
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 2x115
Luminaire Lumen (lm) 75
Beam Angle (°) 45
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 2
Number of LED (pcs) 1
Life Time L70 100 000h Ta 25°C
Nominel Life Time (h) 100000
Lumen maintenance 100 000h L70
LLMF @ 100 000h 0,7
Life Time Driver 50 000h/10%
Technical data
Adjustable No
Voltage (type) DC
Voltage Interval (V) 12...12
Voltage Nominal (V) 12
Line Frequency (Hz) 50
Voltage Forward (Vf) 9
Power Luminaire (W) 2,75
System Power (W) 2,75
Efficiency Luminaire (lm/W) 27
Efficiency System (lm/W) 27
Operation and Connection
Driver Included Yes
Driver Model Constant Voltage
Driver Type Stand Alone
Connection (type) Plug-in, Quick Connection
Length Connection (cm) 50
Connection (mm2) 2x0,5
Through Wiring Yes
Strain Relief Yes
Operating Temperature -25…+45
Max. Tc (°C) 80
Dimmable No
Type of Dimming OnOff
Color and material
Material Aluminium
Color Aluminum
Measurement and installation
Operating Environment Indoor / wet locations, Outdoor
IP Degree of Protection 67
Protection Class III
Installation Built-in
Mounting Installation Tension Spring, Mounting Sleeve
Max. Pressure (kg) 100
Approval Marks CE
Impact Strength IK08
Filament Test IEC 695-2-1(°C) 650
Height (mm) 63
Diameter (mm) 42
Weight (kg) 0,4634
Min. Built-in (mm) Ø30x71
Height Recessed Part (mm) 60
Height Exterior Part (mm) 3
Built-in Ø (mm) 34
