Bloc II

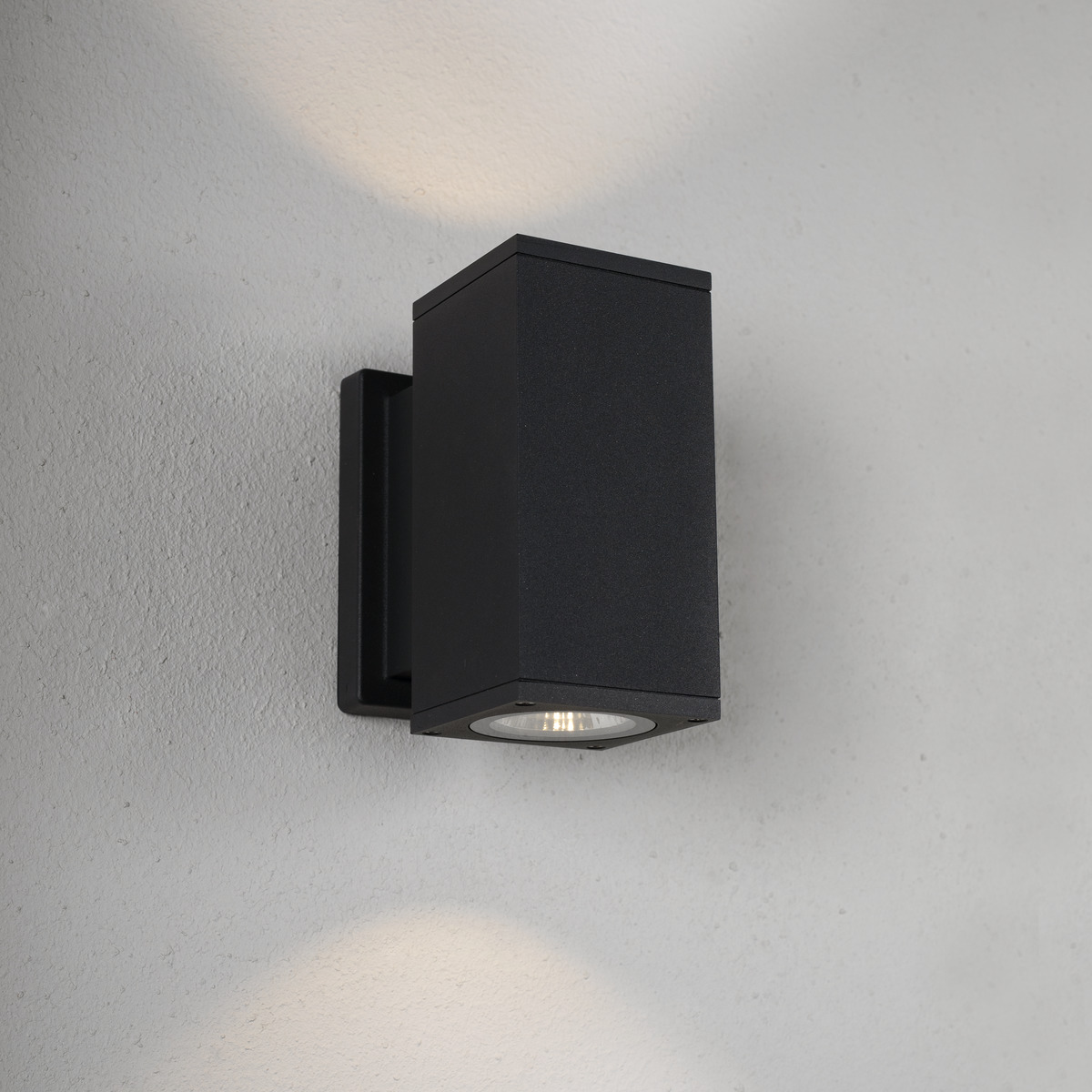

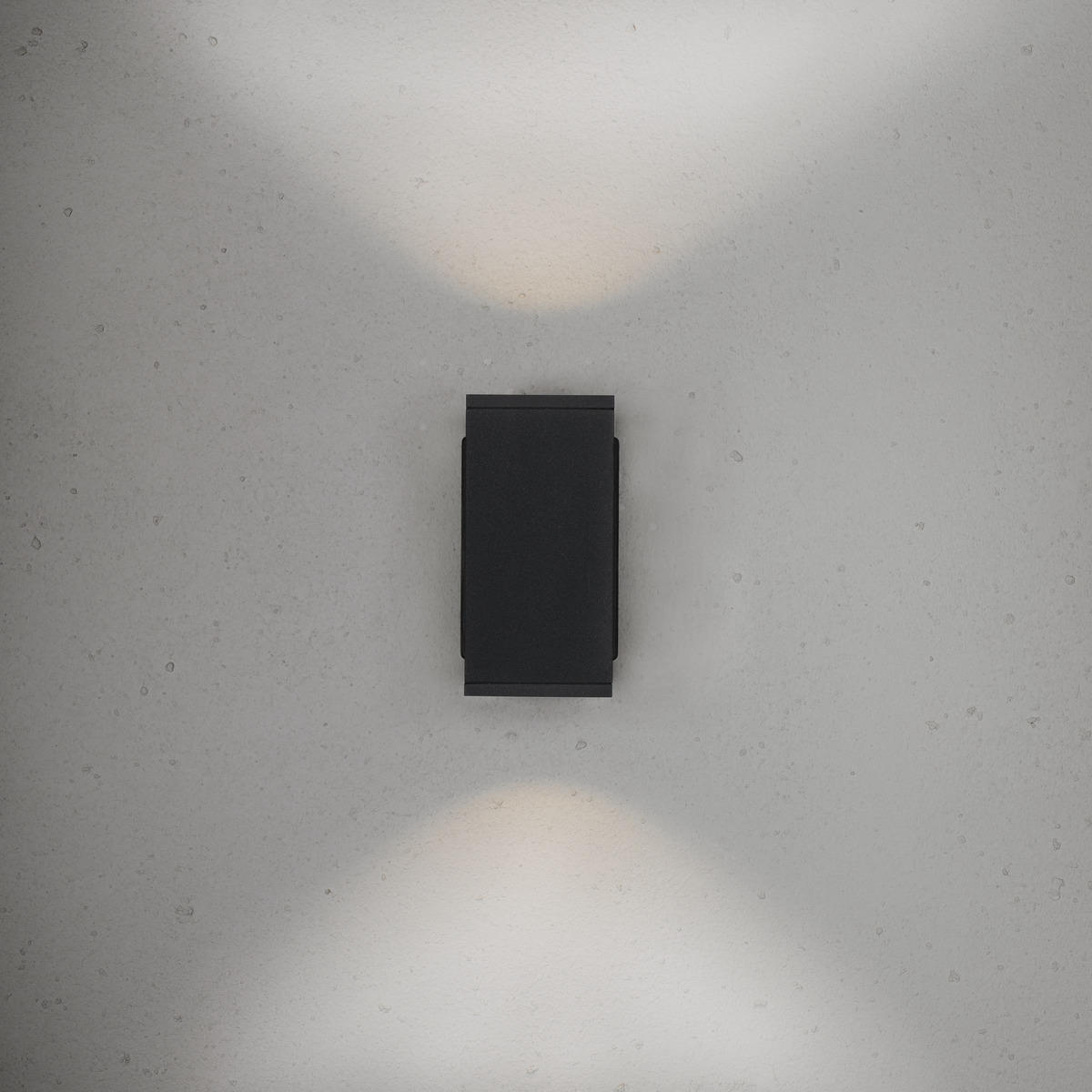

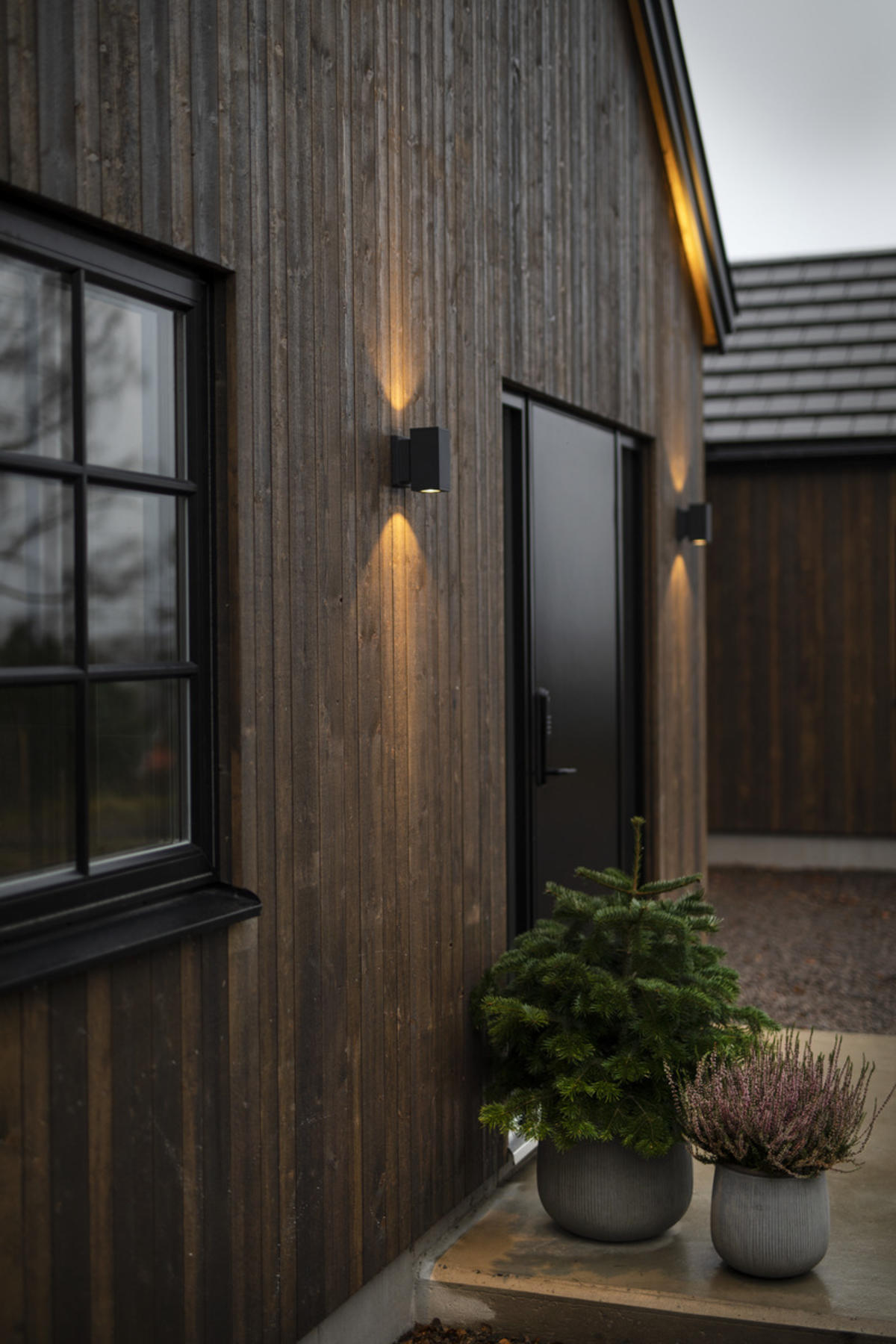

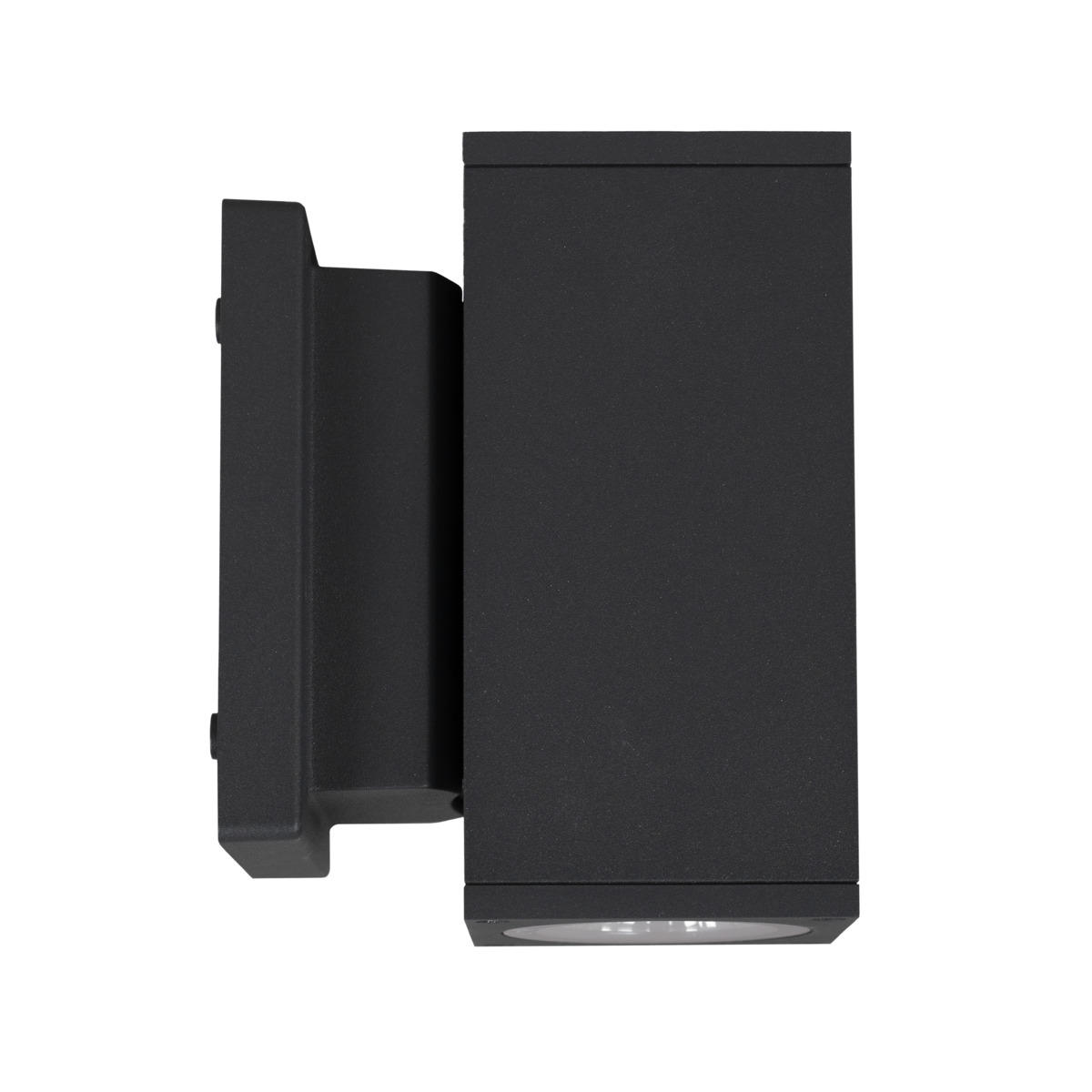

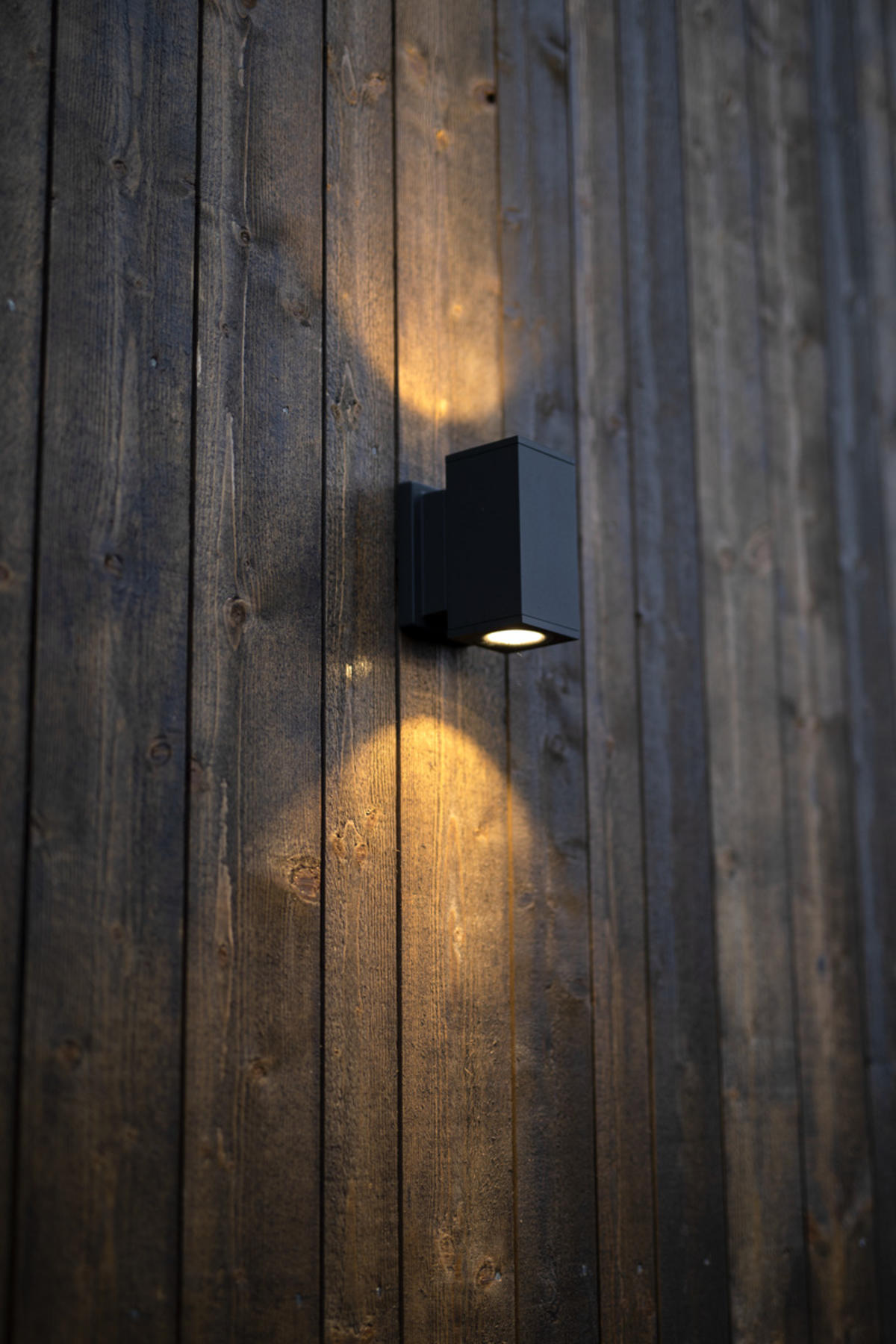

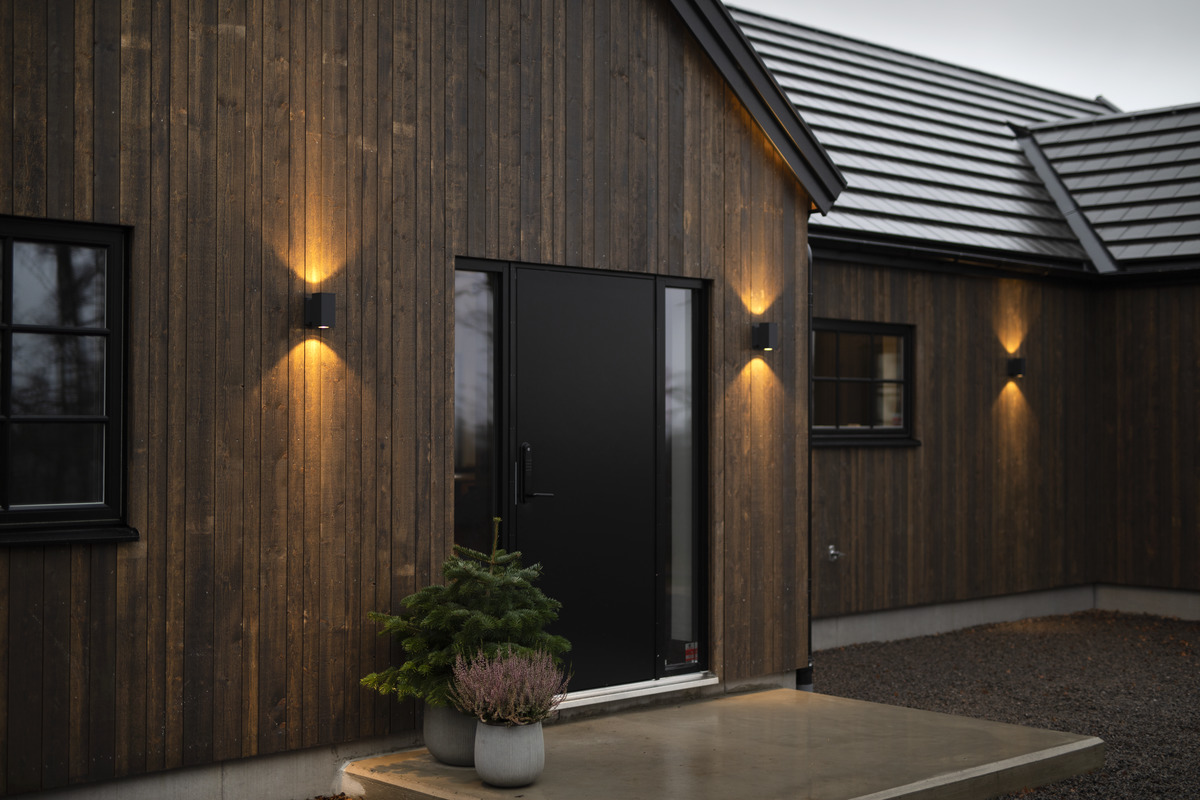

Wall luminaire with rectangular design, integrated phase dimmable driver and both upward and downward light emission. Light up the facade, create a welcoming impression at the entrance and easily dim the light to the desired level. IP65 design with luminaire housing for harsh outdoor climate. Easily installed thanks to separate rear element with double cable bushings and push-in, loop-in, loop-out terminal block for direct connection to 230V. Spacers for surface-mounted cable routing included. Dimmable with most common dimmers on the market.
Exists in several colors
  • Vit
  • Grå
  • Antracit

Variants

GTIN Item Name Color
Bloc II Anthracite 3000K 7392971141572 Bloc II Anthracite 3000K Antracit
Bloc II White 3000K 7392971141558 Bloc II White 3000K White
Bloc II Grey 3000K 7392971141565 Bloc II Grey 3000K Grey

Bloc II Anthracite 3000K

Description
GTIN 7392971141572
Item Name Bloc II Anthracite 3000K
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 2x1020
Luminaire Lumen (lm) 750
Beam Angle (°) 25
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 2
Number of LED (pcs) 2
Life Time L80 50 000h Ta 25°C
Nominel Life Time (h) 50000
Lumen maintenance 50 000h L82
LLMF @ 50 000h 0,82
Life Time Driver 50 000h/5%
Technical data
Adjustable No
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Voltage Forward (Vf) 16
Power LED (W) 6
Power Luminaire (W) 7
System Power (W) 7
Efficiency Luminaire (lm/W) 107
Efficiency System (lm/W) 107
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Driver Manufacturer Hide-a-lite
Connection (type) Quick Terminal
Connection (mm2) 3x0,5-2,5
Through Wiring Yes
Strain Relief Yes
Power Factor ʎ 0,9
Efficiency (%) 80
Operating Temperature -20…+50
Max. Tc (°C) 85
Dimmable Yes
Type of Dimming Trailing Edge
Dimming secondary side AM
Fuse B10 (pcs) 10
Fuse B16 (pcs) 18
Fuse C10 (pcs) 36
Fuse C16 (pcs) 60
Color and material
Material Aluminium
Color Antracit
Environmental Assessment Byggvarubedömningen
Measurement and installation
Operating Environment Indoor / wet locations, Outdoor
IP Degree of Protection 65
Protection Class I
Installation Surface mounted
Mounting Installation Screw Mounting
Approval Marks CE
Impact Strength IK05
Filament Test IEC 695-2-1(°C) 650

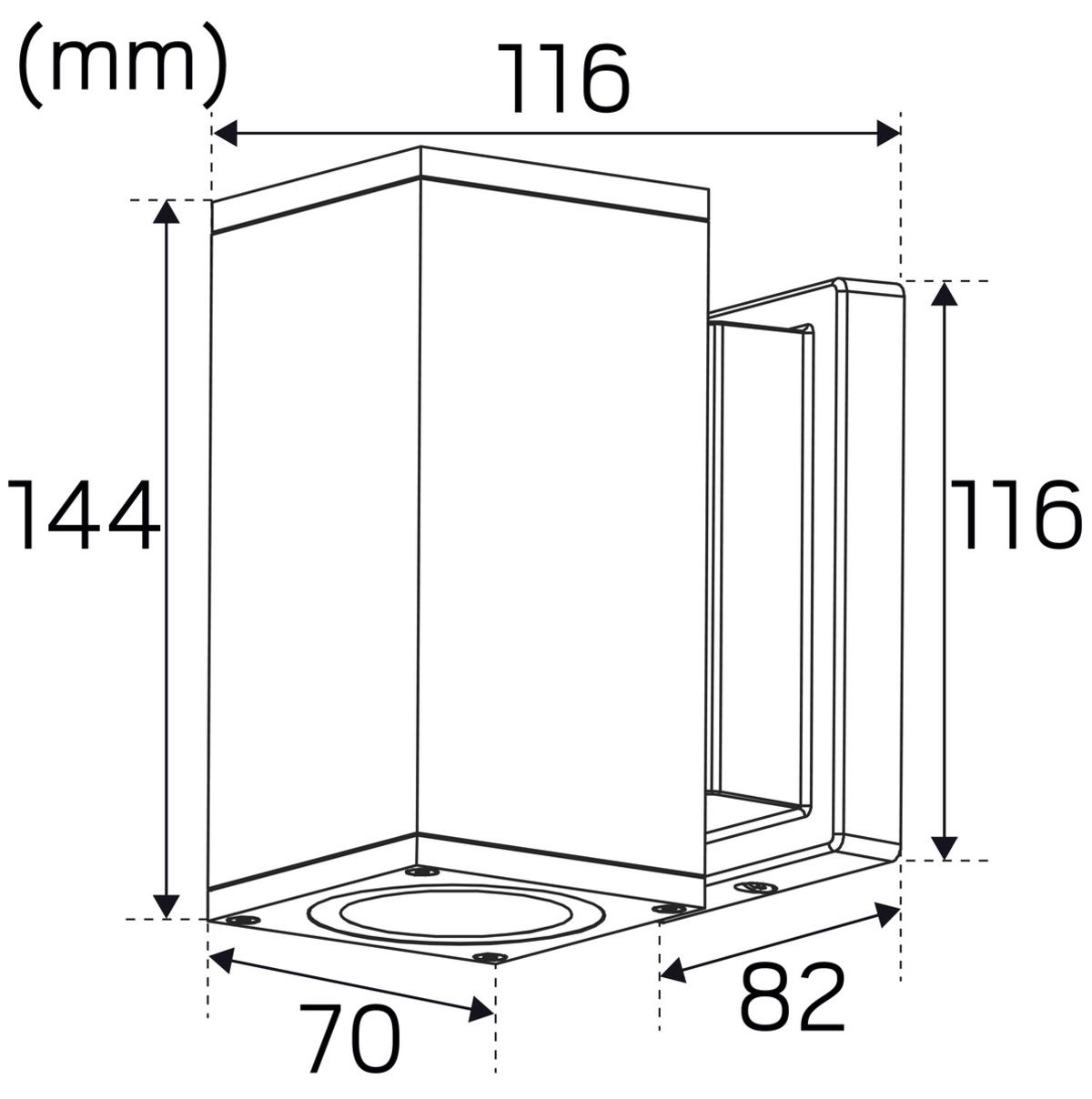

Width (mm) 82
Height (mm) 142
Depth (mm) 115
Weight (kg) 0,844

Images and downloads

Accessories

No accessories for this product.
