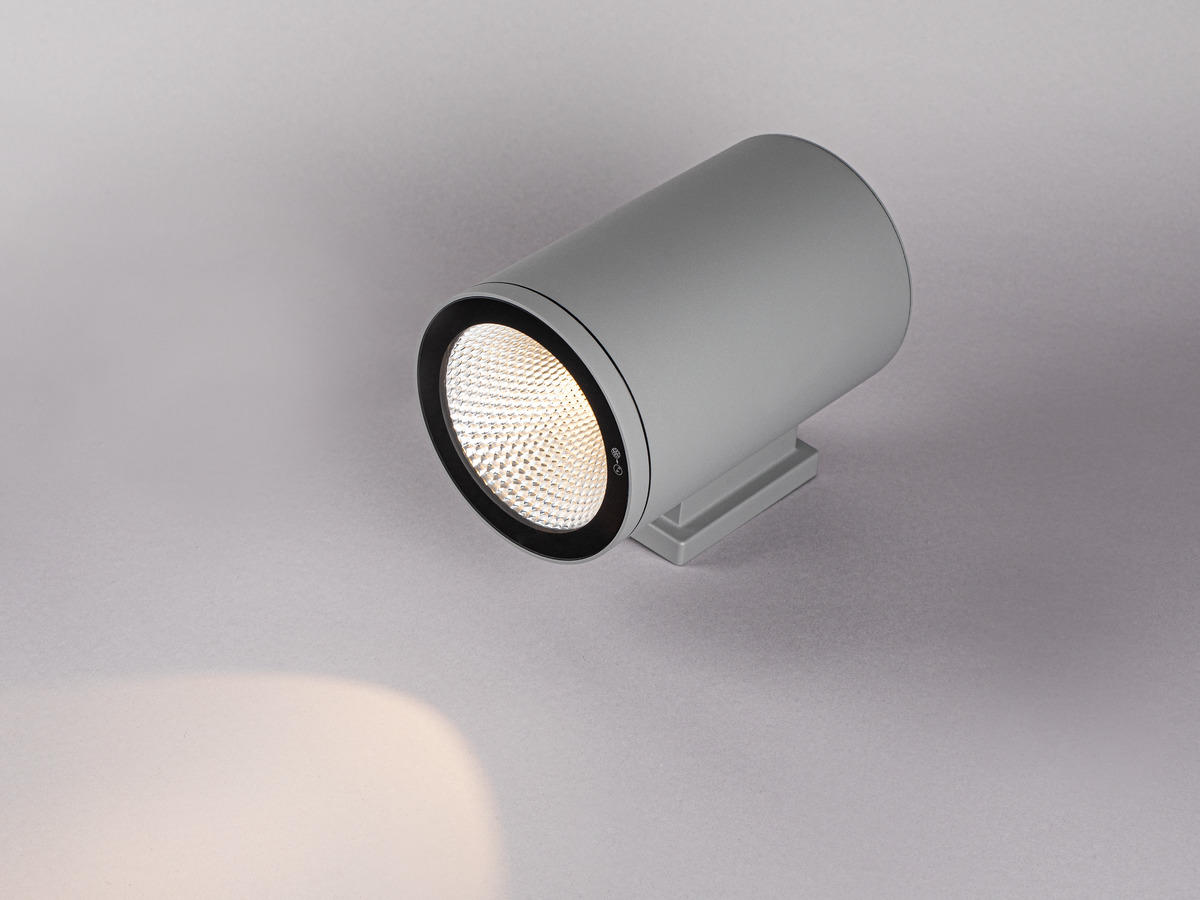

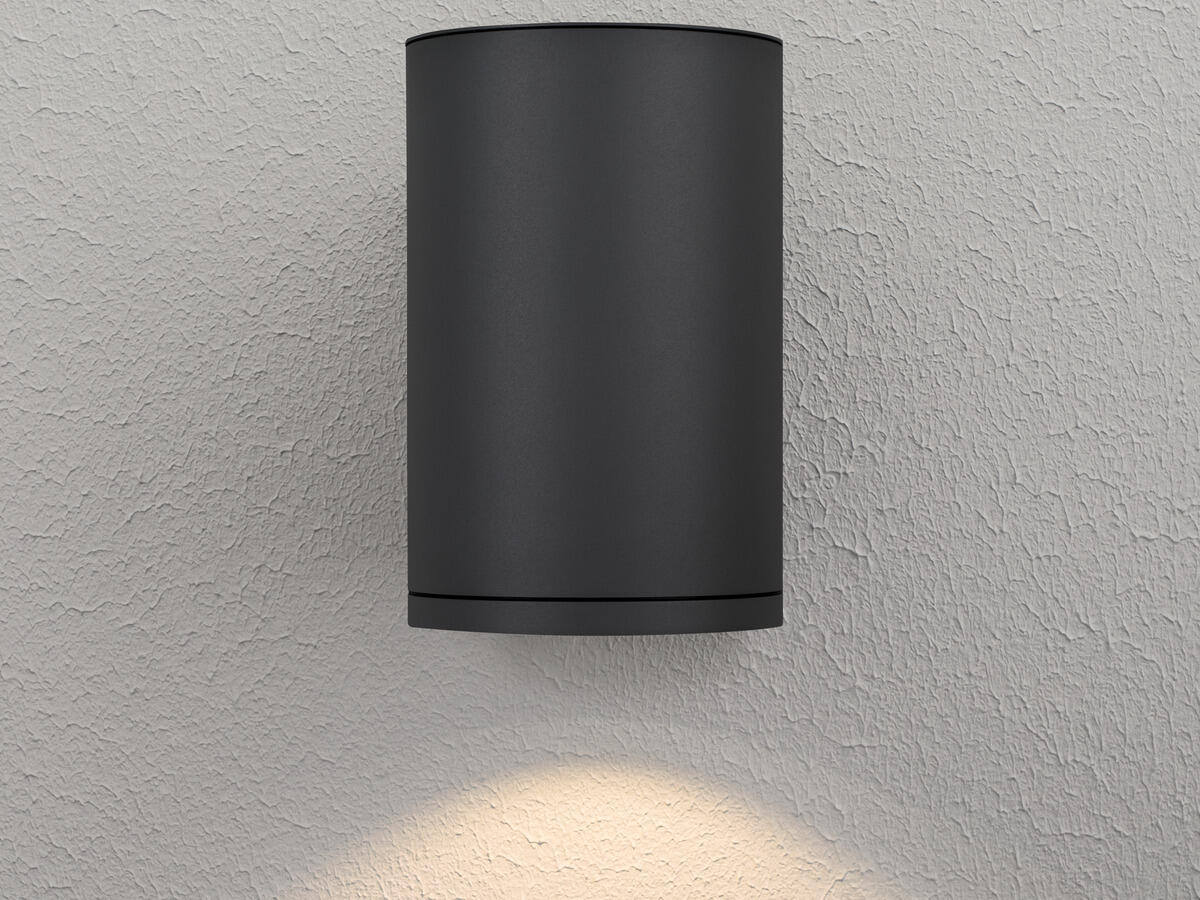

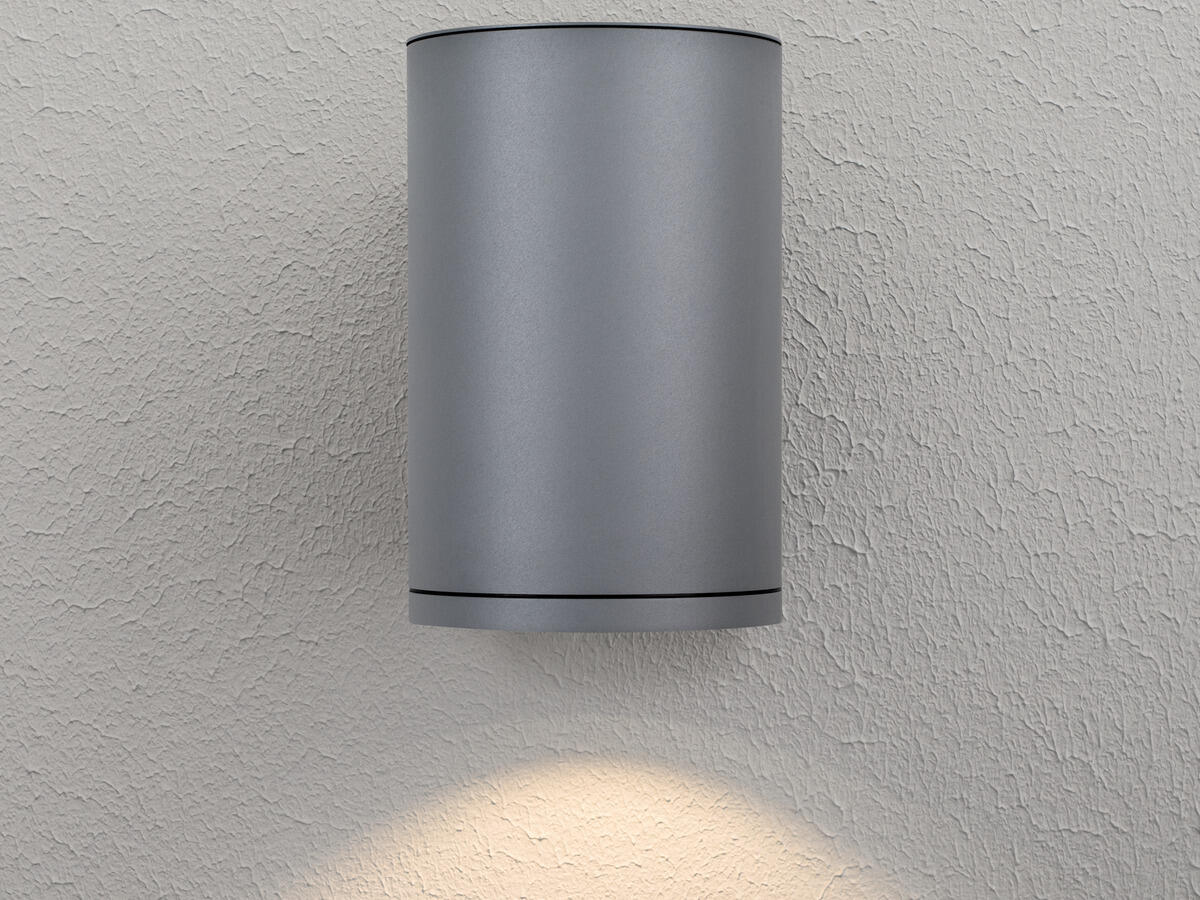

Milo XXL I

Wall luminaire in timeless design with downward light source for lighting large properties and facades. Impact resistant (IK09) cylinder-shaped luminaire that creates security and provides good lighting during the dark hours of the day. Easily installed thanks to separate rear element and push-in, loop-in, loop-out terminal block for direct connection to 230V. IP65 model, anodised with durable powder coating for tough environments. Comes with integrated driver and spacers for surface-mounted cable routing.
Exists in several colors
  • Grå
  • Antracit
Variants GTIN Item Name Color Colour Temperature (K) Luminaire Lumen (lm)
Milo XXL I Anthracite 4000K 7392971138077 Milo XXL I Anthracite 4000K Antracit 4000 1930
Milo XXL I Grey 3000K 7392971137971 Milo XXL I Grey 3000K Grey 3000 1800
Milo XXL I Anthracite 3000K 7392971137988 Milo XXL I Anthracite 3000K Antracit 3000 1800

Milo XXL I Anthracite 4000K

Save as favourite Save as pdf
Description
GTIN 7392971138077
Item Name Milo XXL I Anthracite 4000K
Warranty 5 years
Light Technical Data
Technical data
Operation and Connection
Color and material
Measurement and installation

Accessories

No accessories for this product.
