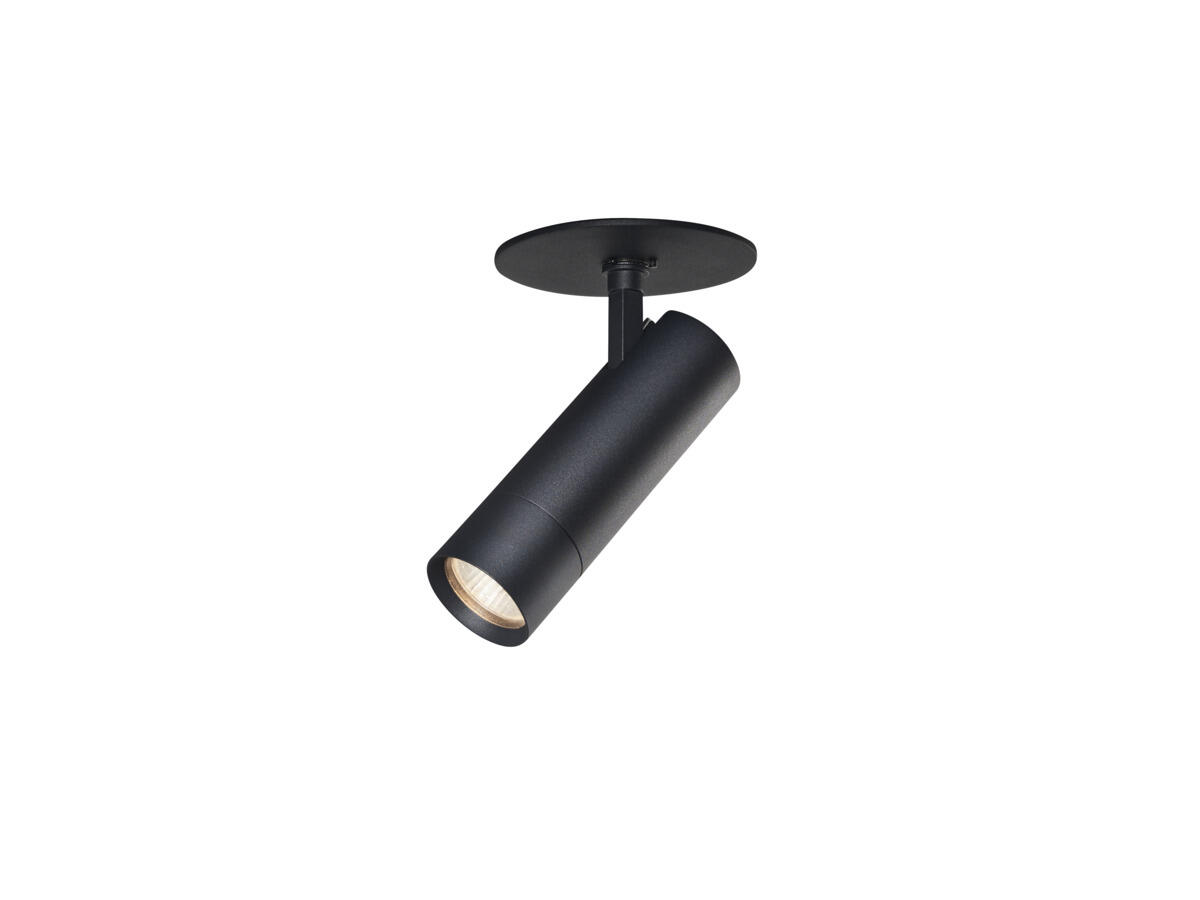

Optic Spot
- Selectable colour temperature via DIP-Switch ColourTemp
- 230V spotlight with integrated dimmable driver with fixing bracket for recessed installation
- Adjustable 90° and rotatable 355°
- Replaceable LED and driver
- Accessories available for modifying light pattern and anti-glare
- List of recommended dimmers, see www.hidealite.se

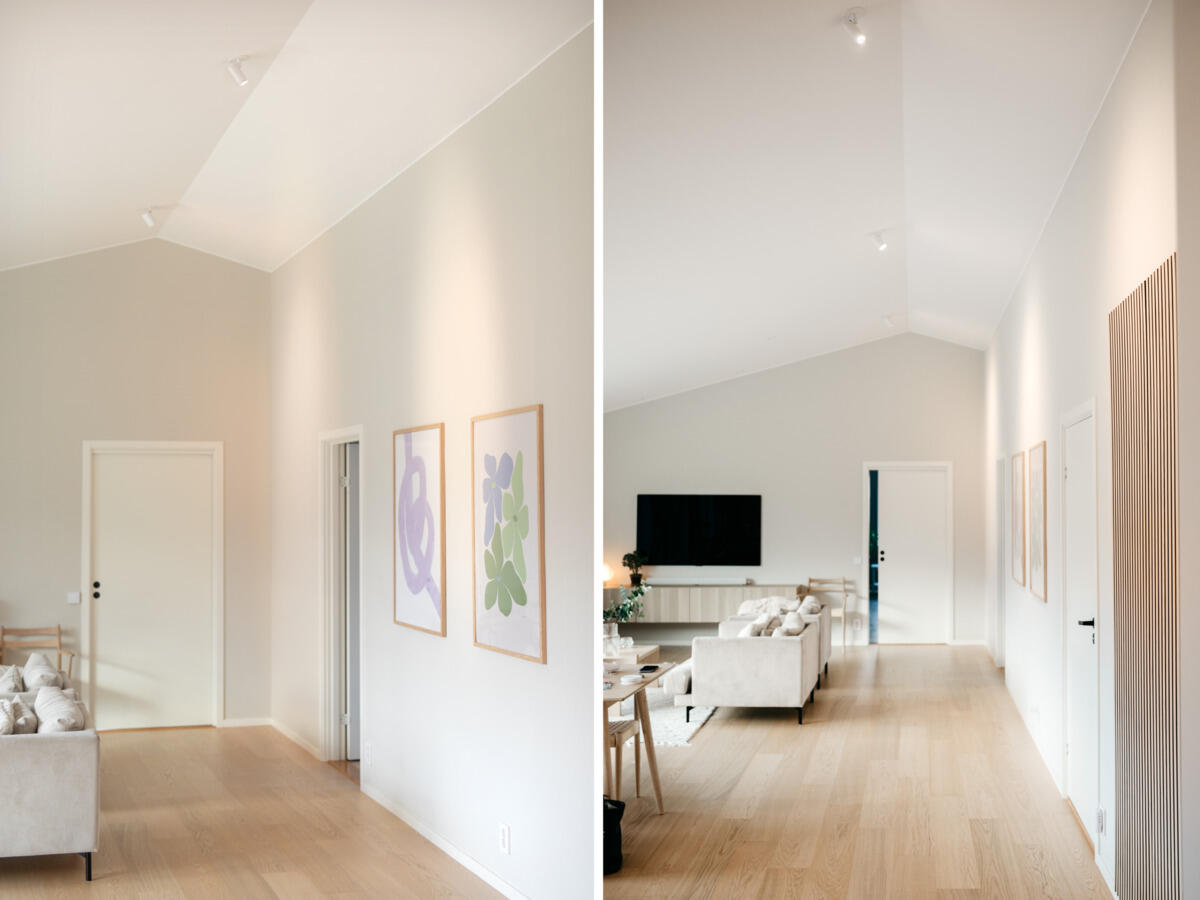

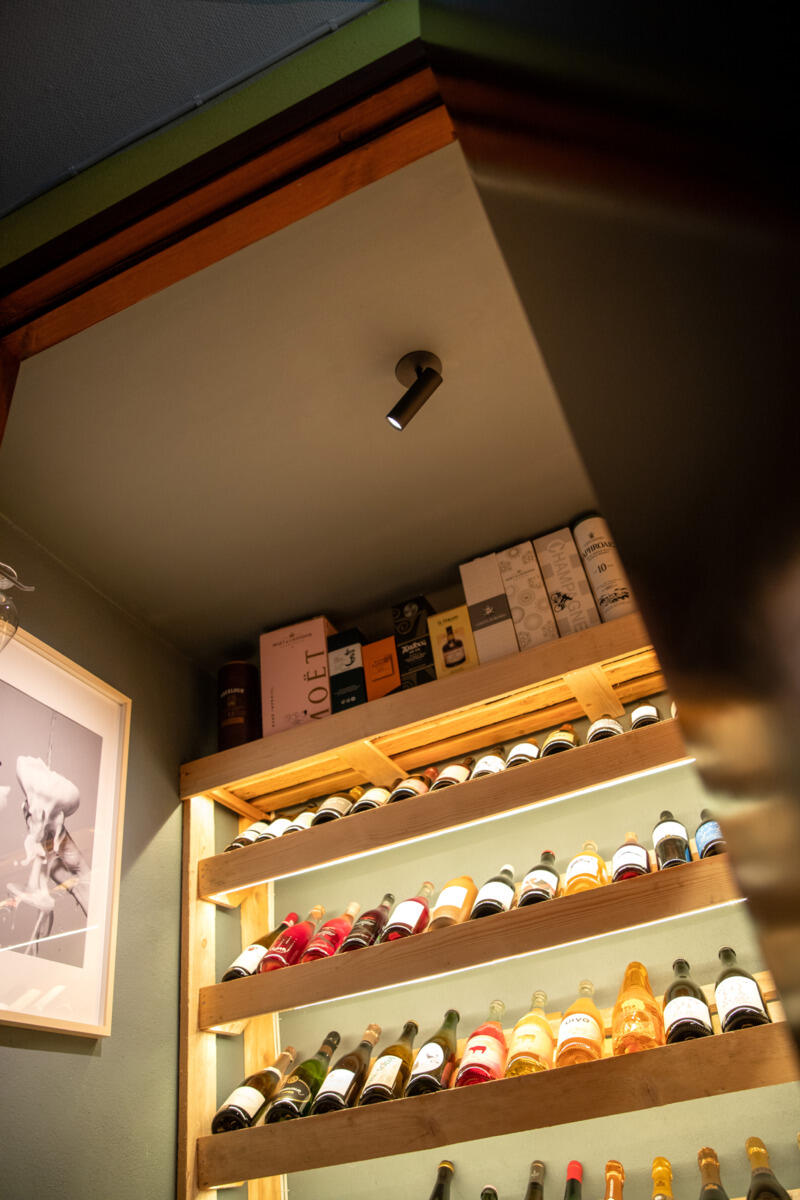

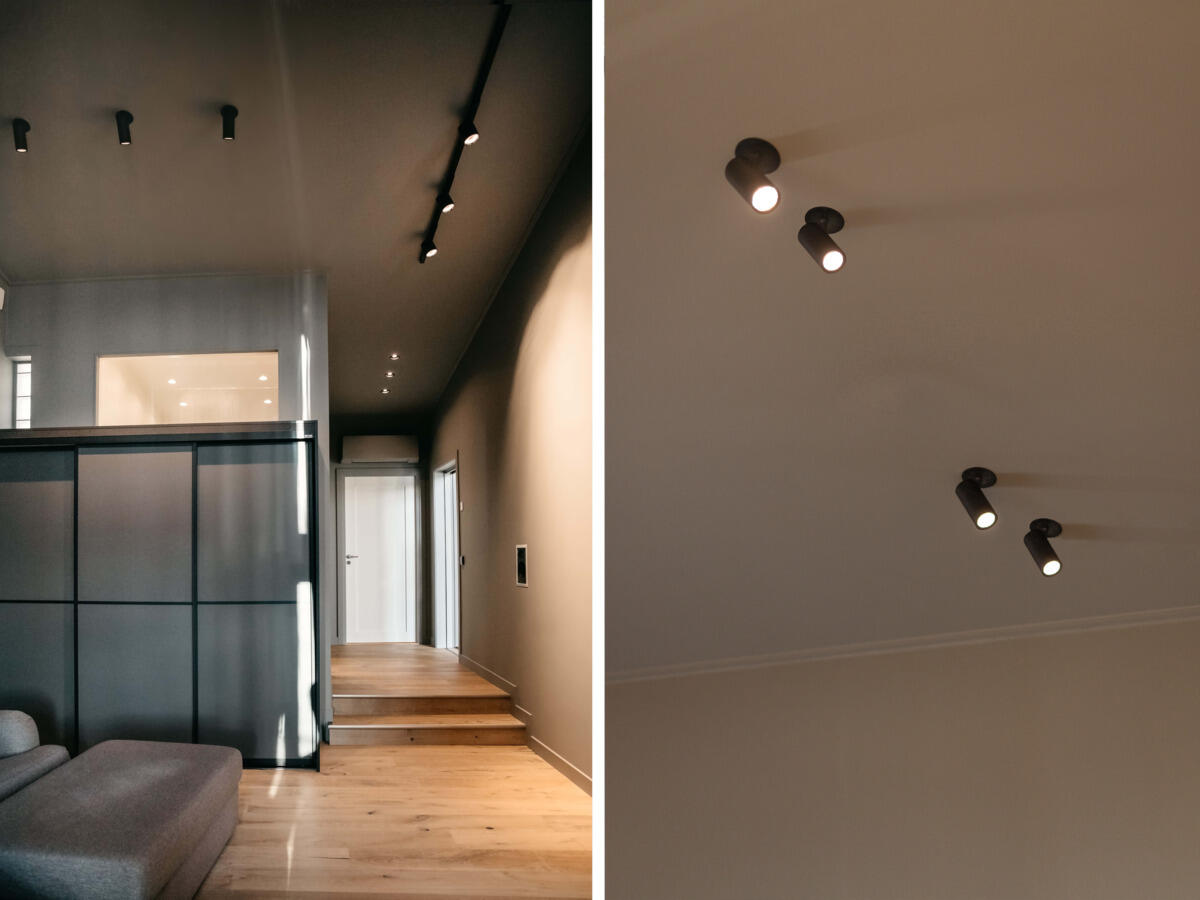

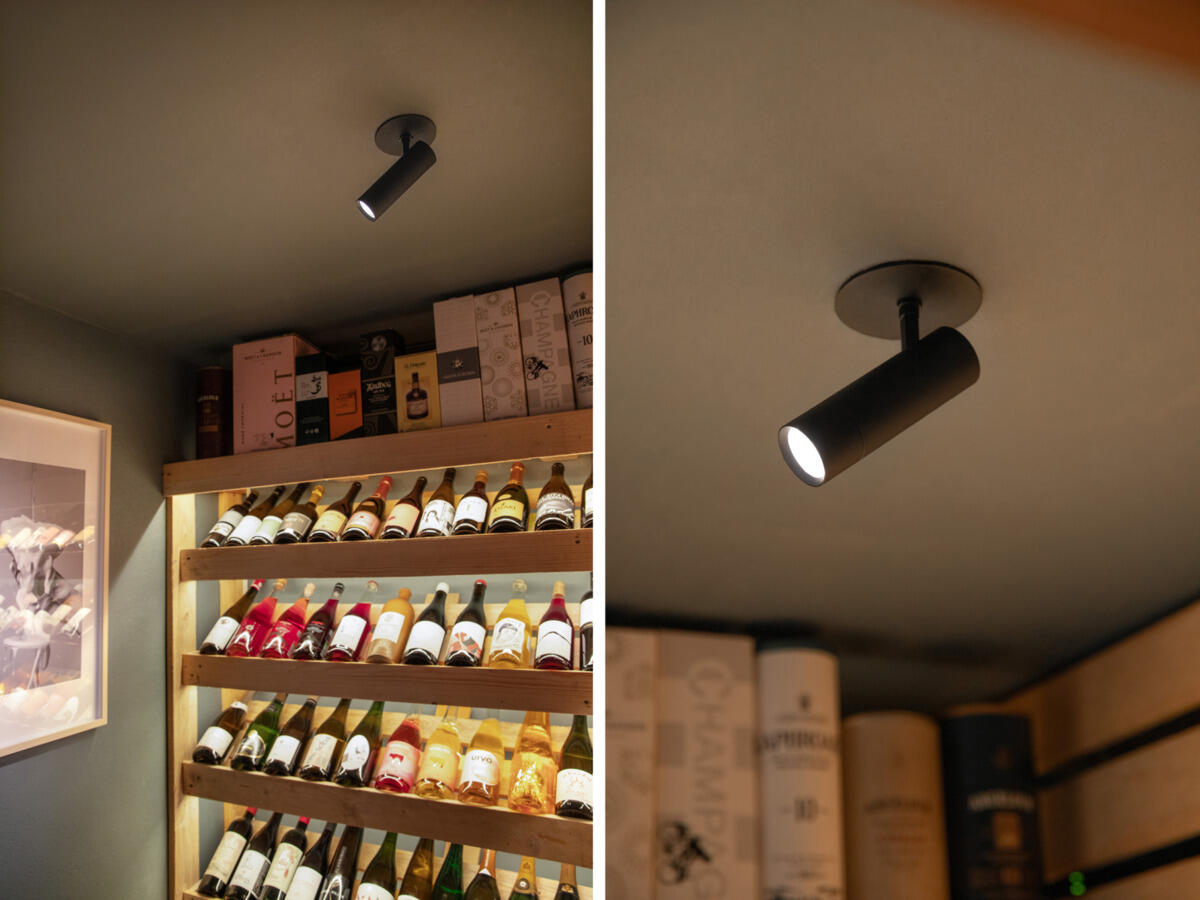

Discrete, compact and highly glare-free spotlight with fixing bracket for recessed installation in ceilings. 230V luminaire with integrated dimmable driver. Replaceable LED and driver – built for the future Adjustable 90° and rotatable 355° – when installing the luminaire in a sloping ceiling, it is easier to direct the light towards specific areas, such as walls or pictures, which gives a better result than with recessed downlights. Using the DIP-Switch colour temp function, colour temperature is easily adjusted with the touch of a button on the back of the luminaire. Our luminaire with reflector technology is optimised to create a highly glare-free and sharp light distribution that directs the light on whatever you want to highlight. For improved glare reduction, the Honeycomb accessory can be added to the luminaire. You can easily replace the reflector with a lens accessory to adjust the light distribution as needed.
| Variants | GTIN | Item Name | Color | Max. Luminaire Lumen (lm) |
|---|---|---|---|---|
|
7392971151243 | Optic Spot XXS 36° Black | Black | 390 |
|

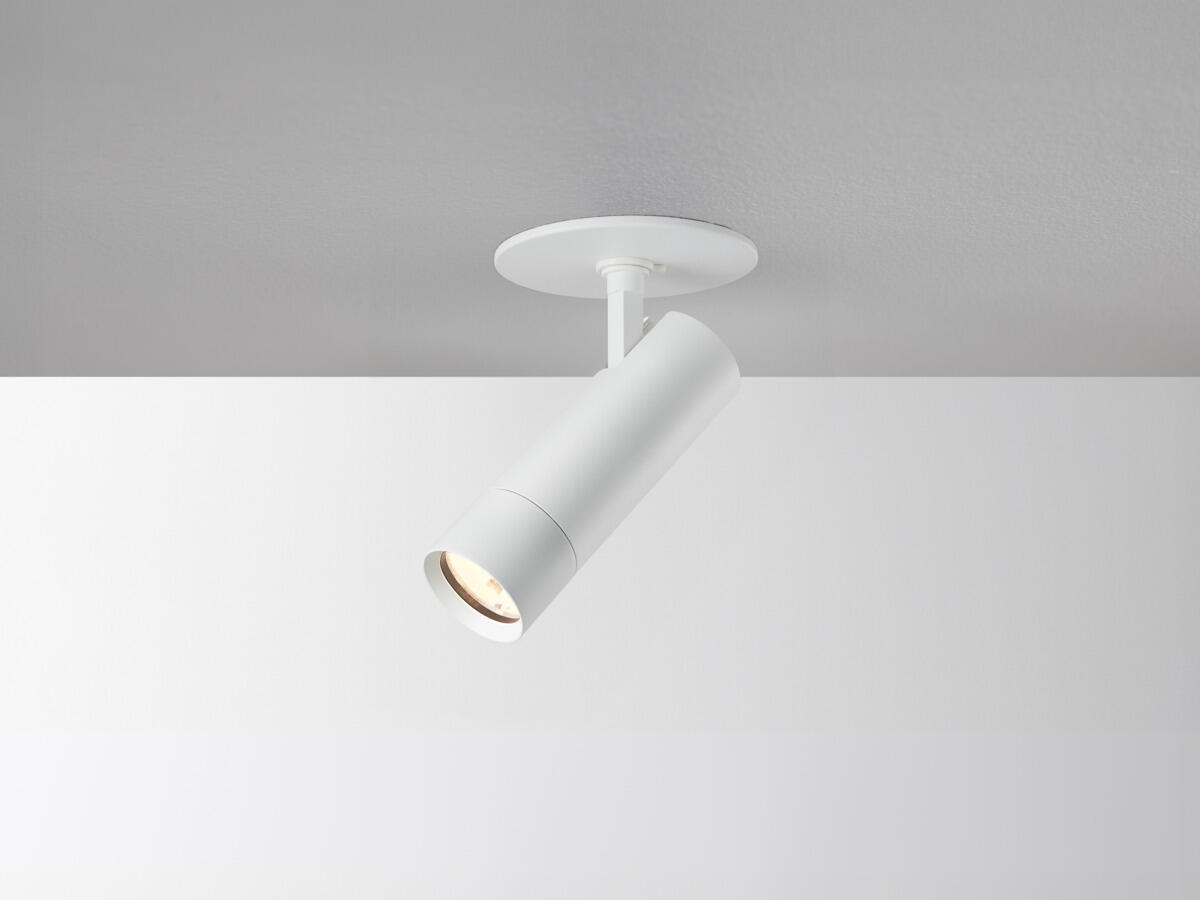

7392971151236 | Optic Spot XXS 36° White | White | 390 |
|

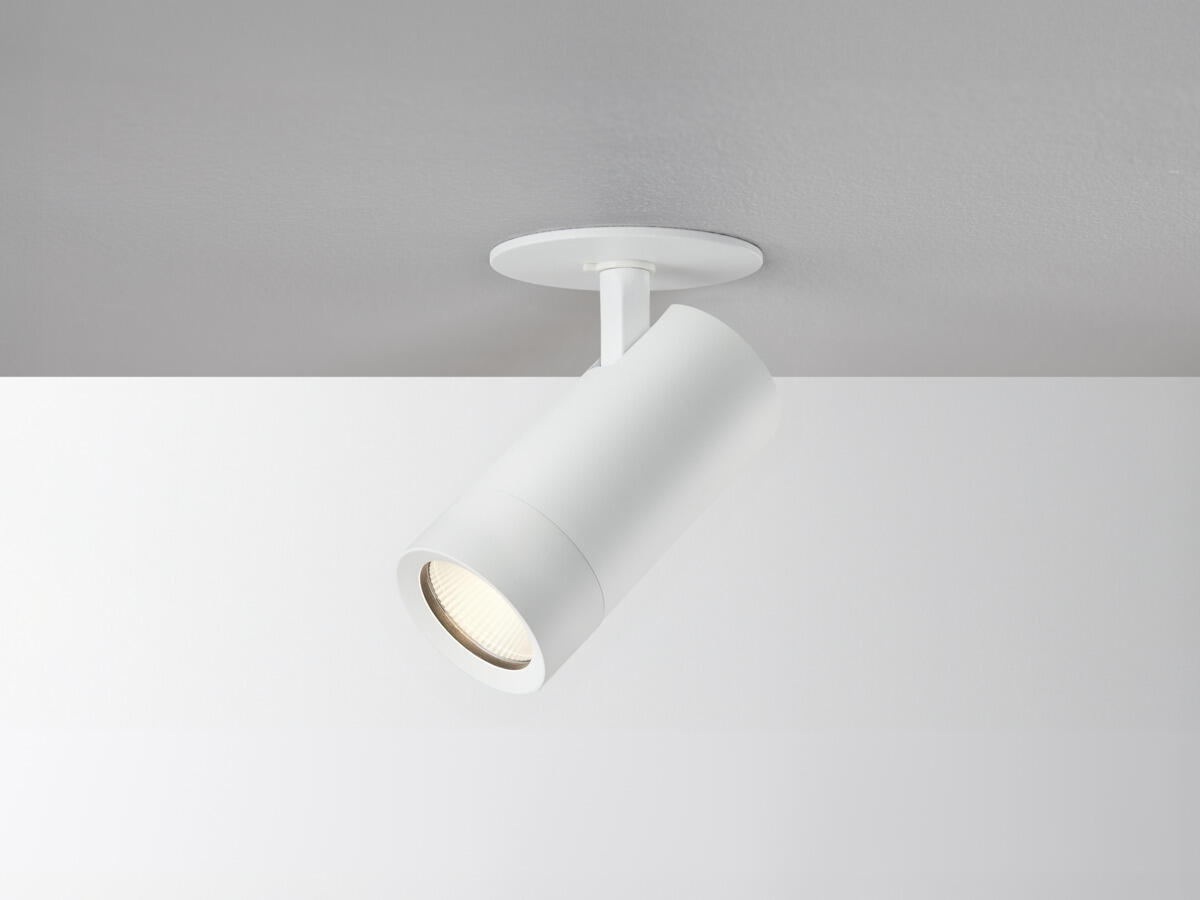

7392971151250 | Optic Spot XS 36° White | White | 770 |
|

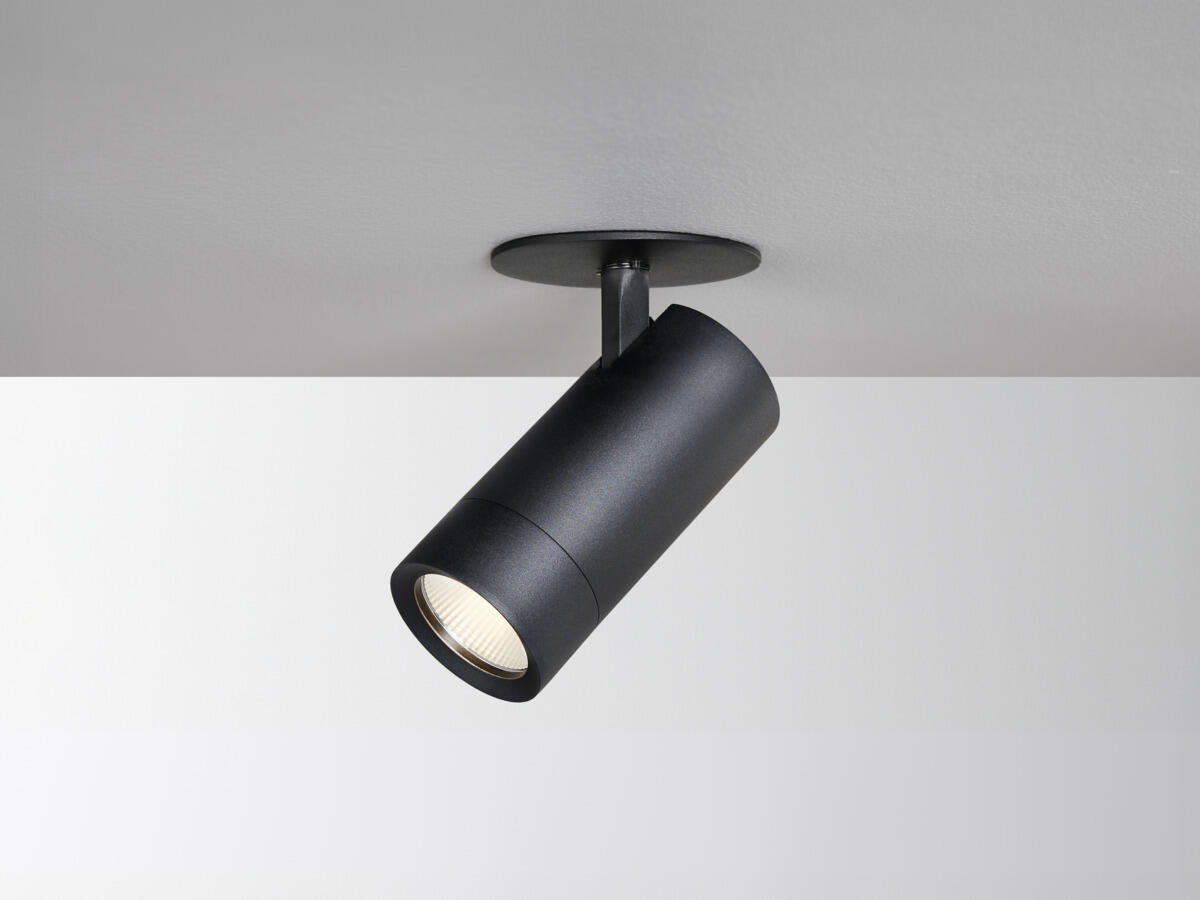

7392971151267 | Optic Spot XS 36° Black | Black | 770 |
Show more articles

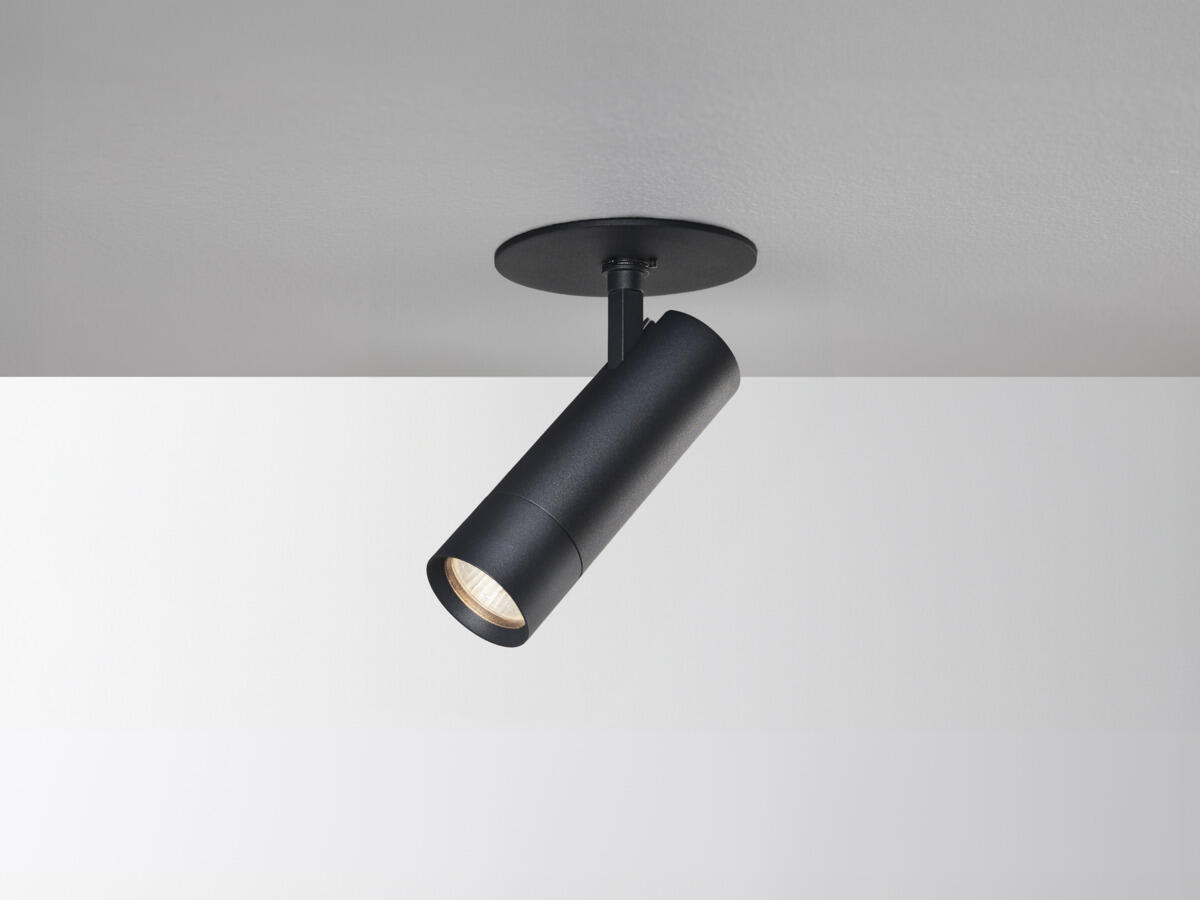

Optic Spot XXS 36° Black
-
GTIN 7392971151243Item Name Optic Spot XXS 36° BlackWarranty 5 years
- Light Technical Data
-

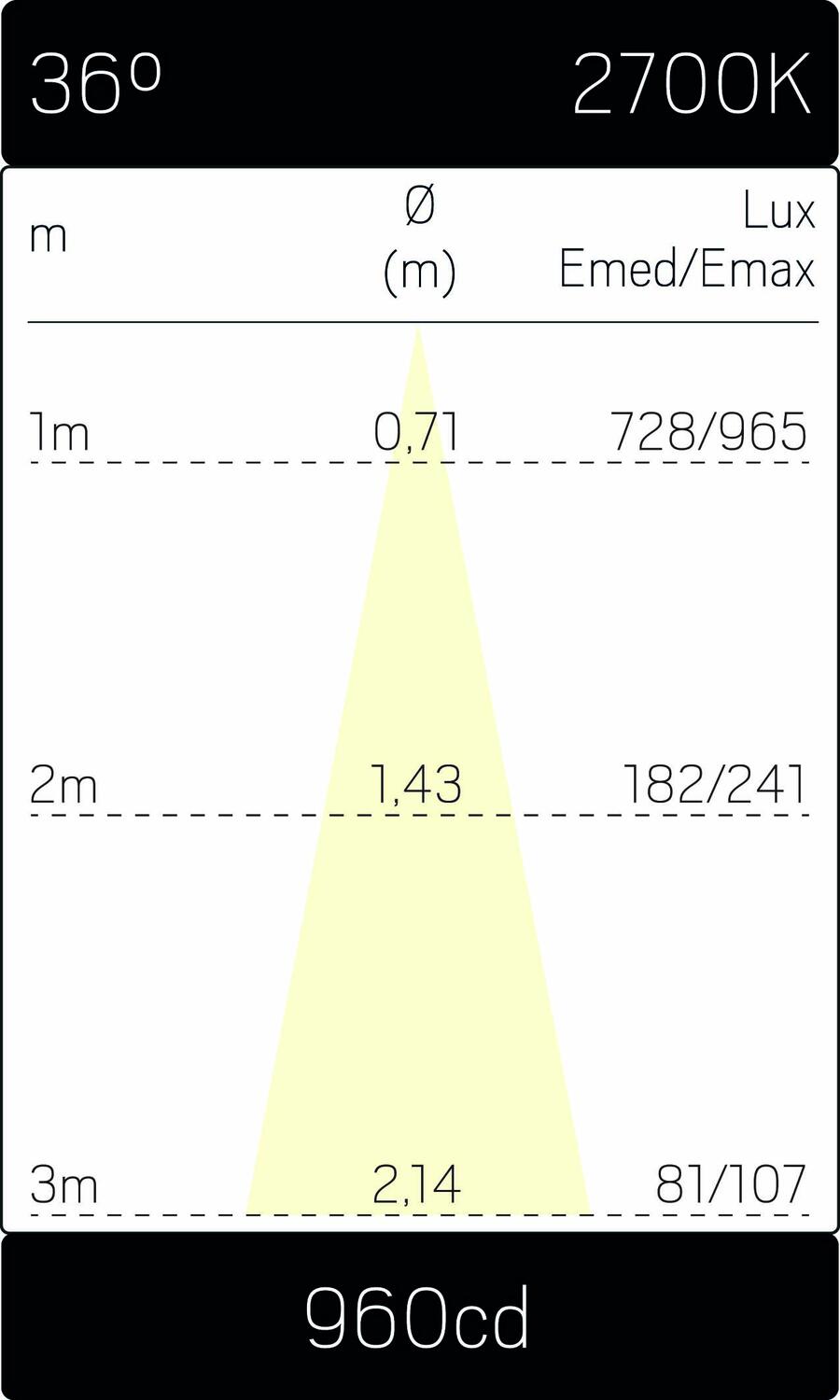

Max. Luminaire Lumen (lm) 390Light Source LEDLight Source Included YesReplaceability Replaceable LED by professional, Replaceable Control gear by professionalLED Colour Warm WhiteColour Temperature (K) 2700, 3000Colour Rendering Index (Ra) >90Colour Consistency (SDCM) 3Luminous Intensity (cd) 1000Beam Angle (°) 36Light sharing SymmetricLight Outlet DirectNumber of Lamps (pcs) 1Number of LED (pcs) 1Life Time h Ta °CNominel Life Time (h) 100000Lumen maintenance 50 000h L90Lumen maintenance 75 000h L84Lumen maintenance 100 000h L81LLMF @ 50 000h 0.9LLMF @ 100 000h 0.81Life Time Driver 100 000h/8%Flicker (PstLM) 0,036Stroboscopic effect (SVM) 0,176
- Technical data
-
Adjustable YesTiltable (°) 90Rotatable (°) 350Voltage (type) ACVoltage Interval (V) 220...240VVoltage Nominal (V) 230Line Frequency (Hz) 50Power LED (W) 4Max. Power Luminaire (W) 5,4Max. System Power (W) 5,4Max. Efficiency Luminaire (lm/W) 78Max. Efficiency System (lm/W) 78Containing light source energy efficiency class (EU) 2019/2015 F
- Operation and Connection
-
Dimmable YesType of Dimming Trailing EdgeDriver Included Yes - replaceableDriver Model Constant CurrentDriver Type Built-inDriver Manufacturer Hide-a-liteConnection (type) Quick TerminalLength Connection (cm) 25Connection (mm2) 3x0,5-2,5Through Wiring YesStrain Relief YesPower Factor ʎ 0,9Efficiency (%) 75Power loss (W) 1,4Leakage current (mA) (at 230 V, 50 Hz, full load) 0,05THD (%) 20Constant Current (mA) 110Min. Ta (°C) -20Max. Ta (°C) 40Max. Tc (°C) 85Dimming secondary side AMMemory Function Power Failure NoProtection Against Short Circuit, Overheating 120°C, OverloadInrush current (max/time) 2,8A 42µsMains surge protection DM (kV) 1Mains surge protection CM (kV) 2Fuse B10 (pcs) 80Fuse B16 (pcs) 130Fuse C10 (pcs) 135Fuse C16 (pcs) 215
- Color and material
-
Material AluminiumColor BlackHalogen free Yes
- Measurement and installation
-

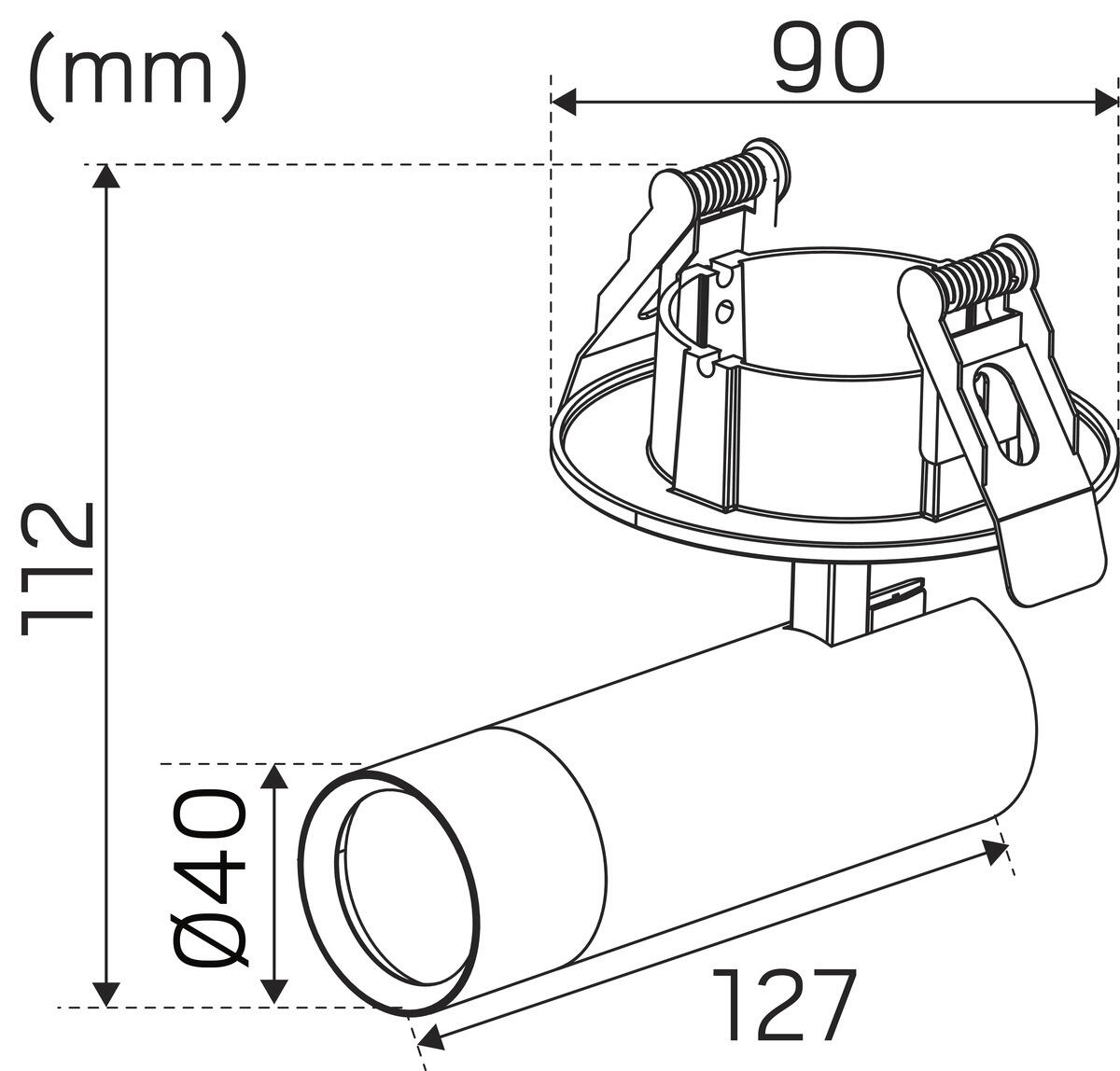

Operating EnvironmentIP Degree of Protection 20Protection Class IInstallation Ceiling, Built-inMounting Installation Mounting SpringCeiling Thickness Interval (mm) 3-30mmApproval Marks CE, a Hide-a-lite ChoiceFilament Test IEC 695-2-1(°C) 650Length (mm) 127Width (mm) 90Height (mm) 112Diameter (mm) 40Weight (kg) 0,31Height Recessed Part (mm) 40Height Exterior Part (mm) 72Built-in Ø (mm) 70-85mm
