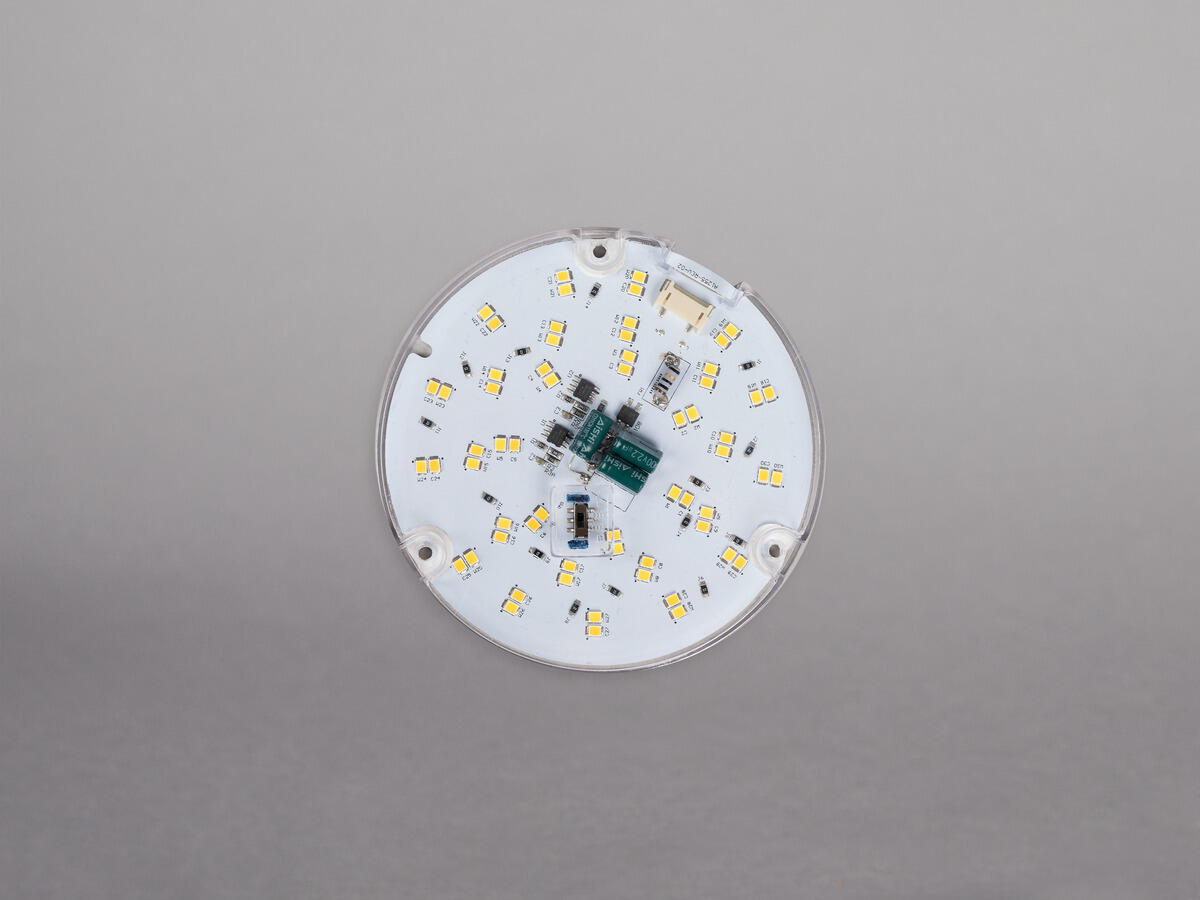

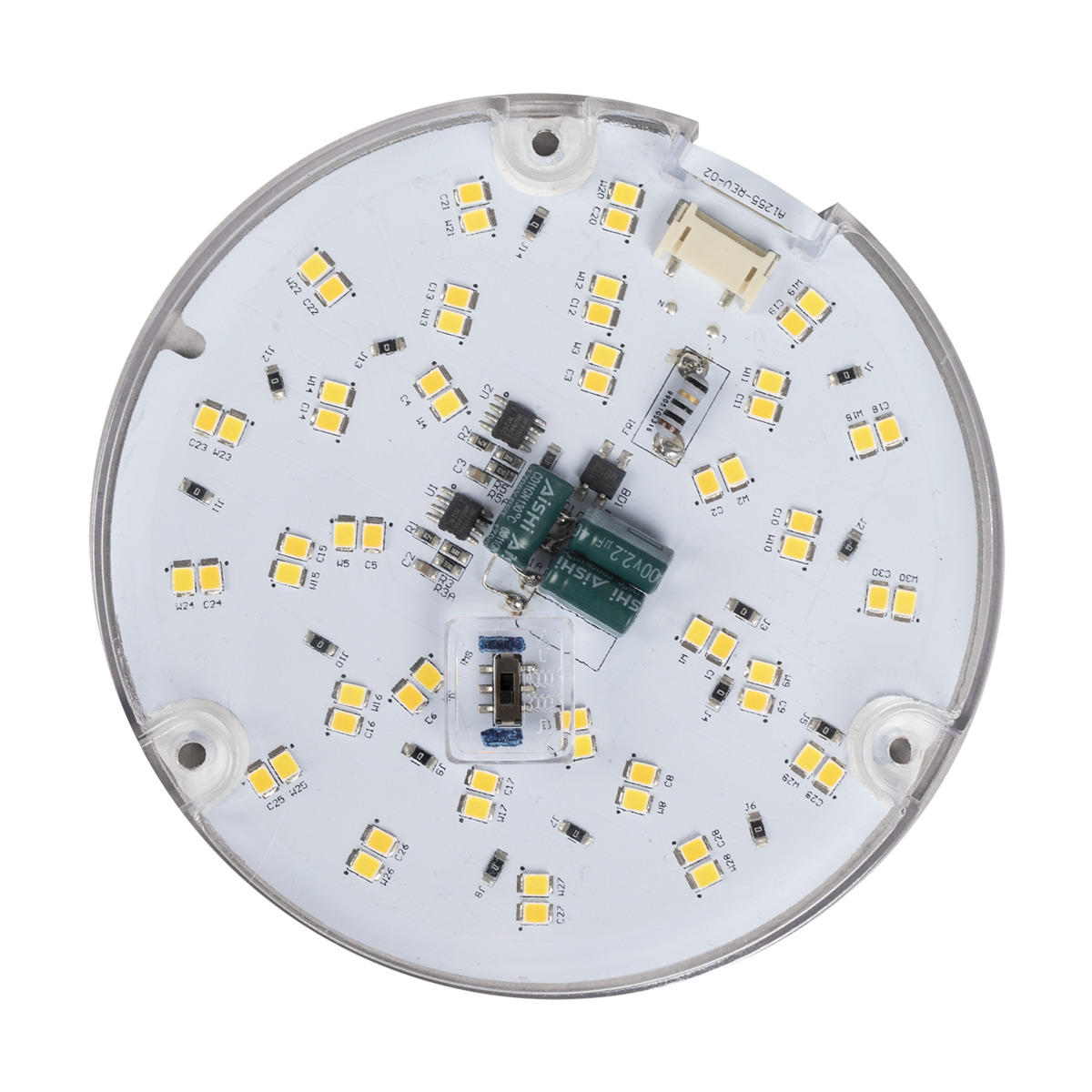

LED Light Source Moon Public 3000K/4000K

Exchangeable 230V LED module for Hide-a-lite Moon Public series for easy maintenance. Choose between 3000K or 4000K via integrated DIP-switch.

LED Light Source Moon Public 3000K/4000K A++

Description
GTIN 7392971136325
Item Name LED Light Source Moon Public 3000K/4000K
Warranty 5 years
Light Technical Data
LED Colour Warm White
Colour Temperature (K) 3000, 4000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 4
Luminaire Lumen (lm) 1650
Beam Angle (°) 180
Light Outlet Direct
Number of LED (pcs) 60
Life Time L80 50 000h Ta 25°C
Nominel Life Time (h) 50000
Technical data
Wattage Nominal (W) 16
Rated Wattage (W) 16
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50
Power LED (W) 13
Efficiency Luminaire (lm/W) 103
Efficiency System (lm/W) 103
Energy Efficiency Class A++
Energy Efficiency Index EEI 0,0826
Operation and Connection
Driver Included Yes
Connection (type) Mini Contact
Operating Temperature -35...+45
Max. Tc (°C) 85
Dimmable No
Color and material
Material Aluminium, Plastic
Color White
Measurement and installation
Operating Environment Indoor / wet locations, Outdoor
Approval Marks CE
Filament Test IEC 695-2-1(°C) 650
Height (mm) 11
Diameter (mm) 115
Weight (kg) 0,07

Images and downloads

Accessories

No accessories for this product.
