Actor Ceiling

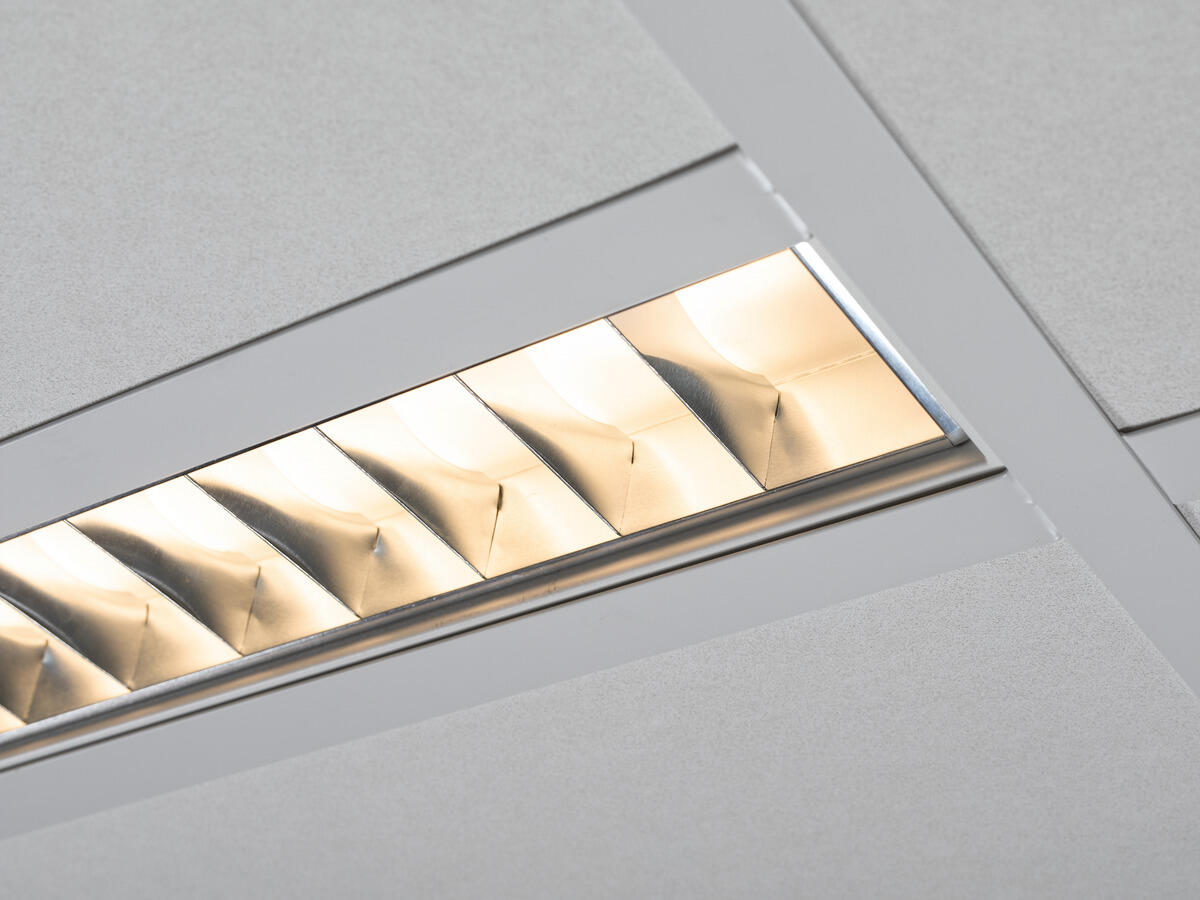

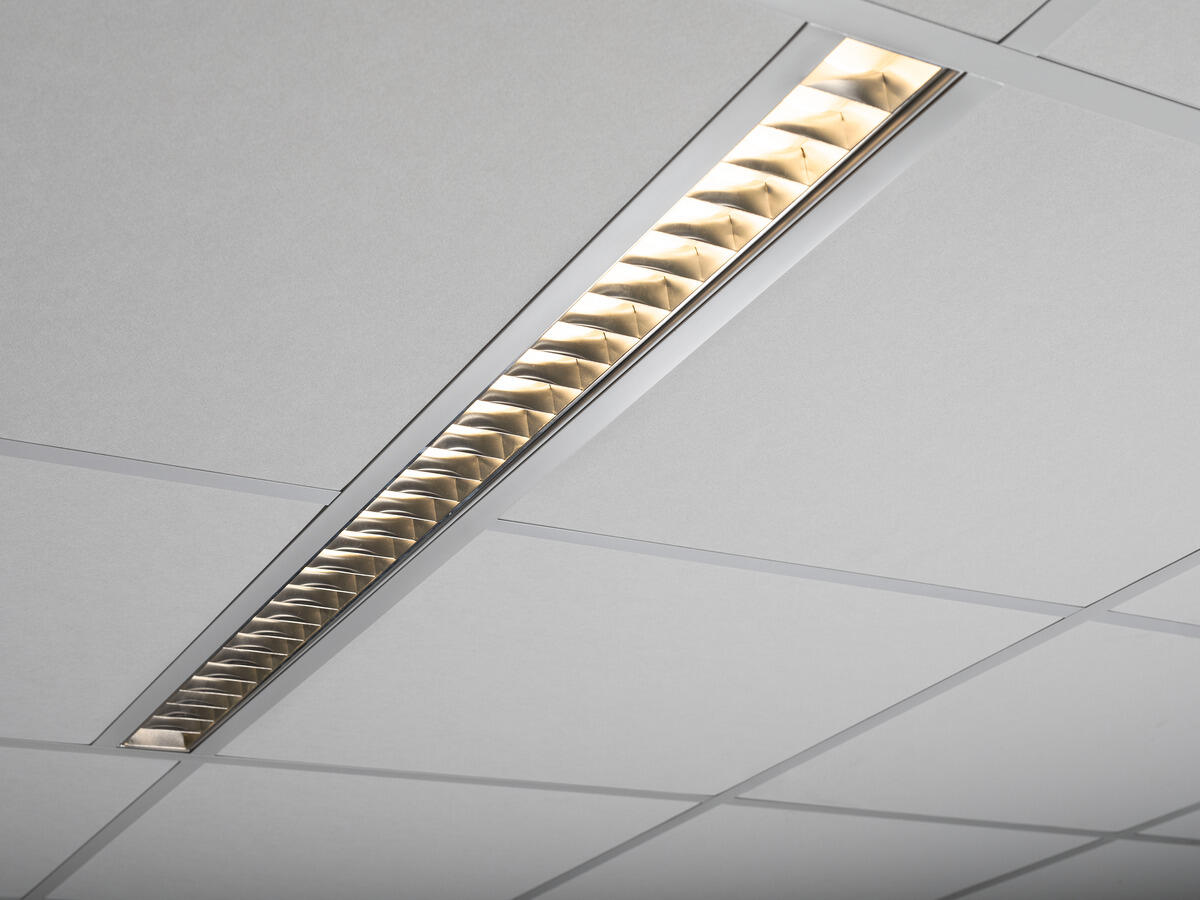

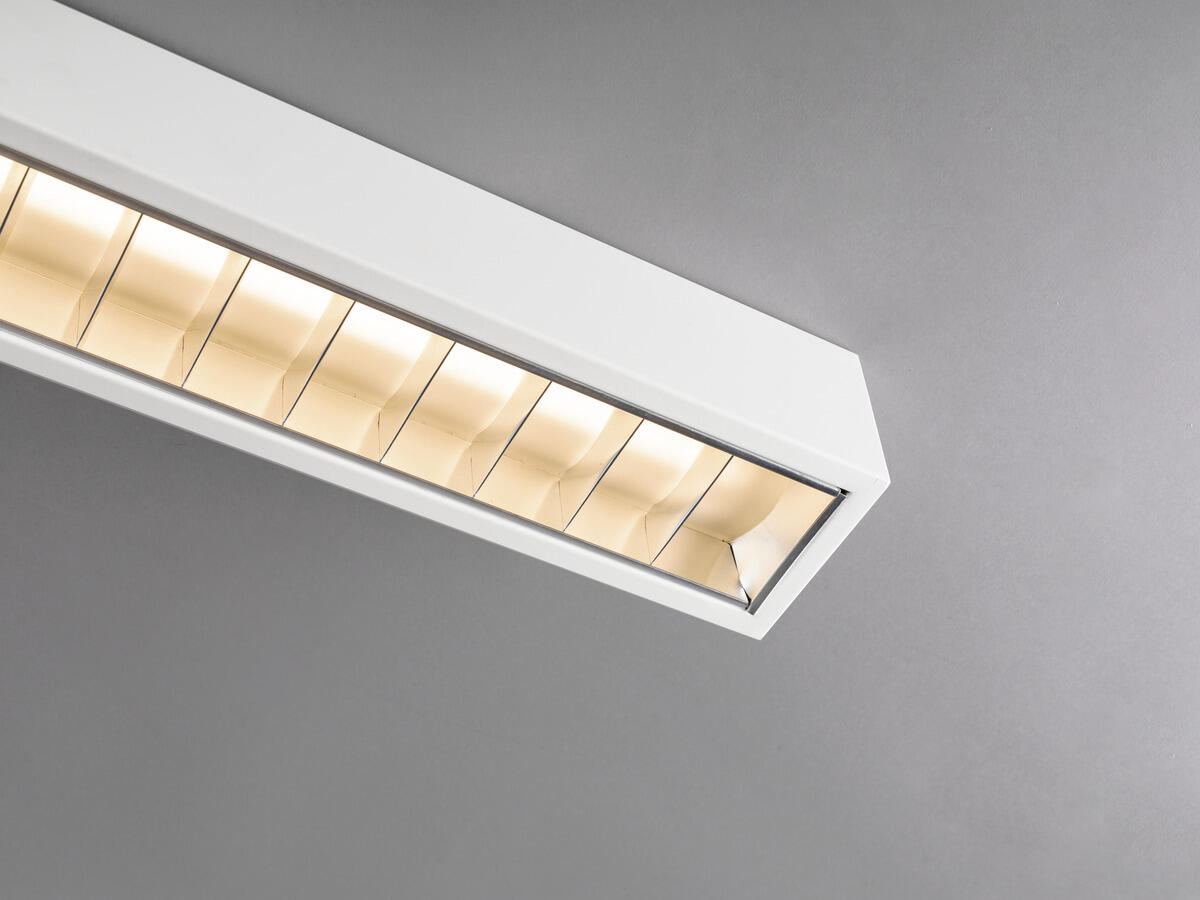

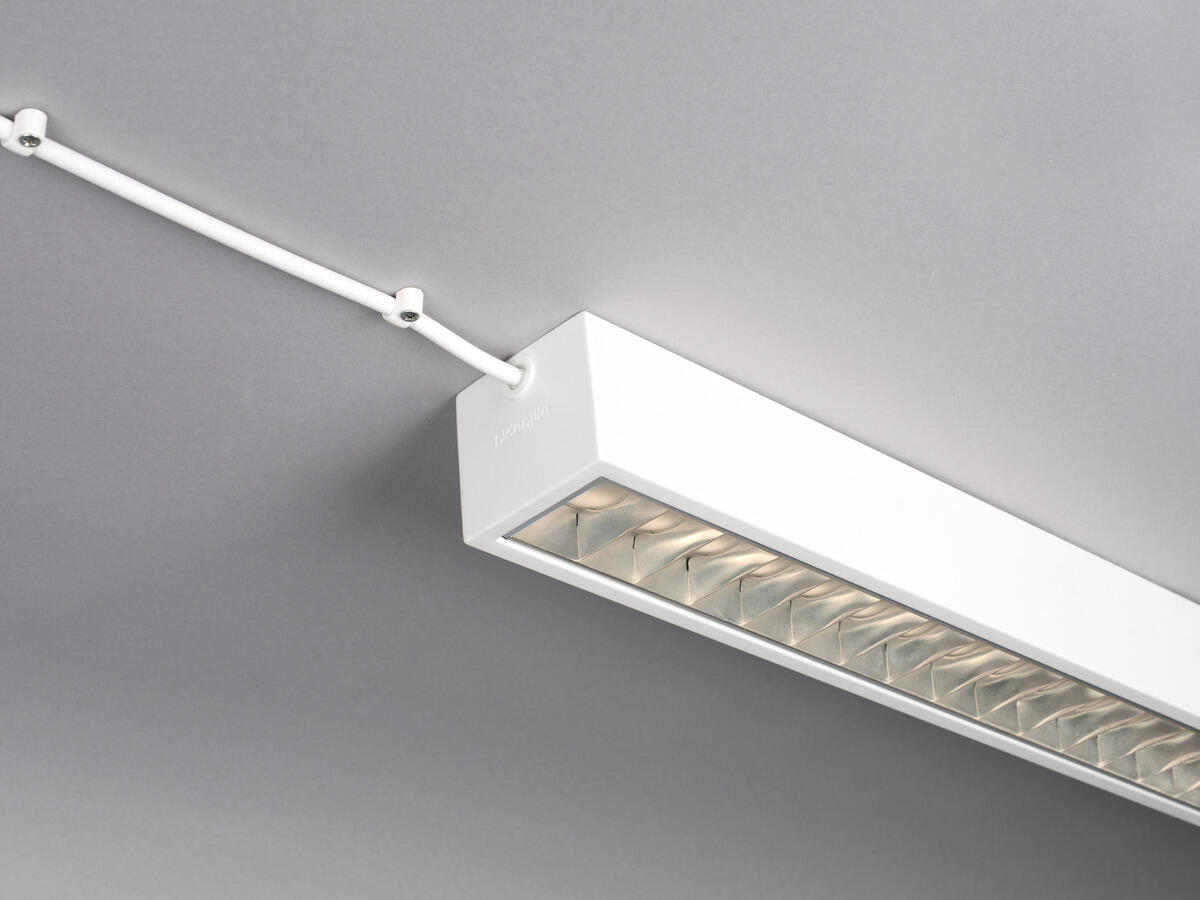

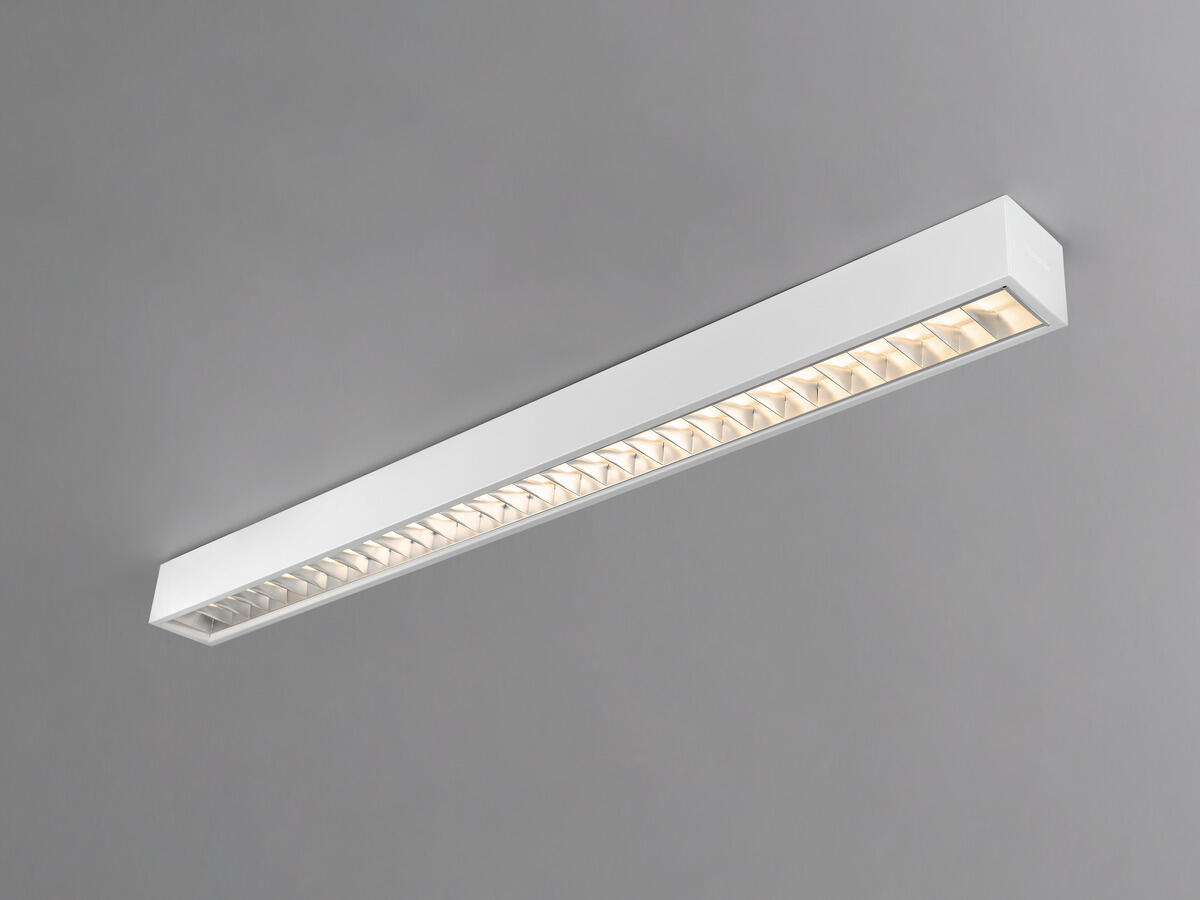

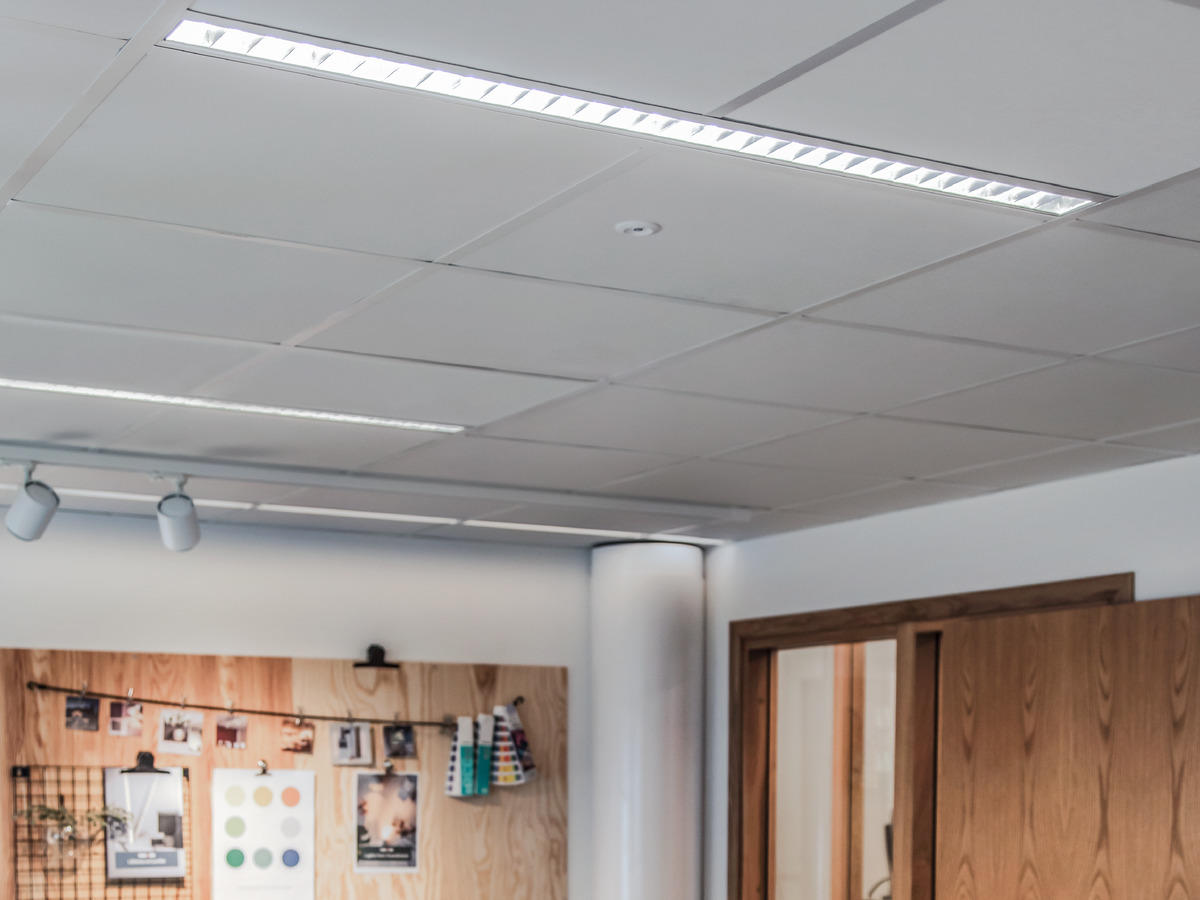

Luminaire for surface mounting in fixed ceiling or for recessed, without accessories, in ceiling with visible support profile. The LED light source is integrated with the anti-glare shield which is lowered and creates plenty of space for installation. Adapted for recessed installation without accessories in a ceiling with visible support profile. Provides a discrete and elegant impression in the ceiling. Meets screen and UGR requirements in standard conditions. Set the light level for different scenes via DALI/Push or control the lighting On/Off via an external switch.
Exists in one color


GTIN Item Name Colour Temperature (K) Luminaire Lumen (lm) Type of Dimming
Actor Ceiling DP 830 7392971137186 Actor Ceiling DP 830 3000 4000 OnOff
Actor Ceiling DP 840 7392971137193 Actor Ceiling DP 840 4000 4260 OnOff
Actor Ceiling DP 830 DALI 7392971137209 Actor Ceiling DP 830 DALI 3000 4000 Push 230V, DALI 2
Actor Ceiling DP 840 DALI 7392971137216 Actor Ceiling DP 840 DALI 4000 4260 Push 230V, DALI 2
GTIN 7392971137186
Item Name Actor Ceiling DP 830
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
Replaceability Non-replaceaable LED, Replaceable Control gear by professional
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3
Initial Chromaticity (0.432, 0.403)
Luminous Intensity (cd) 2130
Luminaire Lumen (lm) 4000
Beam Angle (°) 90
Light sharing
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 168
Life Time L80 100 000h Ta 25°C
Nominel Life Time (h) 100000
Lumen maintenance 50 000h L90
Lumen maintenance 100 000h L80
LLMF @ 50 000h 0,9
LLMF @ 100 000h 0,8
Life Time Driver 50 000h/10%
Technical data
Adjustable No
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Power Luminaire (W) 36
System Power (W) 36
Efficiency Luminaire (lm/W) 111
Efficiency System (lm/W) 111
Containing light source energy efficiency class (EU) 2019/2015 C
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Driver Manufacturer Osram
Connection (type) Quick Terminal
Connection (mm2) 3x0,5-2,5
Through Wiring Yes
Strain Relief Yes
Power Factor ʎ 0,98
Constant Current (mA) 800
Operating Temperature -25…+50
Max. Tc (°C) 80
Dimmable No
Type of Dimming OnOff
Fuse B10 (pcs) 14
Fuse B16 (pcs) 23
Fuse C10 (pcs) 24
Fuse C16 (pcs) 39
Color and material
Material Metal, Sheet metal, Steel
Color White
Environmental Assessment SundaHus
Measurement and installation
Operating Environment Indoor / dry locations
IP Degree of Protection 20
Protection Class I
Installation Built-in, Surface mounted
Mounting Installation Screw Mounting
Fire Safety Marks Not in insulation without protection cover
Approval Marks CE
Length (mm) 1192
Width (mm) 90
Height (mm) 80
Weight (kg) 3,04
Built-in LxB (mm) Manual

Images and downloads


No accessories for this product.
