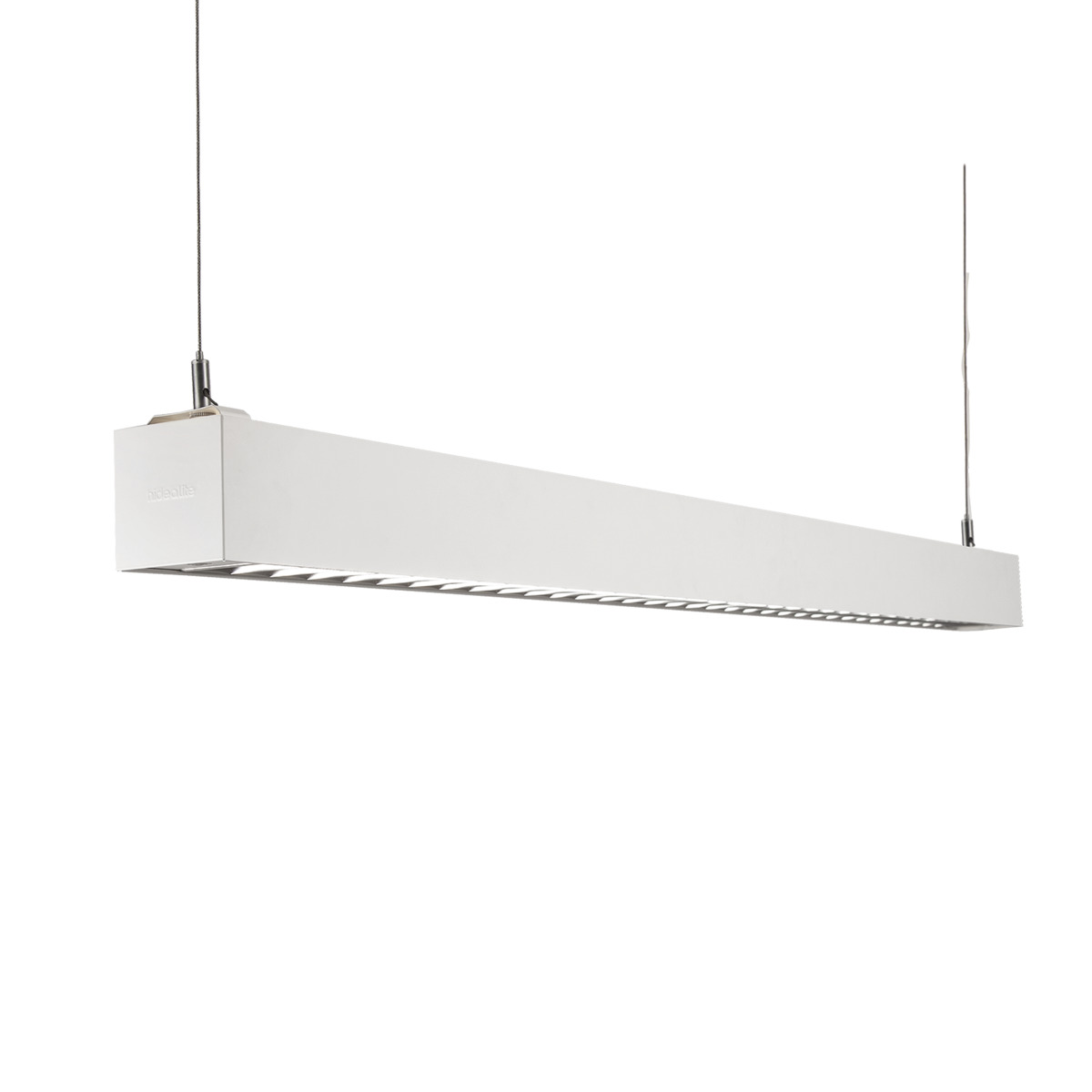

Actor Pendant

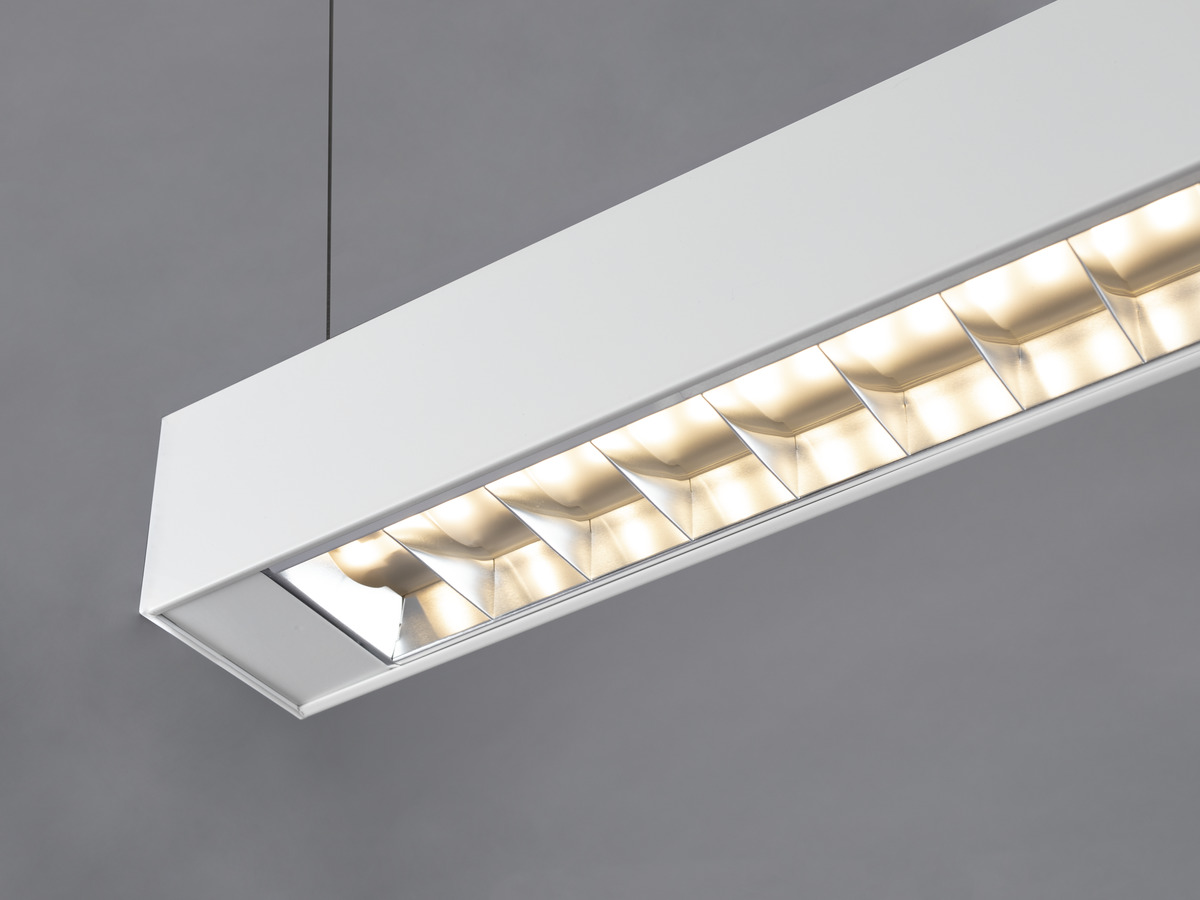

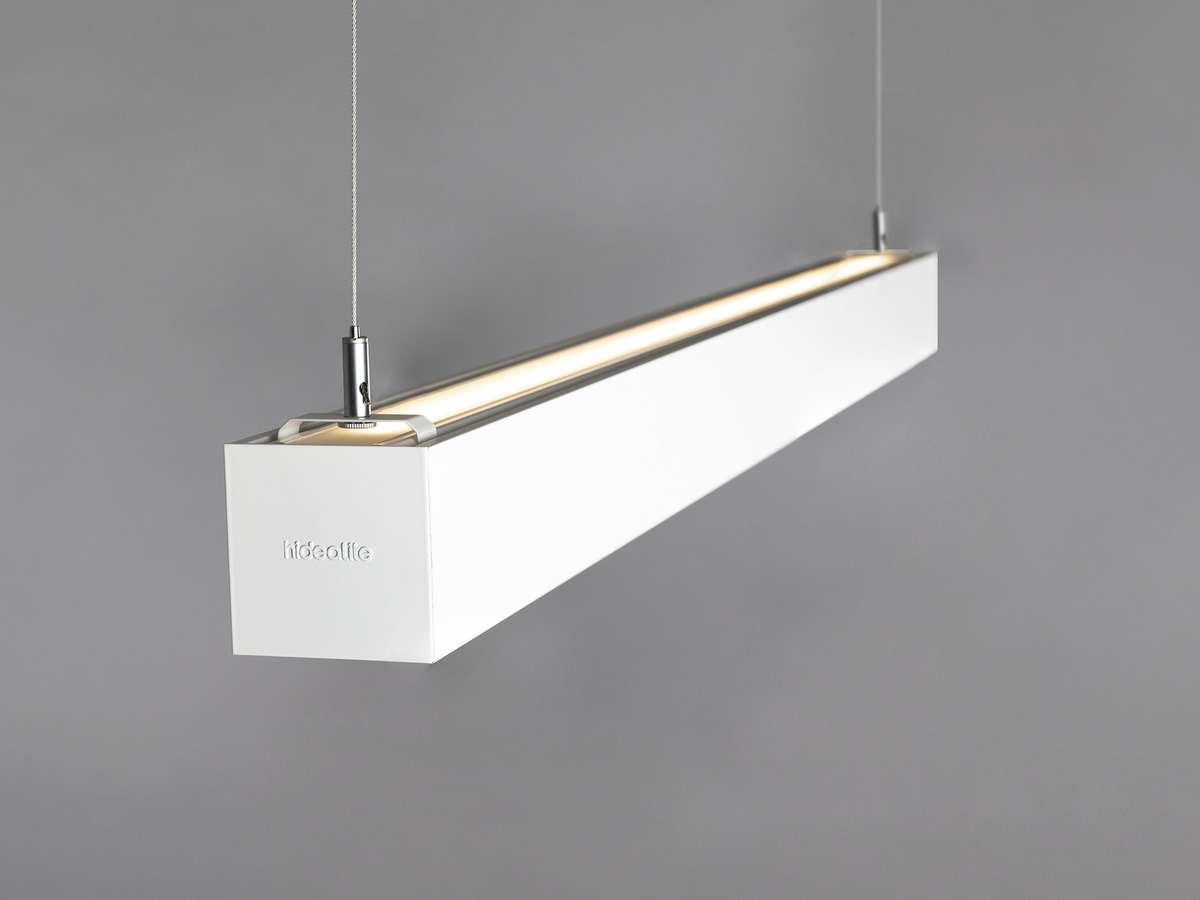

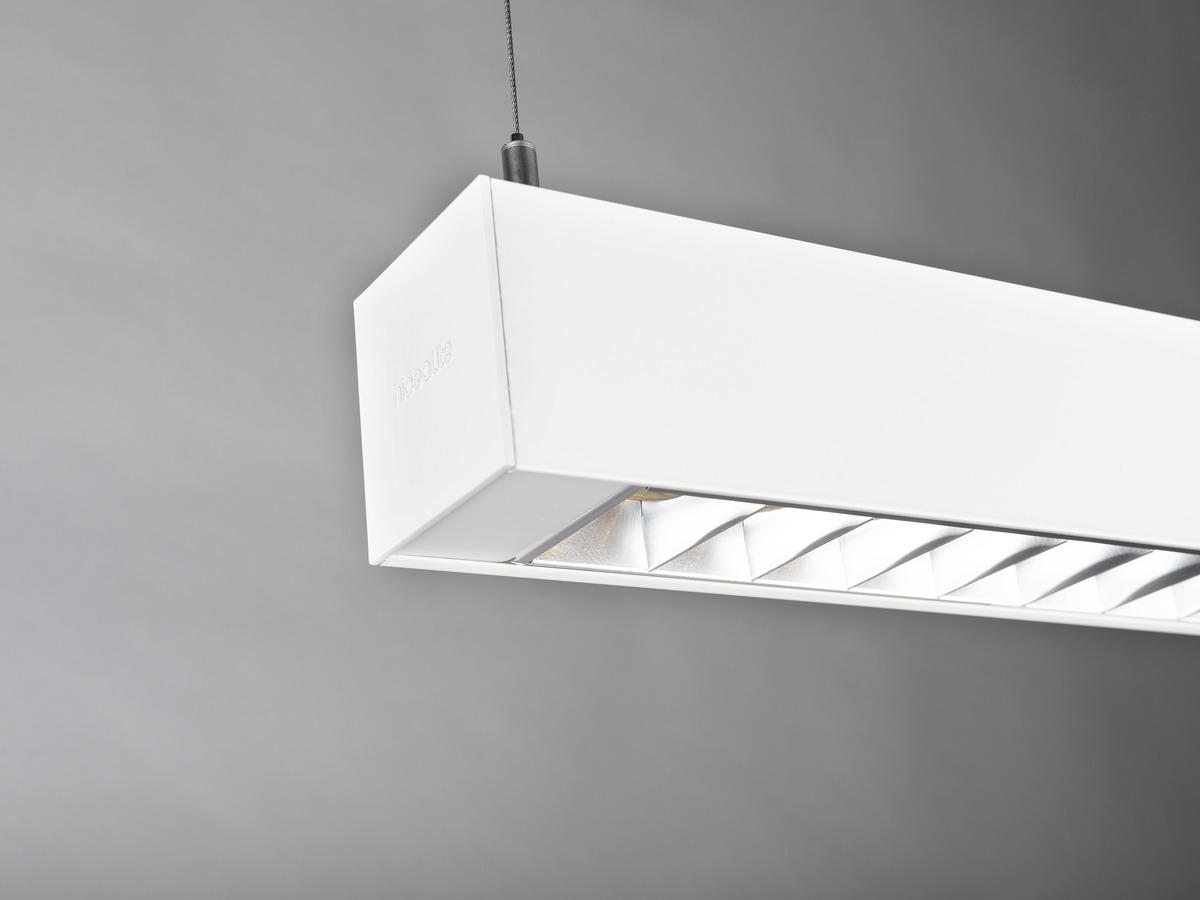

Pendant interior fixture for offices, classrooms, etc. White or black enamelled alu frame. Black or transparent cable on request. Double parabolic anti-glare shield creates a glare-free light distribution. Meets display screen and UGR requirements (UGR<19 office) under standard conditions. Light outlet 30/70 and 50/50. Controls for: On/Off, Pull dimmer, DALI/Push, PIR-sensor etc. Complete with installation accessories. Comes with a white earthed cord set and DALI with 5-pole cable and free ends.
Exists in several colors
  • Vit
  • Svart

Variants

GTIN Item Name Color Colour Temperature (K) Luminaire Lumen (lm) Type of Dimming
Actor Pendant DP 830 50/50 DALI 7392971137162 Actor Pendant DP 830 50/50 DALI White 3000 5750 Push 230V, DALI 2
Actor Pendant DP 830 30/70 7392971131832 Actor Pendant DP 830 30/70 White 3000 6000 OnOff
Actor Pendant DP 840 30/70 7392971131849 Actor Pendant DP 840 30/70 White 4000 6200 OnOff
Actor Pendant DP 830 30/70 Dim 7392971131856 Actor Pendant DP 830 30/70 Dim White 3000 6200 Pull Dimmer
Actor Pendant DP 840 30/70 Dim 7392971131863 Actor Pendant DP 840 30/70 Dim White 4000 6250 Pull Dimmer
Actor Pendant DP 830 30/70 S 7392971131870 Actor Pendant DP 830 30/70 S White 3000 6000 PIR Sensor, Pull Dimmer
Actor Pendant DP 840 30/70 S 7392971131887 Actor Pendant DP 840 30/70 S White 4000 6200 PIR Sensor, Pull Dimmer
Actor Pendant DP 830 30/70 DALI 7392971135694 Actor Pendant DP 830 30/70 DALI White 3000 6200 Push 230V, DALI 2
Actor Pendant DP 840 30/70 DALI 7392971135700 Actor Pendant DP 840 30/70 DALI White 4000 6250 Push 230V, DALI 2
Actor Pendant DP 830 50/50 7392971137148 Actor Pendant DP 830 50/50 White 3000 5750 OnOff
Actor Pendant DP 840 50/50 7392971137155 Actor Pendant DP 840 50/50 White 4000 5950 OnOff
Actor Pendant DP 840 50/50 DALI 7392971137179 Actor Pendant DP 840 50/50 DALI White 4000 5950 Push 230V, DALI 2
Actor Pendant DP Black 830 30/70 Dim 7392971141497 Actor Pendant DP Black 830 30/70 Dim Black 3000 5450 Pull Dimmer
Actor Pendant DP Black 840 30/70 Dim 7392971141503 Actor Pendant DP Black 840 30/70 Dim Black 4000 5550 Pull Dimmer

Actor Pendant DP 830 50/50 DALI

Description
GTIN 7392971137162
Item Name Actor Pendant DP 830 50/50 DALI
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 1500
Luminaire Lumen (lm) 5750

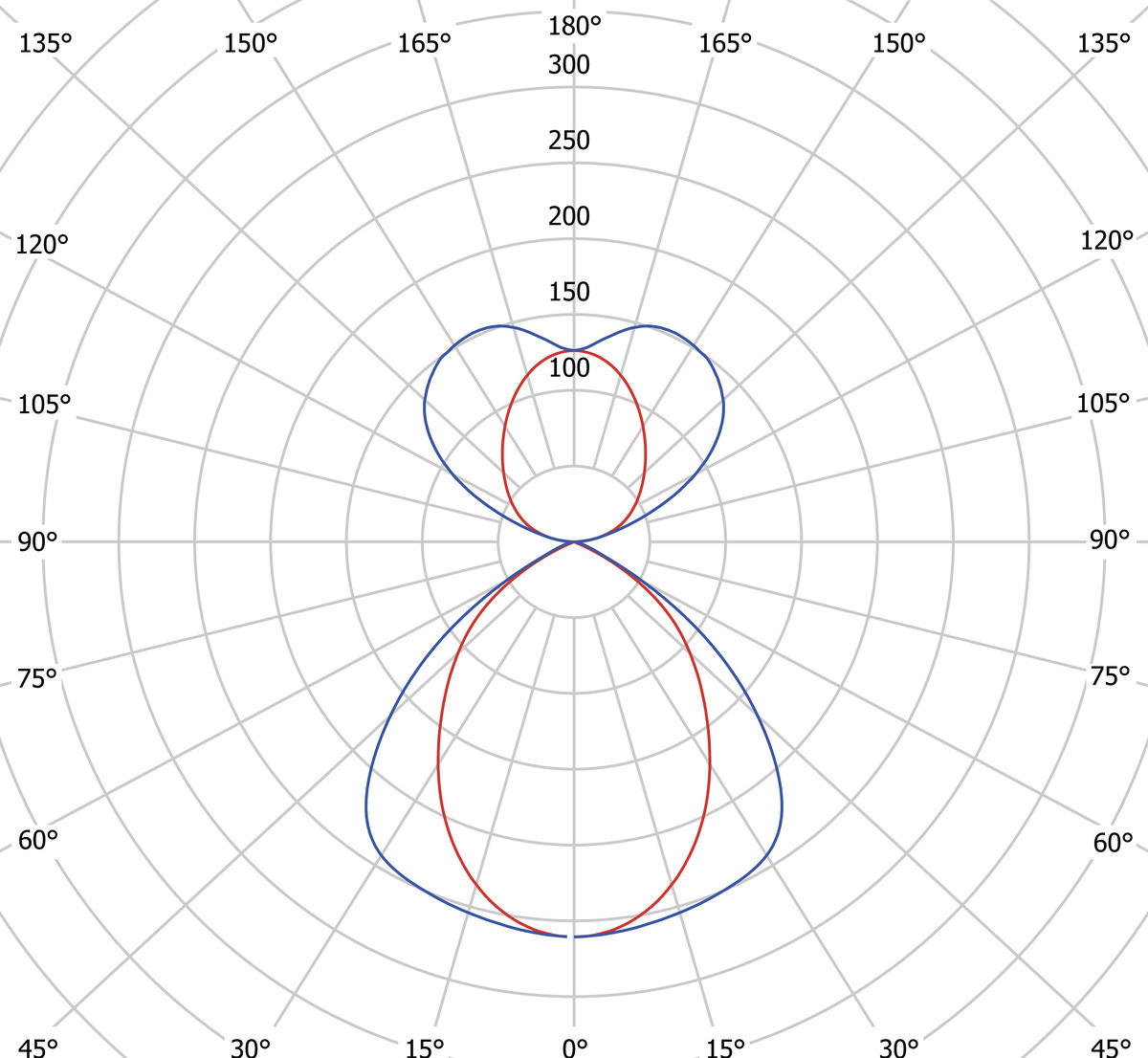

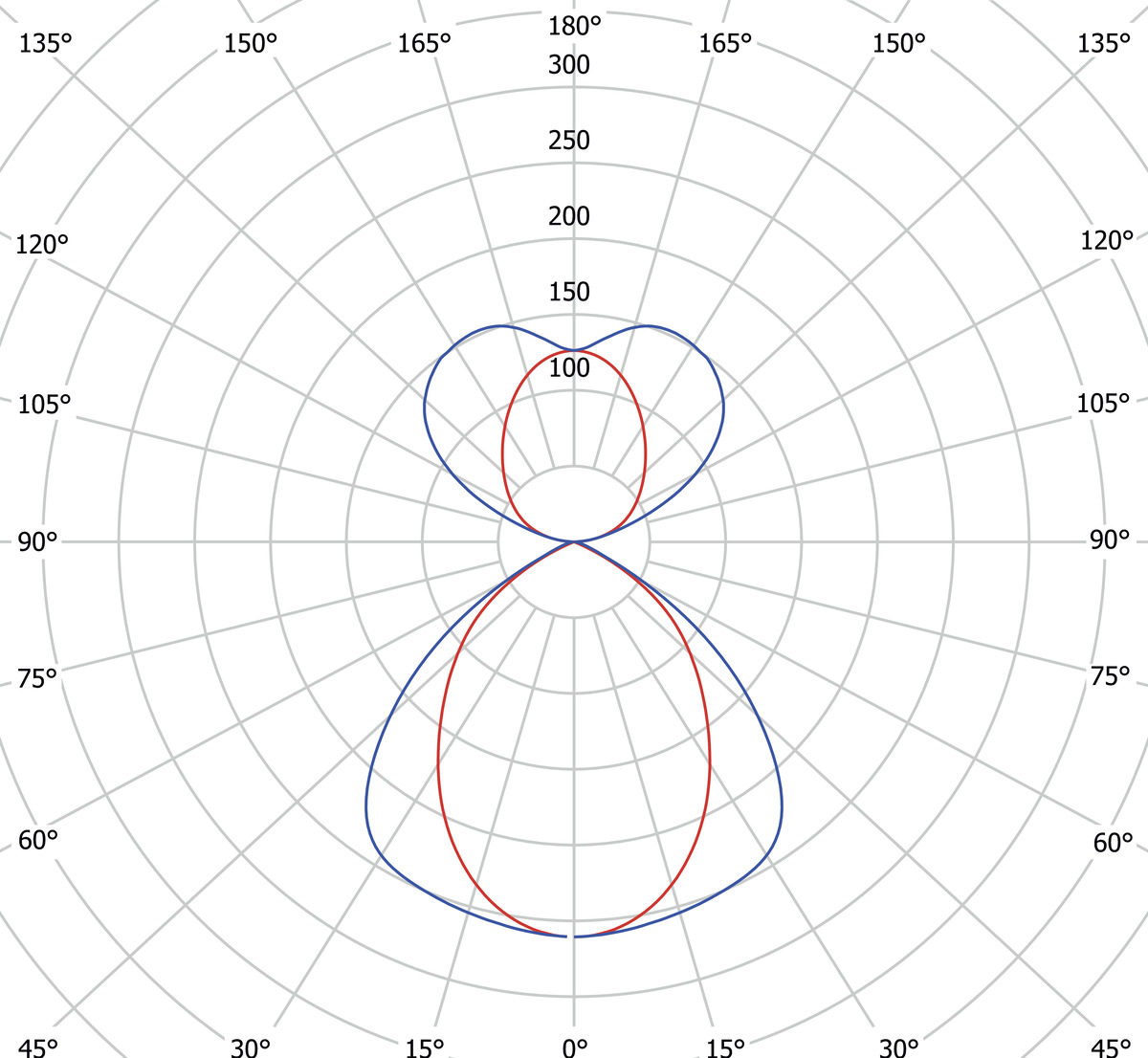

Beam Angle (°) 105
Light sharing Symmetric
Light Outlet 50/50
Number of Lamps (pcs) 2
Number of LED (pcs) 192
Life Time L80 100 000h Ta 25°C
Nominel Life Time (h) 100000
Lumen maintenance 50 000h L90
Lumen maintenance 100 000h L80
LLMF @ 50 000h 0,9
LLMF @ 100 000h 0,8
Life Time Driver 100 000h/10%
Technical data
Adjustable No
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Power LED (W) 46
Power Luminaire (W) 48
System Power (W) 48
Efficiency Luminaire (lm/W) 120
Efficiency System (lm/W) 120
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Driver Manufacturer Osram
Connection (type) Cable, Open Cable End
Length Connection (cm) 250
Connection (mm2) 5x0,75
Through Wiring No
Strain Relief Yes
Power Factor ʎ 0,98
Standby Power 0,15
Operating Temperature -15...+40
Max. Tc (°C) 50
Dimmable Yes
Type of Dimming Push 230V, DALI 2
Dimming secondary side AM
Memory Function Power Failure Yes
Fuse B10 (pcs) 13
Fuse B16 (pcs) 21
Fuse C10 (pcs) 21
Fuse C16 (pcs) 35
Color and material
Material Diecasted, Extruded, Aluminium, Plastic
Color White
Environmental Assessment SundaHus
Measurement and installation
Operating Environment Indoor / dry locations
IP Degree of Protection 20
Protection Class I
Installation Pendant
Approval Marks CE

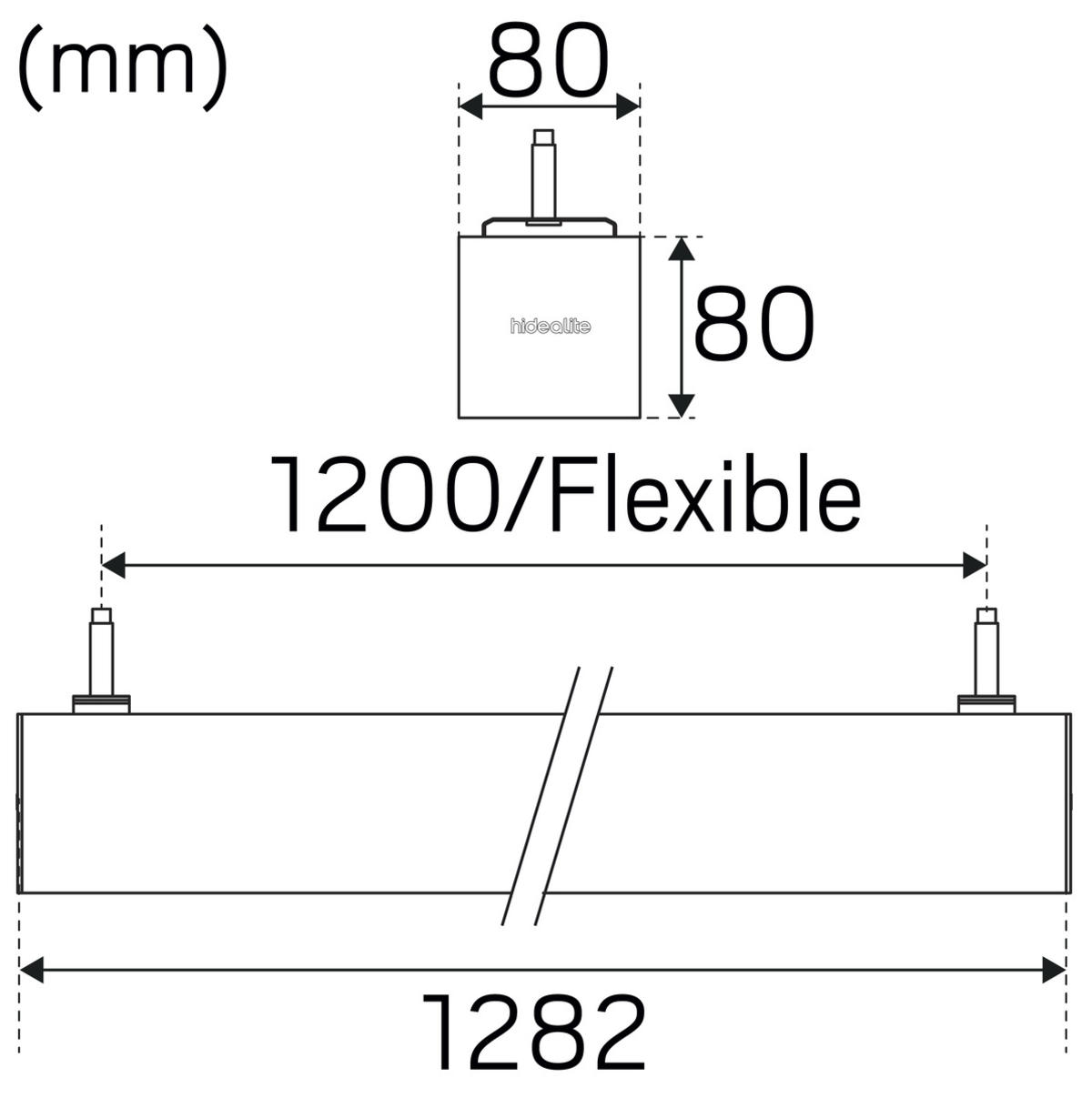

Length (mm) 1282
Width (mm) 80
Height (mm) 80
Weight (kg) 4,05
