Indline IP23

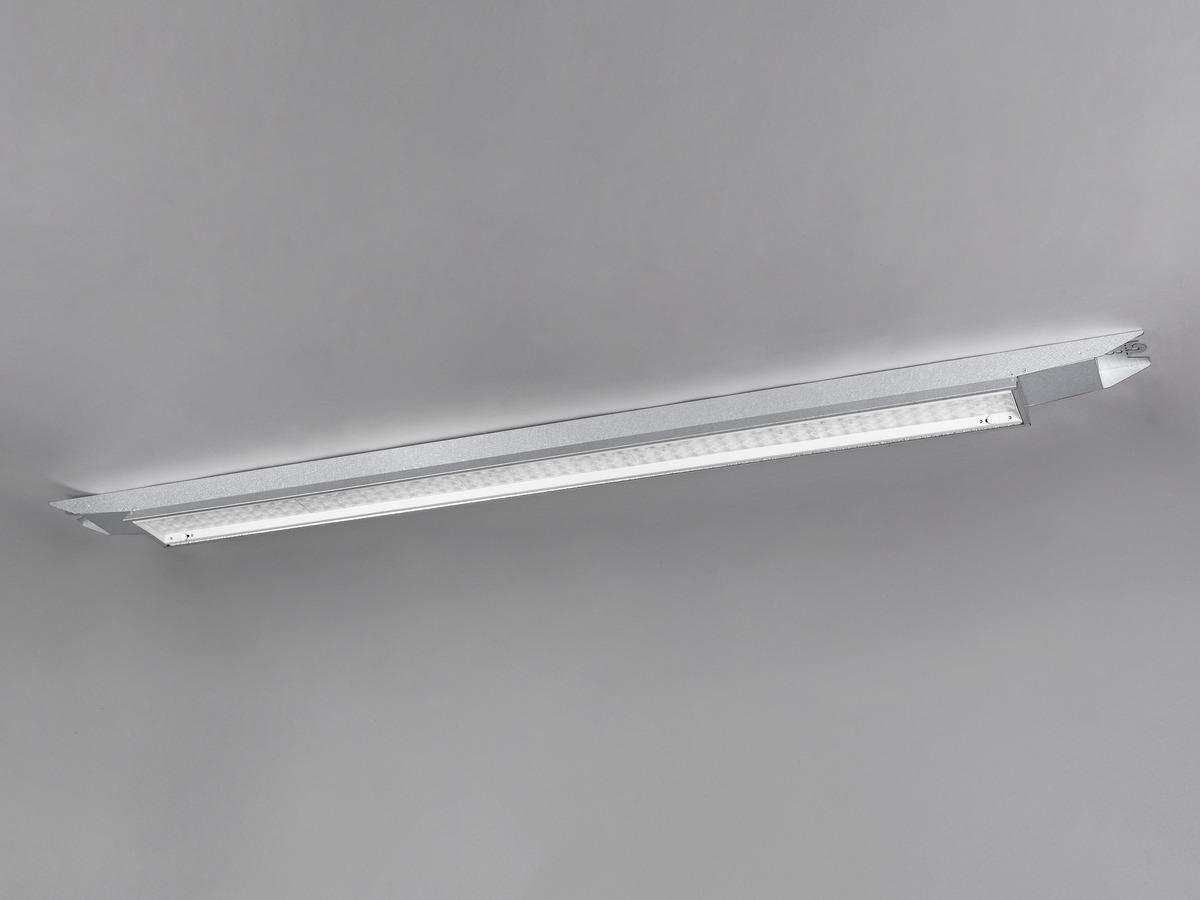

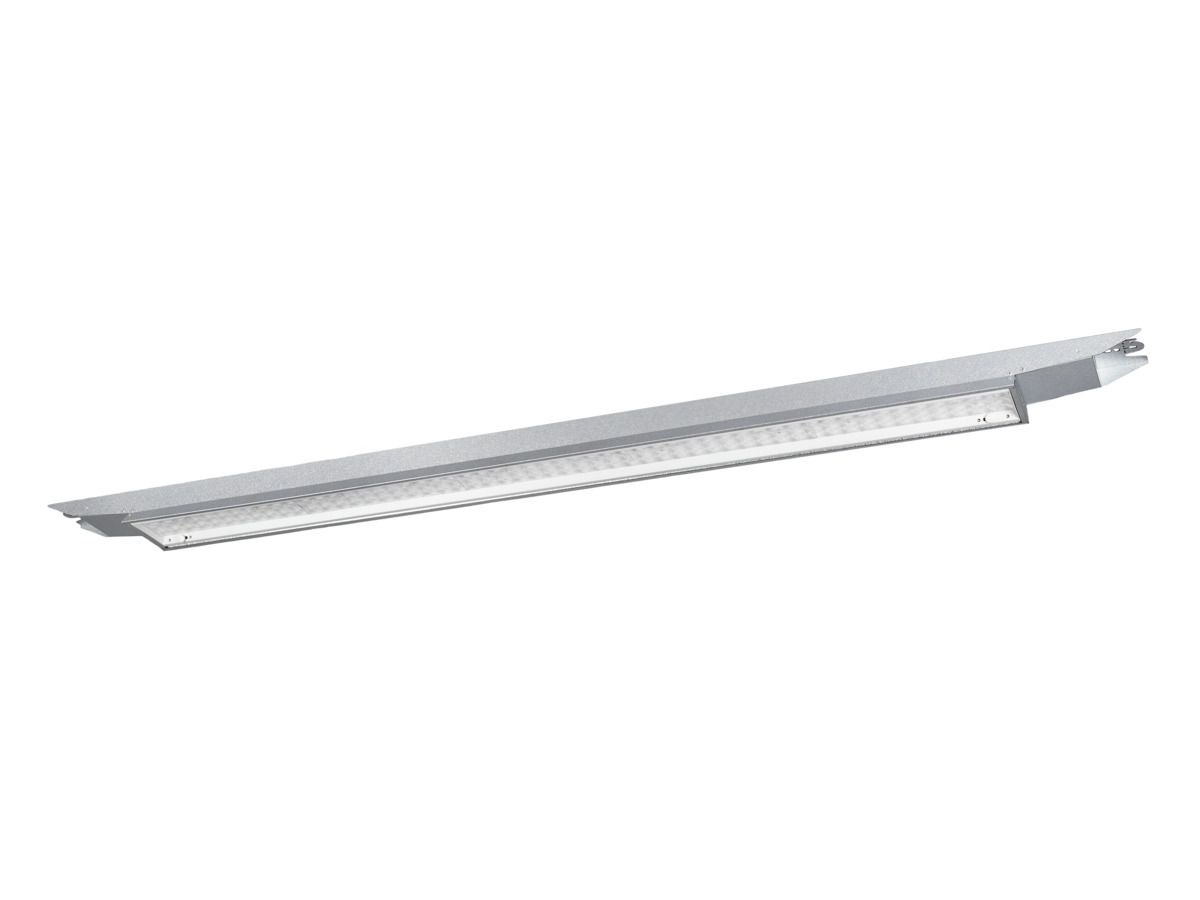

Industrial luminaire in steel with high efficiency that meets the industry’s needs for flexibility and long life time. Replaces T5 and T8 luminaires with lower energy consumption and reduced maintenance. Push-in terminals strategically placed on both sides of the fitting make is possible to use existing cables (doesn't apply to Indline M). Well-planned design enabling replacement of both LED and driver. Control the lighting via DALI/Push or On/Off. On/Off can be adjusted to a lower lumen output and wattage via DIP-switch Power. The luminaire is adapted for mounting on a luminaire rail and has key holes for ceiling installation. Integrated wire suspension with hook and hook lock for easy mounting on wire.

GTIN	Item Name	Luminaire Lumen (lm)	Type of Dimming	Beam Angle (°)
7392971137346	Indline IP23 XL Narrow 840	18400	DIP-Switch Power, OnOff	30
7392971137285	Indline IP23 L Narrow 840	11100	DIP-Switch Power, OnOff	30
7392971137292	Indline IP23 L Medium 840	10700	DIP-Switch Power, OnOff	60
7392971137308	Indline IP23 L Wide 840	11100	DIP-Switch Power, OnOff	90
7392971137315	Indline IP23 L Narrow 840 DALI	11350	Push 230V, DALI 2	30
7392971137322	Indline IP23 L Medium 840 DALI	10700	Push 230V, DALI 2	60
7392971137339	Indline IP23 L Wide 840 DALI	11500	Push 230V, DALI 2	90
7392971137353	Indline IP23 XL Medium 840	18250	DIP-Switch Power, OnOff	60
7392971137360	Indline IP23 XL Wide 840	18600	DIP-Switch Power, OnOff	90
7392971137377	Indline IP23 XL Narrow 840 DALI	18630	Push 230V, DALI 2	30
7392971137384	Indline IP23 XL Medium 840 DALI	18400	Push 230V, DALI 2	60
7392971137391	Indline IP23 XL Wide 840 DALI	18800	Push 230V, DALI 2	90
7392971144214	Indline IP23 M Medium 840	8400	OnOff, DIP-Switch Power	60
7392971145402	Indline IP23 M Wide 840	8300	OnOff, DIP-Switch Power	90
7392971145747	Indline IP23 XXL Narrow 840	25600	OnOff, DIP-Switch Power	30
7392971145754	Indline IP23 XXL Medium 840	25900	OnOff, DIP-Switch Power	60
7392971145761	Indline IP23 XXL Wide 840	25100	OnOff, DIP-Switch Power	90
7392971145778	Indline IP23 XXL Narrow 840 DALI	25600	Push 230V, DALI 2	30
7392971145785	Indline IP23 XXL Medium 840 DALI	25900	Push 230V, DALI 2	60
7392971145792	Indline IP23 XXL Wide 840 DALI	25100	Push 230V, DALI 2	90

Description: GTIN 7392971137346

Item Name Indline IP23 XL Narrow 840

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 18400

Light Source LED

Light Source Included Yes

Replaceability Replaceable LED by professional, Replaceable Control gear by professional

LED Colour White

Colour Temperature (K) 4000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

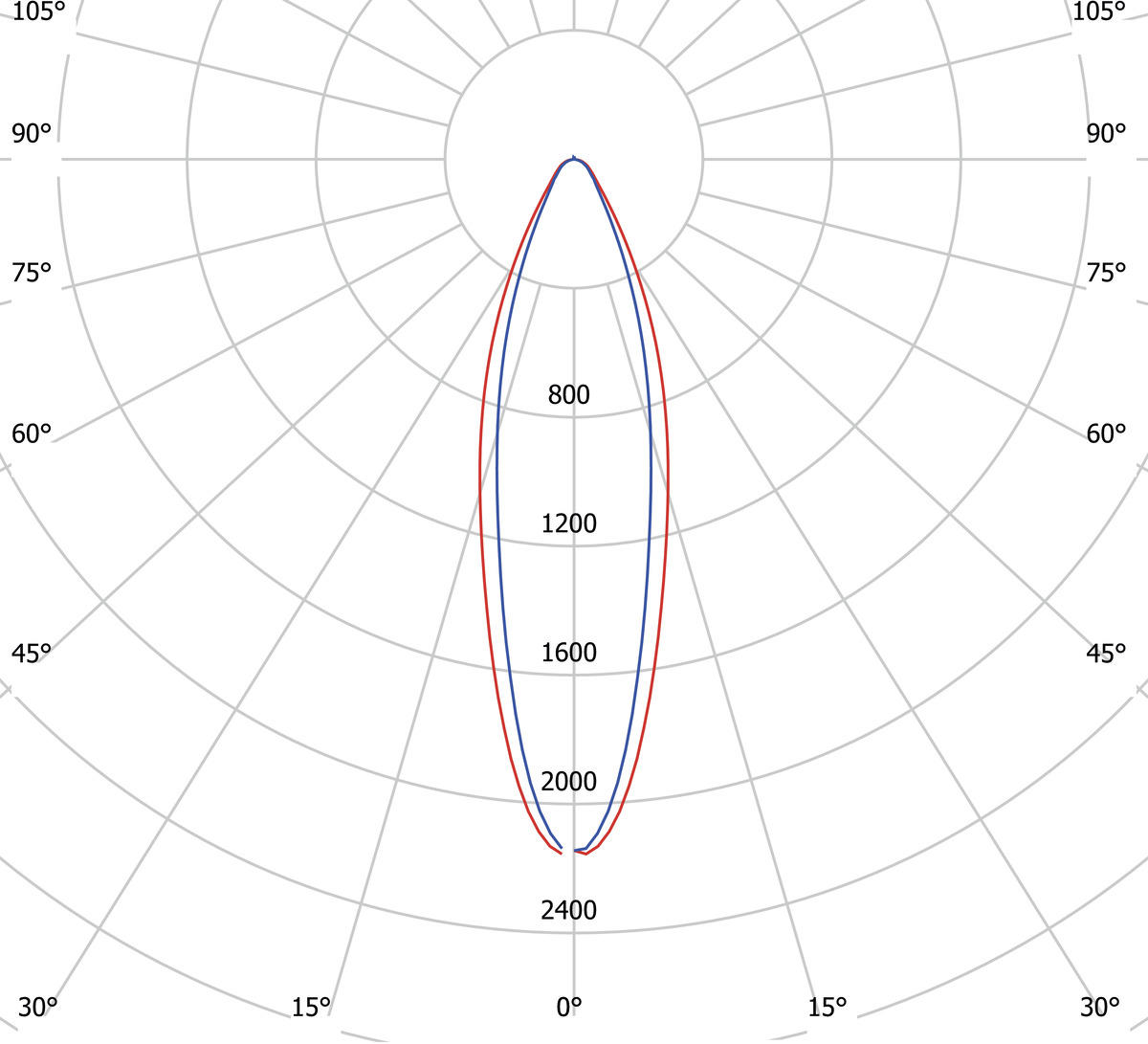

Luminous Intensity (cd) 36200

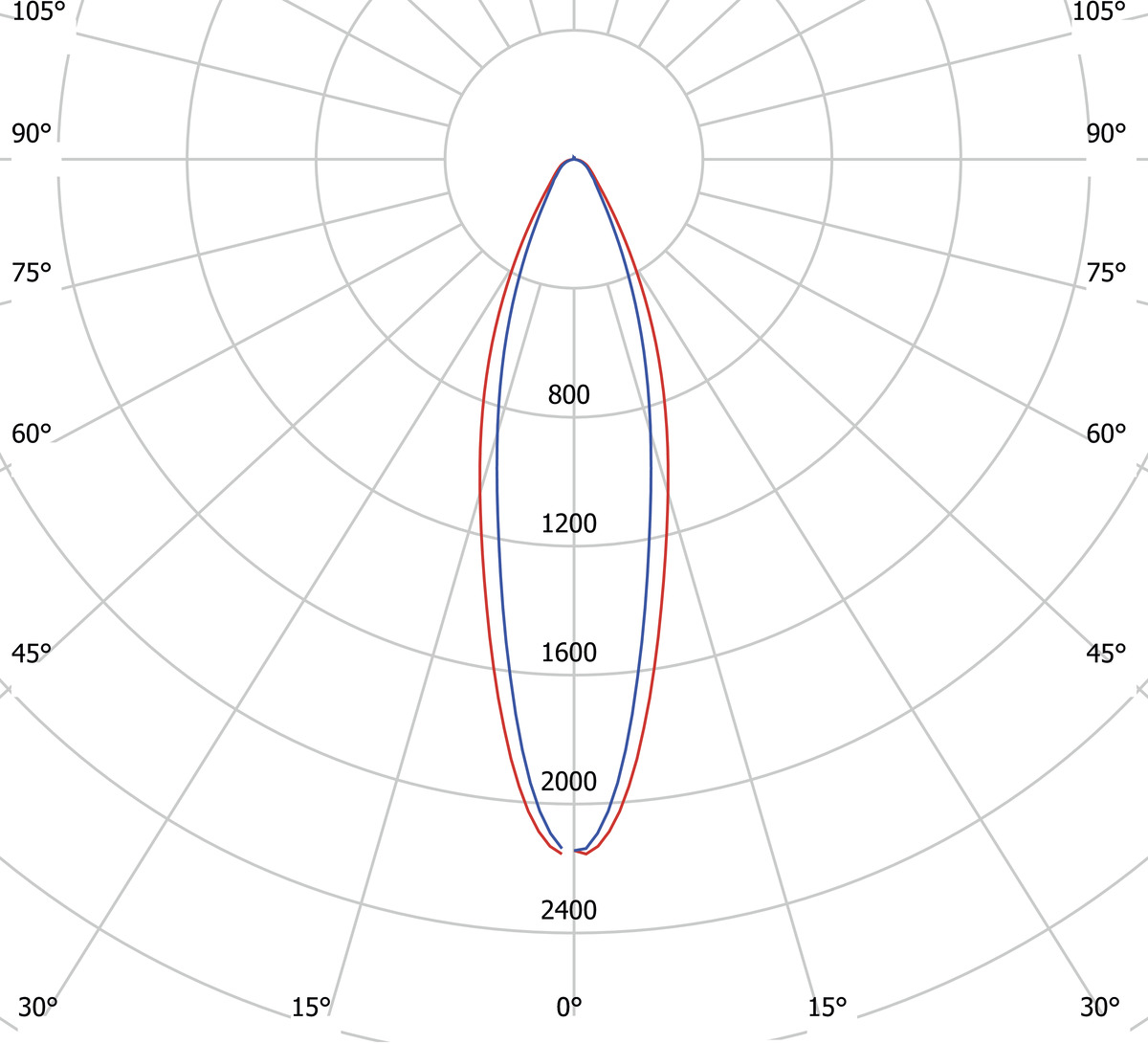

Beam Angle (°) 30

Light sharing Symmetric

Light Outlet Narrow Beam

Number of Lamps (pcs) 1

Number of LED (pcs) 165

Life Time L80 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L92

Lumen maintenance 100 000h L80

LLMF @ 50 000h 0,92

LLMF @ 100 000h 0,8

Life Time Driver 100 000h/10%
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power Luminaire (W) 110

System Power (W) 110

Efficiency Luminaire (lm/W) 167

Efficiency System (lm/W) 167

Containing light source energy efficiency class (EU) 2019/2015 C
Operation and Connection: Dimmable No

Type of Dimming DIP-Switch Power, OnOff

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Driver Manufacturer TCI

Connection (type) Quick Terminal

Connection (mm2) 5x0,5-2,5

Through Wiring Yes

Strain Relief Yes

Power Factor ʎ 0,95

Efficiency (%) 94

THD (%) 10

Constant Current (mA) 325, 400, 500, 600, 700

Operating Temperature -25…+50

Max. Tc (°C) 85

Fuse B10 (pcs) 18

Fuse B16 (pcs) 29

Fuse C10 (pcs) 18

Fuse C16 (pcs) 29
Color and material: Material Metal, Sheet metal, PMMA

Color Aluzinc

Color Cover Ring White

Color Code Cover Ring (RAL) 9016

Environmental Assessment SundaHus, Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / damp locations

IP Degree of Protection 23

Protection Class I

Installation Surface mounted, Wire-cable installation

Mounting Installation Screw Mounting, Hook

Approval Marks CE, a Hide-a-lite Choice

Filament Test IEC 695-2-1(°C) 650

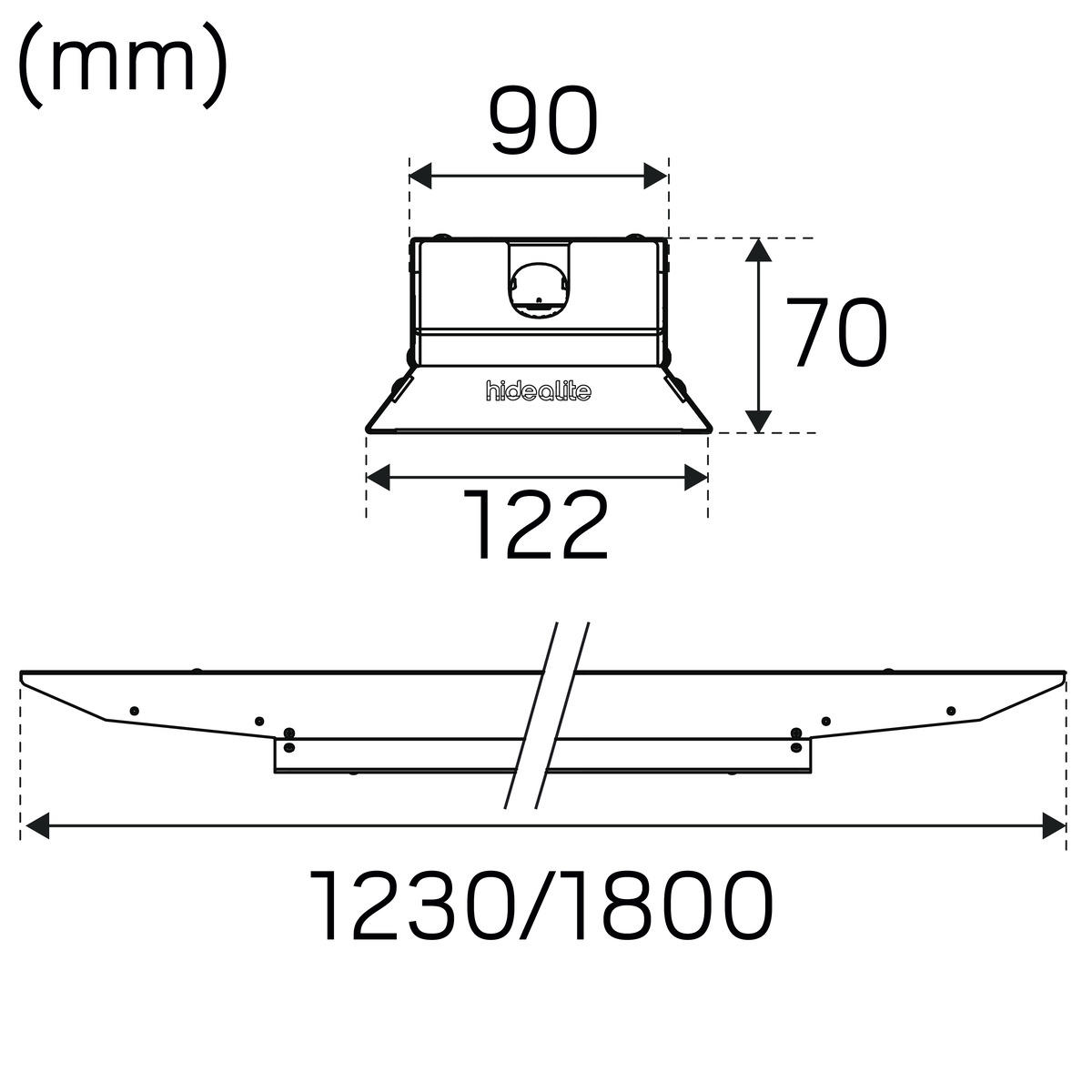

Length (mm) 1800

Width (mm) 122

Height (mm) 70

Weight (kg) 5,7

Indline Sport Grid IP23

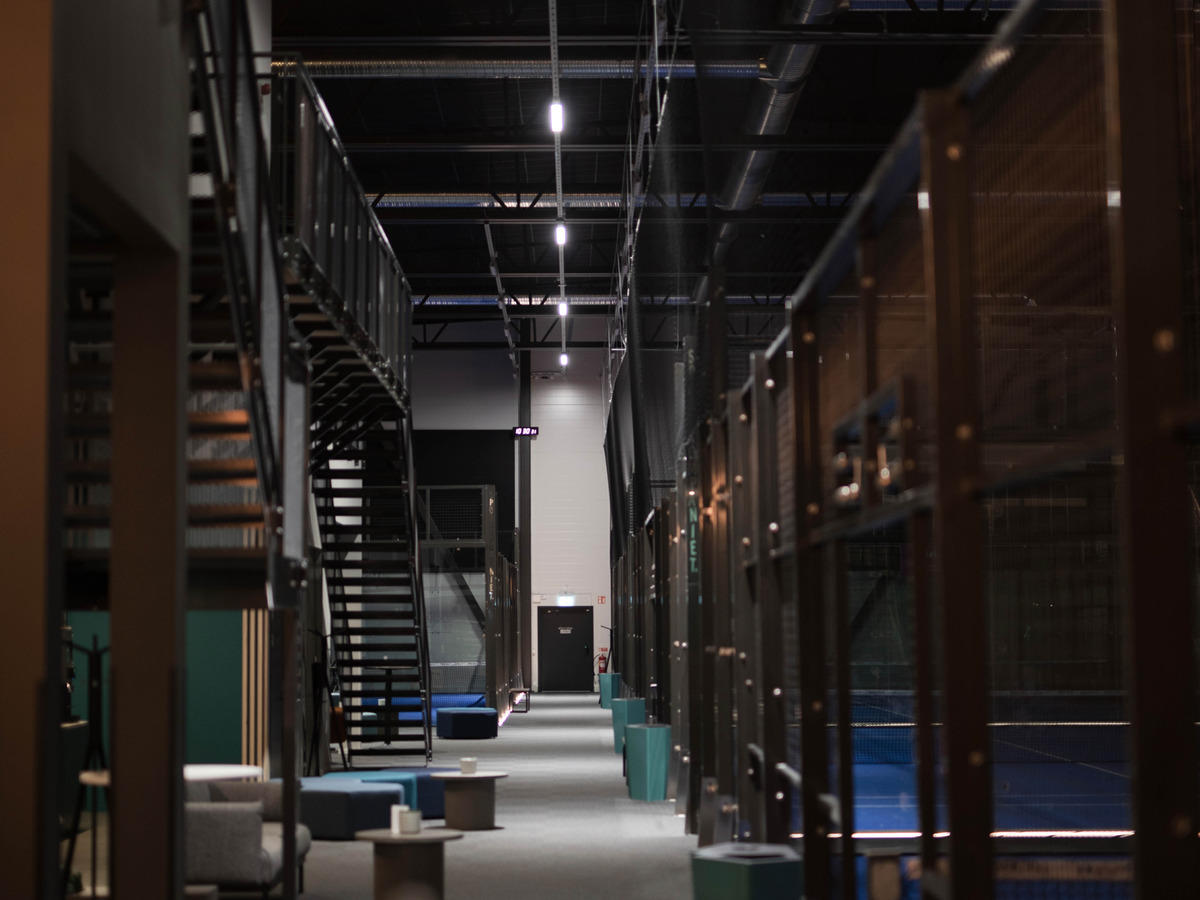

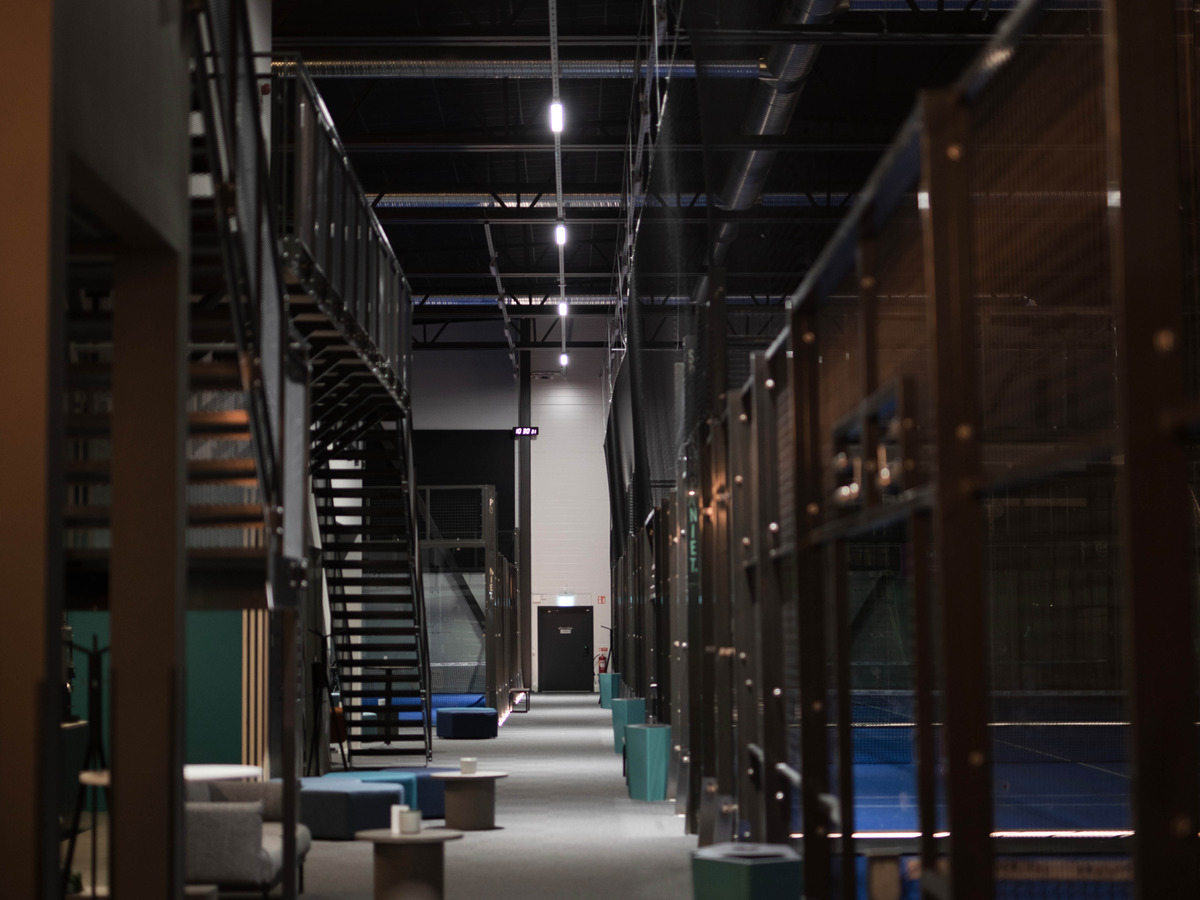

Sports luminaires with different light distribution or asymmetric light distribution optimal e.g. in padel halls. VDE 0710-13 ball tested, comes with a pre-installed grid. Push-in terminals at both sides for installation without opening the luminaire. Controlled via On/Off or DALI/Push. On/Off can be adjusted to a lower lumen output and wattage via DIP switch DALI enables control of each luminaire. Install on rail, ceiling, wall or wires. Adjustable ceiling and wall brackets as accessories.

Indline Sport IP23

Sports luminaire with asymmetric light distribution optimal e.g. in padel halls. Push-in terminals at both sides for installation without opening the luminaire. Controlled via On/Off or DALI/Push. On/Off can be adjusted to a lower lumen output and wattage via DIP-switch Power. DALI enables control of each luminaire. Install: on rail, ceiling, wall or wires. Meets the ball test VDE 0710-13 using accessory Protective grid, ordered separately. Adjustable ceiling and wall brackets as accessories.

Liteline IP65 1200

Highly efficient fluorescent tube replacement. Sliding multi-fasteners and separate connection space in end caps. 5x2.5mm2 push-in terminals for through wiring as standard, M20 fitting and knockouts in each end cap for easy installation. Adapted for installation on luminaire rail, keyhole for installation in ceiling and integrated wire suspension with hook and hook lock. D-marked, IP65 and IK09-classed for installation in rougher environments and areas with heightened fire risk. Adjustable lumen output via DIP-switch Power (On/Off and S). Suitable for example in car parks and dusty and dirty industries.

Liteline IP65 1500

Liteline IP44 1200

IP44 luminaire with high lumen output and very good efficiency. Folding patented end caps. Prismatic cup with opal film for even light. Two colour temperatures, as On/Off, DALI/Push with corridor FUNCTION, presence sensor w or w/o corridor function. 5-pole push-in terminal with through wiring, one bushing in each end, two in the middle where one is centred. 2xT has through wiring with quick terminals at each end cap. Adjustable lumen output and wattage via DIP-Switch Power.

Highlite IP65

Highly efficient highbay fixture where the most important features are maximum light and minimum maintenance. Highlite IP65 is an industrial luminaire adapted for the factory environment, as well as for the crossfit center or the supermarket. Mounted as a pendant or in a fixed ceiling with an adjustable ceiling and wall bracket as an accessory. Other accessories include reflectors to change the appearance and a strong chain for suspension. Replaceable driver, three meter connection cable and simple installation with the snap hook provided.

Liteline Basic IP44

Industrial luminaire IP44 in basic model, replaces T5 and T8 luminaires with lower energy consumption and reduced maintenance. Luminaire of coated steel plate. Line prismatic diffuser in impact resistant PC with opal film and smart folding end caps. Push-in terminal, through wiring, one bushing in each end cap and two in the middle, one of which is centred, for concealed cable routing. Perfect when you are looking for a simple solution that does the job – basement storage, laundry rooms or simple industrial premises. Can be adjusted to lower light output and wattage via DIP-Switch Power.

Indline IP23

Indline IP23 XL Narrow 840
