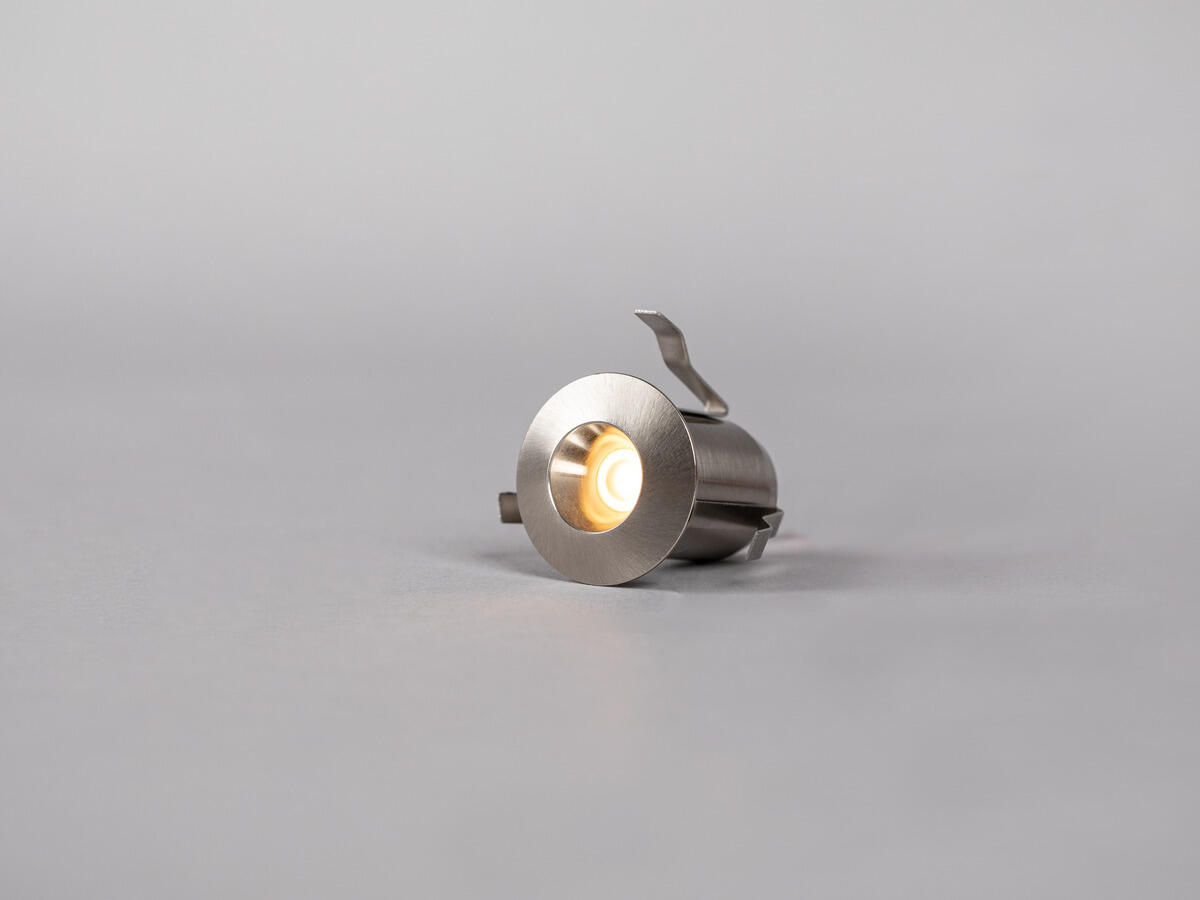

Heatspot G2

Integrated push-in terminal for easy and smart series connection
Front rings in black or brass available as accessories

Luminaire for discrete, ambient and decorative lighting in saunas. Fixture in brushed steel with lumen output adjusted for good glare-free lighting. Comes with two wires with quick connections for easy series connection. Also available as a kit. The driver can support and dim 5-12 luminaires. Front rings in black or brass available as accessories.

Description: GTIN 7392971138794

Item Name Heatspot G2 BS 2700K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 20

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour Warm White

Colour Temperature (K) 2700

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 20

Beam Angle (°) 45

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L70 100 000h Ta 120°C

Nominel Life Time (h) 100000

Lumen maintenance 100 000h L70

LLMF @ 100 000h 0,7
Technical data: Voltage Forward (Vf) 2,8

Power LED (W) 0,4

Power Luminaire (W) 0,4

System Power (W) 0,4

Efficiency Luminaire (lm/W) 50

Efficiency System (lm/W) 50
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Current

Connection (type) Mini Contact

Length Connection (cm) 50

Connection (mm2) 2x0,5

Through Wiring Yes

Constant Current (mA) 150

Operating Temperature -20…+125

Max. Tc (°C) 135
Color and material: Material Aluminium

Color Brushed Steel

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / bathroom (ceiling area 1)

IP Degree of Protection 44

Protection Class III

Installation Built-in

Mounting Installation Tension Spring

Ceiling Thickness Interval (mm) 5-27

Fire Safety Marks Not in insulation without protection cover

Protection Cover 7466700, 7466701, 7466702

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

Height (mm) 30

Diameter (mm) 25

Weight (kg) 0,023

Min. Built-in (mm) 50x50x32

Height Recessed Part (mm) 27

Height Exterior Part (mm) 3

Built-in Ø (mm) 22-23

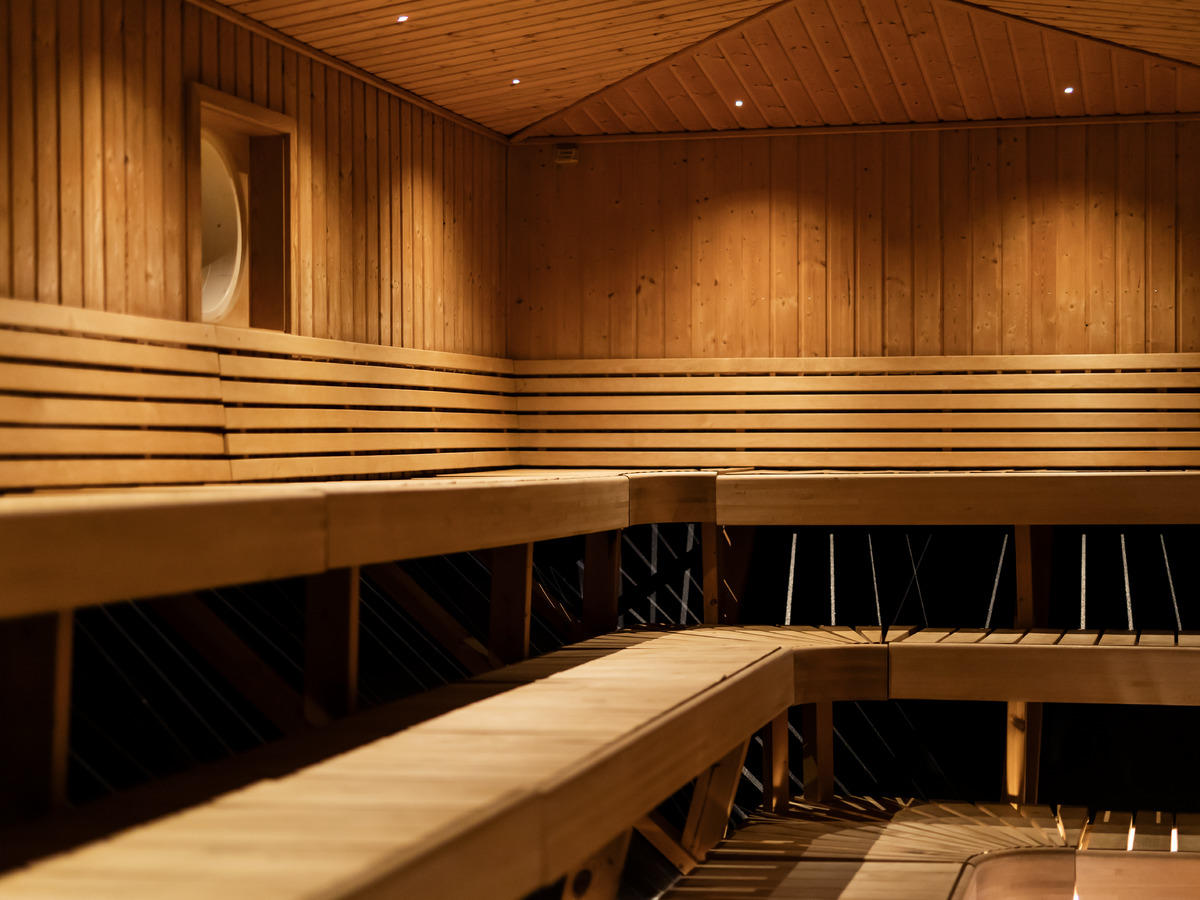

Heatspot G2 Kit

Complete kit that makes it easy to install discrete and ambient small points of light for decorative lighting in saunas. Fixtures in brushed steel with lumen output adjusted for good glare-free lighting. These fixtures have two wires with quick connections for easy series connection. The kit comprises 6x luminaires with phase dimmable driver, extension cable and connecting cables. Also available as single fixture. The driver can support and dim 5-12 luminaires. Front rings in black or brass available as accessories.
