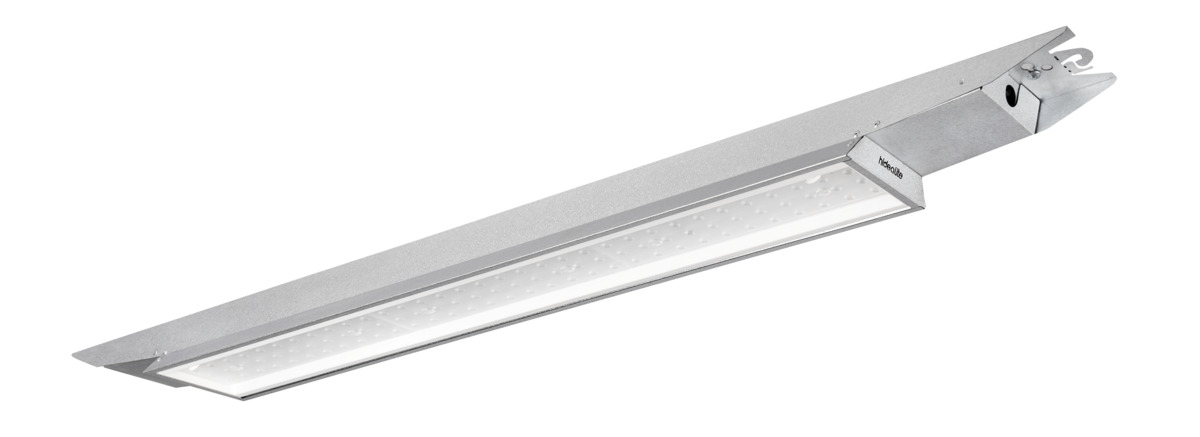

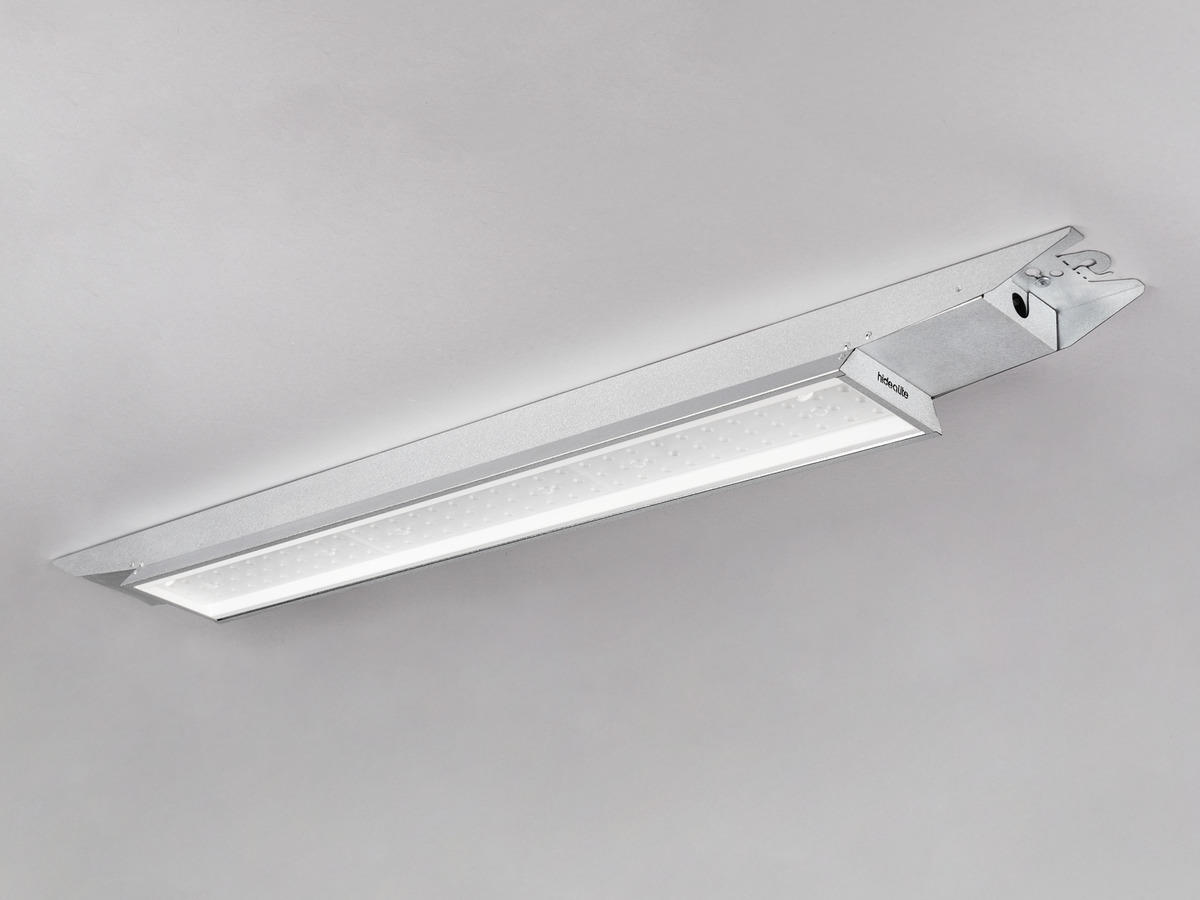

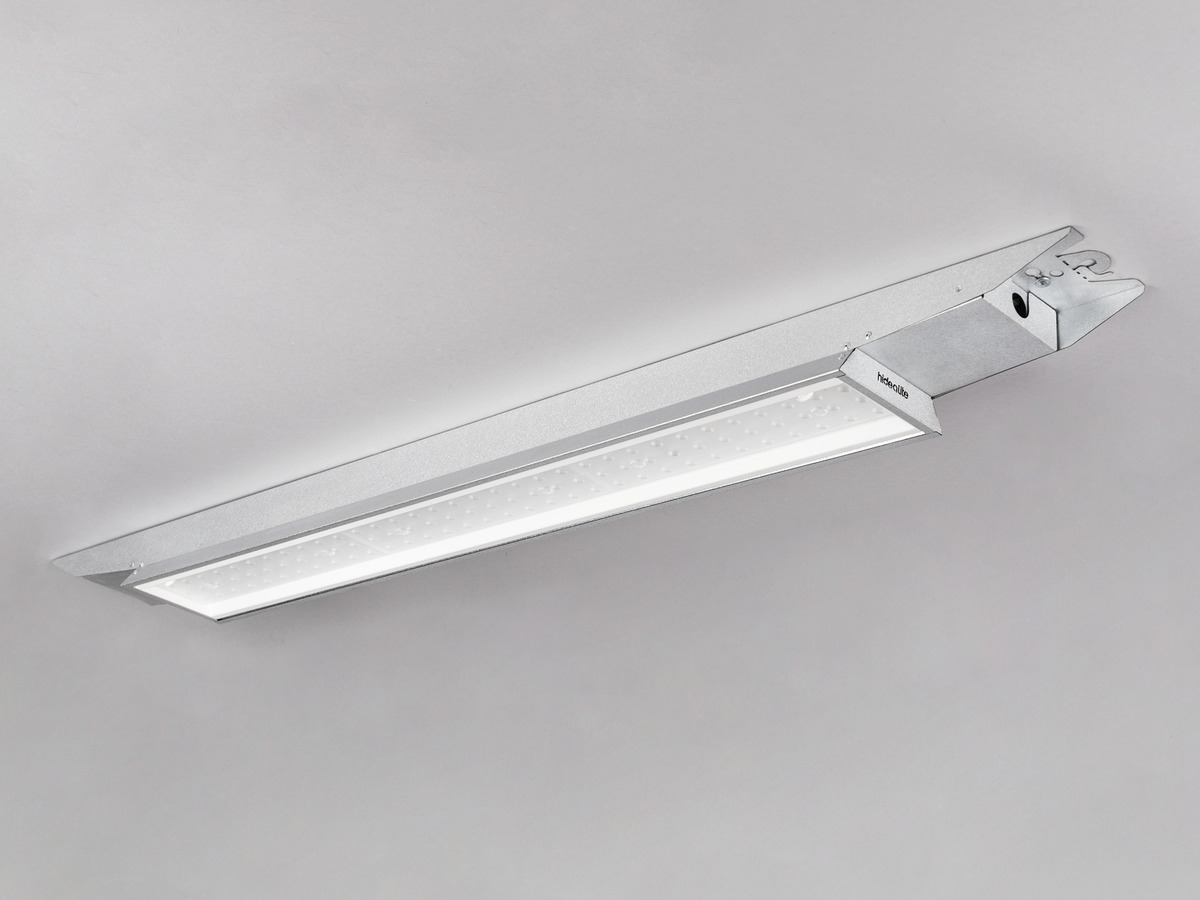

Indline Sport IP23

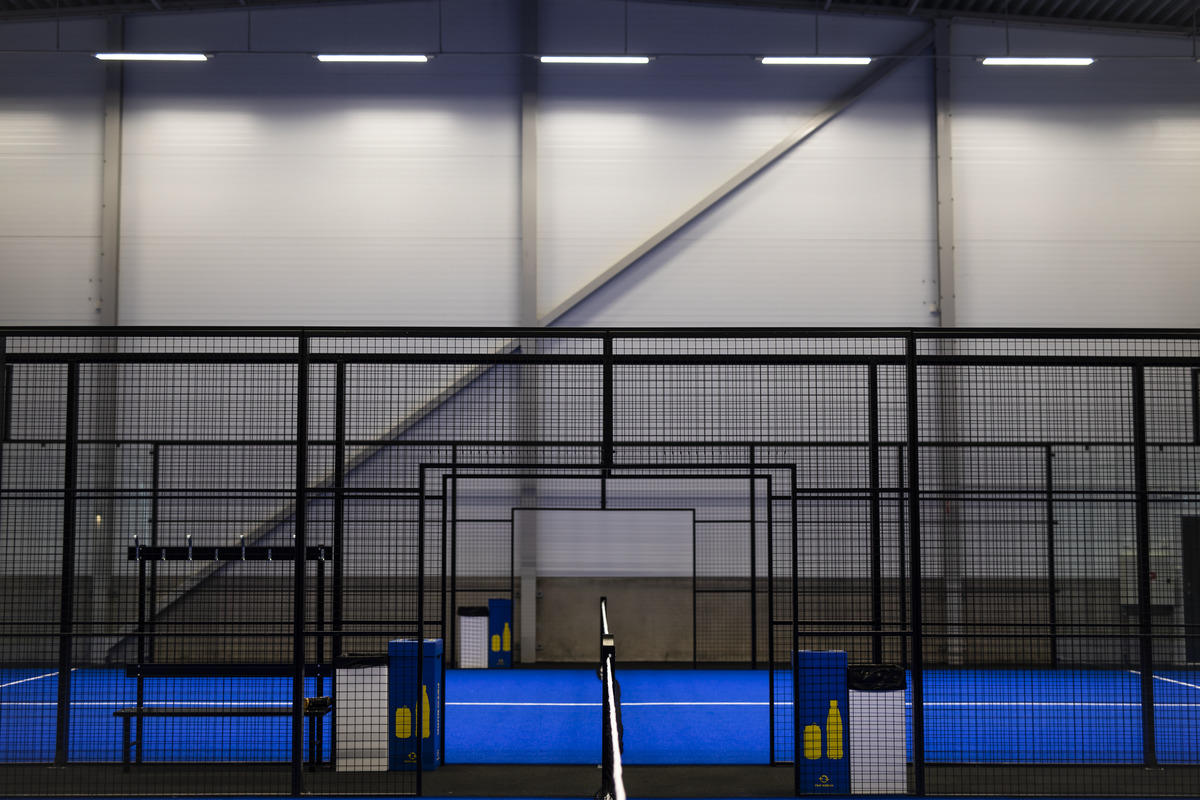

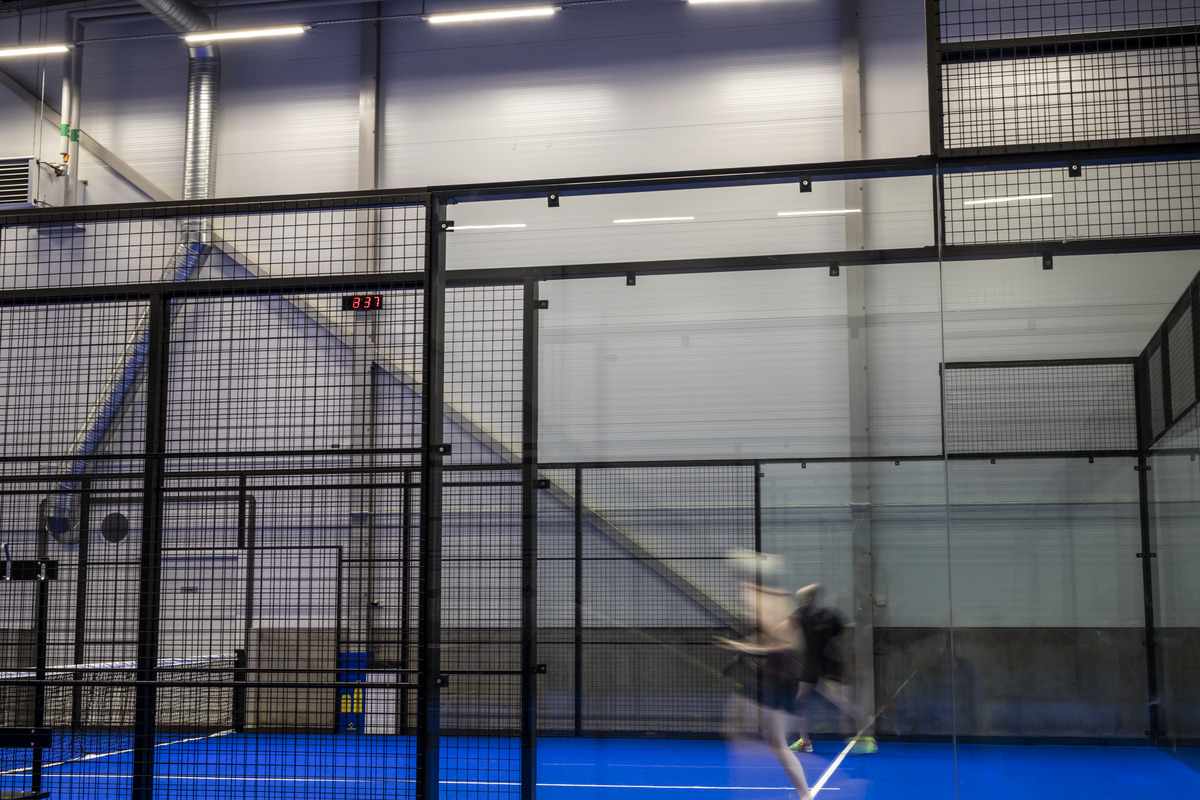

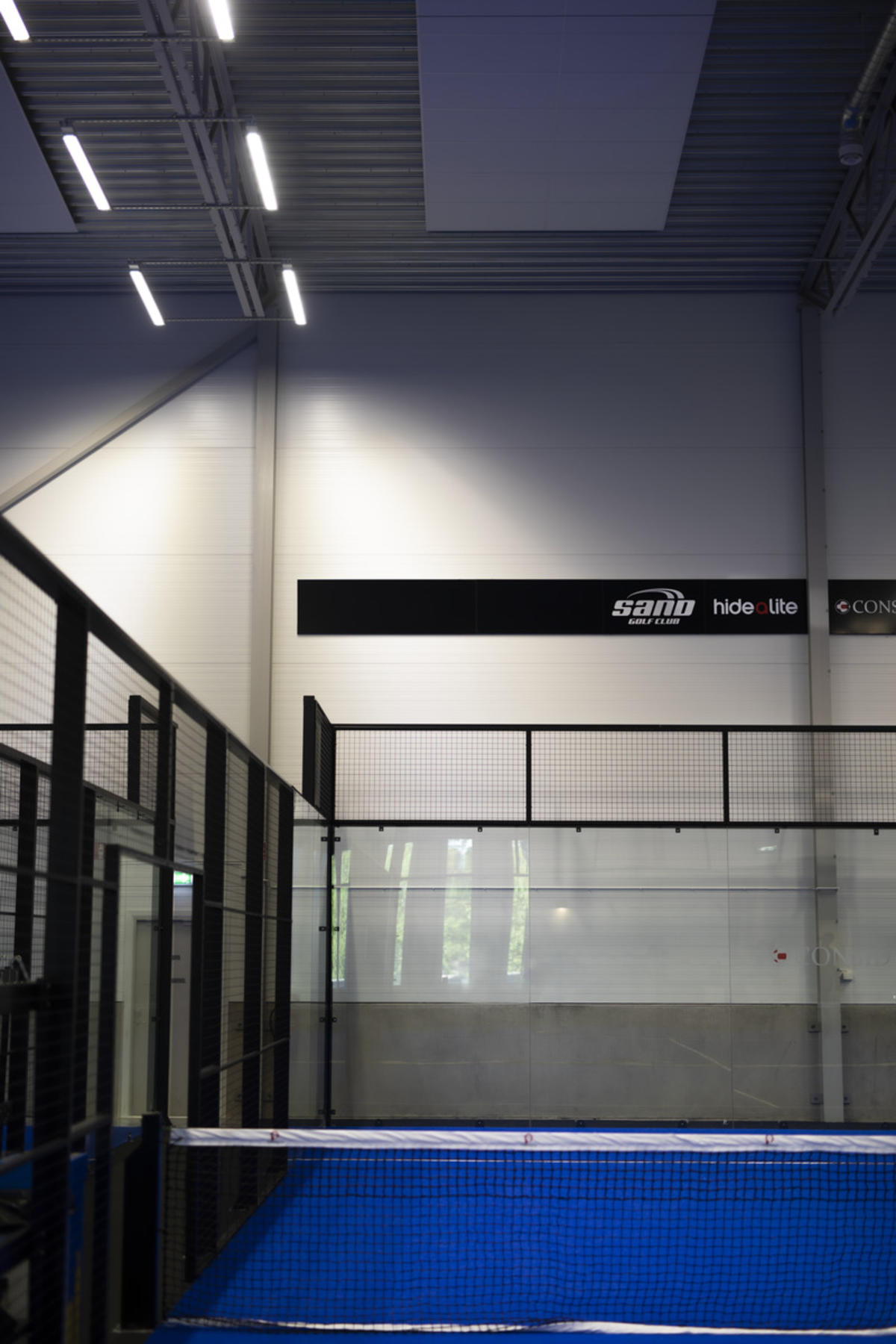

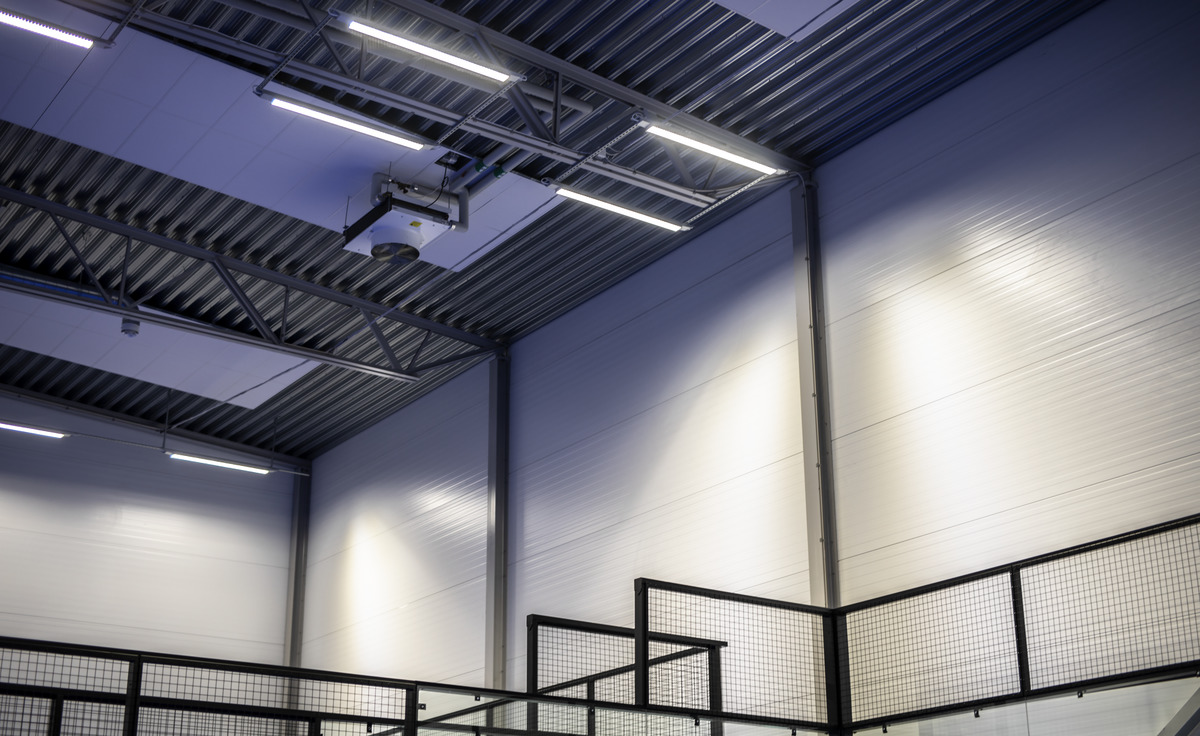

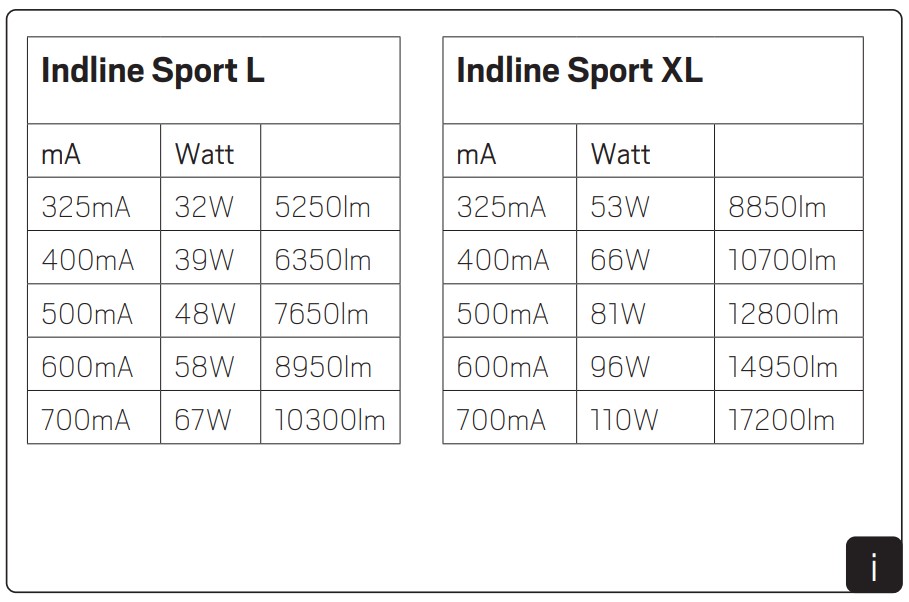

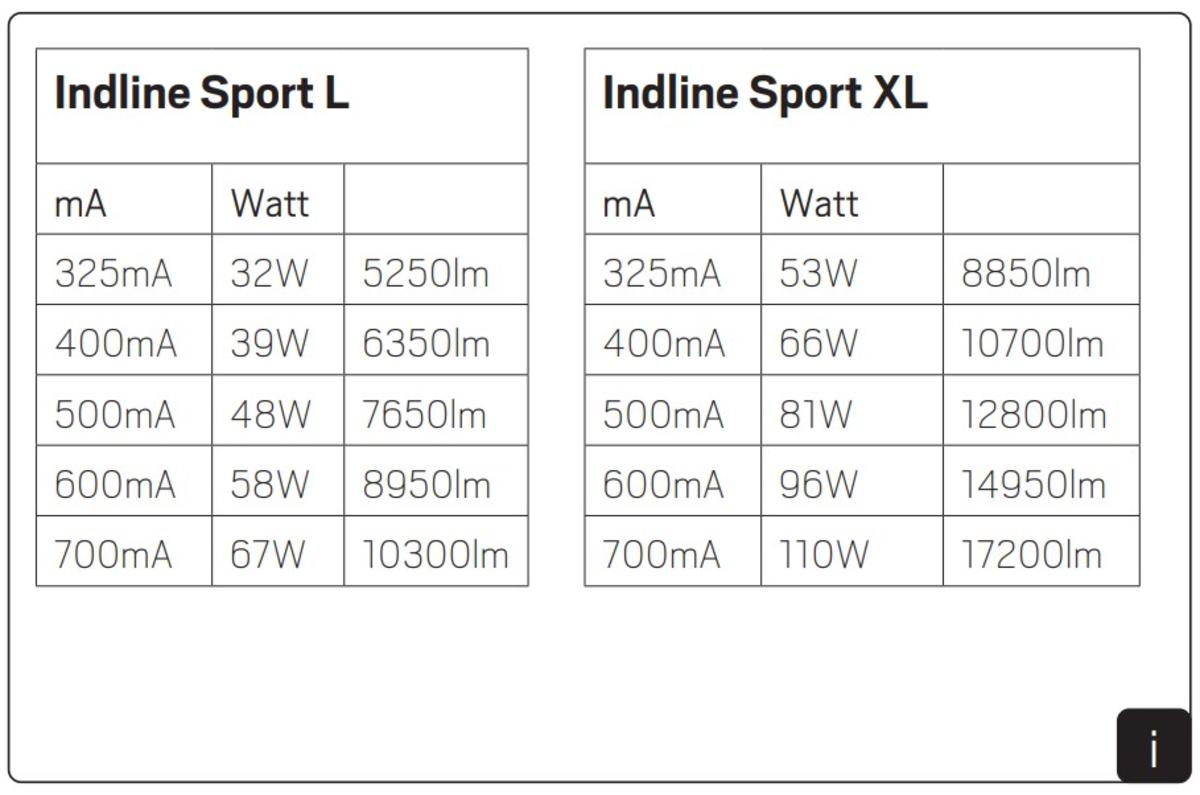

Sports luminaire with asymmetric light distribution optimal e.g. in padel halls. Push-in terminals at both sides for installation without opening the luminaire. Controlled via On/Off or DALI/Push. On/Off can be adjusted to a lower lumen output and wattage via DIP-switch Power. DALI enables control of each luminaire. Install: on rail, ceiling, wall or wires. Meets the ball test VDE 0710-13 using accessory Protective grid, ordered separately. Adjustable ceiling and wall brackets as accessories.
Exists in one color


GTIN Item Name Luminaire Lumen (lm) Type of Dimming
Indline Sport IP23 L Asym 840 7392971143927 Indline Sport IP23 L Asym 840 10300 OnOff
Indline Sport IP23 L Asym 840 DALI 7392971143965 Indline Sport IP23 L Asym 840 DALI 10500 Push 230V, DALI 2
Indline Sport IP23 XL Asym 840 7392971144009 Indline Sport IP23 XL Asym 840 17200 OnOff
Indline Sport IP23 XL Asym 840 DALI 7392971144047 Indline Sport IP23 XL Asym 840 DALI 17300 Push 230V, DALI 2

Indline Sport IP23 L Asym 840

GTIN 7392971143927
Item Name Indline Sport IP23 L Asym 840
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
LED Colour White
Colour Temperature (K) 4000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3
Initial Chromaticity (0.373,0.373)
Luminous Intensity (cd) 7450
Luminaire Lumen (lm) 10300

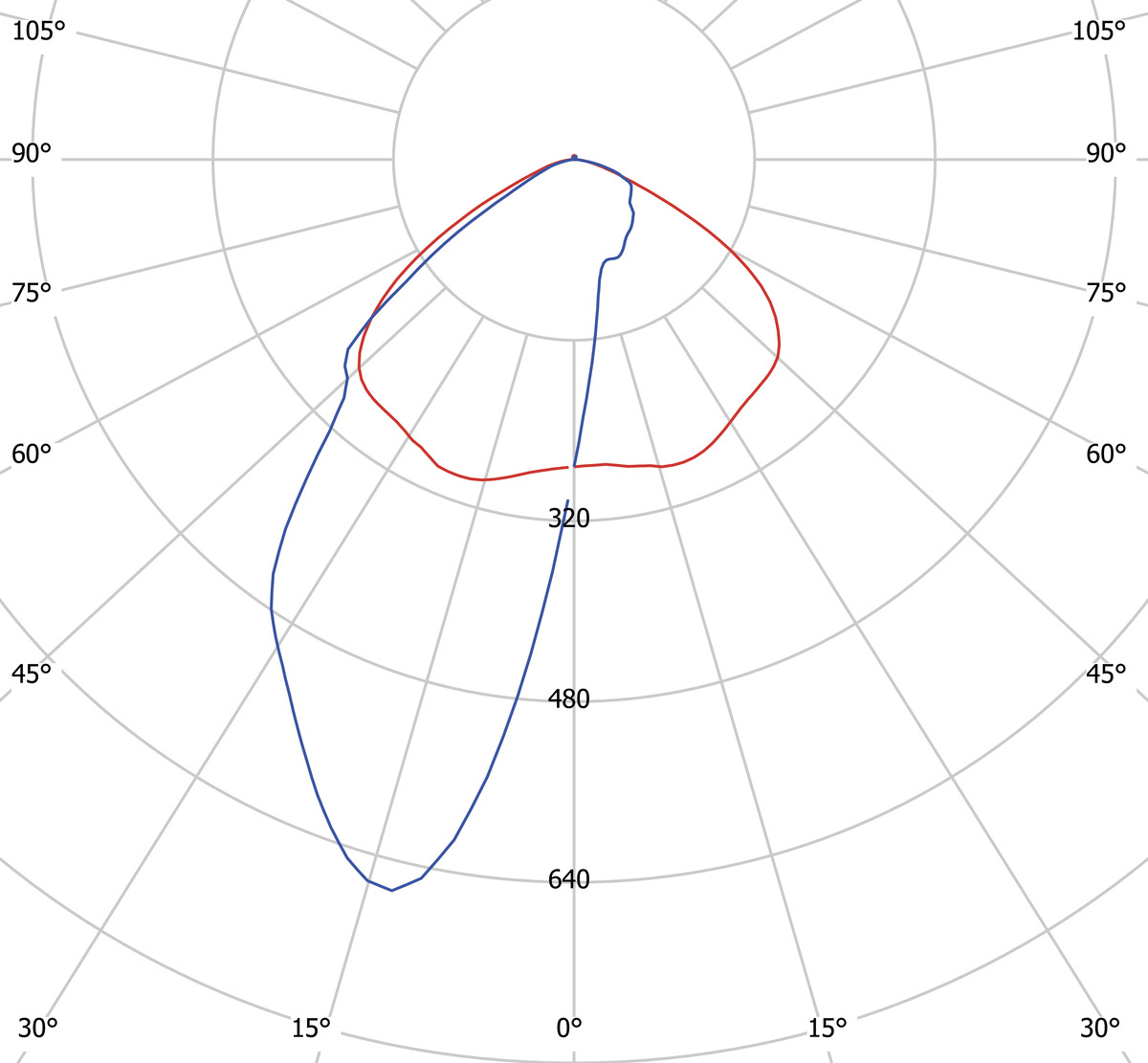

Beam Angle (°) 65
Light sharing
Light Outlet Medium Beam
Number of Lamps (pcs) 1
Number of LED (pcs) 99
Life Time L80 100 000h Ta 25°C
Nominel Life Time (h) 100000
Lumen maintenance 50 000h L92
Lumen maintenance 100 000h L80
LLMF @ 50 000h 0,92
LLMF @ 100 000h 0,8
Life Time Driver 100 000h/10%
Technical data
Adjustable No
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Power Luminaire (W) 67
System Power (W) 67
Efficiency Luminaire (lm/W) 154
Efficiency System (lm/W) 154
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Driver Manufacturer TCI
Connection (type) Quick Terminal
Connection (mm2) 5x0,5-2,5
Through Wiring Yes
Strain Relief Yes
Power Factor ʎ 0,95
Efficiency (%) 93
Operating Temperature -25…+50
Max. Tc (°C) 85
Dimmable No
Type of Dimming OnOff
Fuse B10 (pcs) 18
Fuse B16 (pcs) 29
Fuse C10 (pcs) 28
Fuse C16 (pcs) 45
Color and material
Material Metal, Sheet metal, PMMA
Color Aluzinc
Color Cover Ring White
Color Code Cover Ring (RAL) 9016
Environmental Assessment SundaHus
Measurement and installation
Operating Environment Indoor / damp locations
IP Degree of Protection 23
Protection Class I
Installation Surface mounted, Wire-cable installation
Mounting Installation Screw Mounting, Hook
Approval Marks CE
Filament Test IEC 695-2-1(°C) 650

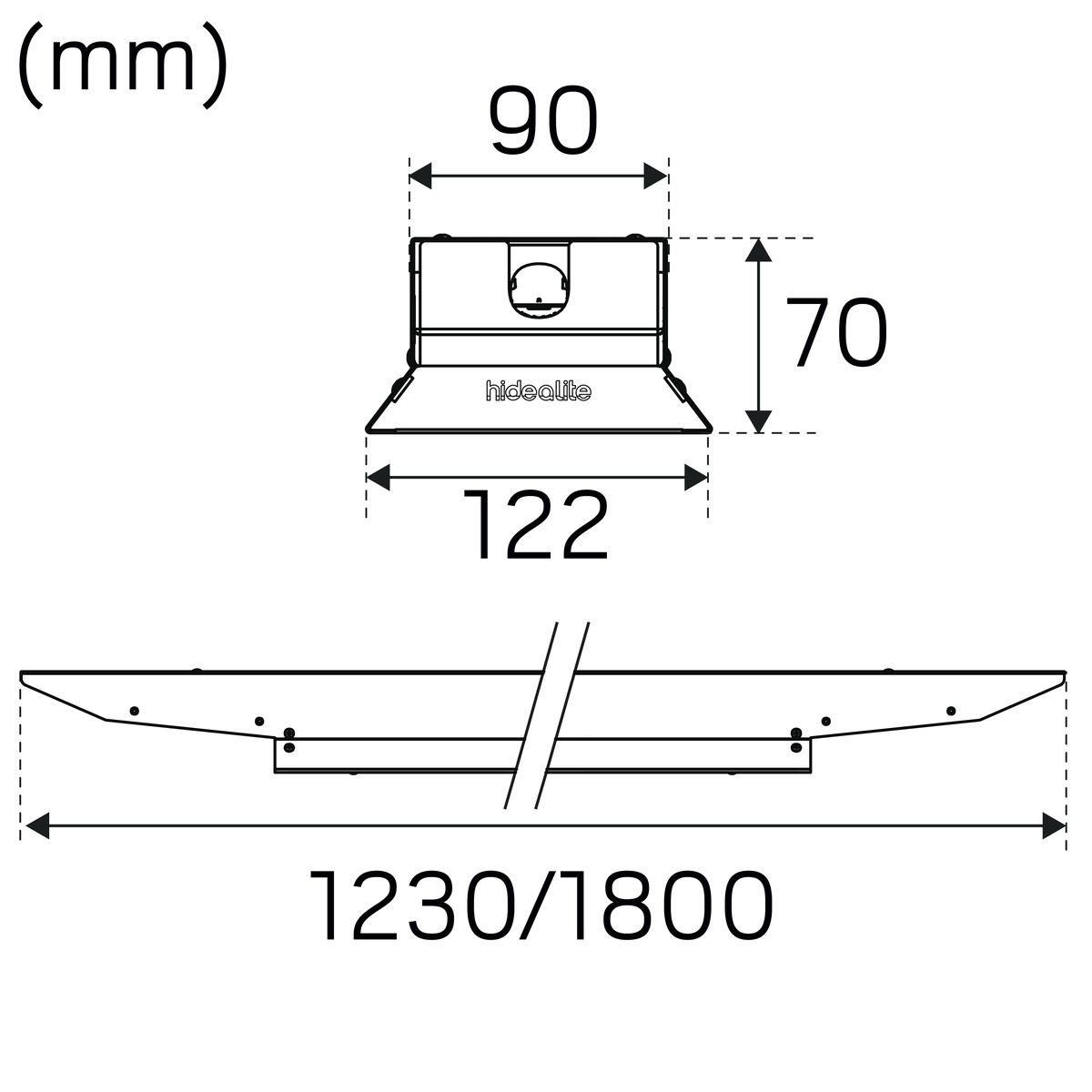

Length (mm) 1230
Width (mm) 122
Height (mm) 70
Weight (kg) 3,32
