Optic XL Tilt
Optic XL Tilt

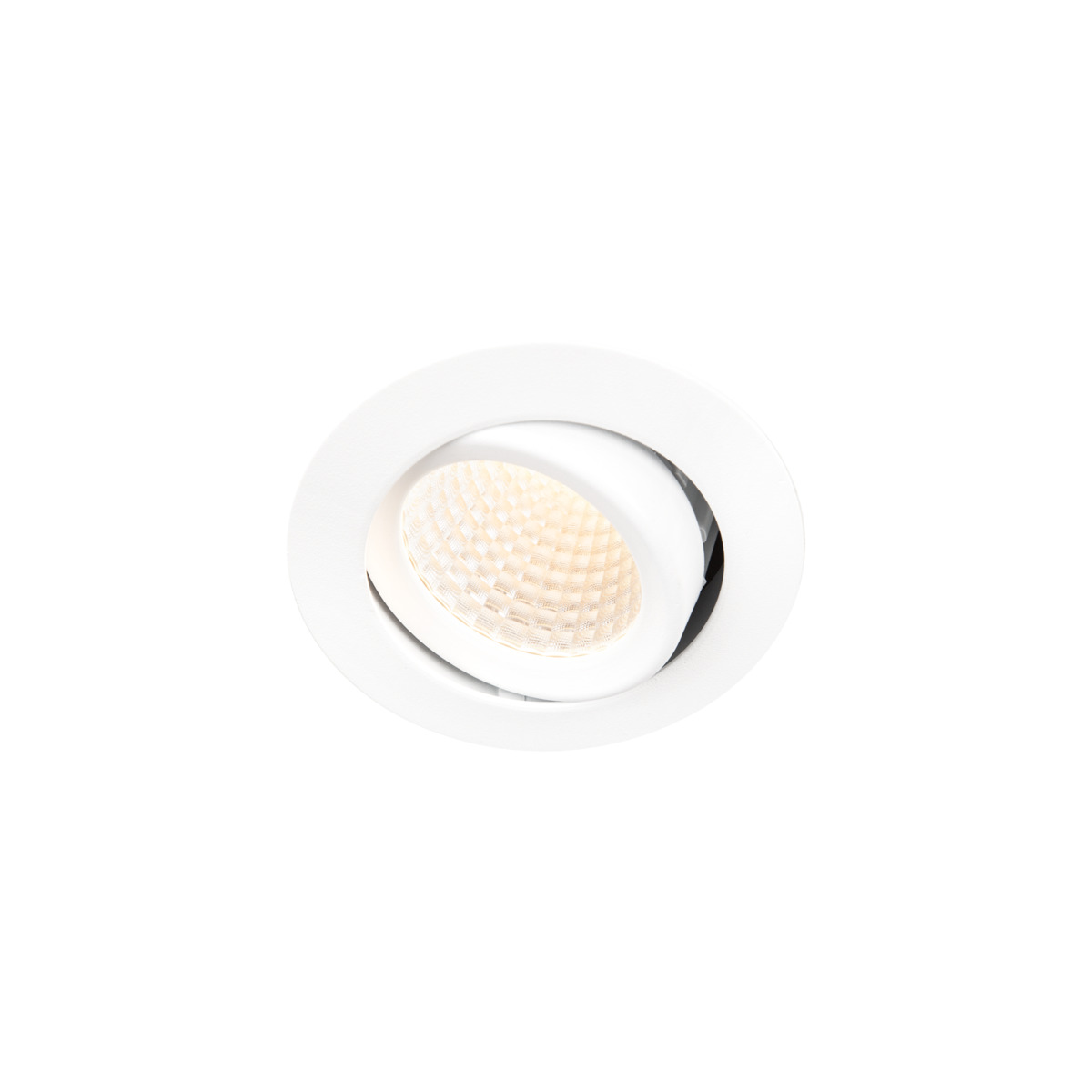

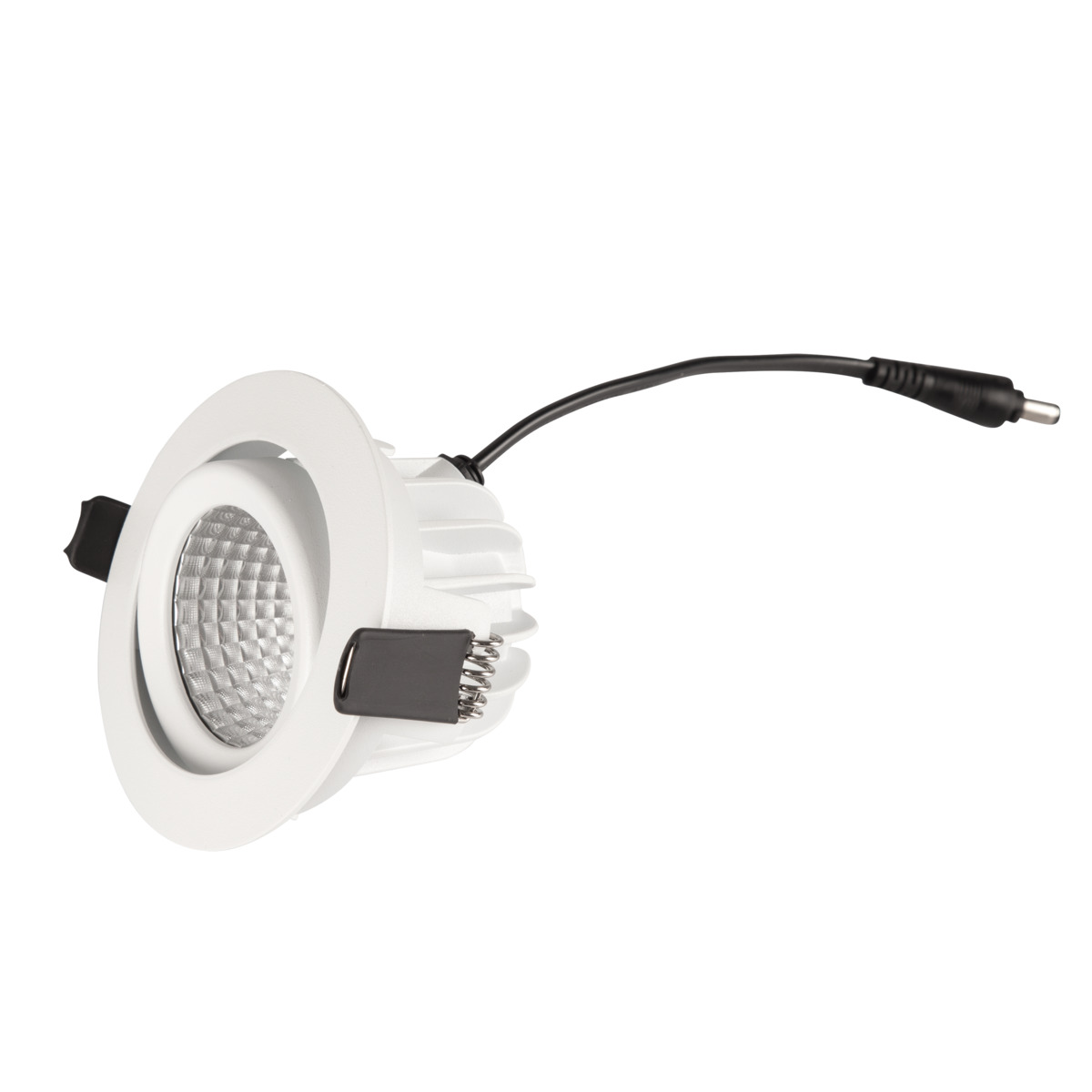

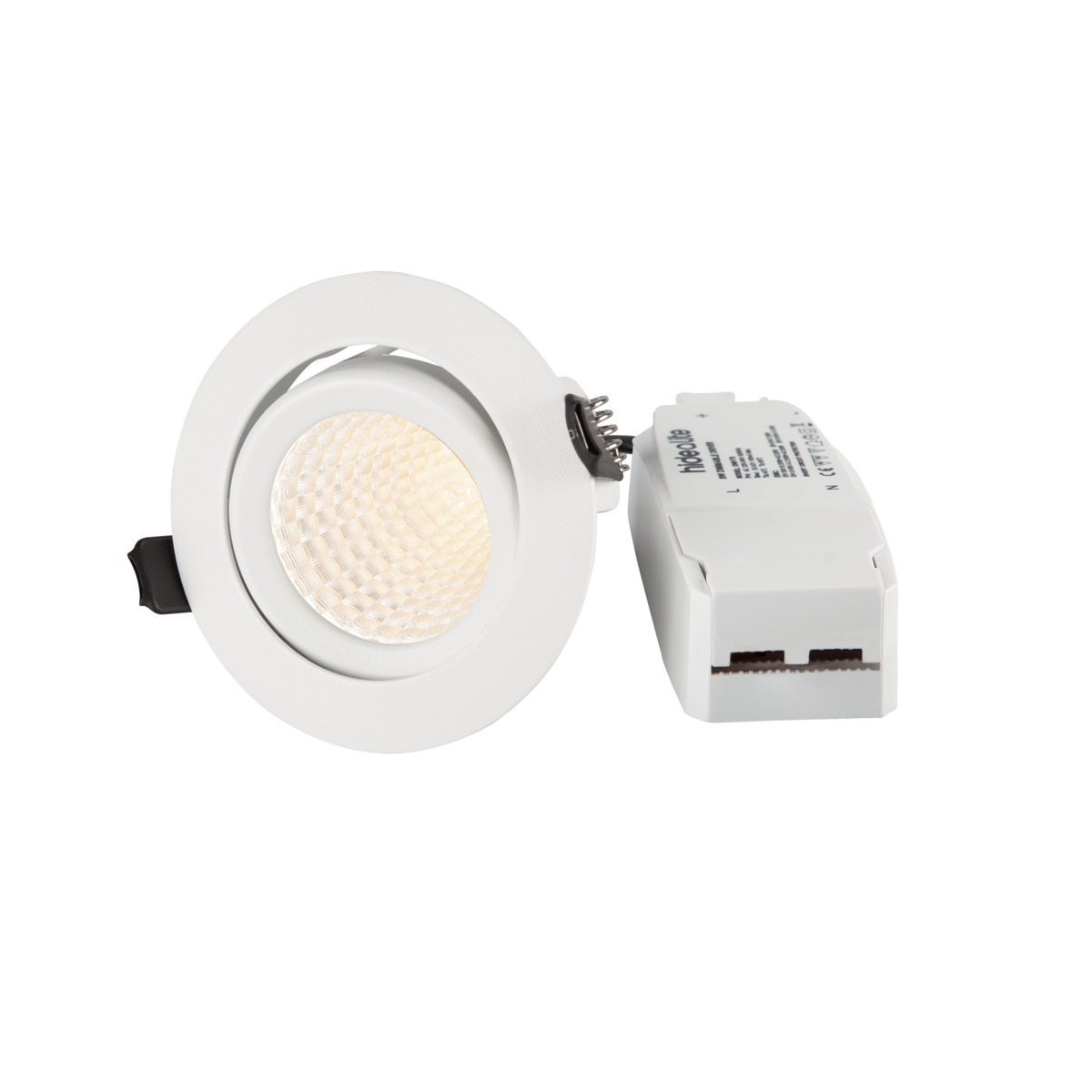

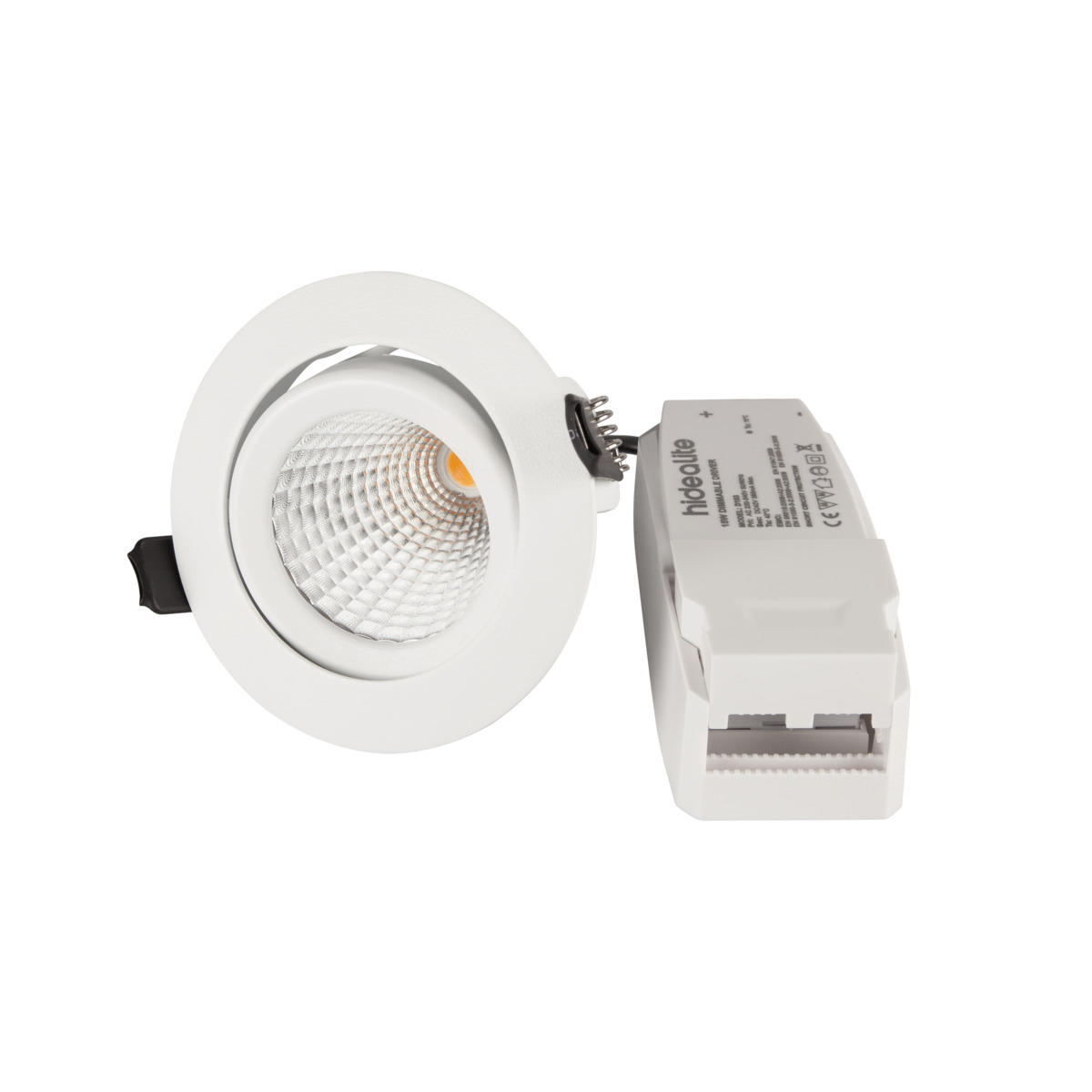

Powerful LED luminaire for high ceilings, reflector technology with 36° beam angle and high luminous efficacy. Optic XL is available in a fixed and in a 20° tiltable version with a distinct and very glare-free light distribution with very good colour rendering, RA>90. An easily installed and low-build luminaire complete with mains dimmable driver, push-in, loop-in, loop-out terminals and screwless strain relief for easy connection to 230V. Dimmable with the most commonly available dimmers on the market.
Exists in one color


GTIN Item Name Colour Temperature (K) Luminaire Lumen (lm) Type of Dimming
Optic XL Tilt Tune 7392971130880 Optic XL Tilt Tune 3000 740 Trailing Edge, Leading Edge
Optic XL Tilt Tune DALI 7392971134628 Optic XL Tilt Tune DALI 3000 740 Push 230V, DALI 2
Optic XL Tilt 2700K DALI 7392971134635 Optic XL Tilt 2700K DALI 2700 910 Push 230V, DALI 2
Optic XL Tilt 3000K DALI 7392971134642 Optic XL Tilt 3000K DALI 3000 940 Push 230V, DALI 2
Optic XL Tilt 2700K 7392971130897 Optic XL Tilt 2700K 2700 910 Trailing Edge, Leading Edge
Optic XL Tilt 3000K 7392971130903 Optic XL Tilt 3000K 3000 940 Trailing Edge, Leading Edge
Optic XL Tilt 4000K 7392971135311 Optic XL Tilt 4000K 4000 1025 Trailing Edge, Leading Edge
GTIN 7392971130880
Item Name Optic XL Tilt Tune
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
Replaceability Non-replaceaable LED, Replaceable Control gear by professional
LED Colour Tune
Colour Temperature (K) 3000
Range Colour Temperature (K) Tune 2000-3000
Colour Rendering Index (Ra) >90
Colour Consistency (SDCM) 3
Initial Chromaticity x:0.4238 y:0.3943
Luminous Intensity (cd) 1900
Luminaire Lumen (lm) 740
Beam Angle (°) 36
Light sharing
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L70 100 000h Ta 25°C
Nominel Life Time (h) 100000
Lumen maintenance 50 000h L88
Lumen maintenance 75 000h L86
Lumen maintenance 100 000h L79
LLMF @ 50 000h 0,88
LLMF @ 100 000h 0,79
Life Time Driver 50 000h/10%
Technical data
Adjustable Yes
Tiltable (°) 20
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Power LED (W) 12,5
Power Luminaire (W) 15
System Power (W) 15
Efficiency Luminaire (lm/W) 49
Efficiency System (lm/W) 49
Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Stand Alone
Connection (type) Quick Terminal
Connection (mm2) 3x0,5-2,5
Through Wiring Yes
Strain Relief Yes
Constant Current (mA) 350
Operating Temperature -20…+40
Max. Tc (°C) 85
Dimmable Yes
Type of Dimming Trailing Edge, Leading Edge
Dimming secondary side AM
Memory Function Power Failure No
Fuse B10 (pcs) 27
Fuse B16 (pcs) 43
Fuse C10 (pcs) 45
Fuse C16 (pcs) 72
Color and material
Material Diecasted, Aluminium
Color White
Environmental Assessment SundaHus, Byggvarubedömningen
Measurement and installation
Operating Environment Indoor / bathroom (ceiling area 1)
IP Degree of Protection 44
Protection Class II
Installation Built-in
Mounting Installation Mounting Spring
Ceiling Thickness Interval (mm) 3-26
Fire Safety Marks Not in insulation without protection cover
Protection Cover 7466700, 7466701, 7466702
Approval Marks CE, SELV
Filament Test IEC 695-2-1(°C) 650

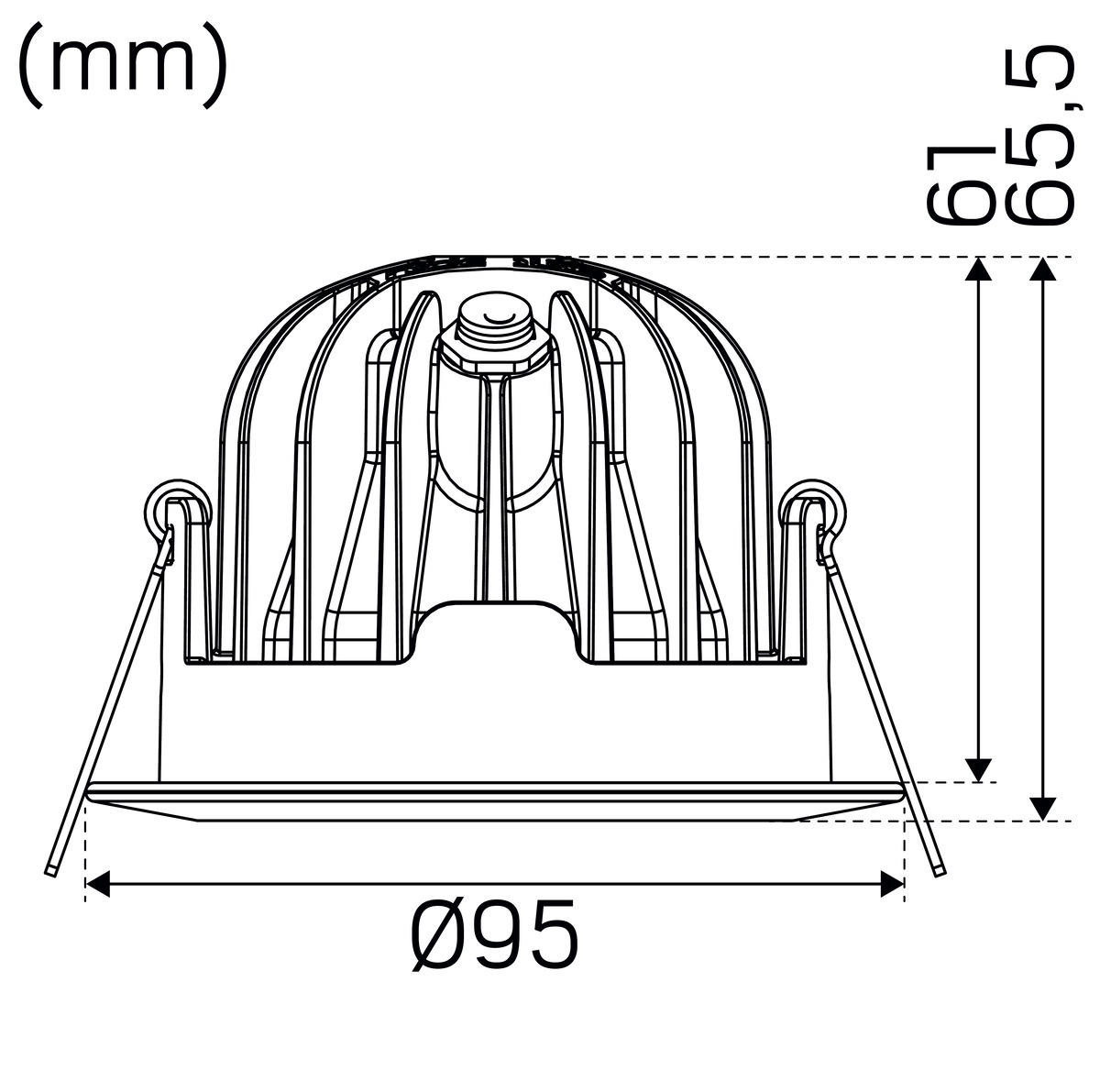

Height (mm) 66
Diameter (mm) 95
Weight (kg) 0,317
Min. Built-in (mm) 300x200x60
Min. Air Volume (cm3) 3600
Height Recessed Part (mm) 61
Height Exterior Part (mm) 5
Built-in Ø (mm) 83
