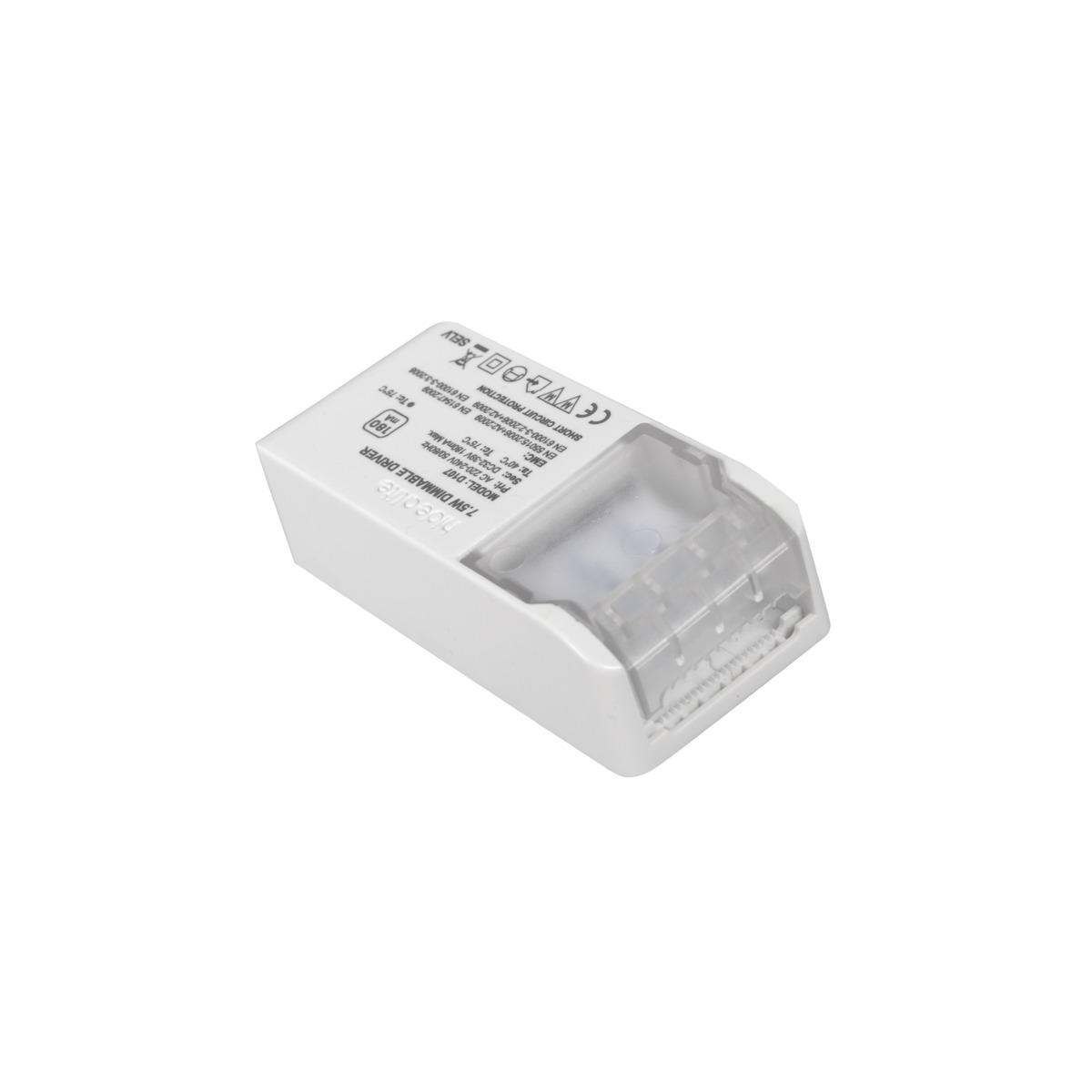

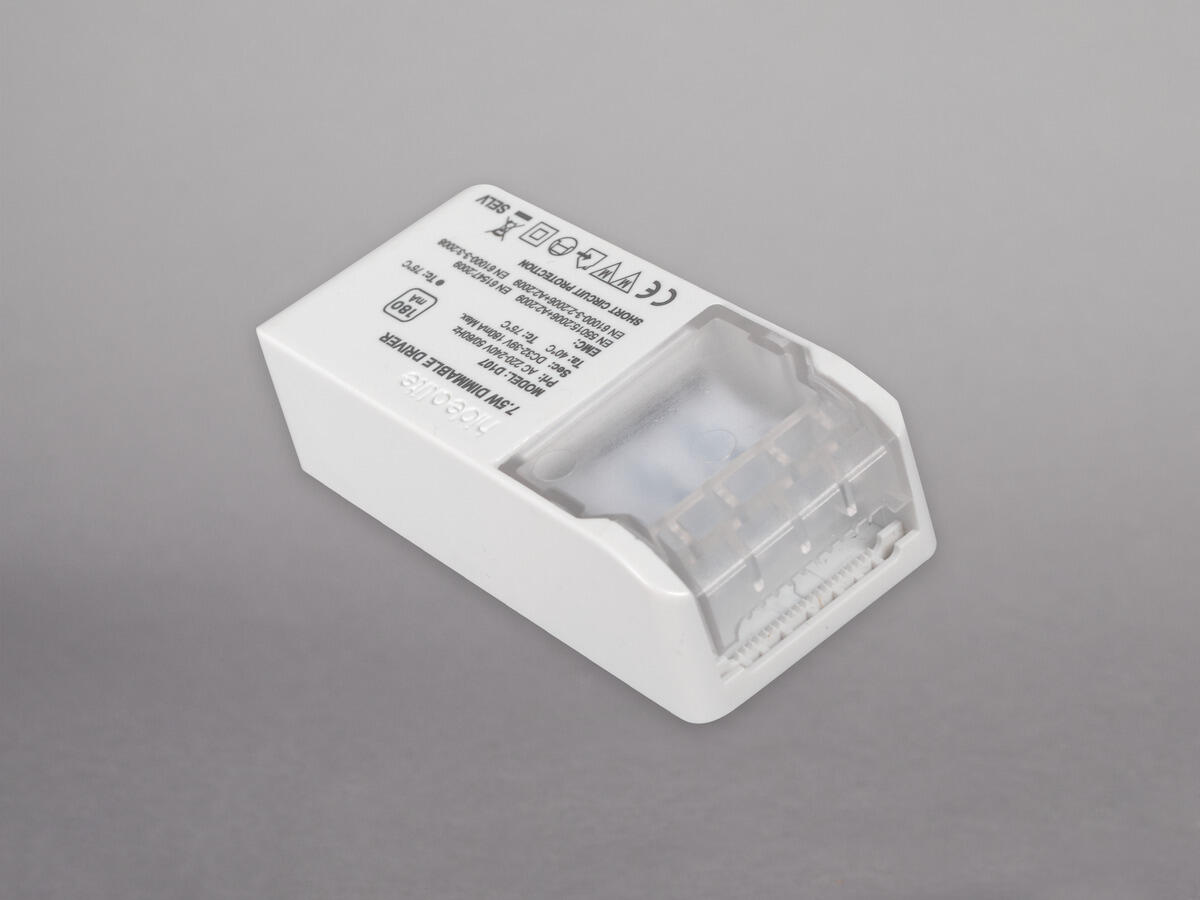

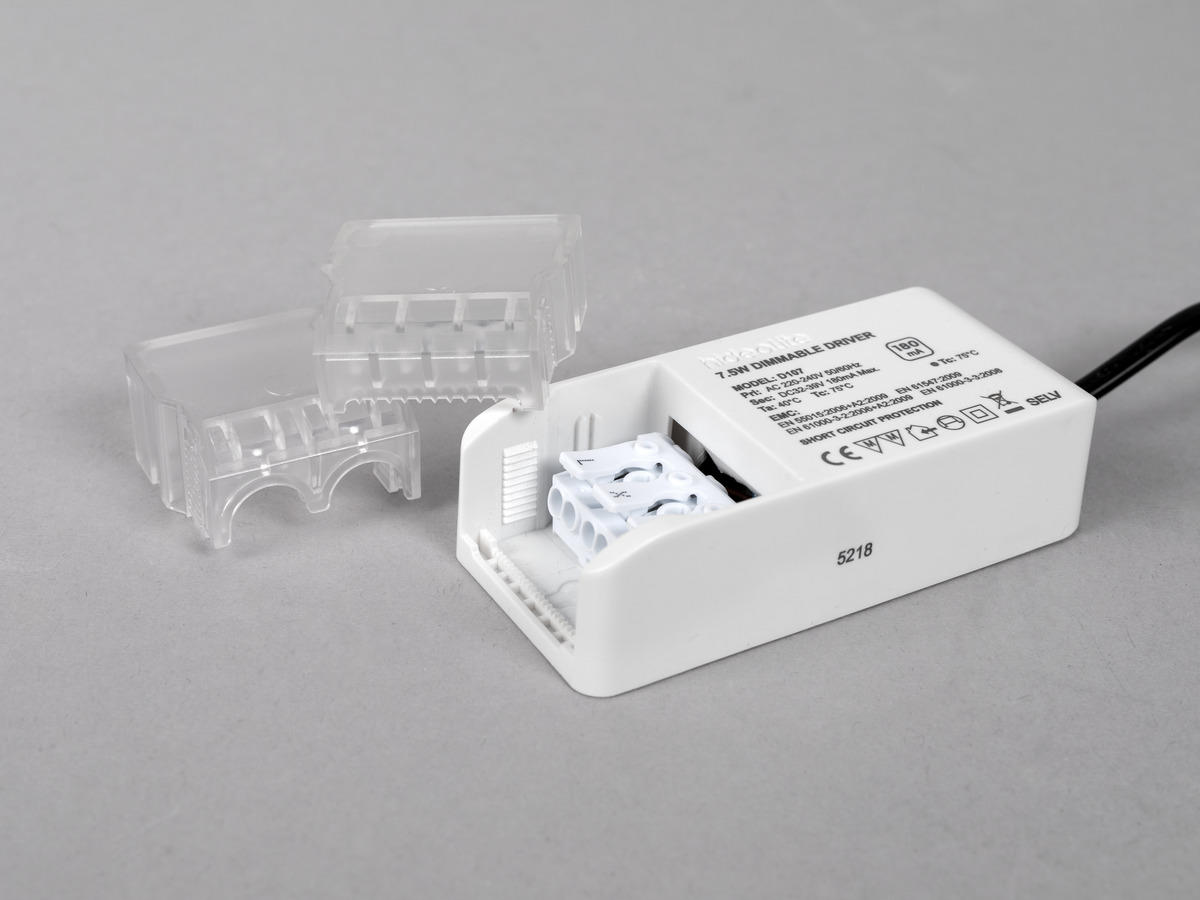

Mains dimmable driver for constant current luminaire 180mA. Push-in, loop-in, loop-out terminals for through wiring and screwless strain relief for cables from 0.5-2.5mm² on primary side, for cable/16mm flex hose. The secondary side has pre-wired cable and phono connector.
GTIN7392971136349 Item NameConverter FDIM G3 180mA Warranty5 years
Light Technical Data
Life Time Driver50 000h/10%
Operation and Connection
Driver ModelConstant Current Driver TypeStand Alone Connection (type)Quick Terminal Through WiringYes Strain ReliefYes Power Interval for Catalogue (W)1-7,5 Constant Current (mA)180 Operating Temperature-20…+45 Max. Tc (°C)75 DimmableYes Type of DimmingTrailing Edge, Leading Edge Protection AgainstShort Circuit
Color and material
Measurement and installation

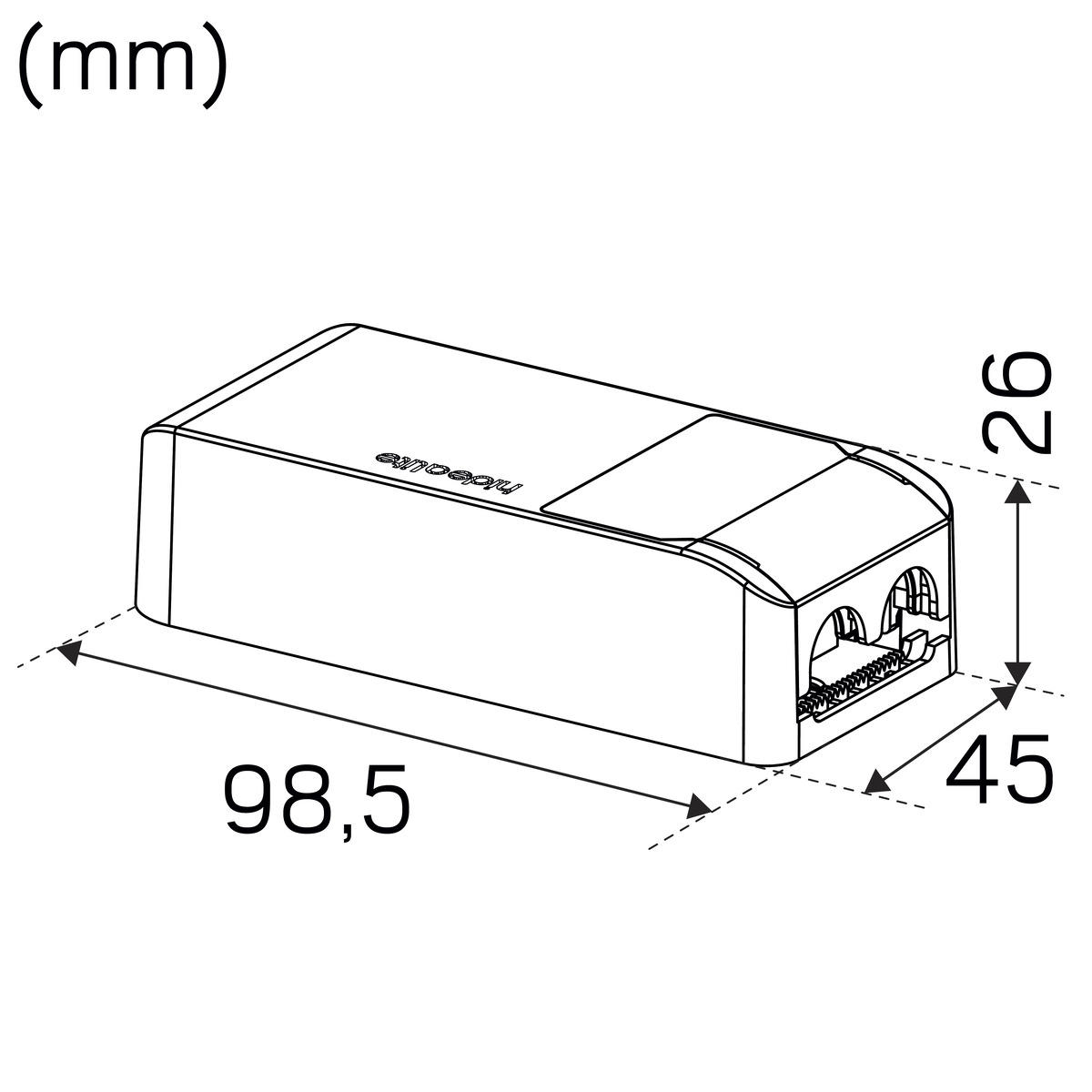

Operating EnvironmentIndoor / dry locations IP Degree of Protection20 Protection ClassII InstallationSurface mounted Fire Safety MarksNot in insulation without protection cover Approval MarksCE Length (mm)99 Width (mm)45 Height (mm)26 Weight (kg)0,113
