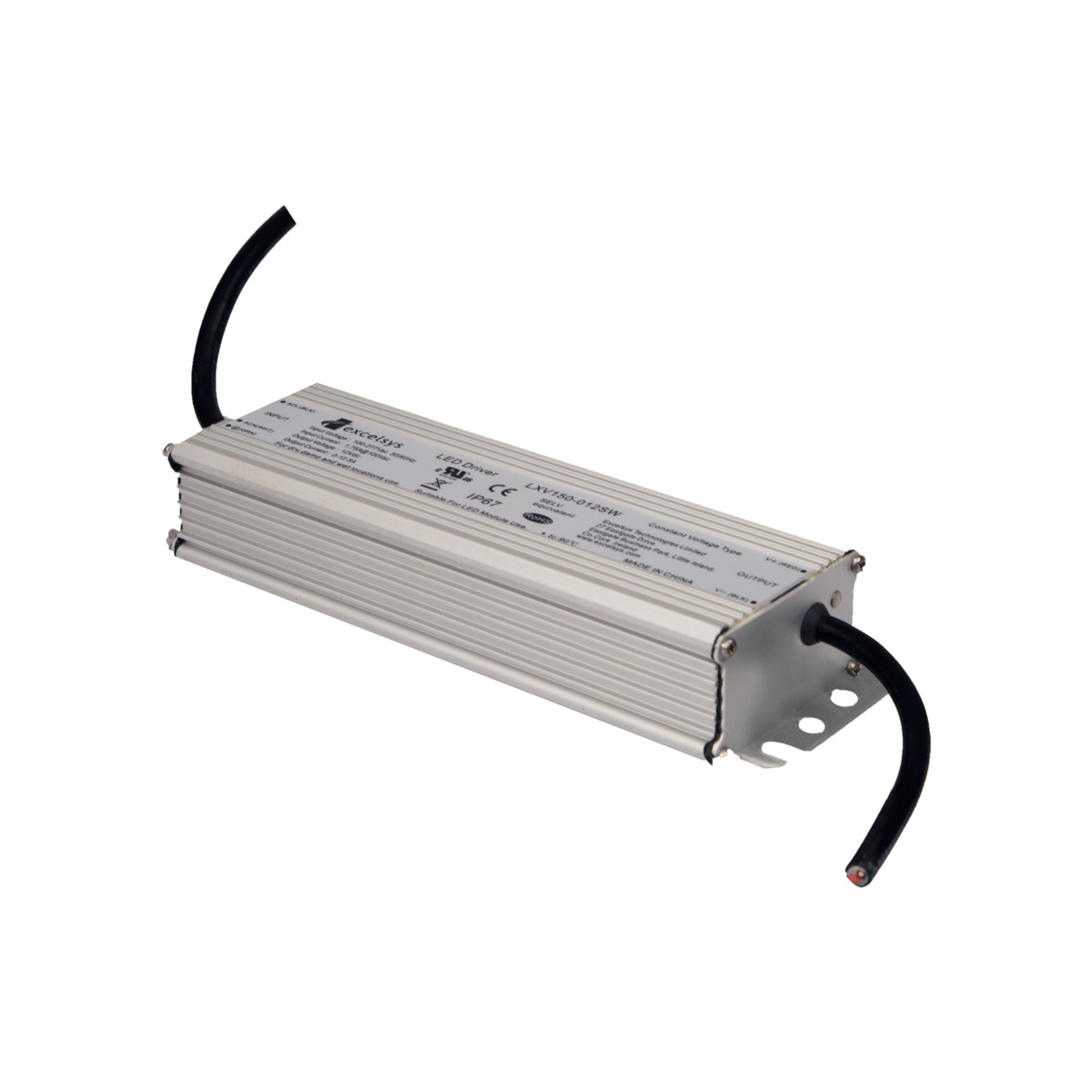

LED-trafo LXV IP67

Waterproof and powerful constant voltage driver with IP67 rating for 12V/24V LED. Wide power range, can be loaded from zero up to max output (0-150W/300W). The drivers are designed to work perfectly with our LED dimmers. Comes with with factory-fitted connecting cables on both the primary and secondary sides. 2 outputs, max. power 75W/150W per output. Full power can be achieved if the secondary cables are twisted together.

Variants	GTIN	Item Name
	7392971128665	LXV 12VDC 150W IP67
	7392971128672	LXV 24VDC 300W IP67

Description: GTIN 7392971128665

Item Name LXV 12VDC 150W IP67

Warranty 5 years
Light Technical Data: Life Time Driver 55 000h
Operation and Connection: Driver Model Constant Voltage

Driver Type Stand Alone

Connection (type) Cable

Length Connection (cm) 60

Connection (mm2) 2x0,75-1,5

Connection Secondary (type) Cable

Length Connection Secondary (cm) 22

Secondary Connection (mm2) 4x0,75-1,5

Secondary Outputs (pair) 2

Power Interval for Catalogue (W) 0-150

Max. Load Per Output (W) 75

Current (A) 12,5

Operating Temperature -35…+70

Max. Tc (°C) 90

Dimmable No

Type of Dimming OnOff

Protection Against Short Circuit, Overload, Overheating 100°C

Fuse B10 (pcs) 3

Fuse B16 (pcs) 5

Fuse C10 (pcs) 5

Fuse C16 (pcs) 8
Color and material: Material Aluminium

Color Aluminum
Measurement and installation: Operating Environment Indoor / wet locations, Outdoor

IP Degree of Protection 67

Protection Class I

Installation Surface mounted

Mounting Installation Screw Mounting

Fire Safety Marks MM-mark

Approval Marks CE

Length (mm) 226

Width (mm) 68

Height (mm) 40

Weight (kg) 1

Built-in Ø (mm) 90
