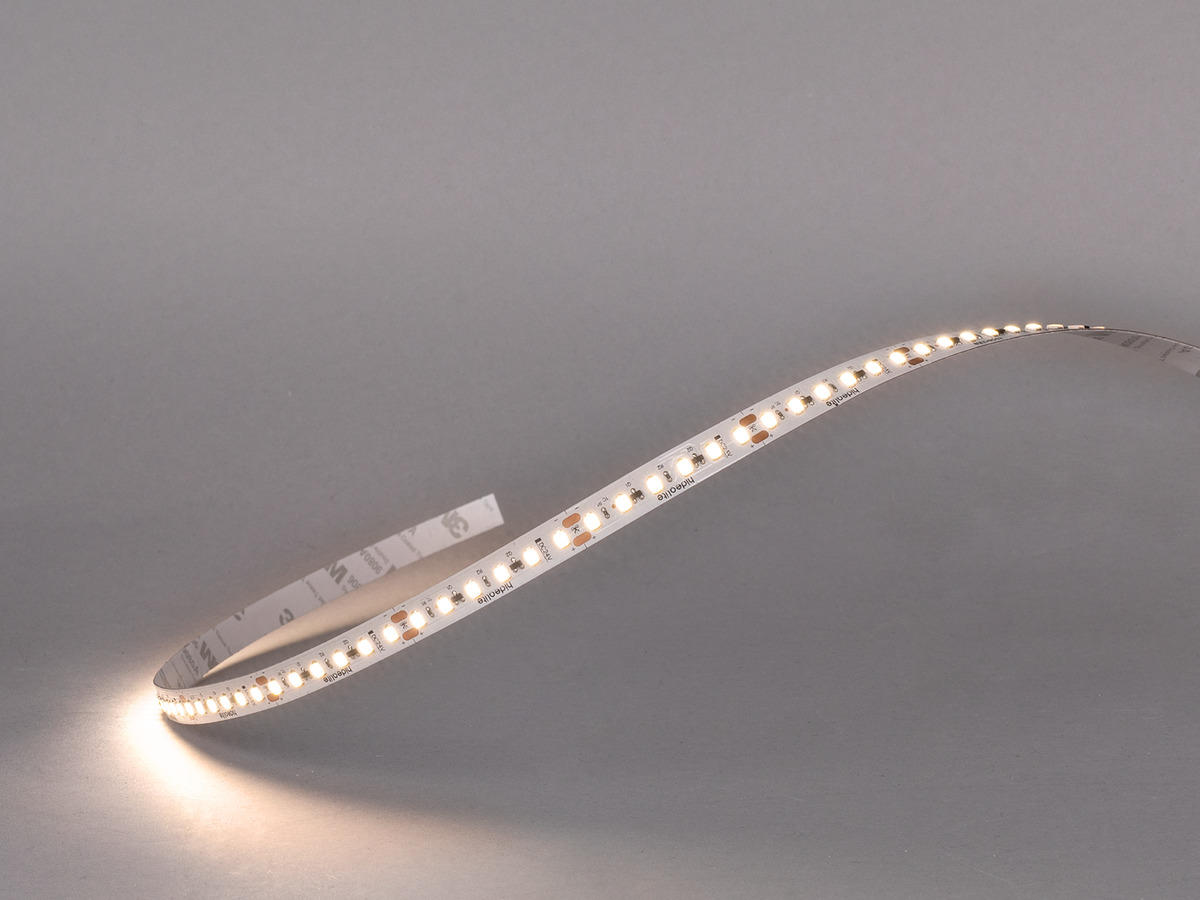

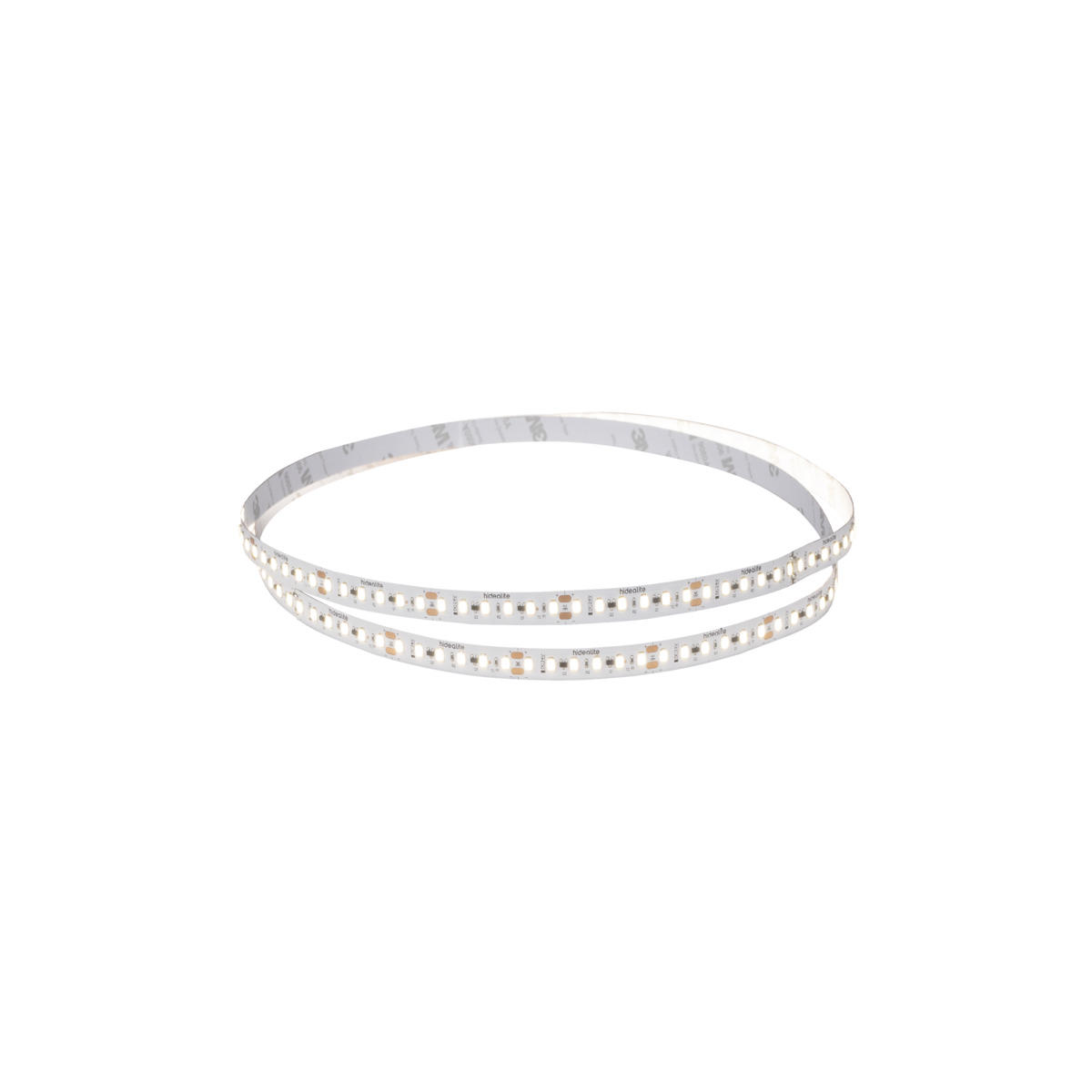

LEDstrip 24V Long IP20

Dimmable LED strip that pulls away in length and creates an even light without interruption in lengths of up to 20m, 40m when feeding from the middle or from two sides, cutting increments of 5cm. Very good colour rendering, Ra> 90. Fits perfectly in our range of aluminium profiles. Opal cover is recommended for visible installation. Ordered in desired length with self-adhesive tape. Quick joint and quick connection are available as accessories, ordered separately. Driver ordered after desired dimming technology and location.

GTIN	Item Name	Colour Temperature (K)	Luminaire Lumen (lm)
7392971137803	LEDstrip 24V Long IP20 MidLum 4000K lpm	4000	780
7392971137780	LEDstrip 24V Long IP20 MidLum 2700K lpm	2700	680
7392971137797	LEDstrip 24V Long IP20 MidLum 3000K lpm	3000	700

Description: GTIN 7392971137803

Item Name LEDstrip 24V Long IP20 MidLum 4000K lpm

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 780

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour White

Colour Temperature (K) 4000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 250

Beam Angle (°) 120

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 120

LED Pitch (mm) 8

Life Time L70 50 000h Ta 25°C

Nominel Life Time (h) 50000
Technical data: Adjustable No

Voltage (type) DC

Voltage Interval (V) 24...24

Voltage Nominal (V) 24

Voltage Forward (Vf) 2,9

Power Luminaire (W) 8

Efficiency Luminaire (lm/W) 104

Energy Efficiency Class (EU) 2019/2015 E
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Voltage

Operating Temperature -25…+45

Max. Tc (°C) 50
Color and material: Material Copper

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class III

Installation Surface mounted

Mounting Installation Self Adhesive Tape

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

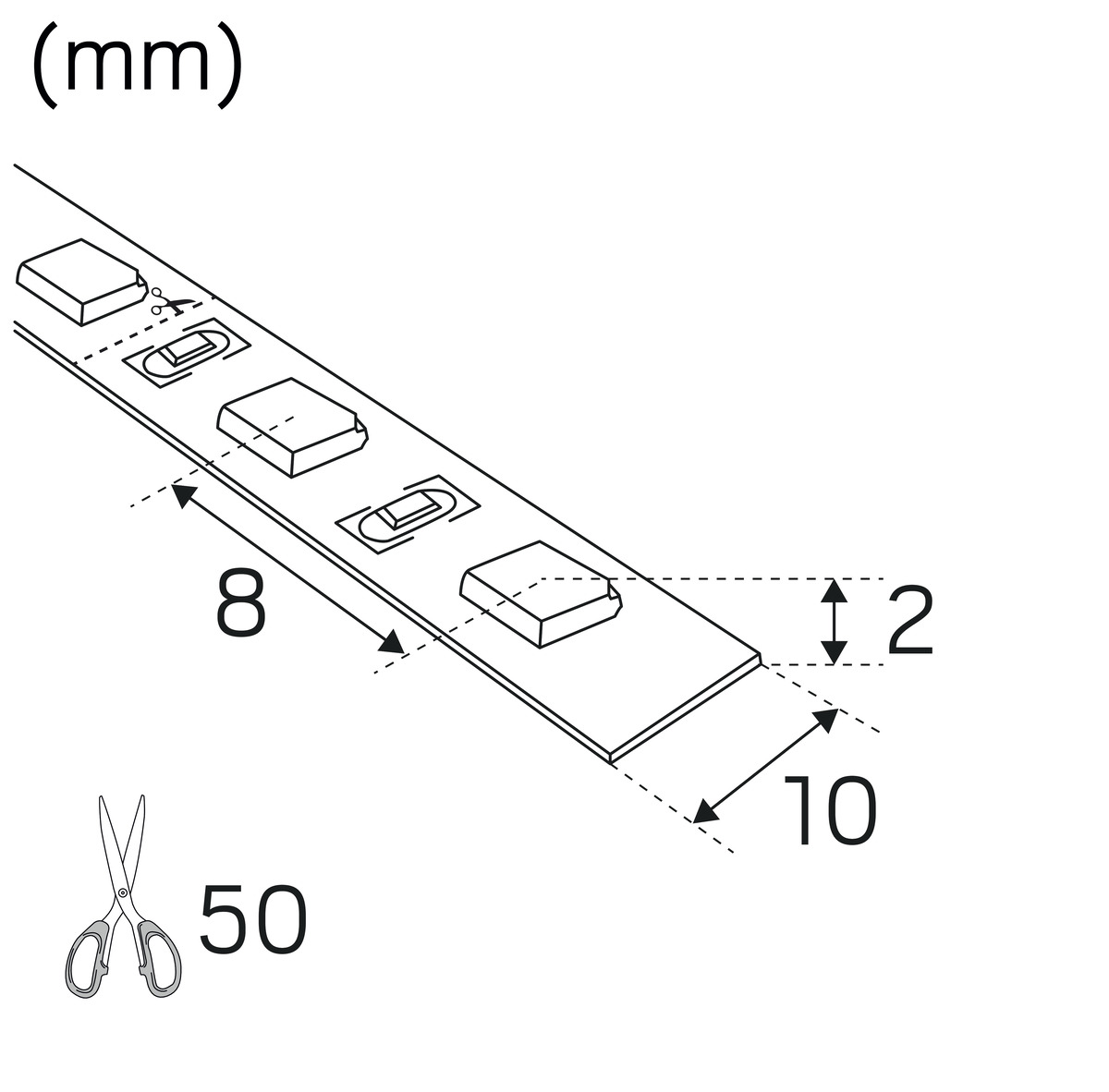

Length (mm) 1000

Width (mm) 10

Height (mm) 2

Weight (kg) 0,05
LEDstrips: Min. Bend Radius (mm) 50

Min. Length (m) 0,05

Max. Length (m) 20

Cutting Increments (mm) 50
