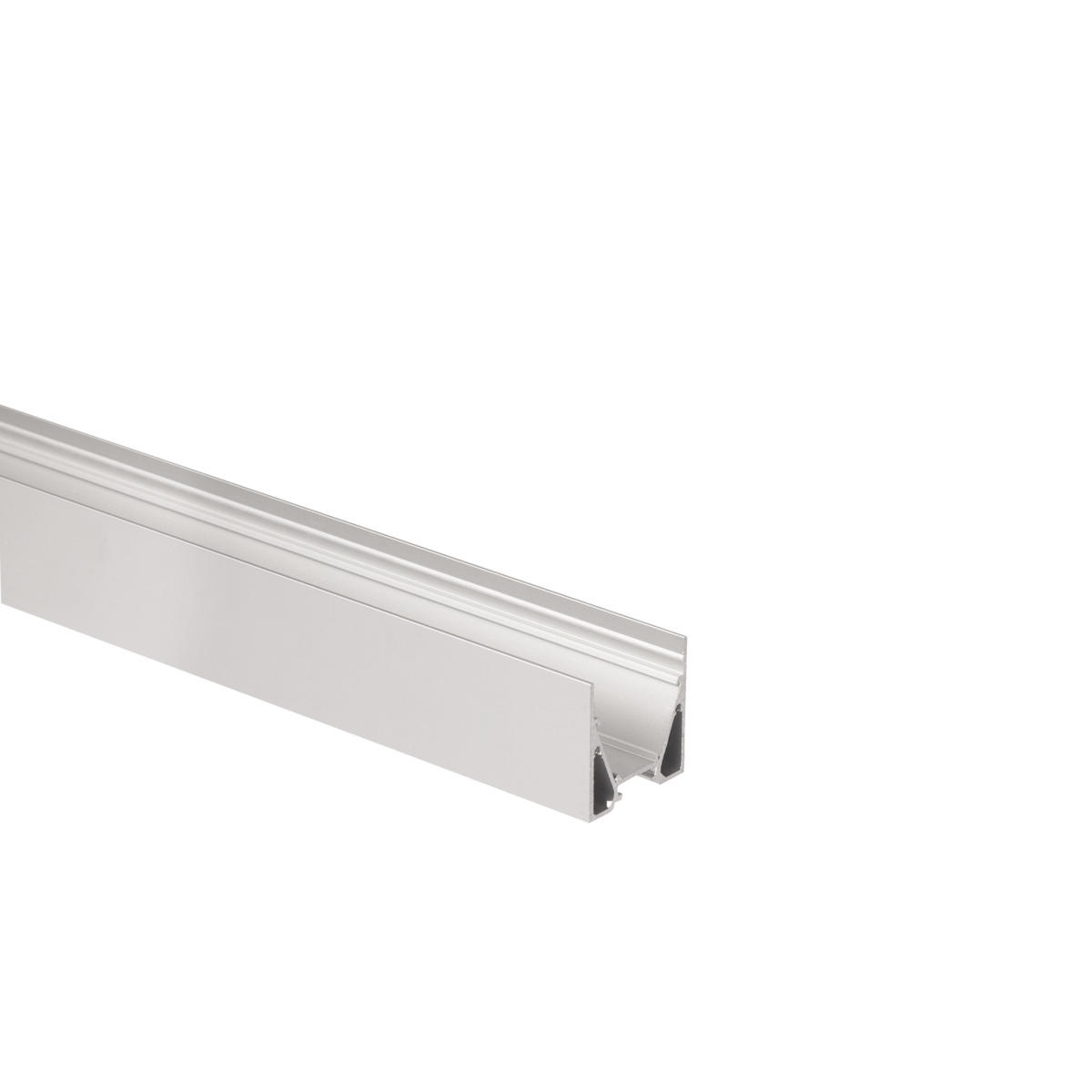

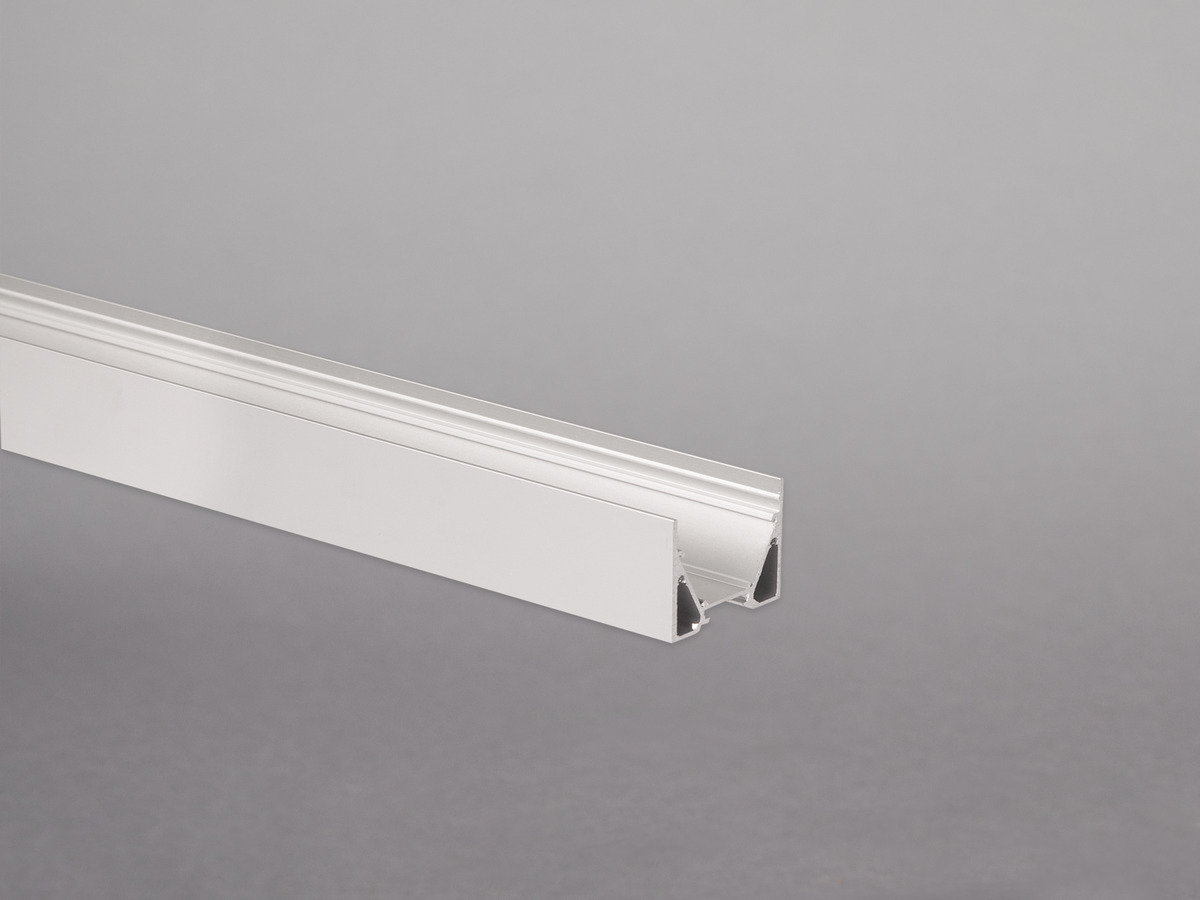

Profile Maxi U

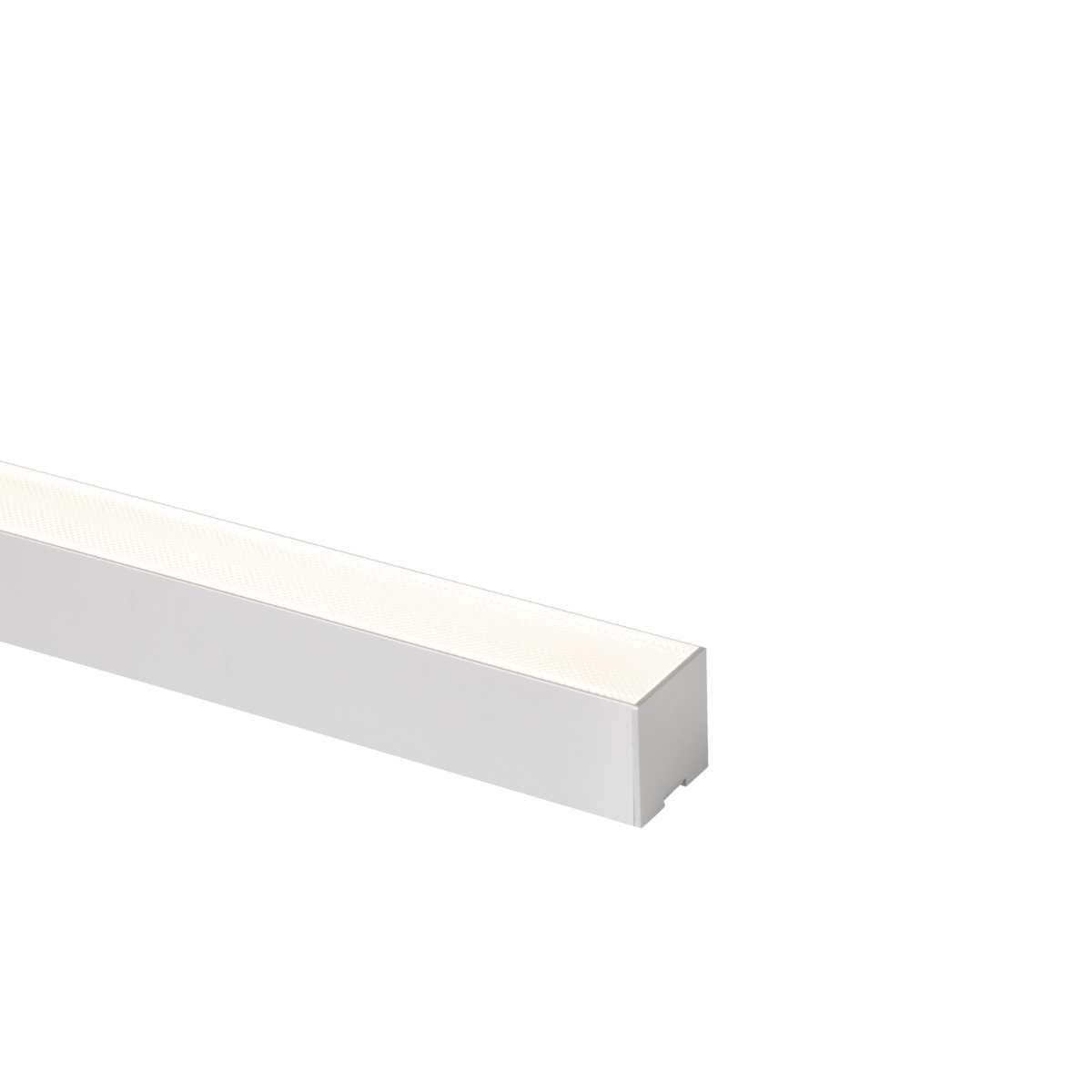

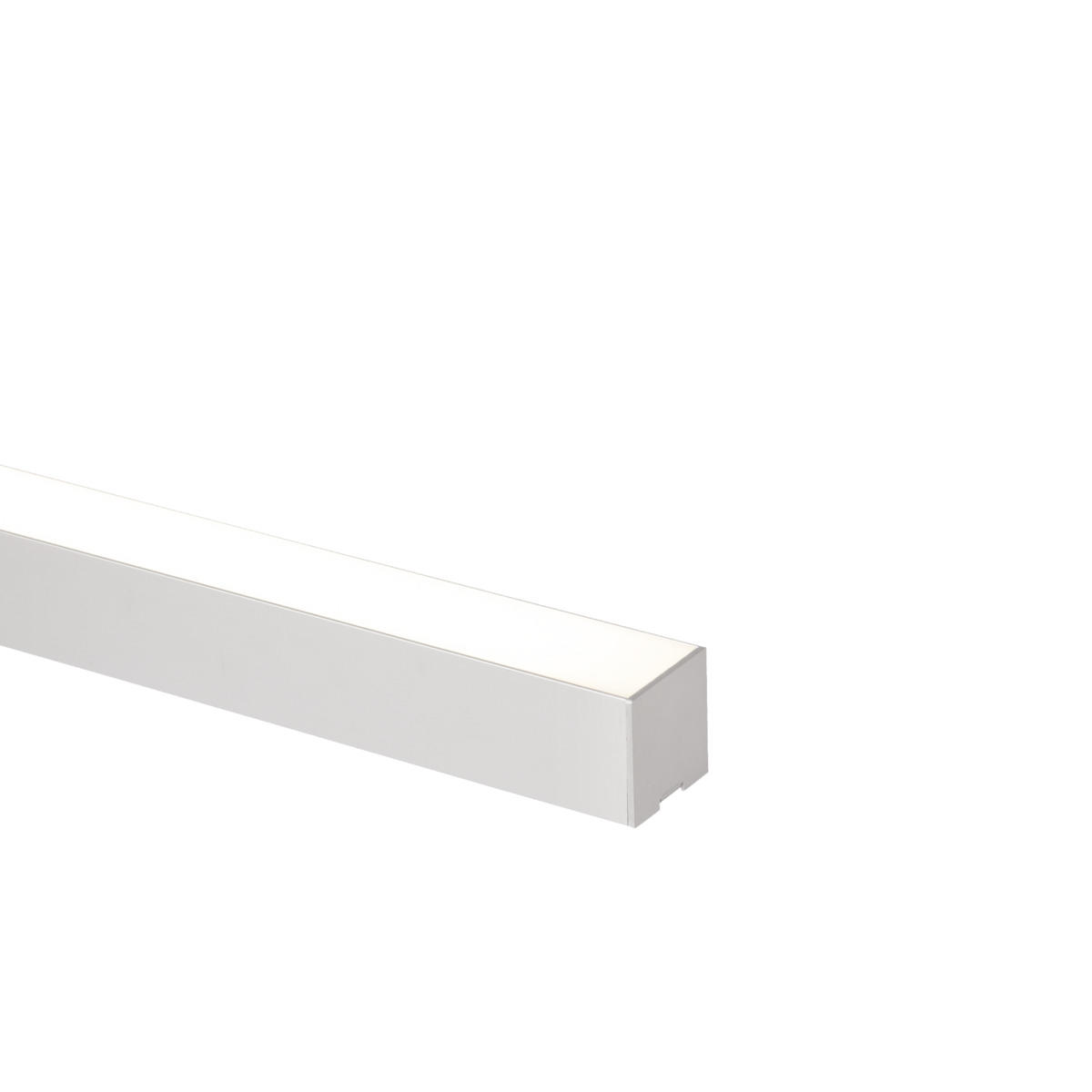

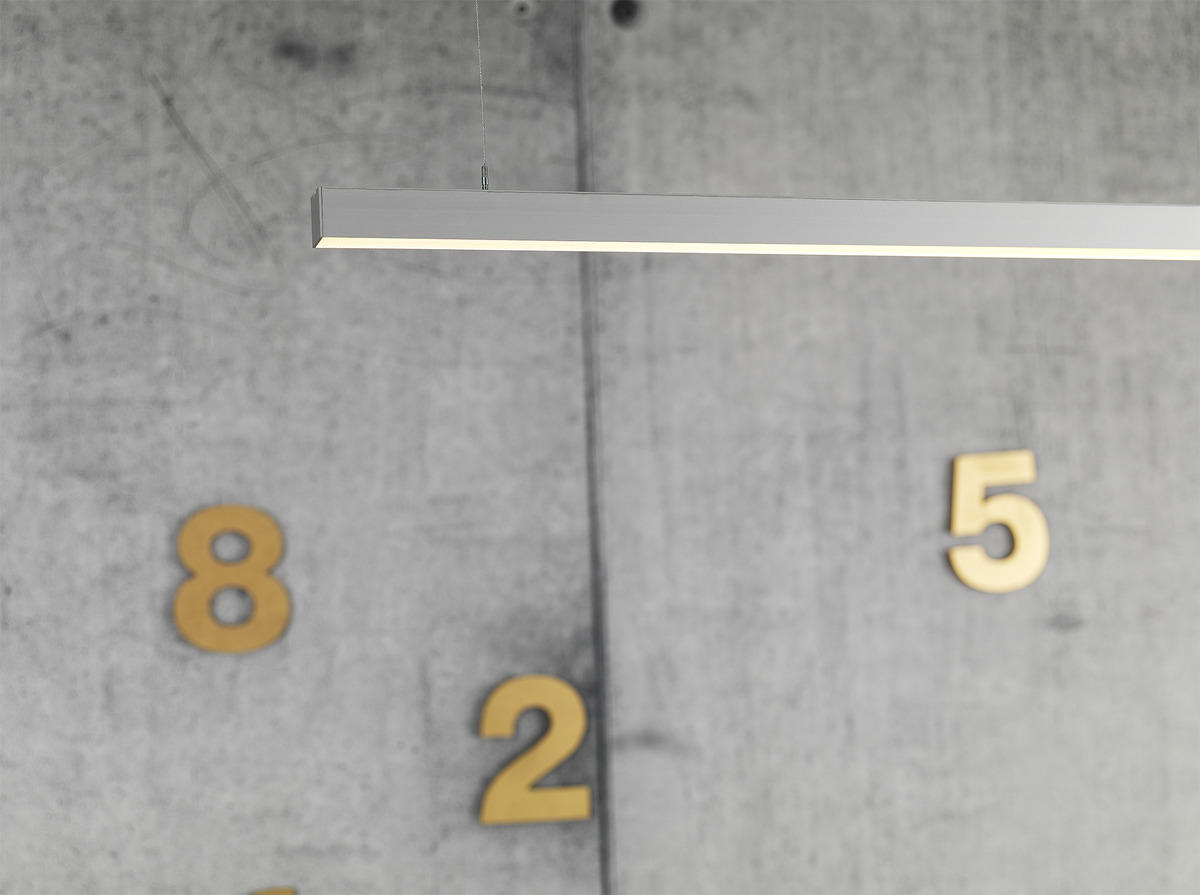

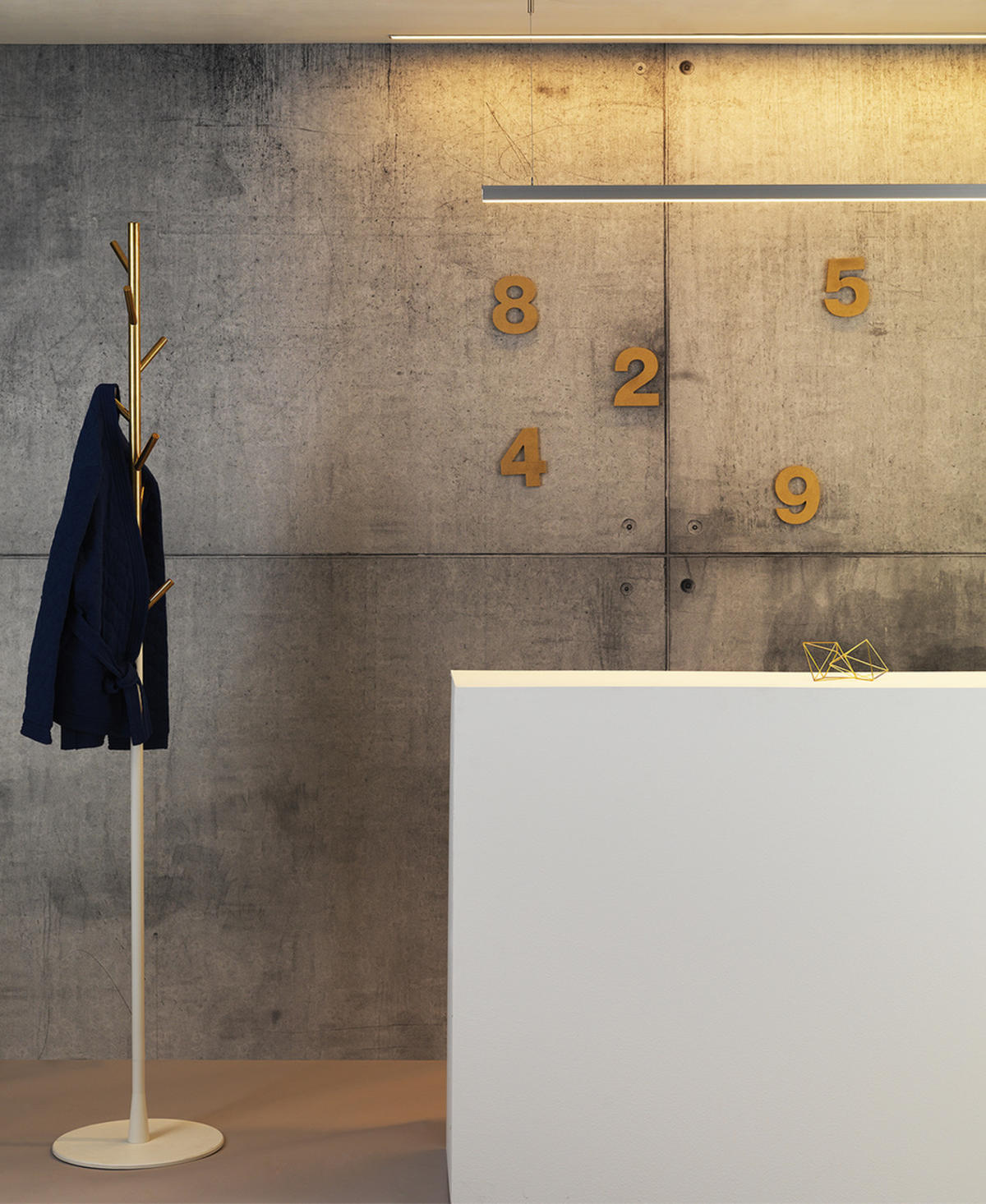

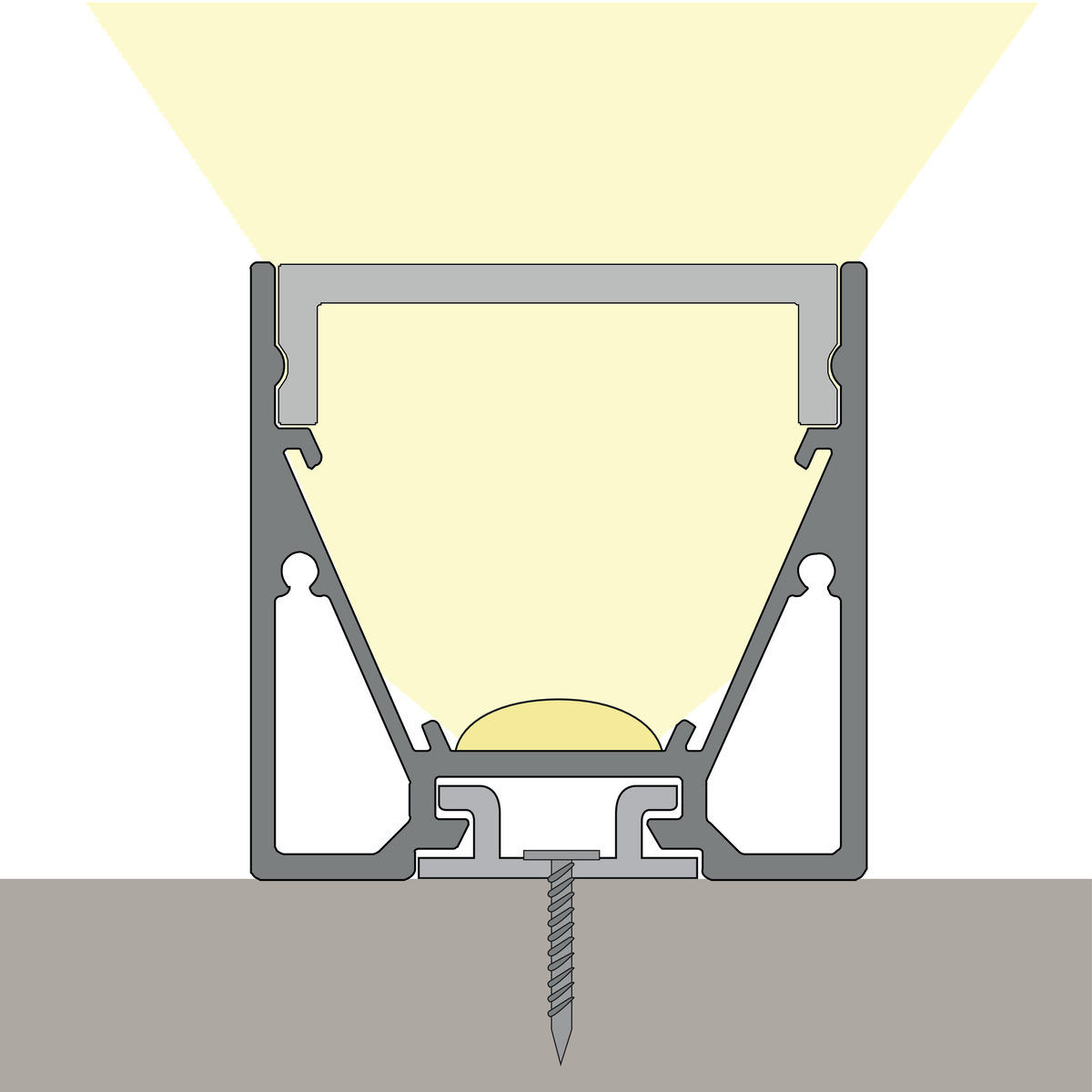

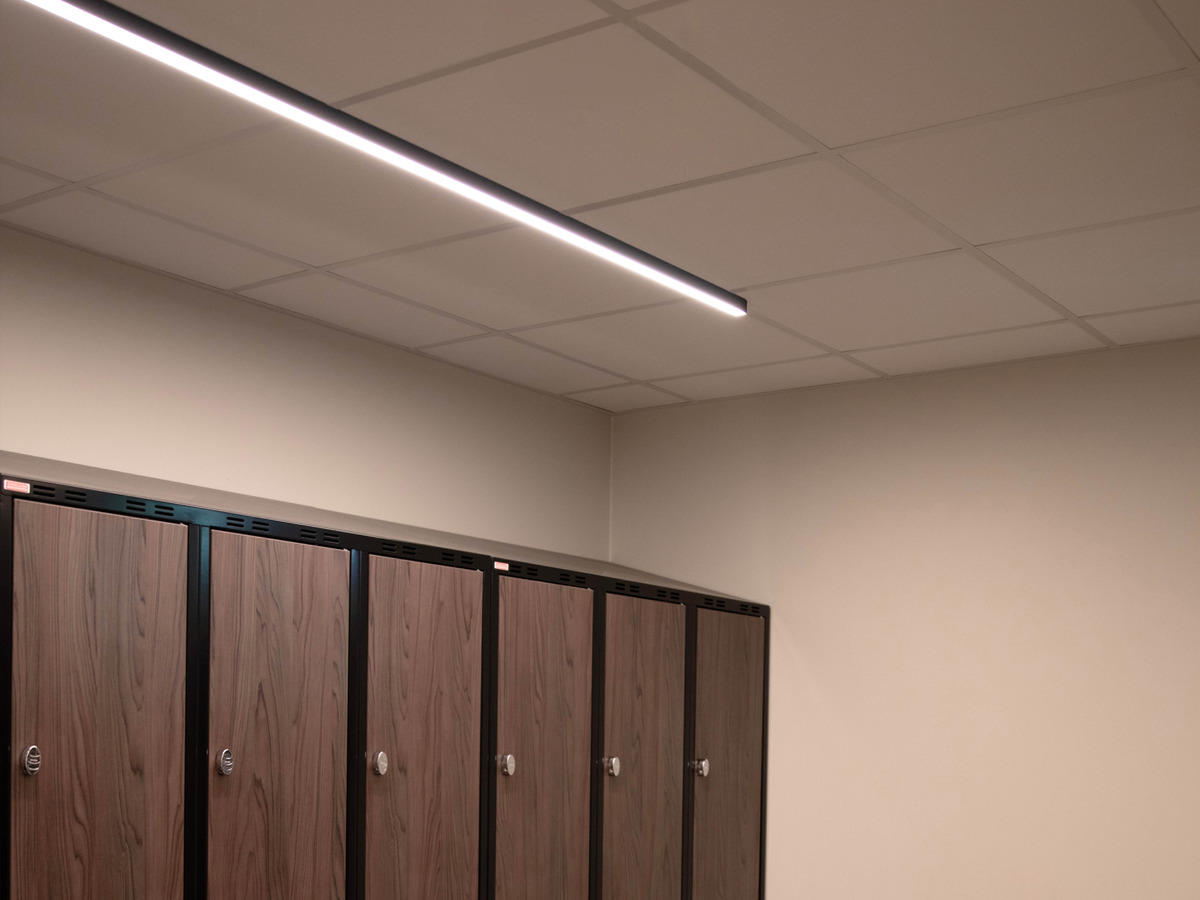

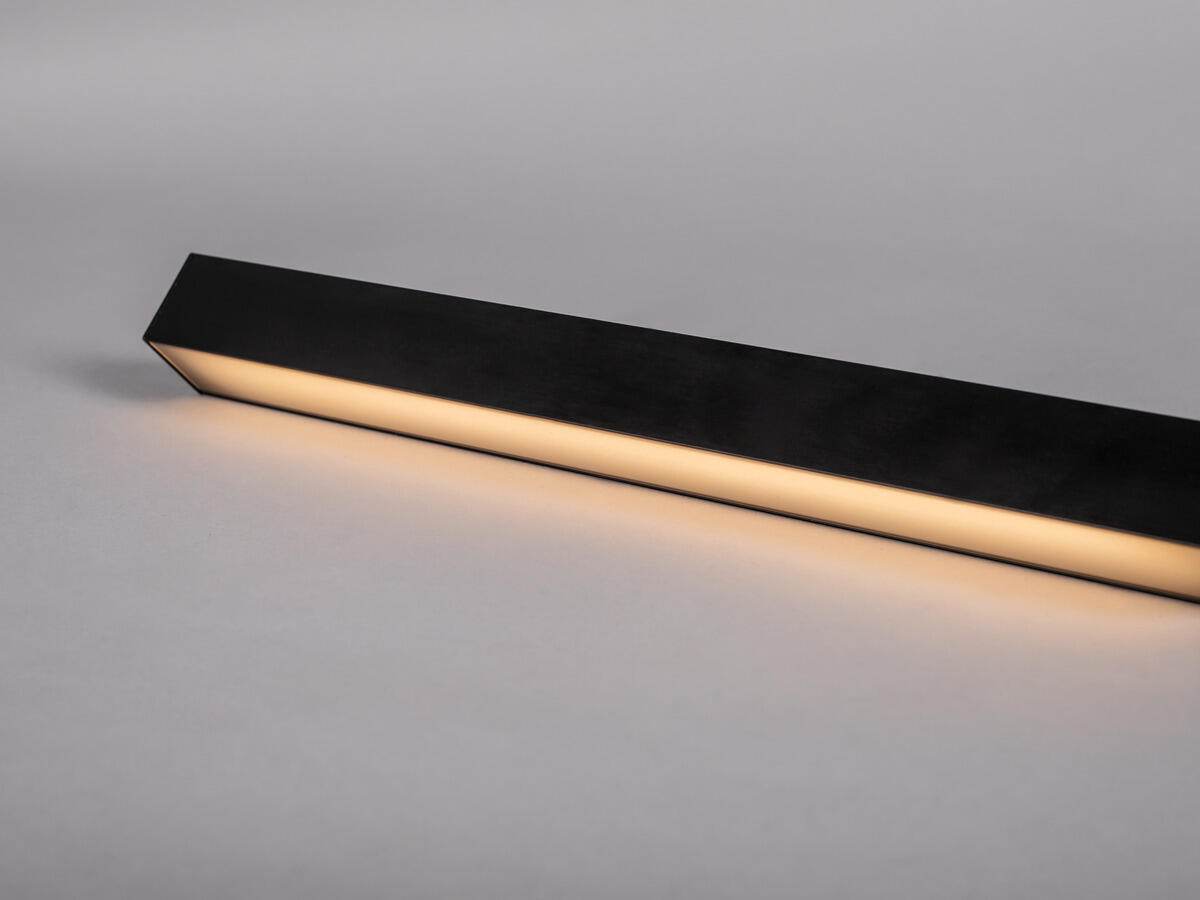

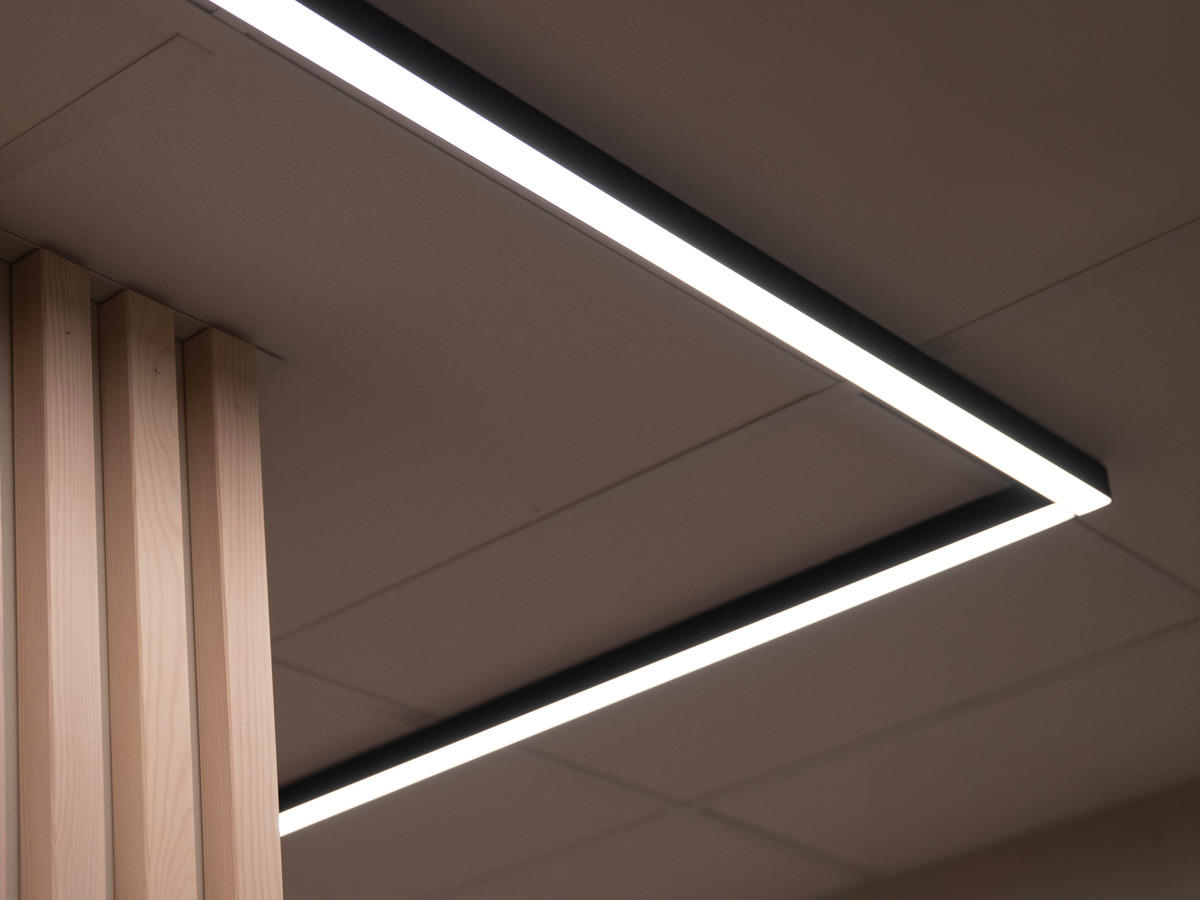

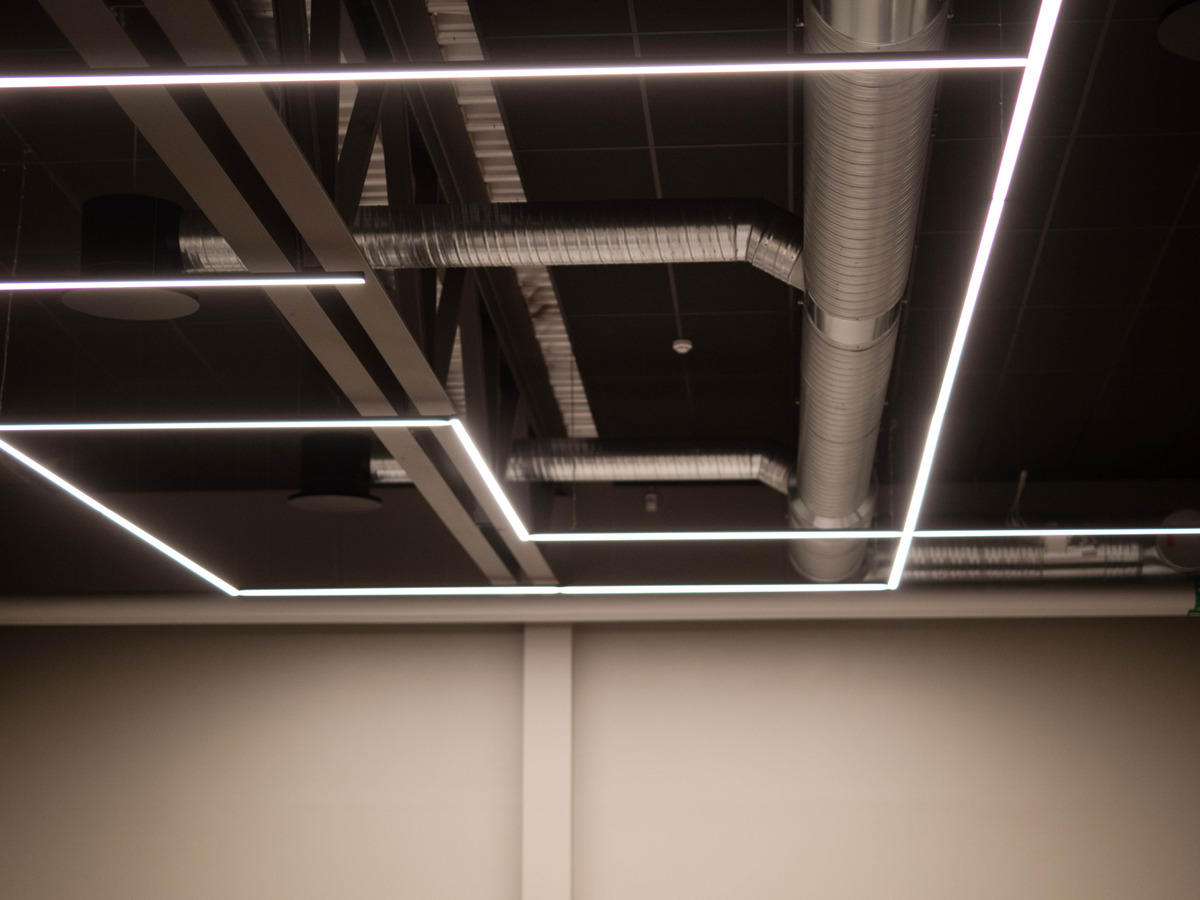

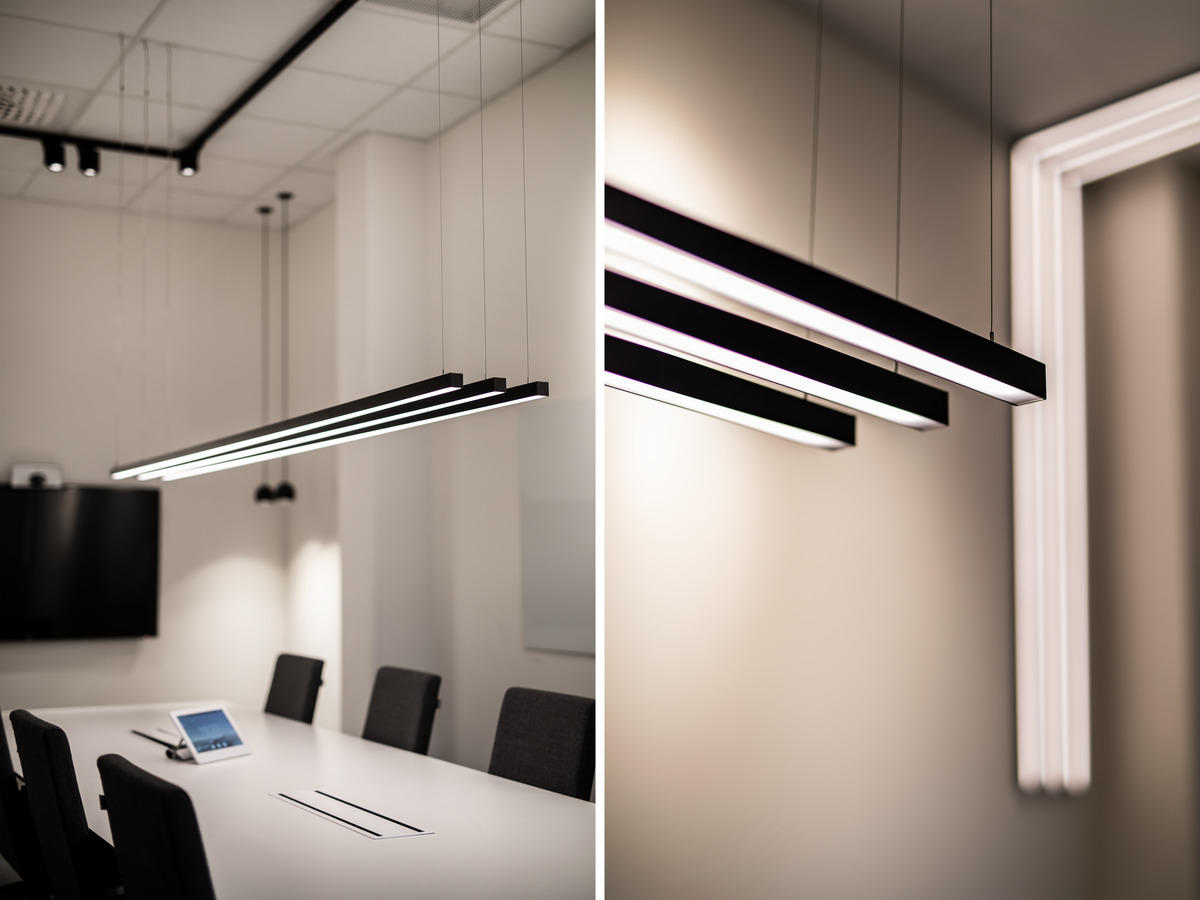

Stable profile with two integrated cable ducts for surface-mounted or pendant installation. Good cooling properties even with high intense LEDstrips, suitable for constructing your own luminaires. An inner construction that gives a considerably lower light loss than other profiles. With the Reflector accessory, the lumen output is increased by up to 20%. With the Opal cover, an even and spot-free light is created. The prismatic cover lets through maximum light, is very glare-free and gives a good work or general light.

Variants	GTIN	Item Name	Color
	7392971127699	Profile Maxi U Alu 2m	Aluminum

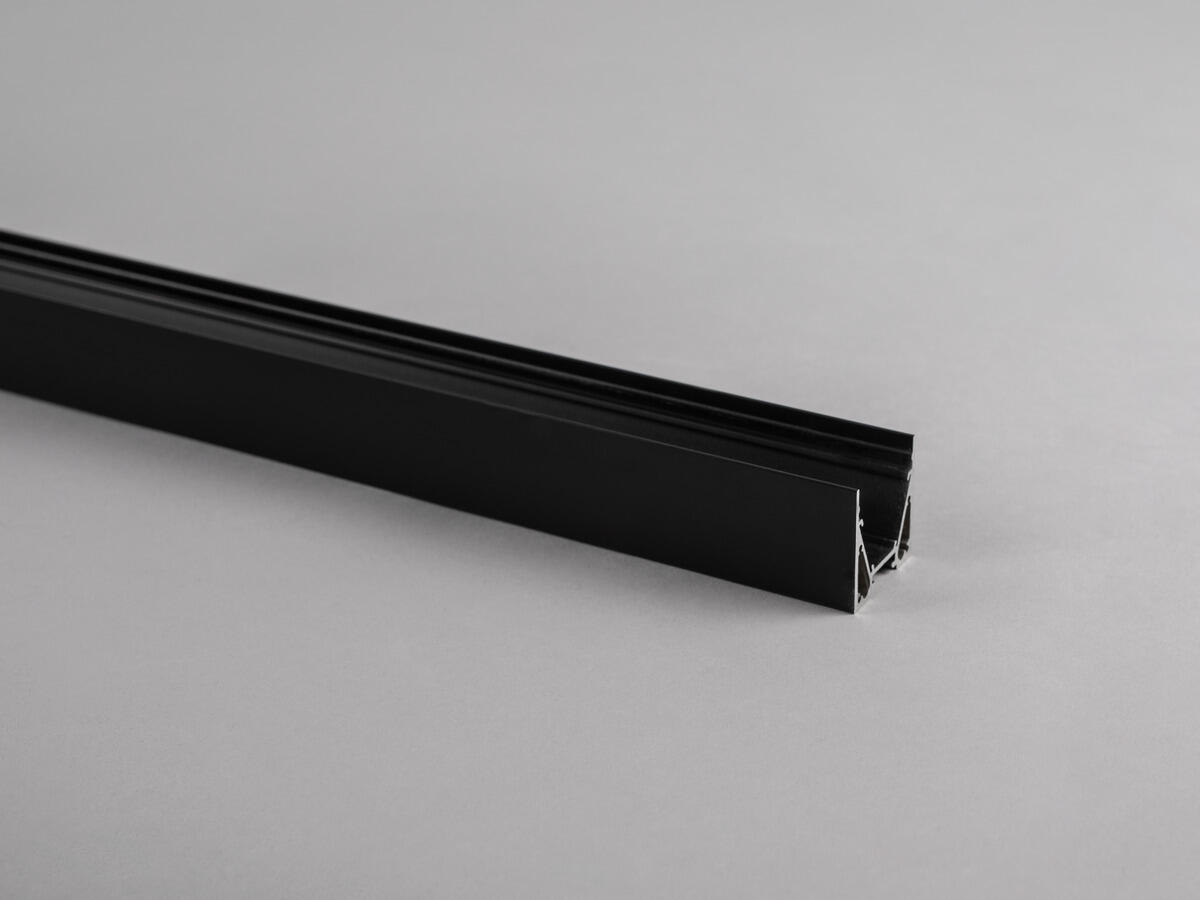

	7392971138756	Profile Maxi U Black 2m	Black

Description: GTIN 7392971127699

Item Name Profile Maxi U Alu 2m

Warranty 5 years
Color and material: Material Aluminium

Color Aluminum

Environmental Assessment Byggvarubedömningen

Available in special color Yes
Measurement and installation: Operating Environment Indoor / wet locations, Outdoor

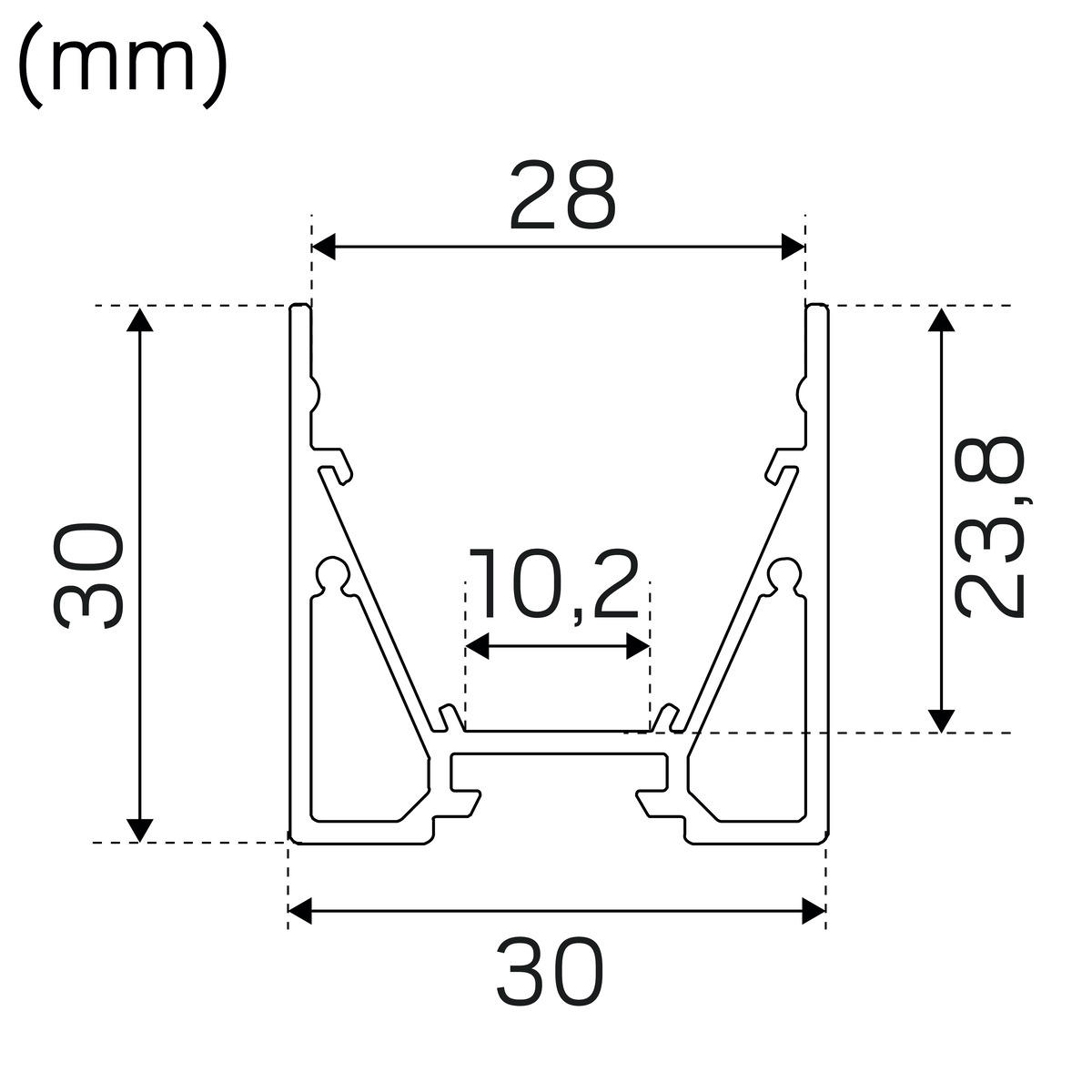

Length (mm) 2000

Width (mm) 30

Height (mm) 30

Weight (kg) 0,918

Profil Maxi T

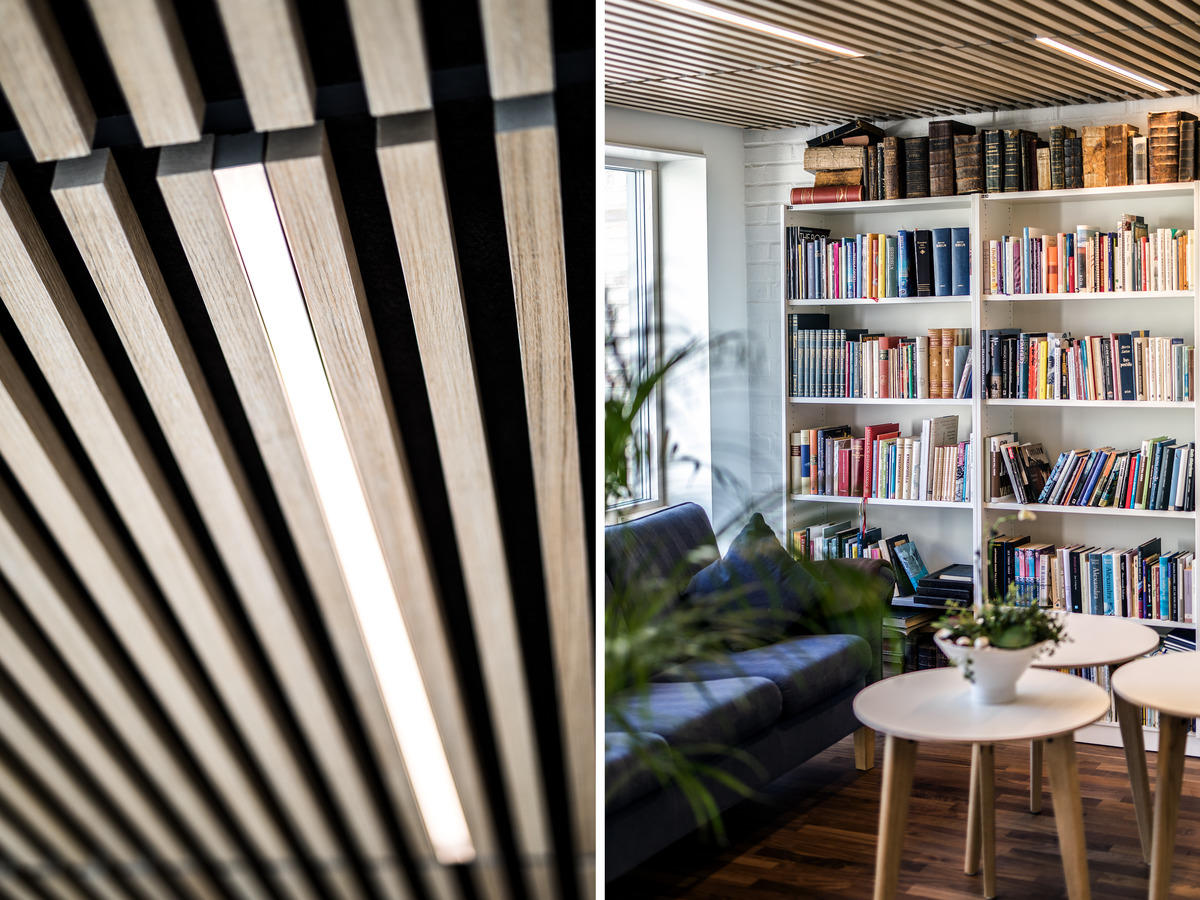

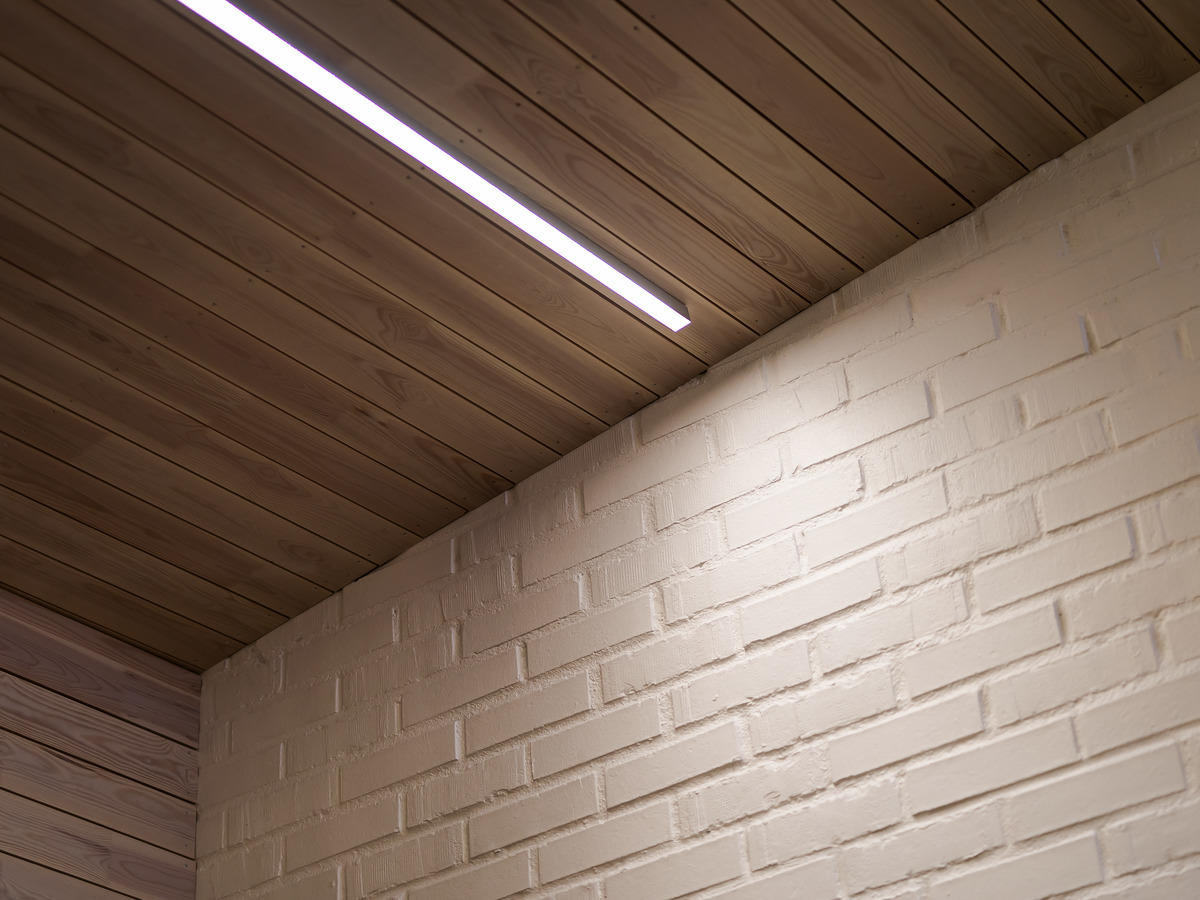

Section for recessed installation in ceilings, wall or floors. Two integrated cable channels and an inner construction that gives a considerably lower light loss than other profiles. With the Reflector tape accessory, the lumen output is increased by up to 20%. With good cooling properties, it works well even with highly intensive LEDstrips. With the Opel cover, an even and spot-free light is created. Maximum light is allowed to permeate this prismatic cover, it has good anti-glare properties and creates a good working and general lighting.

Profile Maxi U

Profile Maxi U Alu 2m

Accessories

Cover Opal 28mm 2m

Cover Black 28mm 2m

Cover Prism 28mm 2m

End cap Maxi U Alu 2pcs

End cap Maxi U Black 2pcs

Mount Stainless Steel 2 pcs

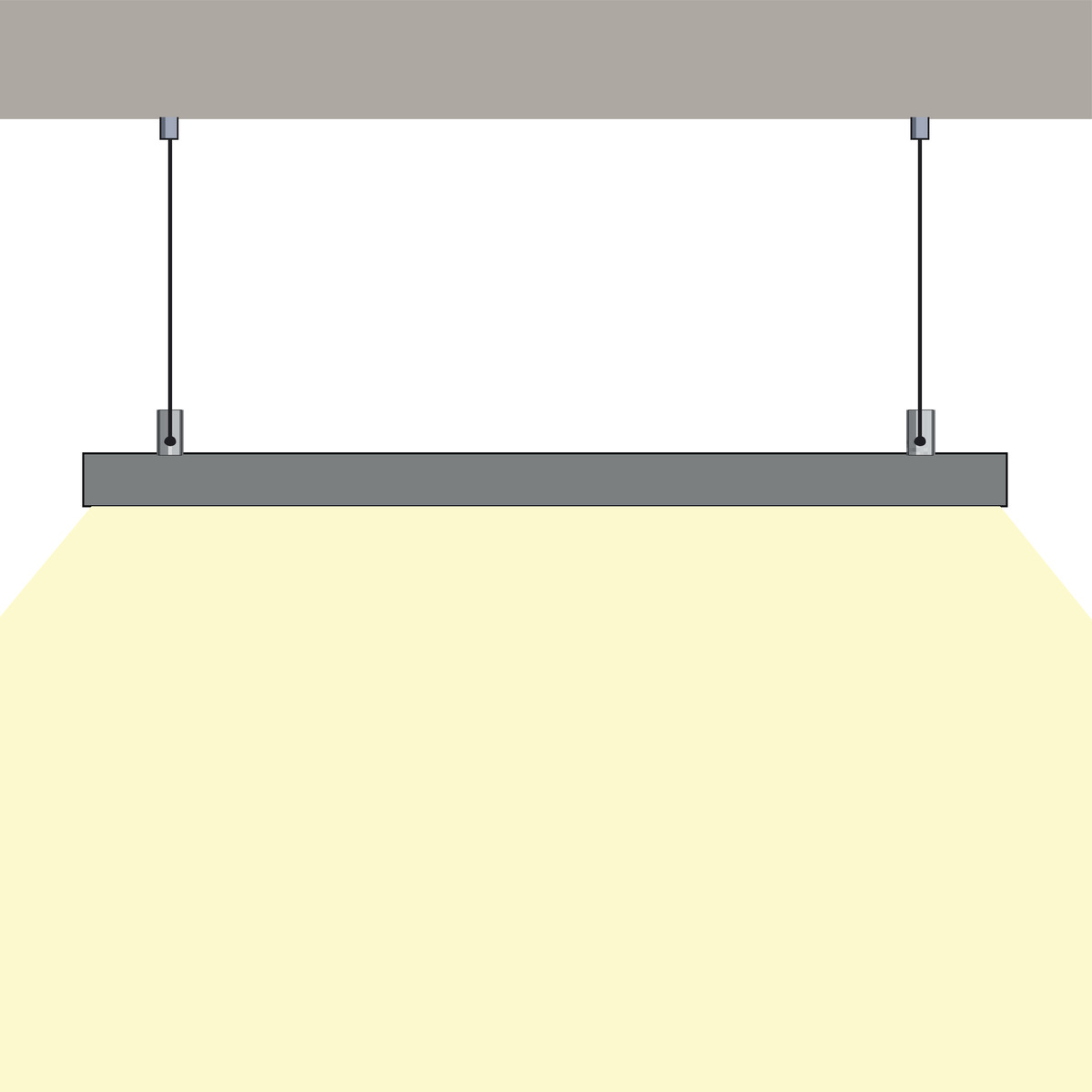

Suspension Kit M4 2 pcs

Reflector tape 15mm 4m

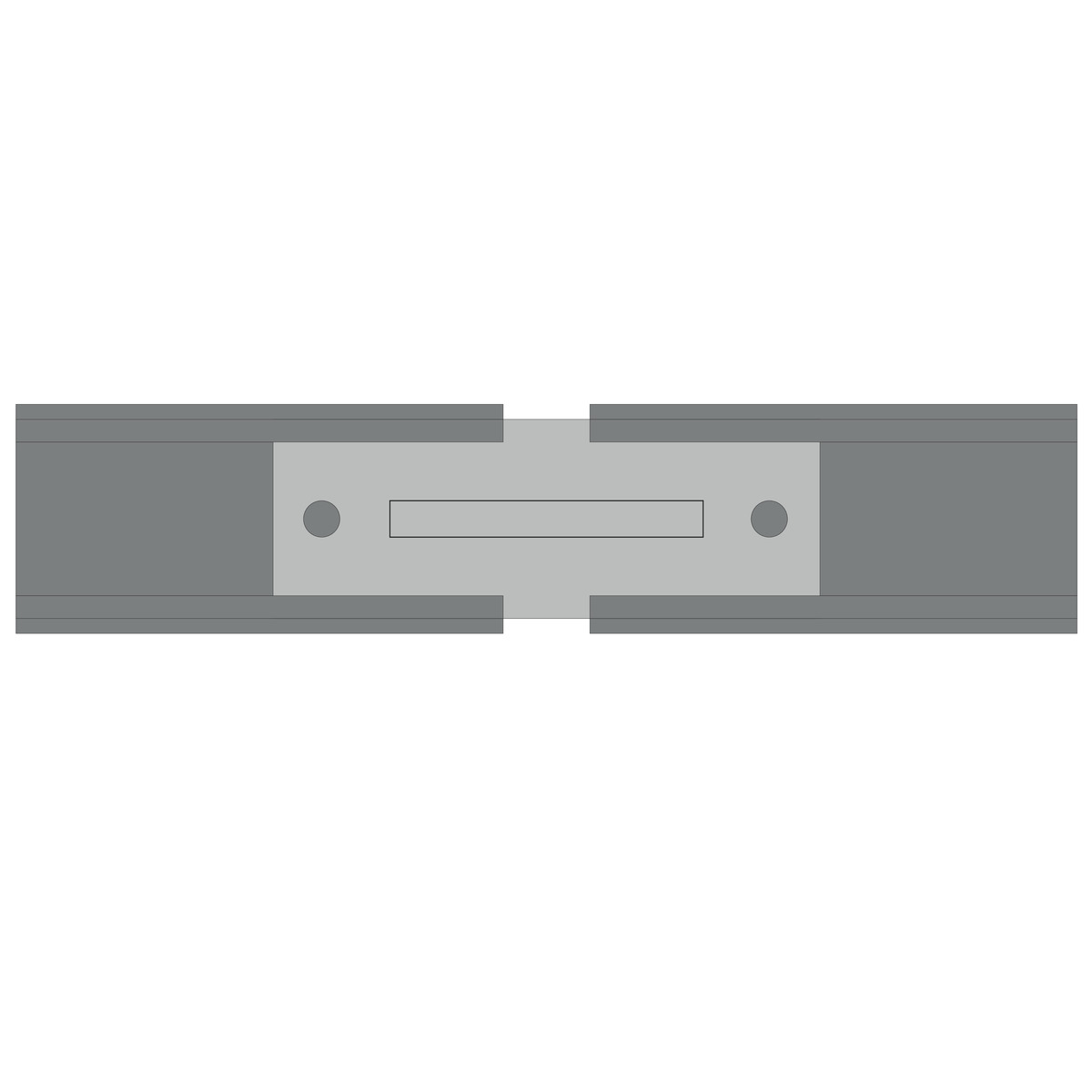

Joint Straight 1pc

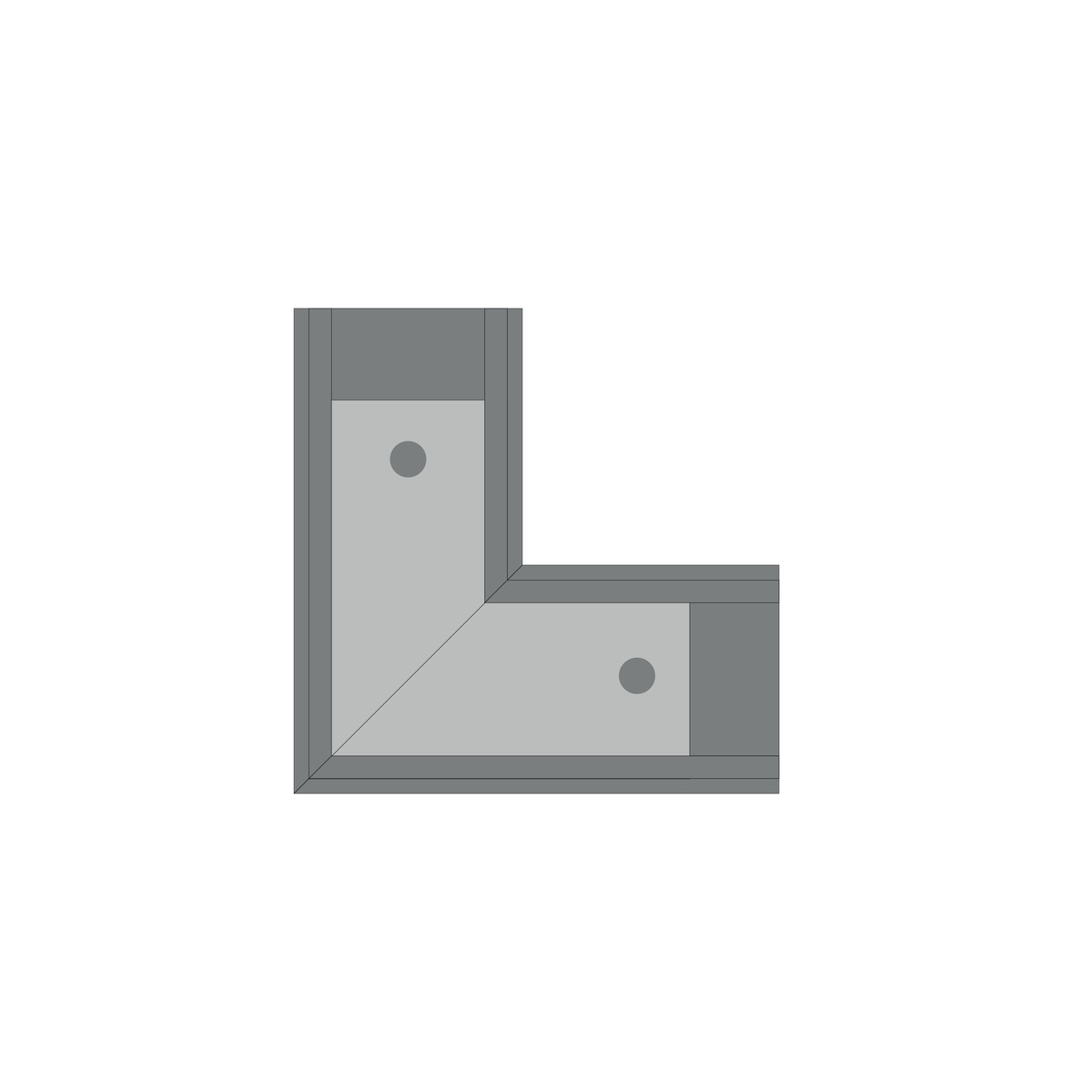

Assemble L Alu 1 pc
