Edge

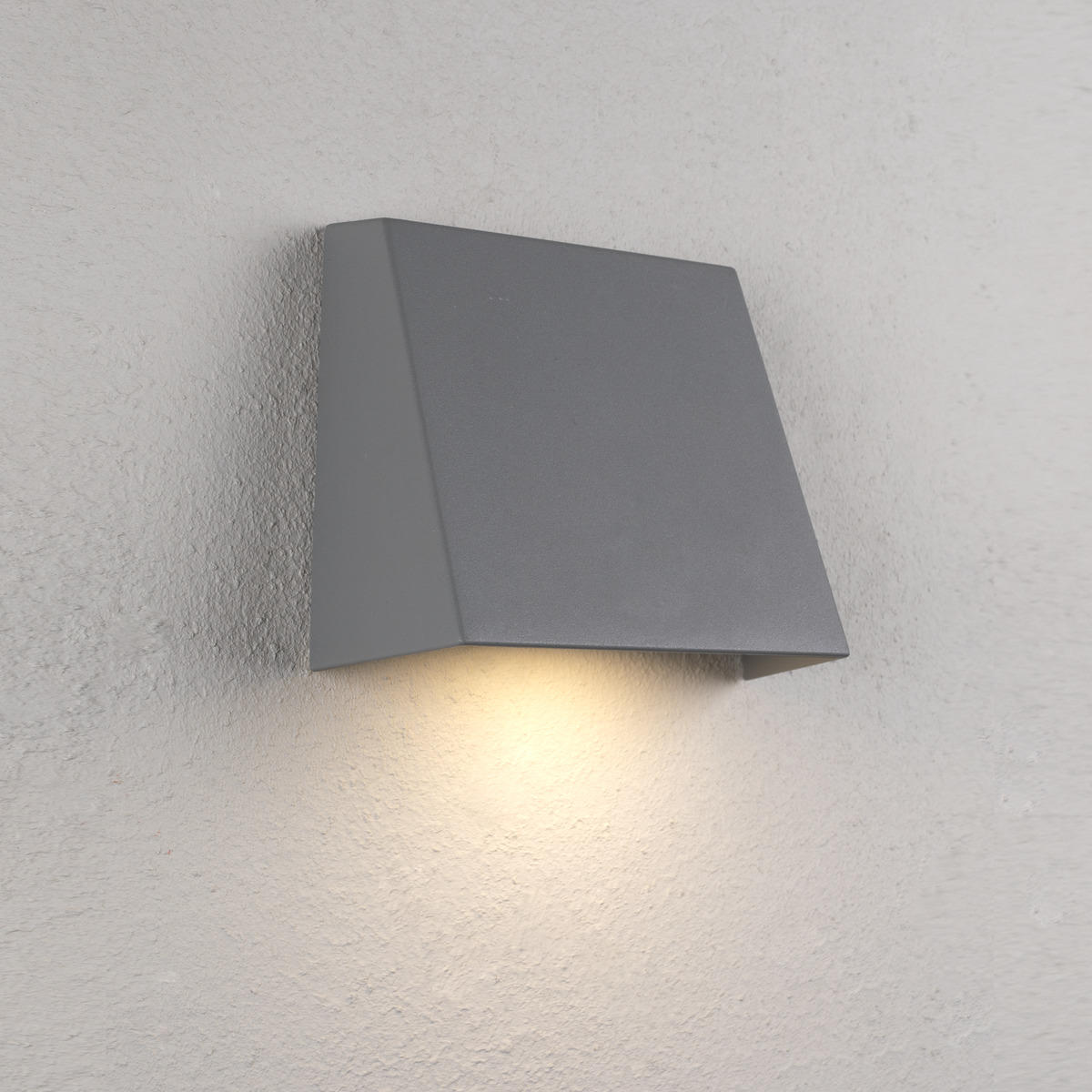

Wall luminaire in timeless design with wide angle light distribution for facades and walls. Integrated phase dimmable driver for adjustment to desired light level. Impact resistant (IK10) IP65 luminaire with durable powder coating to withstand our Nordic climate. Easy to install thanks to separate rear element with dual cable bushings and push-in terminal block for through wiring. Spacer for surface-mounted cable routing available as an accessory. Dimmable with most common dimmers on the market.
Exists in several colors
  • Vit
  • Grå
  • Antracit

Variants

GTIN Item Name Color
Edge Grey 3000K 7392971140162 Edge Grey 3000K Grey
Edge White 3000K 7392971140155 Edge White 3000K White
Edge Anthracite 3000K 7392971140179 Edge Anthracite 3000K Antracit
Description
GTIN 7392971140162
Replaces 7392971130057
Item Name Edge Grey 3000K
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 90
Luminaire Lumen (lm) 215
Beam Angle (°) 100
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L80 100 000h Ta 25°C
Nominel Life Time (h) 100000
Lumen maintenance 50 000h L92
Lumen maintenance 75 000h L89
Lumen maintenance 100 000h L87
LLMF @ 50 000h 0,92
LLMF @ 100 000h 0,87
Life Time Driver 50 000h/5%
Technical data
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50
Voltage Forward (Vf) 9,2
Power LED (W) 2,7
Power Luminaire (W) 4
System Power (W) 4
Efficiency Luminaire (lm/W) 54
Efficiency System (lm/W) 54
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Connection (type) Quick Terminal
Connection (mm2) 3x0,5-2,5
Through Wiring Yes
Power Factor ʎ 0,98
Leakage current (mA) (at 230 V, 50 Hz, full load) 0,5
Operating Temperature -20…+50
Max. Tc (°C) 80
Dimmable Yes
Type of Dimming Trailing Edge
Dimming secondary side AM
Fuse B10 (pcs) 100
Fuse B16 (pcs) 140
Fuse C10 (pcs) 110
Fuse C16 (pcs) 150
Color and material
Material Aluminium
Color Grey
Environmental Assessment SundaHus, Byggvarubedömningen
Measurement and installation
Operating Environment Indoor / wet locations, Outdoor
IP Degree of Protection 65
Protection Class I
Installation Surface mounted
Mounting Installation Screw Mounting
Approval Marks CE
Impact Strength IK10
Filament Test IEC 695-2-1(°C) 650

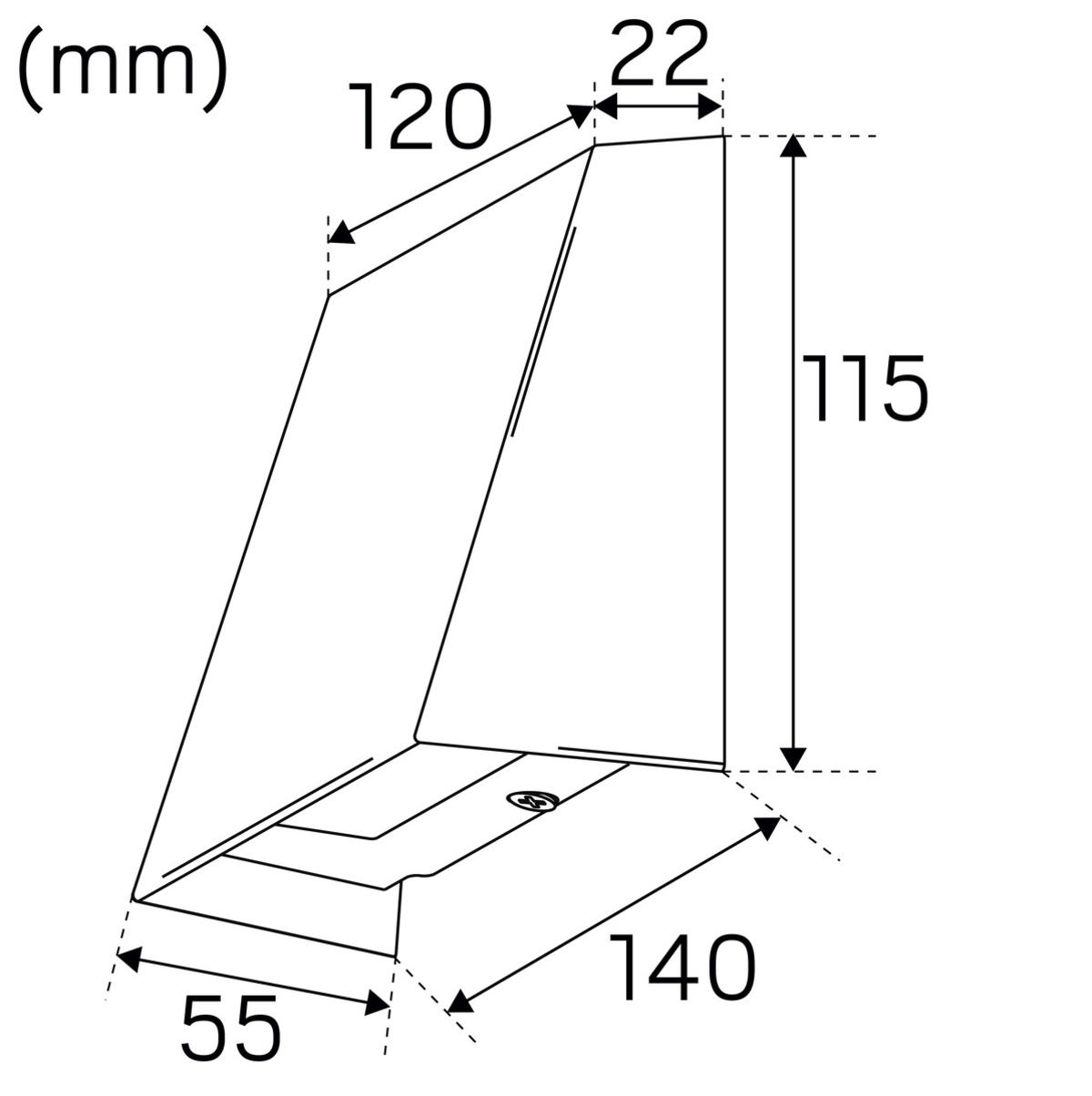

Width (mm) 140
Height (mm) 115
Depth (mm) 55
Weight (kg) 0,48
