Focus Track GU10 Kit

Stylish tracklight supplied as a versatile kit. Fits perfectly in both home and public environments, for example small premises, hotel rooms and shops; you can choose and replace light sources yourself. The kit has 4 luminaires, together with 2 x 1m 1-phase tracks and accessories to create one or two units. Honeycomb baffle are available as accessories to change the appearance and decrease glare. Compatible with our LiteTrac system; can be extended or changed as needed.
Exists in several colors
  • Vit
  • Svart

Variants

GTIN Item Name Color

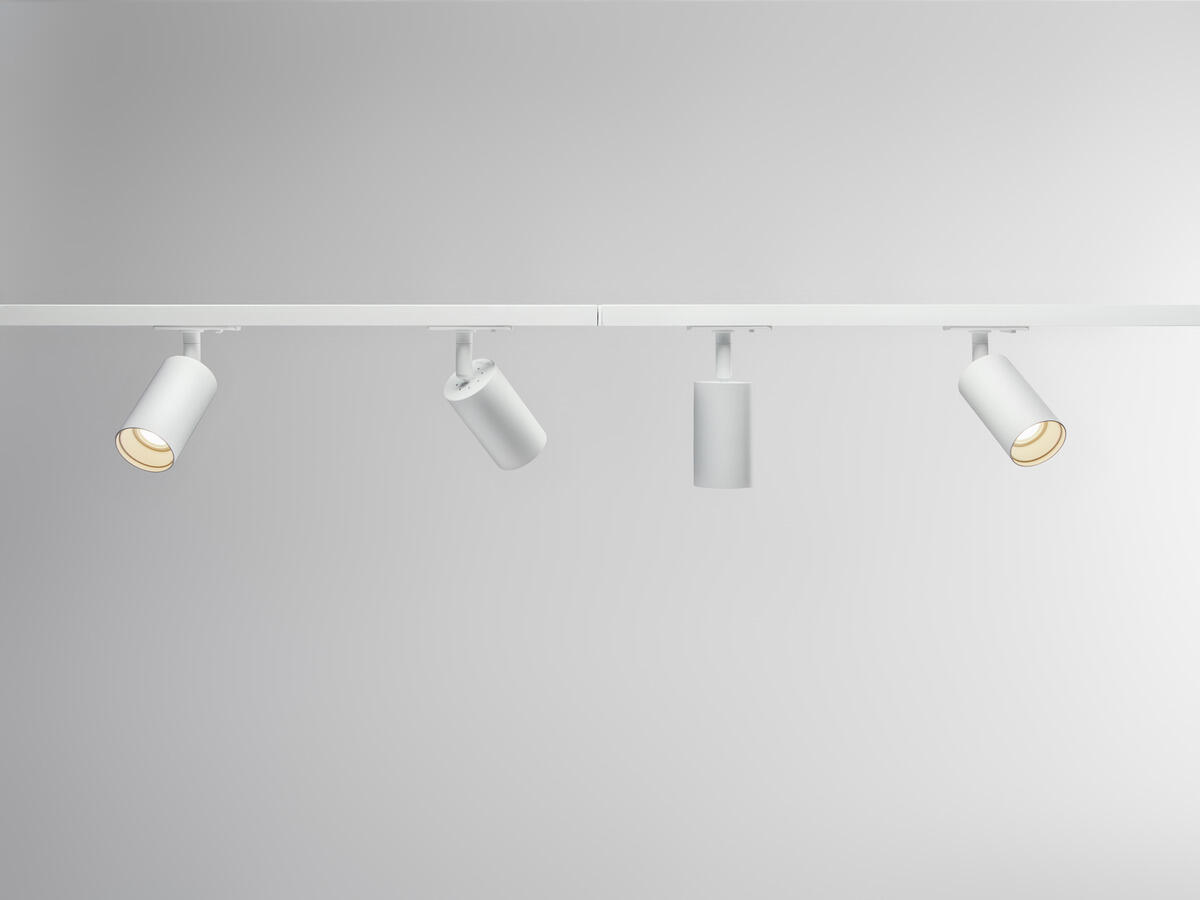

Focus Track GU10 Kit 1-phase Vit 7392971141473 Focus Track GU10 Kit 1-phase Vit White

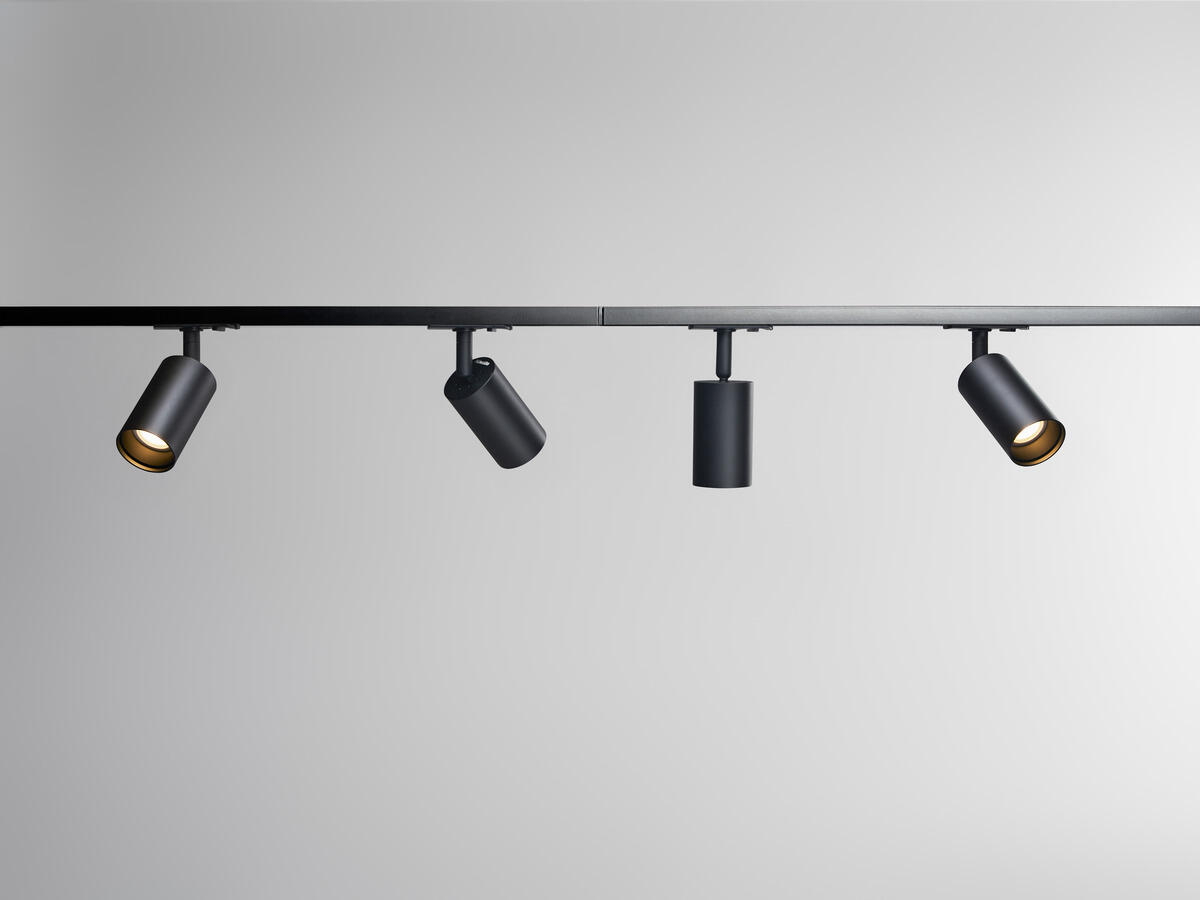

Focus Track GU10 Kit 1-phase Black 7392971141480 Focus Track GU10 Kit 1-phase Black Black

Focus Track GU10 Kit 1-phase Vit

Description
GTIN 7392971141473
Item Name Focus Track GU10 Kit 1-phase Vit
Warranty 5 years
Light Technical Data
Lamp Holder (type) GU10
Technical data
Adjustable Yes
Tiltable (°) 90
Rotatable (°) 350
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Operation and Connection
Connection (type) Screw Terminals, 1-phase adapter
Connection (mm2) 3x0,75-1,5
Strain Relief Yes
Power Interval for Catalogue (W) 4x35
Operating Temperature -20…+45
Dimmable Yes
Color and material
Material Aluminium
Color White
Measurement and installation
Operating Environment Indoor / dry locations
IP Degree of Protection 20
Protection Class I
Installation Surface mounted
Mounting Installation Screw Mounting, 1-phase Adapter
Approval Marks CE
Length (mm) 2000
Height (mm) 168
Diameter (mm) 57
Weight (kg) 2

Images and downloads
