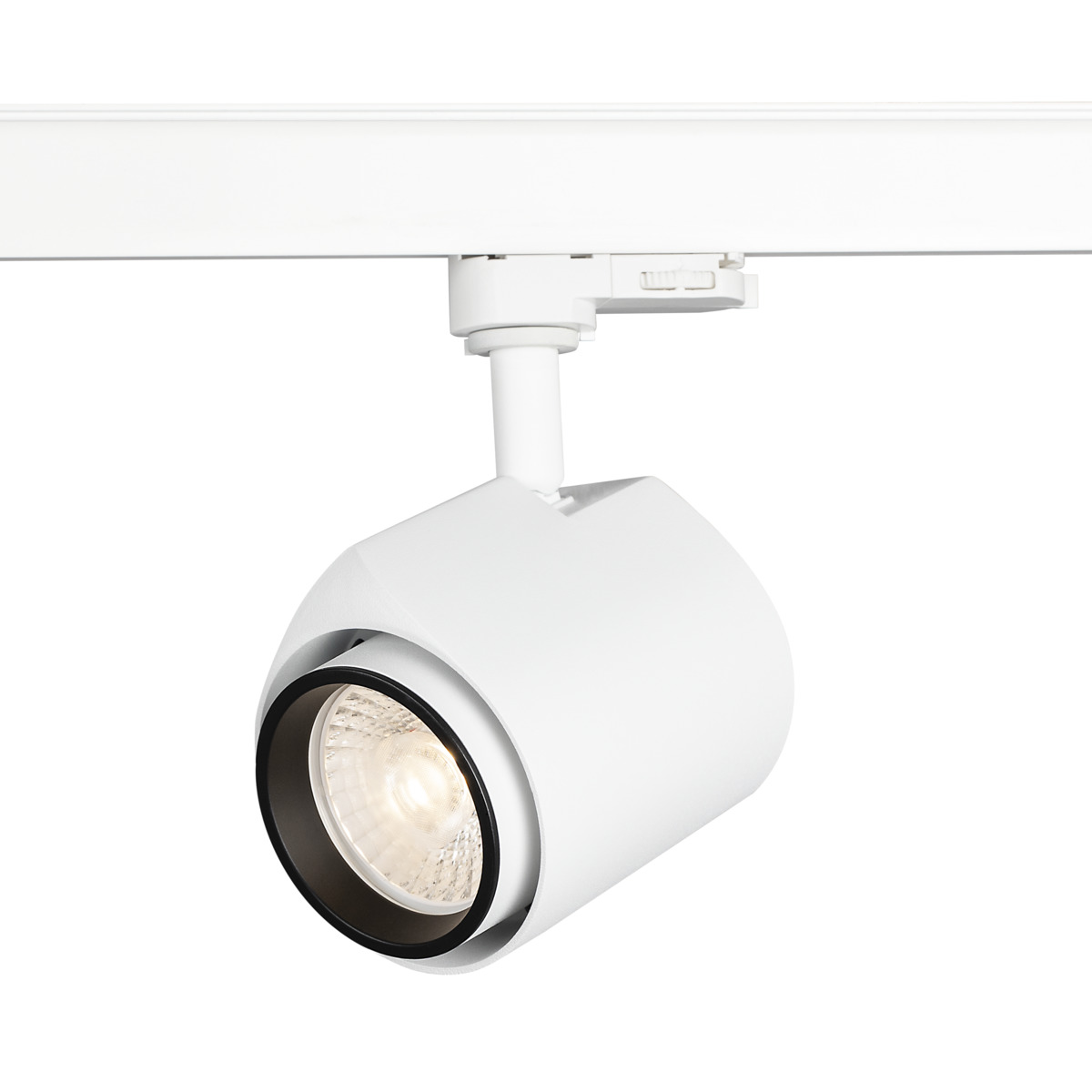

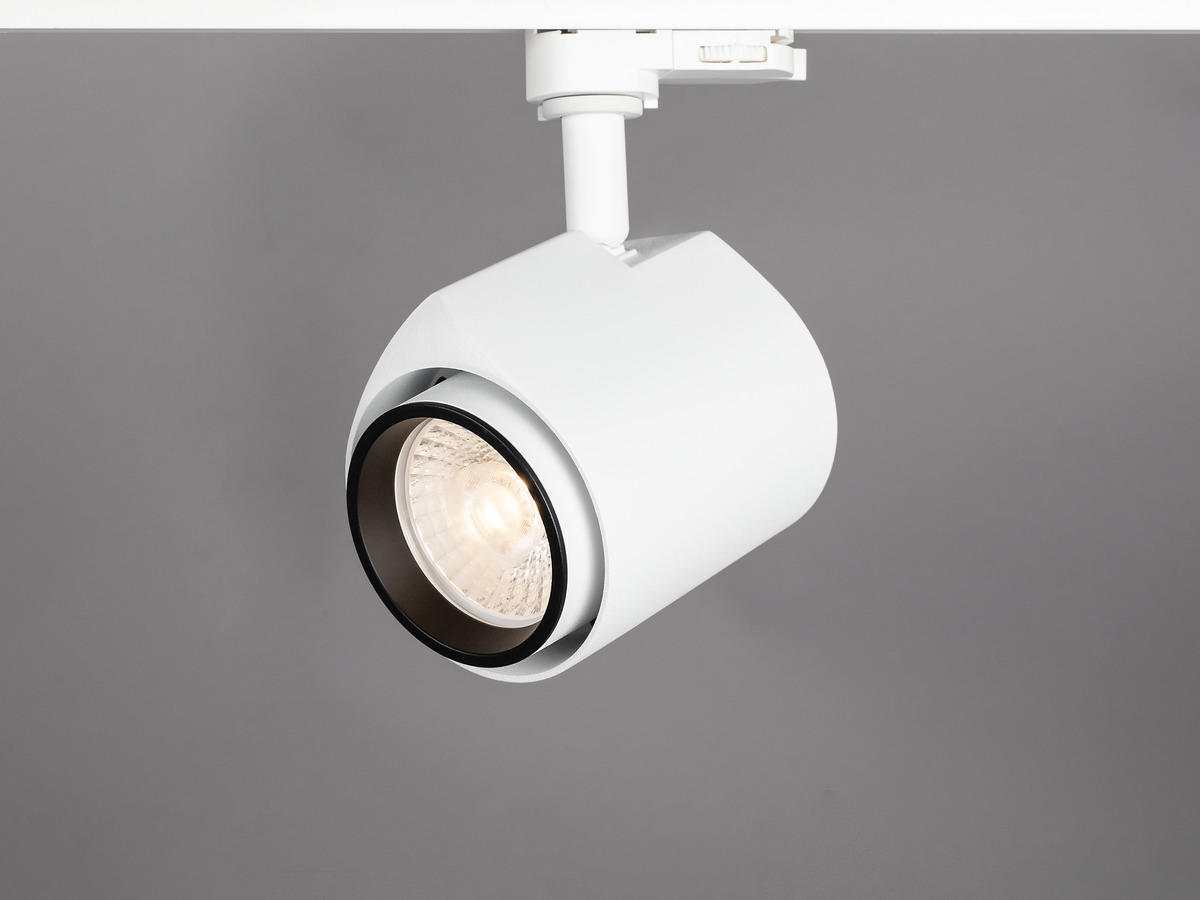

Focus Track Maxi

Stylish anti-glare luminaire in solid and smooth droplet design with integrated mains dimmable driver. The latest LED technology and Comfort Lens provides superb light quality with high luminous comfort and RA>90. Suitable for accent lighting or general lighting in most environments. Low-build universal adapter for most 3-phase track systems. Can be complemented with accessories to change light pattern and reduce glare.
Exists in several colors
  • Vit #ffffff
  • Svart #000000

Variants

GTIN Item Name Color Colour Temperature (K) Luminaire Lumen (lm) Beam Angle (°)
Focus Track Maxi 60° Black 4000K 7392971128252 Focus Track Maxi 60° Black 4000K Black 4000 1995 60
Focus Track Maxi 36° Black 4000K 7392971128245 Focus Track Maxi 36° Black 4000K Black 4000 1995 36
Focus Track Maxi 15° Black 4000K 7392971128238 Focus Track Maxi 15° Black 4000K Black 4000 1995 15
Focus Track Maxi 60° Black 3000K 7392971128221 Focus Track Maxi 60° Black 3000K Black 3000 1950 60
Focus Track Maxi 36° Black 3000K 7392971128214 Focus Track Maxi 36° Black 3000K Black 3000 1950 36
Focus Track Maxi 15° Black 3000K 7392971128207 Focus Track Maxi 15° Black 3000K Black 3000 1950 15
Focus Track Maxi 60° White 4000K 7392971128191 Focus Track Maxi 60° White 4000K White 4000 1995 60
Focus Track Maxi 36° White 4000K 7392971128184 Focus Track Maxi 36° White 4000K White 4000 1995 36
Focus Track Maxi 15° White 4000K 7392971128177 Focus Track Maxi 15° White 4000K White 4000 1995 15
Focus Track Maxi 60° White 3000K 7392971128160 Focus Track Maxi 60° White 3000K White 3000 1950 60
Focus Track Maxi 36° White 3000K 7392971128153 Focus Track Maxi 36° White 3000K White 3000 1950 36
Focus Track Maxi 15° White 3000K 7392971128146 Focus Track Maxi 15° White 3000K White 3000 1950 15

Focus Track Maxi 60° White 3000K A+

Description
GTIN 7392971128160
Item Name Focus Track Maxi 60° White 3000K

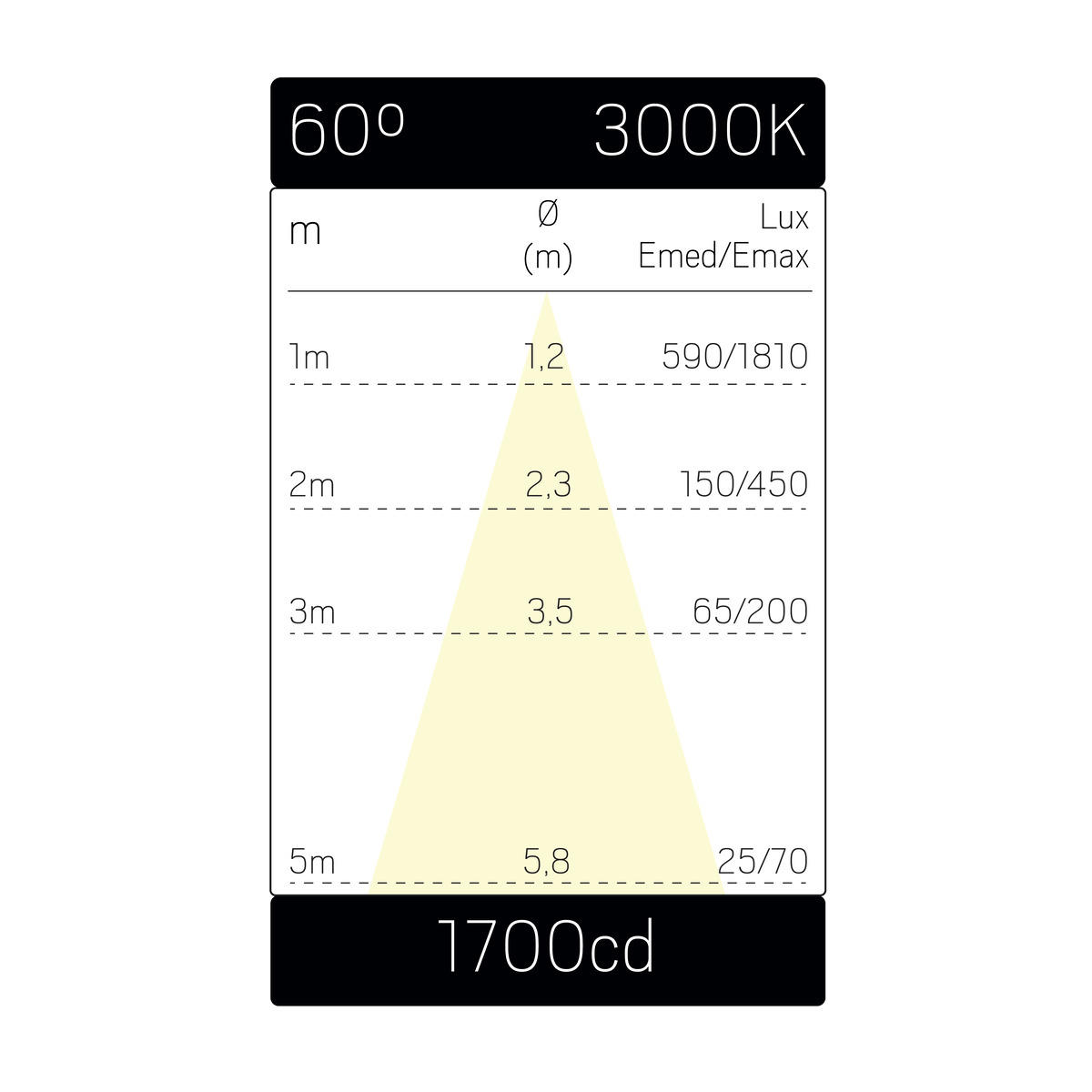

Lighting Data
Light Source LED
Light Source Included (type) LED not exchangeable
Instant Full Light No
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >90
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 1700
Luminaire Lumen (lm) 1950
Beam Angle (°) 60
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Technical data
Adjustable Yes
Tiltable (°) 90
Rotatable (°) 350
Life Time (L70 B10) 100 000h Ta 25°C
Nominel Life Time (h) 100000
Life Time Driver 50 000h/10%
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50
Power LED (W) 19
Power Luminaire (W) 22
System Power (W) 22
Efficiency LED (lm/W) 103
Efficiency Luminaire (lm/W) 89
Efficiency System (lm/W) 89
Energy Efficiency Class A+
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Connection (type) 3-phase universal adapter
Operating Temperature -20…+40
Max. Tc (°C) 85
Dimmable Yes
Type of Dimming Trailing Edge, Leading Edge
Fuse B10 (pcs) 39
Fuse B16 (pcs) 62
Fuse C10 (pcs) 39
Fuse C16 (pcs) 62
Color and material
Material Diecasted, Extruded, Aluminium
Color White
Color Code (RAL) 9016
Color Cover Ring Black
Color Code Cover Ring (RAL) 9017

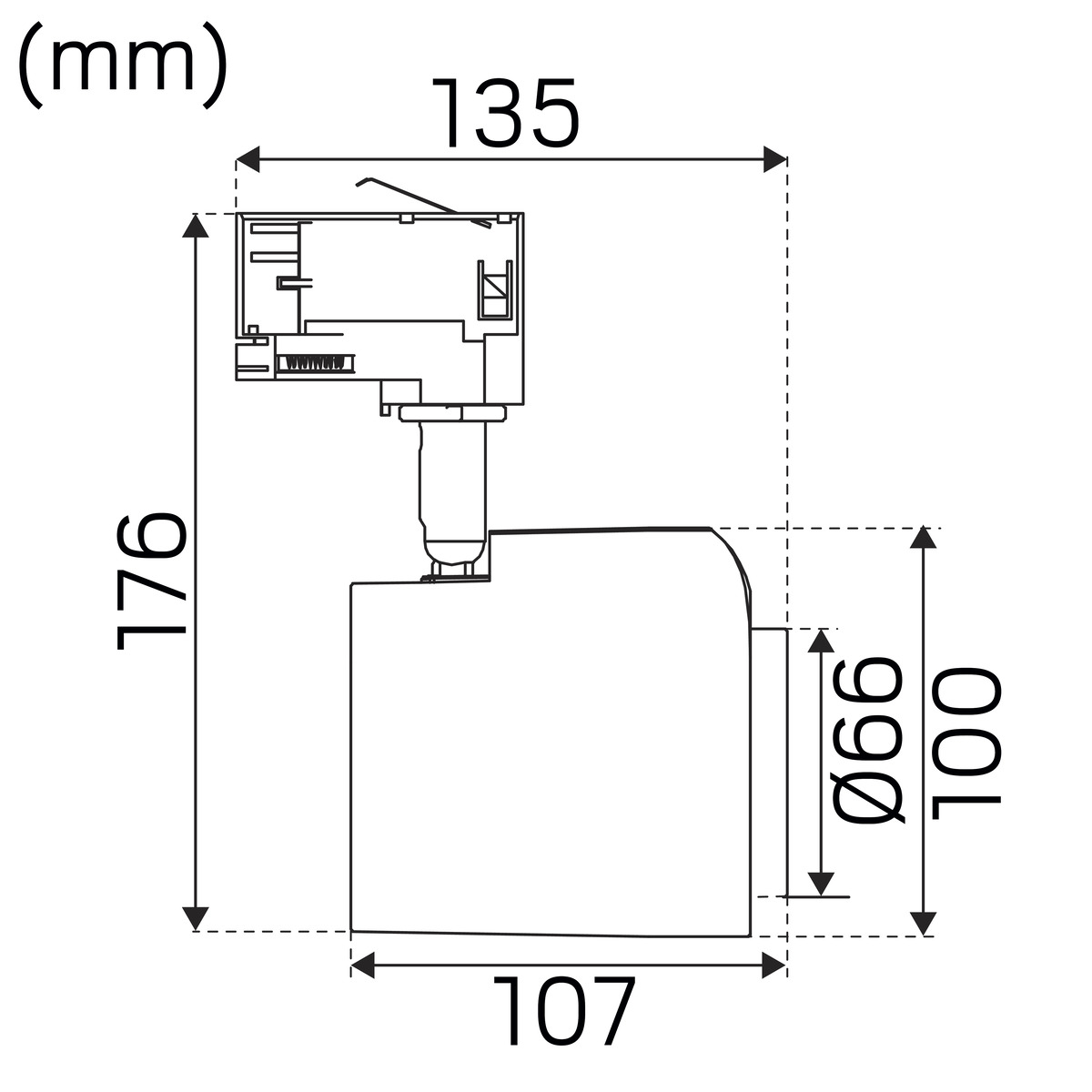

Measurement and installation
Operation Environment Indoor
IP Degree of Protection 20
Installation Surface mounted
Mounting Installation 3-phase Universal Adapter
Approval Marks CE
Filament Test IEC 695-2-1(°C) 650
Protection Class I
Length (mm) 108
Width (mm) 85
Height (mm) 184
Diameter (mm) 85
Weight (kg) 0,72
