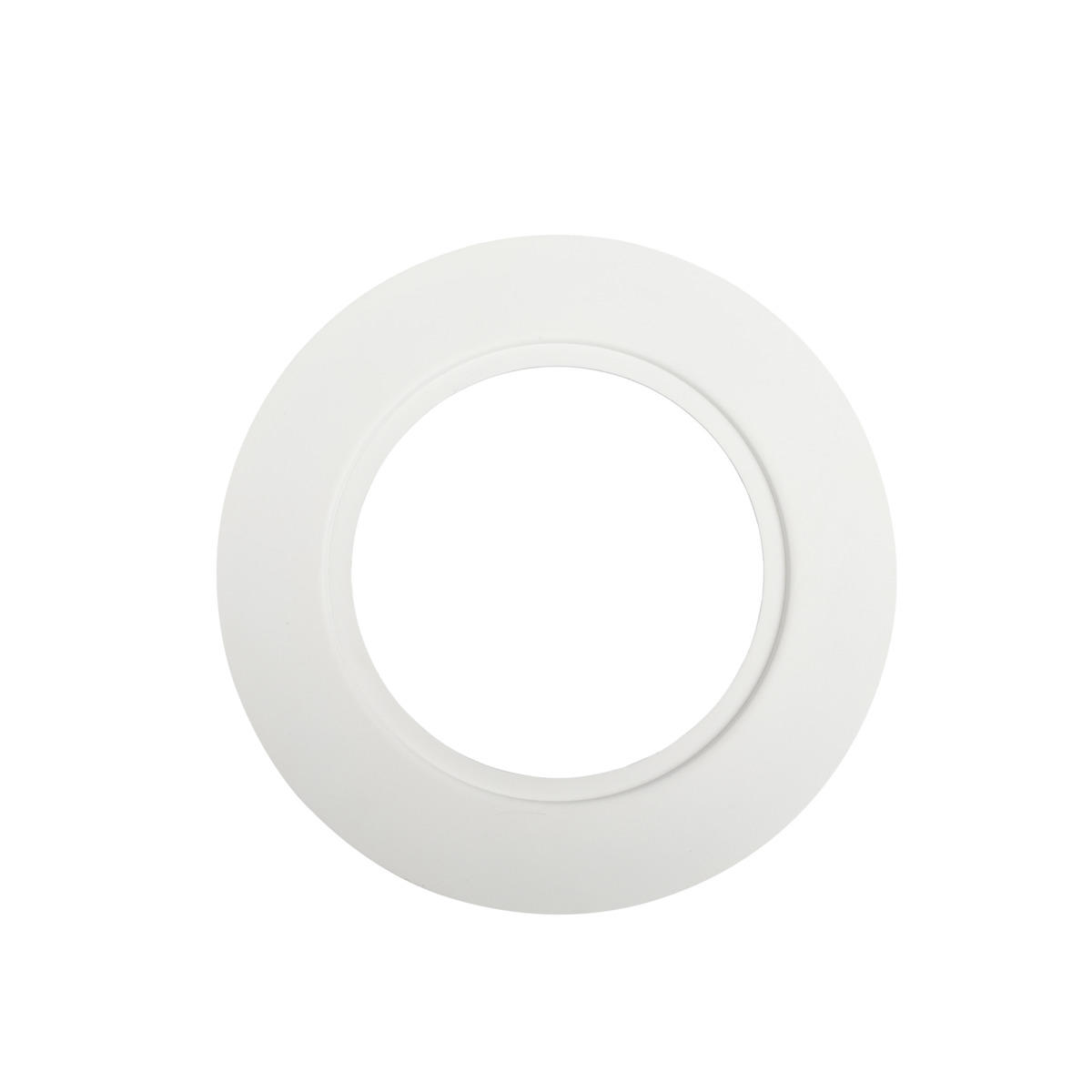

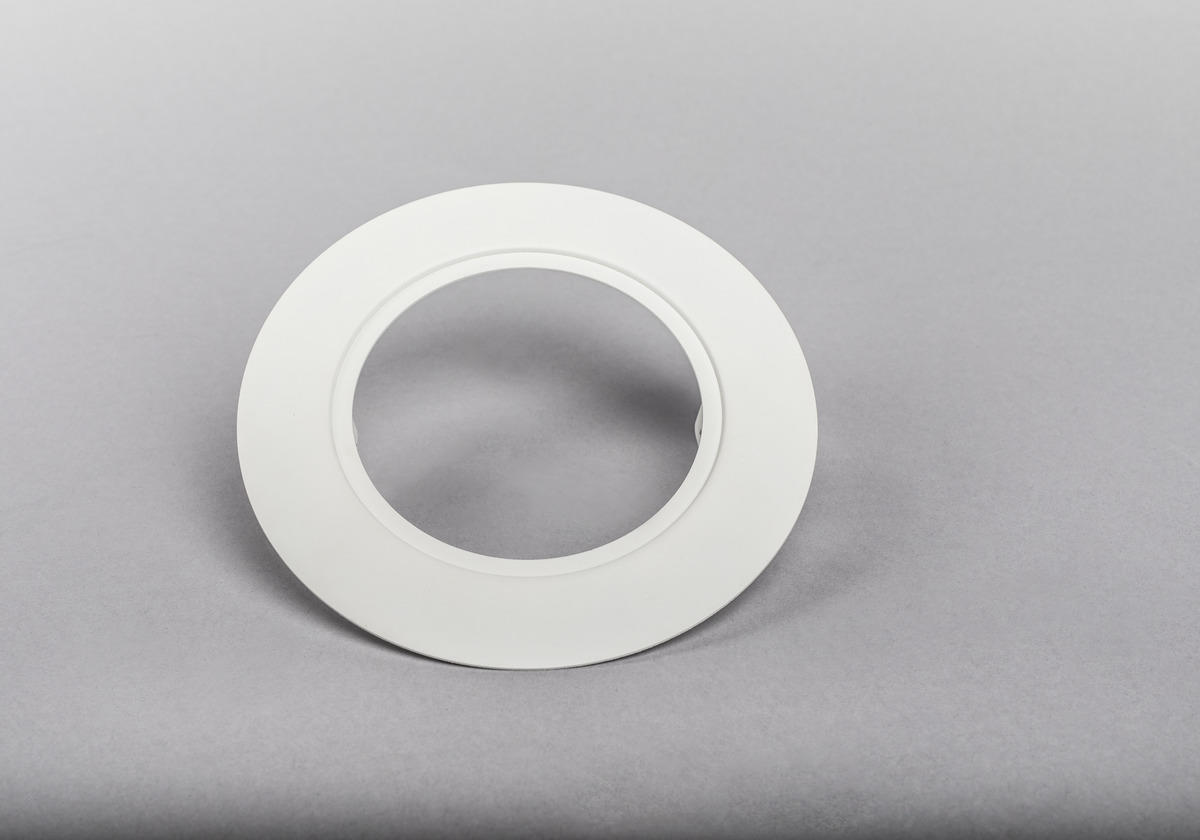

Cover ring

Perfect for when you want to replace luminaires and hole patterns do not match. Save time and money with a cover ring instead of costly ceiling renovation. Tough surface treatment and stainless springs for both indoor and outdoor environments.
Exists in one color

Variants

GTIN Item Name
Cover ring 250 Ø142 7392971134413 Cover ring 250 Ø142
Cover ring 180 Ø108 7392971134406 Cover ring 180 Ø108
Cover ring 130 Ø85 7392971134390 Cover ring 130 Ø85
Cover ring 250 Ø85 White 7392971130309 Cover ring 250 Ø85 White
Cover ring 180 Ø85 White 7392971129679 Cover ring 180 Ø85 White

Cover ring 180 Ø108

Description
GTIN 7392971134406
Item Name Cover ring 180 Ø108
Warranty 5 years
Color and material
Material Aluminium
Color White
Color Code (RAL) 9016

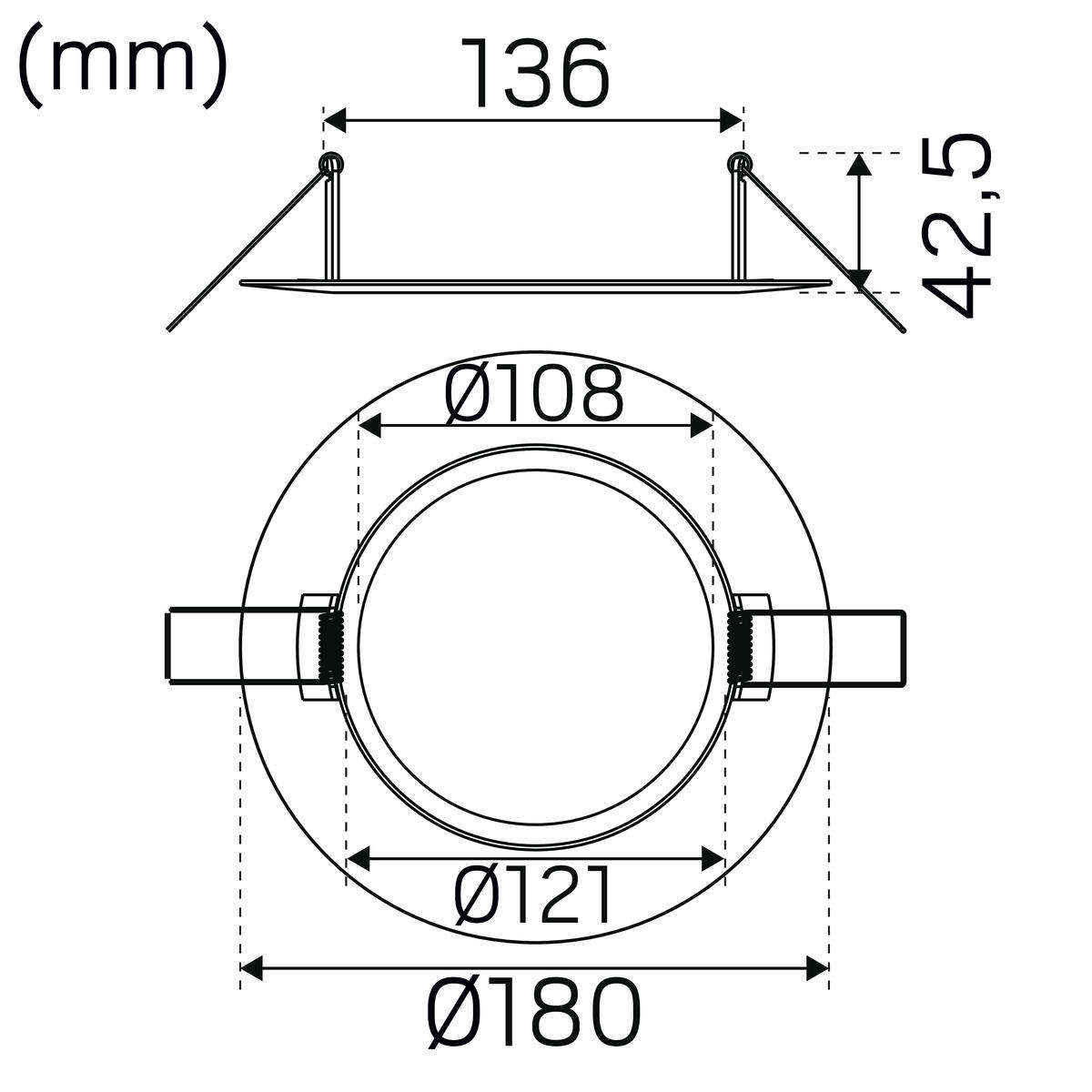

Measurement and installation
Operation Environment Indoor, Outdoor
Installation Surface mounted
Mounting Installation Tension Spring
Approval Marks CE
Filament Test IEC 695-2-1(°C) 650
Height (mm) 43
Diameter (mm) 180
Weight (kg) 0,15
Min. Built-in (Ø mm) 136

Images and downloads
