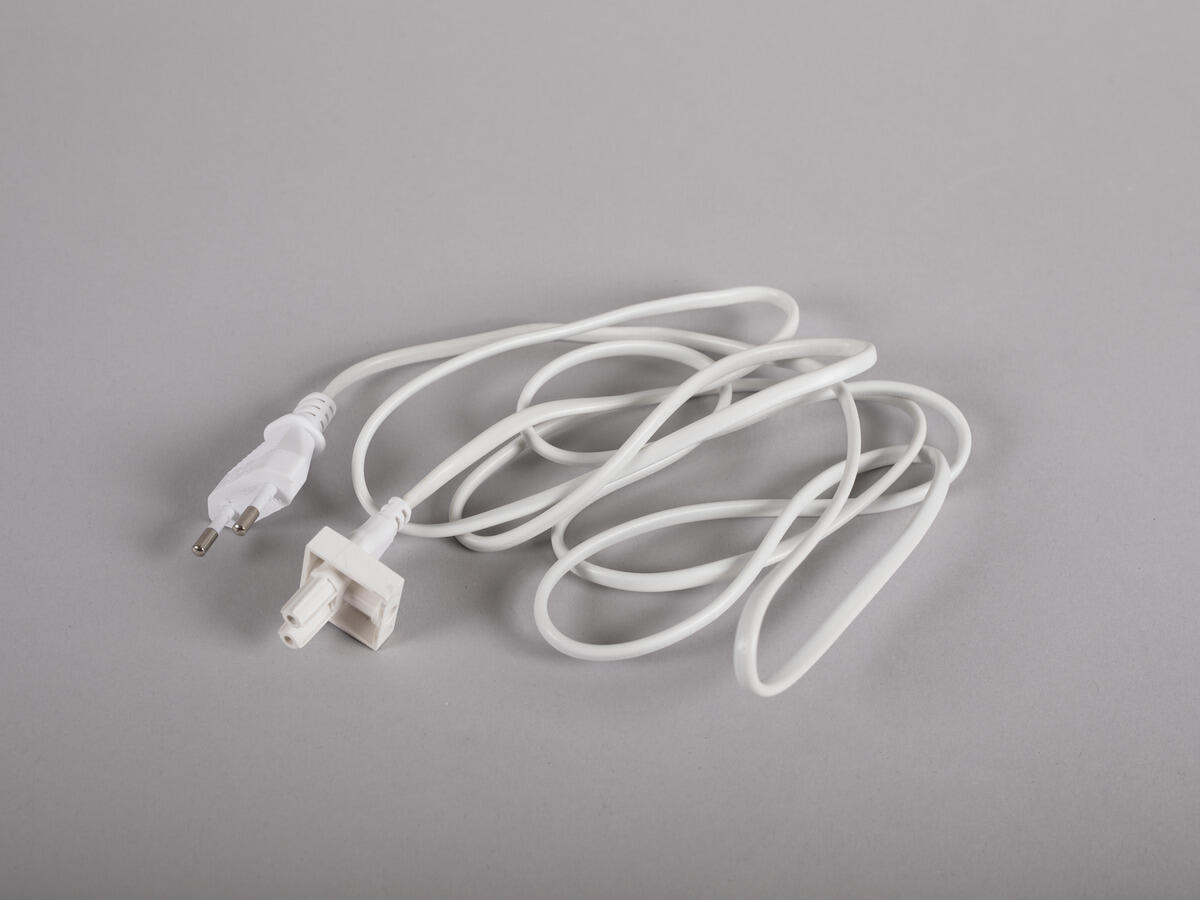

Shelf Line 230V Connection

2m connection for LED ramp Shelf line. Create an LED system with the accessories, connections and joints.
Exists in one color

Variants

GTIN Item Name
Shelf Line 230V Connection 2m 7392971143446 Shelf Line 230V Connection 2m

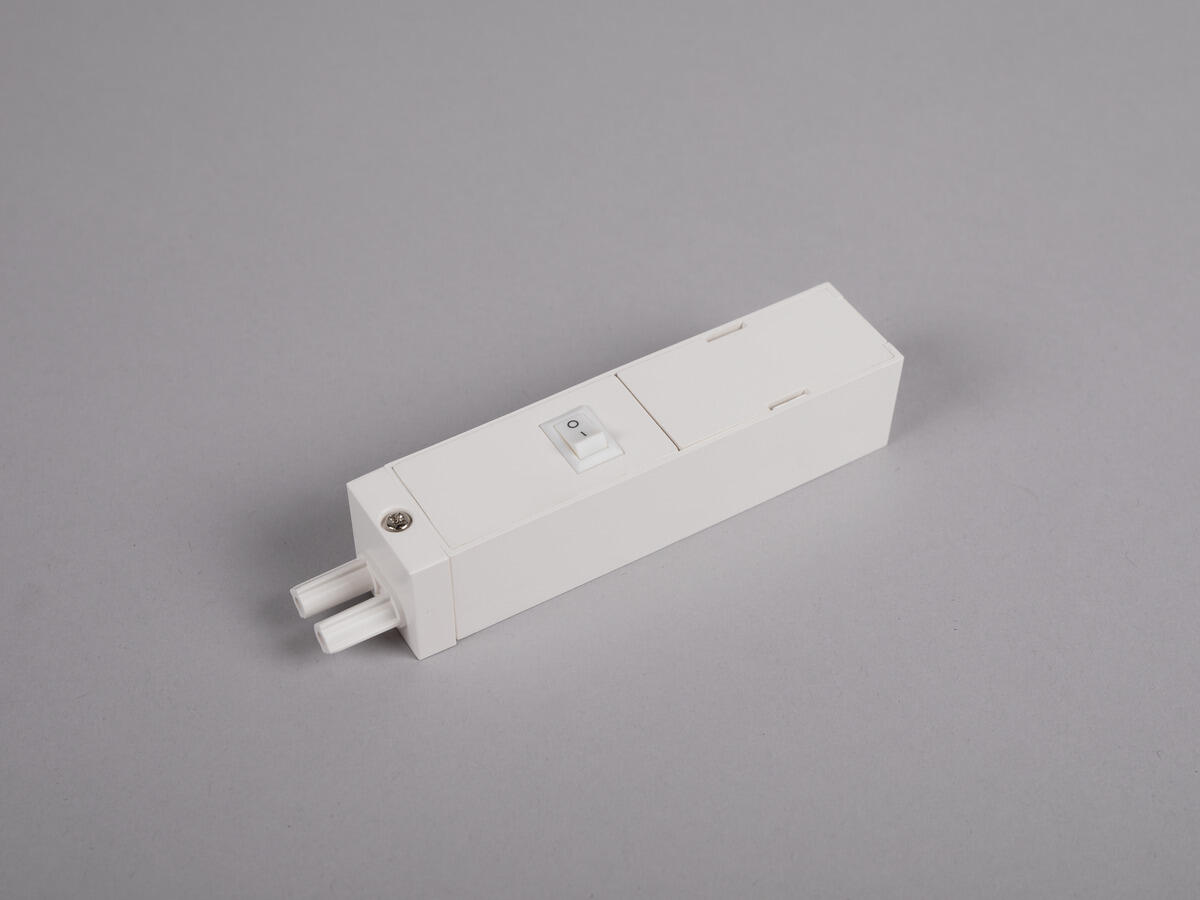

Shelf Line 230V Connection w switch 7392971143453 Shelf Line 230V Connection w switch

Shelf Line 230V Connection 2m

Description
GTIN 7392971143446
Item Name Shelf Line 230V Connection 2m
Warranty 5 years
Operation and Connection
Connection (type) Cord Set, Plug-in
Length Connection (cm) 200
Connection (mm2) 2x0,75
Connection Secondary (type) Plug-in
Color and material
Material Polycarbonate
Color White
Measurement and installation
Operating Environment Indoor / dry locations
IP Degree of Protection 20
Installation Surface mounted
Mounting Installation Screw Mounting
Fire Safety Marks MM-mark
Approval Marks CE
Filament Test IEC 695-2-1(°C) 650
Length (mm) 2000
Width (mm) 27
Height (mm) 26
Weight (kg) 0,1

Images and downloads

Accessories

No accessories for this product.
