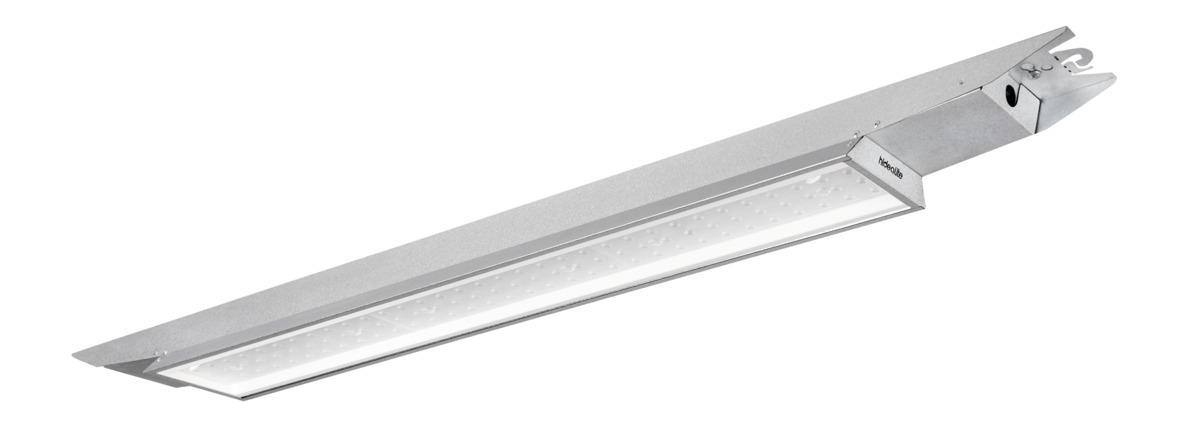

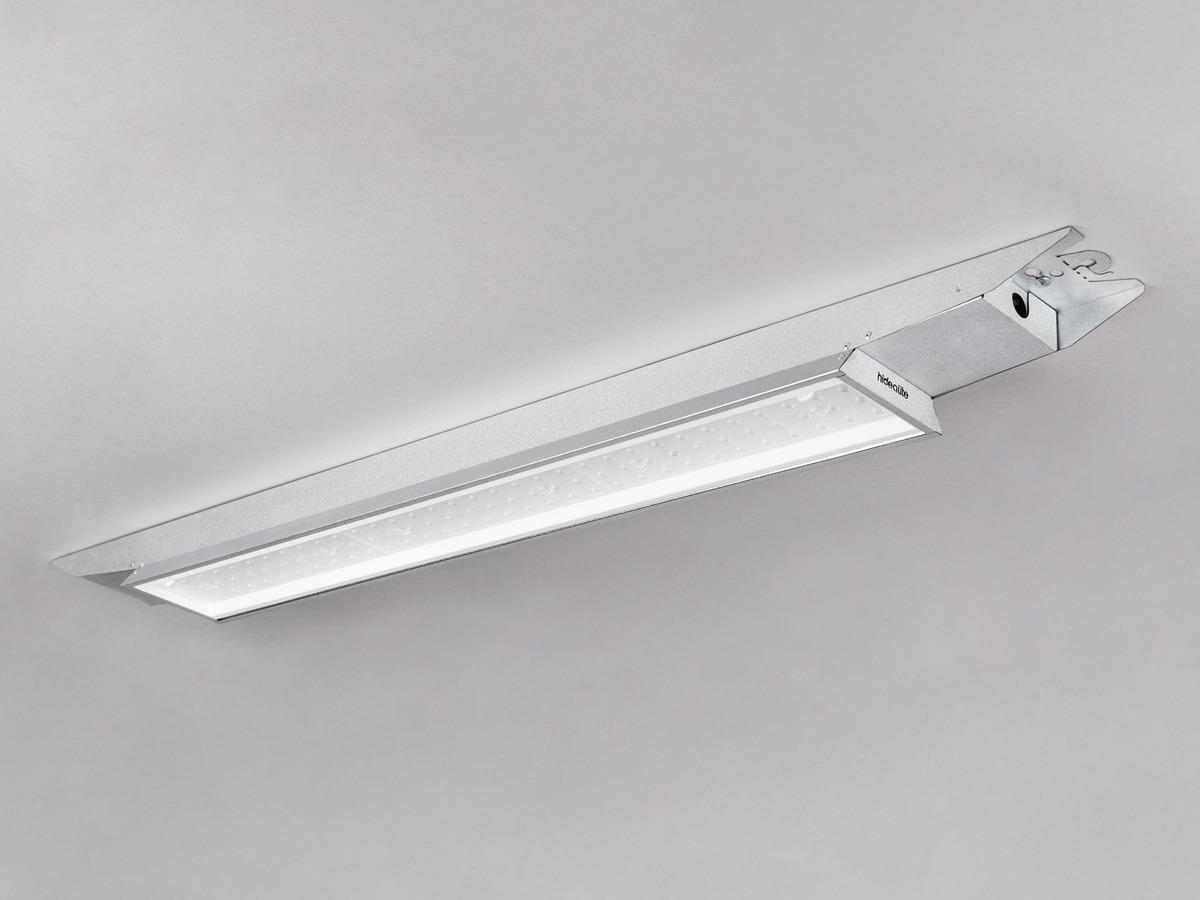

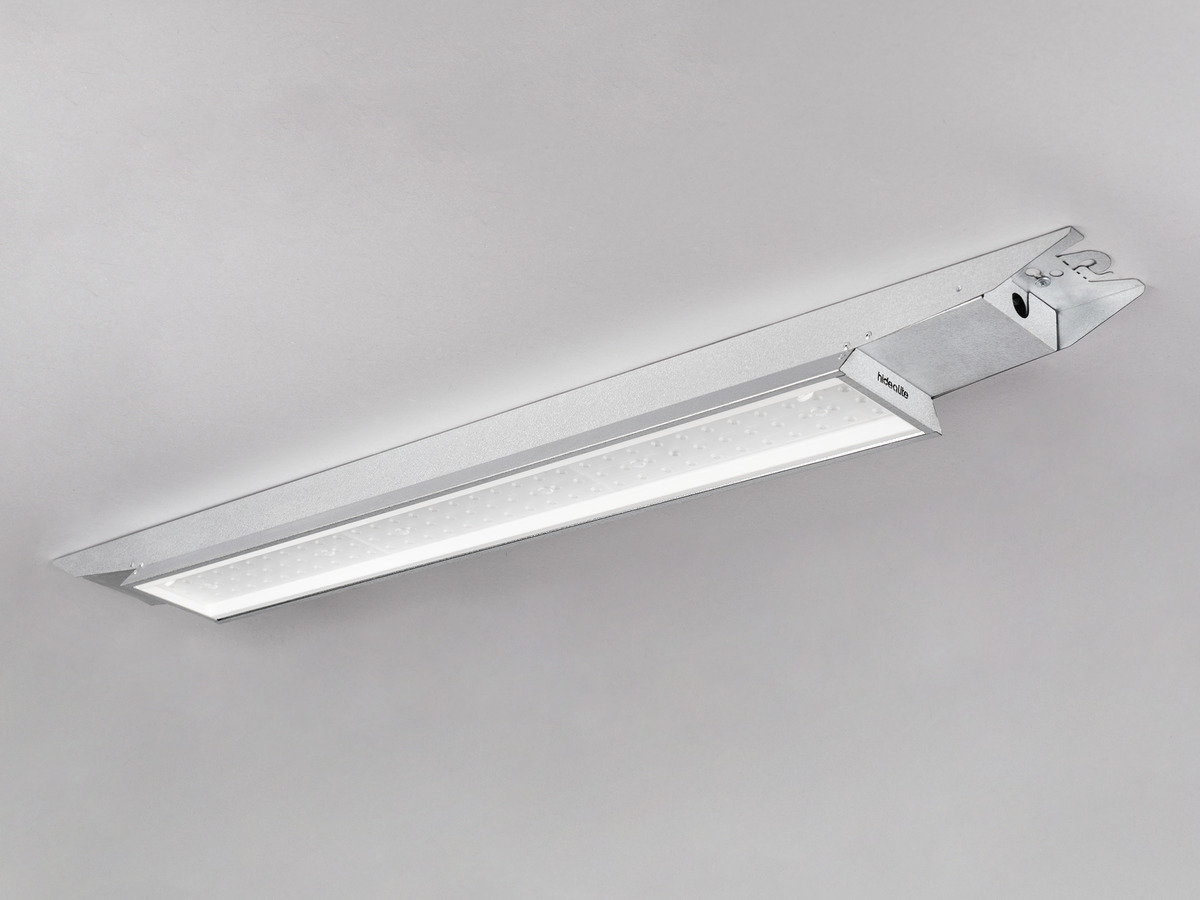

Indline IP23

Industrial luminaire in steel with high efficiency that meets the industry’s needs for flexibility and long life time. Push-in terminals strategically placed on both sides of the fitting make is possible to use existing cables. Well-planned design enabling replacement of both LED and driver. Control the lighting via DALI/Push or On/Off. The luminaire is adapted for mounting on a luminaire rail and has key holes for ceiling installation. Integrated wire suspension with hook and hook lock for easy mounting on wire.
Exists in one color

Variants

GTIN Item Name Luminaire Lumen (lm) Type of Dimming Beam Angle (°)
Indline IP23 L Narrow 840 DALI 7392971137315 Indline IP23 L Narrow 840 DALI 10100 Push 230V, DALI 30
Indline IP23 L Narrow 840 7392971137285 Indline IP23 L Narrow 840 10100 30
Indline IP23 L Medium 840 7392971137292 Indline IP23 L Medium 840 10700 60
Indline IP23 L Wide 840 7392971137308 Indline IP23 L Wide 840 10500 90
Indline IP23 L Medium 840 DALI 7392971137322 Indline IP23 L Medium 840 DALI 10700 Push 230V, DALI 60
Indline IP23 L Wide 840 DALI 7392971137339 Indline IP23 L Wide 840 DALI 10500 Push 230V, DALI 90
Indline IP23 XL Narrow 840 7392971137346 Indline IP23 XL Narrow 840 16300 30
Indline IP23 XL Medium 840 7392971137353 Indline IP23 XL Medium 840 18000 60
Indline IP23 XL Wide 840 7392971137360 Indline IP23 XL Wide 840 17250 90
Indline IP23 XL Narrow 840 DALI 7392971137377 Indline IP23 XL Narrow 840 DALI 16300 Push 230V, DALI 30
Indline IP23 XL Medium 840 DALI 7392971137384 Indline IP23 XL Medium 840 DALI 18000 Push 230V, DALI 60
Indline IP23 XL Wide 840 DALI 7392971137391 Indline IP23 XL Wide 840 DALI 17250 Push 230V, DALI 90

Indline IP23 L Narrow 840 DALI A++

Description
GTIN 7392971137315
Item Name Indline IP23 L Narrow 840 DALI
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included (type) LED exchangeable
LED Colour White
Colour Temperature (K) 4000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3

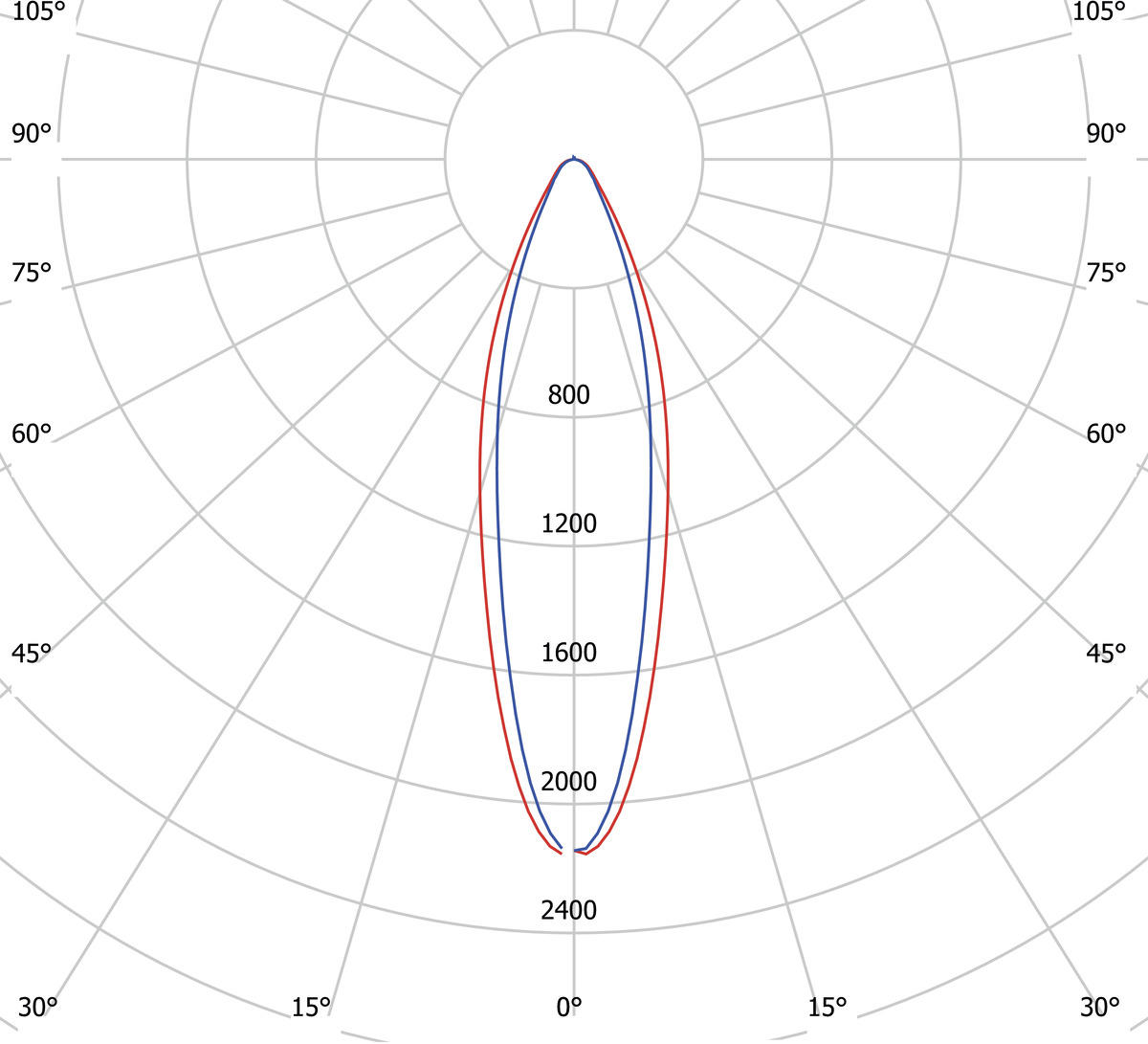

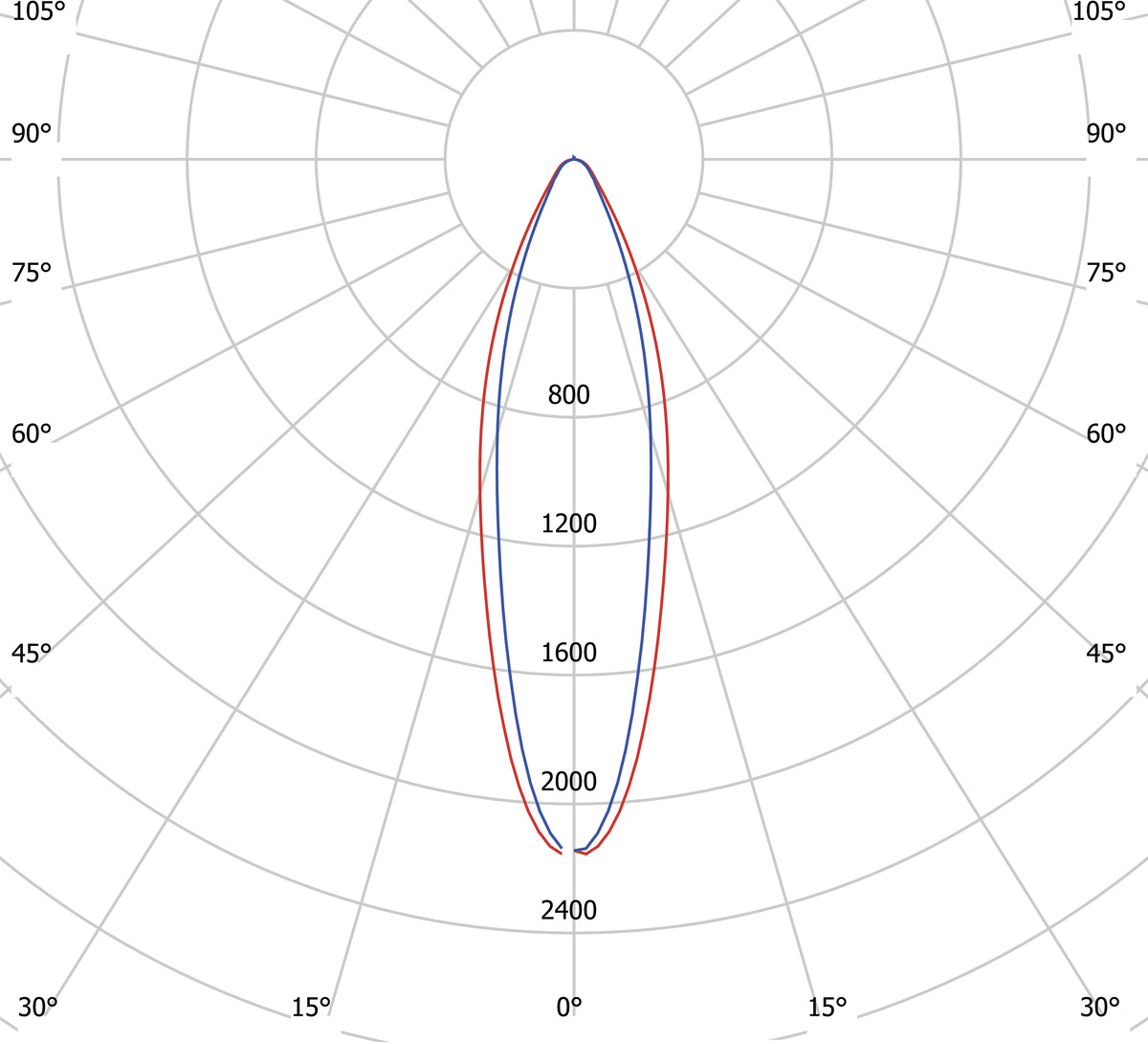

Luminous Intensity (cd) 19900
Luminaire Lumen (lm) 10100
Beam Angle (°) 30
Light sharing Symmetric
Light Outlet Narrow Beam
Number of Lamps (pcs) 1
Number of LED (pcs) 99
Life Time L80 100 000h Ta 25°C
Nominel Life Time (h) 100 000
Lumen maintenance 50 000h L88
Lumen maintenance 100 000h L80
Life Time Driver 100 000h/10%
LLMF @ 50 000h 0,88
LLMF @ 100 000h 0,8
Technical data
Adjustable No
Voltage (type) AC, DC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50, 60
Power Luminaire (W) 69
System Power (W) 69
Efficiency Luminaire (lm/W) 146
Efficiency System (lm/W) 146
Energy Efficiency Class A++
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Connection (type) Quick Terminal
Connection (mm2) 5x0,5-2,5
Through Wiring Yes
Strain Relief Yes
Power Factor ʎ 0,95
Efficiency (%) 92
Operating Temperature -25…+50
Max. Tc (°C) 85
Dimmable Yes
Type of Dimming Push 230V, DALI
Fuse B10 (pcs) 21
Fuse B16 (pcs) 36
Fuse C10 (pcs) 23
Fuse C16 (pcs) 36
Color and material
Material Metal, Sheet metal, PMMA
Color Aluzinc
Color Cover Ring White
Color Code Cover Ring (RAL) 9016
Halogen free Yes
Measurement and installation
Operation Environment Indoor
IP Degree of Protection 23
Installation Surface mounted, Wire-cable installation
Mounting Installation Screw Mounting, Hook
Approval Marks CE
Filament Test IEC 695-2-1(°C) 650
Protection Class I

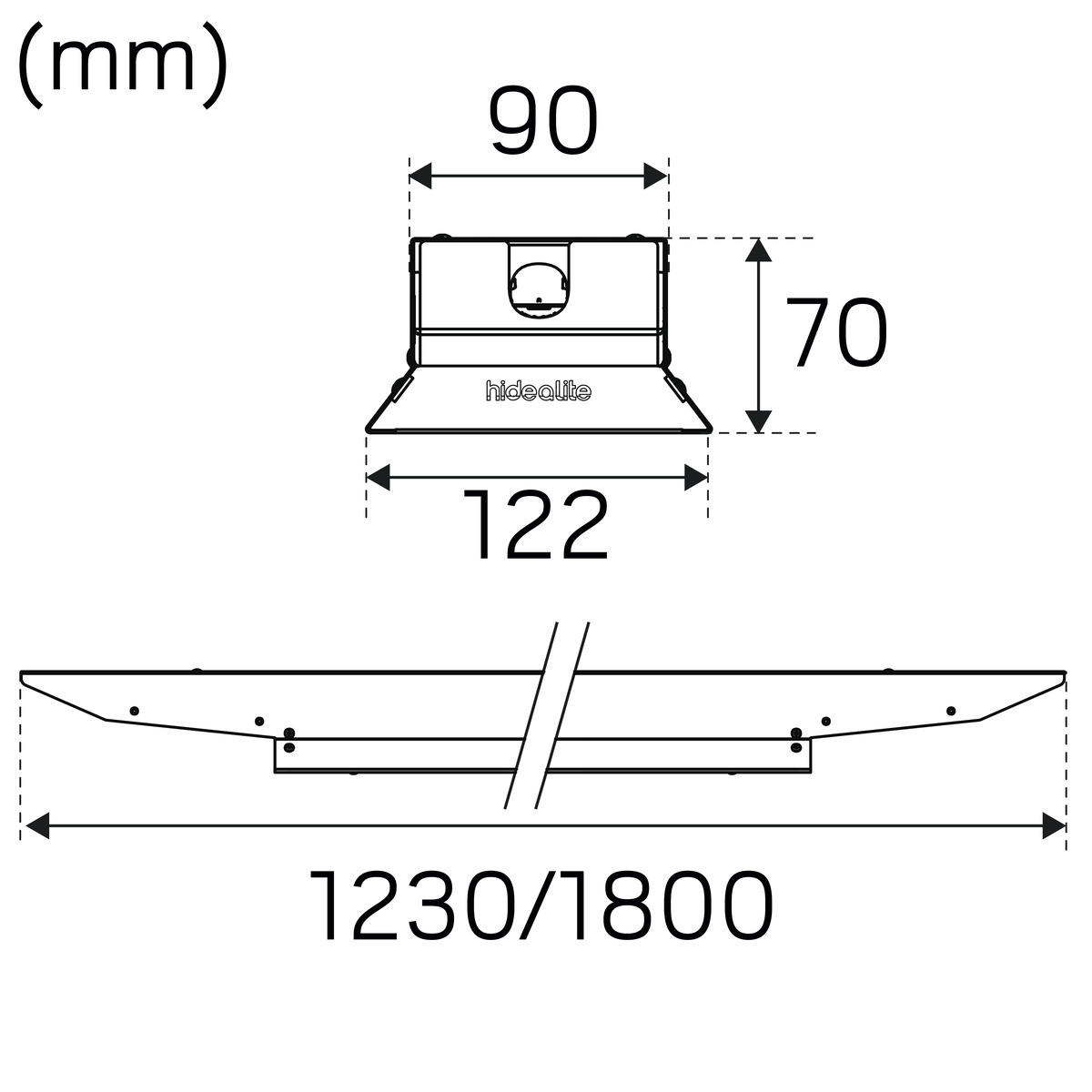

Length (mm) 1230
Width (mm) 122
Height (mm) 70
Weight (kg) 3,75
