Heatline
Heatline

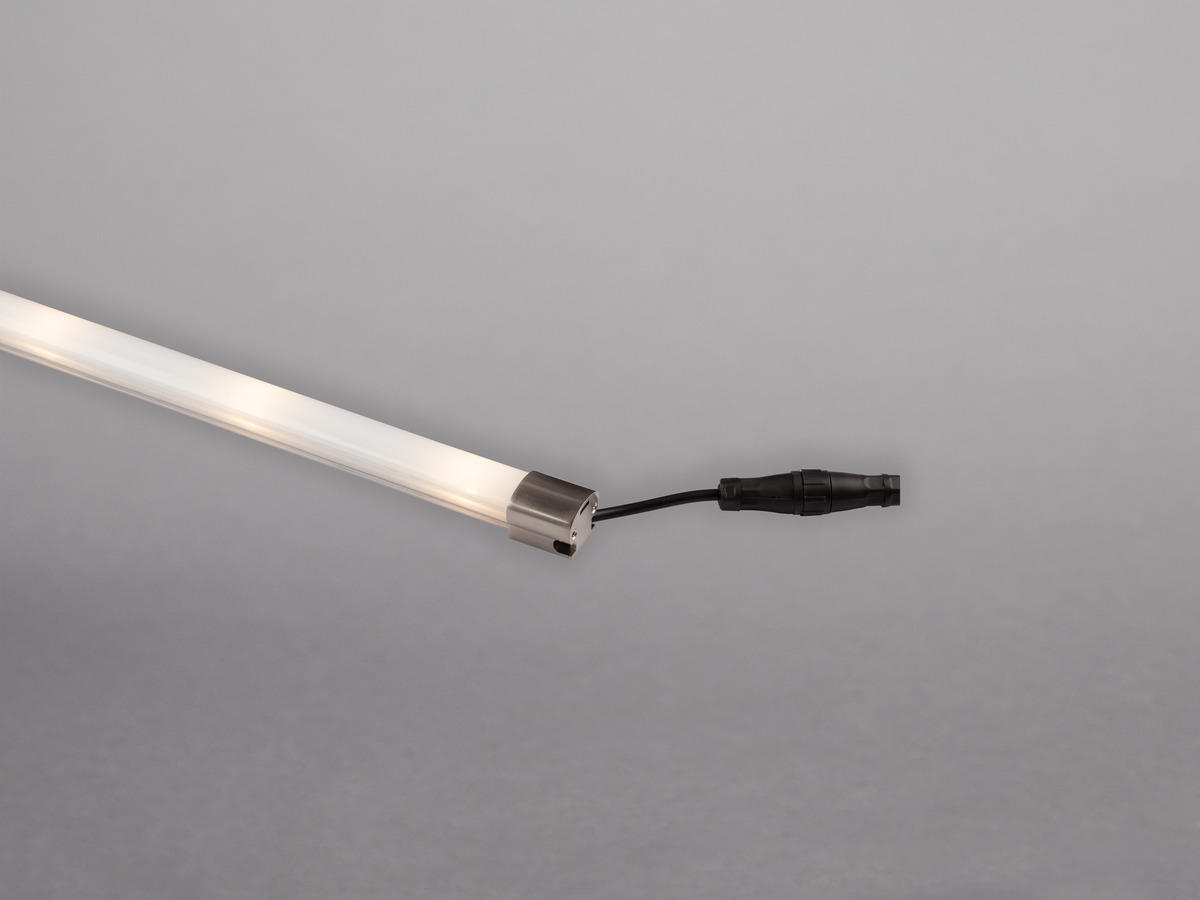

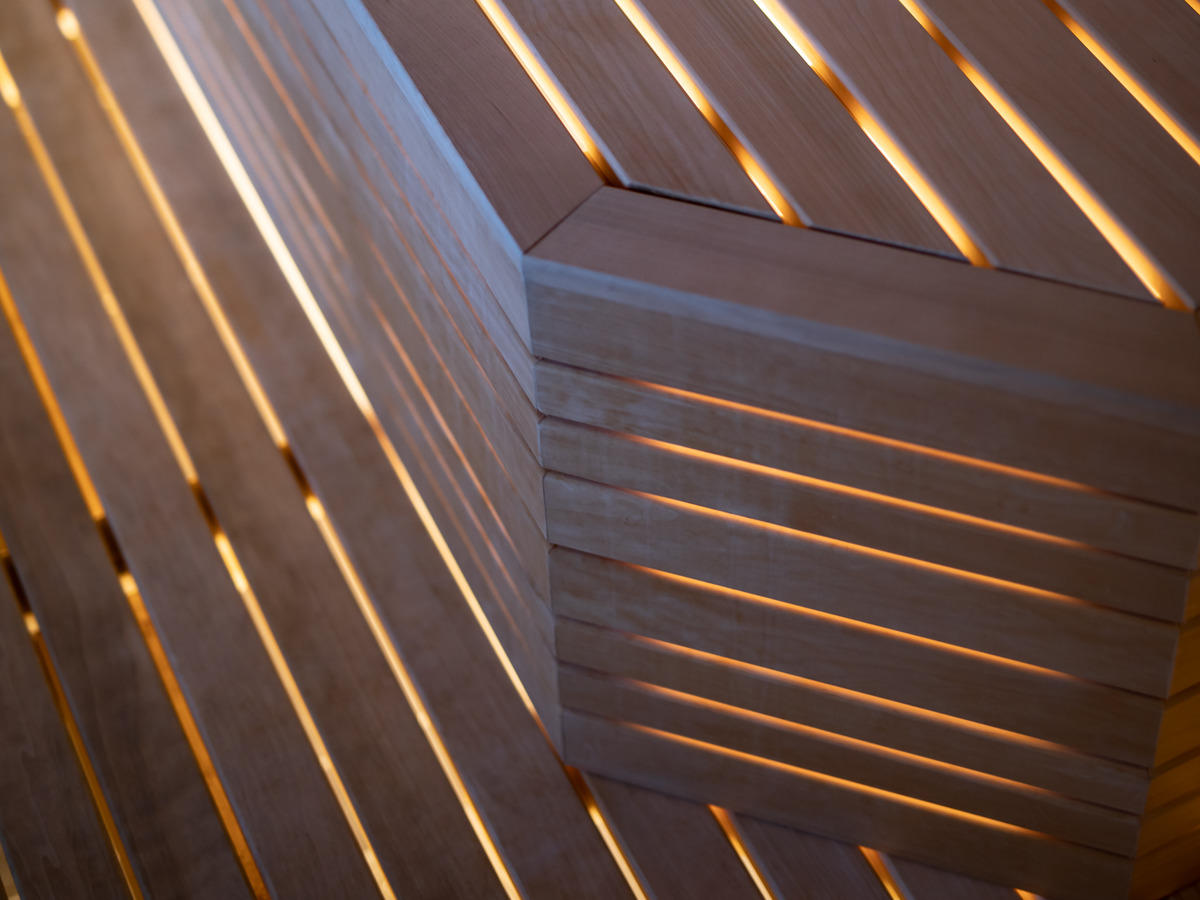

LEDstrip for saunas rated IP44. Creates a pleasant warm white raking light with incandescent bulb character. Should be installed in locations where the temperature does not exceed 80°C. Luminaire casing of warm and age-resistant plastic, end pieces of aluminium with brushed finish. Comes ready with screw connections and 5 cm cable on each side (linkable), 5 m heat resistant silicon cable with screw connection and clips and screws of stainless steel for easy installation. Connects to constant current 350 mA.

Variants

GTIN Item Name Luminaire Lumen (lm)
Heatline 50 2700K 7392971124056 Heatline 50 2700K 380
Heatline 100 2700K 7392971124049 Heatline 100 2700K 760
Description
GTIN 7392971124056
Item Name Heatline 50 2700K
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
Replaceability Non-replaceaable LED
LED Colour Warm White
Colour Temperature (K) 2700
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 60
Luminaire Lumen (lm) 380
Beam Angle (°) 150
Light sharing
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 5
Life Time L80 50 000h Ta 80°C
Nominel Life Time (h) 50000
Lumen maintenance 50 000h L80
LLMF @ 50 000h 0,8
Technical data
Adjustable No
Power Luminaire (W) 5,5
Efficiency Luminaire (lm/W) 61
Efficiency System (lm/W) 55
Energy Efficiency Class (EU) 2019/2015 E
Operation and Connection
Driver Included No
Driver Model Constant Current
Connection (type) Screw Terminals
Length Connection (cm) 5
Constant Current (mA) 350
Operating Temperature -20…+125
Dimmable Yes
Color and material
Material Aluminium, Plastic
Color Opal White
Environmental Assessment SundaHus, Byggvarubedömningen
Measurement and installation
Operating Environment Indoor / wet locations, Outdoor
IP Degree of Protection 44
Installation Surface mounted
Mounting Installation Clips
Approval Marks CE
Length (mm) 500
Width (mm) 22
Height (mm) 22
Weight (kg) 0,17
