Wally G2

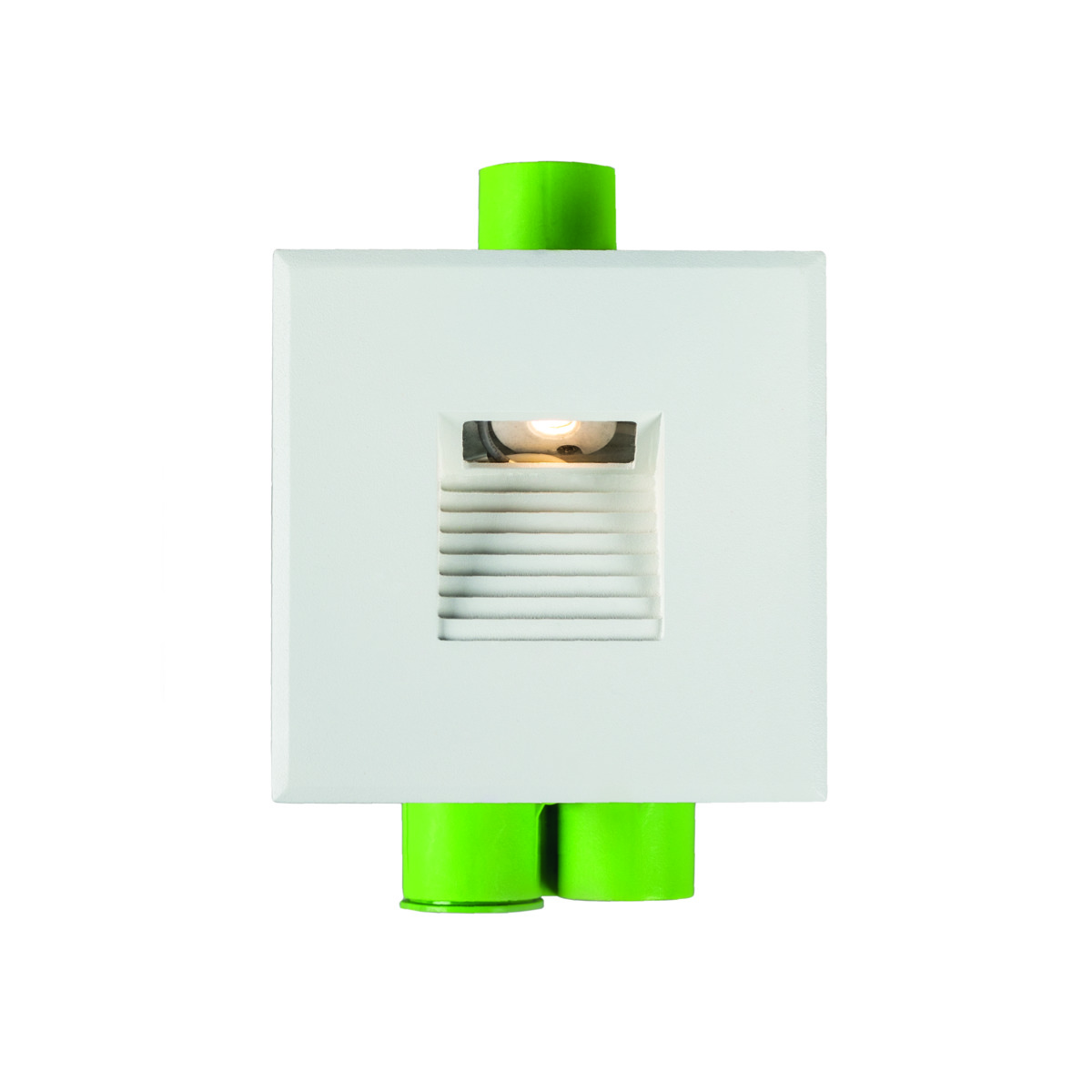

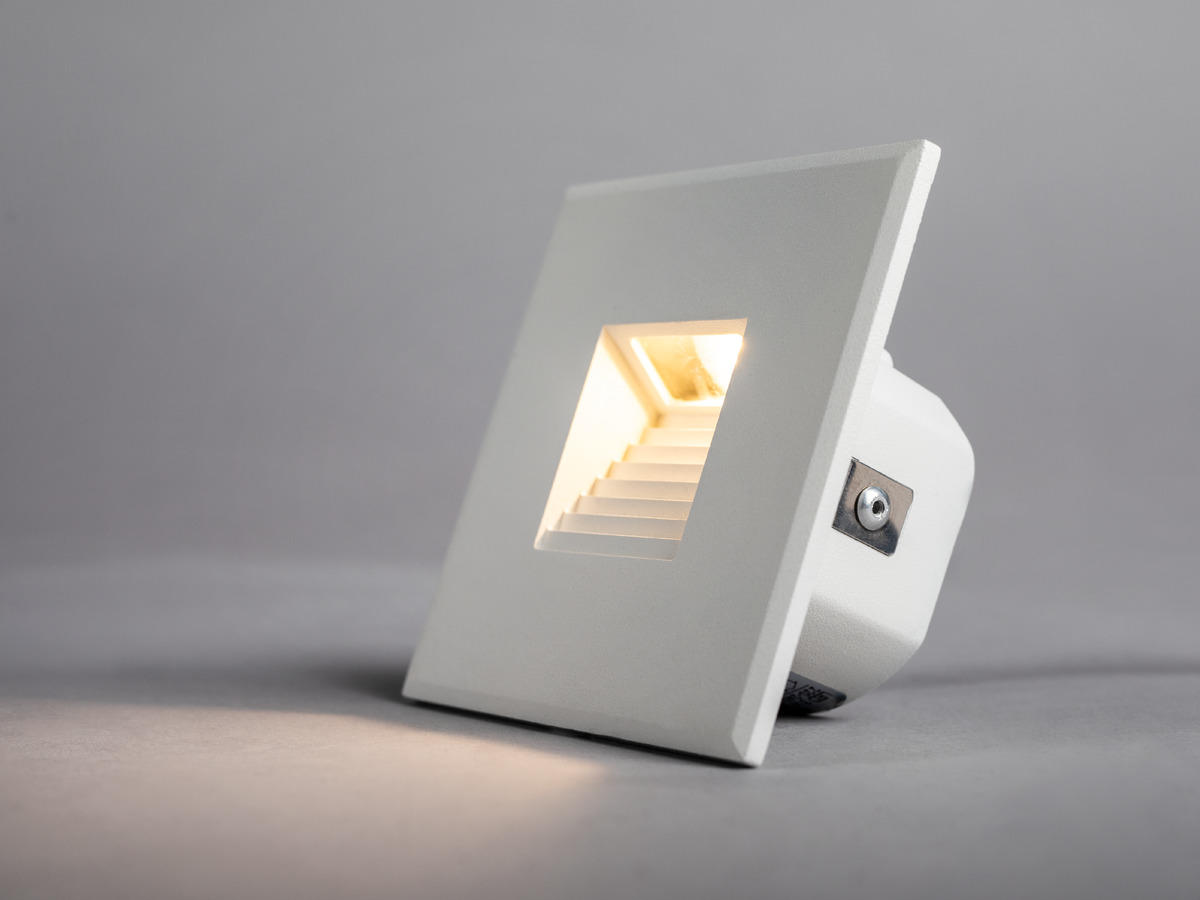

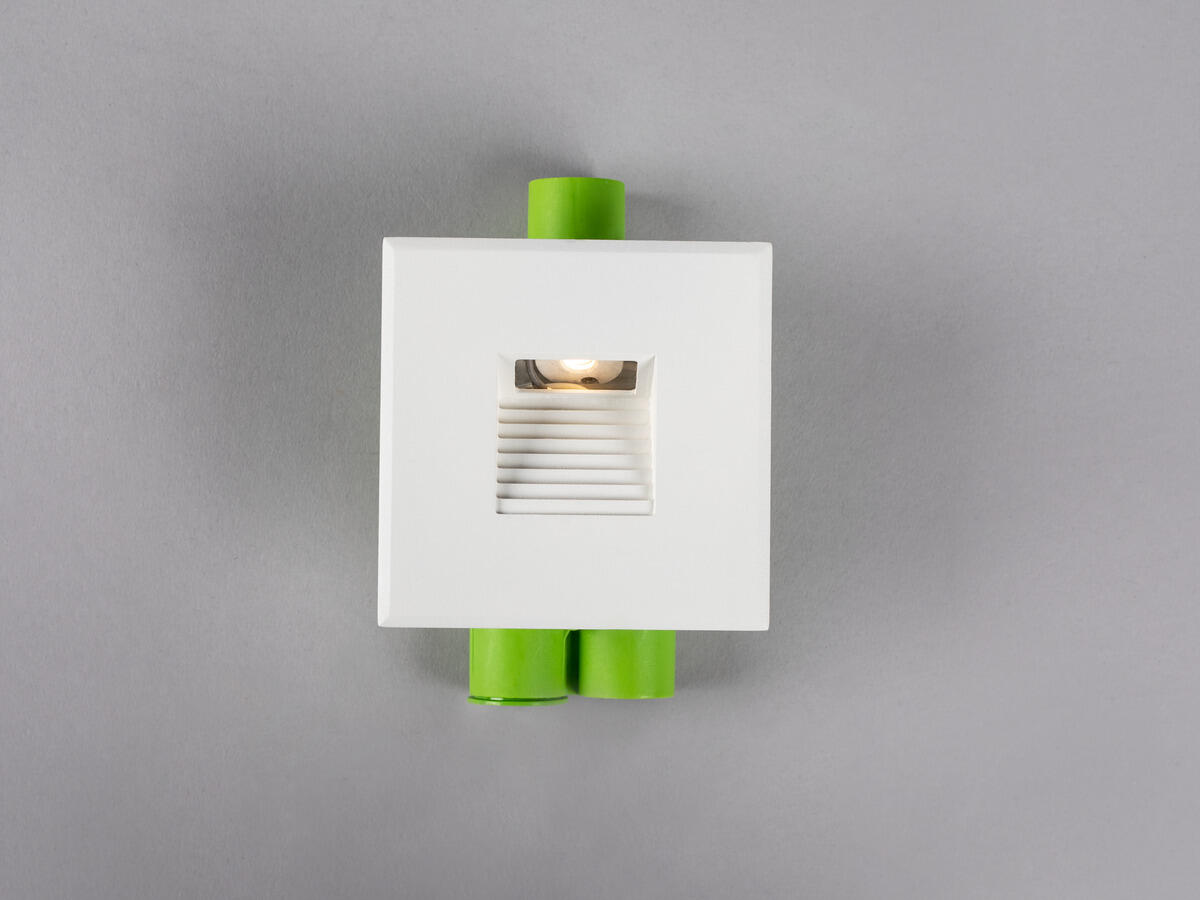

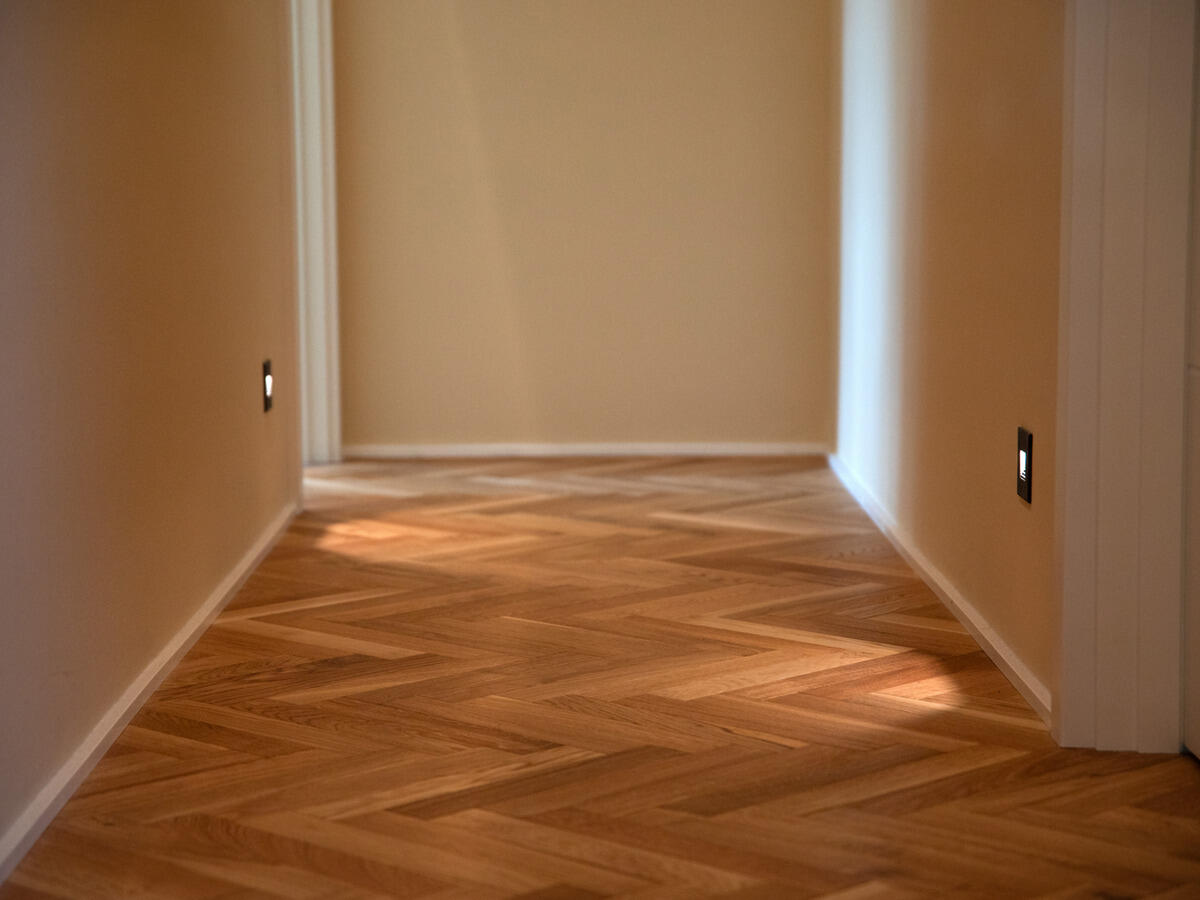

Discrete, recessed and phase dimming 230V luminaire. Wall luminaire adapted for appliance box that creates distinct light distribution on the floor. For example, you can illuminate an indoor pathway or a staircase along a wall. Easily change the appearance of a luminaire with black front lid (sold separately). Integrated push-in terminal on the back for through wiring gives simple installation. Complete with integrated phase dimmable driver.
Variants
| GTIN | Item Name | Colour Temperature (K) | Luminaire Lumen (lm) | |
|---|---|---|---|---|
|
7392971138978 | Wally G2 White 2700K | 2700 | 195 |
|
7392971138985 | Wally G2 White 3000K | 3000 | 200 |
Wally G2 White 2700K
- Description
-
GTIN
7392971138978
Item Name Wally G2 White 2700K
Warranty 5 years
- Light Technical Data
-
Light Source
LED
Light Source Included Yes
Replaceability Non-replaceaable LED, Non-replaceable Control gear
LED Colour Warm White
Colour Temperature (K) 2700
Colour Rendering Index (Ra) >90
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 120
Luminaire Lumen (lm) 195
Beam Angle (°) 60
Light sharing Asymmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L90 50 000h Ta 25°C
Nominel Life Time (h) 50000
Lumen maintenance 50 000h L90
LLMF @ 50 000h 0,9
- Technical data
-
Voltage (type)
AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50
Voltage Forward (Vf) 24
Power LED (W) 2,9
Power Luminaire (W) 3,6
System Power (W) 3,6
Efficiency Luminaire (lm/W) 54
Efficiency System (lm/W) 54
- Operation and Connection
-
Driver Included
Yes
Driver Model Constant Current
Driver Type Built-in

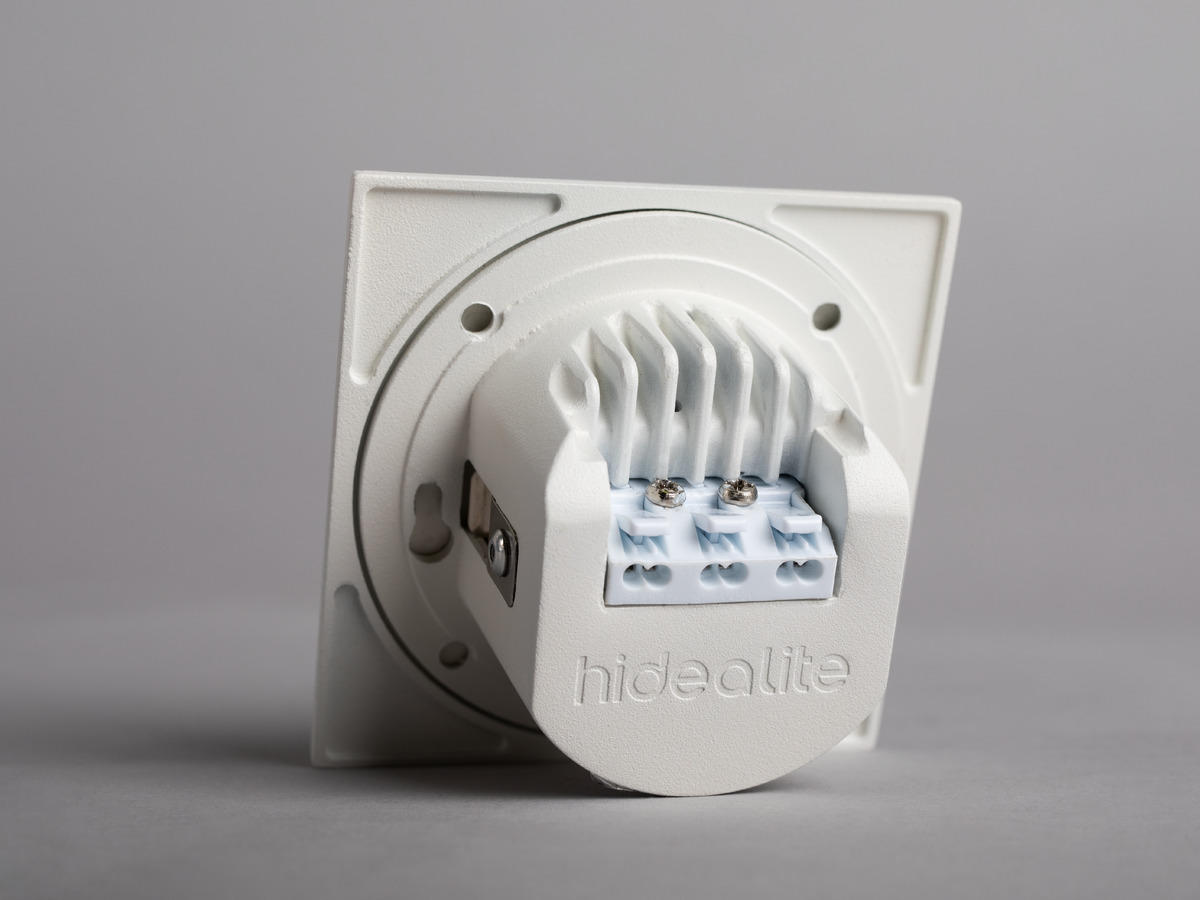

Connection (type) Quick Terminal
Connection (mm2) 3x0,5-1,5
Through Wiring Yes
Power Factor ʎ 0,92
Efficiency (%) 79
Constant Current (mA) 200
Operating Temperature
Max. Tc (°C) 80
Dimmable Yes
Type of Dimming Trailing Edge
Dimming secondary side AM
Protection Against Short Circuit, Overheating 100°C, Overload
Fuse B10 (pcs) 100
Fuse B16 (pcs) 160
Fuse C10 (pcs) 120
Fuse C16 (pcs) 180
- Color and material
-
Material
Aluminium
Color White
Environmental Assessment SundaHus, Byggvarubedömningen
- Measurement and installation
-
Operating Environment
IP Degree of Protection 21
Protection Class I
Installation Built-in
Mounting Installation Screw Mounting
Fire Safety Marks Not in insulation without protection cover
Approval Marks CE
Filament Test IEC 695-2-1(°C) 650

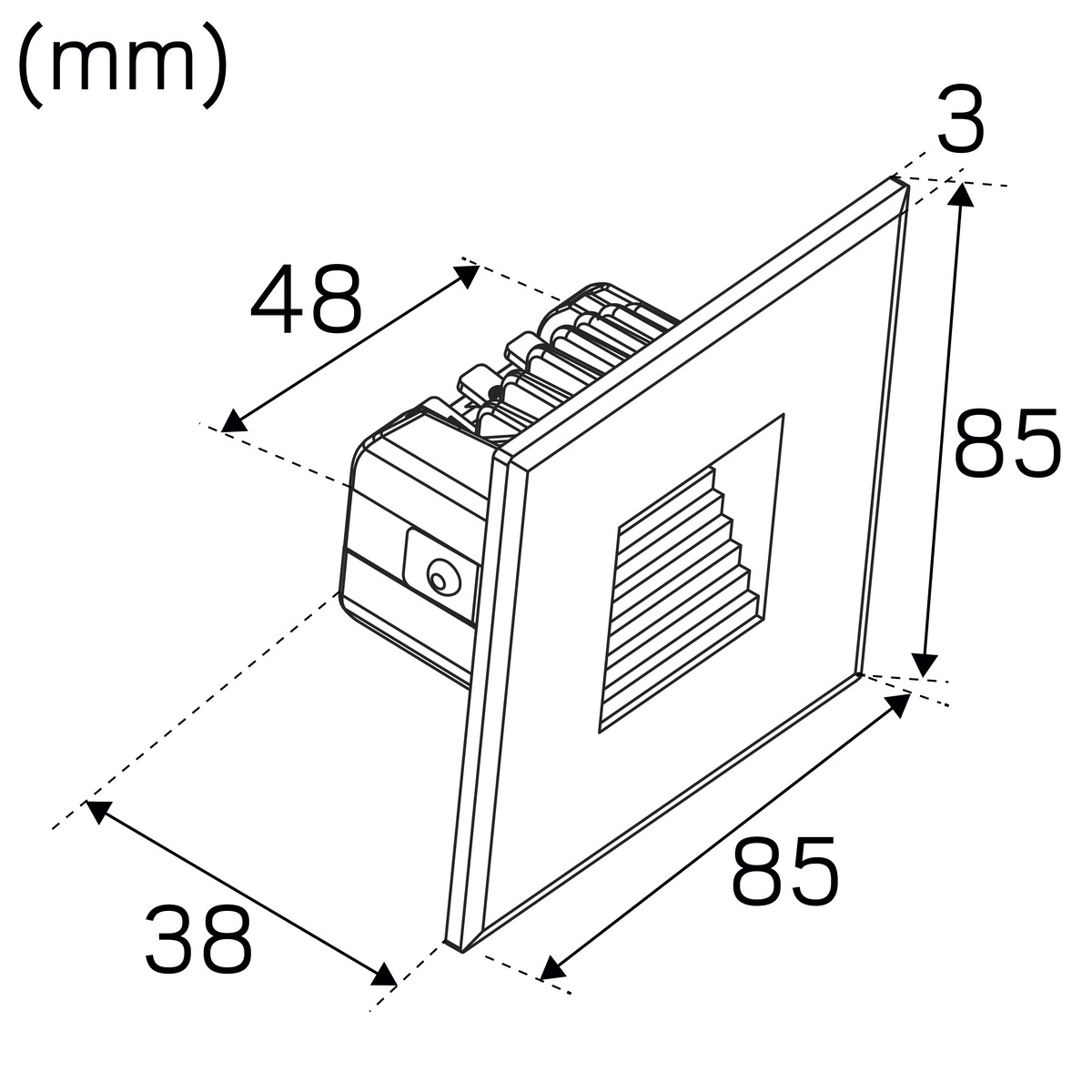

Width (mm) 85
Height (mm) 85
Depth (mm) 41
Weight (kg) 0,155
Min. Built-in (mm) Ø60x43
Min. Air Volume (cm3) 153
Height Recessed Part (mm) 38
Height Exterior Part (mm) 4
Built-in Ø (mm) 60
