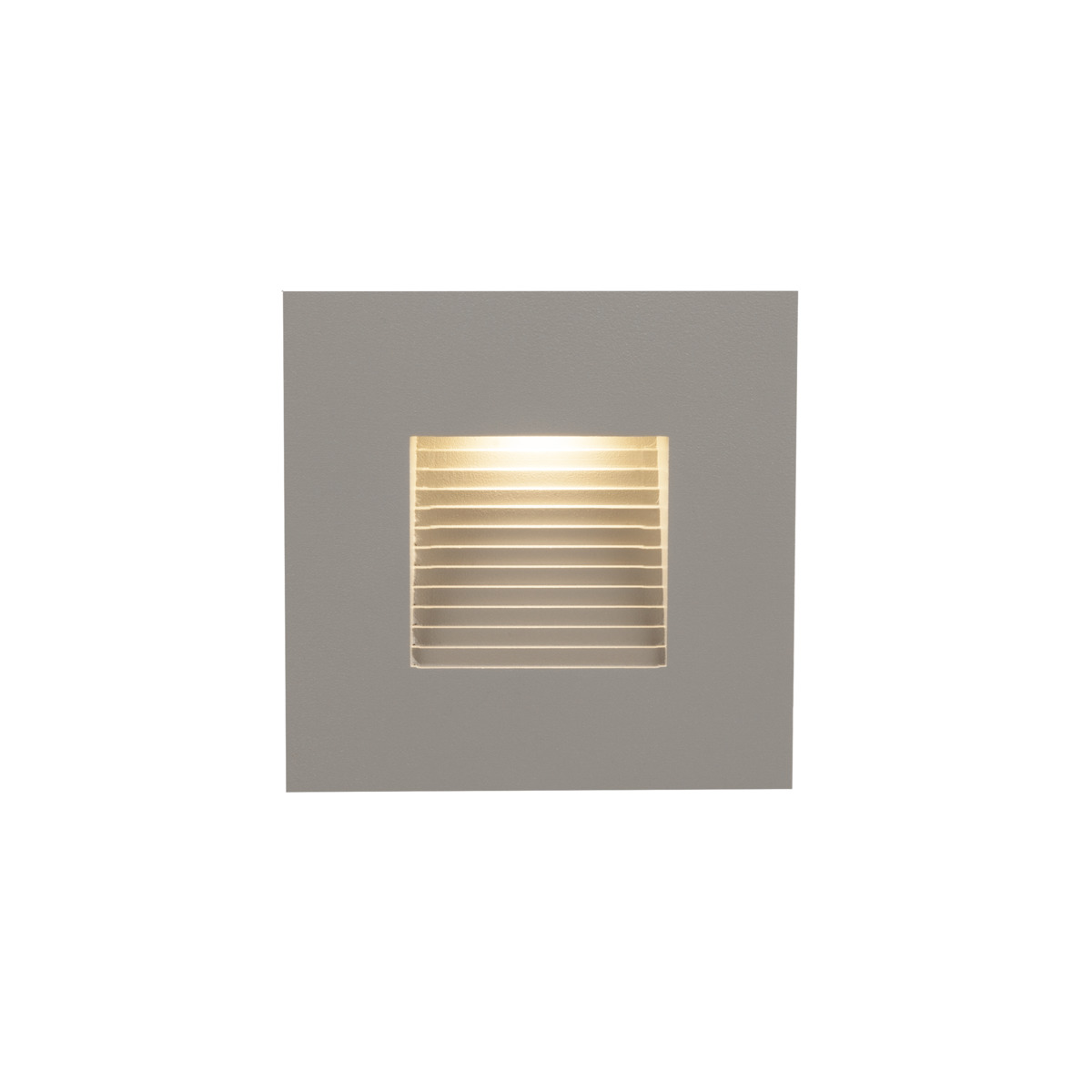

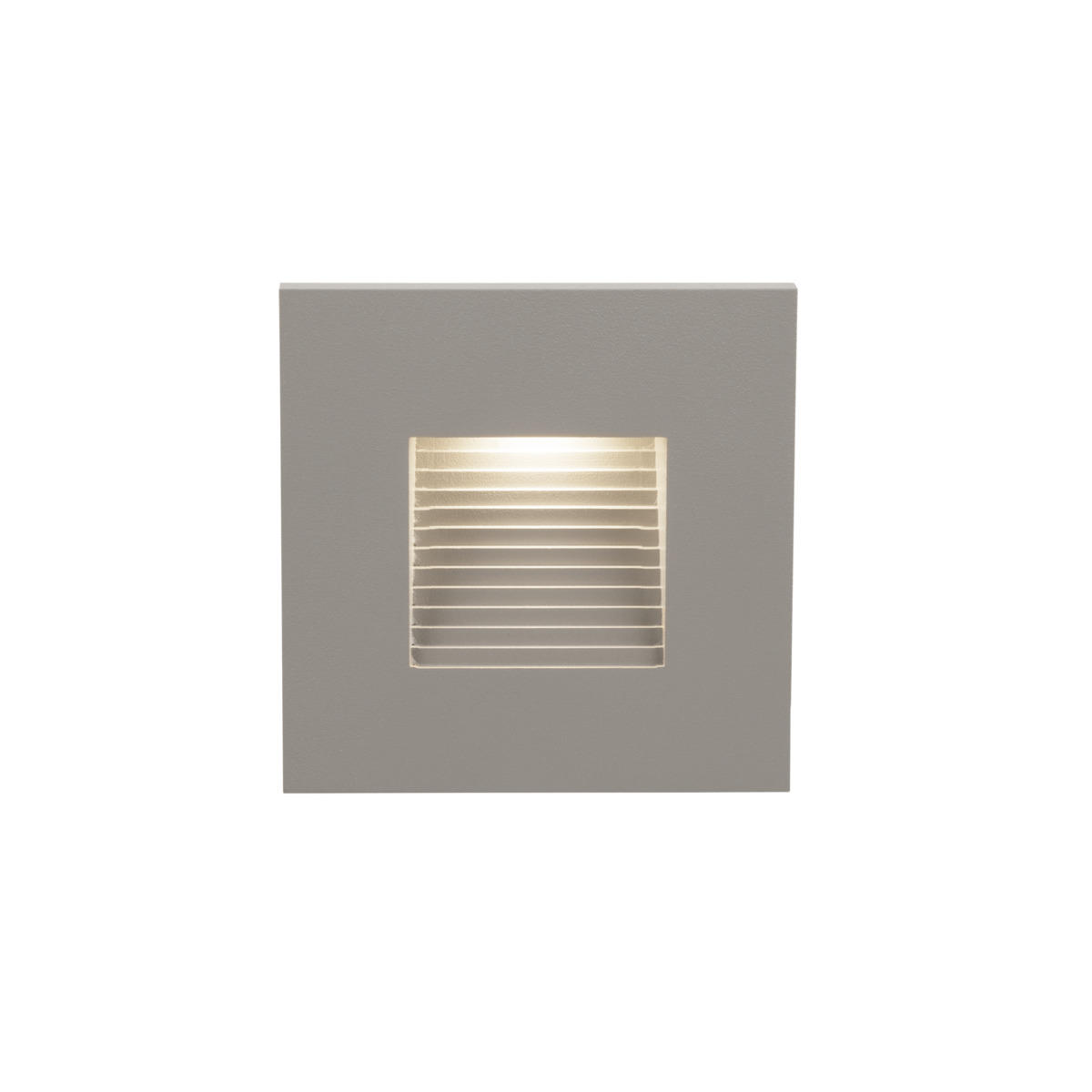

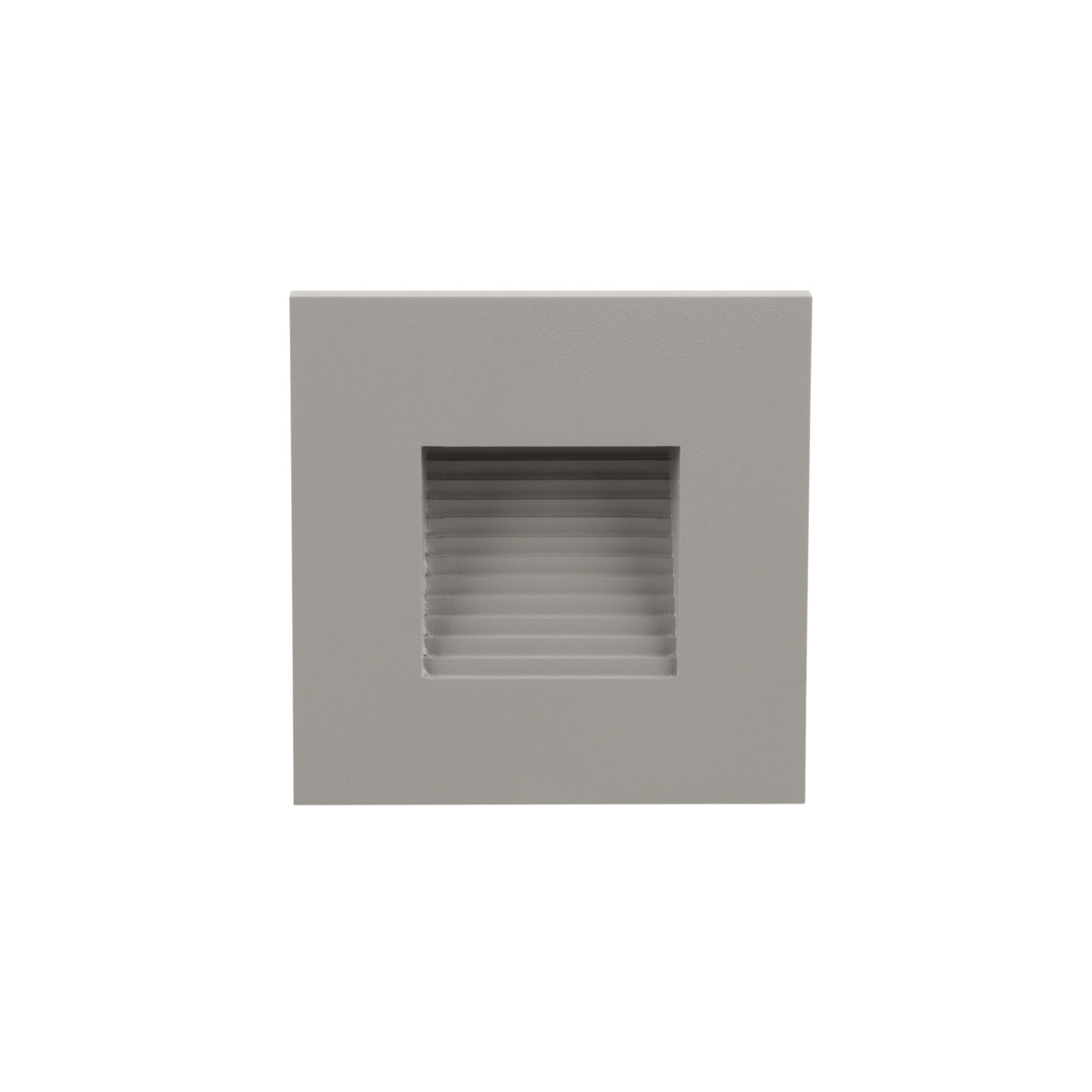

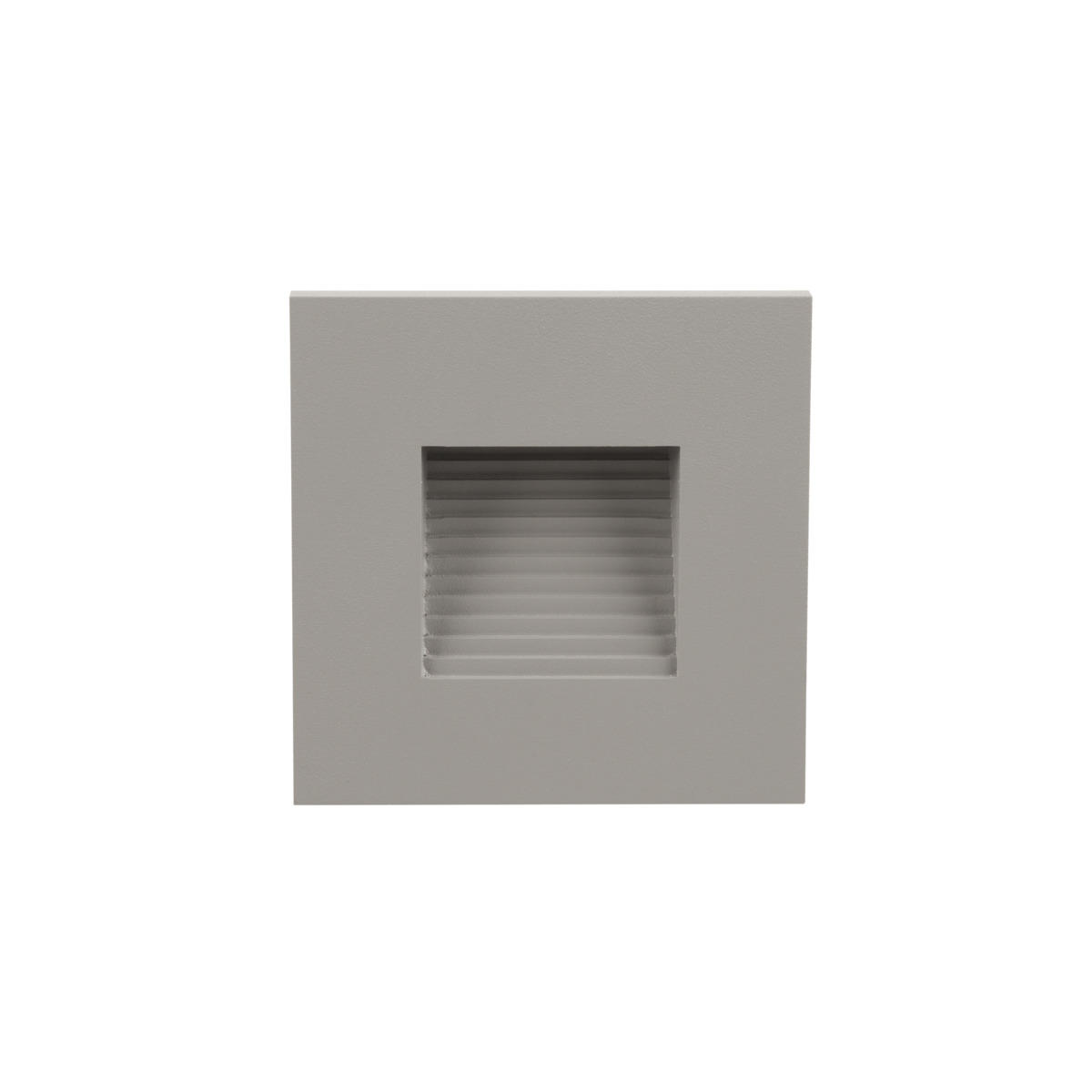

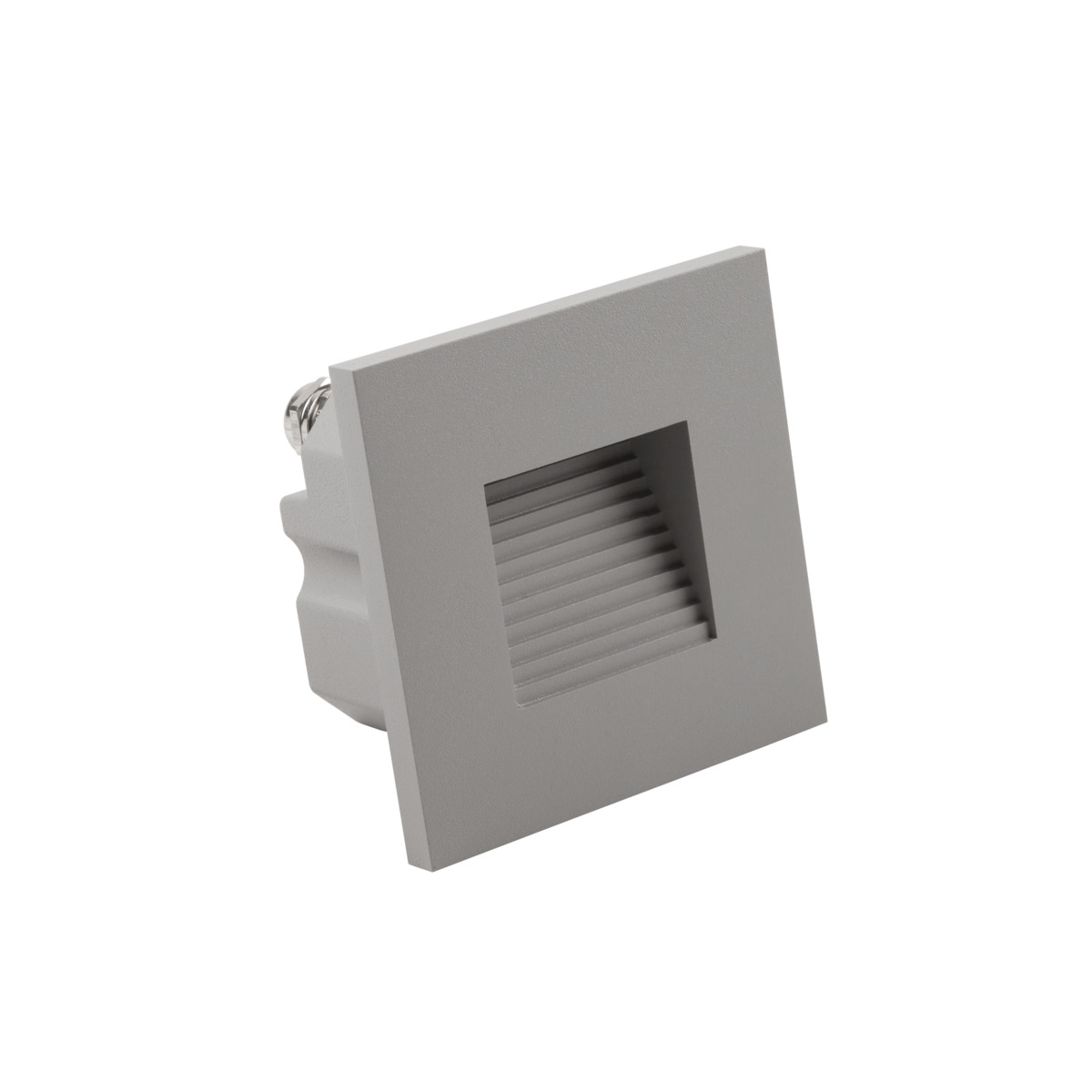

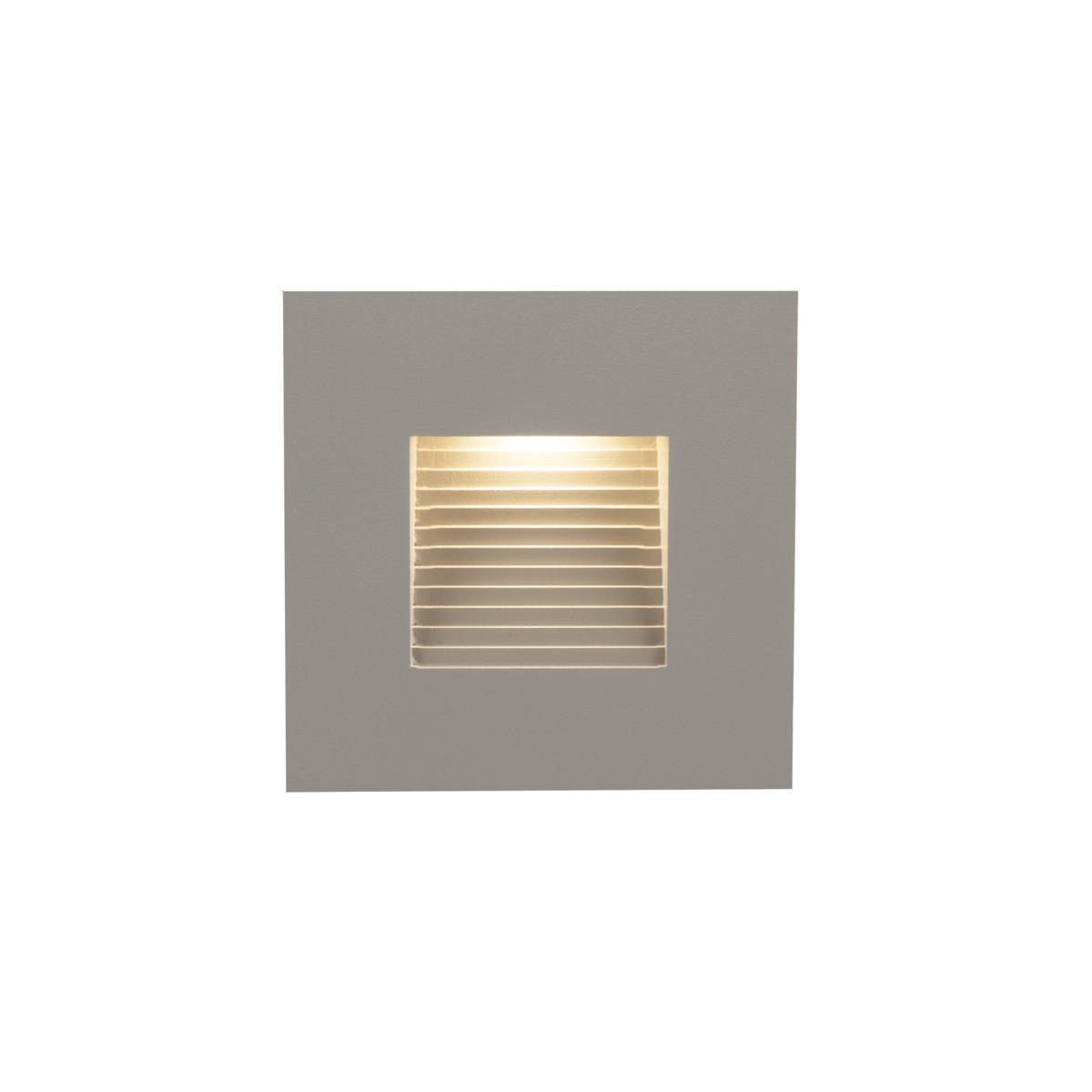

Indicate Multi

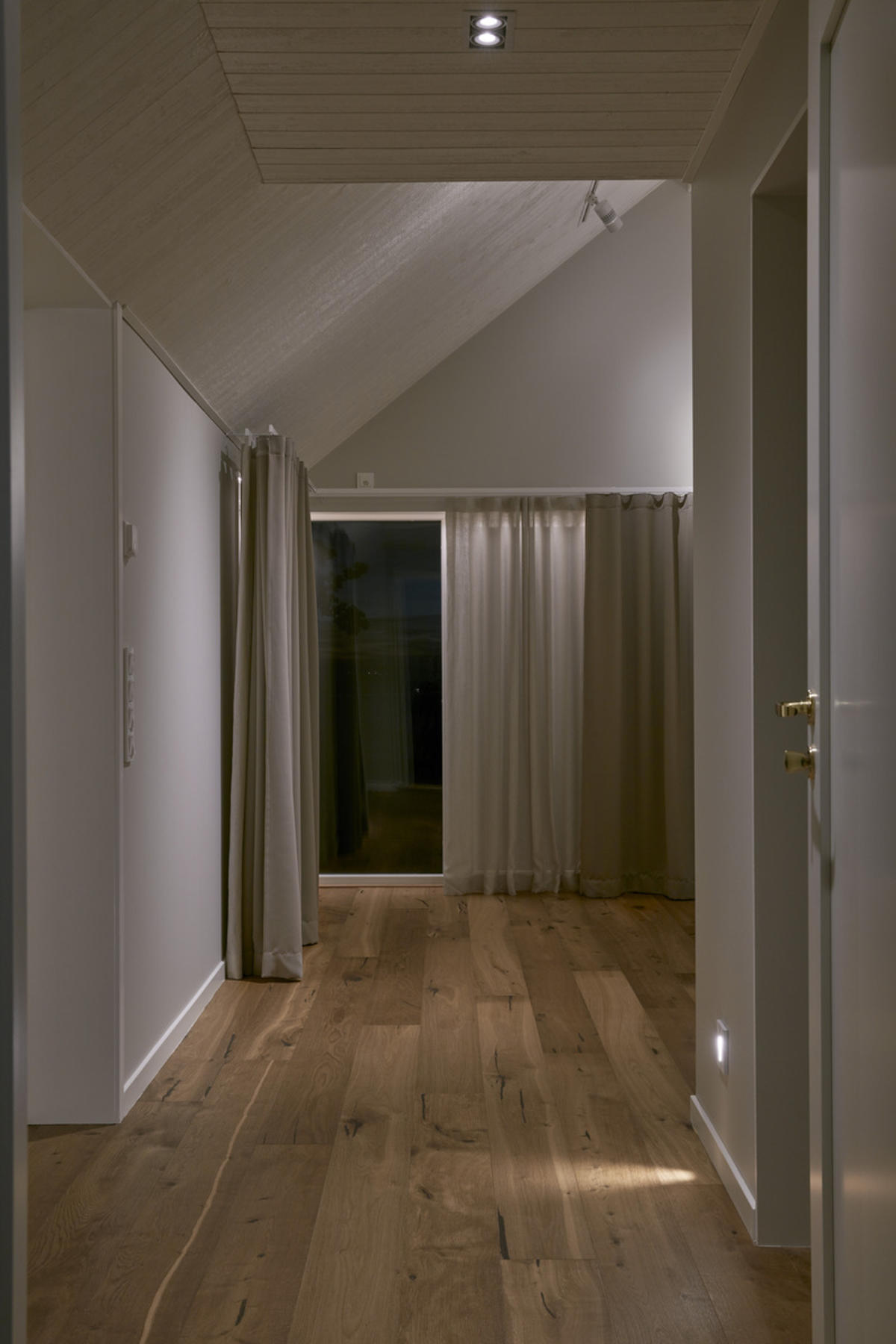

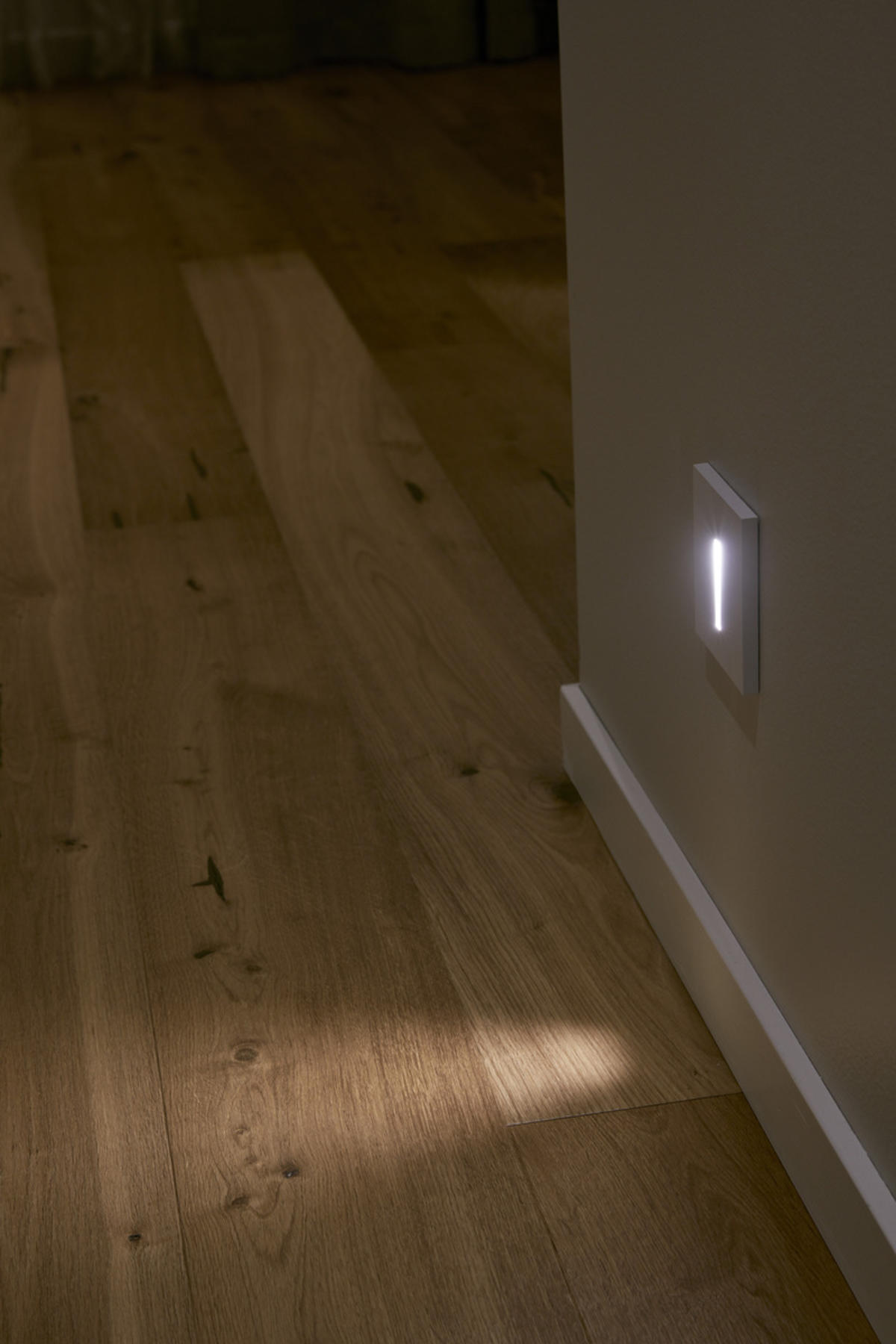

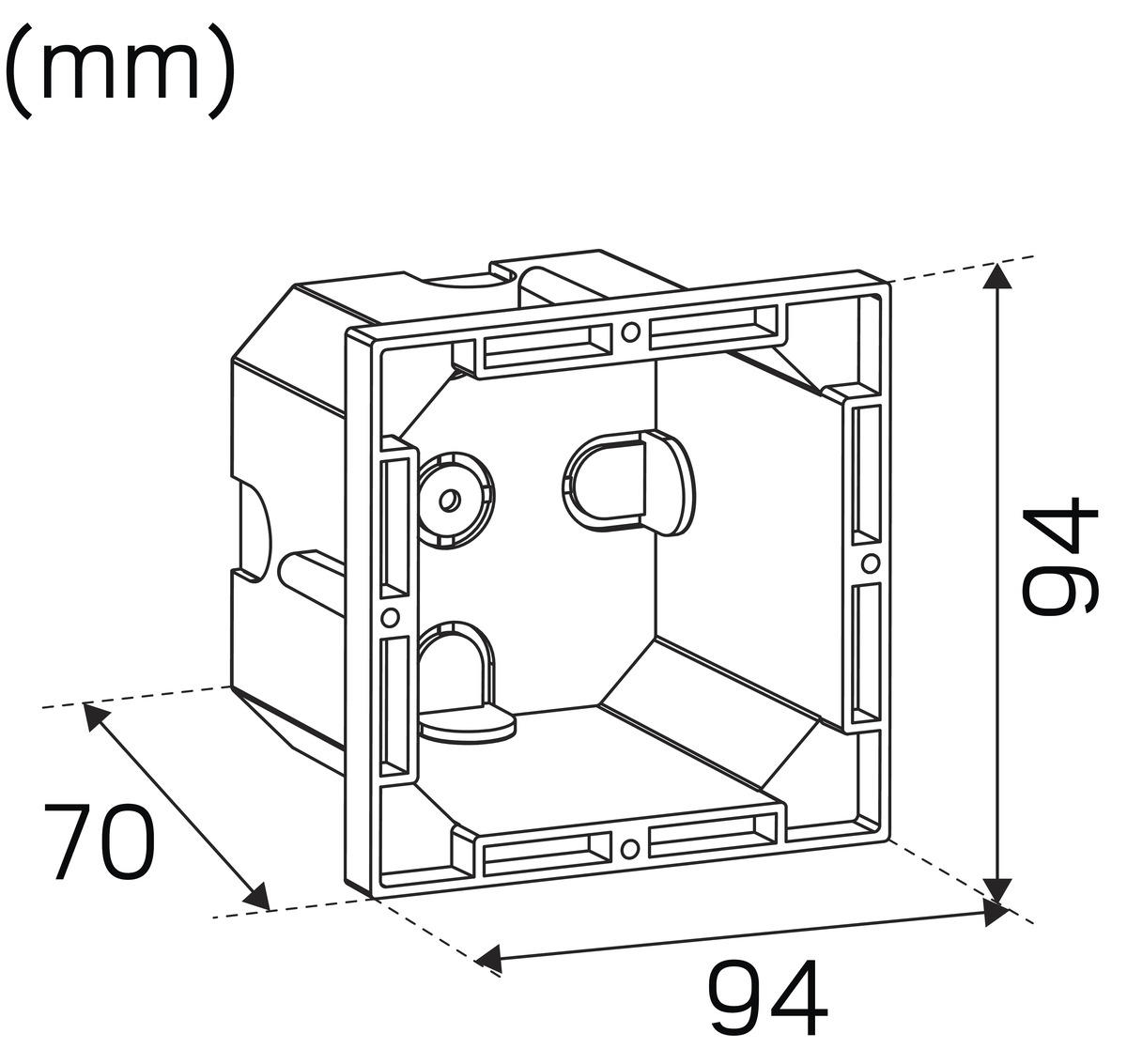

Decorative lighting with multichip technology for wall recesses with stylish design. Installed to highlight or illuminate alleys, walls or stairways. Integrated driver for direct 230V connection. Classified IP65, suitable both inside and out with 3000K for halogen character. There are three front covers available so you can choose light distribution to give your luminaire a new appearance. Note! The build dimensions depend on method of installation. Please follow the user instructions. Comes with plastic mounting box.
Exists in several colors
  • Vit #ffffff
  • Antracit #4e4e4e
  • Grå #b8b3b0

Variants

GTIN Item Name Color Luminaire Lumen (lm)
Indicate Multi Anthracite 7392971127620 Indicate Multi Anthracite Antracit 20
Indicate Multi Grey 7392971124797 Indicate Multi Grey Grey 25
Indicate Multi White 7392971124780 Indicate Multi White White 35

Indicate Multi Grey A+

Description
GTIN 7392971124797
Item Name Indicate Multi Grey
Lighting Data
Light Source LED
Light Source Included (type) LED not exchangeable
Instant Full Light No
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 25
Luminaire Lumen (lm) 25
Technical data
Life Time (L70) 50 000h Ta 25°C
Nominel Life Time (h) 50000
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50
Power LED (W) 2
Power Luminaire (W) 2
System Power (W) 2
Energy Efficiency Class A+
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Connection (type) Quick Terminal
Connection (mm2) 3x0,5-2,5
Through Wiring Yes
Strain Relief Yes
Operating Temperature -25…+40
Color and material
Material Aluminium
Color Grey
Color Code (RAL) 7042
Measurement and installation
Operation Environment Indoor, Outdoor
IP Degree of Protection 65
Installation Built-in
Mounting Installation Screw Mounting
Ceiling Thickness Interval (mm) 5
Fire Safety Marks Not in insulation without protection cover
Approval Marks CE
Protection Class I

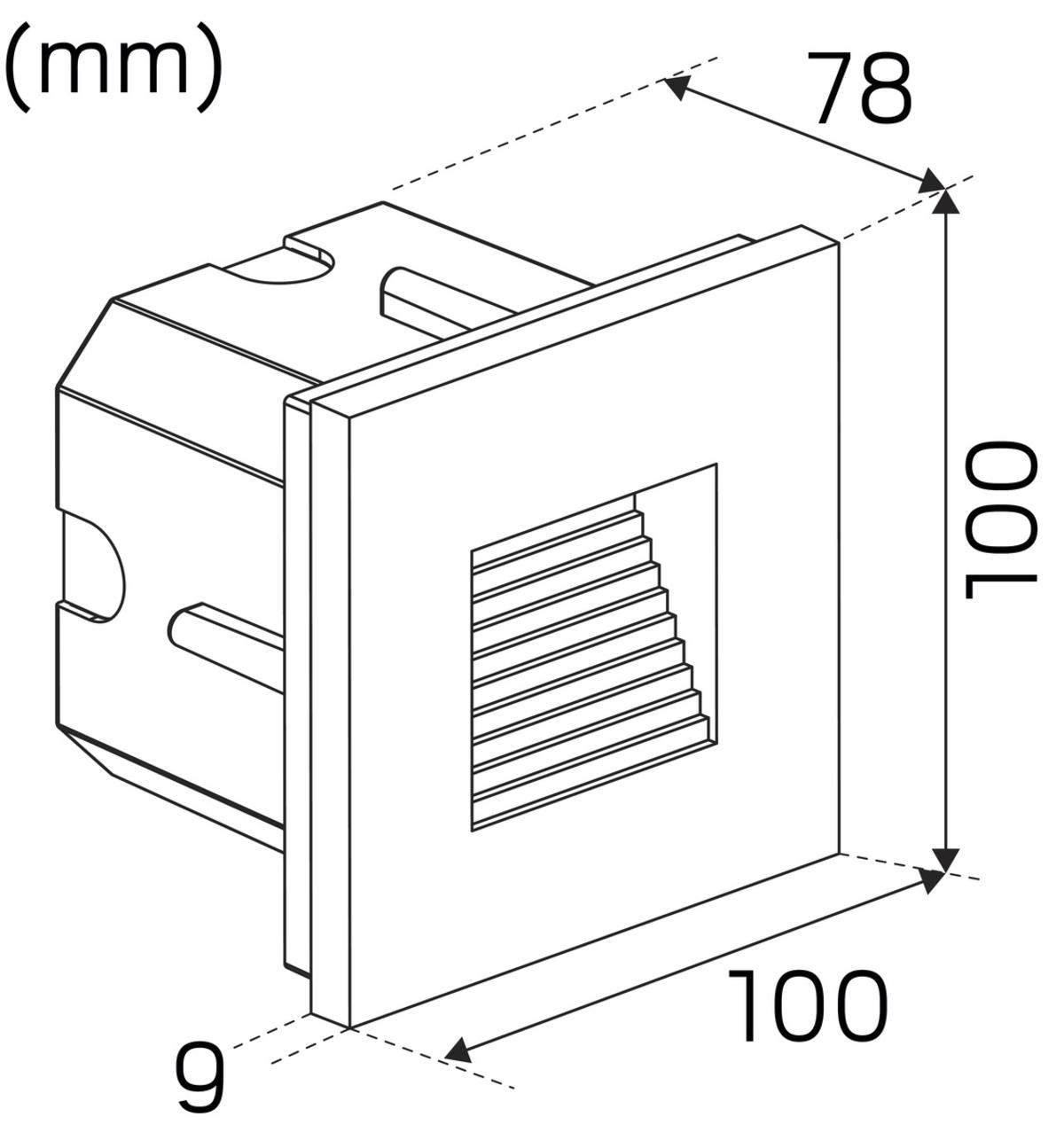

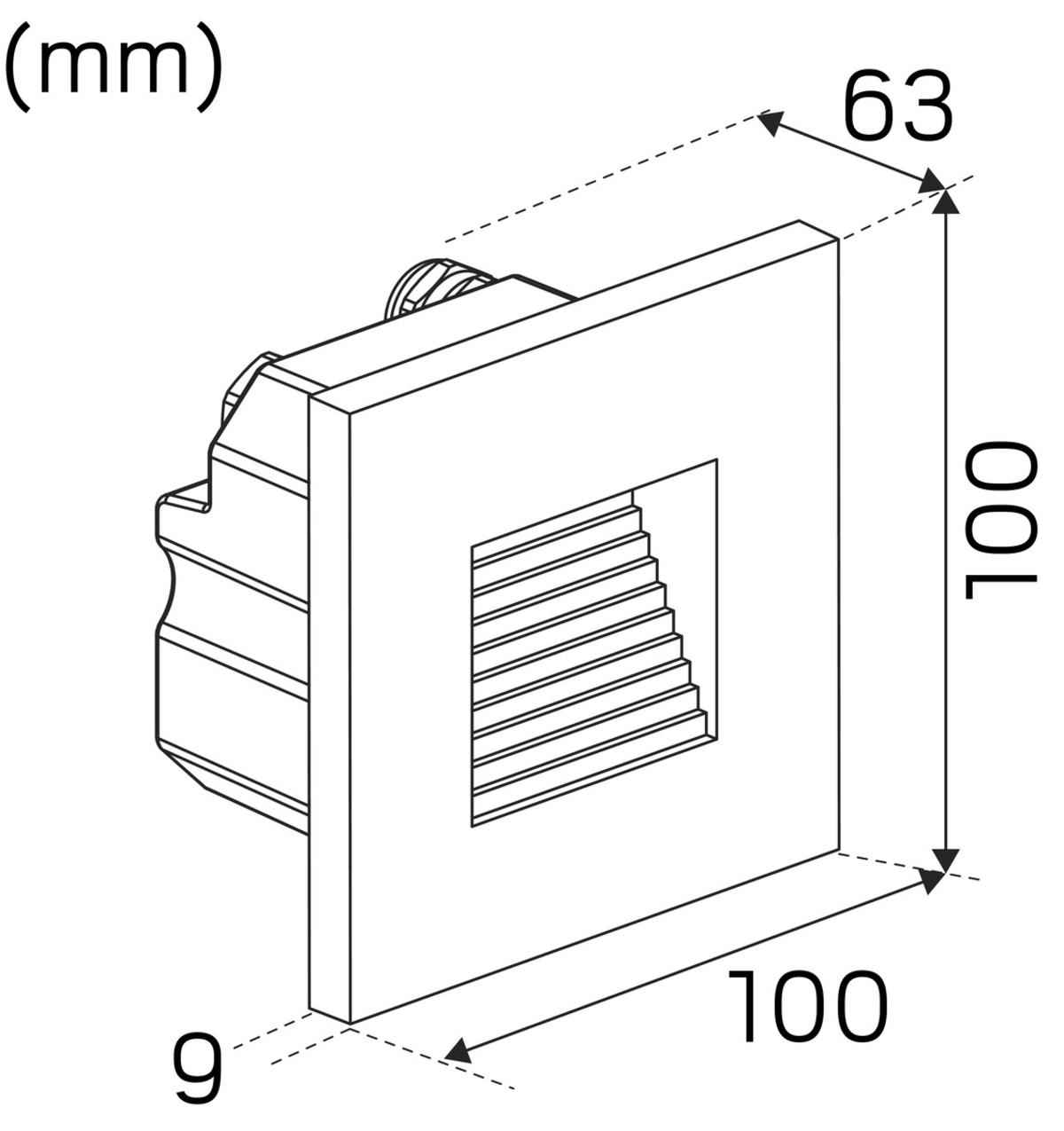

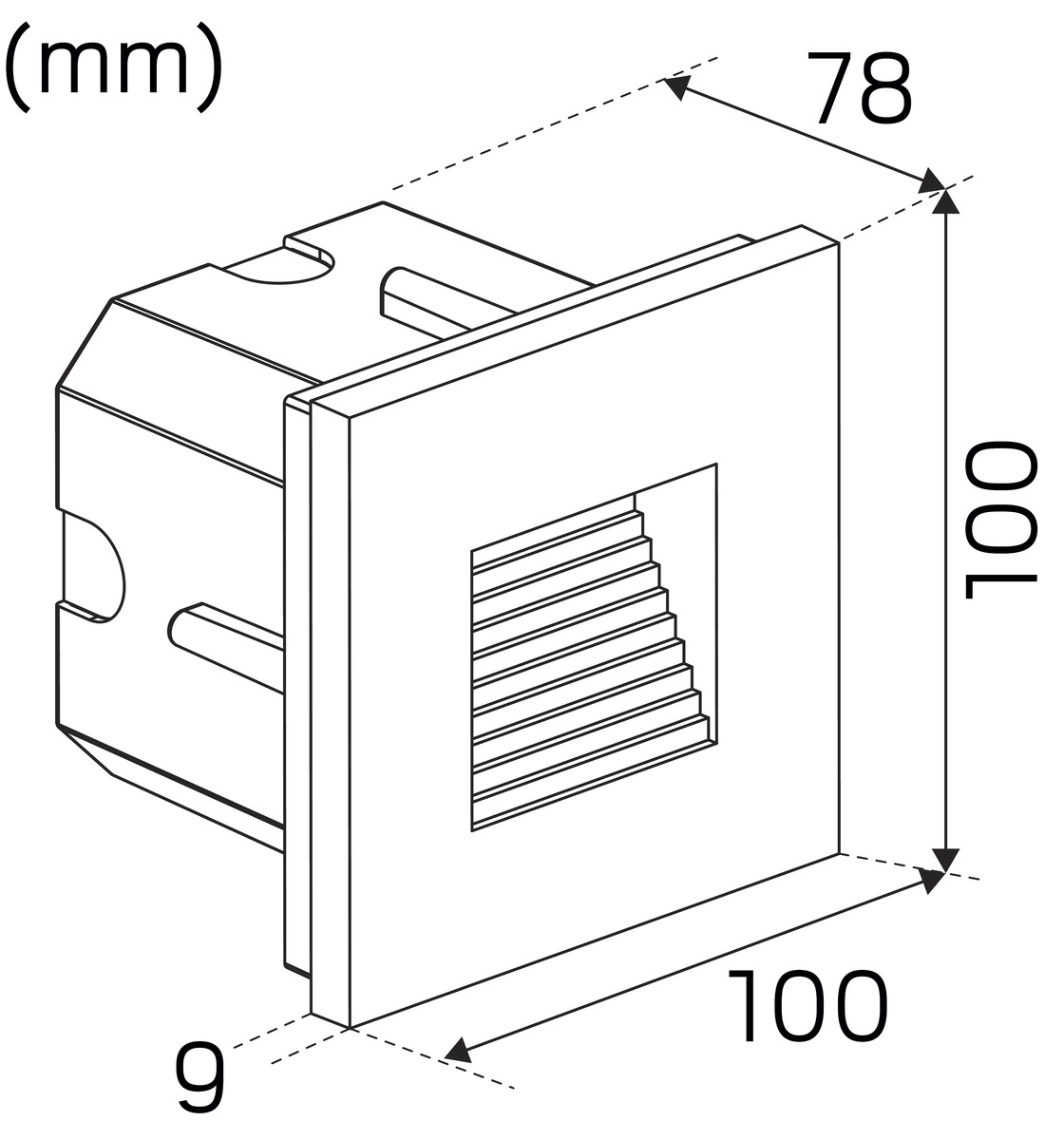

Width (mm) 100
Height (mm) 100
Depth (mm) 72
Weight (kg) 0,42
Min. Built-in (mm) 95x95x70
Height Recessed Part (mm) 63
Height Exterior Part (mm) 9
Built-in LxB (mm) 77x77
