Flexline

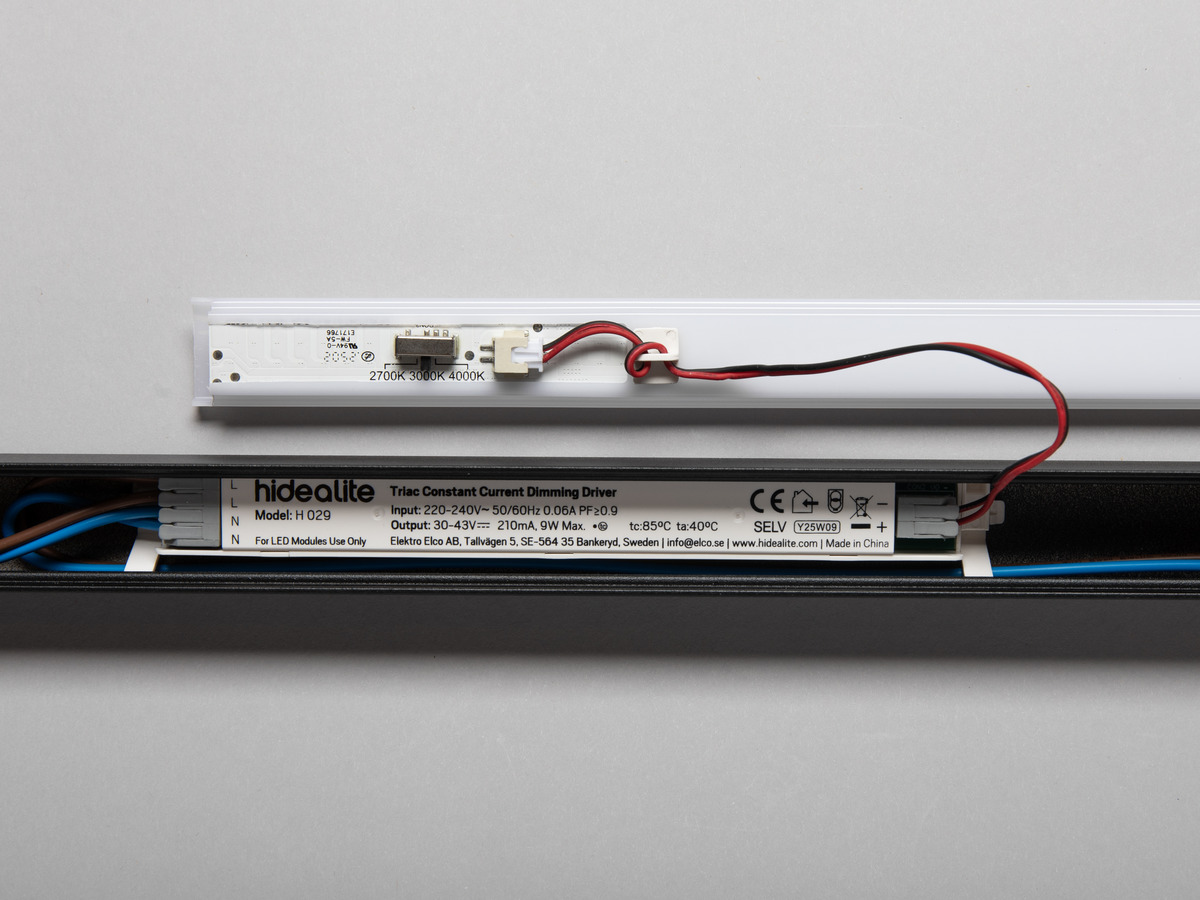

- Replaceable LED and driver
- Ready-made dimmable 230V profile solution

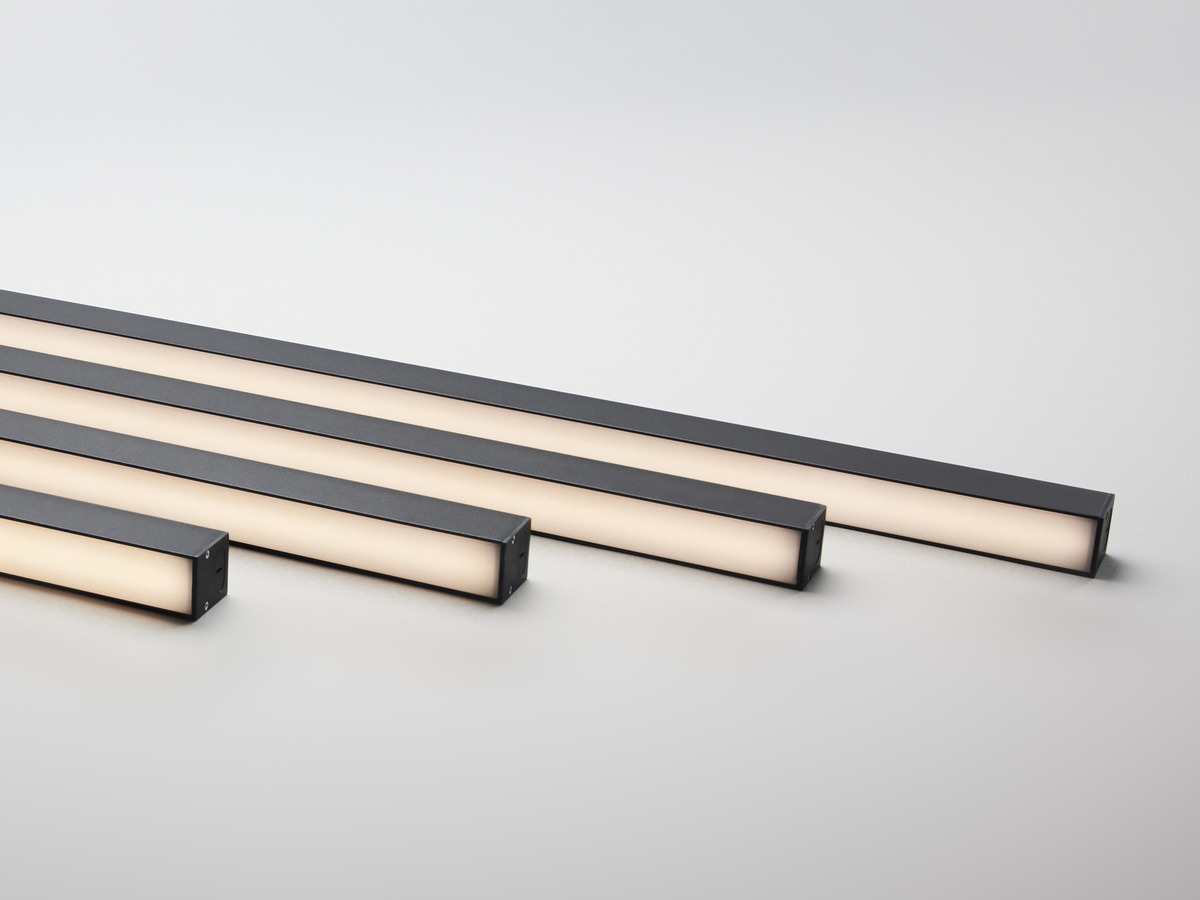

- Four lengths: 30 cm, 50 cm, 1 m, 2 m
- Surface-mounted or pendant installation

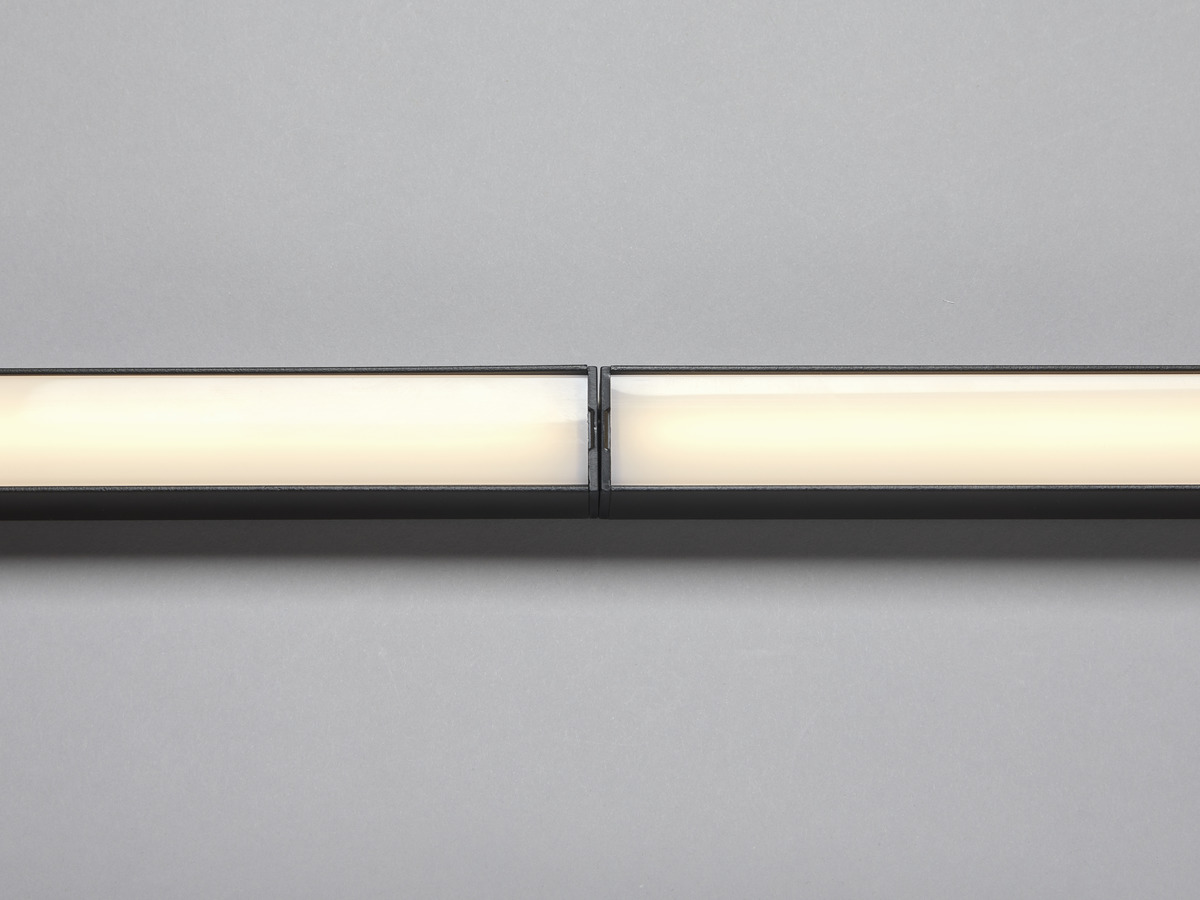

- Build a complete system with accessories like connectors, joints, suspension kits and brackets (ordered separately)
- Up to 97% recycled plastic
Flexline is a ready-made 230V profile solution with connection. Available in white or black enamelled aluminium. Wide range of accessories such as joints, suspension kits and connections (ordered separately). Available in lengths from 30 cm to 2 m. The fixture has pre-drilled holes and is supplied with double-sided adhesive tape to facilitate installation. Screws should always be used for assembly. Select colour temperature via DIP switch, 2700K, 3000K or 4000K Replaceable LED and driver. Dimmable via external dimmer and can be connected to a length of up to 10 metres. Perfect for a wide range of uses such as behind curtains, in fitting rooms, niches, integrated into shelving systems or base cabinets, and suspended over, for example, shop counters.
| Variants | GTIN | Item Name | Color | Luminaire Lumen (lm) |
|---|---|---|---|---|
|
7392971153247 | Flexline 300 Black | Black | 460 |
|
7392971153209 | Flexline 300 White | White | 545 |
|
7392971153216 | Flexline 500 White | White | 920 |
|
7392971153223 | Flexline 1000 White | White | 1715 |
|
7392971153230 | Flexline 2000 White | White | 3370 |
|
7392971153254 | Flexline 500 Black | Black | 815 |
|
7392971153261 | Flexline 1000 Black | Black | 1485 |
|
7392971153278 | Flexline 2000 Black | Black | 2930 |
Flexline 300 Black
-
GTIN 7392971153247Item Name Flexline 300 BlackWarranty 5 years
- Light Technical Data
-
Luminaire Lumen (lm) 460Light Source LEDLight Source Included YesReplaceability Replaceable light source by professional, Replaceable Control gear by professionalLED Colour WhiteColour Temperature (K) 2700, 3000, 4000Colour Rendering Index (Ra) >90Colour Consistency (SDCM) 3Luminous Intensity (cd) 160Beam Angle (°) 110Light sharing SymmetricLight Outlet DirectNumber of Lamps (pcs) 1Number of LED (pcs) 168Life Time L80 100 000h Ta 25°CNominel Life Time (h) 100000Lumen maintenance 50 000h L91Lumen maintenance 75 000h L86Lumen maintenance 100 000h L82LLMF @ 50 000h 0,91LLMF @ 100 000h 0,82Life Time Driver 50 000h/5%Flicker (PstLM) 0,025Stroboscopic effect (SVM) 0,024
- Technical data
-
Voltage (type) ACVoltage Interval (V) 220...240Voltage Nominal (V) 230Line Frequency (Hz) 50Power LED (W) 4,7Power Luminaire (W) 6System Power (W) 6Efficiency Luminaire (lm/W) 77Efficiency System (lm/W) 77Containing light source energy efficiency class (EU) 2019/2015 E
- Operation and Connection
-
Dimmable YesType of Dimming Trailing EdgeDriver Included Yes - replaceableDriver Model Constant CurrentDriver Manufacturer Hide-a-liteConnection (type) Plug-inConnection (mm2) 2x0,2-1,5Through Wiring NoStrain Relief YesPower Factor ÊŽ 0,9Efficiency (%) 78Power loss (W) 1,32Leakage current (mA) (at 230 V, 50 Hz, full load) 0,13Constant Current (mA) 125Operating TemperatureMax. Tc (°C) 90Dimming secondary side AMMemory Function Power Failure NoProtection Against Short Circuit, OverloadInrush current (max/time) 2A 50µsMains surge protection DM (kV) 0,5Fuse B10 (pcs) 200Fuse B16 (pcs) 300Fuse C10 (pcs) 200Fuse C16 (pcs) 300
- Color and material
-
Material AluminiumColor BlackEnvironmental Assessment EPDAvailable in special color No
- Measurement and installation
-

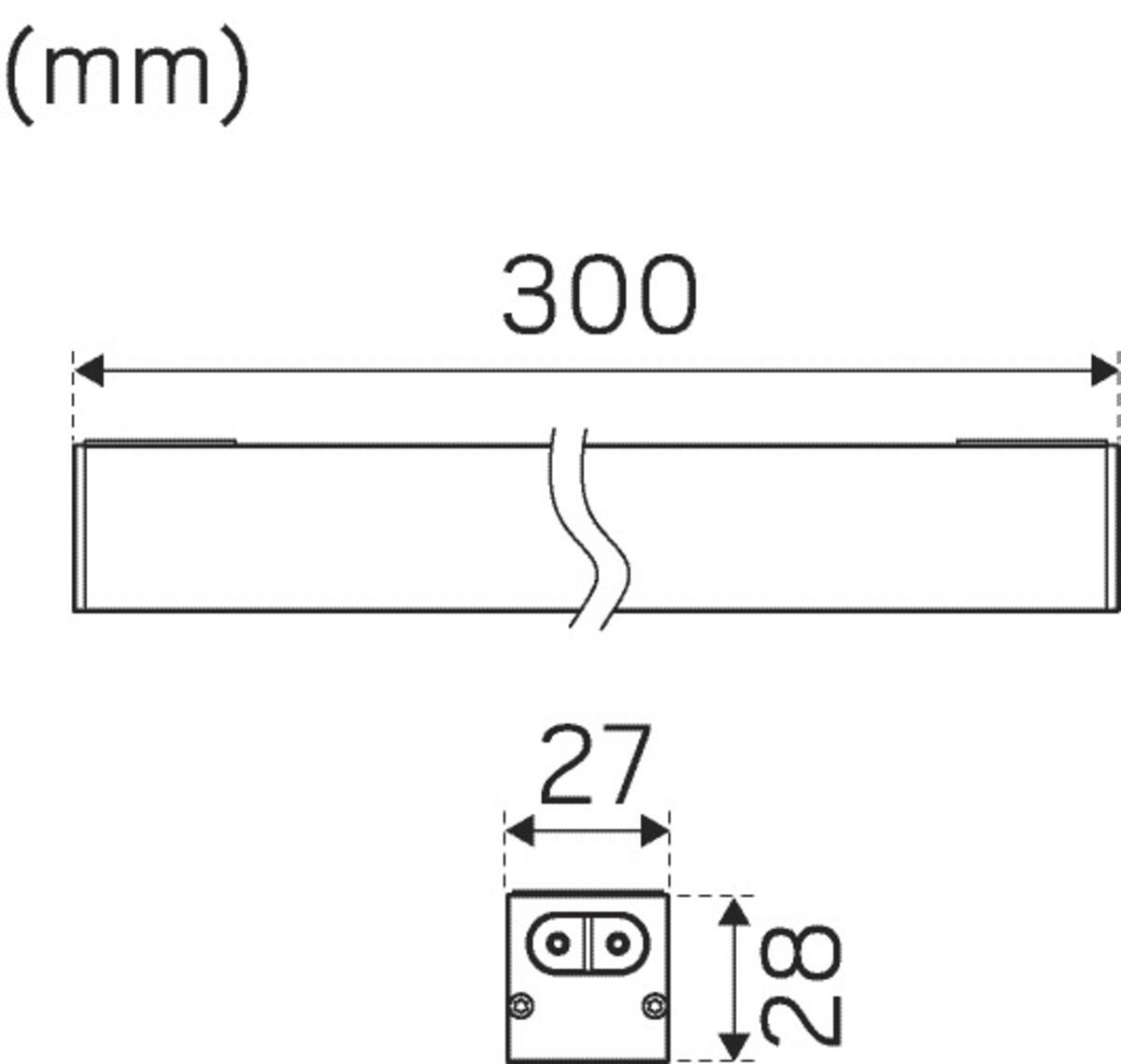

Operating EnvironmentIP Degree of Protection 20Protection Class IIInstallation Surface mountedMounting Installation Screw Mounting, Self Adhesive TapeFire Safety Marks MM-markApproval Marks CE, a Hide-a-lite ChoiceFilament Test IEC 695-2-1(°C) 650Length (mm) 300Width (mm) 27Height (mm) 28Weight (kg) 0,19
