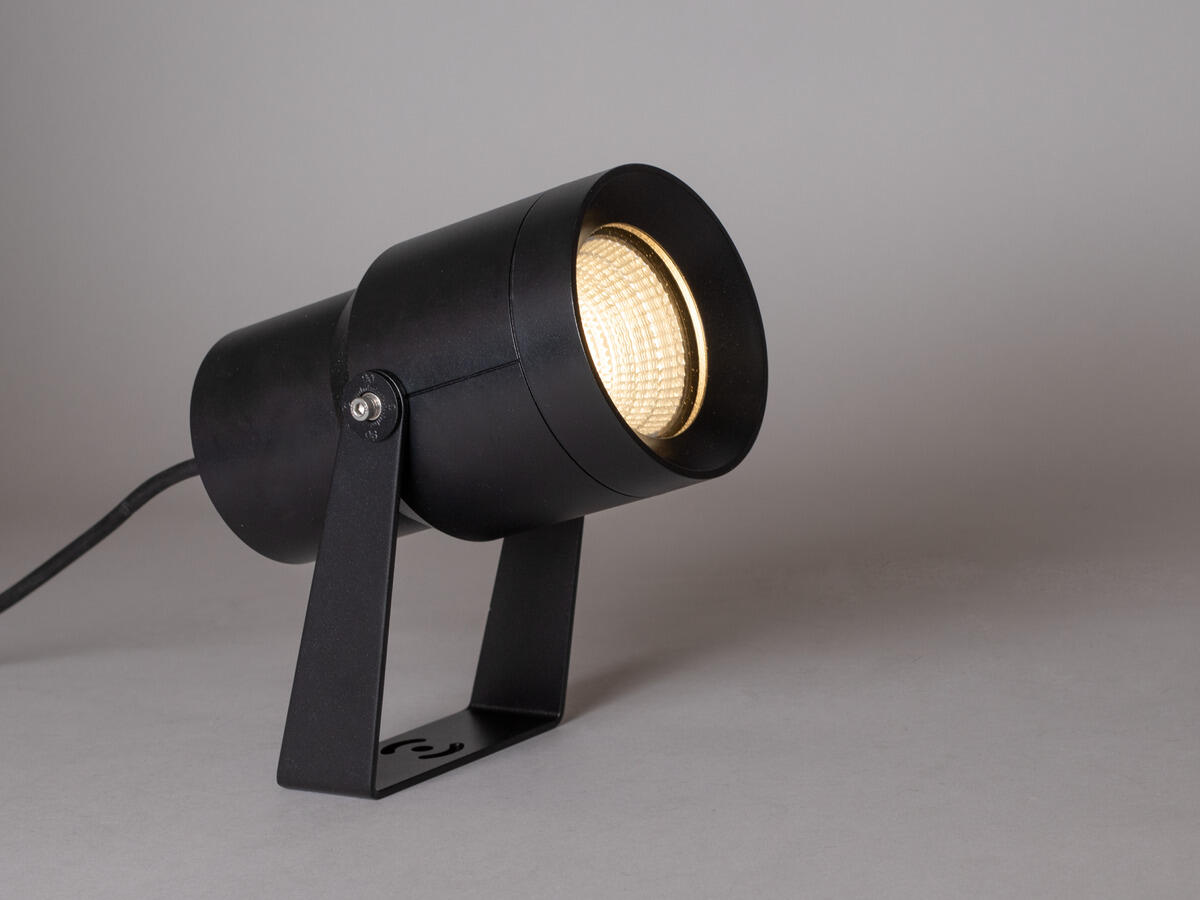

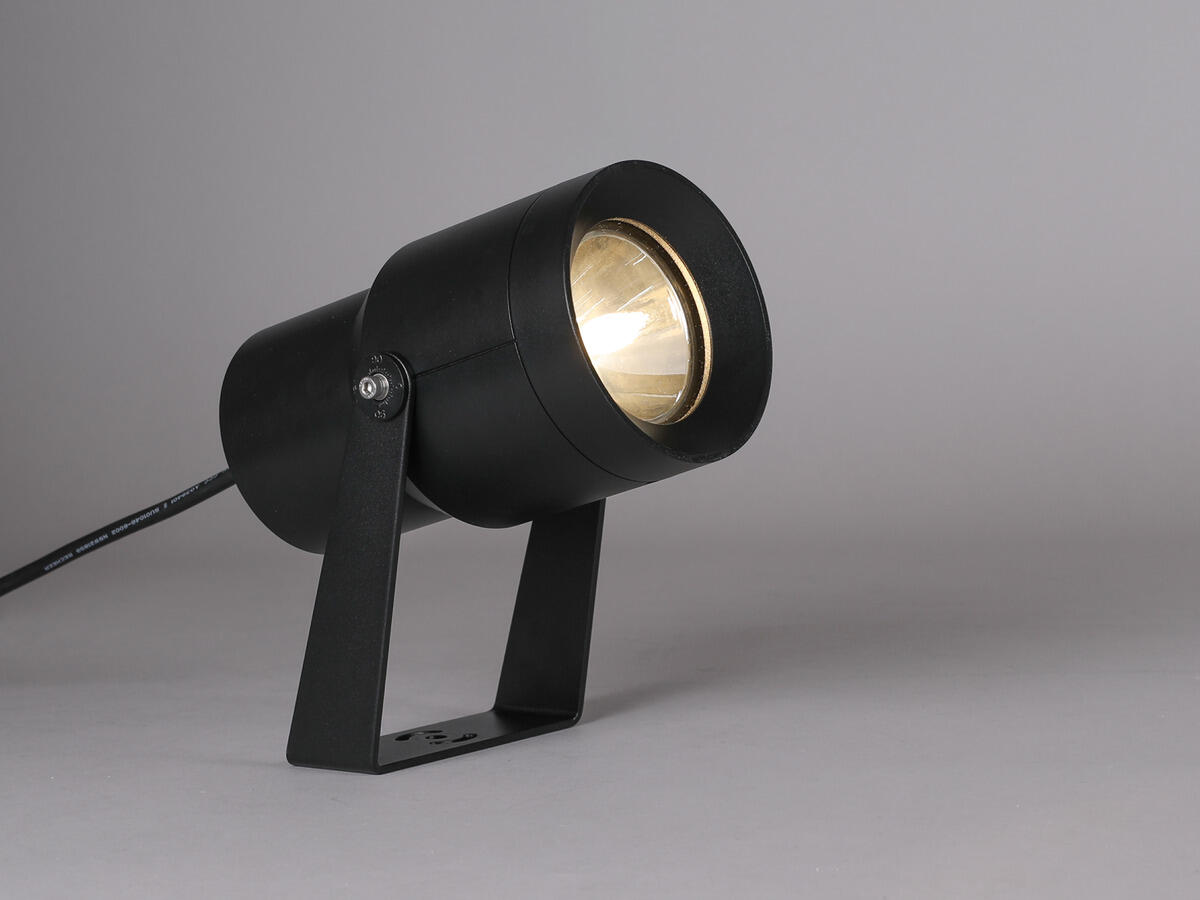

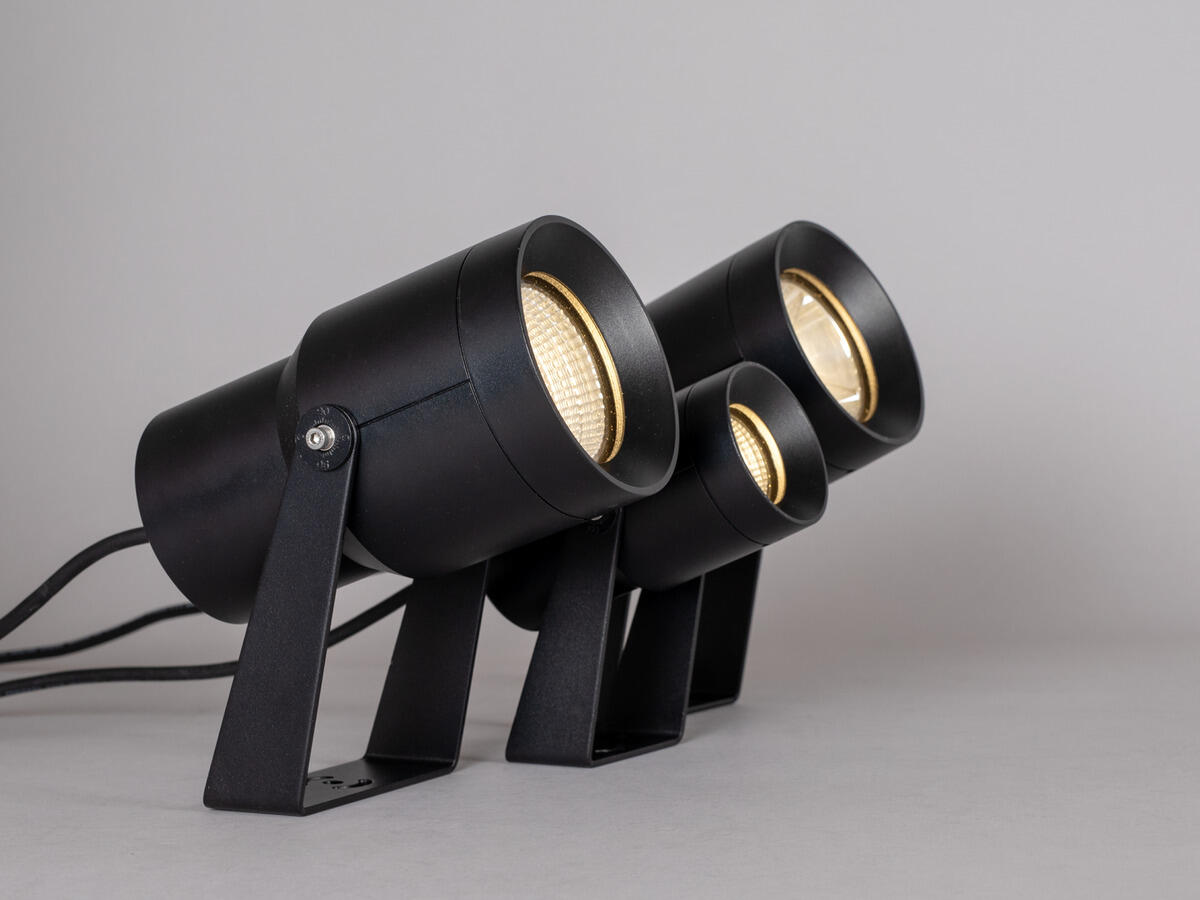

Spot It L Spot It L Black 15°

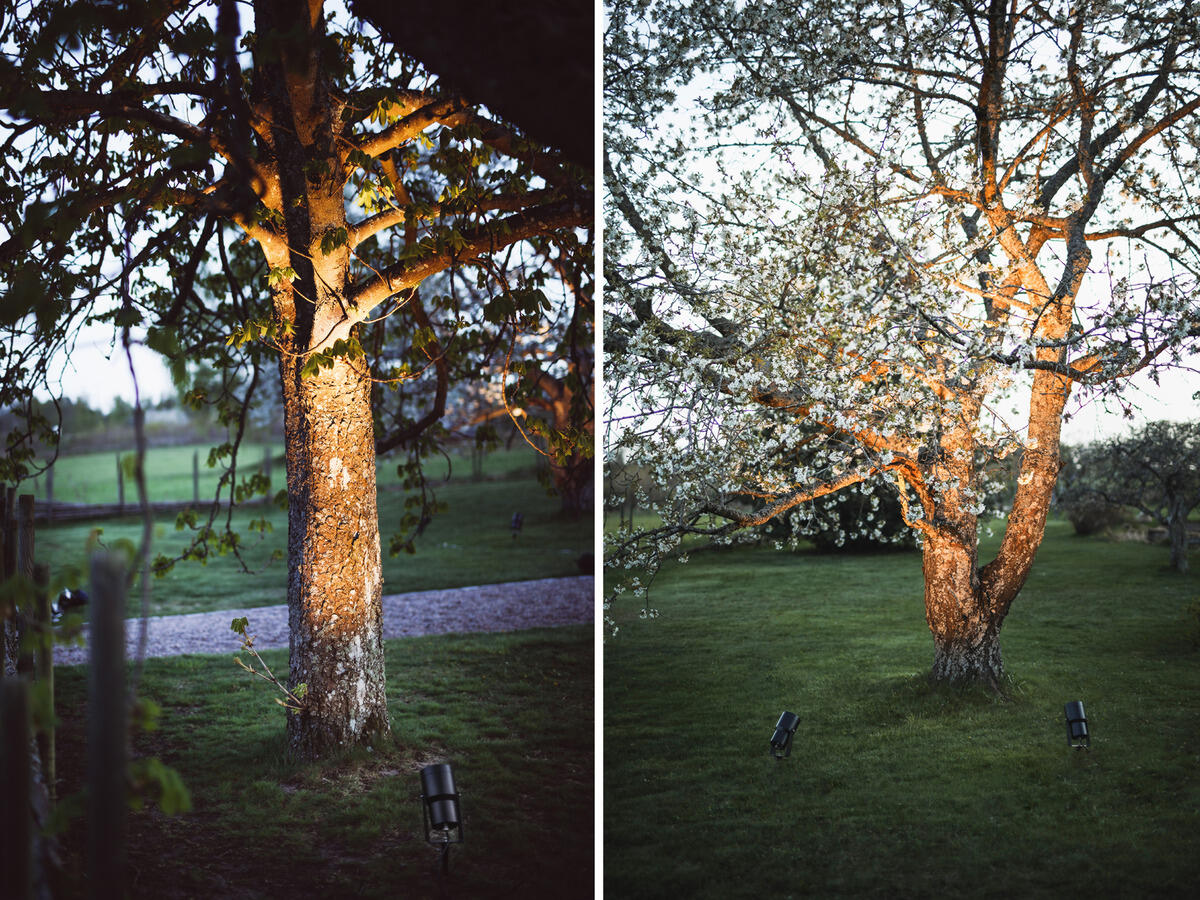

Compact phase dimmable floodlight with modern LED technology and a lean, stylish design. Adjust the amount of light as needed and easily let the amount of light grow in step with your garden. Illuminate trees, bushes, patios and facades, creating attractive effects. In black, which gives a modern impression. IP67 finish with luminaire housing in corrosion-treated cast aluminium with durable powder coating to cope with our Nordic climate. Selectable colour temperature via DIP-Switch ColourTemp Installed with bracket or accompanying ground spike. Comes complete with integrated dimmable driver and 2m rubber cable. Dimmable with most common dimmers on the market.

Variants	GTIN	Item Name	Beam Angle (°)
	7392971143477	Spot It L Black 15°	15
	7392971143484	Spot It L Black 38°	38

Description: GTIN 7392971143477

Item Name Spot It L Black 15°

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 2100

Light Source LED

Light Source Included Yes

Replaceability Non-replaceable LED and control gear

LED Colour Warm White

Colour Temperature (K) 3000, 4000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 10200

Beam Angle (°) 15

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L80 50 000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L89

Lumen maintenance 75 000h L84

Lumen maintenance 100 000h L78

LLMF @ 50 000h 0,89

LLMF @ 100 000h 0,78

Life Time Driver 50 000h/5%

Flicker (PstLM) 0,024

Stroboscopic effect (SVM) 1,1
Technical data: Adjustable Yes

Tiltable (°) 180

Rotatable (°) 360

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Voltage Forward (Vf) 2,86

Power LED (W) 21,3

Power Luminaire (W) 25

System Power (W) 25

Efficiency Luminaire (lm/W) 84

Efficiency System (lm/W) 84

Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Driver Manufacturer Hide-a-lite

Connection (type) Cable

Length Connection (cm) 200

Connection (mm2) 3x1,0

Power Factor ʎ 0,9

Power loss (W) 2,7

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,13

THD (%) 18

Operating Temperature -20…+40

Max. Tc (°C) 85

Dimming secondary side AM

Inrush current (max/time) 3A 200µs

Mains surge protection DM (kV) 2

Mains surge protection CM (kV) 2

Fuse B10 (pcs) 50

Fuse B16 (pcs) 70

Fuse C10 (pcs) 50

Fuse C16 (pcs) 70
Color and material: Material Aluminium

Color Black

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Outdoor

IP Degree of Protection 67

Protection Class I

Installation Ground, Surface mounted

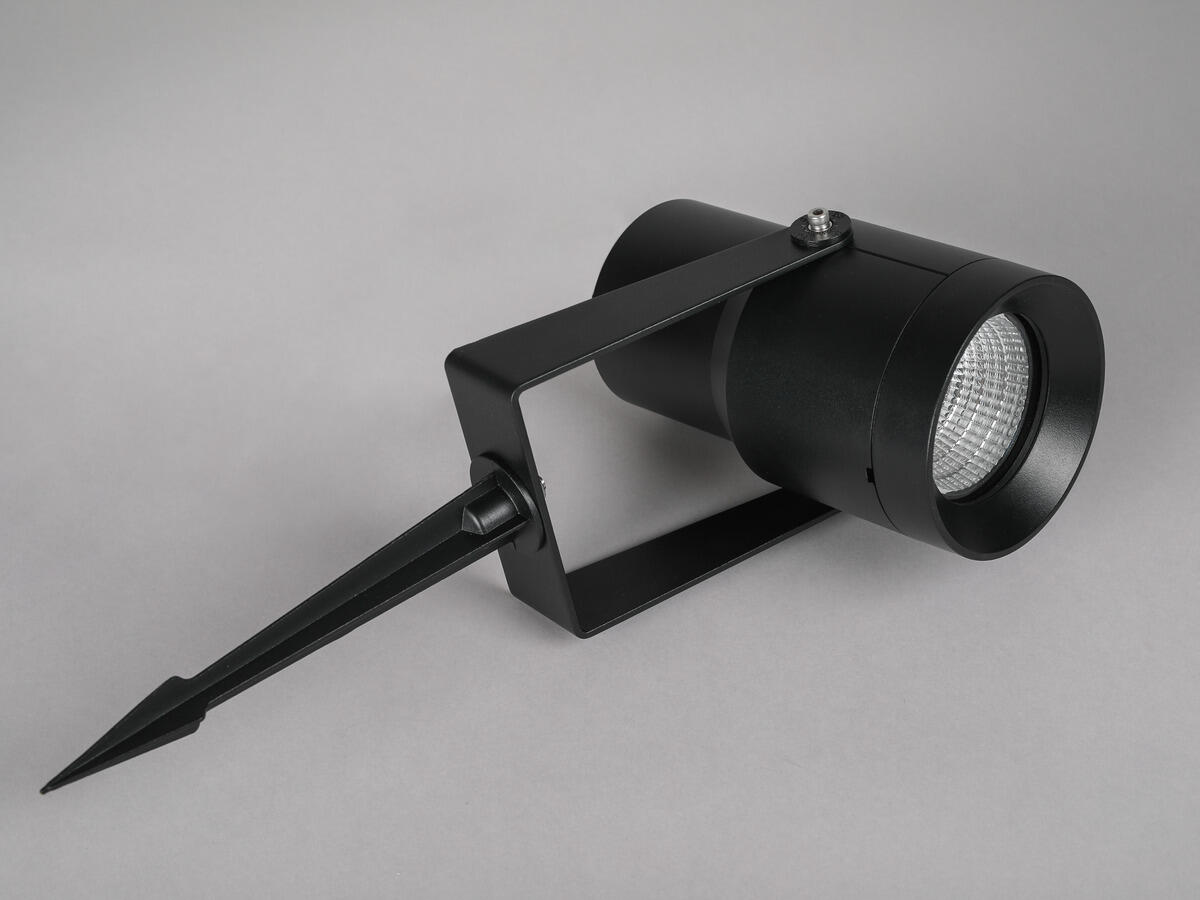

Mounting Installation Mounting Leg, Ground Spike

Approval Marks CE

Impact Strength IK10

Filament Test IEC 695-2-1(°C) 650

Length (mm) 195

Diameter (mm) 115

Weight (kg) 2,4

Spot It M

Spot It Multi 26

Compact projector spot for public environments. Perfect for illuminating parks, high building facades, signs and industrial properties. Narrow beam angle, 16°. Luminaire housing of cast aluminium, corrosion-treated and powder coated in a mat silver-grey colour. Installed with bracket or together with a ground spike or post bracket. Can also be supplemented with anti-glare shield. Comes complete with integrated driver, 2m rubber cable and ground spike.

Spot It L

Spot It L Black 15°

Accessories

Snoot Spot It L Black

Post Bracket Spot It Black

Extension tube Spot It Black

Ground spike Spot It Black
