Spot Line 500 Spot Line 500 3000K

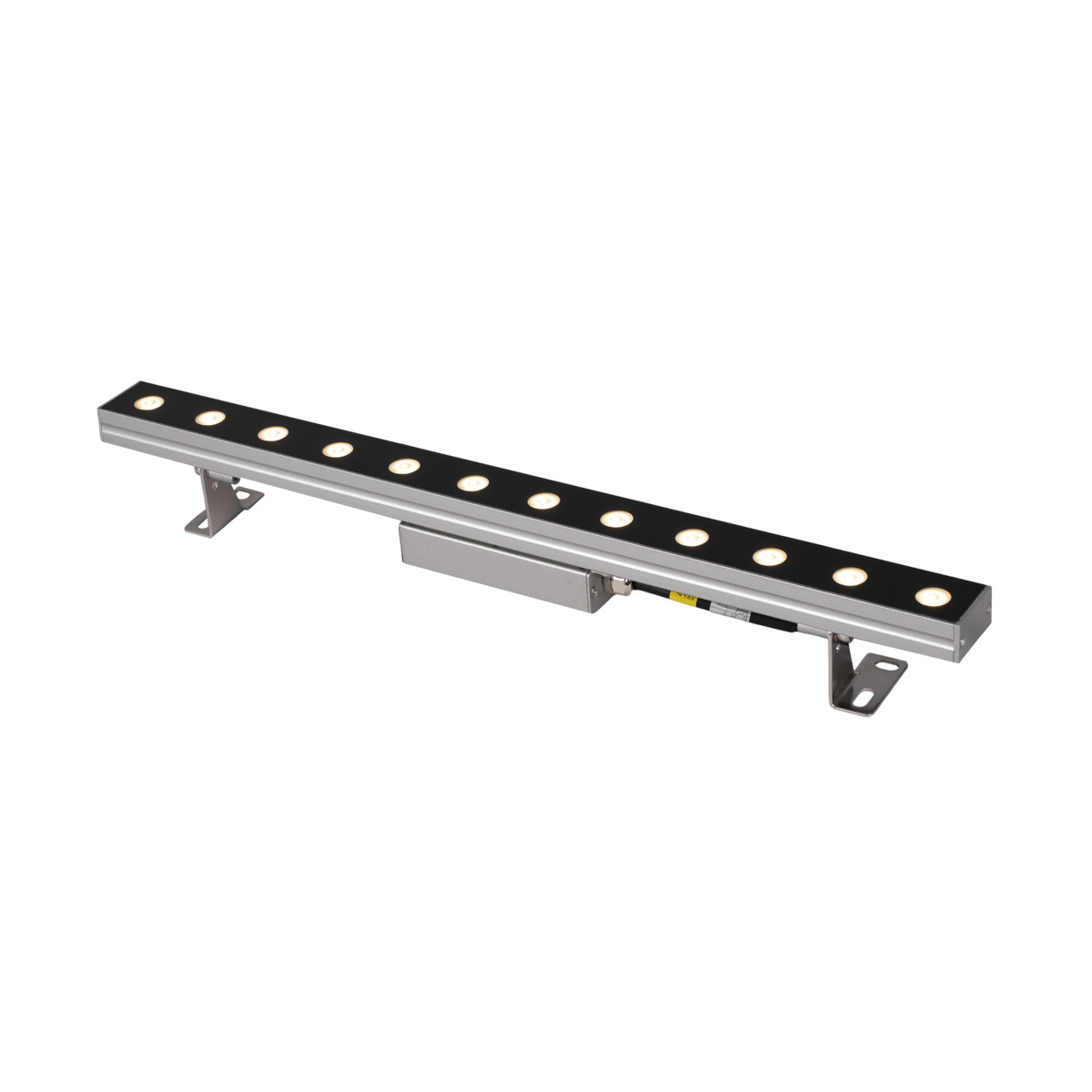

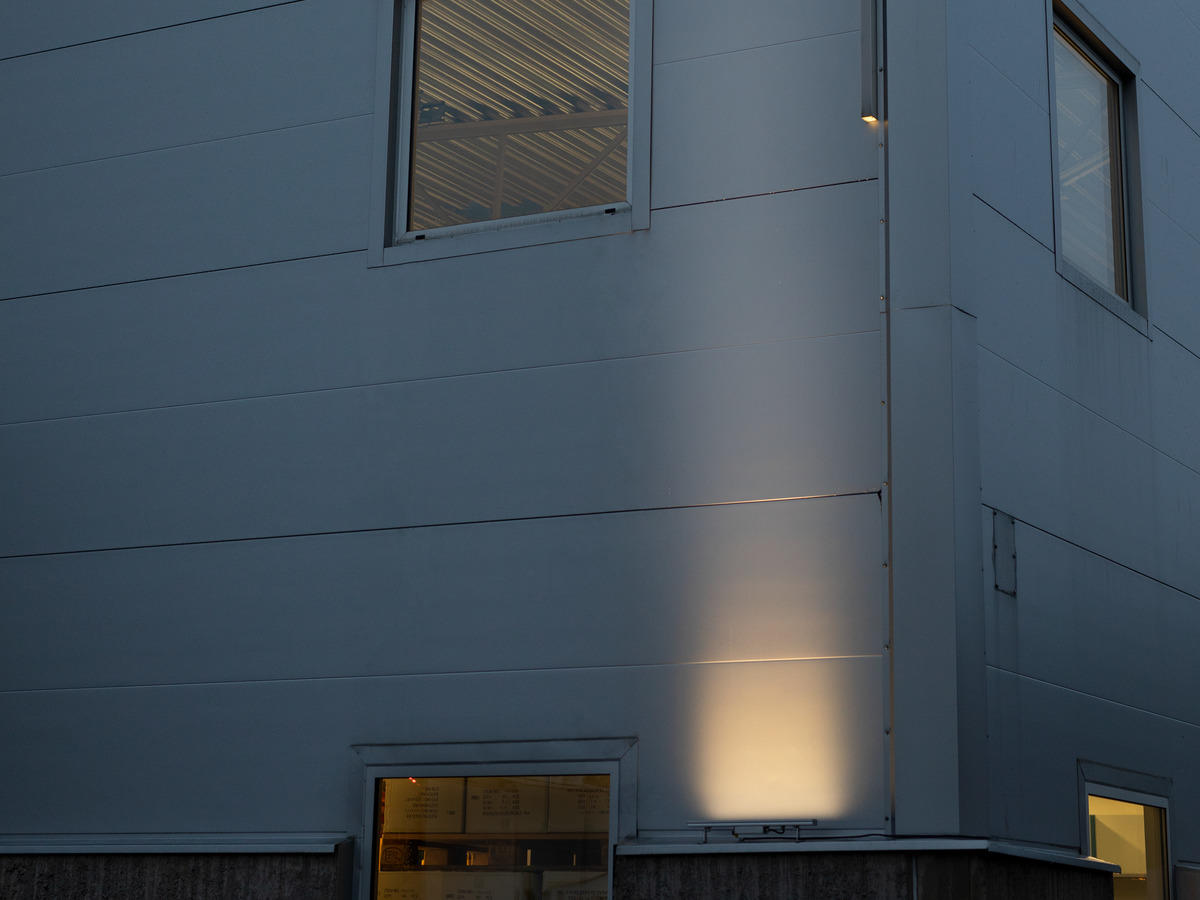

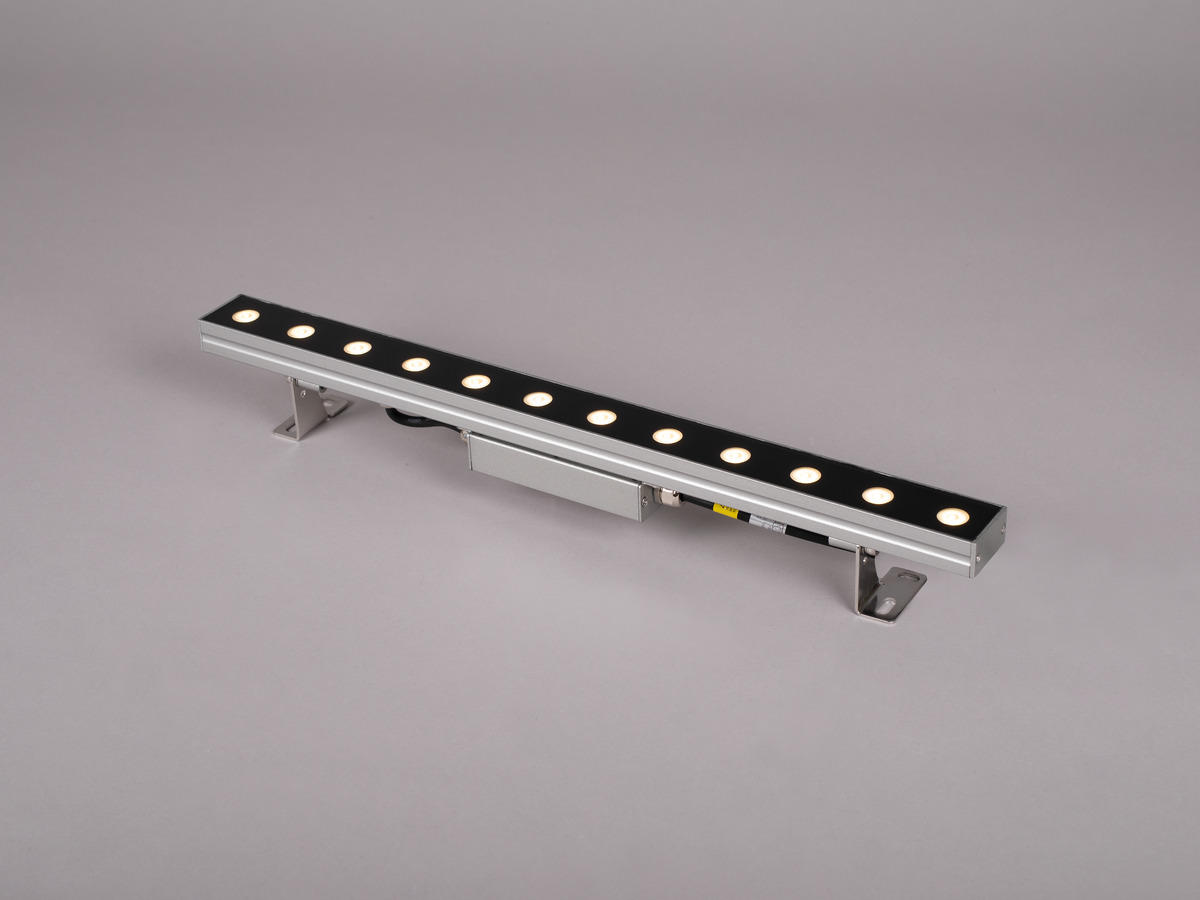

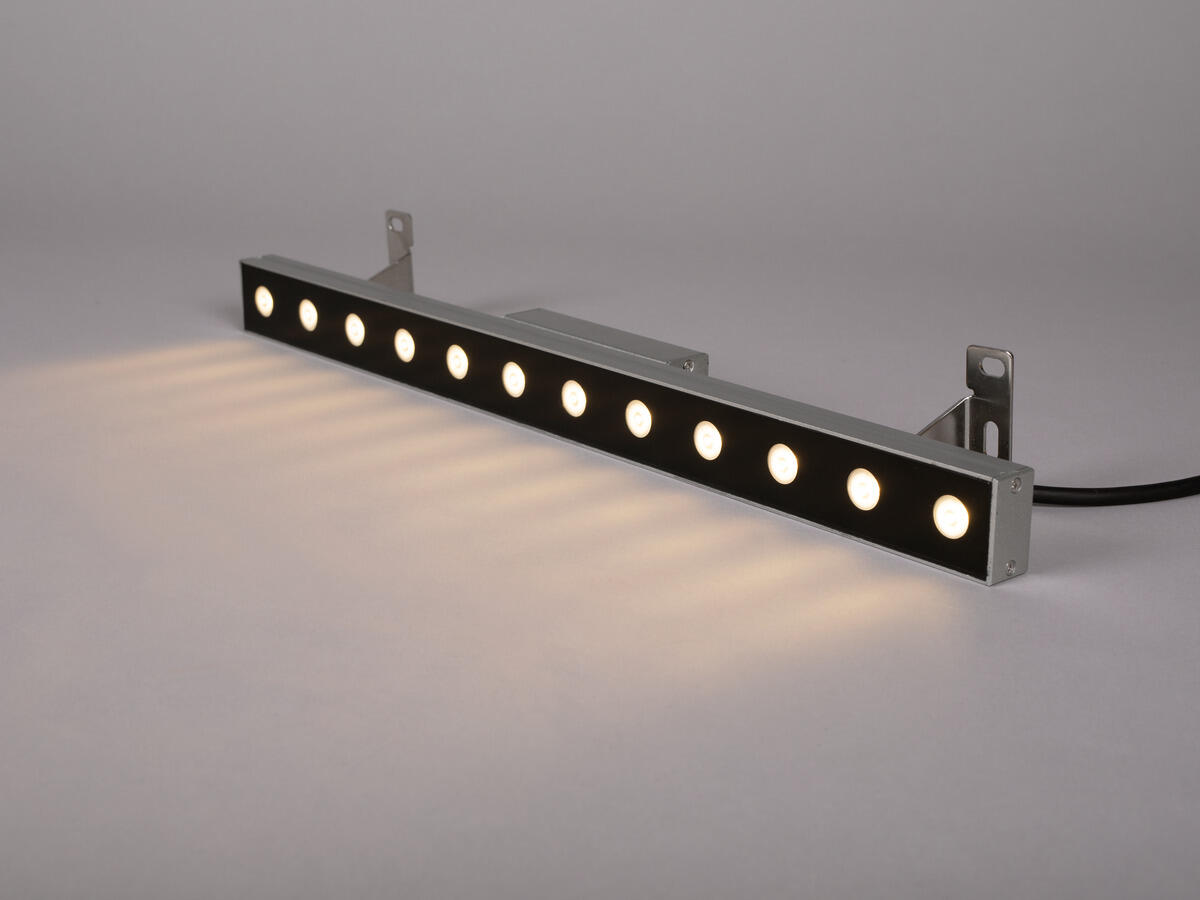

Narrow beam wall-washer for public environments. with a lumen output that reaches high heights – up to 25m. Perfect for all illuminating high facades, signs and industrial properties; create attractive effects and light environments where a wall washing light is desired. IP65 design with anodised and powder-coated housing for rough outdoor climate, comes in matt silver grey. This luminaire has a fixing bracket that can be angled 170°. Comes complete with integrated driver for direct 230V connection and a 2m rubber cable.

Variants	GTIN	Item Name	Colour Temperature (K)	Luminaire Lumen (lm)
	7392971141626	Spot Line 500 3000K	3000	1120
	7392971141633	Spot Line 500 4000K	4000	1210

Description: GTIN 7392971141626

Item Name Spot Line 500 3000K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 1120

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Non-replaceable Control gear

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

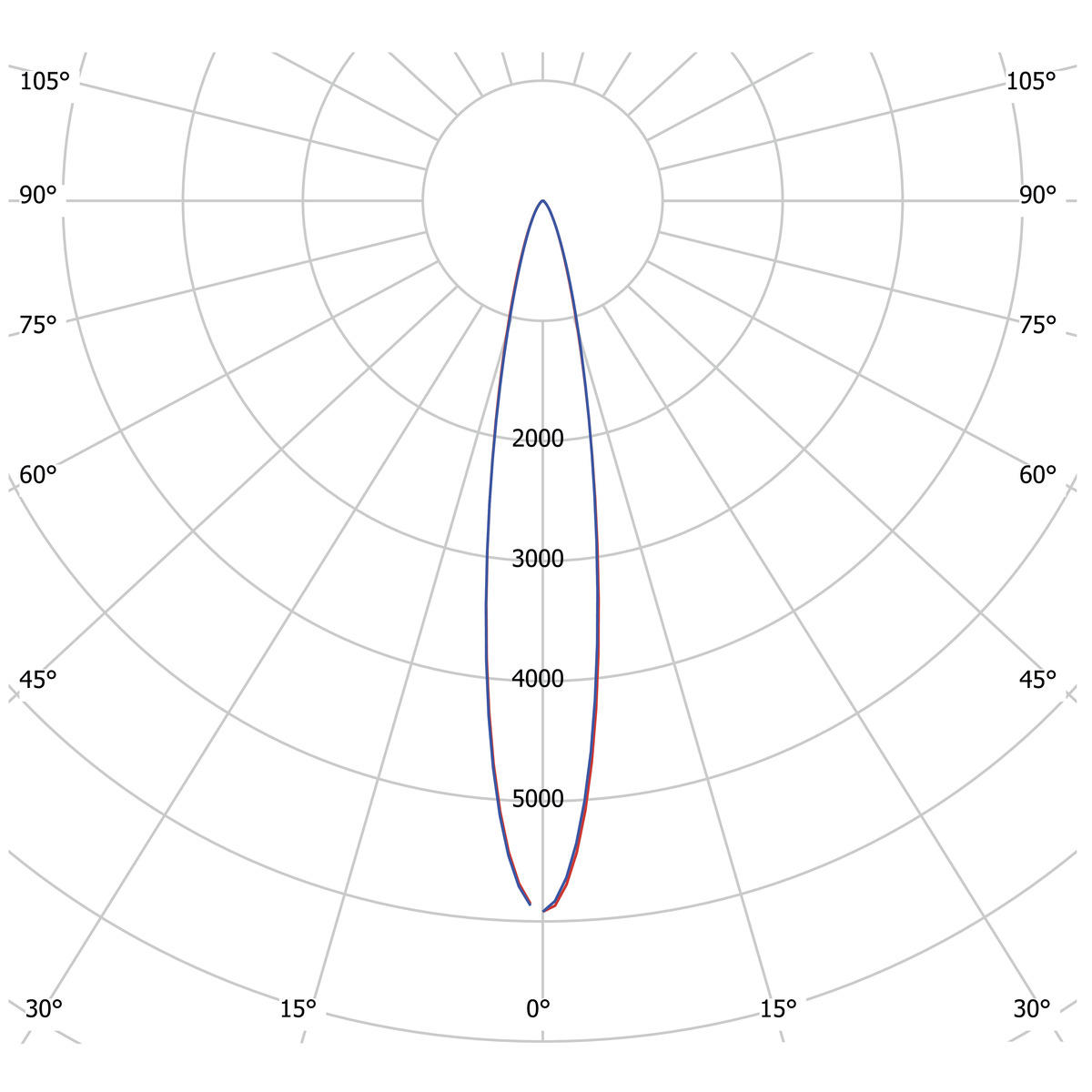

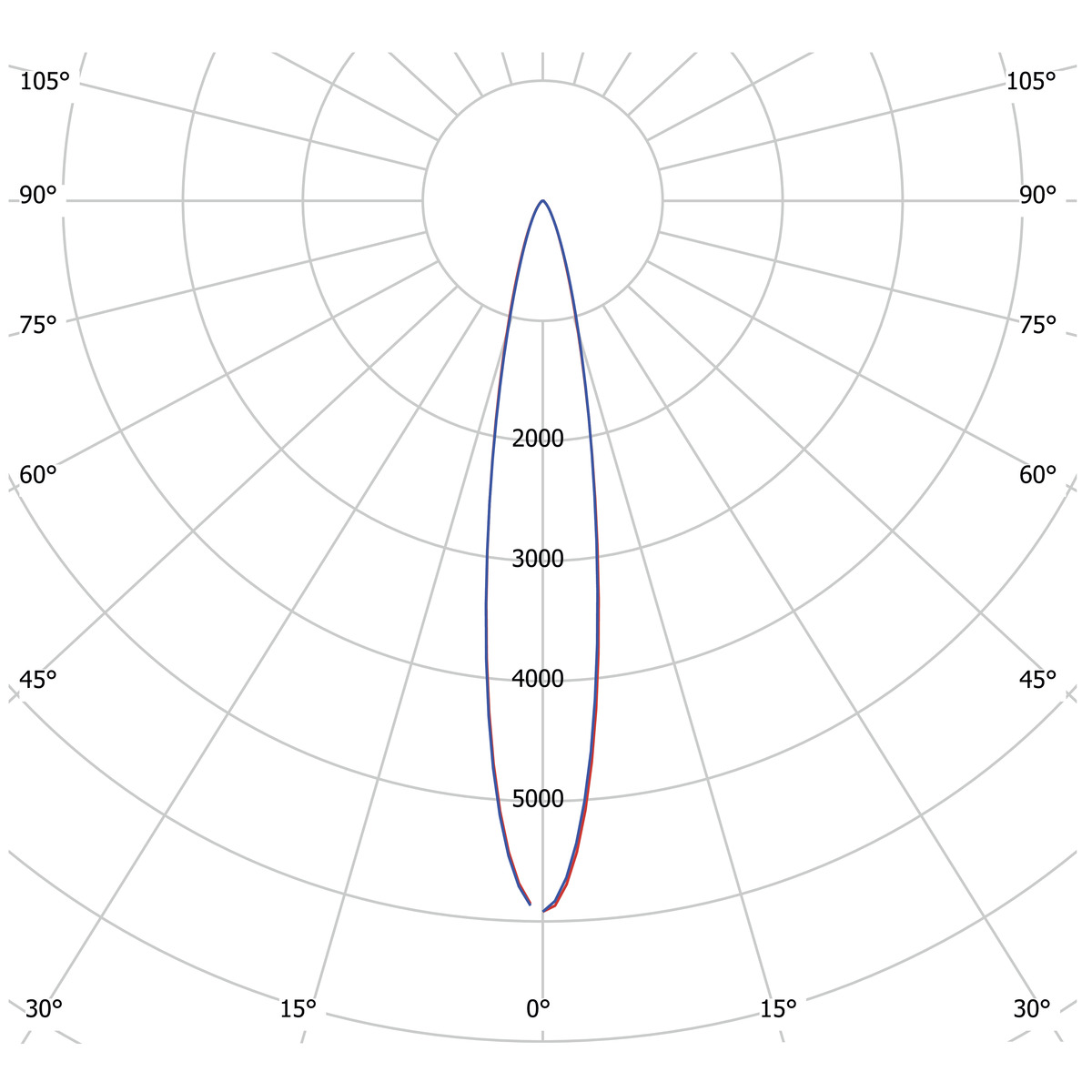

Luminous Intensity (cd) 6000

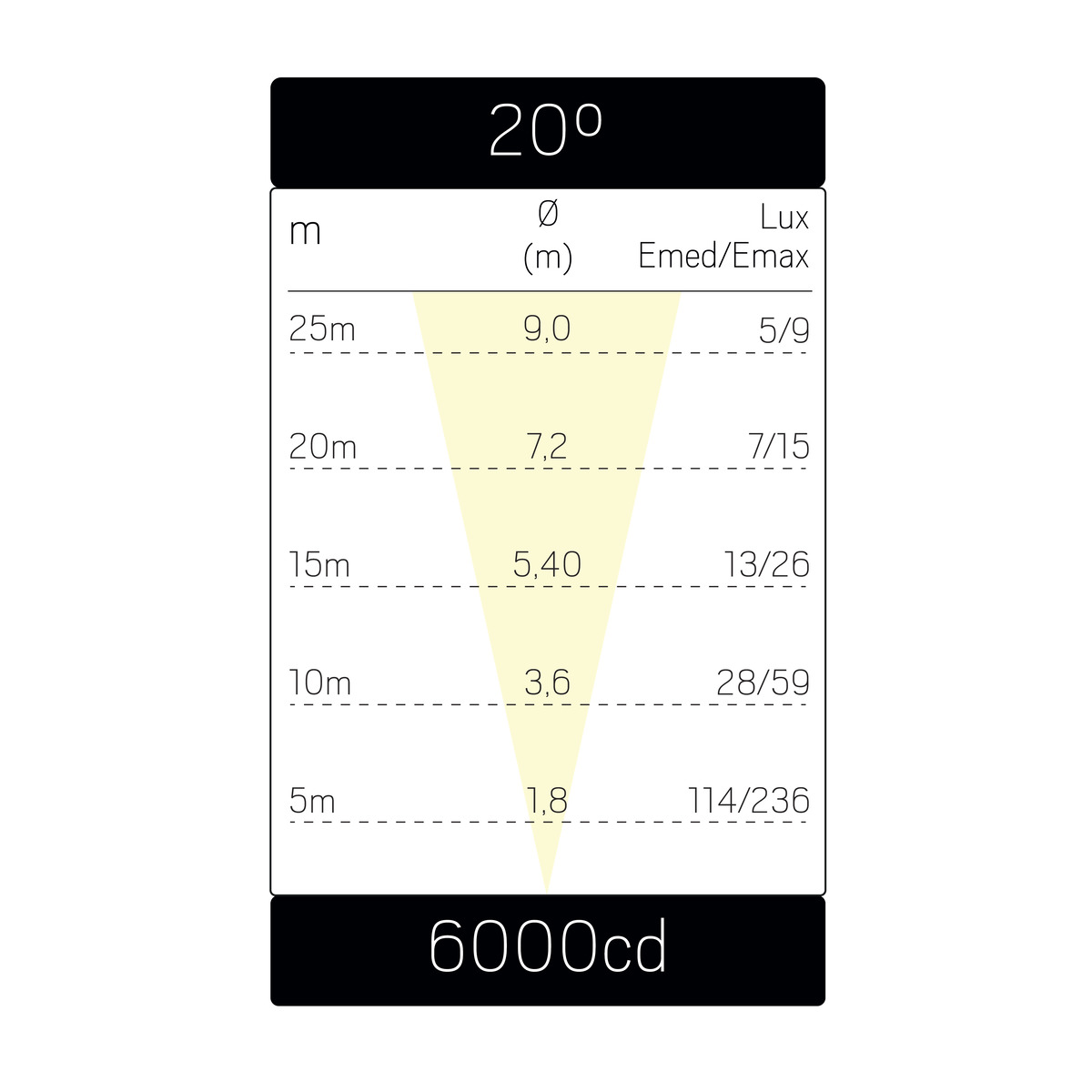

Beam Angle (°) 20

Light sharing Symmetric

Light Outlet Direct, Narrow Beam

Number of Lamps (pcs) 12

Number of LED (pcs) 12

Life Time L70 50 000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L77

LLMF @ 50 000h 0,77

Life Time Driver 50 000h/10%
Technical data: Adjustable Yes

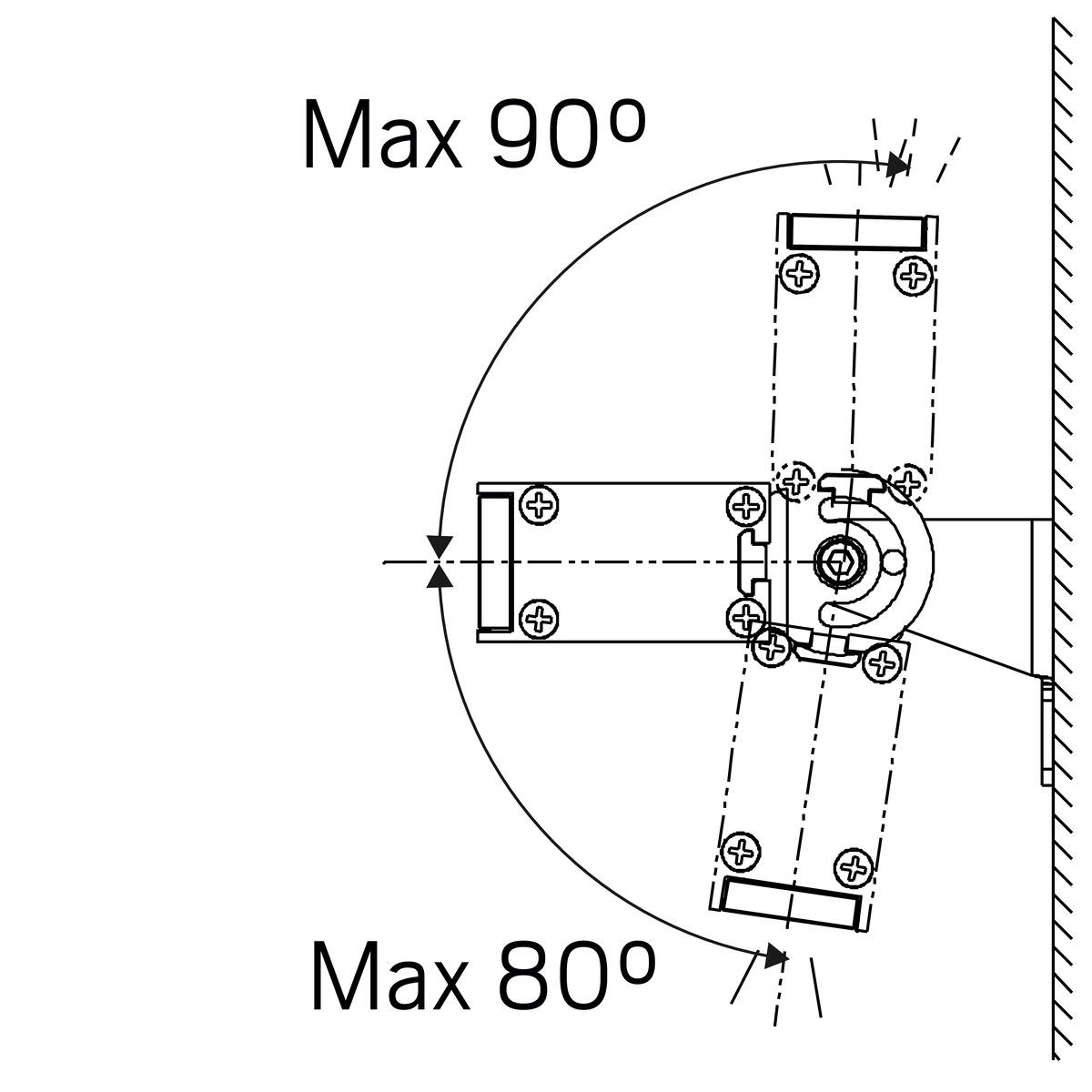

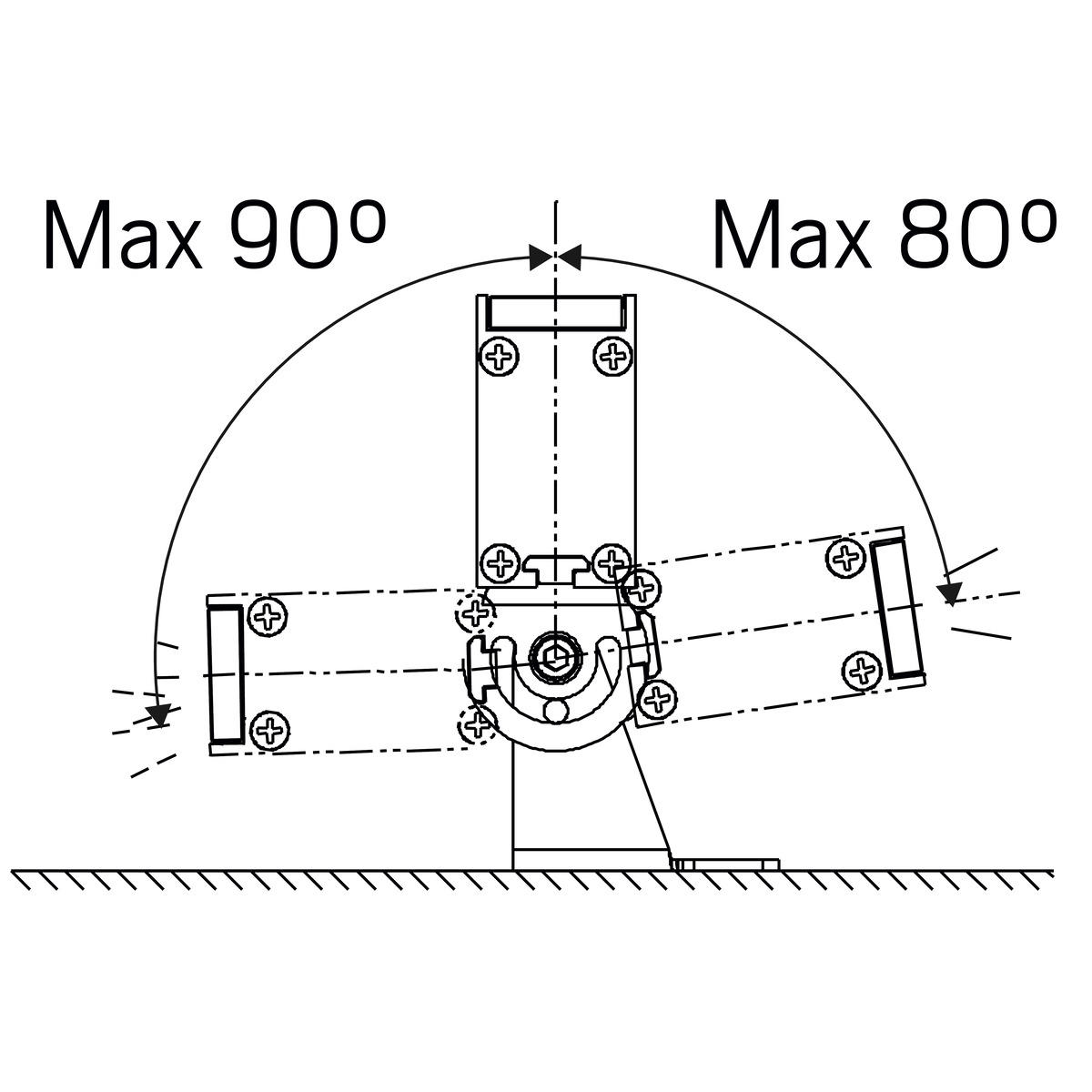

Tiltable (°) 170

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 10,8

Power Luminaire (W) 12

System Power (W) 12

Efficiency Luminaire (lm/W) 93

Efficiency System (lm/W) 93
Operation and Connection: Dimmable No

Type of Dimming OnOff

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Connection (type) Cable, Open Cable End

Length Connection (cm) 200

Connection (mm2) 3x0,75

Through Wiring No

Strain Relief Yes

Power Factor ʎ 0,9

Power loss (W) 1,2

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,5

Constant Current (mA) 300

Operating Temperature -20…+40

Max. Tc (°C) 85

Inrush current (max/time) 2A 50µs

Mains surge protection DM (kV) 1

Mains surge protection CM (kV) 2

Fuse B10 (pcs) 86

Fuse B16 (pcs) 138

Fuse C10 (pcs) 86

Fuse C16 (pcs) 138
Color and material: Material Aluminium

Color Silver
Measurement and installation: Operating Environment Indoor / wet locations, Outdoor

IP Degree of Protection 65

Protection Class I

Installation Surface mounted

Mounting Installation Screw Mounting

Approval Marks CE

Impact Strength IK08

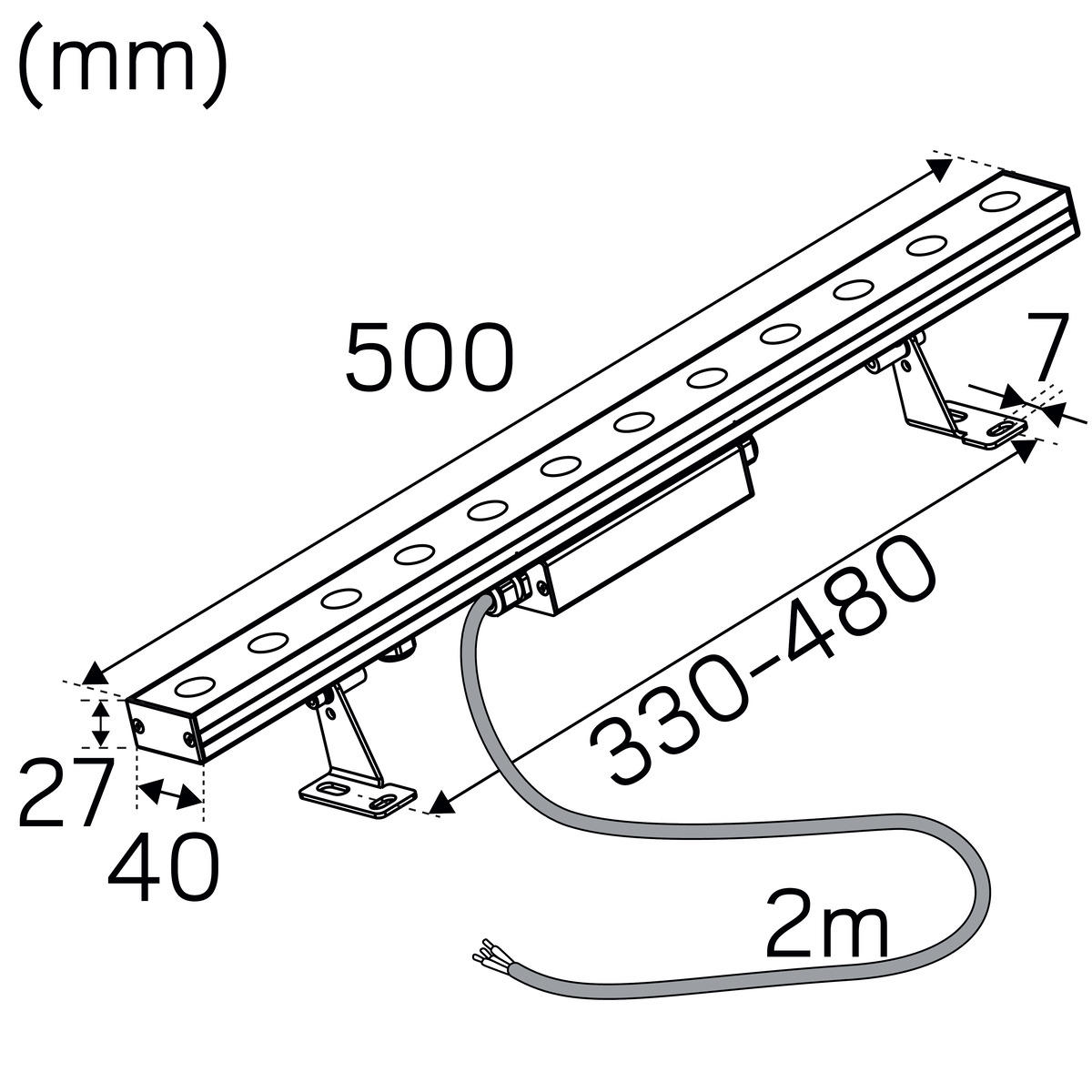

Length (mm) 500

Width (mm) 40

Height (mm) 74

Weight (kg) 1,3
