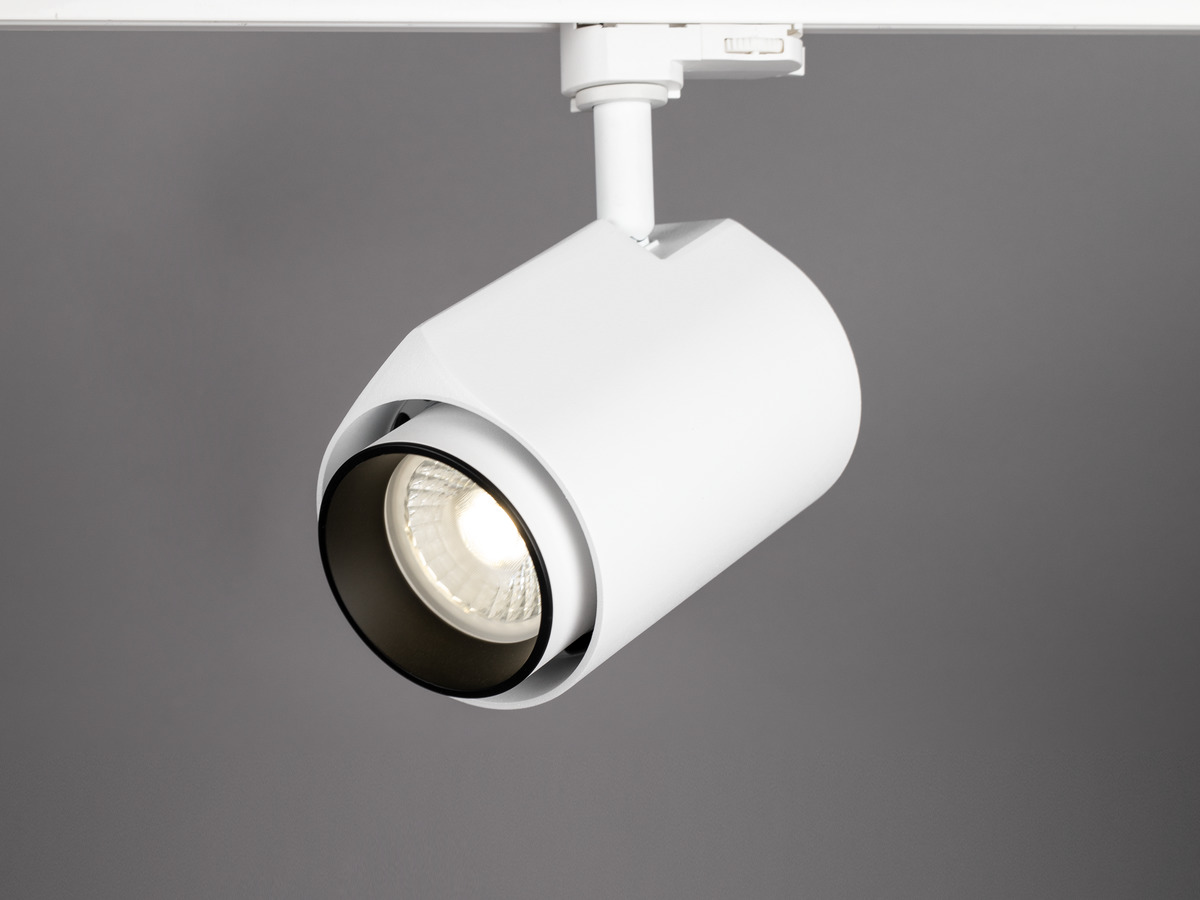

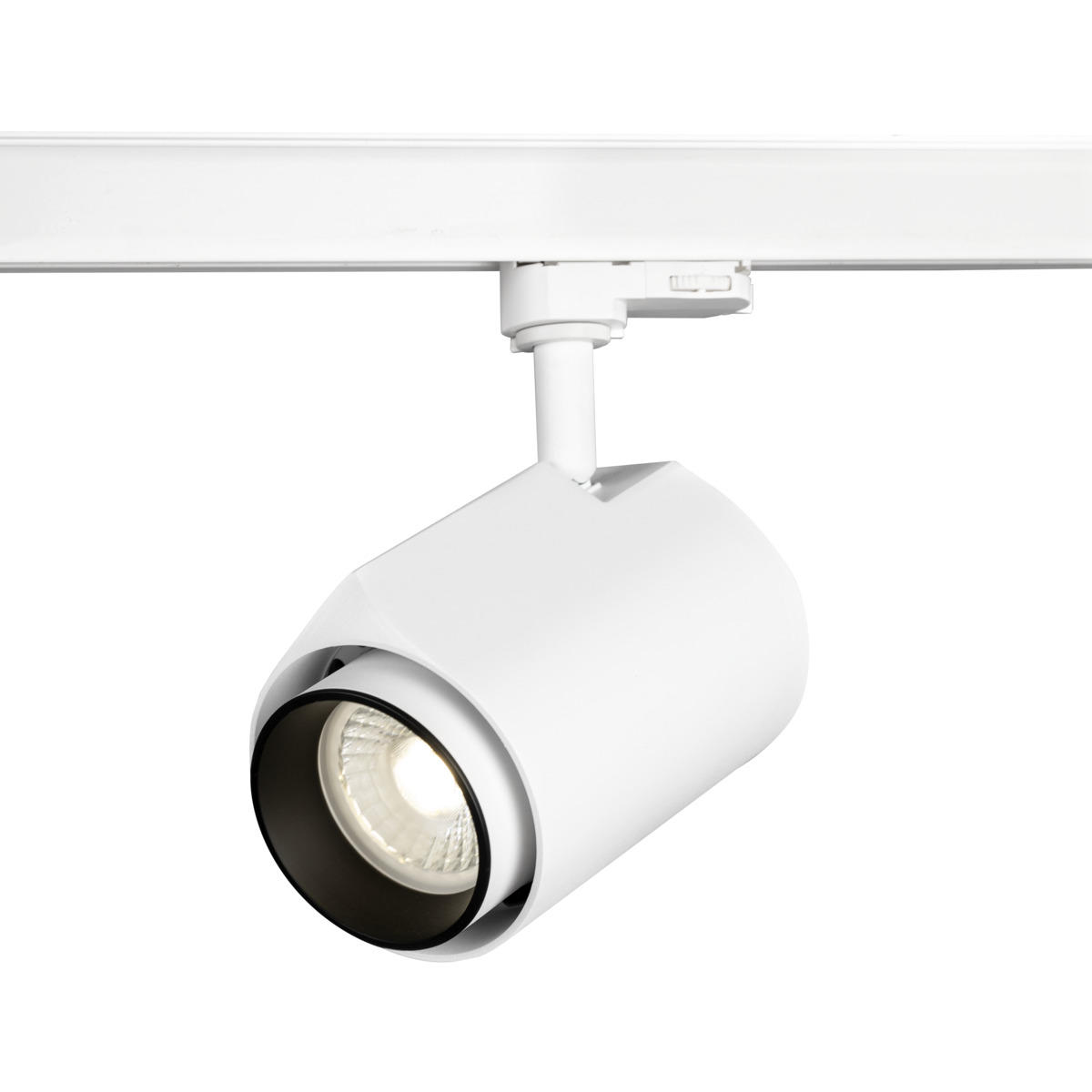

Stylish anti-glare luminaire in solid and smooth droplet design with integrated mains dimmable driver. The latest LED technology and Comfort Lens provides superb light quality with high luminous comfort and RA>90. Suitable for accent lighting or general lighting in most environments. Low-build universal adapter for most 3-phase track systems. Can be complemented with accessories to change light pattern and reduce glare.
Exists in several colors
  • Vit
  • Svart

Variants

GTIN Item Name Color Beam Angle (°)
Focus Track Mega 24° White 3000K 7392971128269 Focus Track Mega 24° White 3000K White 24
Focus Track Mega 36° White 3000K 7392971128276 Focus Track Mega 36° White 3000K White 36
Focus Track Mega 60° White 3000K 7392971128283 Focus Track Mega 60° White 3000K White 60
Focus Track Mega 24° Black 3000K 7392971128320 Focus Track Mega 24° Black 3000K Black 24
Focus Track Mega 36° Black 3000K 7392971128337 Focus Track Mega 36° Black 3000K Black 36
Focus Track Mega 60° Black 3000K 7392971128344 Focus Track Mega 60° Black 3000K Black 60

Focus Track Mega 24° White 3000K

Description
GTIN 7392971128269
Item Name Focus Track Mega 24° White 3000K
Warranty 5 years
Light Technical Data
Light Source LED
Light Source Included Yes
Replaceability Non-replaceaable LED, Non-replaceable Control gear
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >90
Colour Consistency (SDCM) 3
Initial Chromaticity x:0.4350 y:0.4066

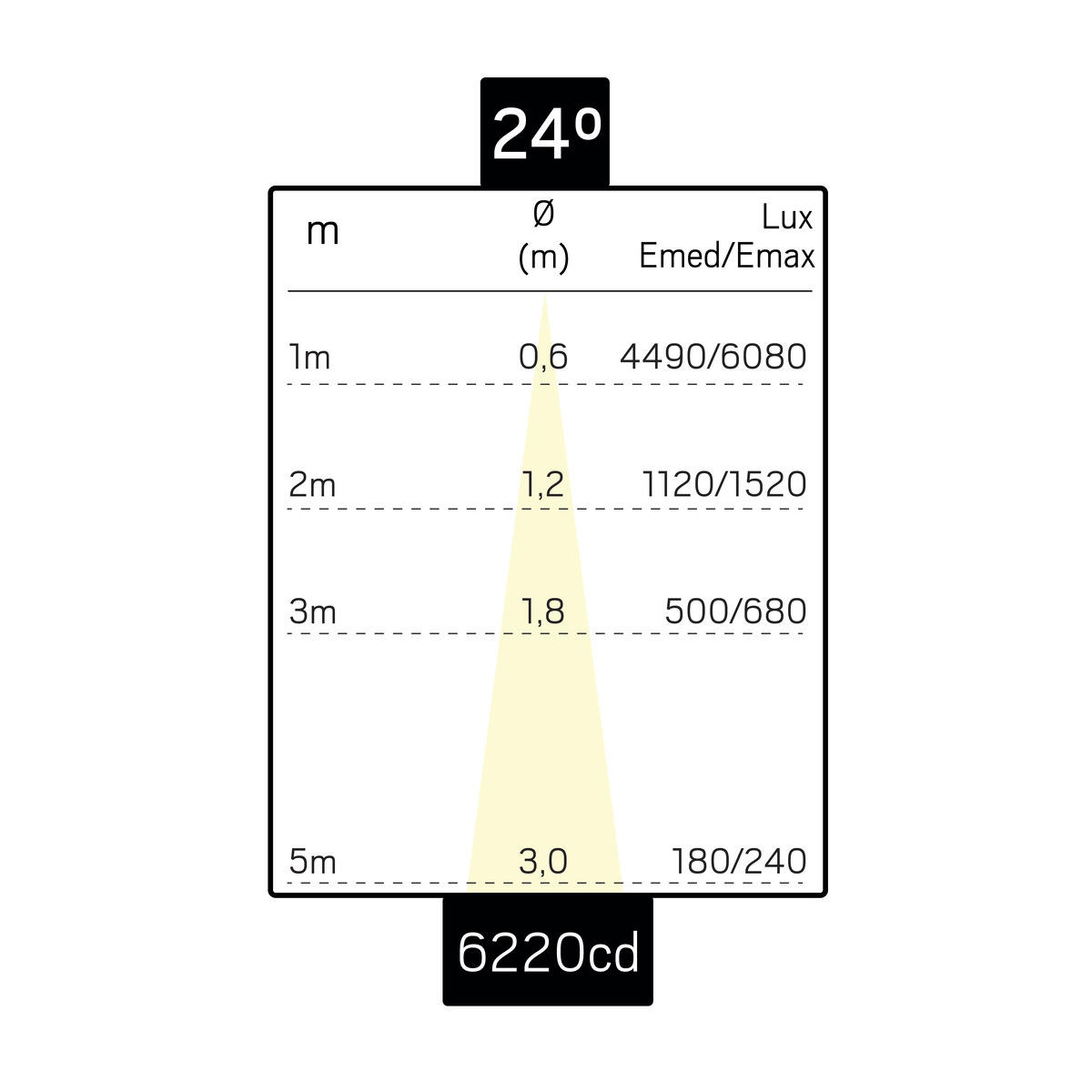

Luminous Intensity (cd) 6220
Luminaire Lumen (lm) 2600
Beam Angle (°) 24
Light sharing
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L80 100 000h Ta 25°C
Nominel Life Time (h) 100000
Lumen maintenance 50 000h L90
Lumen maintenance 75 000h L85
Lumen maintenance 100 000h L81
LLMF @ 50 000h 0,9
LLMF @ 100 000h 0,81
Life Time Driver 50 000h/10%
Technical data
Adjustable Yes
Tiltable (°) 90
Rotatable (°) 350
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Power LED (W) 35
Power Luminaire (W) 35
System Power (W) 35
Containing light source energy efficiency class (EU) 2019/2015 G
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in
Connection (type) 3-phase universal adapter
Operating Temperature -20…+40
Max. Tc (°C) 85
Dimmable Yes
Type of Dimming Trailing Edge, Leading Edge
Dimming secondary side AM
Fuse B10 (pcs) 21
Fuse B16 (pcs) 34
Fuse C10 (pcs) 21
Fuse C16 (pcs) 34
Color and material
Material Diecasted, Extruded, Aluminium
Color White
Color Cover Ring Black
Color Code Cover Ring (RAL) 9017
Environmental Assessment SundaHus, Byggvarubedömningen
Measurement and installation
Operating Environment Indoor / dry locations
IP Degree of Protection 20
Protection Class I
Installation Light-track mounting
Mounting Installation 3-phase Universal Adapter
Approval Marks CE
Filament Test IEC 695-2-1(°C) 650

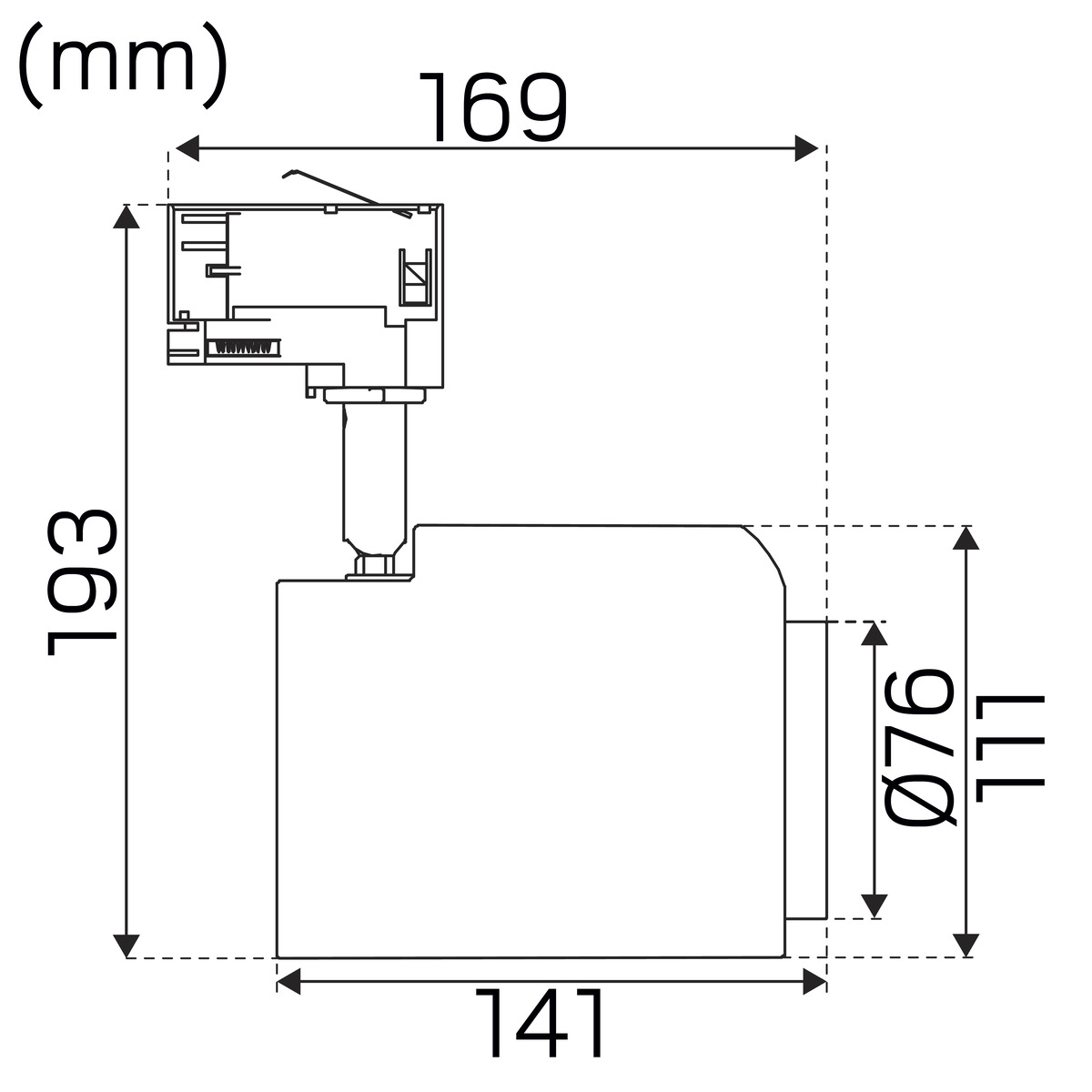

Length (mm) 141
Width (mm) 96
Height (mm) 199
Diameter (mm) 96
Weight (kg) 1,11
