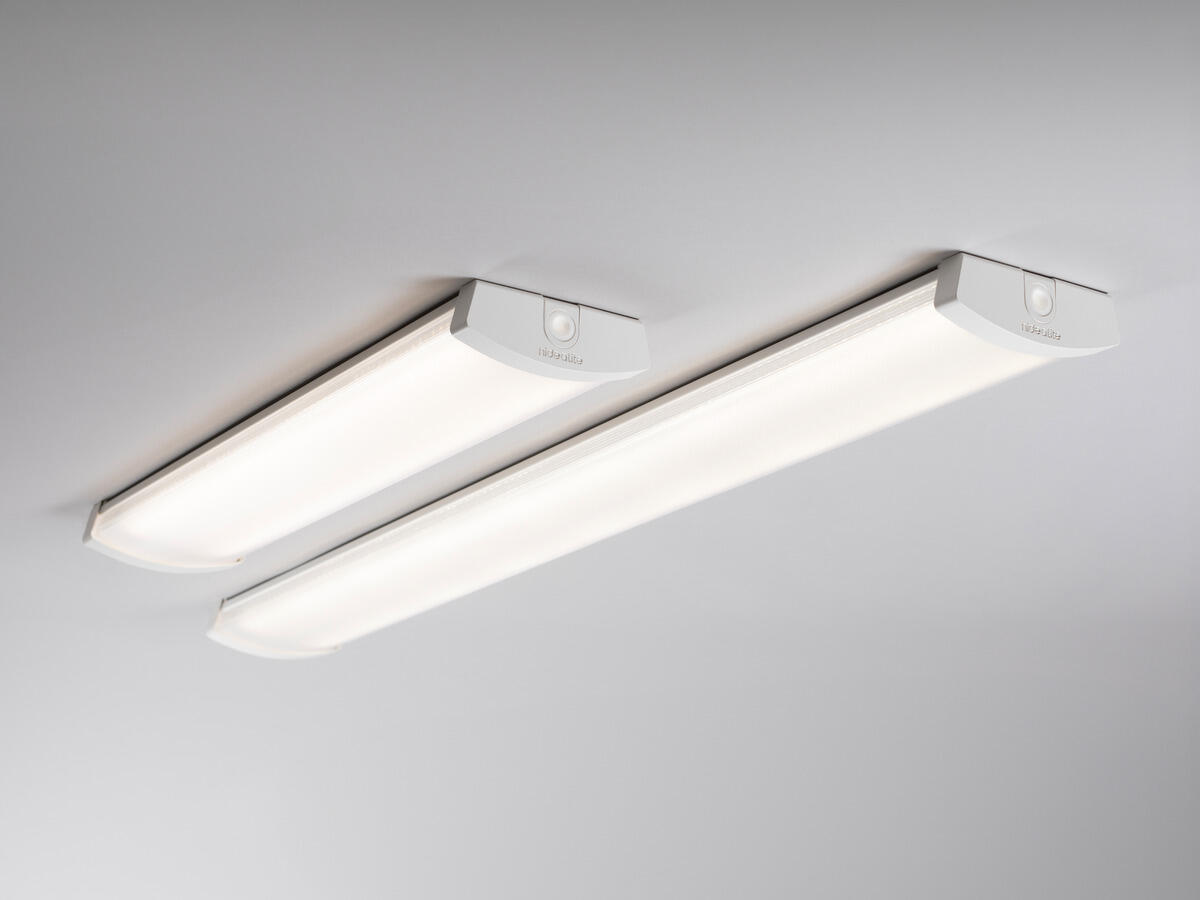

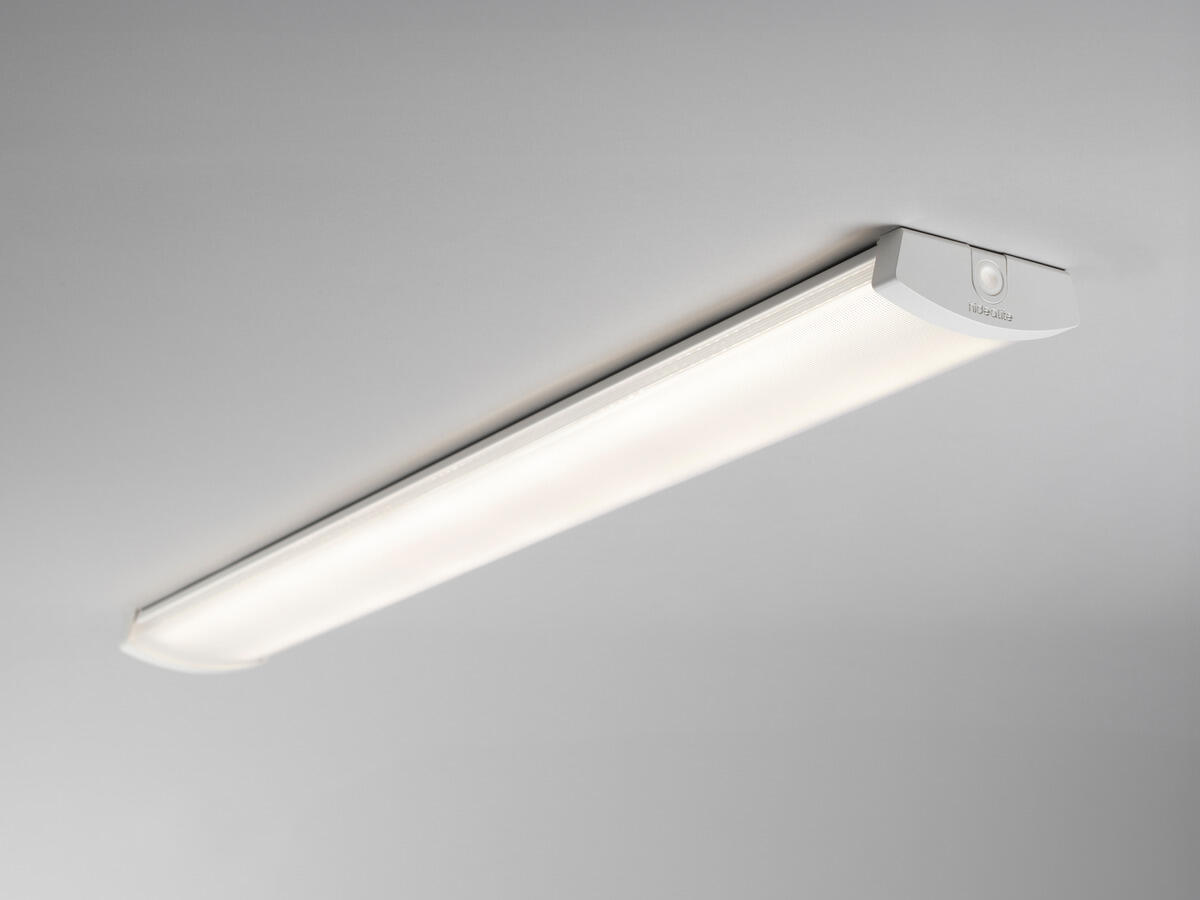

Liteline G2 IP44 1200 Liteline G2 IP44 1200

Selectable colour temperature via DIP-Switch ColourTemp
Folding end caps for easy installation
Replaceable LED and driver
Through wiring 5x2.5mm2 as standard
A bushing in each end cap, as well as in the base of the luminaire
Adjustable lumen output via DIP-switch Power; see manual for levels Prismatic diffuser in impact resistant (IK10) recycled plastic with pre-installed opal film

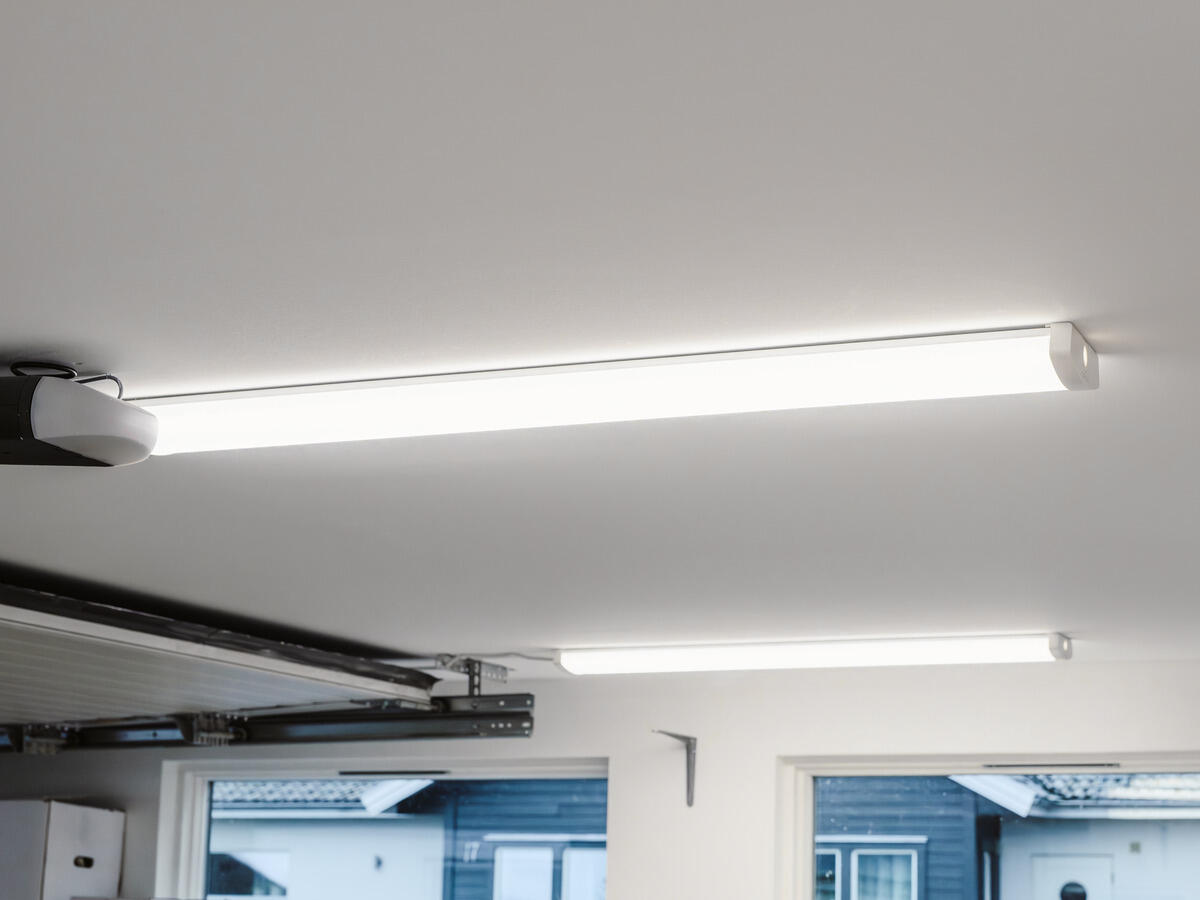

Highly efficient fluorescent tube replacement with various control options. Body of white enamelled steel sheet metal with folding patented end caps and prismatic cover in durable polycarbonate with an opal diffuser for even light outlet. Both end caps and cover are recycled plastic. Replaceable LED and driver, possible to choose colour temperature and adjust lumen output via DIP-switch. Quick terminal at both ends for simple through wiring. Through wiring 5x2,5mm2 as standard. Liteline G2 is perfect where the light requirement is great and the quality requirement is high, such as production environments, garages and industrial premises.

GTIN	Item Name	Luminaire Lumen (lm)	Type of Dimming
7392971149301	Liteline G2 IP44 1200	6300	OnOff, DIP-Switch Power
7392971149318	Liteline G2 IP44 1200 S	6300	DIP-Switch Power, Microwave Sensor
7392971149325	Liteline G2 IP44 1200 SC	5400	Basic light, DIP-Switch Power, Microwave Sensor
7392971149332	Liteline G2 IP44 1200 Bluetooth	6300	Bluetooth, DIP-Switch Power, Microwave Sensor
7392971149349	Liteline G2 IP44 1200 DALI	6300	DIP-Switch Power, Push 230V, DALI 2
7392971149356	Liteline G2 IP44 1200 EM	6300	OnOff, DIP-Switch Power
7392971149363	Liteline G2 IP44 1200 S EM	6300	DIP-Switch Power, Microwave Sensor
7392971149370	Liteline G2 IP44 1200 SC EM	5400	Basic light, DIP-Switch Power, Microwave Sensor
7392971149387	Liteline G2 IP44 1200 Bluetooth EM	6300	Bluetooth, DIP-Switch Power, DALI 2, Microwave Sensor
7392971149394	Liteline G2 IP44 1200 DALI EM	6300	DIP-Switch Power, Push 230V, DALI 2
7392971149806	Liteline G2 IP44 1200 DALI CLO	5650	Push 230V, DALI 2

Description: GTIN 7392971149301

Item Name Liteline G2 IP44 1200

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 6300

Light Source LED

Light Source Included Yes

Replaceability Replaceable LED by professional, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 3000, 4000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 2050

Beam Angle (°) 110

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L80 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L91

Lumen maintenance 75 000h L87

Lumen maintenance 100 000h L82

LLMF @ 50 000h 0,91

LLMF @ 100 000h 0,82

Life Time Driver 100 000h/20%
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 35

Power Luminaire (W) 40

System Power (W) 40

Efficiency Luminaire (lm/W) 158

Efficiency System (lm/W) 158

Containing light source energy efficiency class (EU) 2019/2015 A
Operation and Connection: Dimmable No

Type of Dimming OnOff, DIP-Switch Power

Driver Included Yes - replaceable

Driver Model Constant Current

Driver Type Built-in

Connection (type) Quick Terminal

Connection (mm2) 5x0,5-2,5

Through Wiring Yes

Strain Relief No

Power Factor ʎ 0,97

Efficiency (%) 88

Power loss (W) 4

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,7

THD (%) 20

Standby Power 0,5

Constant Current (mA) 500, 600, 700, 800

Operating Temperature -25...+65

Max. Tc (°C) 65

Suitable for random switching Yes

Inrush current (max/time) 17,8A 180µs

Mains surge protection DM (kV) 1

Mains surge protection CM (kV) 2

Fuse B10 (pcs) 20

Fuse B16 (pcs) 30

Fuse C10 (pcs) 30

Fuse C16 (pcs) 45
Color and material: Material Recycled, Plastic, Sheet metal, Polycarbonate

Color White

Environmental Assessment Byggvarubedömningen

Available in special color No
Measurement and installation: Operating Environment Indoor / wet locations

IP Degree of Protection 44

Protection Class I

Installation Ceiling, Wall, Surface mounted

Mounting Installation Screw Mounting

Fire Safety Marks D-mark

Approval Marks CE, a Hide-a-lite Choice

Impact Strength IK10

Filament Test IEC 695-2-1(°C) 850

Length (mm) 1175

Width (mm) 150

Height (mm) 50

Weight (kg) 2,67

Spare parts

If you need spare parts, contact our customer support

Cover Liteline G2 IP44 1200 X293
Driver Liteline G2 IP44 1200 ON-OFF/S X295
LED-Module Liteline G2 IP44 1200 X301
