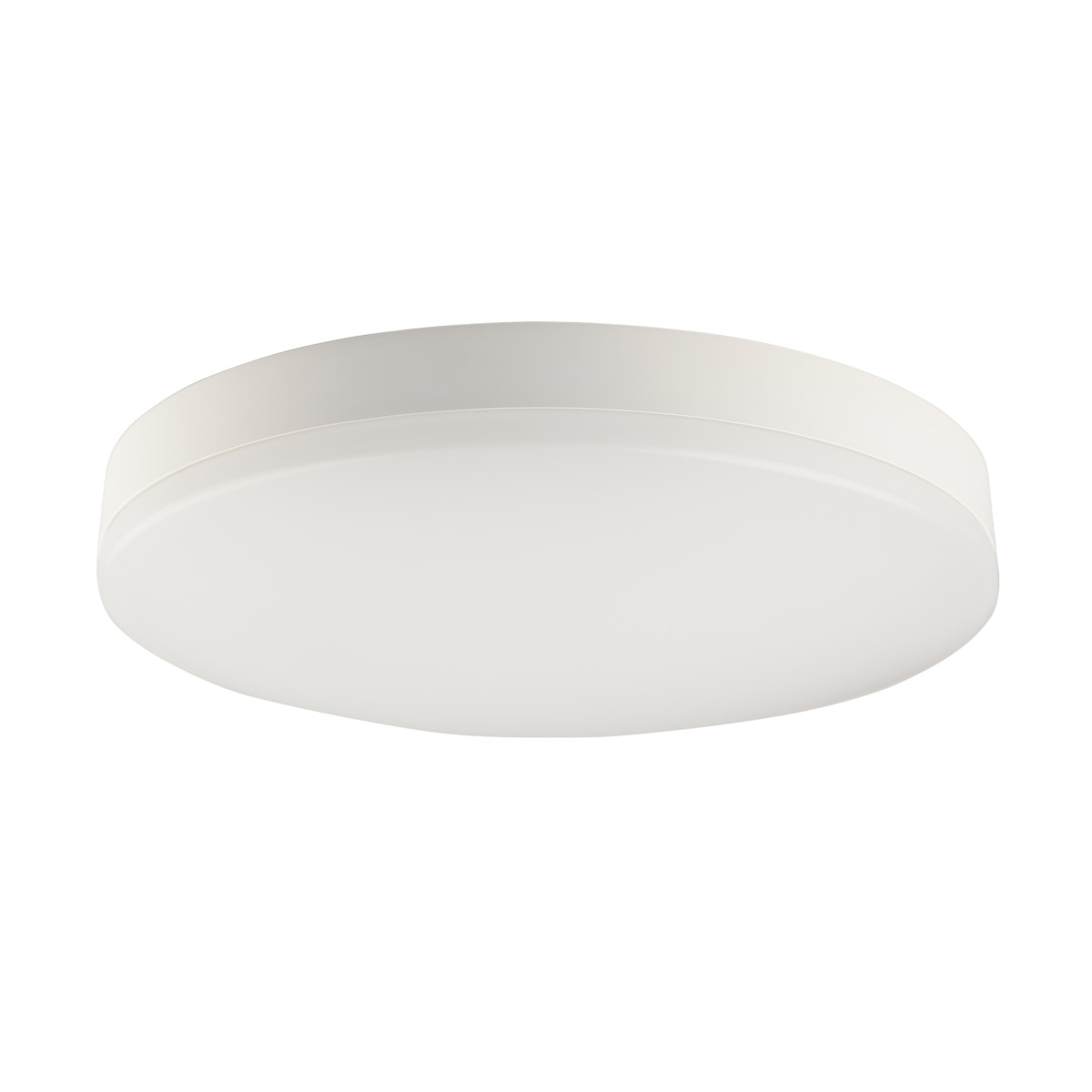

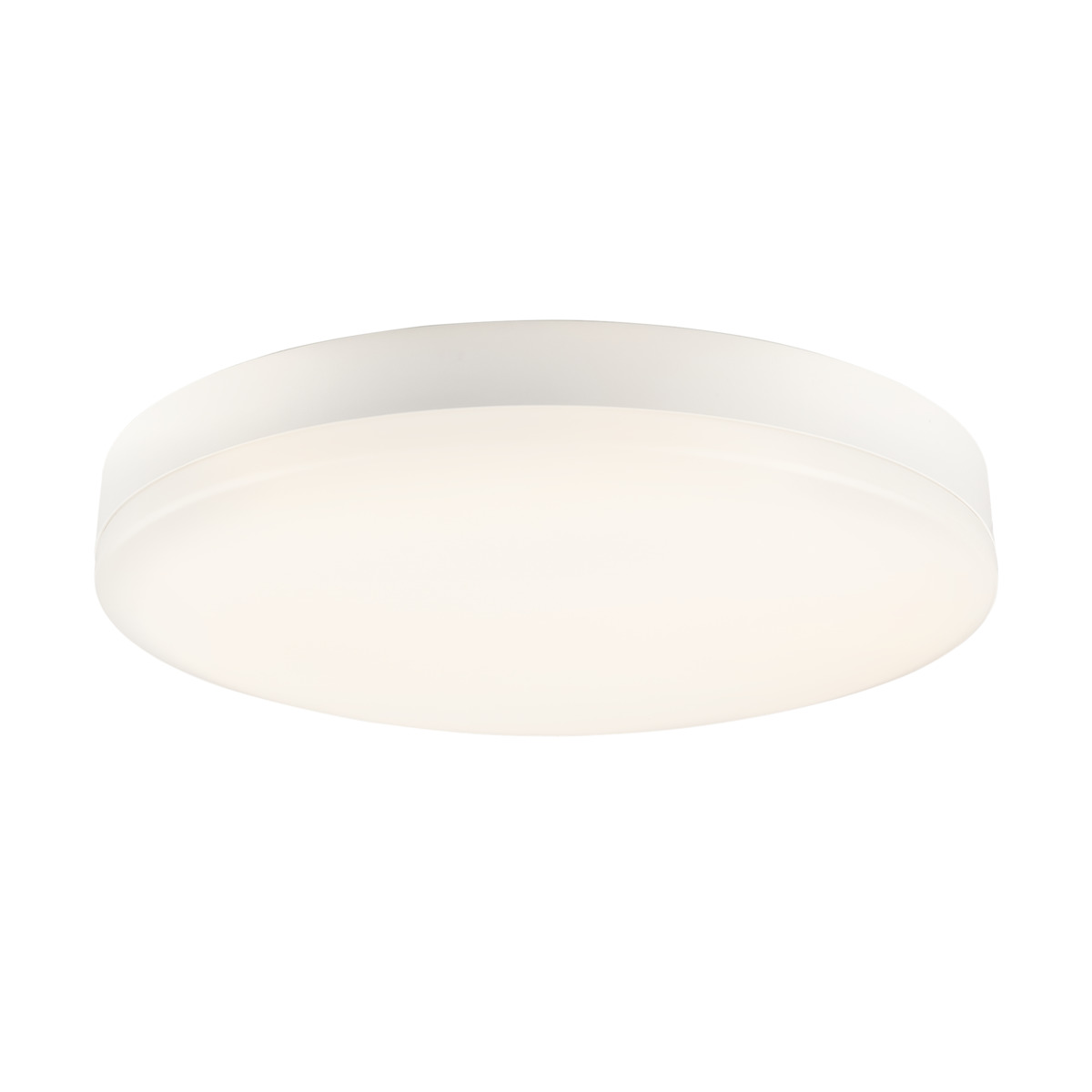

Moon Pro

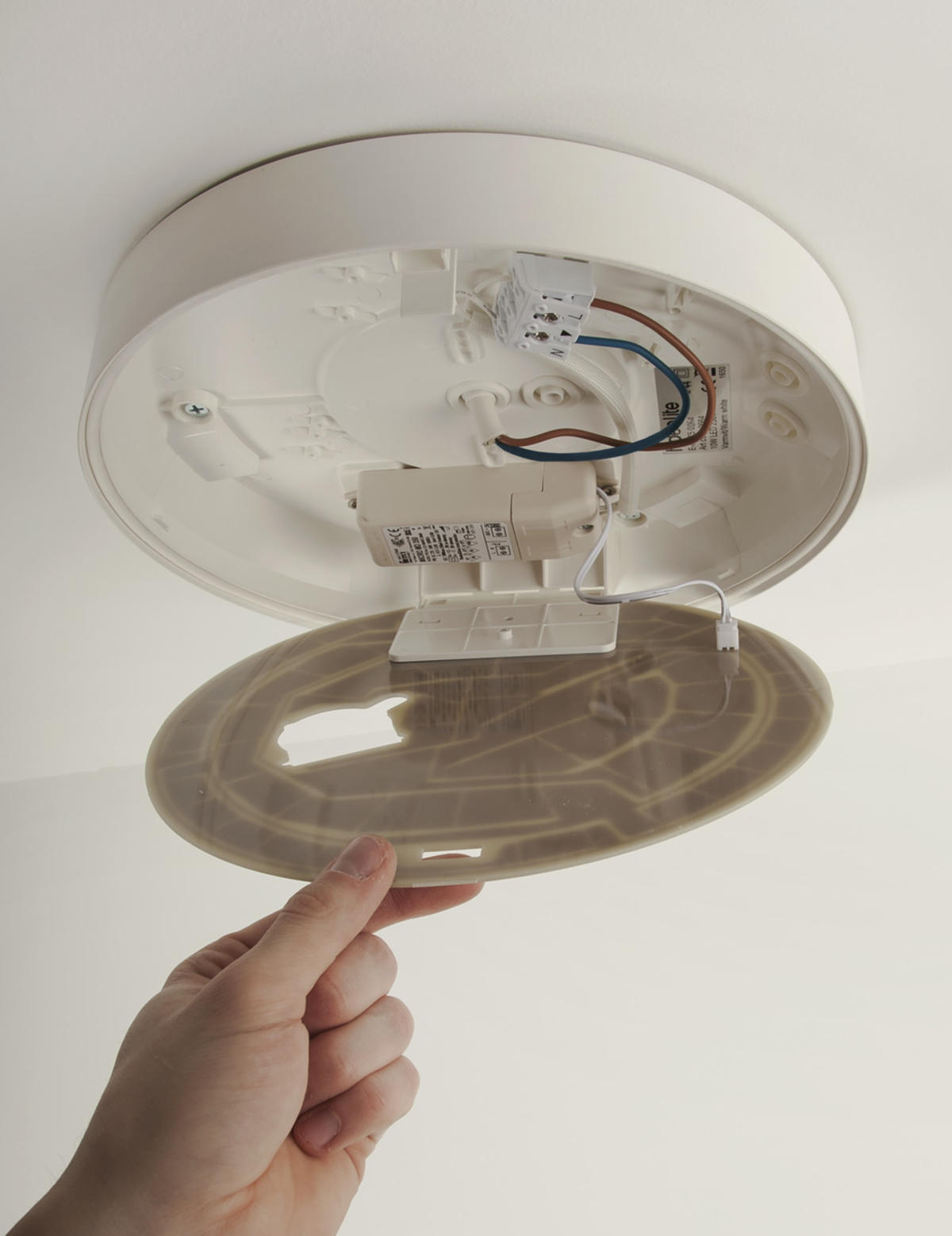

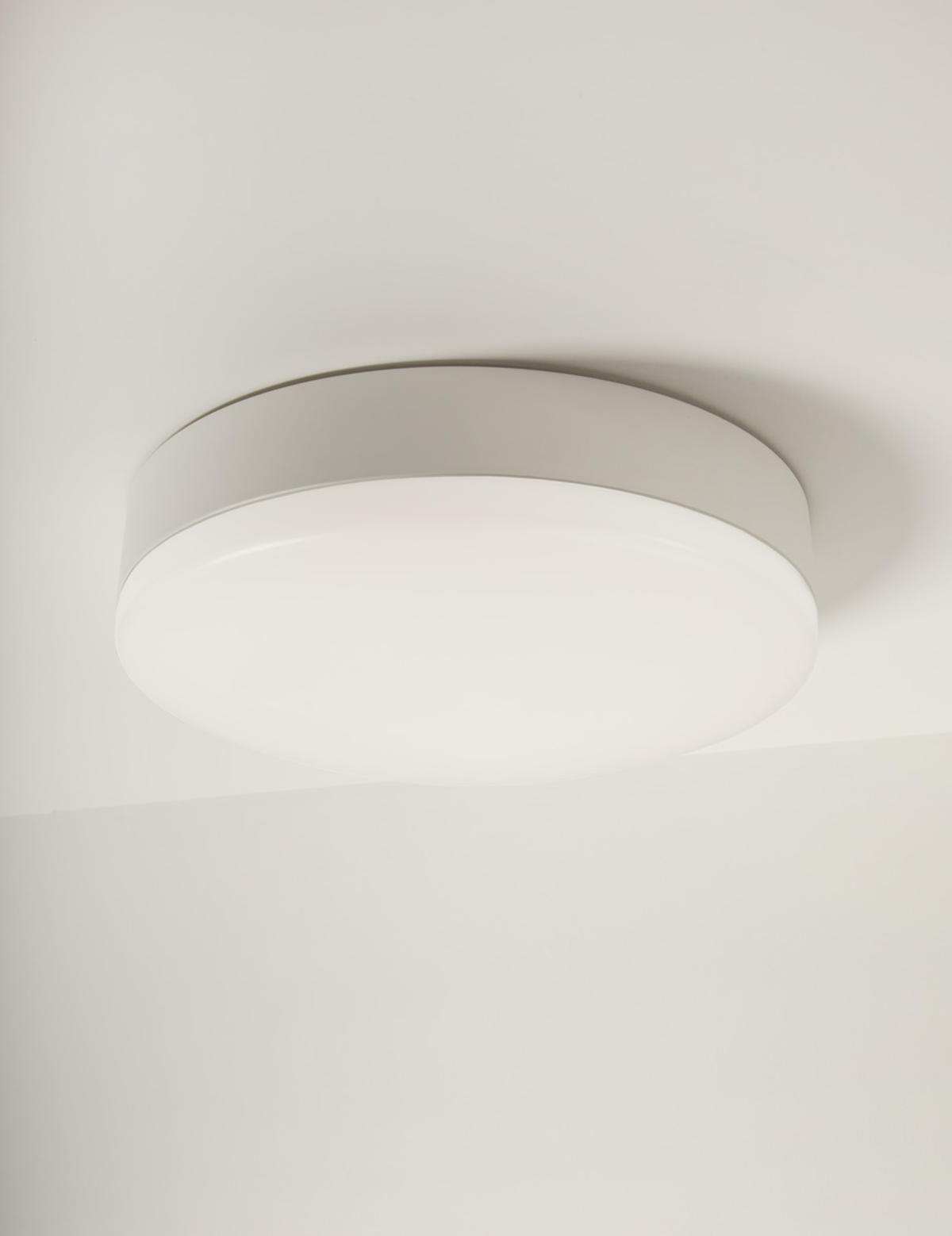

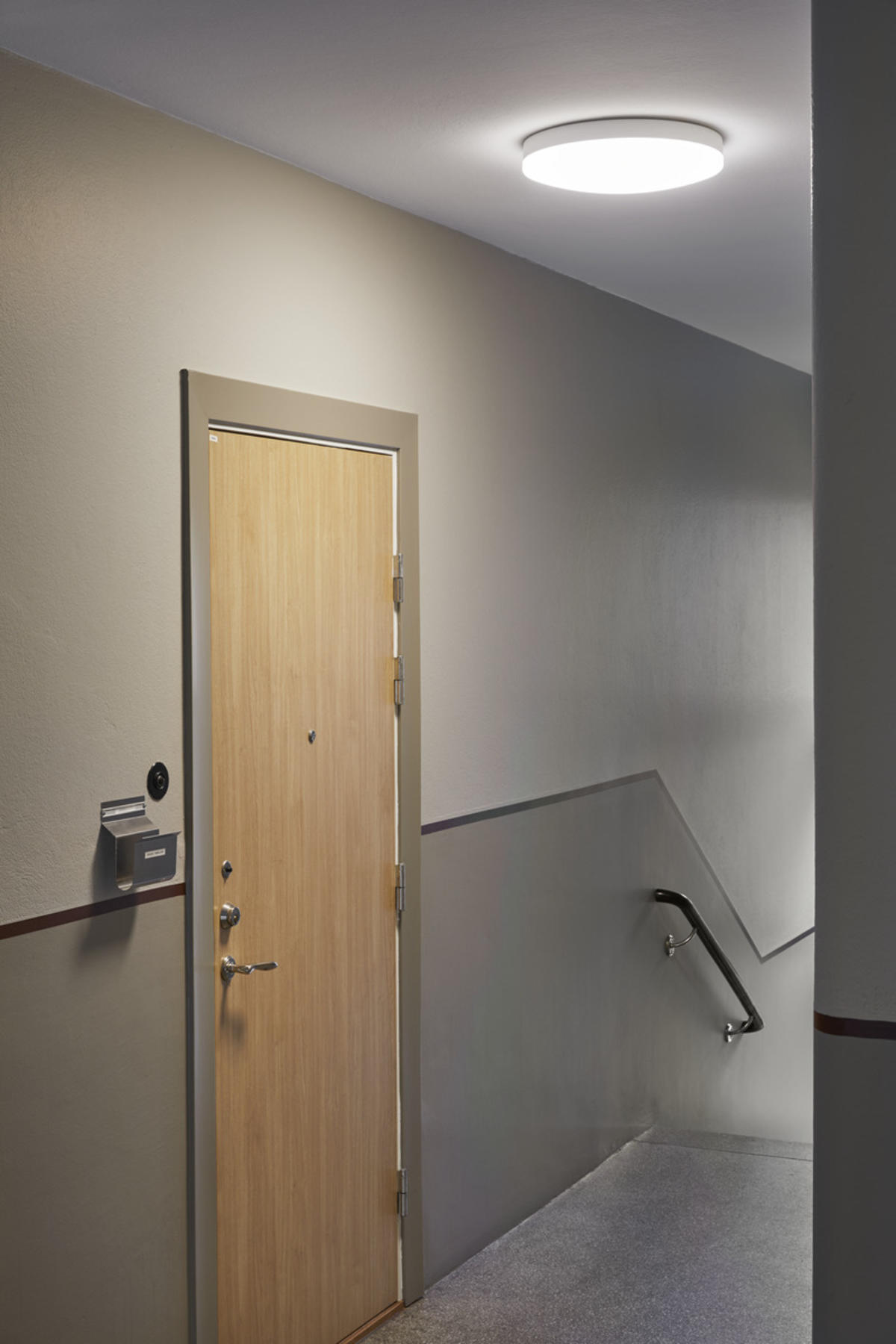

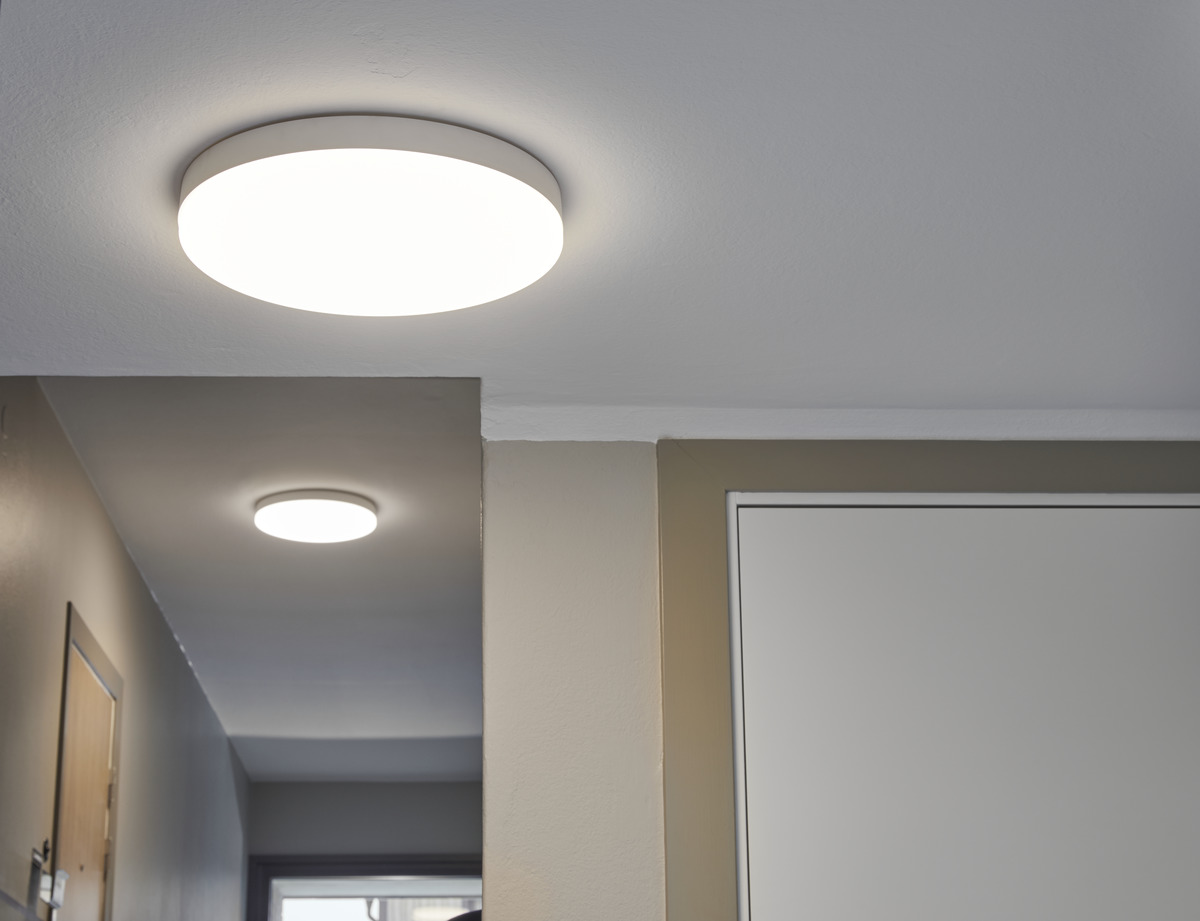

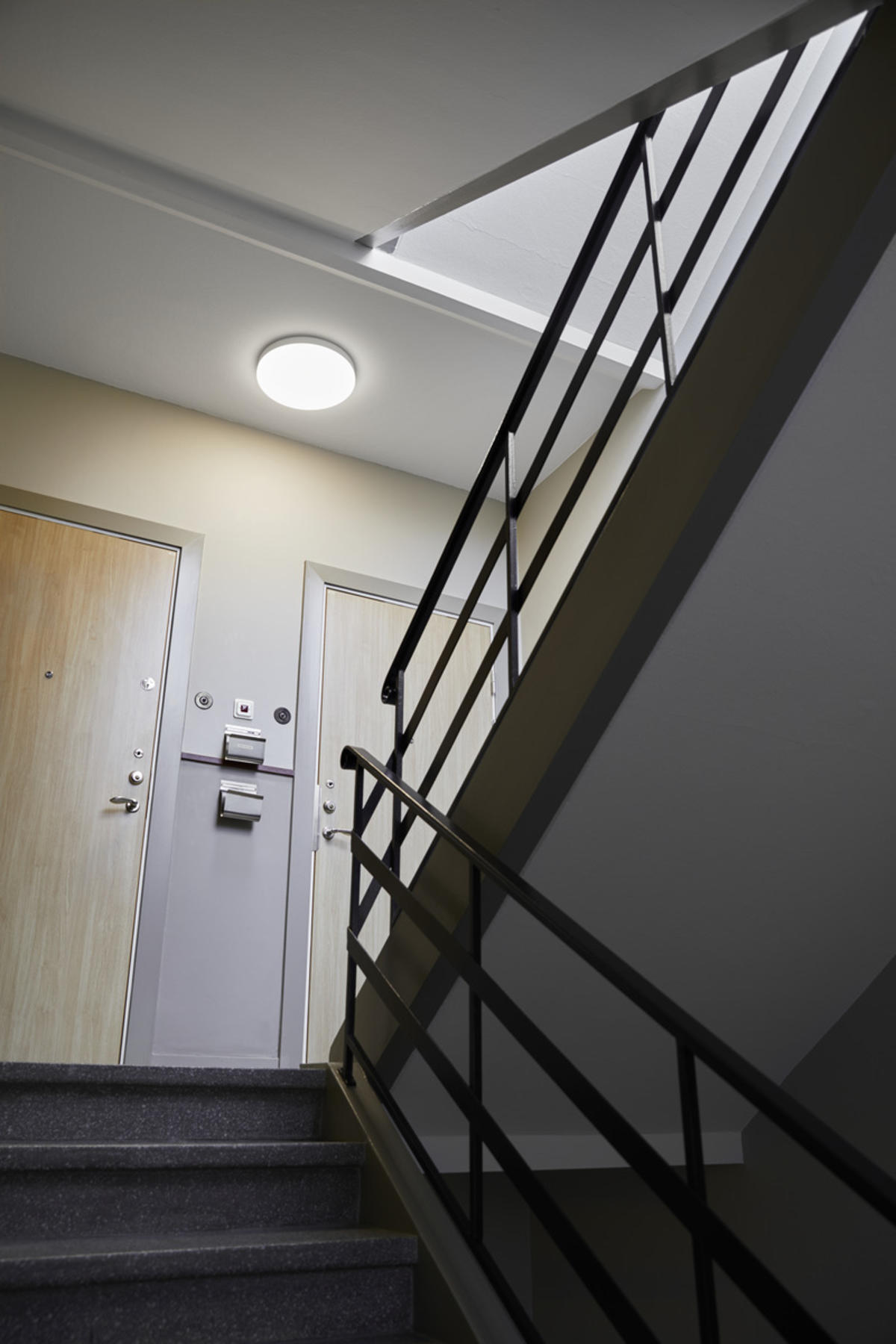

LED luminaire for installation flat on the ceiling or wall. High lumen output and good efficiency that meets with tough market demands and requires fewer luminaires per installation. IP44 and class II to suit many indoor milieus. Easily installed long-life luminaire that comes complete with integrated mains dimmable driver. Possibility of surface mounted cable routing.
Exists in one color


GTIN Item Name Luminaire Lumen (lm)
Moon Pro 420 3000K 7392971129884 Moon Pro 420 3000K 2100
Moon Pro 320 3000K 7392971129860 Moon Pro 320 3000K 1500
Moon Pro 255 3000K 7392971129846 Moon Pro 255 3000K 1000

Moon Pro 420 3000K A+

GTIN 7392971129884
Item Name Moon Pro 420 3000K
Lighting Data
Light Source LED
Light Source Included (type) LED not exchangeable
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3
Luminous Intensity (cd) 700
Luminaire Lumen (lm) 2100

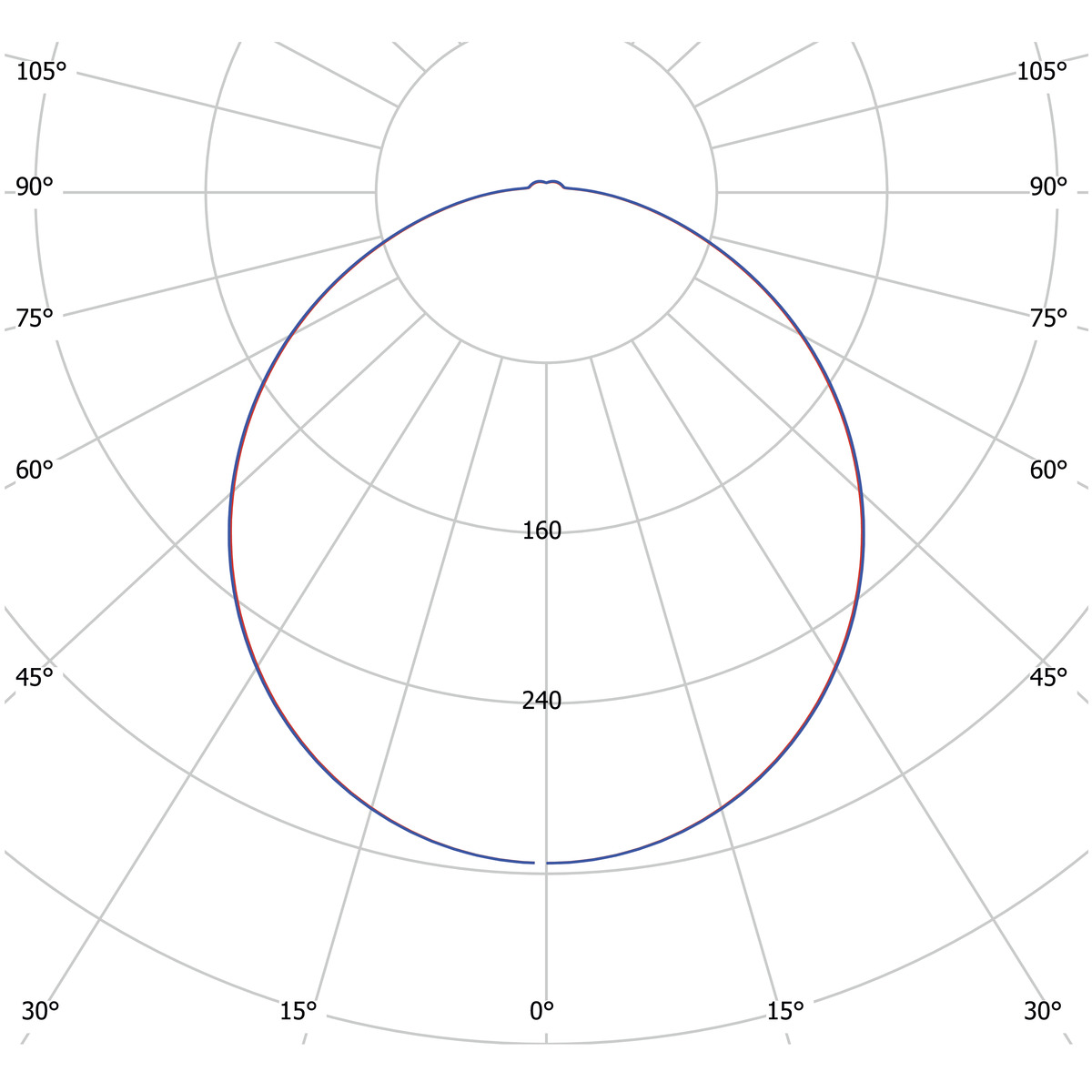

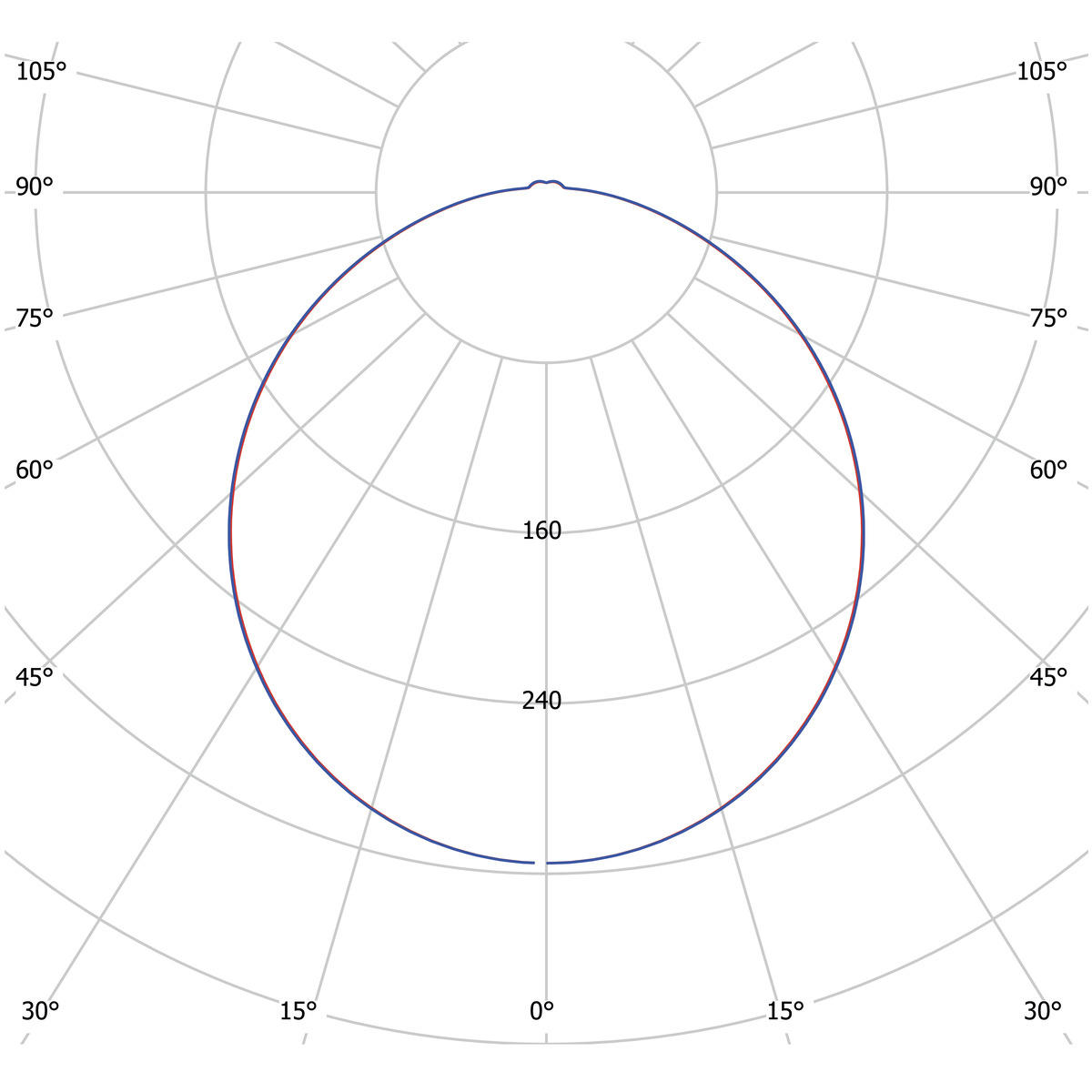

Beam Angle (°) 115
Light sharing Symmetric
Light Outlet Direct
Number of Lamps (pcs) 1
Number of LED (pcs) 126
Technical data
Adjustable No
Life Time (L70 B10) 75 000h Ta 25°C
Nominel Life Time (h) 75000
Life Time Driver 50 000h/5%
Voltage (type) AC
Voltage Interval (V) 220...240
Voltage Nominal (V) 230
Line Frequency (Hz) 50
Power Luminaire (W) 18
System Power (W) 18
Efficiency Luminaire (lm/W) 117
Efficiency System (lm/W) 117
Energy Efficiency Class A+
Operation and Connection
Driver Included Yes
Driver Model Constant Current
Driver Type Built-in

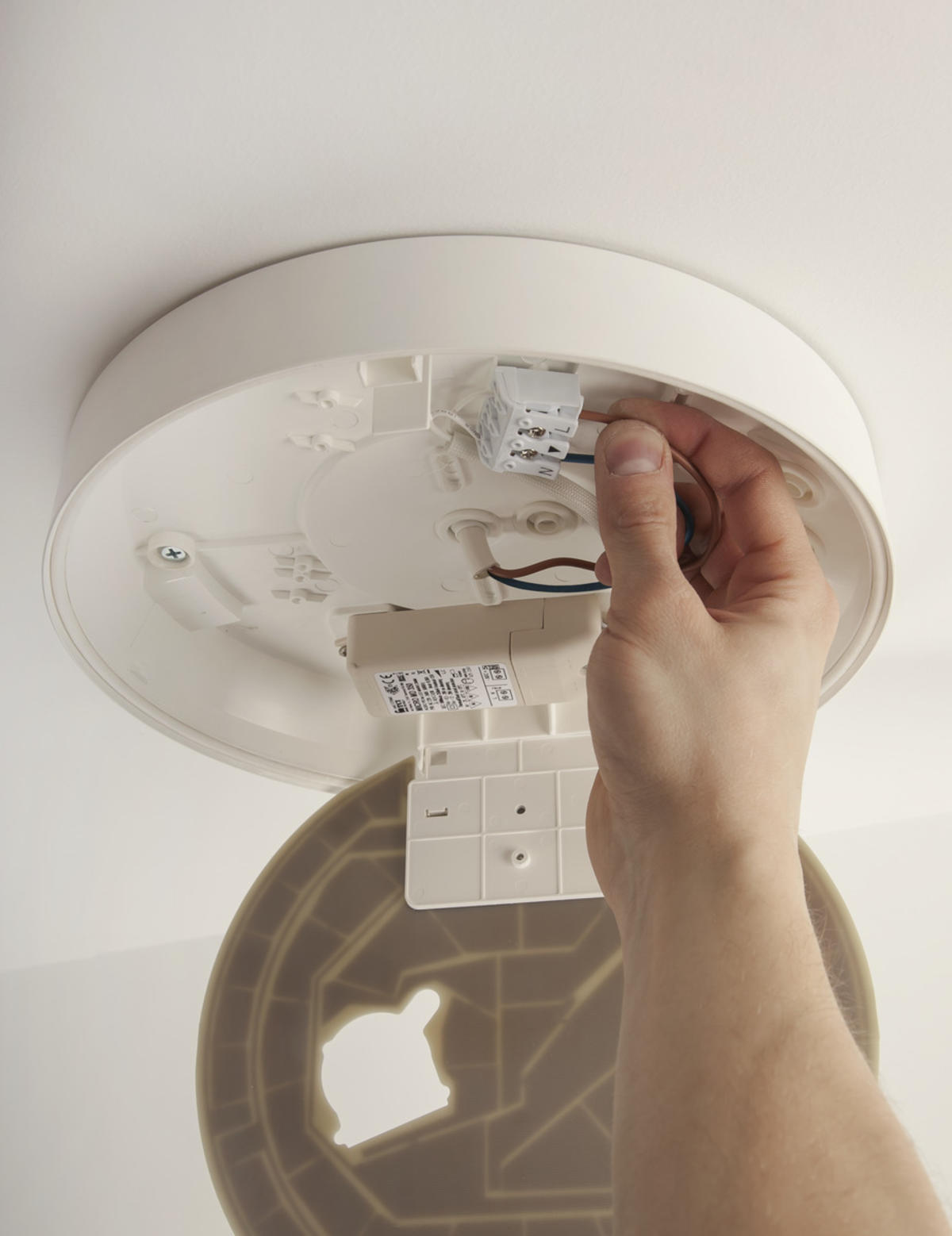

Connection (type) Quick Terminal
Connection (mm2) 3x0,5-2,5
Through Wiring Yes
Strain Relief Yes
Operating Temperature -15...+40
Dimmable Yes
Type of Dimming Trailing Edge, Leading Edge
Fuse B10 (pcs) 40
Fuse B16 (pcs) 60
Fuse C10 (pcs) 47
Fuse C16 (pcs) 70
Color and material
Material Plastic
Material Housing/Enclosure ABS plastic, Polycarbonate
Material Cover Ring PMMA
Color White
Color Code (RAL) 9016
Measurement and installation
Operation Environment Indoor
IP Degree of Protection 44
Installation Surface mounted

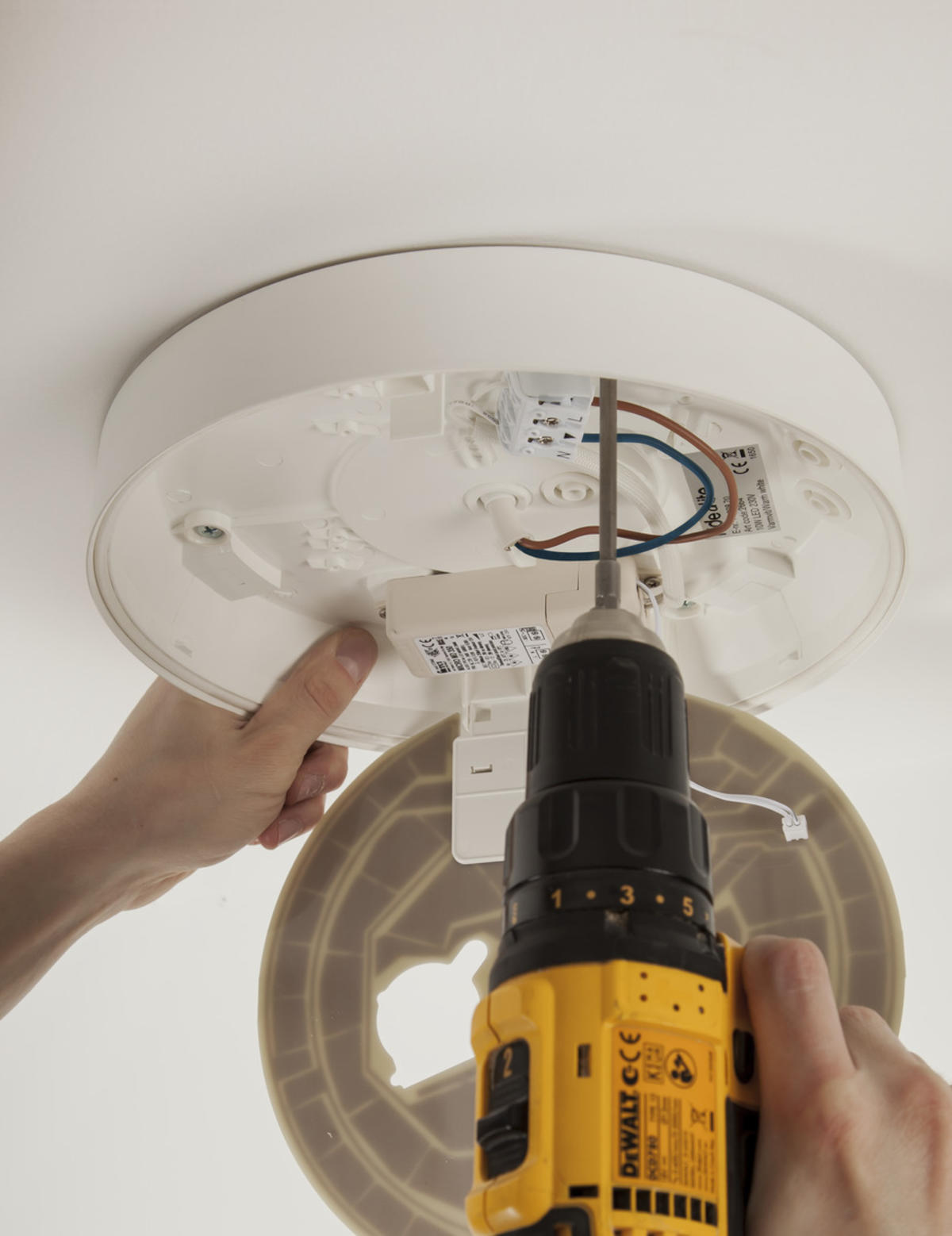

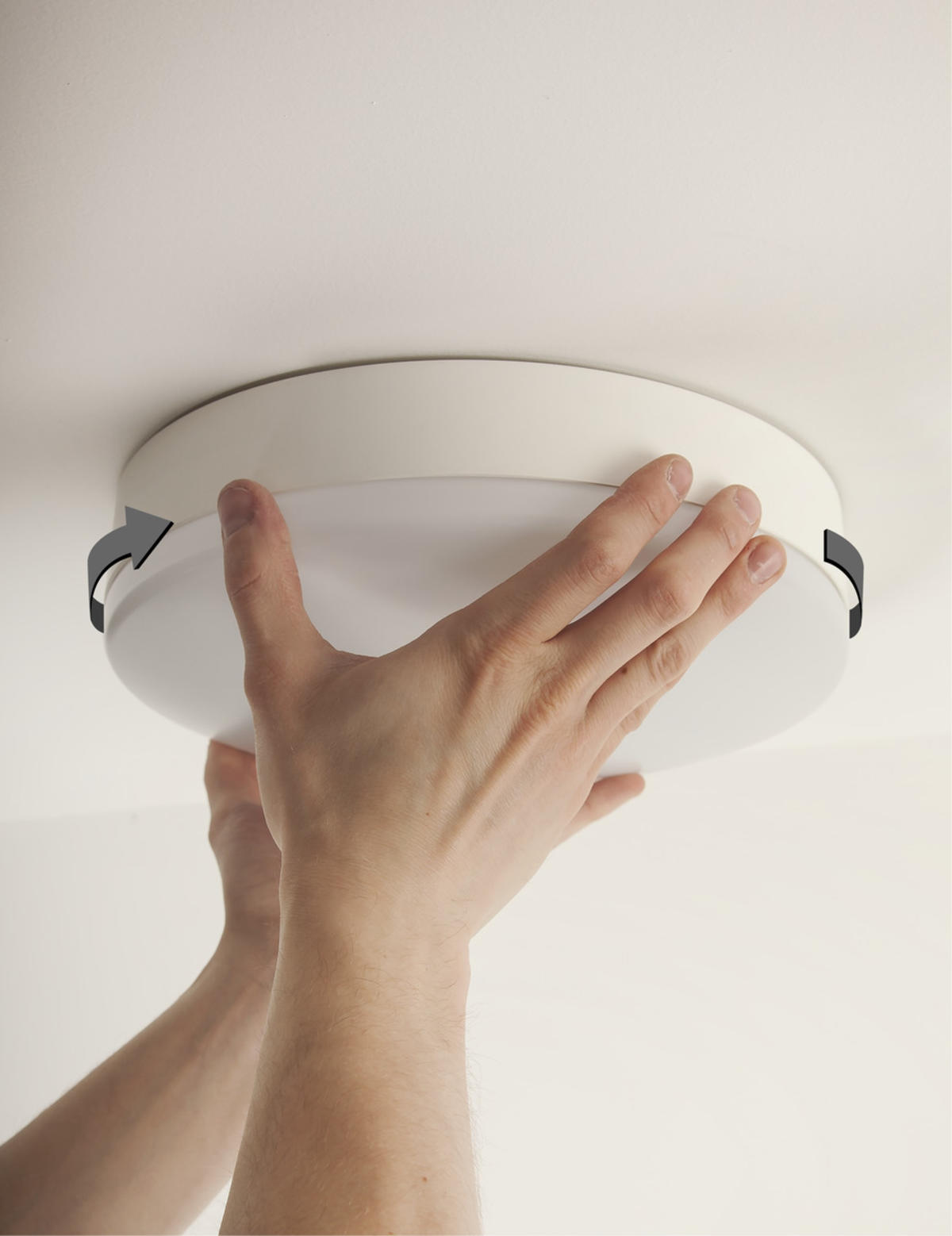

Mounting Installation Screw Mounting
Approval Marks CE
Impact Strength IK06
Filament Test IEC 695-2-1(°C) 650
Protection Class II

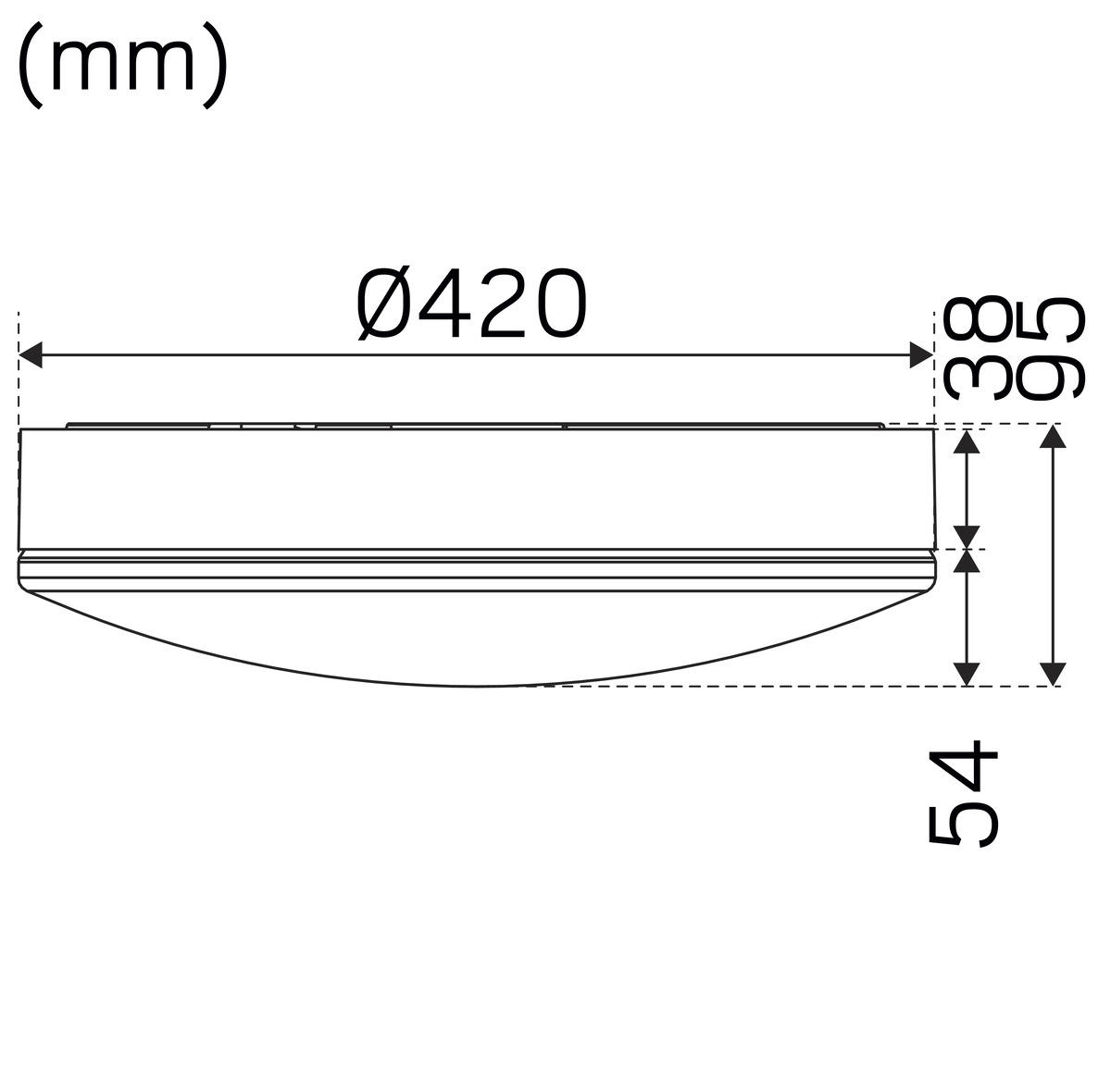

Height (mm) 95

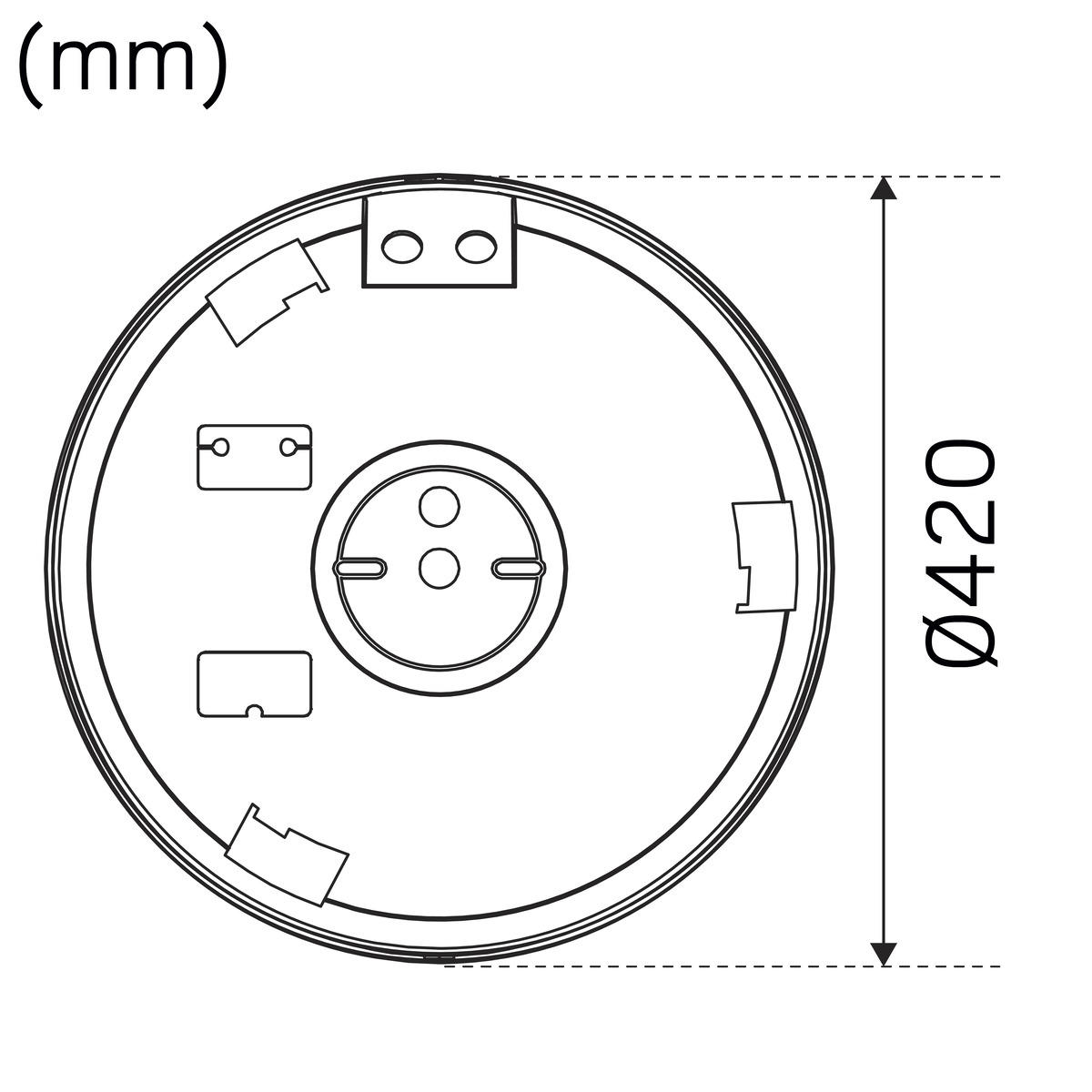

Diameter (mm) 420
Weight (kg) 1,72
