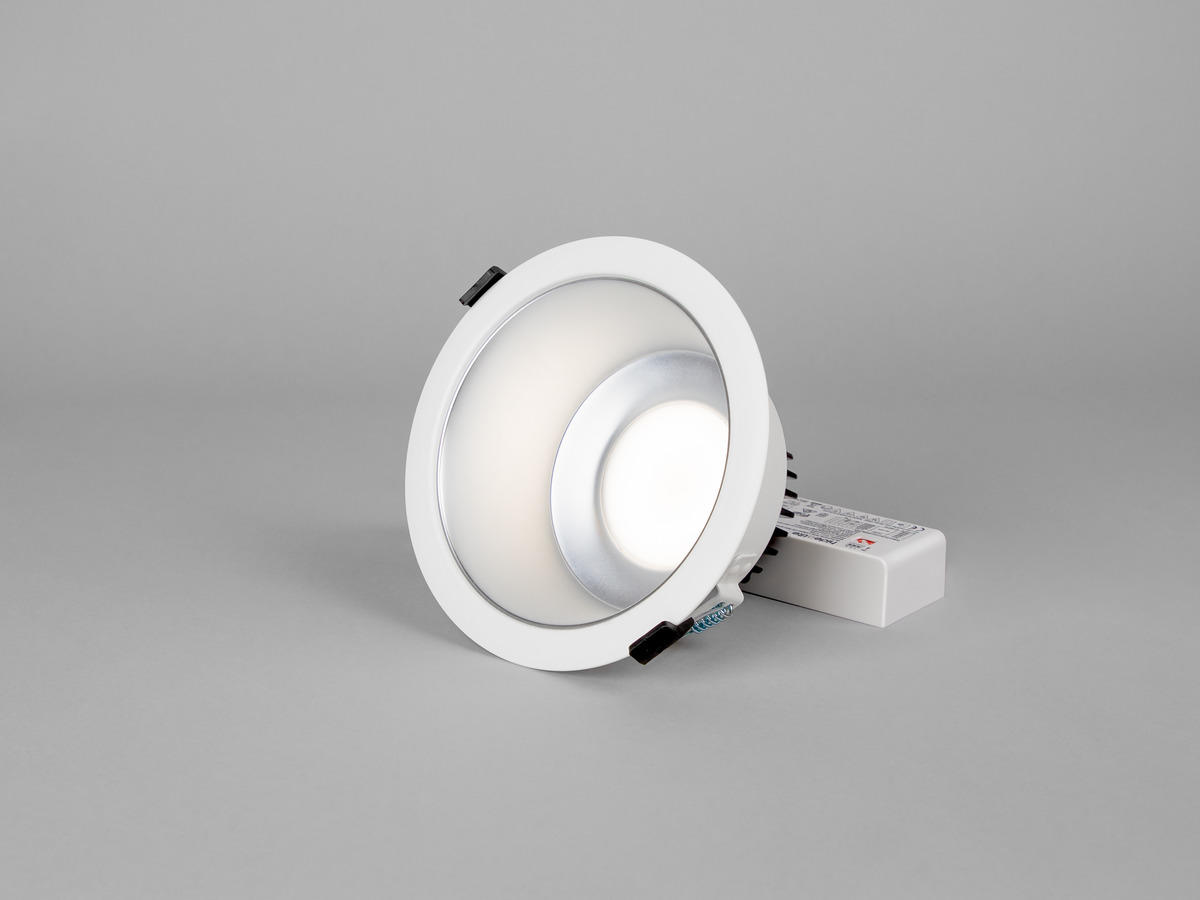

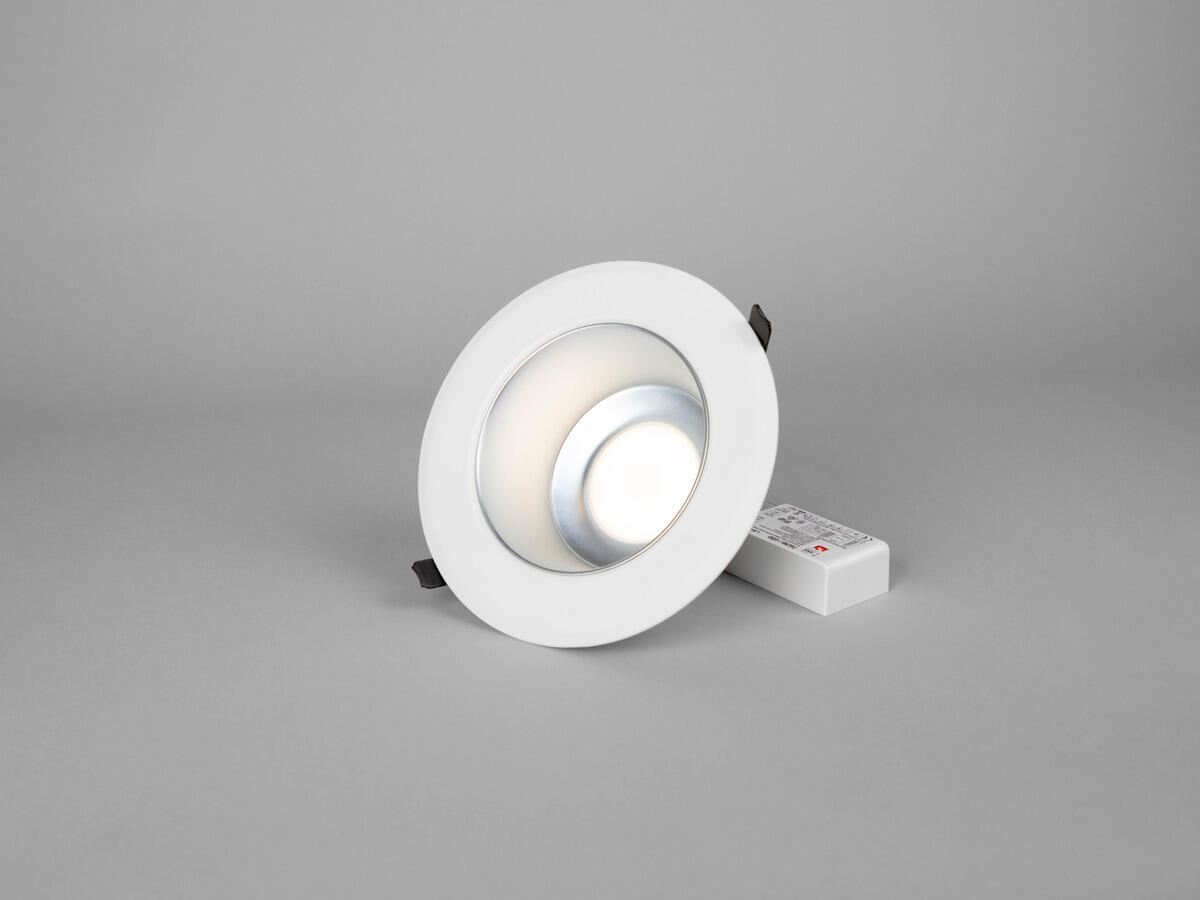

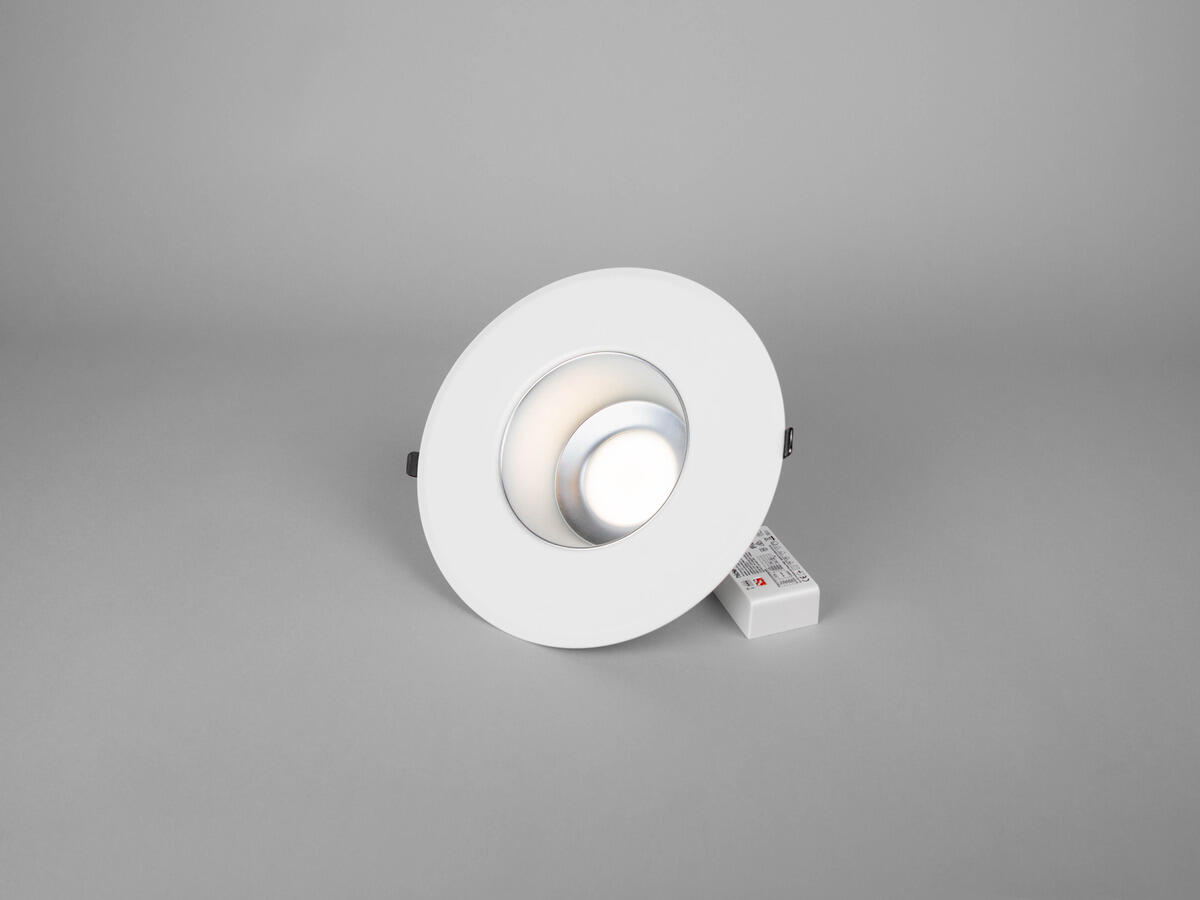

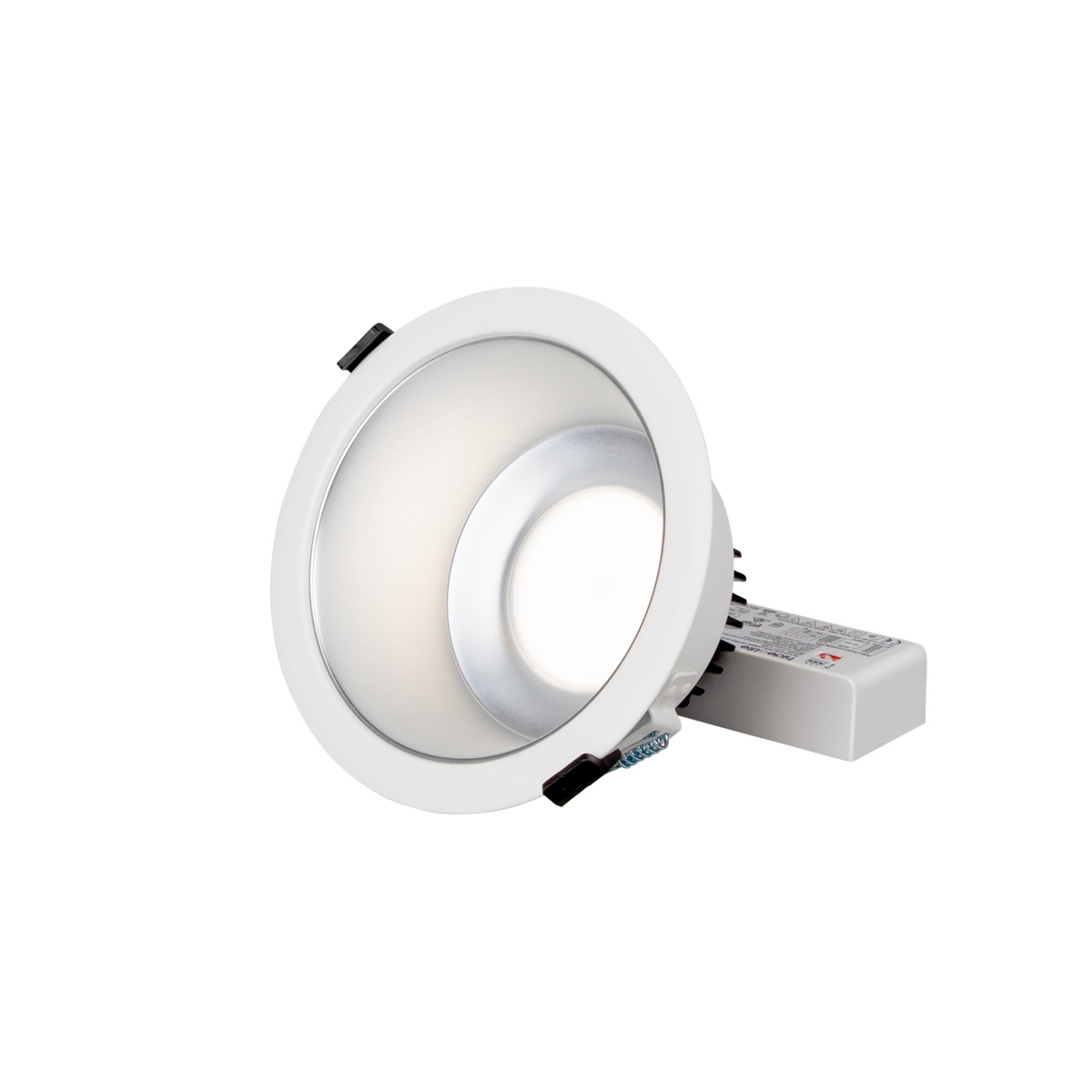

Echo M Echo M 170 White

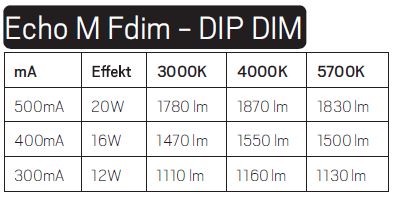

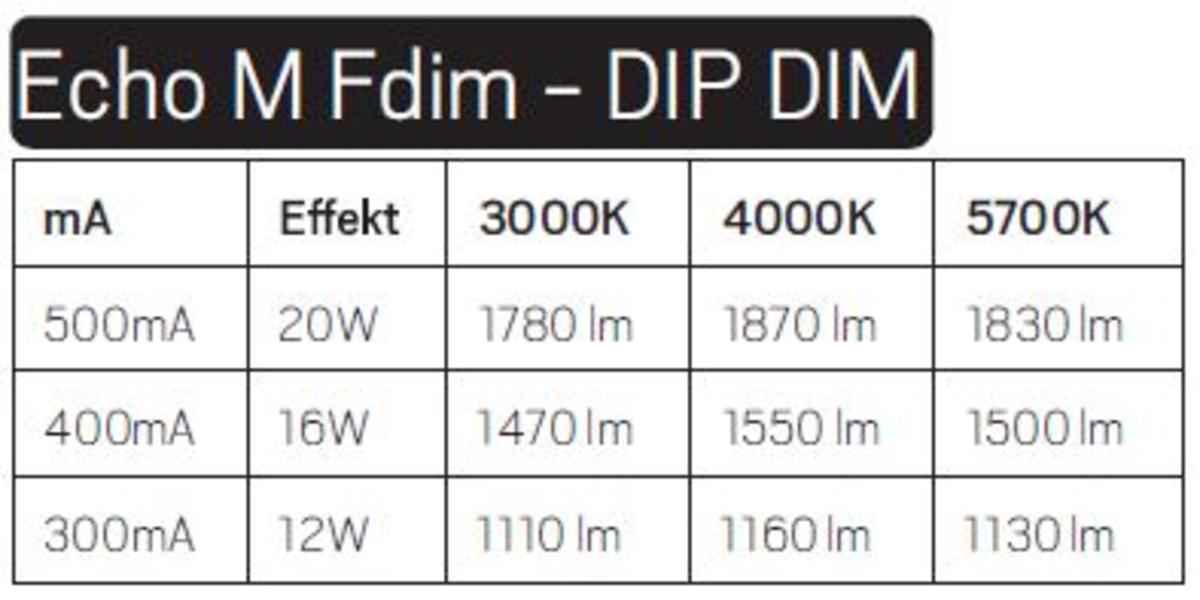

Adjustable lumen output via DIP-Switch Power, see manual for levels
Selectable colour temperature via DIP-Switch ColourTemp

Flexible luminaire with reflector technology and a high-positioned light source for very good anti-glare properties. All-round luminaire for public environments where more light is needed, e.g. rooms with high ceilings. For new installations or replacement of old compact fluorescent lamp fixtures for a much more energy-efficient installation. Adjustable lumen output and selectable colour temperature via DIP switch, 3000K, 4000K and 5700K. Complete with driver for phase dimming or DALI 2, with push-in terminals and screwless strain relief. Cover ring available as an accessory. Can be supplied with Q-Box Mini or Linect.

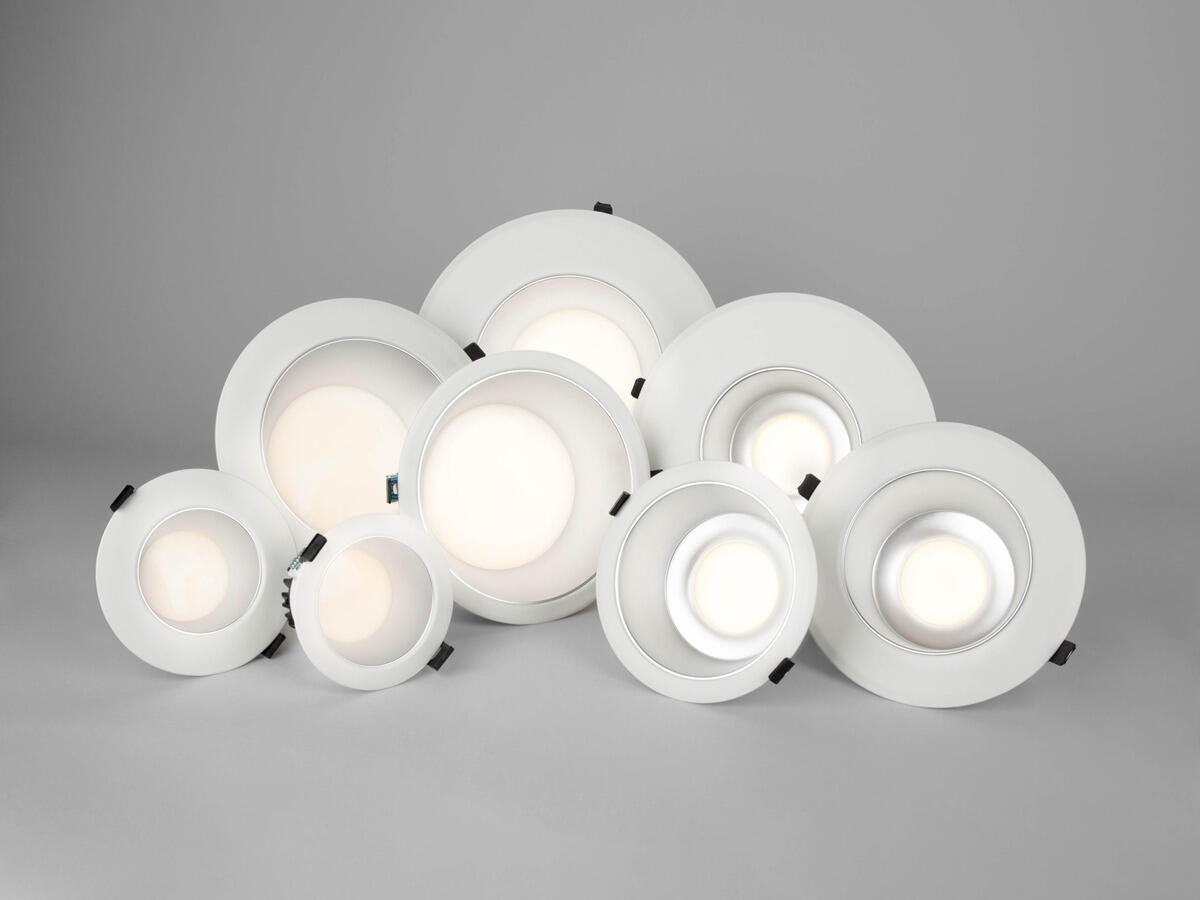

GTIN	Item Name	Type of Dimming
7392971141305	Echo M 170 White	DIP-Switch Power, Trailing Edge, Leading Edge
7392971141312	Echo M 170 White DALI	DIP-Switch Power, Push 230V, 1-10V, DALI 2
7392971148236	Echo M 215 White	DIP-Switch Power, Trailing Edge, Leading Edge
7392971148243	Echo M 215 White DALI	DIP-Switch Power, Push 230V, 1-10V, DALI 2
7392971148250	Echo M 270 White	DIP-Switch Power, Trailing Edge, Leading Edge
7392971148267	Echo M 270 White DALI	DIP-Switch Power, Push 230V, 1-10V, DALI 2

Description: GTIN 7392971141305

Item Name Echo M 170 White

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 1870

Light Source LED

Light Source Included Yes

Replaceability Replaceable LED by professional, Replaceable Control gear by professional

LED Colour White

Colour Temperature (K) 3000, 4000, 5700

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

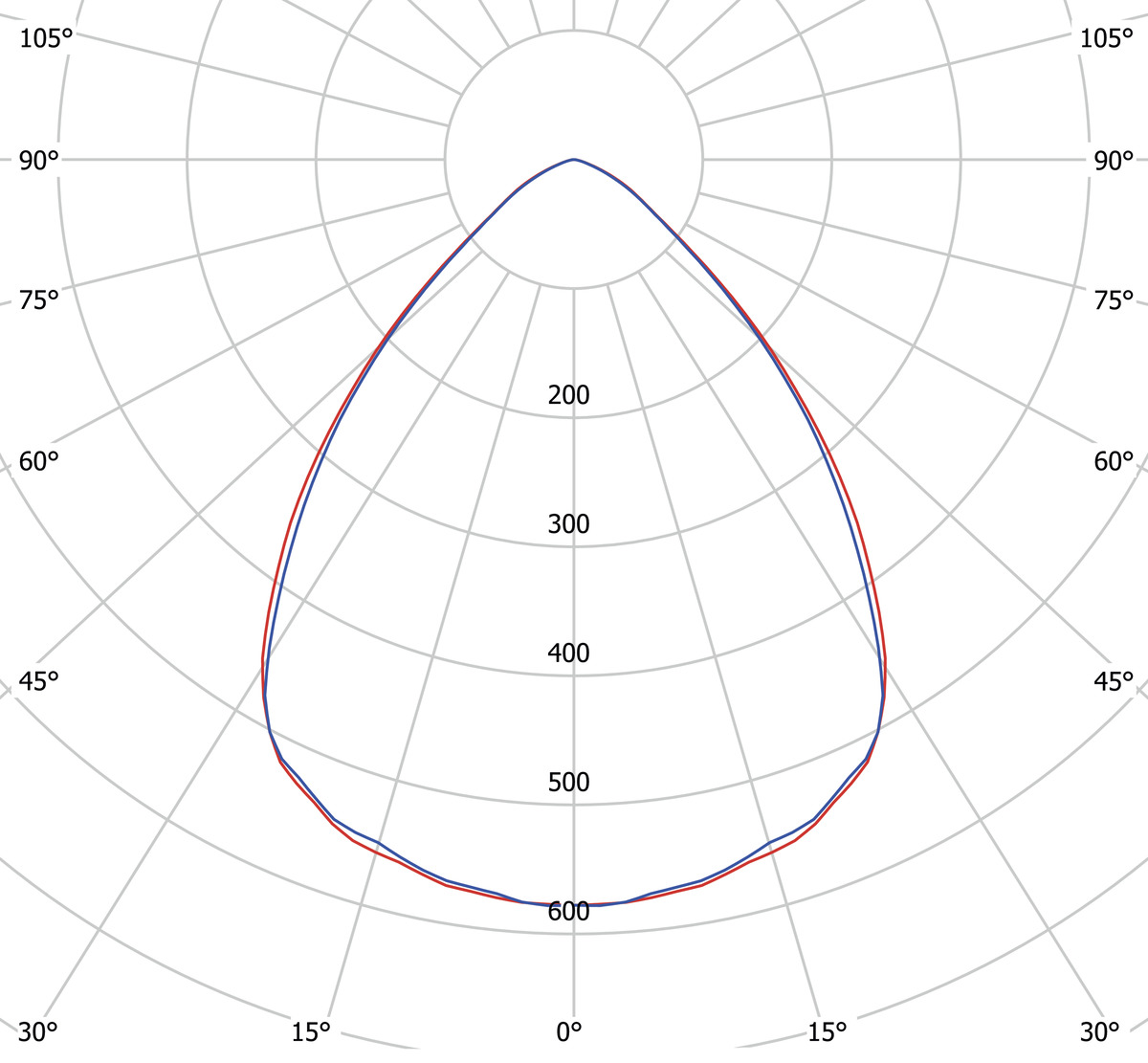

Luminous Intensity (cd) 1080

Beam Angle (°) 85

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 120

Life Time L80 50 000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L80

Lumen maintenance 75 000h L71

LLMF @ 50 000h 0,8

Life Time Driver 50 000h/10%

Flicker (PstLM) 0,006

Stroboscopic effect (SVM) 0,055
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 16

Power Luminaire (W) 20

System Power (W) 20

Efficiency Luminaire (lm/W) 94

Efficiency System (lm/W) 94

Containing light source energy efficiency class (EU) 2019/2015 E
Operation and Connection: Dimmable Yes

Type of Dimming DIP-Switch Power, Trailing Edge, Leading Edge

Driver Included Yes

Driver Model Constant Current

Driver Type Stand Alone

Driver Manufacturer Hide-a-lite

Connection (type) Quick Terminal

Connection (mm2) 4x0,5-2,5

Through Wiring Yes

Strain Relief Yes

Power Factor ʎ 0,9

Efficiency (%) 82

Power loss (W) 3,5

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,5

Constant Current (mA) 300, 400, 500

Operating Temperature -20…+40

Max. Tc (°C) 85

Dimming secondary side AM

Suitable for random switching Yes

Memory Function Power Failure No

Inrush current (max/time) 2,6A 50µs

Mains surge protection DM (kV) 1

Mains surge protection CM (kV) 2

Fuse B10 (pcs) 33

Fuse B16 (pcs) 52

Fuse C10 (pcs) 55

Fuse C16 (pcs) 88
Color and material: Material Aluminium

Color White

Environmental Assessment Byggvarubedömningen

Available in special color Yes
Measurement and installation: Operating Environment Indoor / wet locations, Outdoor

IP Degree of Protection 44

Protection Class II

Installation Built-in

Mounting Installation Mounting Spring

Ceiling Thickness Interval (mm) 5-40

Fire Safety Marks Not in insulation without protection cover

Approval Marks CE, a Hide-a-lite Choice

Filament Test IEC 695-2-1(°C) 650

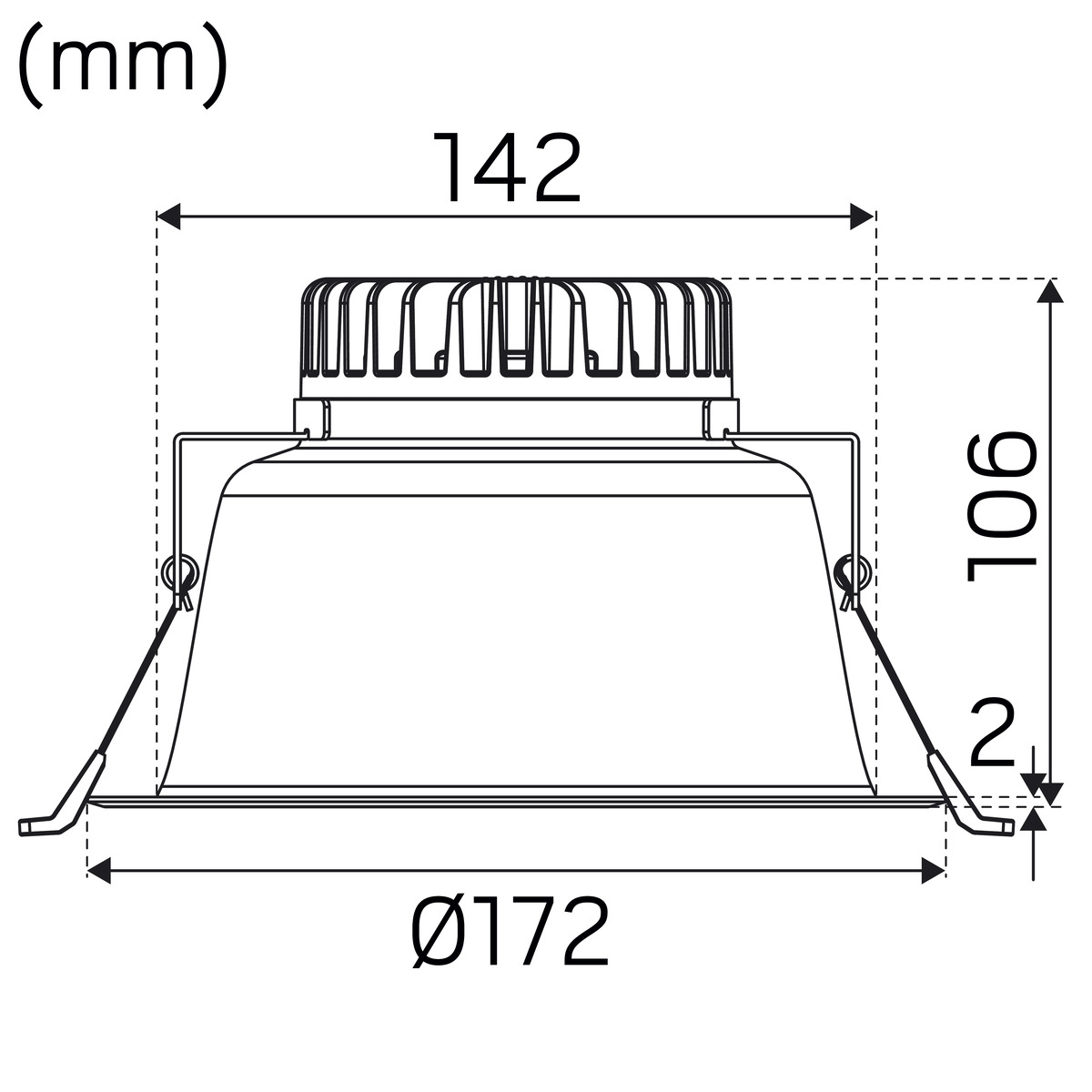

Height (mm) 106

Diameter (mm) 172

Weight (kg) 0,74

Min. Built-in (mm) 400x300x115

Height Recessed Part (mm) 104

Height Exterior Part (mm) 2

Built-in Ø (mm) 144-158

Spare parts

If you need spare parts, contact our customer support

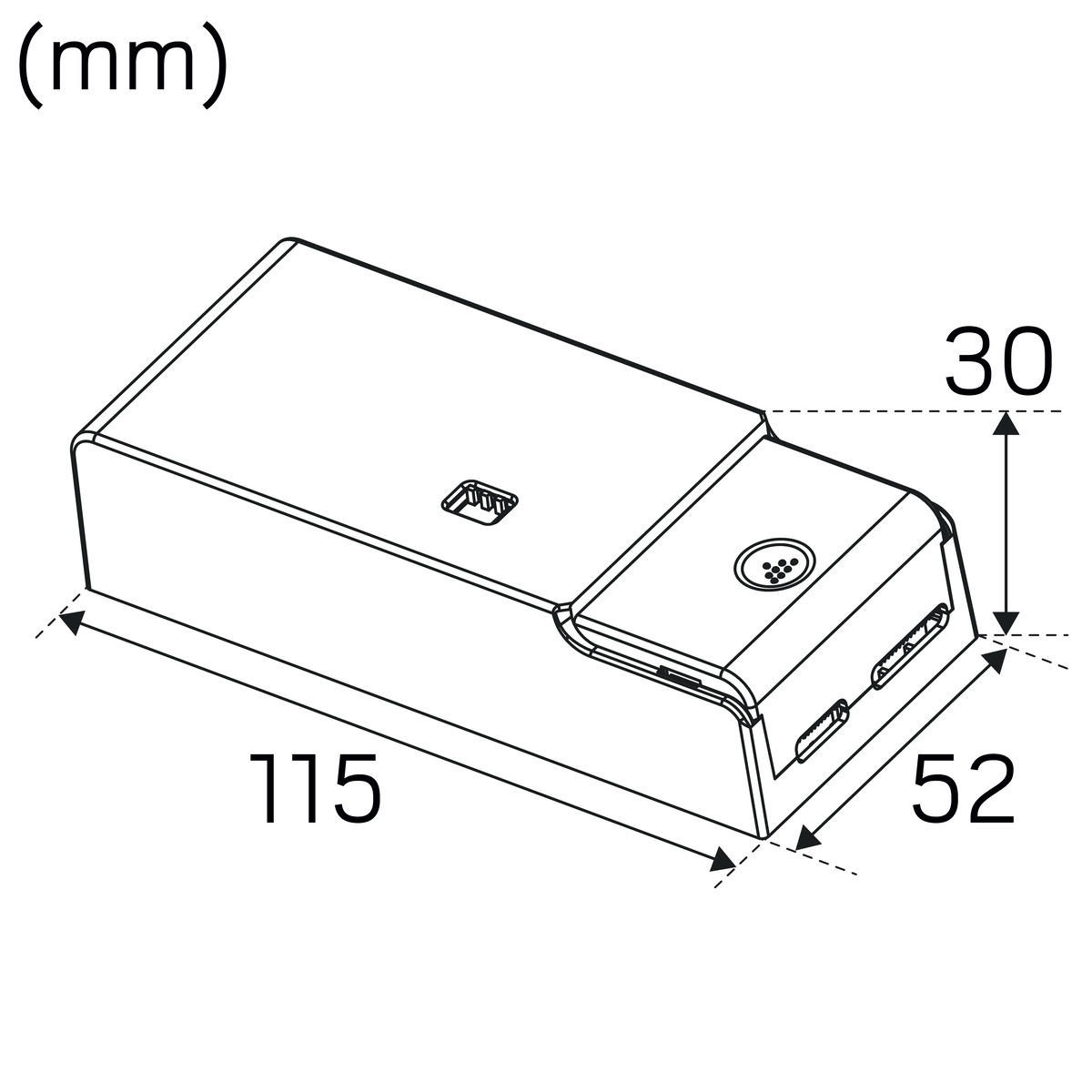

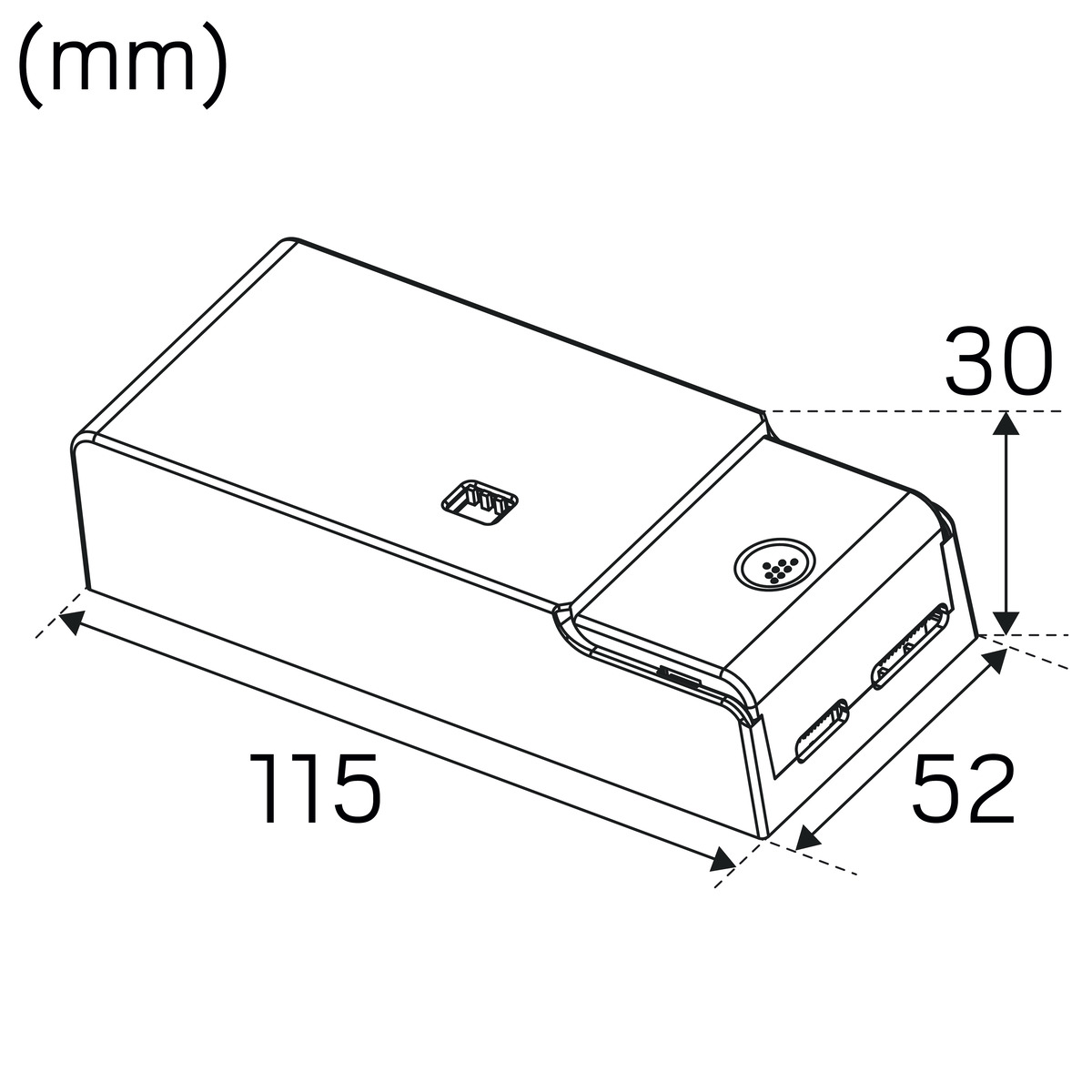

Driver Echo M FDIM X169
LED-Module Echo M X237
